1.8mx2.4m garrison fence panels:18 Powerful TRAPS Read Now

1.8mx2.4m garrison fence panels are chosen because they deliver strong perimeter control, a clean modern look, and a clear “security feel” without the harsh appearance of chainwire. The real danger is that many panels look identical in photos, yet behave completely differently after installation. A slightly thinner rail wall, a lighter upright, the wrong upright count, or under-built posts can turn a straight boundary into a noisy, wavy run that attracts complaints, triggers rejection, and forces rework when schedules are already tight.

POLYMETAL treats 1.8mx2.4m garrison fence panels as a complete system, not random panels: panel geometry, rail frame size, wall thickness, upright profile and density, post pairing, and finish protection are controlled together so installers don’t have to “fix it on site” with crooked lines, uneven spacing, or rattling joints.

Brand Overview: POLYMETAL 1.8mx2.4m garrison fence panels

POLYMETAL supplies 1.8mx2.4m garrison fence panels as a matched perimeter package designed to stay straight across long runs. Instead of selling “panels only,” POLYMETAL locks the details that decide real-world outcomes: rail stiffness, upright density discipline, correct post sizing, controlled surface preparation (including phosphate treatment where specified), and packing protection that keeps panels acceptance-ready instead of arriving scratched or damaged.

Product Description: POLYMETAL 1.8mx2.4m Garrison Fence Panels

POLYMETAL 1.8mx2.4m garrison fence panels are manufactured from welded tubular rails and uprights to form a rigid security panel with a clean architectural profile. The common heavy-duty build uses a 40×40mm rail frame with 1.60mm rail thickness and vertical uprights such as 25×25mm (often 1.20mm thick) to balance stiffness, appearance, and handling durability. Upright density is controlled by locking upright count and a 100mm spacing target, typically using 18 uprights for tighter gap discipline, or 17 uprights where the project needs a slightly more open visual rhythm but still requires consistent repeatability.

Finish performance is where “looks good today” becomes “still looks good after handling.” For public-facing work, phosphate pretreatment and controlled powder coating thickness help prevent early chalking, scratches, and coating failure at edges and weld zones. To protect straightness and reduce long-term leaning, posts are paired with the practical stability rule: post height is panel height + 600mm. Post options typically include 60×60mm, 65×65mm, 75×75mm, 80×80mm, and 100×100mm sections with wall thickness choices of 1.6mm, 2.0mm, or 2.5mm depending on fence height, wind exposure, and abuse level.

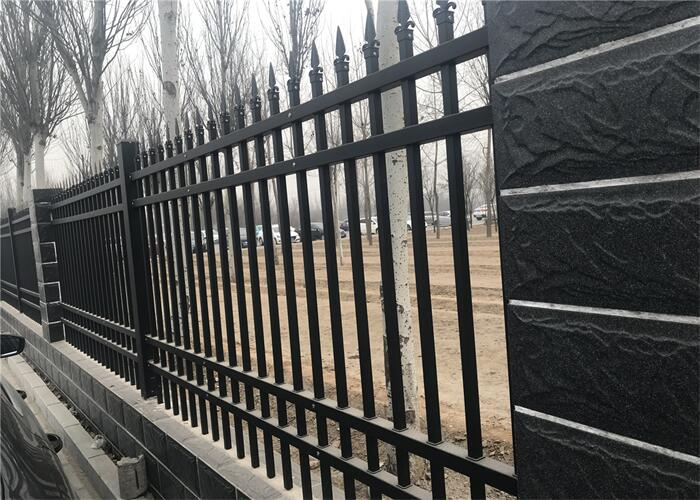

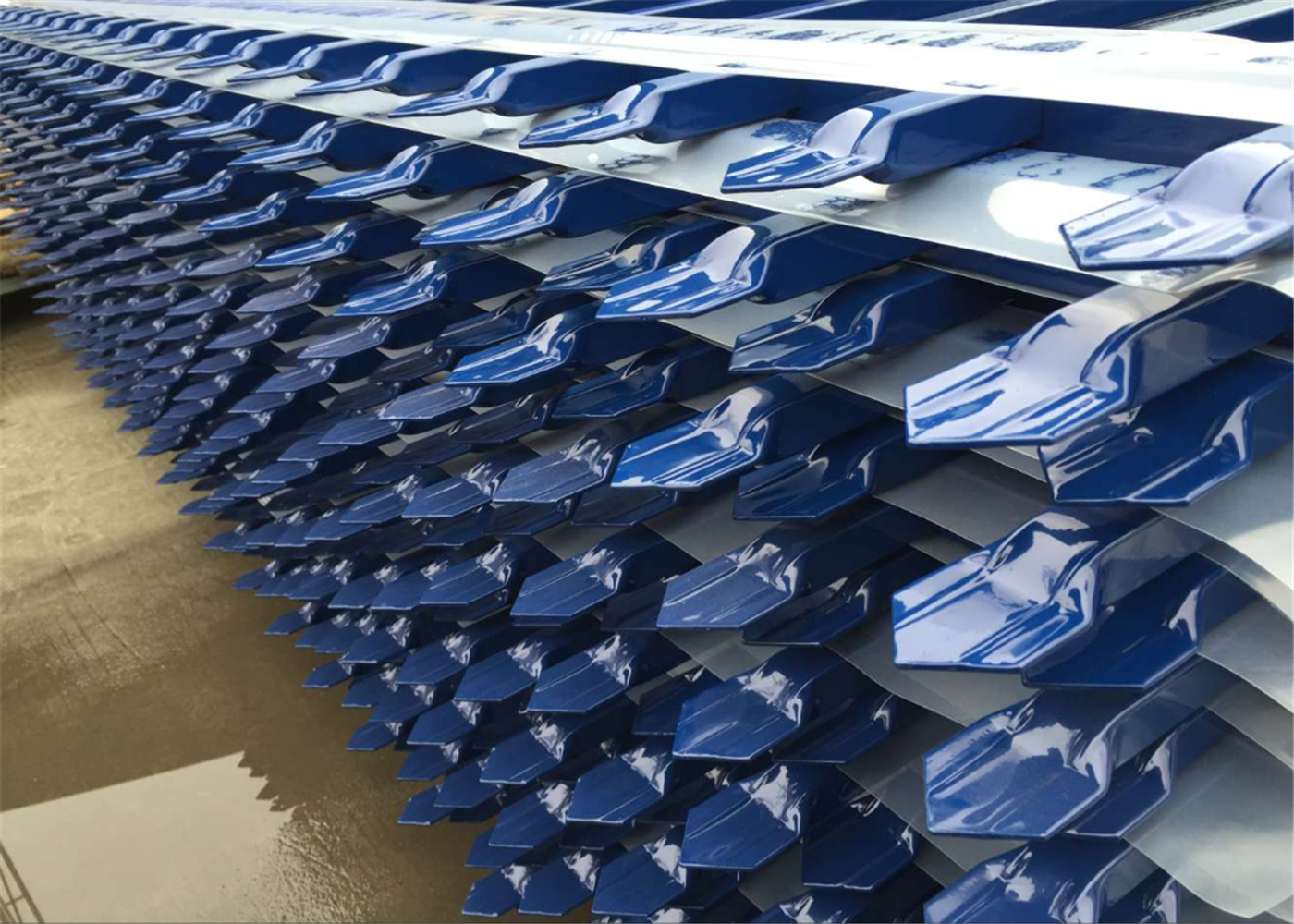

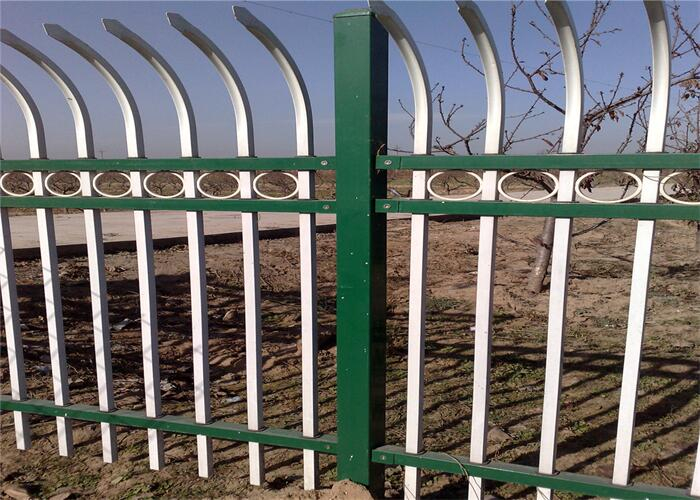

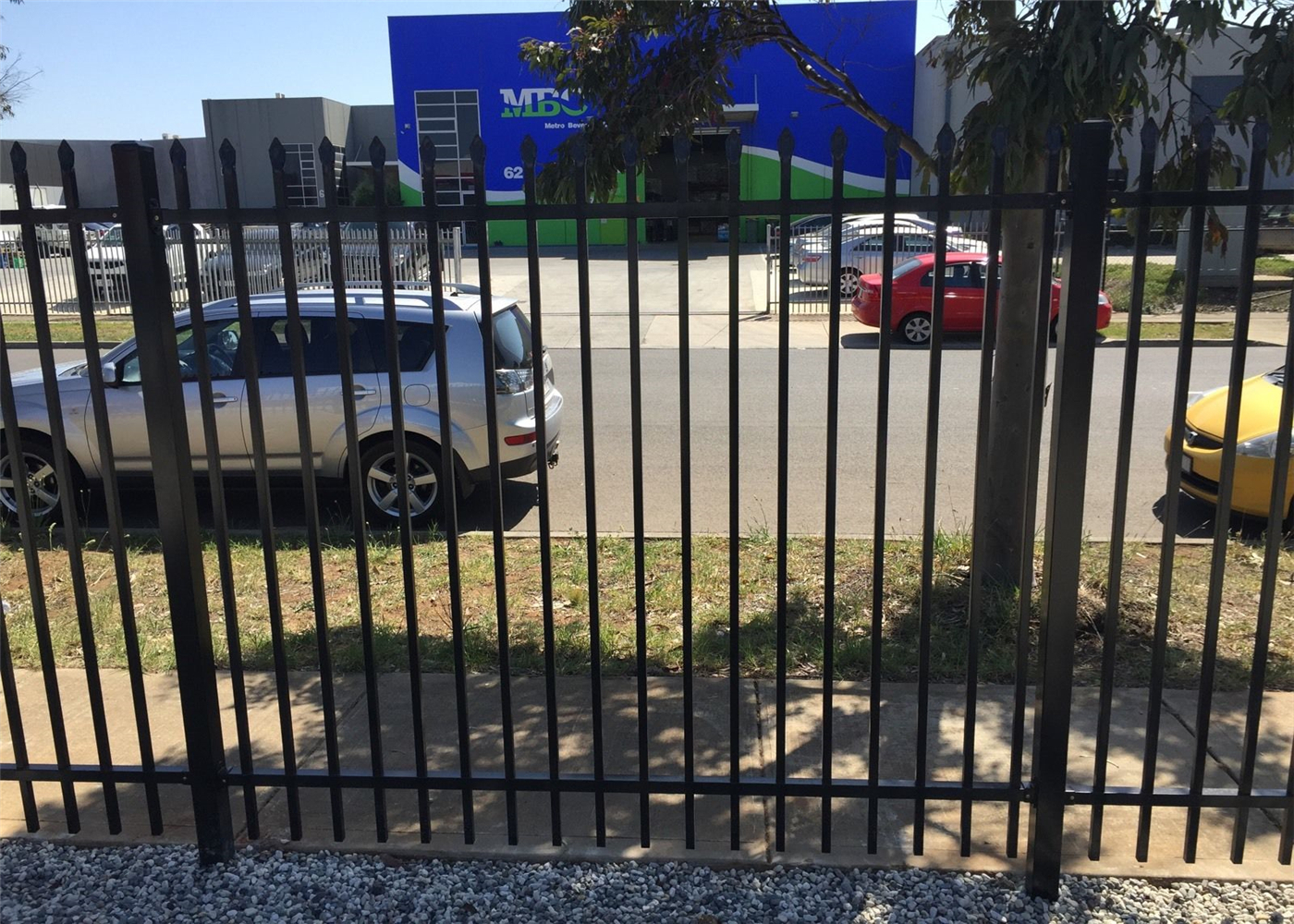

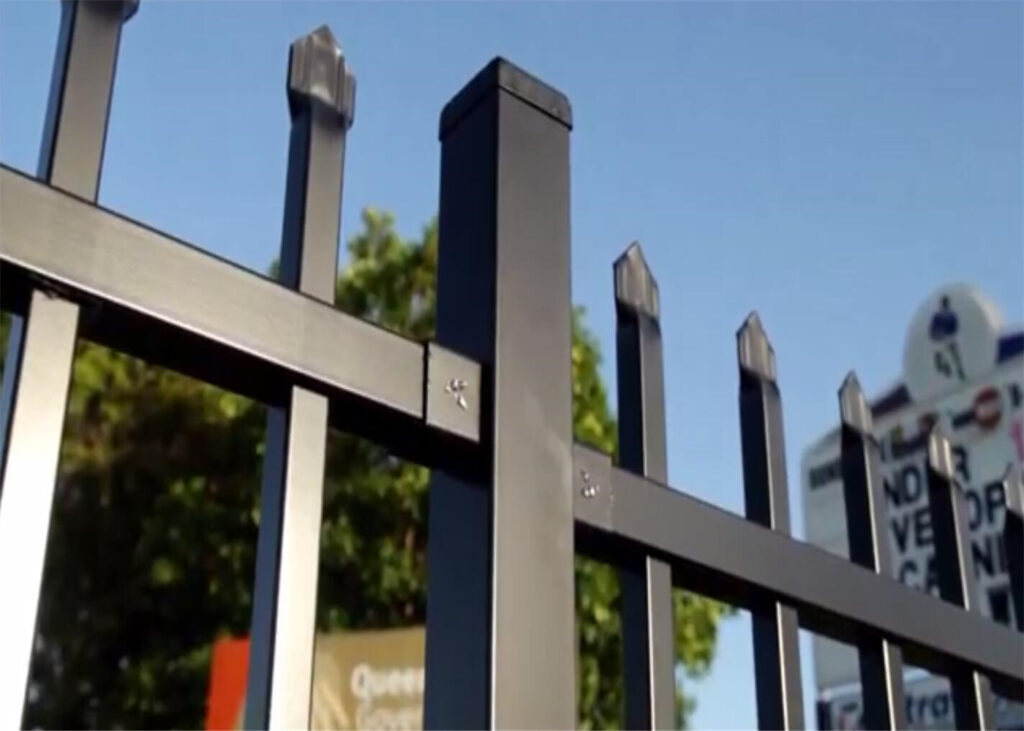

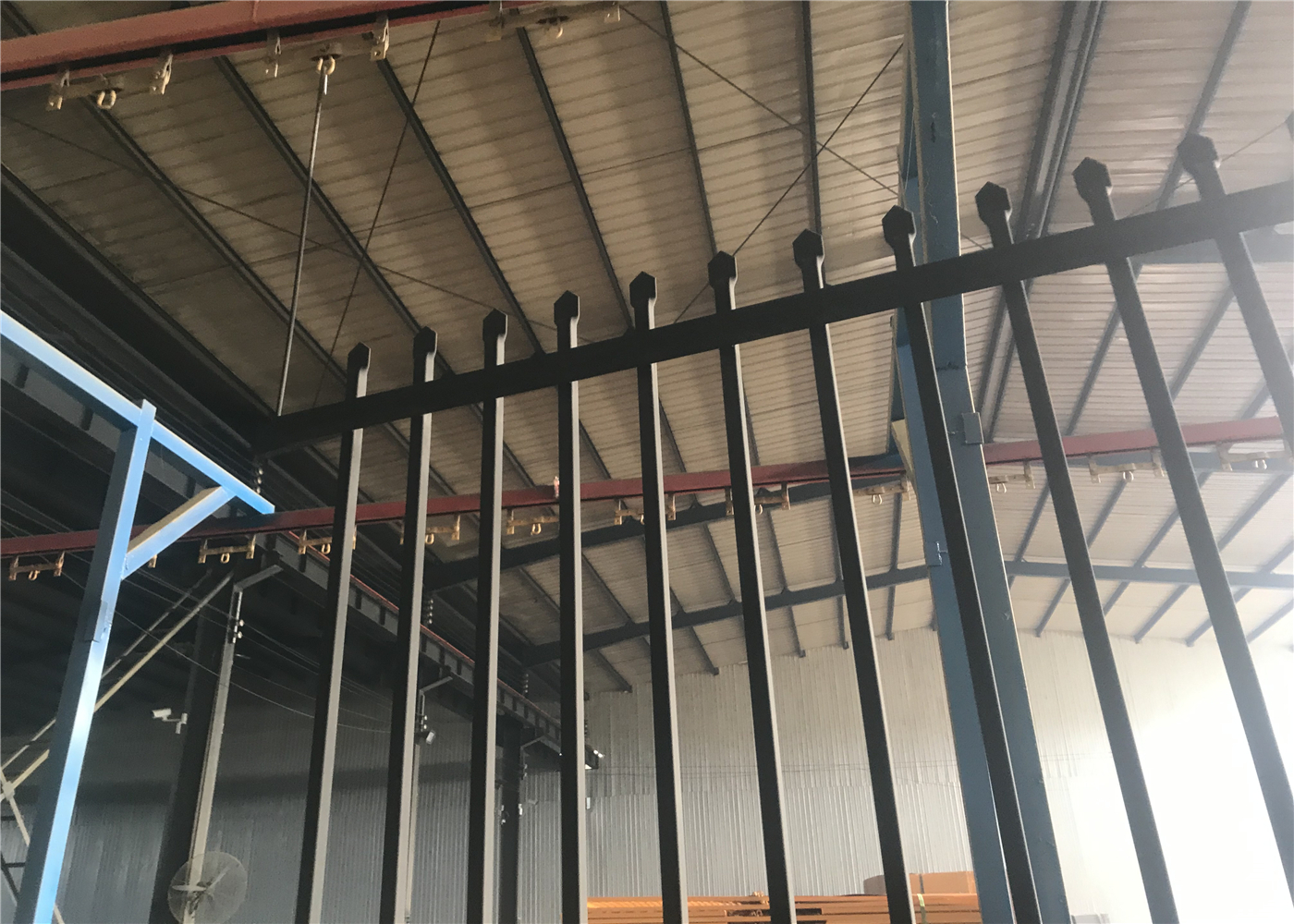

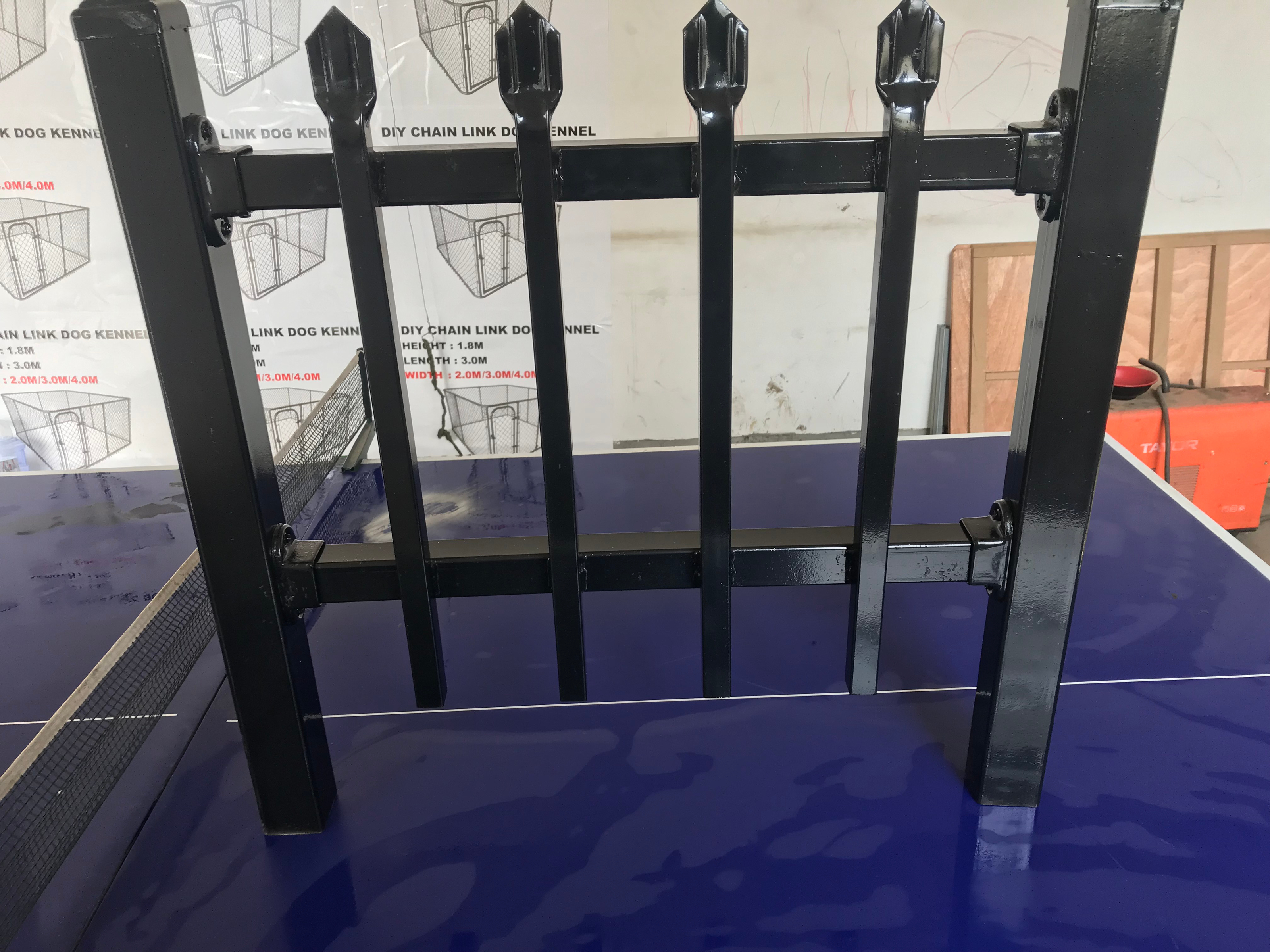

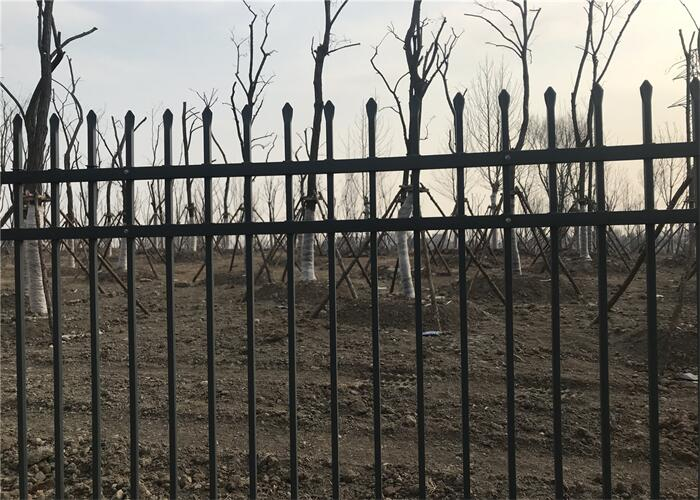

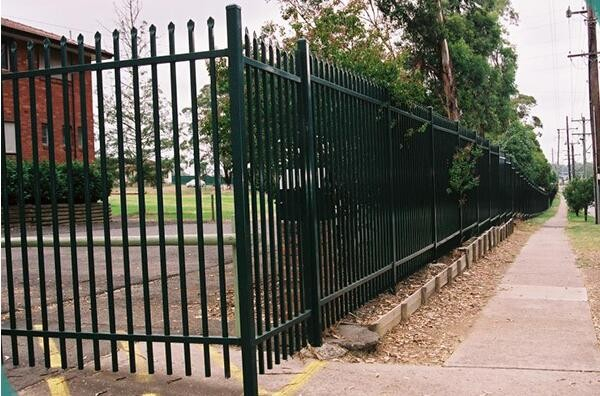

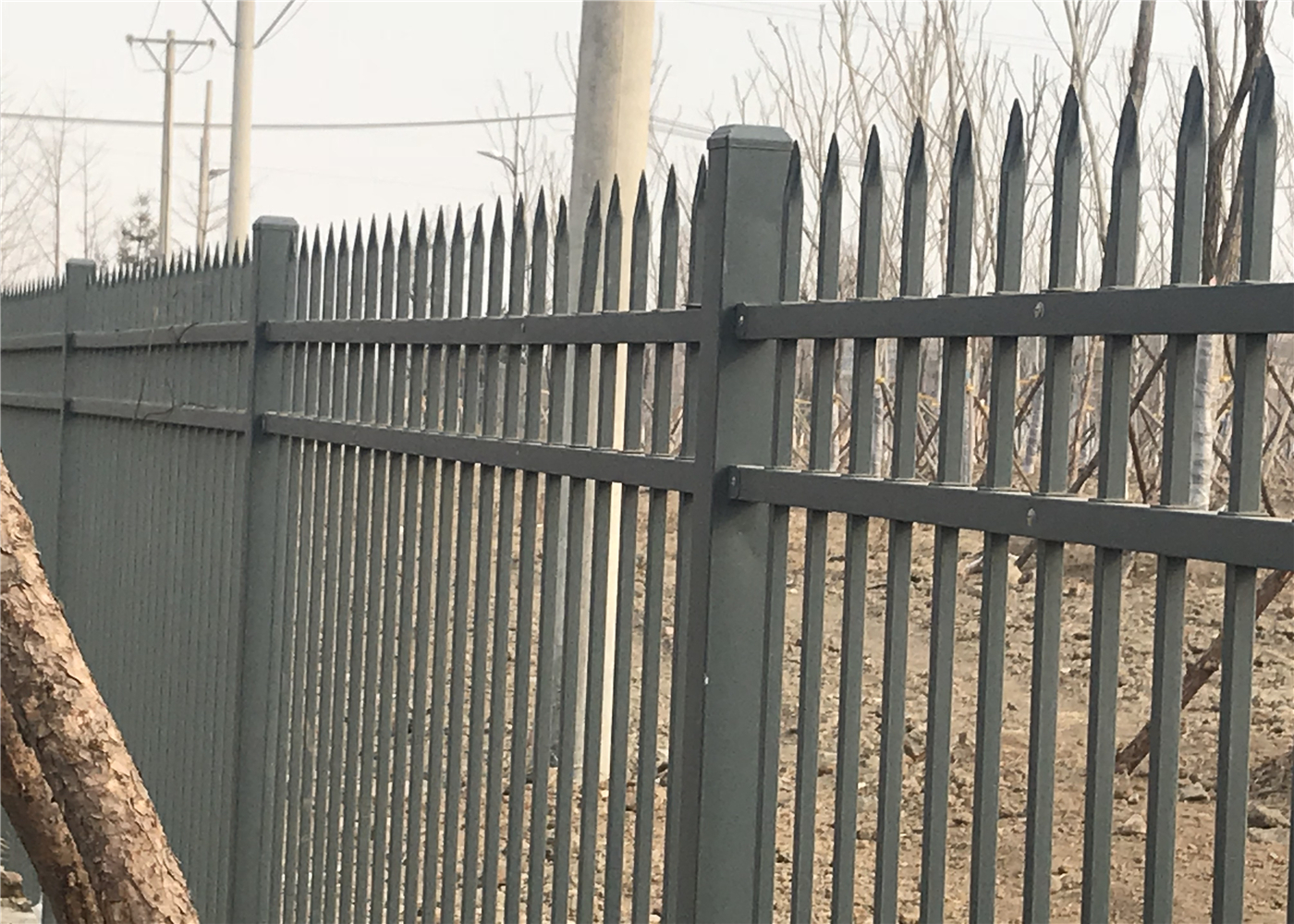

Visual Reference (Keep Original Photos)

Garrison Security Fence Panels Crimped Spear-Punched Rails Rails:40mm*40mm*1.60mm H/1800mm W/2400mm Upright Picket :25mm*25mm*1.2mm*16 pieces Spacing: 140mm upright centre to centre Post :SHS80mm*2.00mm wall thick*2500mm Accessories: Rail bracket 4 set plus screw 16 pieces Welding: Silicon bronze& stainless steel full welding Finish: HDG tubing then INTERPON powder coated minimum 80 microns 40HC container loading :4 pallet x 88 pieces =352 pieces

Garrison Security Fence Panels Crimped Spear-Punched Rails Rails:40mm*40mm*1.60mm H/2100mm W/2400mm Upright Picket :25mm*25mm*1.2mm*16 pieces Spacing: 140mm upright centre to centre Post :SHS80mm*2.00mm wall thick*2800mm Accessories: Rail bracket 4 set plus screw 16 pieces Welding: Silicon bronze& stainless steel full welding Finish: HDG tubing then INTERPON powder coated minimum 80 microns 40HC container loading :4 pallet x 78 pieces =312 pieces

Note: Special specification is available at your request. For strict project control, POLYMETAL can lock your spacing plan (100mm target), upright count (16/17/18), and post-height rule (panel + 600mm) as non-negotiable production requirements to avoid “similar but not the same” shipments.

Specifications: 1.8mx2.4m Garrison Fence Panels

Table 1: 2400mm Width System Builds (Including the 1.8mx2.4m Focus)

Table 2: 2450mm Width System Builds (Set-Out Flex for Projects)

Table 3: 1.8mx2.4m Stability + Upgrade Map (Lock Straight Runs, Reduce Rattle)

Applications: 1.8mx2.4m Garrison Fence Panels

1.8mx2.4m garrison fence panels are widely used for villas and residential estates, schools and public facilities, commercial frontages, warehouses and factories, industrial site boundaries, gardens and community perimeters, sports venues, convention centers, and public-facing boundaries where a clean look must still communicate strong perimeter control.

Benefits: What a Correct System Delivers

When rail frame size and rail wall thickness are correctly specified, the fence line stays straight across long runs instead of forming visible wave lines. When upright count and spacing are locked, the fence presents as consistent and professional instead of “patched.” When posts are paired correctly and the post height rule (panel + 600mm) is respected, long-term leaning risk drops sharply. When phosphate pretreatment and controlled powder coating are used, the finish stays acceptance-ready instead of arriving scratched or chalking early. The net benefit is not only security—it is lower rework risk, fewer complaints, and smoother handover on tight schedules.

Packing: How POLYMETAL Prevents Arrival Damage

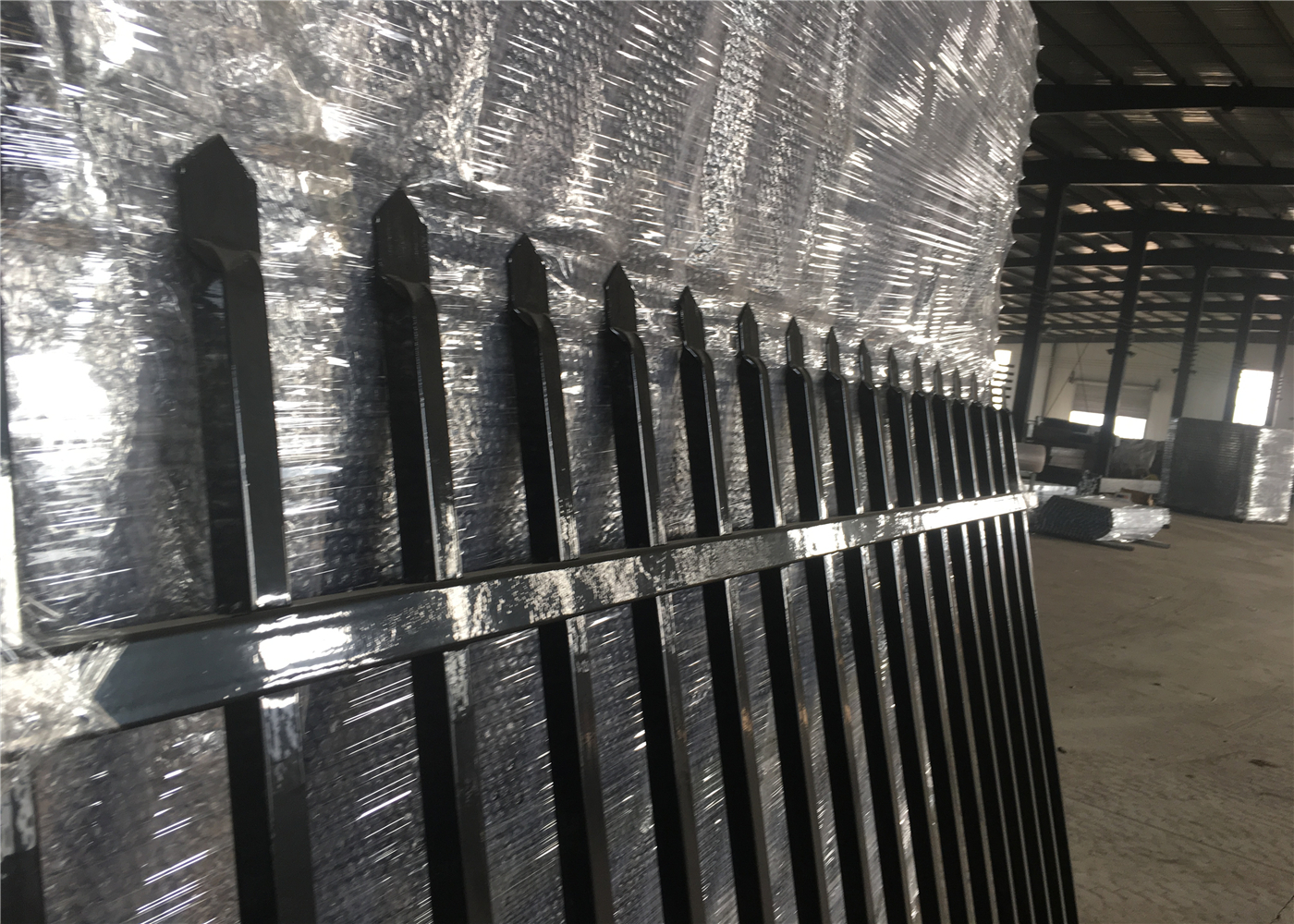

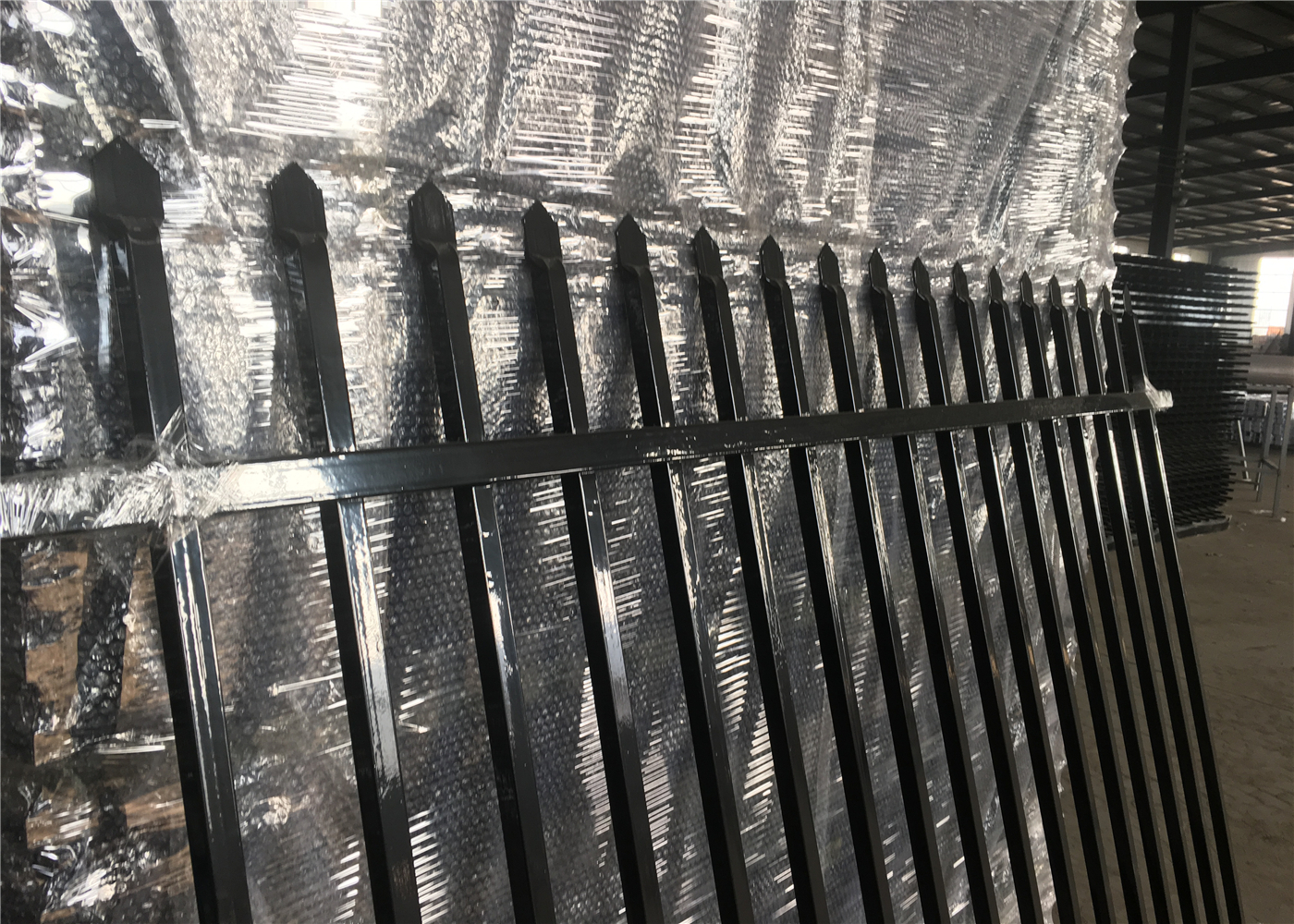

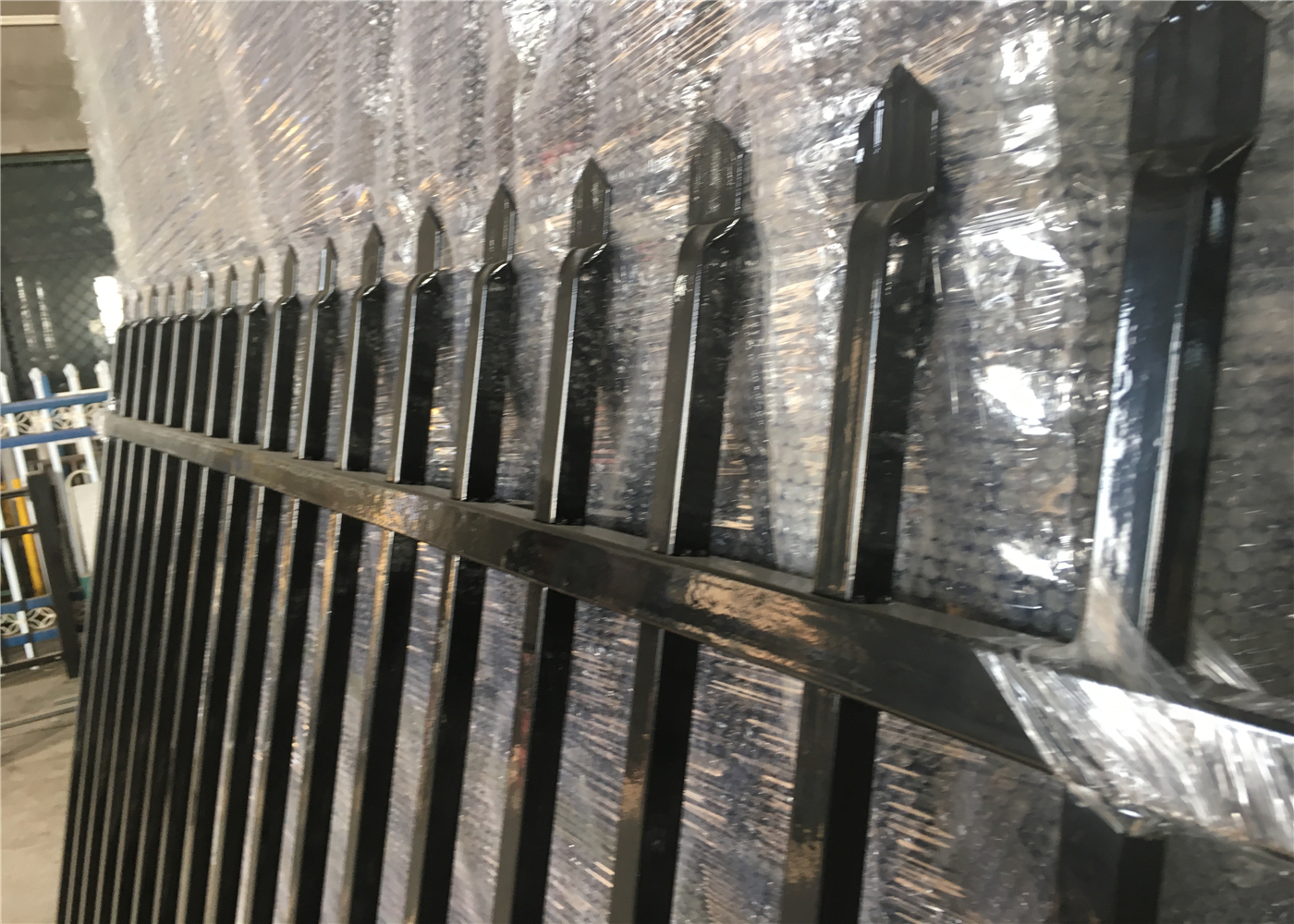

Packing is treated as part of performance. Panels can be separated with protective plastic foam, then wrapped to reduce rubbing, corner scuffing, and coating scratches. For container loading, panels are commonly palletized (often around 30 pcs per pallet depending on build) and strapped to keep geometry stable. Hardware such as brackets, screws, and caps can be packed by complete set to prevent missing-part delays that force unsafe on-site improvisation. This is how “looks perfect in the factory” stays clean when it reaches site.

Standard and Quality Control

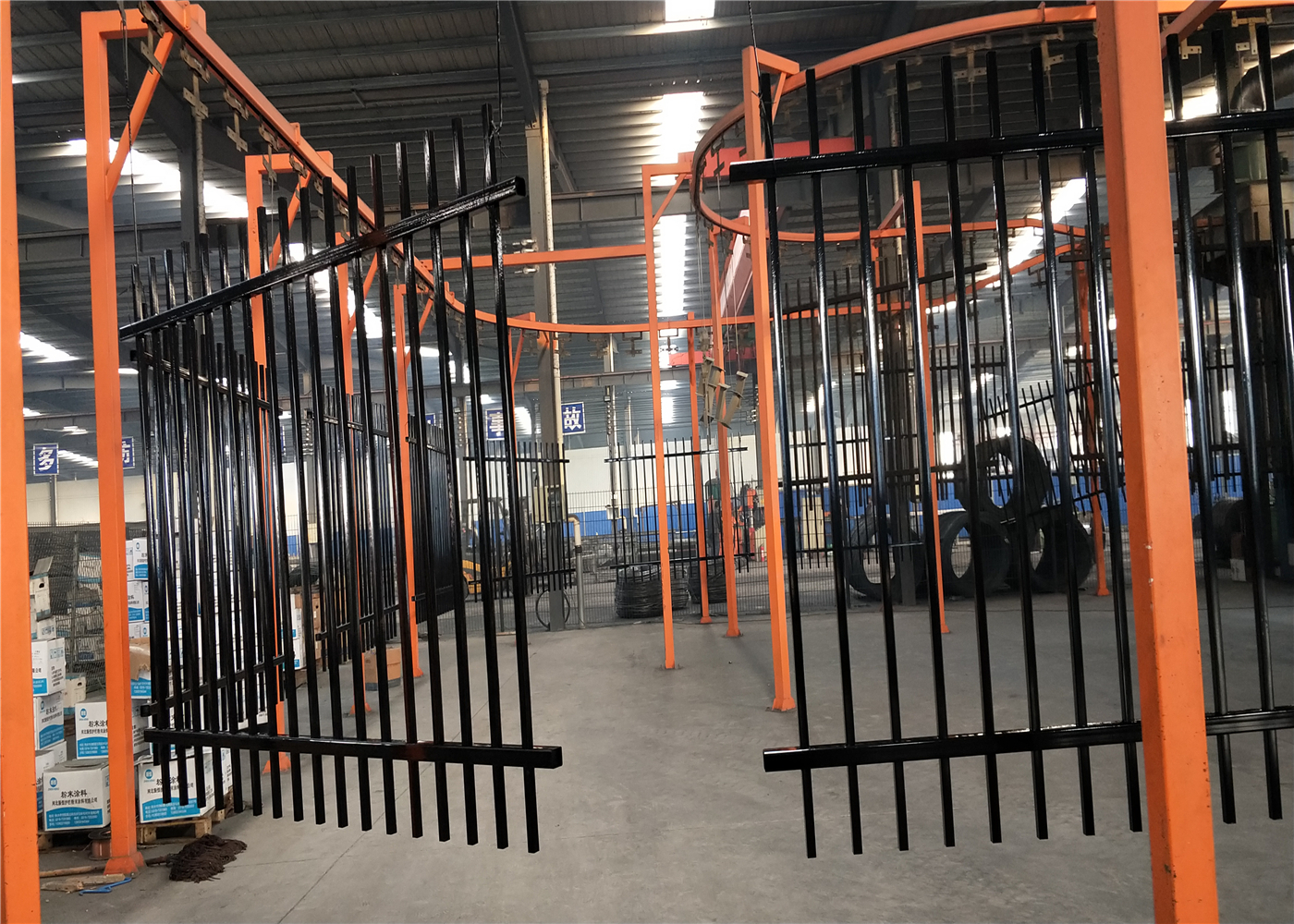

POLYMETAL production follows a practical control flow: raw material selection → cutting → punching and jig positioning → full welding → weld cleanup → phosphate/surface preparation (where specified) → powder coating → inspection → protective packing. Quality control focuses on weld integrity, dimensional repeatability (so panels align cleanly), finish adhesion (to reduce peeling and chalking), and post pairing discipline to avoid rotation and drift over time.

Top 18 TRAPS for 1.8mx2.4m Garrison Fence Panels (Especially #15)

TRAP #1: Buying by photo and ignoring rail thickness

Thin rails flex, joints loosen, and the fence line becomes noisy and uneven.

TRAP #2: Using 40×40mm rails where 45×45mm or 50×50mm is required

Under-sized frames amplify vibration and reduce long-run straightness.

TRAP #3: Treating upright thickness as “minor”

0.80mm uprights bend in handling and never look straight again.

TRAP #4: Not locking upright count (16/17/18) in the order

“Similar spacing” becomes inconsistent gaps and a patchy look.

TRAP #5: Claiming 100mm spacing without a jig-controlled plan

Spacing discipline comes from count + jig positions, not guesswork.

TRAP #6: Mixing upright profiles (16×16 / 25×25 / 30×30) in one run

Even if color matches, the pattern doesn’t—rejection risk rises.

TRAP #7: Under-building posts and expecting panels to stay straight

Weak posts twist and rotate, which creates wave lines and loose fixings.

TRAP #8: Ignoring post wall thickness

Thin post walls twist at brackets and lose alignment over time.

TRAP #9: Breaking the post height rule (Panel + 600mm)

Shallow embedment is the fastest route to leaning and rework.

TRAP #10: Accepting poor panel squareness

Out-of-square panels can’t produce a clean straight line—even with good installers.

TRAP #11: Treating corners and ends as “standard posts”

Movement often starts at corners and spreads down the run.

TRAP #12: Using weak brackets or inconsistent fixing sets

Loose joints create rattle, drift, and visual defects across the frontage.

TRAP #13: Skipping phosphate pretreatment before powder coating

Bad adhesion leads to early peeling, chalking, and ugly edge failure.

TRAP #14: Allowing poor packing that rubs panels in transit

Scuffs become acceptance defects before the first panel is installed.

TRAP #15: The hidden LOSS—your 1.8mx2.4m garrison fence panels look great, then fail acceptance

This is the budget killer. Under-sized rails, under-built posts, inconsistent upright density, or weak finish protection can turn into rattles, leaning, and a wavy run after normal handling. That triggers rejection, rework, replacement panels, delayed handover, and reputation damage when timelines are already tight.

TRAP #16: Choosing powder coating without controlling thickness

Thin coating scratches during install, then looks old fast—dark colors show everything.

TRAP #17: Mixing batches without locking geometry

Small jig differences create visible steps and uneven top alignment.

TRAP #18: Buying panels only instead of a complete system plan

Panels without matched posts, spacing plan, fixings, and finish targets create on-site improvisation—and improvisation creates failure points.

FAQs: 1.8mx2.4m Garrison Fence Panels

FAQ 1: What is the most common size?

The most common project “workhorse” size is 1800mm height × 2400mm width (1.8mx2.4m garrison fence panels), selected for balanced security feel and manageable handling.

FAQ 2: Which rail frame is best?

40×40mm suits many standard boundaries, 45×45mm improves stiffness for cleaner long runs, and 50×50mm is preferred when rigidity and quiet joints matter most.

FAQ 3: How do I control the final look?

Lock upright count (16/17/18), upright profile, and a 100mm spacing target in the RFQ so every batch repeats the same face pattern.

FAQ 4: What post height should I choose?

Use the practical rule: post height is panel height + 600mm. For 1800mm panels, common post height is 2400mm.

FAQ 5: Why does pretreatment matter?

Phosphate pretreatment improves coating adhesion and reduces early peeling or chalking, which is a common “looks good then fails” cause on public-facing projects.

FAQ 6: How should panels be packed for shipping?

garrison fencing Panels should be protected from rubbing with separators/foam or film, palletized for stability, strapped for container safety, and hardware packed by complete set to prevent missing parts and on-site improvisation—just like stainless steel mesh 316L is typically specified with finish-protection and controlled packing to avoid transit damage that ruins performance and appearance.
