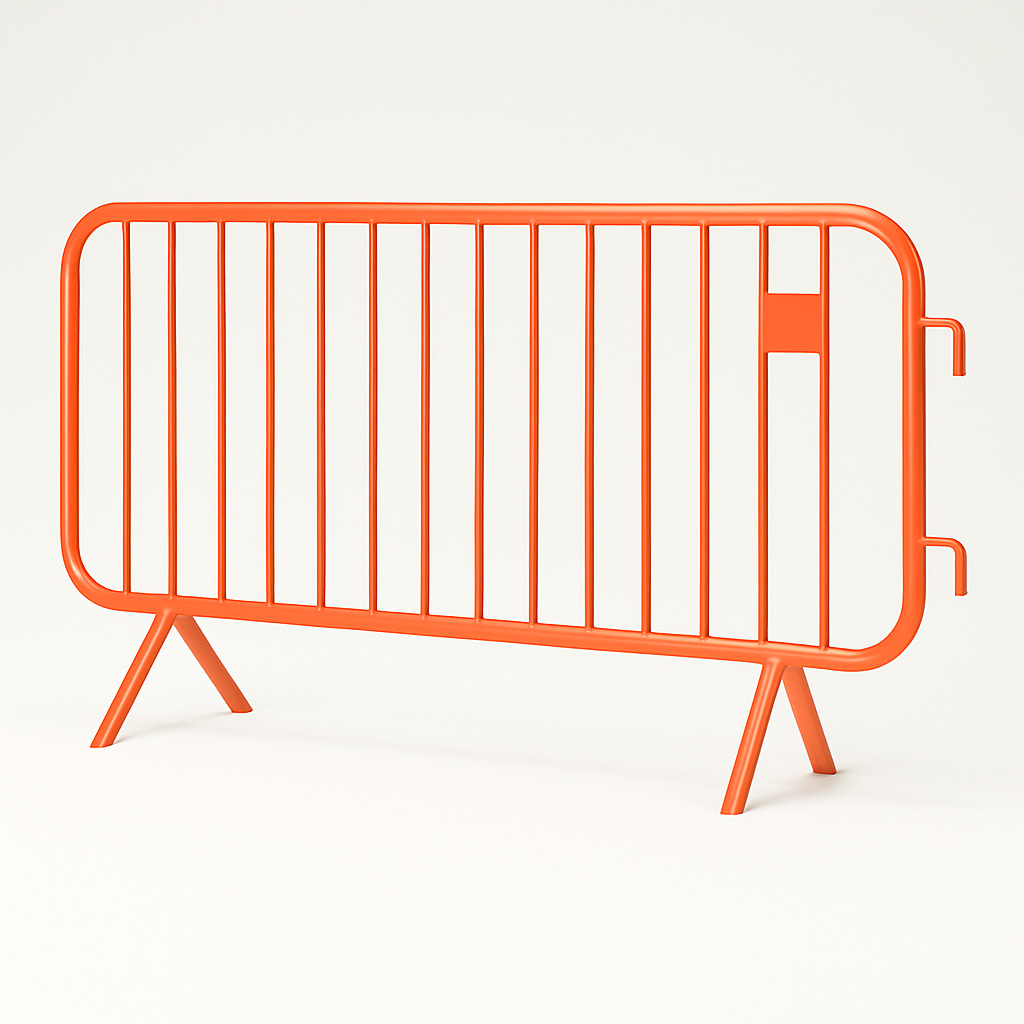

44×102 inch Crowd Control Barriers 15 Safety Facts Read Now

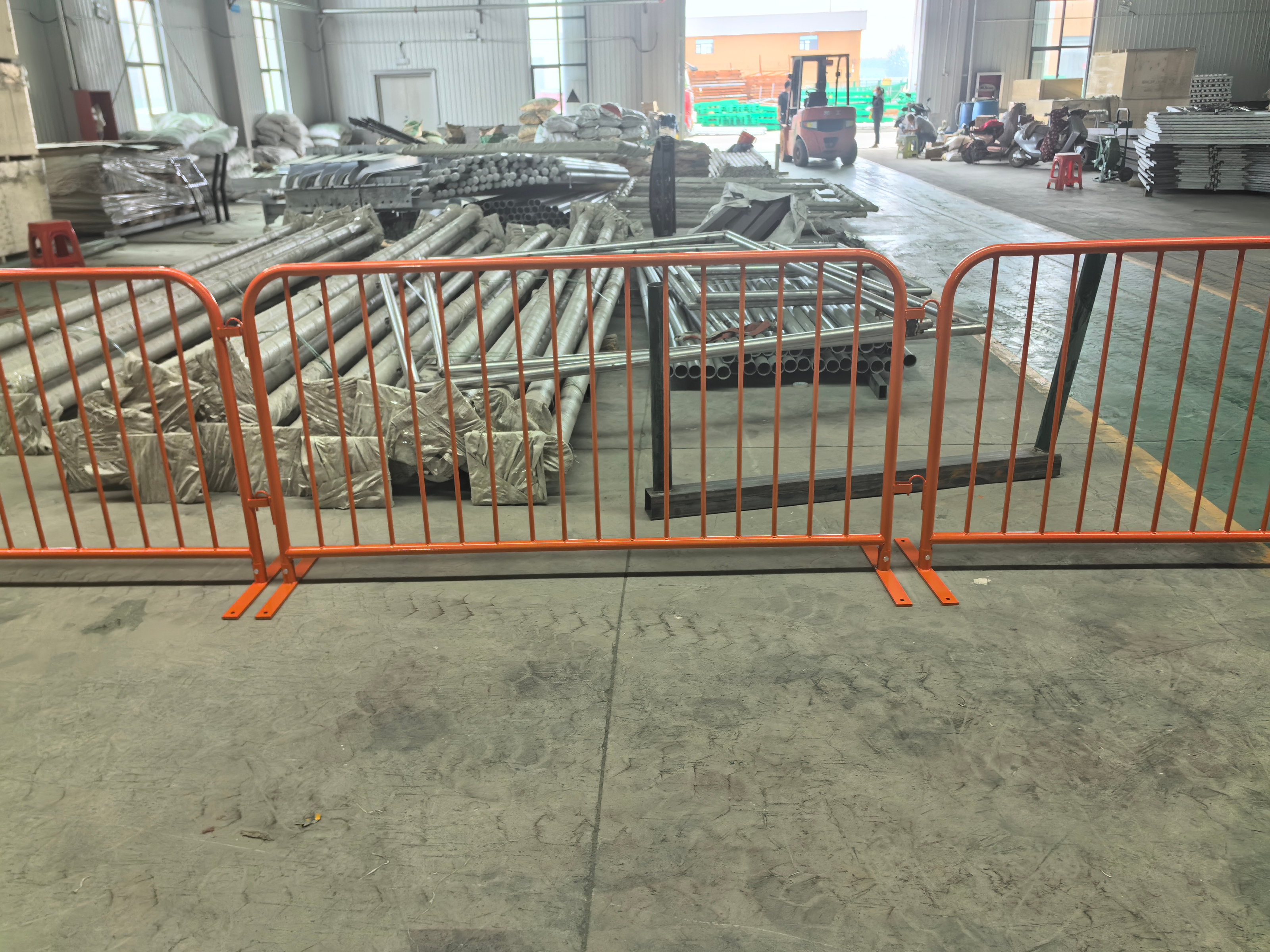

Among the most dependable barricade formats on the market, 44×102 inch Crowd Control Barriers from POLYMETAL are engineered as serious safety equipment, not decorative metalwork. Each barrier is built from marine-grade, hot-dip galvanized steel and designed to withstand harsh weather, dense crowds and repeated handling on demanding sites.

At approximately 44 inches (about 1120 mm) high and 102 inches (about 2590 mm) long, a single 44×102 inch crowd control barrier spans more distance than many standard units. This reduces the number of joints in your run and helps close potential gaps where people or vehicles might push through. The main frame uses 1.5″ (about 38 mm) diameter steel tube with a robust 16-gauge or equivalent wall thickness, forming a strong rectangle that resists bending, twisting and impact. Inside this frame, 21 vertical uprights are welded between the top and bottom rails to create a dense, protective grid that stops crowds while maintaining clear visibility.

All POLYMETAL 44×102 inch Crowd Control Barriers are hot-dip galvanized after fabrication and welding. The complete frame is submerged in molten zinc, creating a continuous rust-resistant shell over every weld, corner and inside edge. This heavy-duty coating provides long-term corrosion protection, making these barriers ideal for use along coastal roads, around industrial facilities, outside stadiums and on major construction projects.

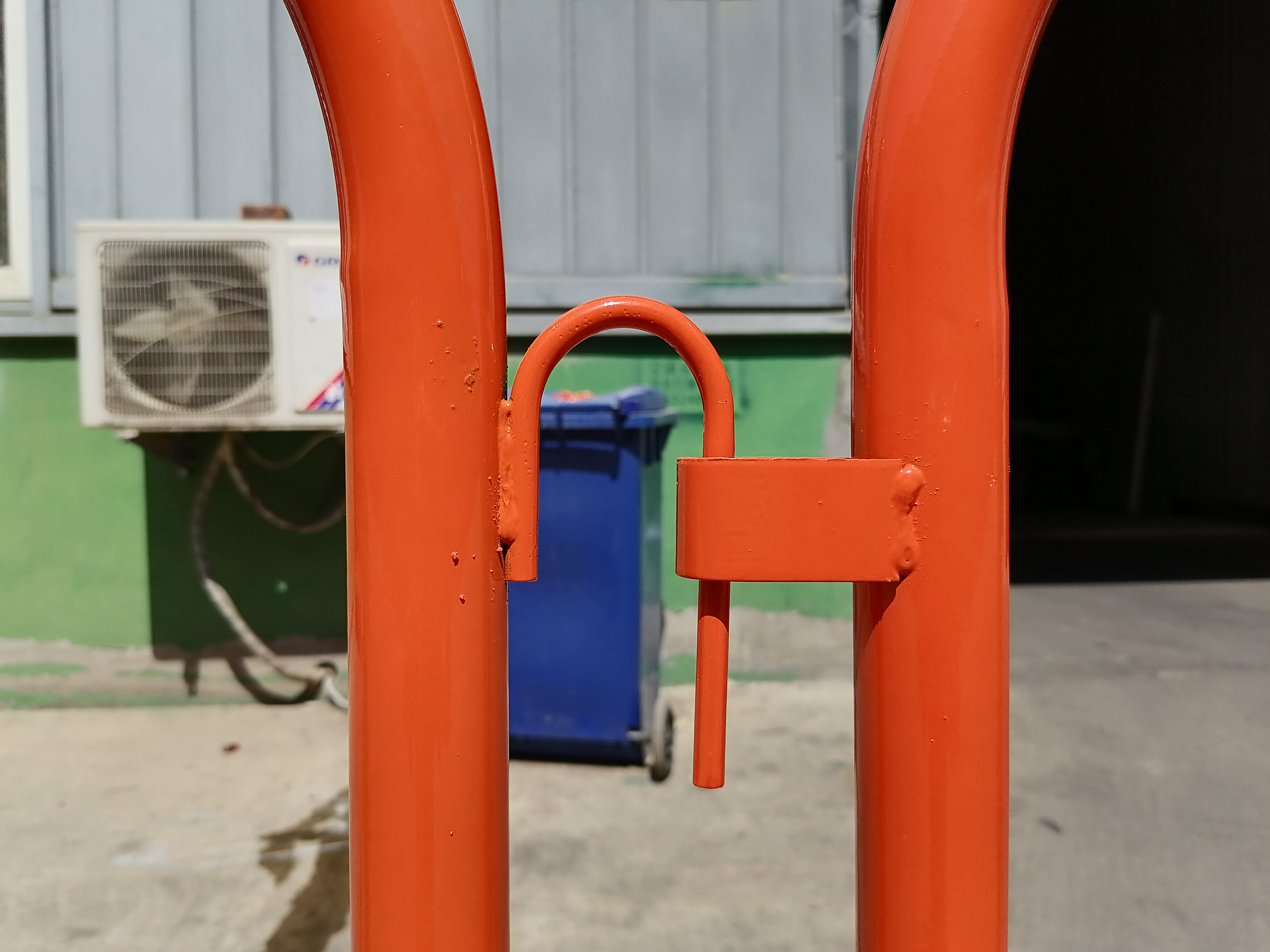

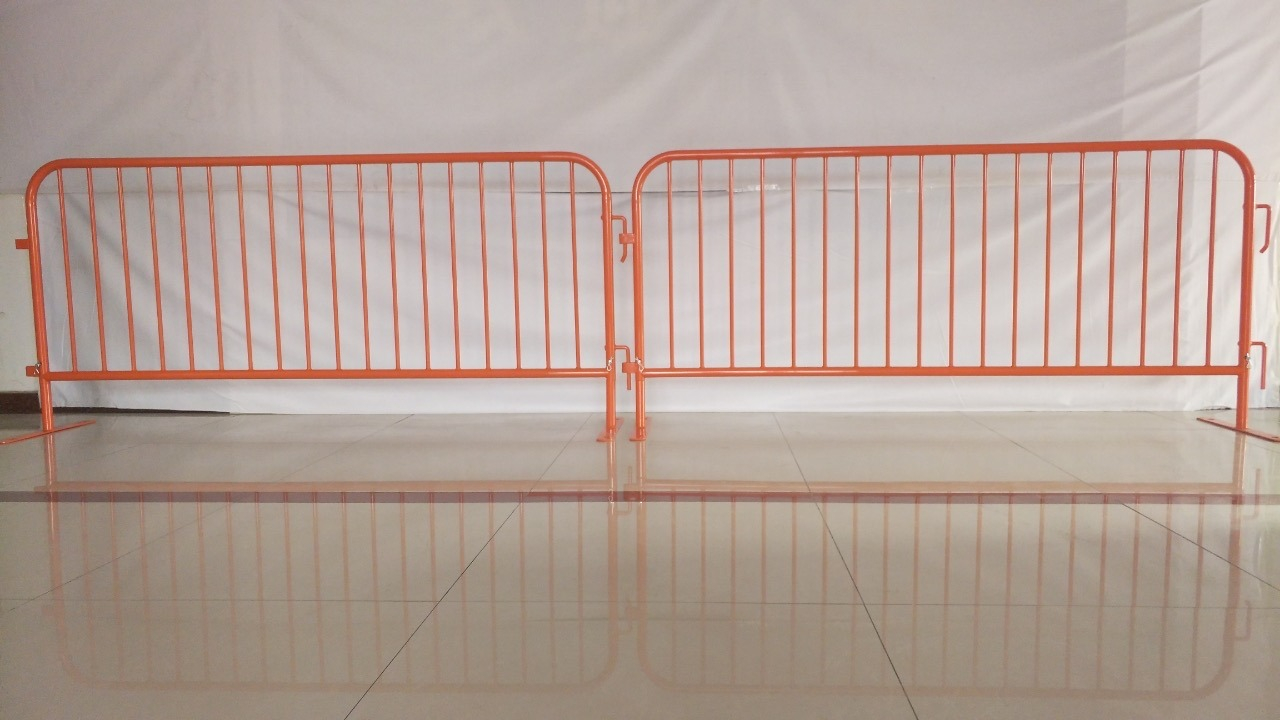

A simple interlocking hook-and-loop system allows each barrier to connect securely to the next. Two hooks on one end drop into two loops on the other, forming a continuous line that can only be opened from the ends. This design helps prevent casual separation in crowds and allows multiple 44×102 inch Crowd Control Barriers to behave as a single, stable system.

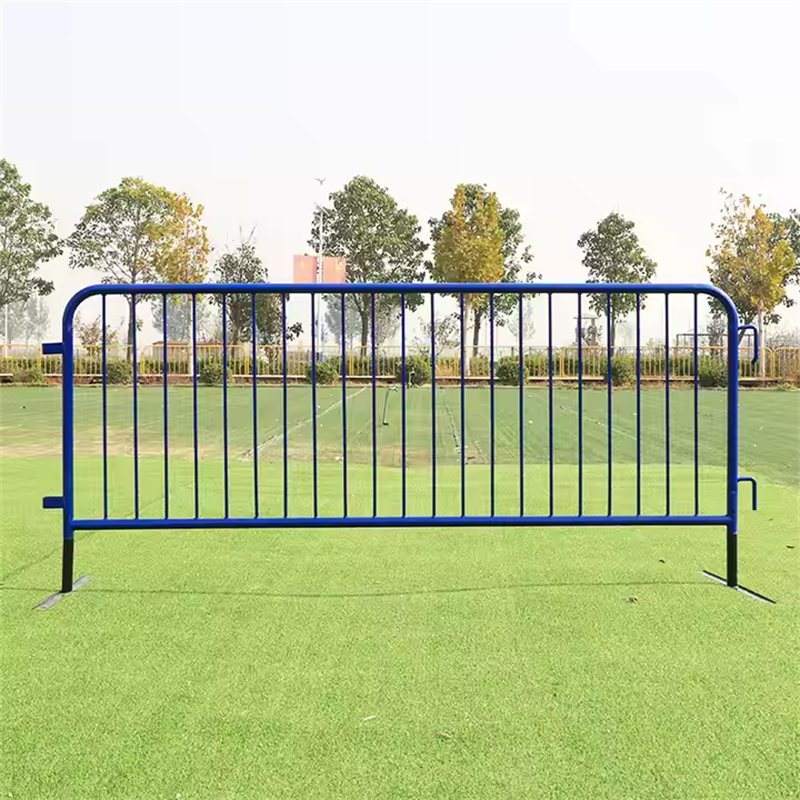

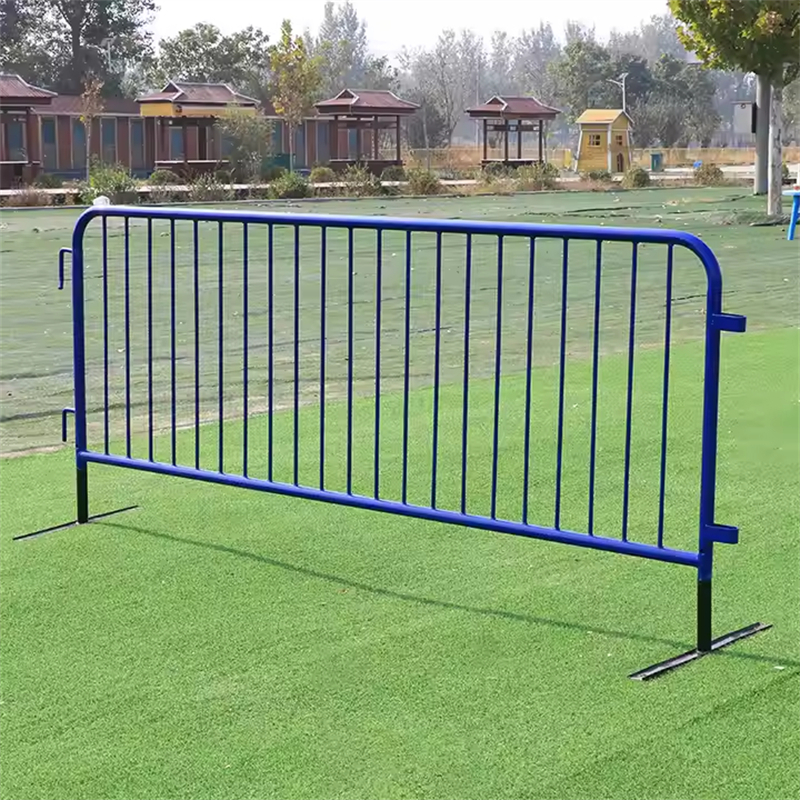

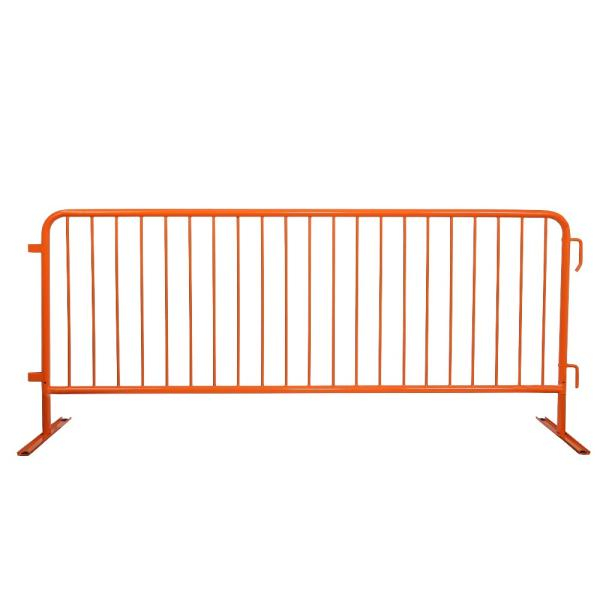

Every 44×102 inch crowd control barrier is supplied with removable feet. Bridge feet offer extra stability on uneven ground such as grass, gravel and sloping verges, while flat steel feet are intended for concrete, asphalt and indoor surfaces where low trip risk is critical. Flat feet can also be bolted down to create semi-permanent or controlled-access barrier lines where required.

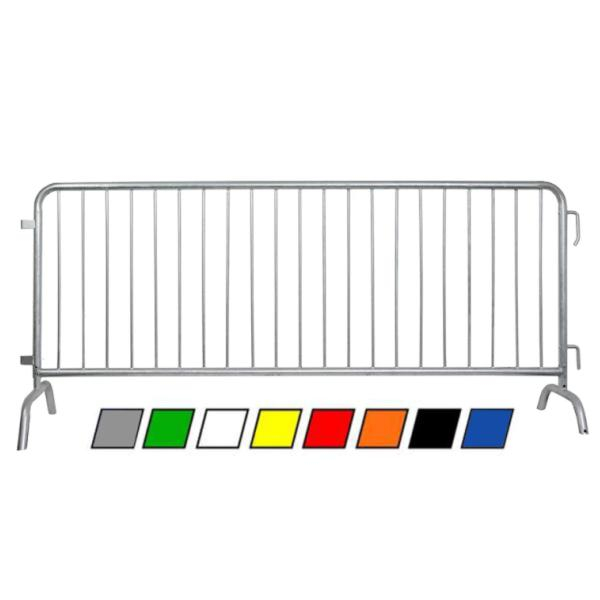

Heavy-duty vinyl jacket covers can be fitted over the frames to transform each barrier into a branded, high-visibility communication panel. These jackets are waterproof, secured tightly with hook-and-loop straps and available in a wide range of colours, fonts and graphic layouts. In many projects the barrier frames themselves are manufactured from structural grades such as Q235 steel, giving the jackets a strong, dimensionally stable base that keeps graphics looking straight and professional. Optional storage carts are also available to stack and transport groups of barriers safely and efficiently between sites.

Key Benefits, Uses and Safety Angle of 44×102 inch Crowd Control Barriers

POLYMETAL 44×102 inch Crowd Control Barriers do far more than mark a visual boundary. Their extended length, substantial mass, strong frame and tightly spaced uprights create a genuine physical barrier that guides crowds, protects work zones and separates pedestrians from vehicle movements. Typical applications include large construction projects, roadworks and traffic management, stadium and arena crowd control, public events, festivals, concerts, road closures, emergency cordons and organised queue systems.

By combining hot-dip galvanizing, robust tube sizes, interchangeable feet options and a proven interlocking profile, these 44×102 inch crowd control barriers form a stable and predictable safety outline. They are designed to withstand frequent deployments, rough handling and changing weather conditions while maintaining a consistent structural performance.

Fifteen Critical Facts, Risks and Warning Signs in 44×102 inch Crowd Control Barriers

Fact 1: Dimensional Accuracy – When “44×102 inch” Becomes Just a Label

Many crowd barriers fail not because the steel is weak, but because the actual dimensions do not match the specification. If a “44×102 inch crowd control barrier” is delivered a few centimetres shorter in height or length, the overall protection line shrinks, gaps appear at ends and along runs, and people inevitably find ways through. That minor dimensional error creates a real loophole in your security plan.

Fact 2: Frame Tube Thickness – Hidden Weakness Behind a Solid Shape

The wall thickness of the frame tube is a critical but often hidden value. A 25–38 mm OD tube with walls that are too thin (under about 1.5–1.6 mm in heavy-use environments) can twist under crowd pressure, light vehicle contact or repeated stacking. The barrier may look robust but behave like a flexible hinge line. POLYMETAL 44×102 inch Crowd Control Barriers use tube sizes and thicknesses selected to avoid this structural weakness and maintain real-world stiffness.

Fact 3: Upright Diameter and Spacing – Is It a Barrier or a Ladder?

Upright tubes in 12, 16 or 19 mm OD with poor spacing rapidly turn a barrier into a climbing frame. Hands and feet will quickly exploit 200 mm or irregular gaps. Correct upright diameter and consistent spacing at 90, 100 or 150 mm centres produce a dense pattern that stops people effectively, helping your 44×102 inch crowd control barriers function as a genuine restraint, not just a visual cue.

Fact 4: Weld Quality – The Invisible Joint That Fails First

Welds are another hidden risk. Poorly controlled welding can leave porosity, undercut or cracks at critical joints between frame and uprights. These flaws may not be visible until a crowd surge, push or impact exposes the weakness. POLYMETAL uses dedicated jigs, documented welding procedures and inspection routines so that welds become a strength feature in every 44×102 inch crowd control barrier, not a failure point.

Fact 5: Coating System – Corrosion as a Silent Structural Hazard

Coating choice directly affects long-term safety. Barriers that are only painted or lightly zinc-plated often begin to rust quickly at welds, feet and joints in outdoor environments. That corrosion is not only cosmetic; it indicates metal loss and reduced strength. A full hot-dip galvanized finish, applied after welding, gives POLYMETAL 44×102 inch Crowd Control Barriers a thick, protective shell that slows rust and extends service life.

Fact 6: Feet Type and Layout – Stable Base or Trip Hazard?

Safety starts at ground level. Using bridge feet on smooth concrete or flat steel feet on soft soil undermines stability and raises trip risk. Feet placed too far apart, left unweighted or misaligned can cause rocking frames, shifting lines and sudden falls. Matching the right feet type to the surface and using enough 44×102 inch barriers per run is a non-negotiable rule for safe deployment.

Fact 7: Interlock Integrity – Loopholes from Poor Hook-and-Loop Design

Not all interlocking systems perform the same. Hooks that only partially engage, loops that deform, or frames that twist under load can unlock under stress, opening gaps just when you need protection most. The POLYMETAL hook-and-loop profile on 44×102 inch Crowd Control Barriers is designed so that connections drop in securely and can only be released from the ends, greatly reducing accidental separation.

Fact 8: Weight vs Handling – Too Light to Hold, Too Heavy to Move

Getting the weight right is essential. Barriers that are too light slide or tip over easily; barriers that are too heavy become awkward and unsafe for staff to move. POLYMETAL 44×102 inch crowd control barriers are proportioned so that one or two people can handle them without excessive strain while still providing enough mass to resist casual displacement and wind loads.

Fact 9: Storage Pattern – How Stacking Mistakes Cause Hidden Damage

Incorrect storage can quietly damage your barrier line. When 44×102 inch Crowd Control Barriers are stacked randomly or when upright tubes are used as bearing points, frames bend, uprights deform and coatings scrape away. This hidden damage later appears as misaligned runs and unexpected corrosion. POLYMETAL’s packing and storage method carries load through the main frames and uses spacers so barriers come off the stack in the same condition as when they left the factory.

Fact 10: Compatibility Myth – Problems with Mixed Systems

Many sites assume different barrier types, heights and interlock patterns will work together. In reality, hooks may not line up, feet may clash and gaps may open at junctions. POLYMETAL 44×102 inch Crowd Control Barriers use a consistent, repeatable interlock design so long runs behave as one continuous structure, reducing compatibility risks.

Fact 11: Visibility and Signage – When Metal Alone Isn’t Enough

A plain metal line is easy to overlook. Without clear signage, colours or branded jackets, people may treat restricted areas as temporary or optional. POLYMETAL jacket covers turn each 44×102 inch crowd control barrier into a communication surface, turning the steel outline into a clear visual signal that supports safety instructions, branding and crowd guidance.

Fact 12: Foot Fixing and Trip Risk – Bolt-Down Done Wrong

Flat steel feet can be bolted to concrete or asphalt for extra security, but poor bolt placement, incorrect anchor choice or uneven substrates can introduce trip points and snagging edges. POLYMETAL designs flat feet for 44×102 inch Crowd Control Barriers with bolt positions close to the frame, minimising protrusions and reducing secondary hazards.

Fact 13: Lifecycle Cost – Cheap Barriers, Expensive Failures

Initial purchase price is only part of the story. Low-cost barriers with thin tubes, weak welds and minimal galvanizing often need replacing after only a few seasons outdoors. Repairs, repainting and emergency replacements quickly turn early “savings” into ongoing expense, waste and downtime. The heavy-duty specification of POLYMETAL 44×102 inch Crowd Control Barriers is designed to reduce replacement cycles and long-term lifecycle cost.

Fact 14: Crowd Flow Pattern – Guiding People Instead of Trapping Them

Even the strongest 44×102 inch crowd control barriers can create danger if the layout is poor. Blind corners, dead ends, narrow pinch points and blocked exits are signs of a flawed crowd-flow plan, not a material issue. The consistent size of POLYMETAL barriers helps planners design clear, predictable lines and channels that support safe entry, circulation and evacuation.

Fact 15: Compliance and Documentation – Your Final Line of Defence

After an incident, authorities and insurers will look beyond paint and apparent strength. They will request design data, material certificates, coating specs, welding procedures and inspection records. Barriers without this documentation can become the focus of a liability crisis. POLYMETAL maintains a complete, traceable quality file so 44×102 inch Crowd Control Barriers can be supported in audits, approvals and investigations, turning potential risk into a compliance advantage.

Specifications for POLYMETAL 44″x102″ Crowd Control Barriers

All models listed below are nominally 44″ high (≈1120 mm) and 102″ long (≈2590 mm), matching the standard 44×102 inch Crowd Control Barriers format.

Table 1 – Light-Duty POLYMETAL 44″x102″ Crowd Control Barriers

Table 2 – Standard-Duty POLYMETAL 44″x102″ Crowd Control Barriers

Table 3 – Heavy-Duty POLYMETAL 44″x102″ Crowd Control Barriers

Table 4 – Premium Coated & Branding-Ready POLYMETAL 44″x102″ Barriers

Packing of POLYMETAL 44×102 inch Crowd Control Barriers

POLYMETAL packs 44×102 inch Crowd Control Barriers using a controlled method designed to protect both structure and coating. Barriers are stacked in aligned bundles on heavy-duty wooden or steel pallets, with weight carried through the external frame tube rather than the uprights. This prevents bending of bars and reduces stress on welded joints during transport.

Protective spacers are placed between layers to separate galvanized surfaces and minimise abrasion. Bundles are strapped and, when needed, wrapped in film to reduce movement and contamination. Bridge feet and flat steel feet are supplied separately in labelled cartons or crates, sorted by size and finish so installers can quickly select the right option for each surface.

Optional storage carts are shipped with clear instructions and hardware, ready to accept stacked 44×102 inch crowd control barriers on site. This disciplined packing and handling process helps reduce damage, loss and manual handling risks, turning delivery and unloading into a controlled, low-hazard operation.

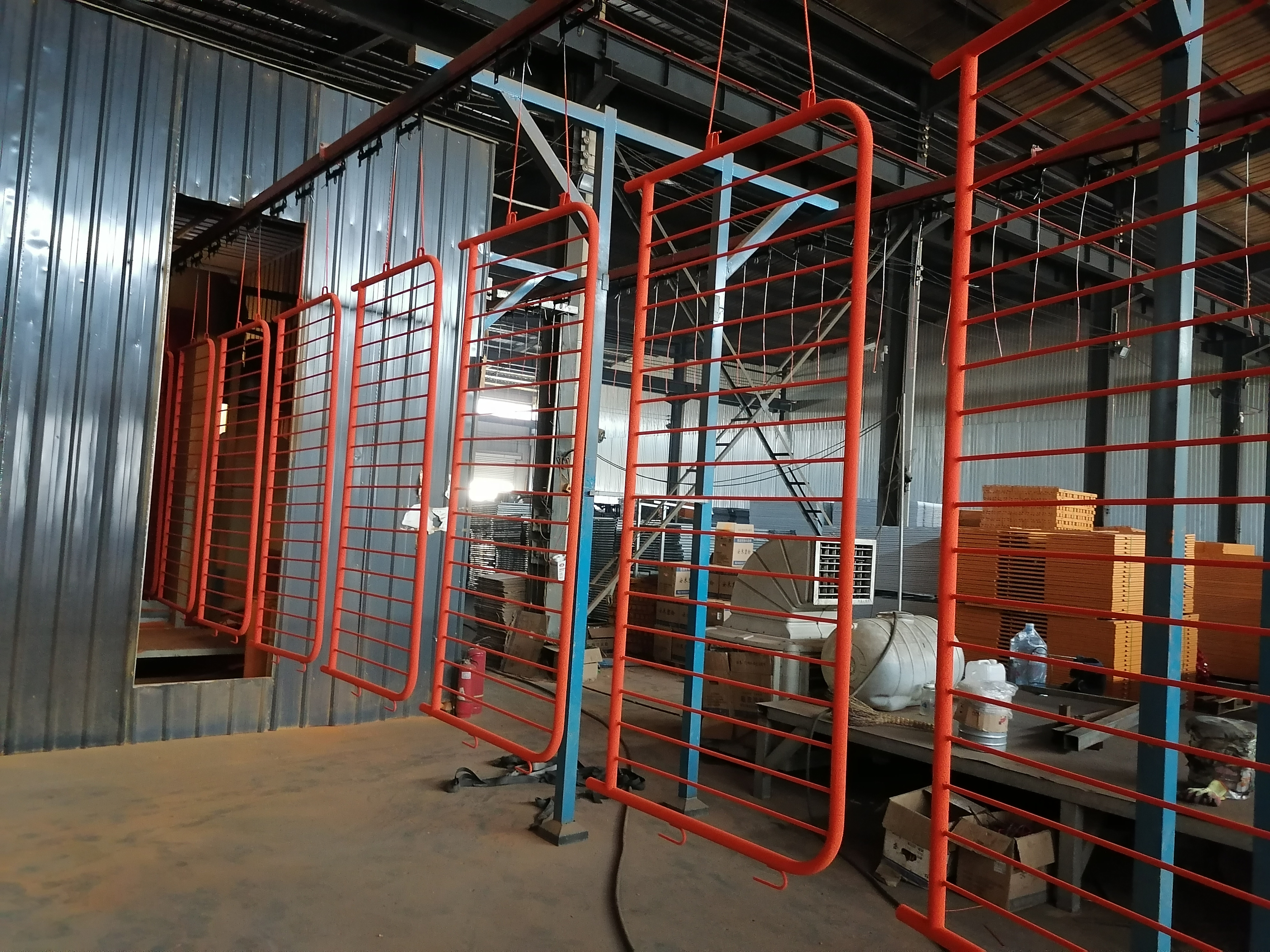

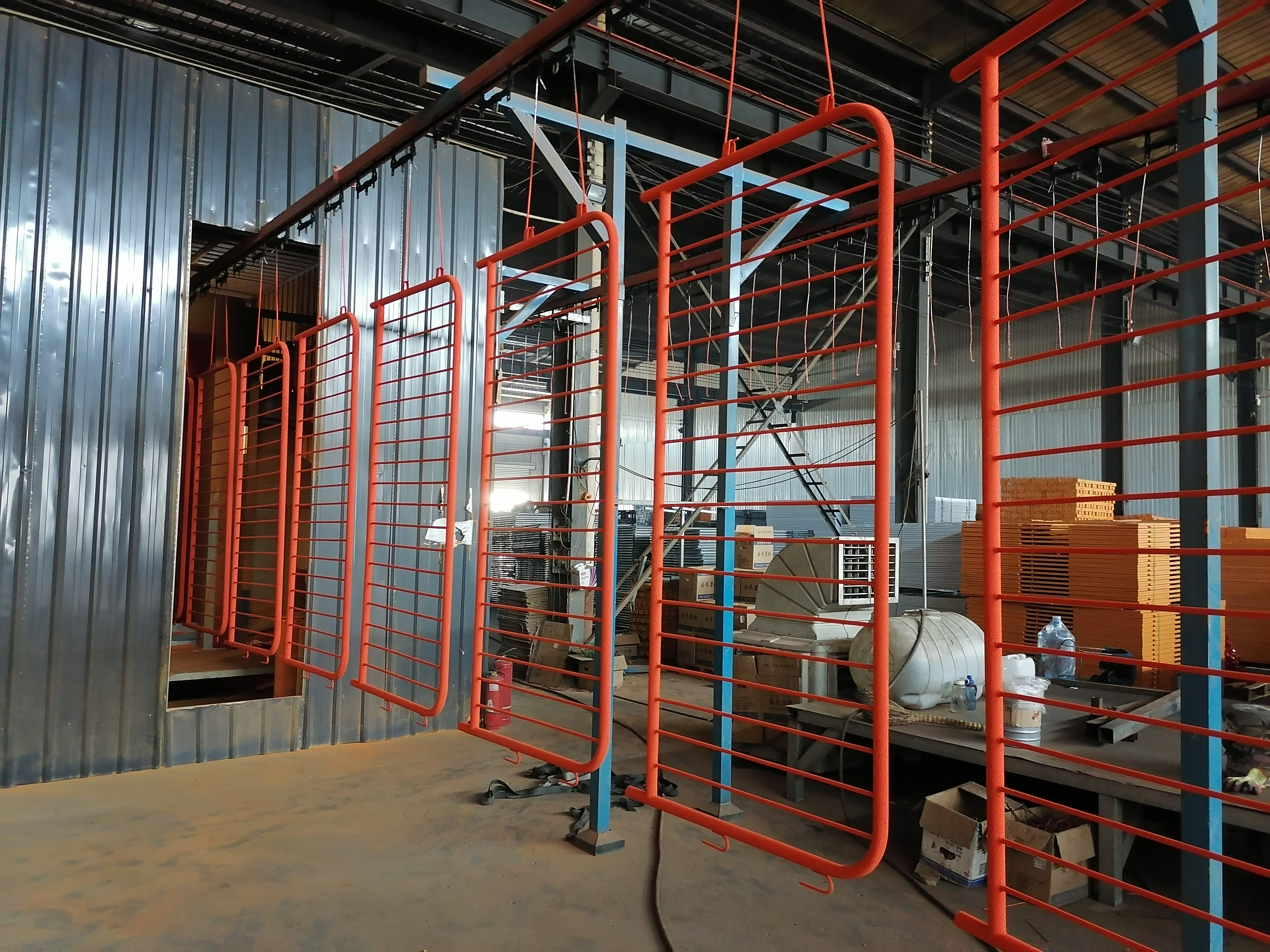

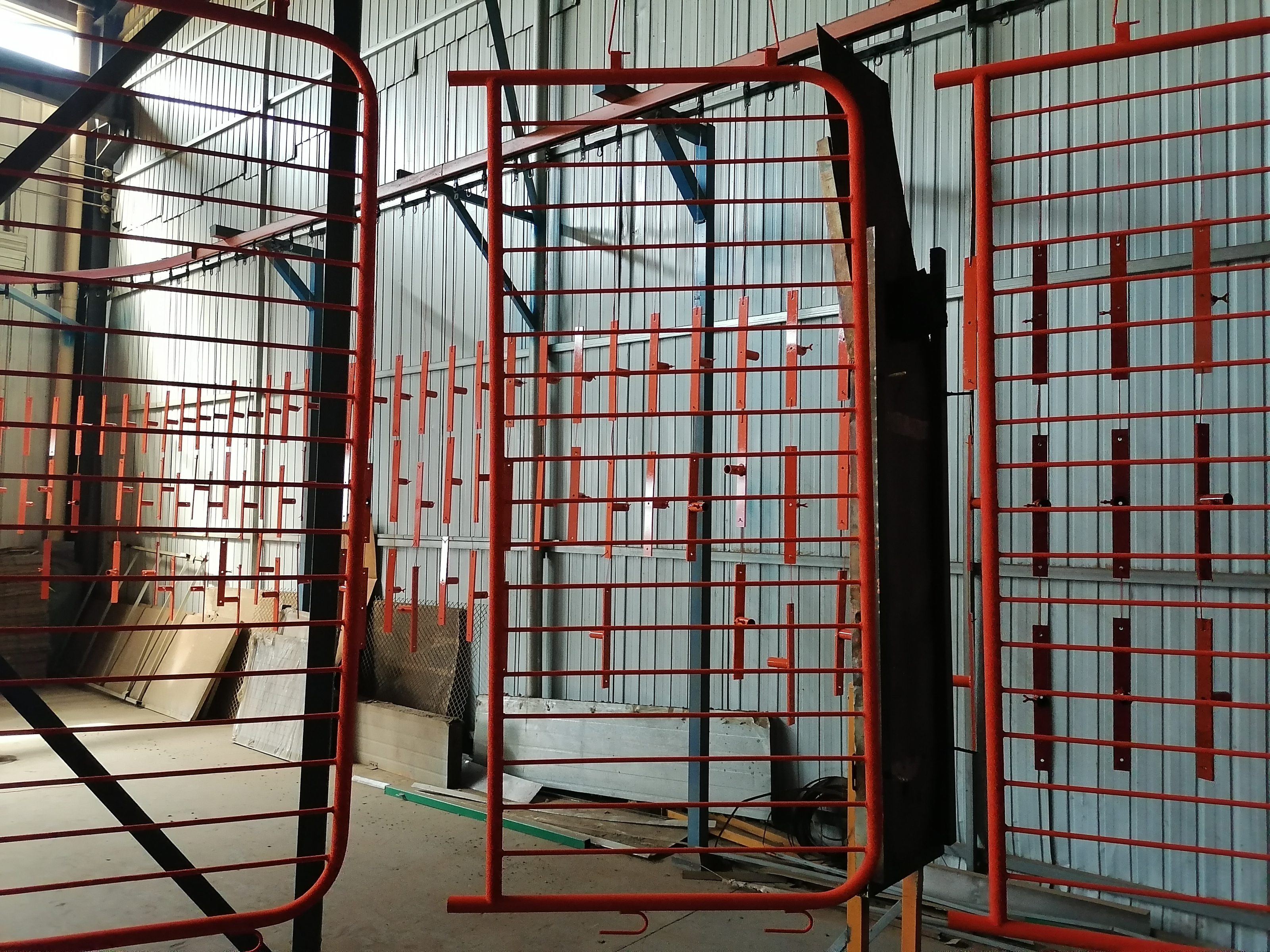

Production Process of POLYMETAL 44×102 inch Crowd Control Barriers

The production of POLYMETAL 44×102 inch Crowd Control Barriers starts with certified steel tube suitable for hot-dip galvanizing. Frame tubes in 25, 32, 35 or 38 mm OD with 1.5–2.0 mm wall thickness are cut to form the 44″ high, 102″ long rectangle. Upright tubes in 12, 16 or 19 mm OD with 0.7–1.2 mm wall thickness are cut and deburred to the correct internal height.

Frames are assembled in welded jigs that hold corners square and fix the overall profile. Uprights are positioned at the specified spacing – 90, 100, 150 or 200 mm – and welded in place using controlled parameters that limit distortion and ensure proper penetration. Welds are visually inspected and sampled for quality, with any weak joints removed before coating.

Completed frames are cleaned and pickled before entering the hot-dip galvanizing bath. Full immersion in molten zinc coats every surface, including internal corners and weld roots. Coating thickness is measured to ensure each duty level is achieved. For powder-coated or colour-finished versions, barriers then move to a secondary line where a polyester powder is electrostatically applied and oven-cured over the galvanized base.

Final inspection verifies overall dimensions, straightness, upright spacing, interlock alignment and coating quality. Only 44×102 inch Crowd Control Barriers that meet the POLYMETAL specification are released for packing, ensuring every barrier behaves as a consistent, traceable safety component in the field.

Standards and Compliance for POLYMETAL 44×102 inch Crowd Control Barriers

POLYMETAL 44×102 inch Crowd Control Barriers are designed in line with recognised principles used in construction safety, traffic management and crowd-control guidance. Height, length, frame tube size, upright diameter, spacing, interlocking details and foot options are selected to produce a stable, hard-to-climb and clearly visible barrier line.

Internal quality systems maintain a full documentation trail: material certificates, cutting lists, weld procedures, galvanizing records, coating specifications, inspection data and packing details. This turns compliance from a simple marketing claim into practical evidence that can be presented during event planning, site approvals, audits and insurance reviews. The same disciplined approach also applies to complementary perimeter products such as flat top pool fencing, helping specifiers manage different safety zones with a consistent standard of traceability and performance.

For asset owners, event organisers and contractors, POLYMETAL 44×102 inch Crowd Control Barriers provide both physical protection and documented assurance, helping reduce risk, avoid crises and protect long-term investment in reliable crowd-control infrastructure.
