45° Mitred Picket Fencing 1.8mx2.45m – 5 Powerful Reasons

POLYMETAL 45° Mitred Picket Fencing 1.8mx2.45m is a heavy-duty steel security barrier built for sites where ordinary tubular fencing or even options like the 1800mm High Flat-Top Square Picket Fence are simply not enough. Each panel stands 1800 mm high and 2450 mm wide, creating a strong visual and physical boundary that is tall enough to deter casual climbing while still allowing clear vision for cameras and guards.

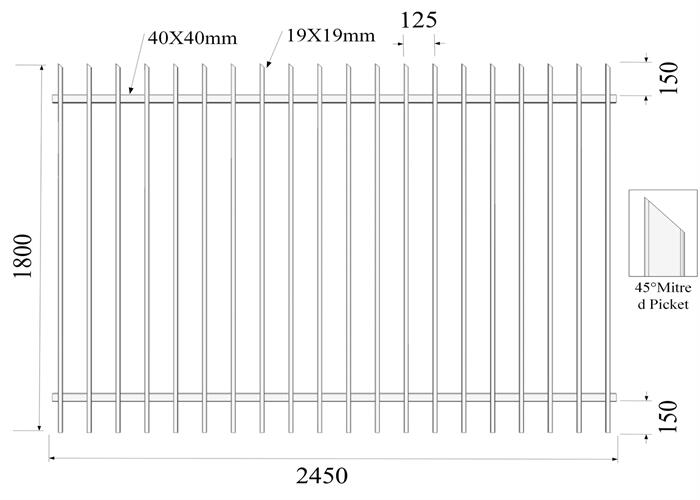

The frame uses a robust 40 x 40 mm square hollow section at the top and bottom. Between these rails runs a dense line of square vertical pickets, typically 19 x 19 mm, spaced evenly across the width of the panel. Every picket is cut to a sharp 45° mitred spear at the top, giving the fence its aggressive security profile and making it extremely uncomfortable and risky to attempt to scale. The top and bottom rails sit inboard from the panel edges, giving the fence a clean, balanced outline and improving structural stiffness.

Combined with measured post heights and matching square posts, POLYMETAL 45° Mitred Picket Fencing 1.8mx2.45m delivers a rigid, permanent-looking barrier that suits industrial estates, substations, distribution centres, schools, public facilities and any property that demands a secure yet professional image.

Specifications for POLYMETAL 45° Mitred Picket Fencing Systems

Table 1: Core 45° Mitred Picket Fencing 1.8 m x 2.45 m Range

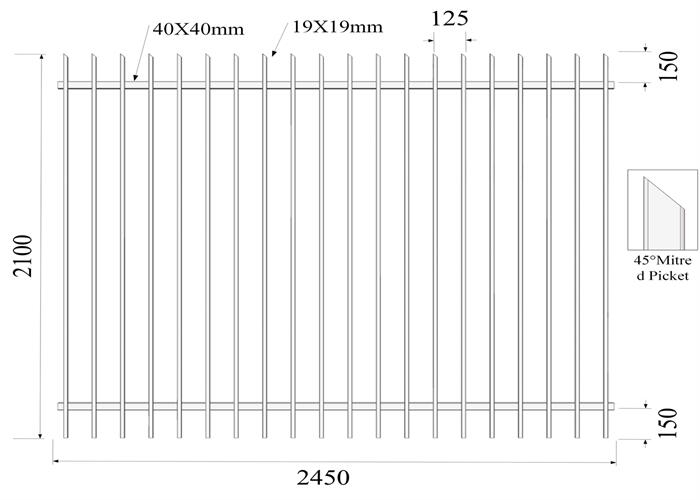

Table 2: Other Common Heights with 2.45 m Panels

Table 3: Light-Duty and Residential Options at 2.4 m Width

Table 4: Heavy-Duty and Maximum Security Variants

Key Security Features and Benefits

The defining feature of POLYMETAL 45° Mitred Picket Fencing 1.8mx2.45m is the 45° mitred spear top. Unlike flat or rounded-tube fences, the angled spear tips create a clear warning sign: the fence is not meant to be climbed. The square pickets resist twisting and bending, and the close spacing removes convenient footholds.

The 40 x 40 mm rail frame forms a rigid rectangular beam at the top and bottom of the panel. This design spreads load from any attempted impact or forced entry across the entire panel rather than allowing a single area to buckle. When paired with properly sized posts and concrete footings, the system behaves as a continuous structural line rather than a series of separate panels.

Because the fence is built from square sections, it accepts powder coating cleanly and delivers a neat architectural appearance. This makes POLYMETAL 45° Mitred Picket Fencing 1.8mx2.45m a practical choice when you need a fence that looks as professional as it performs.

Packing of POLYMETAL 45° Mitred Picket Fencing 1.8mx2.45m

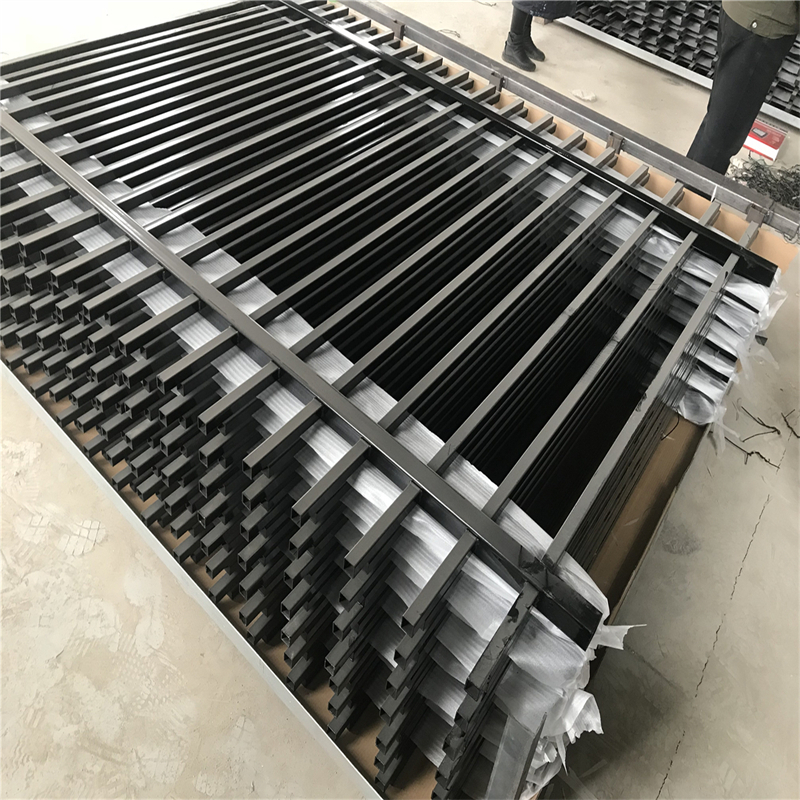

POLYMETAL treats packing as part of the security system, not an afterthought. Finished 45° Mitred Picket Fencing 1.8mx2.45m panels are stacked in uniform bundles on heavy-duty steel pallets. The 40 x 40 mm bottom rails rest on engineered supports, so the weight is carried through the frame rather than through the pickets. Spacers between layers protect the 45° spear tips and stop metal-on-metal abrasion during transport.

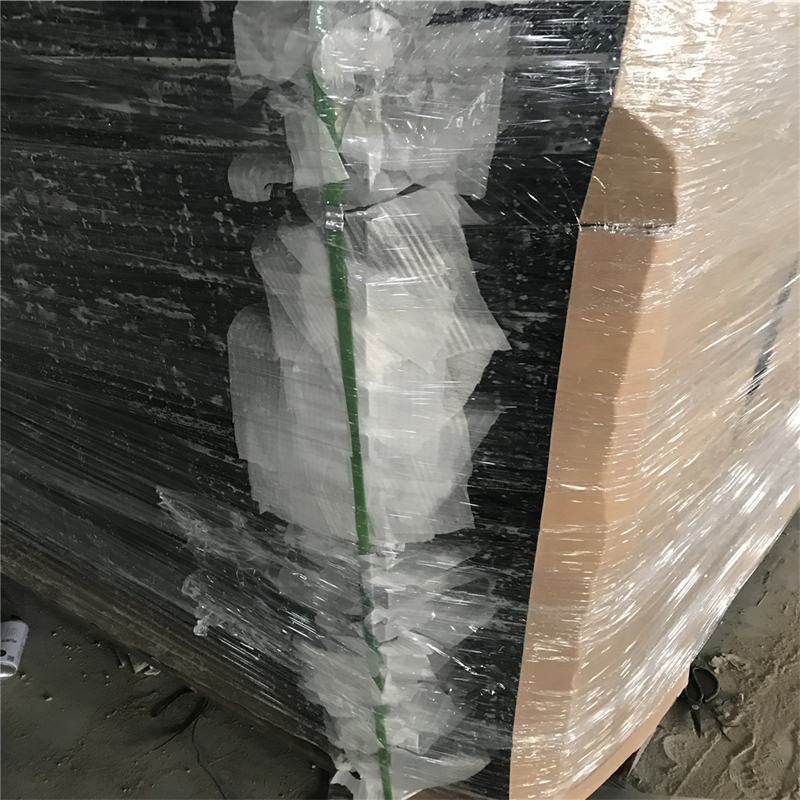

Each bundle is tightened with high-tension strapping and wrapped in protective film to keep out dust, moisture and site contamination. Matching square posts, caps, brackets and fixings are supplied in clearly labelled crates or pallets so installers can identify the correct components at a glance. This disciplined packing method reduces handling damage, prevents coating scratches and ensures every panel arrives on site ready for immediate installation.

Production Process for POLYMETAL 45° Mitred Picket Fencing 1.8mx2.45m

The production of POLYMETAL 45° Mitred Picket Fencing 1.8mx2.45m, similar in precision to 45° Mitred Picket Hercules Fencing 1.2M × 2.45M, begins with certified mild-steel tube for both rails and pickets. Rails are cut to exact 2450 mm lengths, while pickets are cut to suit the 1800 mm finished height plus the 45° mitred tip. Precision mitre saws create the spear points so every picket has a sharp, consistent angle and a clean profile.

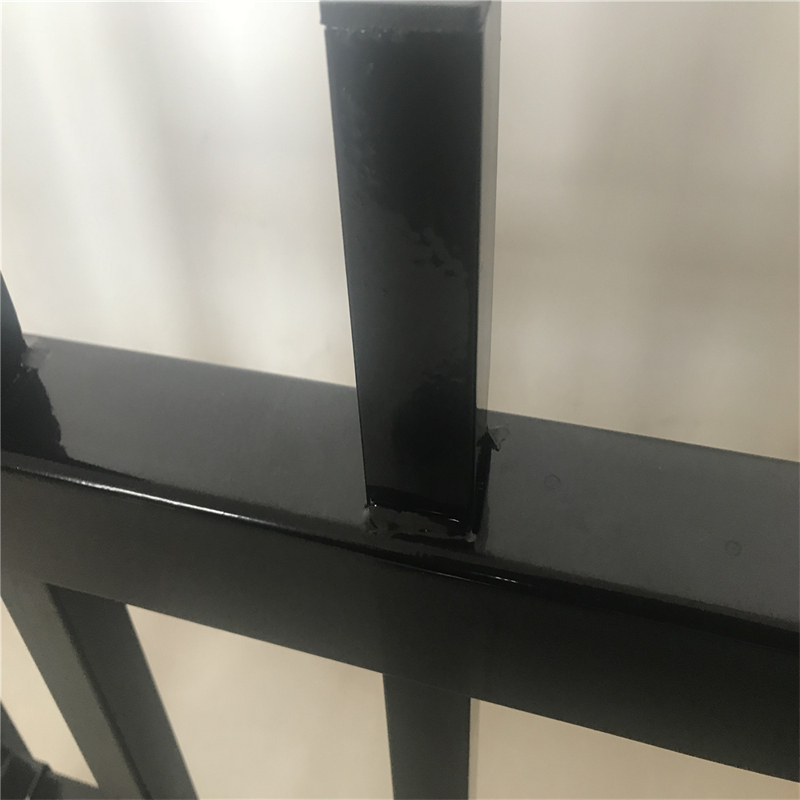

Panels are then assembled in welding jigs that lock the frame to its true 1.8 m x 2.45 m rectangle and maintain uniform picket spacing. Each picket is welded to both top and bottom rails, creating a solid ladder-like structure. Welding parameters are controlled for penetration and consistency, and joints are visually and mechanically checked.

After fabrication, panels are thoroughly cleaned and either hot-dip galvanized or galvanised and powder coated, depending on project requirements. The hot-dip galvanizing process ensures zinc reaches inside corners and weld areas, where corrosion would otherwise begin. Powder-coated panels are then baked to cure a tough, UV-resistant finish. A final inspection checks dimensions, coating quality and overall appearance before panels are released for packing.

Standards and Compliance

POLYMETAL designs 45° Mitred Picket Fencing 1.8mx2.45m in line with common security and safety principles for garrison-style fencing. Fence height, picket spacing and spear-top design all work together to provide an effective anti-climb barrier while maintaining good visibility. Rails and posts are sized to offer adequate strength under wind and impact loads when installed with appropriate footing details.

Hot-dip galvanized coatings are applied to recognised thickness levels for long-term outdoor durability, and powder-coated finishes use architectural-grade materials. By treating standards as a working rulebook rather than a marketing phrase, POLYMETAL ensures that each fence line is not only visually strong but backed by sound engineering practice.
