Australia Temporary Fence Panels: Powerful Top 12 Traps

Australia Temporary Fence Panels are pre-welded mesh panels designed for fast perimeter control on construction sites, civil works, events, utilities, and short-term access restriction. The danger is that many panels appear identical at delivery—but real performance depends on what you can’t see in a photo: frame tube OD, frame thickness, wire diameter, weld consistency, mesh pattern, bracing, and galvanizing thickness. If one weak point exists, panels don’t usually “snap” in one moment—they start to flex, rack, or loosen under wind load, crowd contact, forklift vibration, and repeated relocation.

POLYMETAL Australia Temporary Fence Panels Product Description

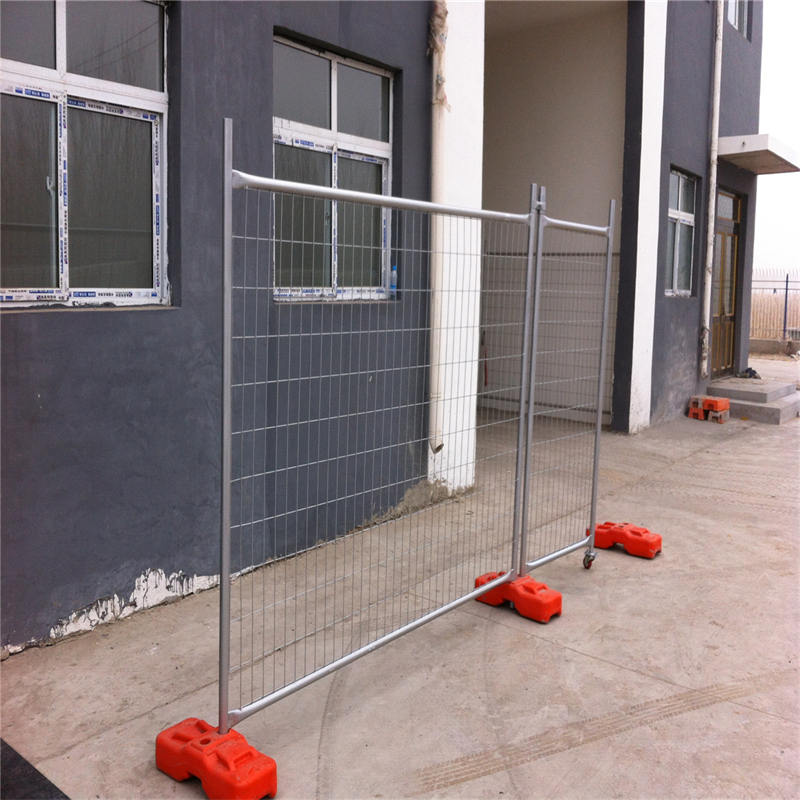

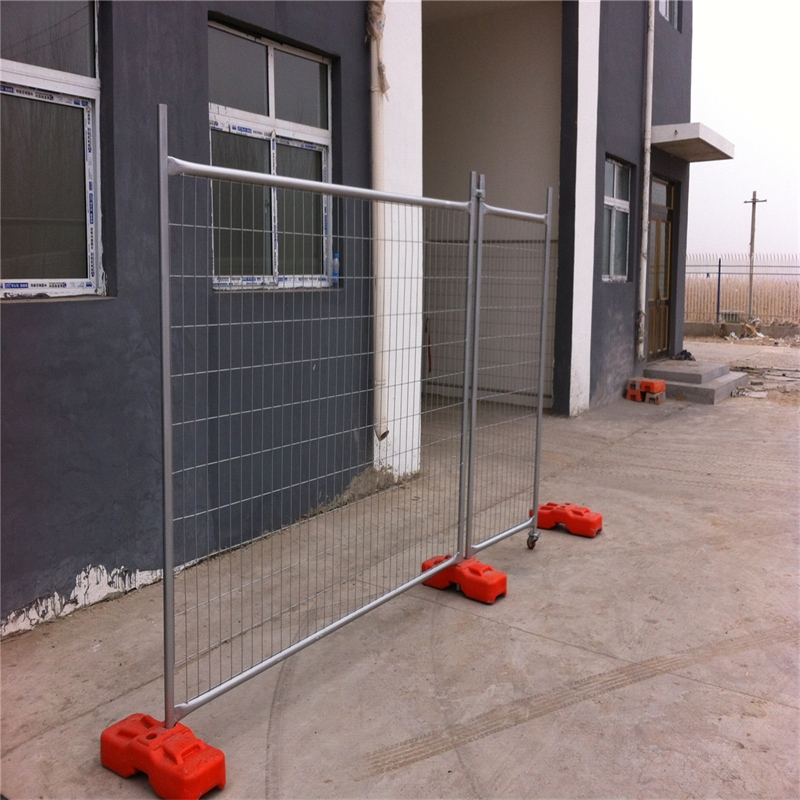

POLYMETAL Australia Temporary Fence Panels are engineered for repeat deployment where straight runs, clean set-out, and predictable stability matter. The system is built around round frame tube options OD32mm / OD38mm / OD40mm / OD41mm, with frame wall thickness choices from 1.0mm, 1.2mm, 1.4mm, 1.5mm up to 2.0mm to match the duty level and handling intensity. Standard panel height is 2100mm, with working widths in 2400mm, 3300mm, and 3500mm, and the wider formats are supplied with a middle brace to control racking and long-span vibration.

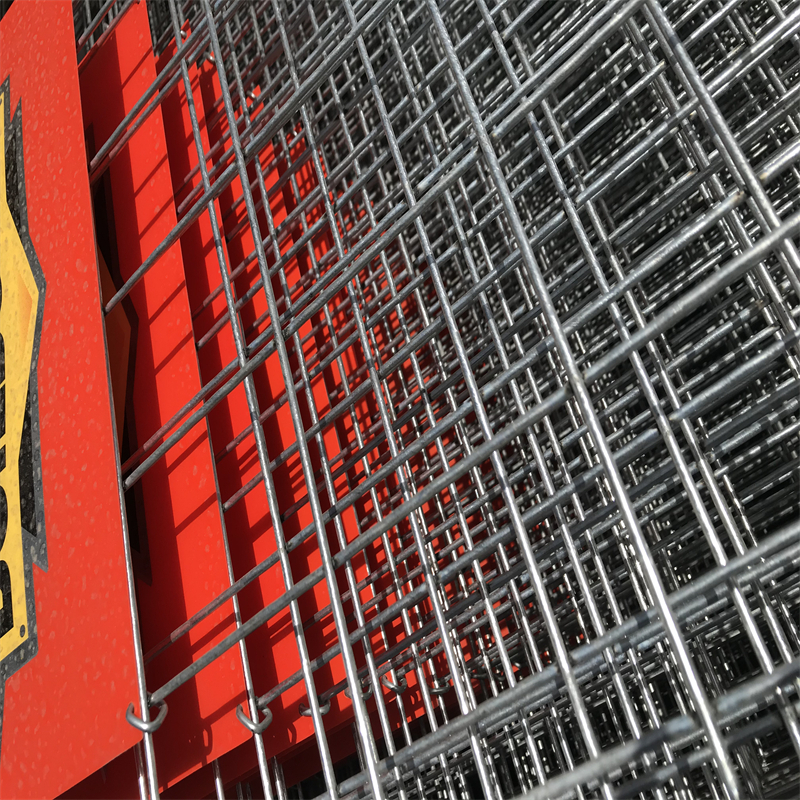

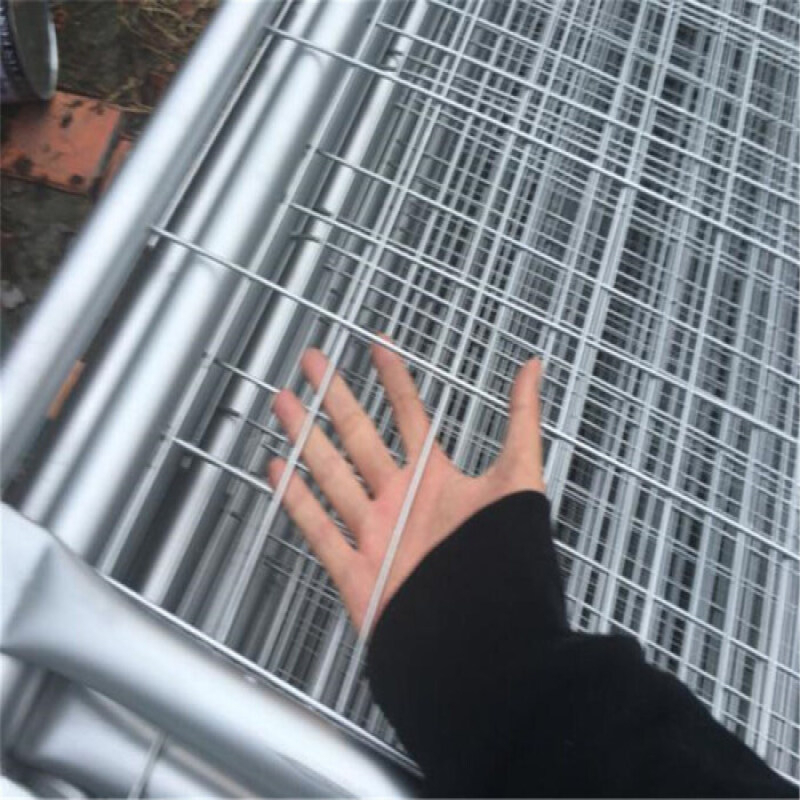

The mesh infill uses a consistent security-and-visibility pattern of 60mm × 150mm. Wire diameter options include 2.70mm / 3.00mm / 4.00mm, allowing you to balance weight, stiffness, and cut resistance. Typical wire counts are set for repeatable performance: 12 vertical wires per panel, and horizontal wire counts matched to width—38 horizontals for 2.1m × 2.4m, 53 horizontals for 2.1m × 3.3m, and 56 horizontals for 2.1m × 3.5m.

Corrosion protection is specified by zinc build: 14 microns, 42 microns hot dipped galvanized, or 100 microns hot dipped galvanized for high-exposure and coastal work—because once coatings are compromised, “cheap reuse” quickly becomes expensive rework (similar to why used crowd control barriers are often a bad idea). The system is written to comply with AS4687-2022 requirements for temporary fencing performance expectations and site suitability.

The Top 12 Buying Traps (Especially #7) That Cause Losses Fast

#1 Trap: Buying “Australia Temporary Fence Panels” by photo instead of tube OD + thickness

OD and wall thickness decide whether the frame stays square after the 20th relocation—or starts to twist and never sits flat again.

#2 Mistake: Choosing 1.0mm wall for rental-style redeploy cycles

Thin wall frames survive light use, then deform under stacking pressure and forklift handling.

#3 Problem: Picking wide panels without a true middle brace

A long span without bracing turns wind and bumps into frame racking—then weld fatigue starts.

#4 Flaw: Using 2.70mm wire where repeated impact is normal

Lighter wire can be fine for low-contact zones, but it dents and waves sooner in busy corridors.

#5 Oversight: Mesh opening correct, but weld consistency weak

The grid’s real strength is the weld at every intersection. Bad welds create “soft bays” that bow under pressure.

#6 Cost: Treating galvanizing microns as “marketing”

Coating thickness decides how fast rust starts at cut ends, weld zones, and transport rub points.

#7 Danger: Mixing light galvanizing with harsh handling—then losing panels early

When 14-micron panels are dragged, stacked, and re-clipped repeatedly, abrasion exposes steel. Rust then spreads from contact points, making the panel look “old” fast and pushing early replacement. This is the silent budget killer because it multiplies across every redeploy cycle—more repairs, more rejected panels, more downtime.

#8 Pitfall: Choosing OD32mm frame for high-wind, long-run lines

In open sites, a small OD frame increases movement; movement becomes bending; bending becomes rework.

#9 Warning: Not matching width to site geometry

If the run forces awkward overlaps and offsets, panels get stressed into position and stay stressed—until they twist.

#10 Defect: Ignoring clip locations and tension points

Bad clipping creates a hinge effect. Panels chatter in wind, and joints loosen over time.

#11 Loss: Buying “heavy wire” but keeping thin frame thickness

A strong mesh inside a weak frame is still a weak panel. The frame controls squareness and handling survival.

#12 Trap: Ordering without a consistent spec map for the whole job

Mixed specs create mixed behavior—soft sections become failure sections and the line looks uneven and performs unevenly.

Specifications (5 Tables, 10 Specs Each)

Table 1: POLYMETAL Australia Temporary Fence Panels — Standard Site Series (10 Specs)

Table 2: POLYMETAL Australia Temporary Fence Panels — Wide Run Braced Series 3.3m (10 Specs)

Table 3: POLYMETAL Australia Temporary Fence Panels — Wide Run Braced Series 3.5m (10 Specs)

Table 4: POLYMETAL Australia Temporary Fence Panels — Heavy Duty Rental & Redeploy Series (10 Specs)

Table 5: POLYMETAL Australia Temporary Fence Panels — Full Option Snapshot Mix (10 Specs)

Applications (Australia Temporary Fence Panels)

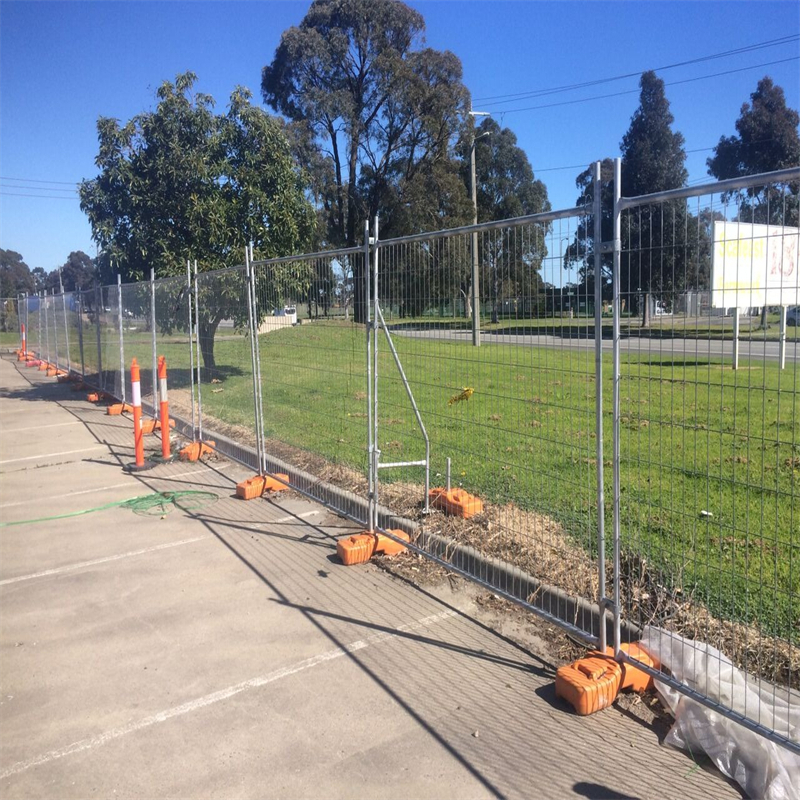

• Construction sites and residential builds
• Civil works, road upgrades, and rail corridors
• Utilities maintenance zones and exclusion areas
• Events, venues, and crowd-channeling perimeters
• Warehousing, depots, and logistics yard segregation
• Emergency works, hazard control, and temporary access restriction

Benefits (Why the Right Spec Saves Money)

• Faster set-out with fewer “wonky” bays and less forcing into position
• Better redeploy life because the frame stays square after repeated handling
• Reduced rattle and movement under wind load when bracing and OD match the span
• Stronger cut resistance when wire diameter is correctly selected
• Longer corrosion life when galvanizing micron level matches exposure and handling

Packing (How POLYMETAL Reduces Transit Damage)

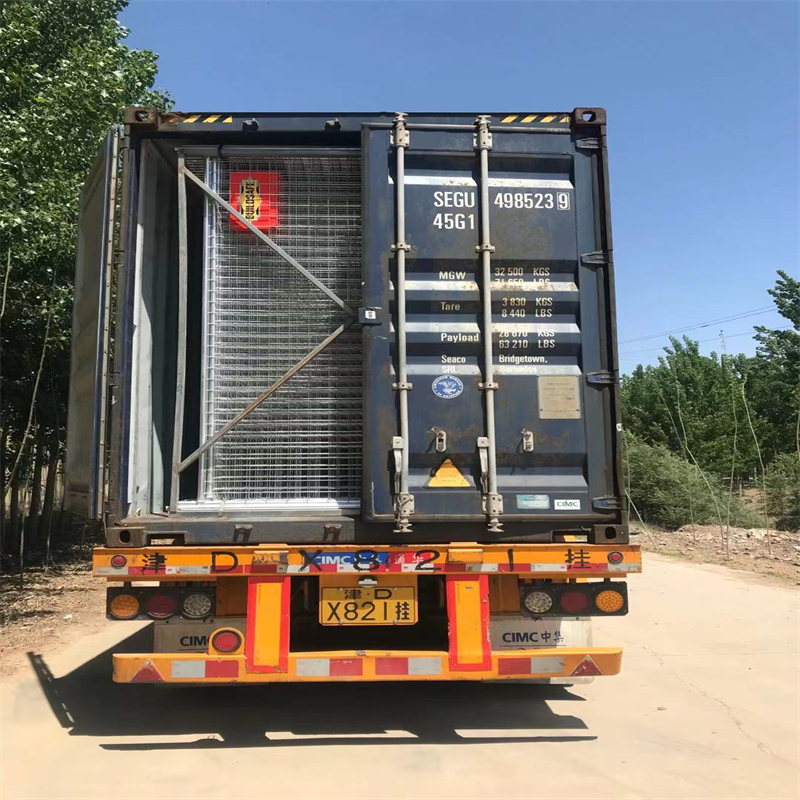

POLYMETAL panels are typically stacked with protective separation to reduce zinc scuffing, then strapped tightly to pallets to prevent shifting. Corner protection can be added to prevent strap bite and edge rub. Braced wide panels are bundled to keep the middle brace from being forced out of plane. Accessories and clips are commonly bagged and boxed to prevent missing-hardware delays on site.

Standard (AS4687-2022 Compliance Statement)

POLYMETAL Australia Temporary Fence Panels are specified and supplied to comply with AS4687-2022, focusing on consistent weld integrity, repeatable panel geometry, fit-for-purpose corrosion protection, and practical site safety performance for temporary perimeter control.

FAQs (Australia Temporary Fence Panels)

What panel size is most common?

2100mm height with 2400mm width is the most common “general site” format; 3300mm and 3500mm are used to reduce post/foot count and speed long runs.

When should I choose 4.0mm wire?

When you expect frequent contact, higher vandal risk, or rental-style redeploy cycles where the mesh gets hit and dragged.

What galvanizing level should I use?

14 microns suits light duty and short service cycles; 42 microns is the common durable choice; 100 microns is preferred for harsh exposure, aggressive handling, and coastal conditions.

Why does frame OD matter so much?

OD controls stiffness and how well the panel stays square. If the frame starts to rack, clips loosen, gaps open, and the line becomes a constant rework problem.

Why add a middle brace on wide panels?

Because width multiplies leverage. A brace reduces racking, vibration fatigue, and “wave” behavior along long runs.
