Black Oxide Stainless Steel Cable Mesh – 3 Powerful Benefits

Black oxide stainless steel cable mesh is a high-performance, flexible wire rope net designed for demanding architectural, safety and zoological applications. It is manufactured from high-grade stainless steel wire rope in material class 1.4401 / AISI 316 / AISI 316L and then treated with a uniform black oxide surface finish to achieve a low-glare, elegant appearance.The standard wire rope diameter for black oxide stainless steel cable mesh ranges from 1.2 mm to 3.2 mm (including 1.2, 1.5, 1.6, 2.0, 2.4, 3.0 and 3.2 mm).Mesh aperture can be customized from approximately 20 mm to 200 mm or larger,depending on cable diameter, load requirements and the intended application.Black oxide treatment is not inherently necessary for stainless steel; it is an optional surface finish chosen for specific visual and functional reasons rather than for basic corrosion protection. Austenitic stainless steels such as 304, 316 and 316L already form a natural, self-healing chromium oxide passive film that provides very good resistance to rust and many chemicals, so in most structural and general architectural applications, untreated stainless steel performs perfectly well.

Materials & Construction

• Base material: Stainless steel 1.4401, AISI 316, AISI 316L
• Cable structure: Multi-strand stainless steel wire rope (typically 7×7 or 7×19)
• Surface finish: Black oxide – stable, non-peeling, non-reflective black layer
• Mesh form: Flexible diamond-shaped openings
• Mesh orientation: Can be installed at 60° or 90° mesh angle (vertical, horizontal or diagonal)

Why Black oxide ?

Black oxide is mainly applied when a low-glare, matte black appearance is desired—such as in zoo enclosures to protect animals’ eyes from reflections, in high-end façades where the mesh should visually “disappear,” or in interiors where designers want a dark, technical look. The treatment can also help give a more uniform surface tone and slightly enhance surface protection, but it does not replace the role of the underlying stainless alloy or turn a poor material into a high-performance one. In short, if your priority is strength and corrosion resistance at the lowest cost, standard stainless steel cable mesh is sufficient; if you also require non-reflective, black aesthetics and visual comfort, then black oxide stainless steel cable mesh becomes a smart, value-adding choice rather than a strict necessity.

Flexible Stainless Steel Wire Rope Mesh (Ferrule Type)

Mesh Types: Ferruled & Woven

Black oxide stainless steel cable mesh is available in two main construction types:

• Ferruled type: Cables are arranged in parallel and connected at intersections with stainless steel ferrules. This type offers a clean, linear appearance that is especially suited to modern architecture and large panel sizes.
• Inter-Woven (plaited) type: Cables are hand-woven, with each rope alternately passing above and below the crossing rope. This creates a flexible, net-like structure with excellent adaptability to complex shapes and curved surfaces.

Black Oxide Surface Treatment

The black oxide finish is achieved through a controlled oxidation process that forms a thin, stable black film on the surface of the stainless steel cables. Unlike paint or coating layers, black oxide is integral to the metal surface and will not peel or flake under normal conditions.

• Low-glare, non-reflective surface – ideal for zoo enclosures and façade applications.
• Enhanced corrosion resistance – additional protection on top of 316/316L stainless steel.
• Stable colour performance – long-lasting black appearance in outdoor environments.
• Preserved flexibility – no negative impact on the ductility or tensile performance of the cable mesh.

Key Advantages of Black Oxide Stainless Steel Cable Mesh

• High strength & toughness: Multi-strand stainless steel rope provides excellent tensile strength and impact resistance.
• Flexible and formable: The mesh can be freely curved and folded, allowing for complex three-dimensional designs.
• Lightweight with high transparency: Open structure maintains views, ventilation and natural light.
• Weather and UV resistance: Performs reliably in rain, snow, strong wind and sunlight.
• Anti-corrosive & reusable: Resistant to rust; panels can be removed and re-installed if needed.
• Animal and safety friendly: Smooth cable surface resists chewing and minimizes injury risk for animals.
• Environmentally safe: No toxic materials; fully recyclable stainless steel.
• Low maintenance: Easy to clean with water and mild detergent; no repainting required.

Typical Applications

With its combination of mechanical performance and refined black appearance, black oxide stainless steel cable mesh is widely used in:

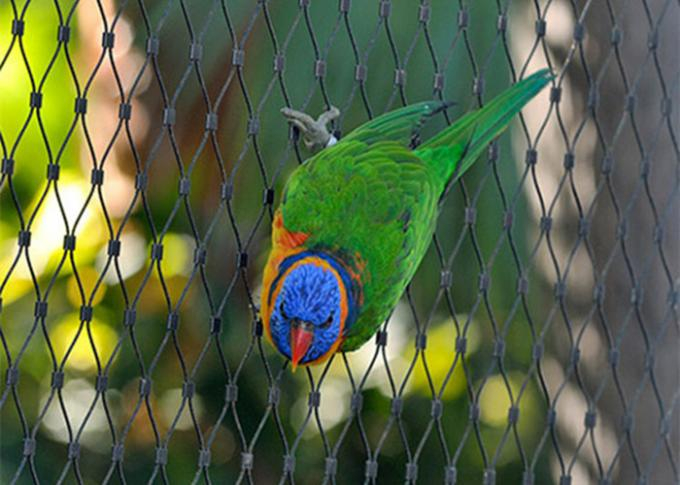

• Zoo & animal enclosures: Big cat cages, primate habitats, aviaries and walk-through exhibits.
• Balustrades & railing infill: Safety infill for balconies, bridges, staircases and viewing platforms.
• Architectural façades: Shading elements, security screens, fall protection on high-rise buildings.
• Green walls & plant trellises: Support for climbing plants, creating living vertical façades.
• Safety and anti-fall nets: Stadiums, public spaces, industrial platforms and roofs.
• Interior design: Room dividers, ceiling features and decorative partitions with a technical, modern look.

Quality Assurance & Service

• 100% quality inspection of cable mesh before shipment.
• Factory-direct pricing – no trading company margin, competitive cost with stable quality.
• Fast response – professional team and efficient technical support for your project requirements.
• Custom fabrication – as long as you provide specifications or drawings, we can manufacture accordingly.
• After-sales guarantee – if there are confirmed quality issues, we will handle returns or replacements promptly.
• Flexible payment terms – T/T, Western Union and other options negotiable.
• Samples available – standard samples can be provided; courier cost borne by the customer.

Conclusion

Black oxide stainless steel cable mesh integrates the strength and durability of stainless steel wire rope with a sophisticated, low-glare black finish. Its flexibility, high transparency, corrosion resistance and
customizable specifications make it an excellent solution for zoo enclosures, balustrades, façades, safety nets and contemporary architectural designs. By selecting suitable cable diameter, mesh aperture and panel
geometry, engineers and designers can tailor the mesh to meet both structural and aesthetic requirements of complex, high-end projects.
