Bridge safety X-TEND mesh: 5 Powerful Ways to Create Bridges

Bridge safety X-TEND mesh is a flexible stainless steel cable mesh system used as a high-performance safety barrier on road bridges, pedestrian bridges and elevated walkways. Instead of heavy solid panels or rigid welded mesh, it uses finely woven stainless steel cables to create a transparent, durable and architecturally light protective skin along the bridge edges.Wholesale stainless steel ferrule rope mesh is made of stainless steel wire rope of SUS304, SUS304L, SUS316, SUS316L and other material types with two main strand structures: 7 × 7 and 7 × 19. According to weaving type, the mesh is divided into two series: interwoven (knotted) cable mesh and ferrule cable mesh. Both types can be engineered as bridge safety X-TEND mesh for fall protection and anti-throw barriers.

1. What Is Bridge Safety X-TEND Mesh?

Bridge safety X-TEND mesh is a stainless steel cable net installed along bridge parapets, railings or as tall safety screens. Cables run in two directions and are joined with stainless steel ferrules (or interwoven as knotted mesh) to form diamond-shaped openings. The mesh works in tension, giving high strength with low weight and allowing long, continuous spans with a clean, modern look.

Diamond cable mesh made from high-grade stainless steel wire rope.
Works in tension, allowing slender support posts and wide spans.
Custom-made panels to suit each bridge’s geometry and bay spacing.
Ideal for tall safety screens, anti-throw barriers and railing infill where views must be preserved.

2. Material & Construction

2.1 Base Material

Material grades: SUS304, SUS304L, SUS316, SUS316L stainless steel wire rope.
Surface: natural stainless finish; pickled, polished or matte finish available.
Corrosion performance: excellent for outdoor, bridge and coastal environments (316 / 316L recommended for marine or de-icing salt exposure).

2.2 Rope & Mesh Structure

Rope structures: 7 × 7 and 7 × 19 are the main constructions; 1 × 7 and 1 × 19 can be supplied for special projects.
Cable diameter range: 1.2 mm – 4.0 mm typically used for bridge safety mesh.
Weaving types:
- Interwoven (knotted) cable mesh – cables cross and twist at each intersection, forming a strong, net-like structure.
- Ferrule cable mesh – cables are joined by stainless steel ferrules, giving very neat, uniform diamond openings.

3. Stainless Steel Ferrule Rope Mesh Specifications

Stainless steel ferrule rope mesh used for bridge safety X-TEND mesh is available in many rope diameter and mesh aperture combinations. Below is a typical specification table:

Mesh Aperture	1.2 mm (3/64″) (7 × 7)	1.6 mm (1/16″) (7 × 7)	2.0 mm (5/64″) (7 × 7)	2.4 mm (3/32″) (7 × 7)	3.2 mm (1/8″) (7 × 19)
20 × 35 mm	POLYMETAL-1235
25 × 42 mm	POLYMETAL-1225	POLYMETAL-1625
30 × 52 mm	POLYMETAL-1230	POLYMETAL-1630	POLYMETAL-2030
35 × 60 mm	POLYMETAL-1235	POLYMETAL-1635	POLYMETAL-2035
38 × 66 mm	POLYMETAL-1238	POLYMETAL-1638	POLYMETAL-2038	POLYMETAL-2438
40 × 69 mm	POLYMETAL-1240	POLYMETAL-1640	POLYMETAL-2040	POLYMETAL-2440	POLYMETAL-3040
50 × 86 mm	POLYMETAL-1250	POLYMETAL-1650	POLYMETAL-2050	POLYMETAL-2450	POLYMETAL-3050
60 × 104 mm	POLYMETAL-1260	POLYMETAL-1660	POLYMETAL-2060	POLYMETAL-2460	POLYMETAL-3060
70 × 120 mm	POLYMETAL-1270	POLYMETAL-1670	POLYMETAL-2070	POLYMETAL-2470	POLYMETAL-3070
76 × 131 mm	POLYMETAL-1276	POLYMETAL-1676	POLYMETAL-2076	POLYMETAL-2476	POLYMETAL-3076
80 × 138 mm	POLYMETAL-1280	POLYMETAL-1680	POLYMETAL-2080	POLYMETAL-2480	POLYMETAL-3080
90 × 154 mm	POLYMETAL-1290	POLYMETAL-1690	POLYMETAL-2090	POLYMETAL-2490	POLYMETAL-3090
100 × 173 mm	POLYMETAL-12100	POLYMETAL-16100	POLYMETAL-20100	POLYMETAL-24100	POLYMETAL-30100
120 × 206 mm	POLYMETAL-12120	POLYMETAL-16120	POLYMETAL-20120	POLYMETAL-24120	POLYMETAL-30120

Other mesh sizes and cable diameters can be custom-manufactured to meet specific bridge safety requirements and local standards.

4. Key Characteristics of Bridge Safety X-TEND Mesh

Custom-manufactured stainless steel ferrule rope mesh for each project.
Discrete, elegant and flexible – the mesh appears almost invisible from a distance.
Multifunctional and compatible with innovative bridge and façade architecture.
Premium quality, rugged, weather-resistant and non-corroding.
Corrosion-resistant and alkali-resistant, suitable for harsh outdoor conditions.
High strength, excellent impact resistance and energy absorption under accidental loads.
Good toughness and climbing resistance, improving safety for pedestrians and traffic below.

5. Typical Bridge Applications

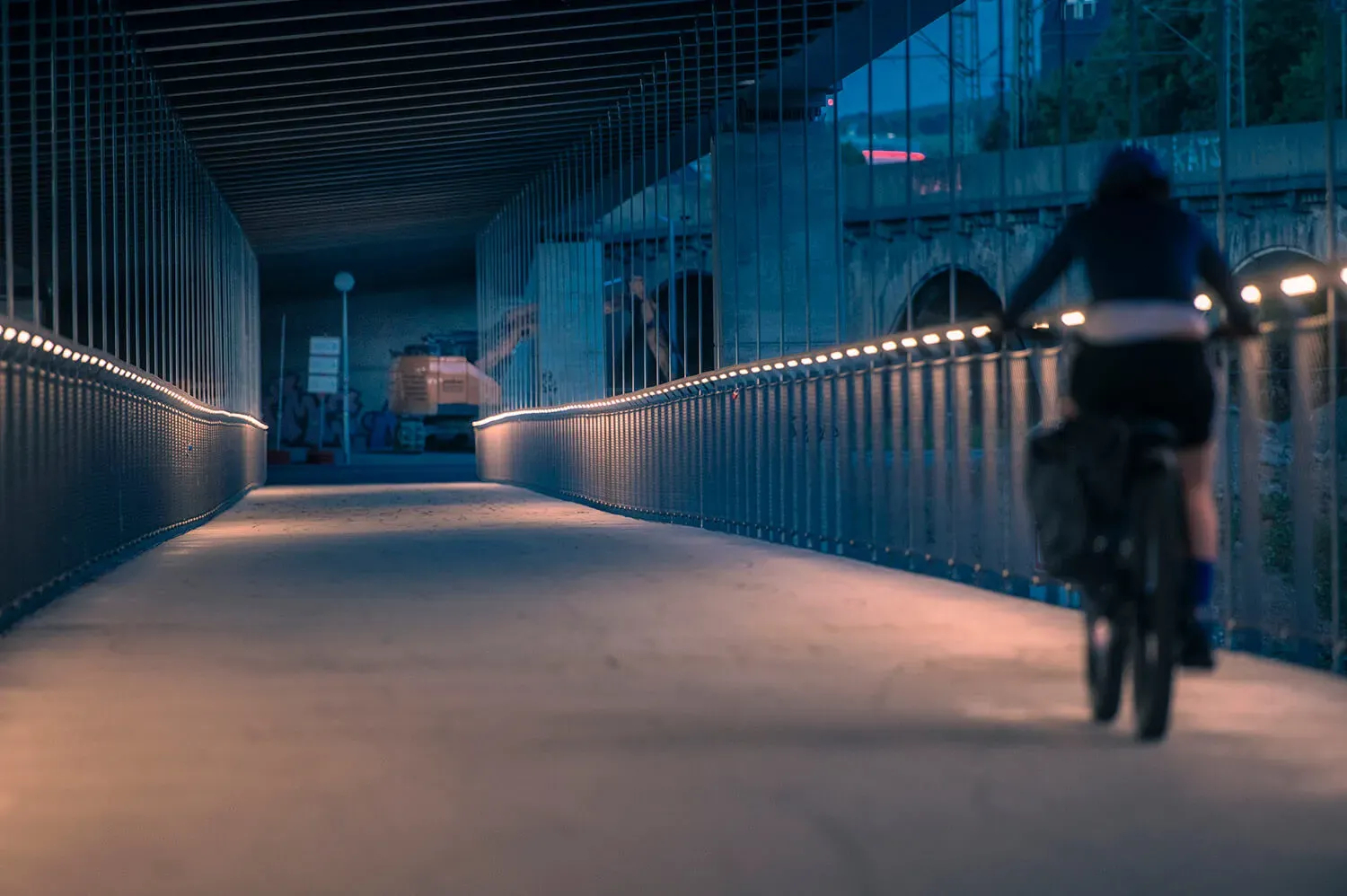

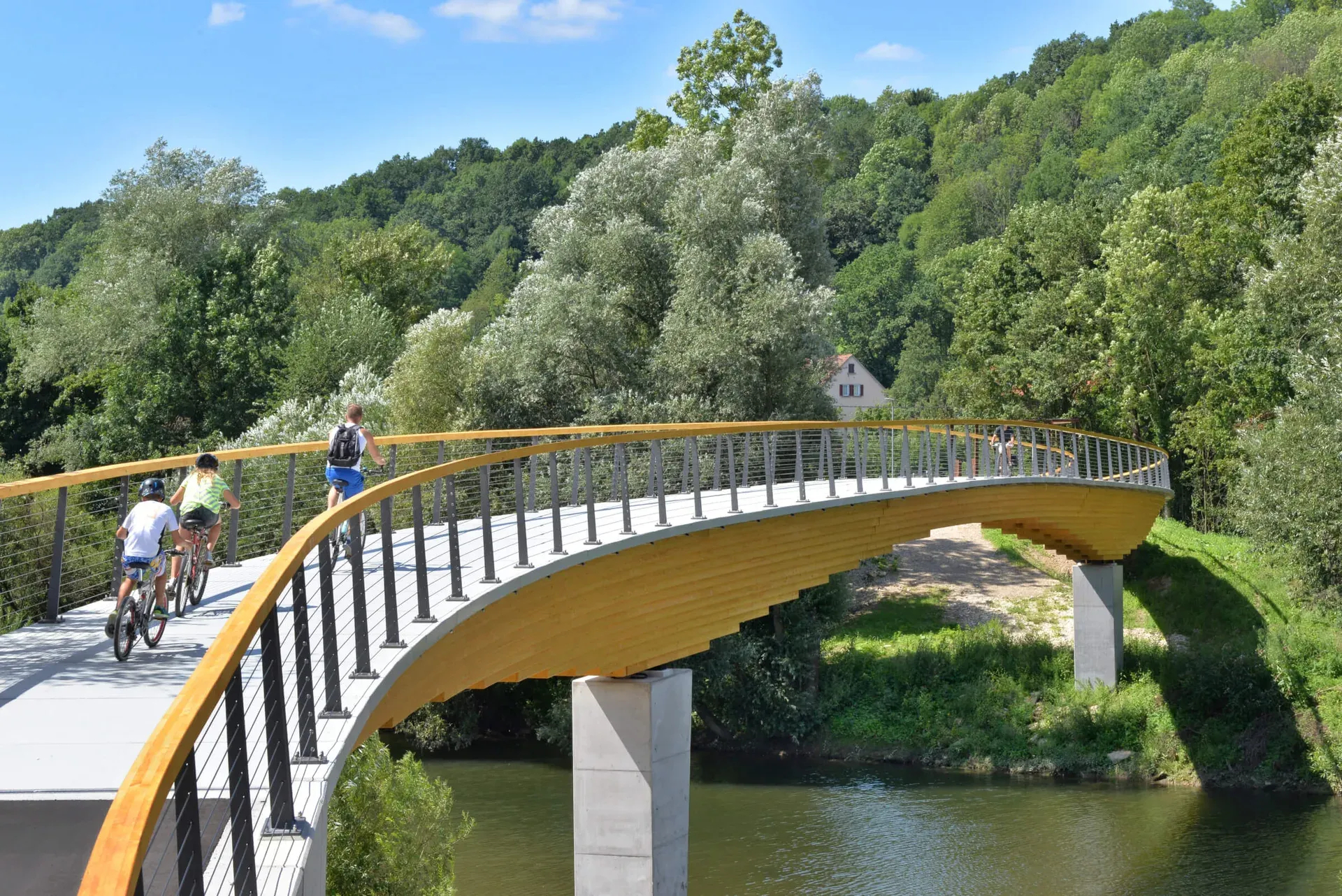

Pedestrian and cycle bridge safety screens and rail infill.
Road bridge and highway overpass anti-throw barriers.
Combined balustrade and infill systems on viewing plaPOLYMETALorms and skywalks.
Refurbishment of existing bridges where low-weight safety upgrades are needed.
Architectural cladding and protective envelopes for historic and landmark bridges.

6. Design & Selection Tips

When designing a bridge safety X-TEND mesh system, consider:

Safety level: fall protection only, or fall plus anti-throw / anti-climb.
Barrier height: typically 1.2–1.8 m for railings, up to 2.4–3.0 m or more for anti-throw screens.
Mesh aperture: smaller openings (e.g. 40–60 mm) for anti-throw and child safety; larger openings where maximum transparency is required and codes permit.
Cable diameter: higher diameters for higher loads or larger spans (e.g. 2.4–3.2 mm with 7 × 19 construction).
Support structure: posts, top rails, edge cables and frames must be designed to carry the mesh tension and impact loads.
Environment: select 316 / 316L for coastal or de-icing conditions; 304 / 304L is usually sufficient for inland projects.

7. Ordering Information – Helpful Questions

To receive an accurate quotation for bridge safety X-TEND mesh, it is helpful to confirm the following:

Required wire diameter and mesh aperture?
Preferred construction: knotted (interwoven) or ferrule type?
Material grade: SS304, SS316 or SS316L?
Panel dimensions (width × height) and total quantity?
Where will the mesh be used (bridge type, environment, anti-throw or fall protection)?

Once these details are confirmed, a tailored bridge safety X-TEND mesh specification and price can be provided quickly, ensuring the system meets both structural safety requirements and architectural design intent.

8. Summary

Bridge safety X-TEND mesh made from stainless steel ferrule rope mesh offers a combination of high safety performance, visual transparency, long-term durability and design freedom. It enables engineers and architects to create bridge barriers that are strong and secure, yet light, elegant and almost invisible – a modern solution for pedestrian bridges, road overpasses and landmark structures.
