High Security Fence, also called 358 fence, is well-known as an anti-climb and anti-cut system. It is perfectly suited to high-security applications such as military sites, airports, prisons, warehouses, factories, substations, ports, and critical infrastructure. When specified as a complete system (not “just panels”), china 358 fence delivers strong delay time, high visibility for CCTV, and excellent resistance against climbing and bolt-cutter attacks. When specified poorly, the same-looking fence becomes a fast failure—loose panels, weak seams, early corrosion, and unacceptable movement at posts.

Brand Overview: POLYMETAL

POLYMETAL supplies china 358 fence as a controlled perimeter system: mesh pattern discipline, wire diameter control, full intersection welding, post pairing matched to height, clamp bar thickness that prevents edge peel, consistent bolt spacing, and finish performance that survives handling and weather exposure. This system-first approach prevents the most expensive failure pattern: “looks right on delivery” but becomes unstable, attackable, or visually rejected after installation.

Product Description: POLYMETAL china 358 fence

The 358 anti-climb fence, also known as “prison mesh,” is a super secure fence that’s tough to climb and cut. It is manufactured from galvanized wire welded into rigid panels with very small apertures that prevent reliable finger and toe holds. The classic “358” name comes from the imperial description 3″ × 0.5″ × 8 gauge, approximately 76.2mm × 12.7mm with a heavy security wire commonly around 4.0mm. After welding, panels are typically finished with corrosion protection such as hot-dip galvanizing and optional polymer/PVC coating to improve service life and appearance retention. With additional V-top arms, barbed wire, or razor wire, the system gains extra delay time and deterrence for high-threat zones.

Visual Reference: china 358 fence (Keep Original Photos)

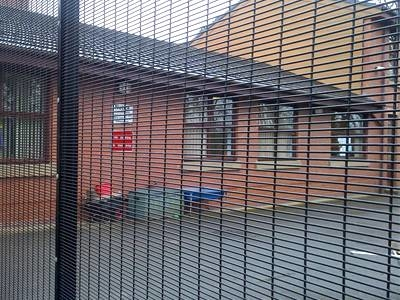

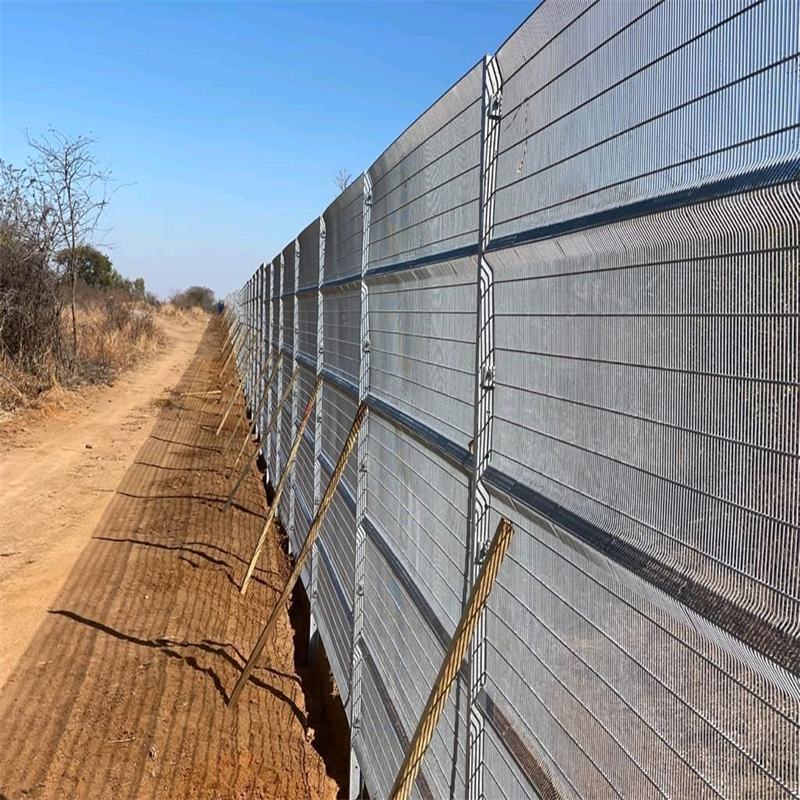

358-01: Black PVC coated 358 anti-climb fence is more in harmony with residential and commercial places.

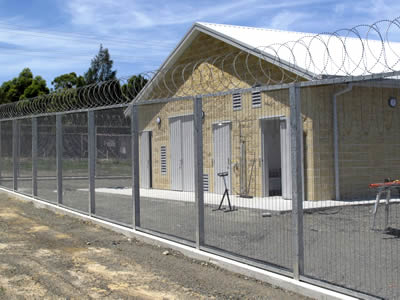

358-02: Together with razor wire, 358 anti-climbing fence deters intruders and provides a high degree of security.

Key Features of china 358 fence

Anti-climb: Tight aperture prevents reliable grip, even with footwear pressure.
Anti-cut: Dense weld structure and heavier wire options resist bolt-cutter leverage.
High rigidity: Full intersection welding forms a stable panel face that resists impact and deformation.
High visibility: Open mesh supports CCTV, alarms, and patrol response without blind spots.
Long service life: Galvanizing plus optional polymer coating reduces corrosion and maintenance.

Specifications: china 358 fence (Tables)

Table 1: Standard Panel + Post System Builds (Common Heights)

Product ID	Fence Height (m)	Panel Size (H × W) (mm)	Mesh Opening (mm)	Wire Dia. (mm)	Post (H × Size × Thick) (mm)	Clamp Bar (H × W × Thick) (mm)	Bolt Spacing Target	Inter / Corner Clamps (pcs)	Typical Threat Level
358F01	2.0	2007 × 2515	12.7 × 76.2	4.0	2700 × 60×60 × 2.5	2007 × 60 × 5.0	~300mm	7 / 14	General high-security
358F02	2.4	2400 × 2515	12.7 × 76.2	4.0	3100 × 60×60 × 2.5	2400 × 60 × 5.0	~300mm	9 / 18	Higher delay time
358F03	3.0	2997 × 2515	12.7 × 76.2	4.0–5.0	3800 × 80×80 × 2.5	2997 × 80 × 6.0	~300mm	11 / 22	Critical perimeter
358F04	3.3	3302 × 2515	12.7 × 76.2	4.0–5.0	4200 × 80×80 × 2.5	3302 × 80 × 6.0	~300mm	12 / 24	Public-facing tall
358F05	3.6	3607 × 2515	12.7 × 76.2	4.0–5.0	4500 × 100×100 × 3.0	3607 × 100 × 7.0	~300mm	13 / 26	High deterrence
358F06	4.2	4204 × 2515	12.7 × 76.2	4.0–5.0	5200 × 100×100 × 4.0	4204 × 100 × 8.0	~300mm	15 / 30	Infrastructure security
358F07	4.5	4496 × 2515	12.7 × 76.2	5.0	5500 × 100×100 × 5.0	4496 × 100 × 8.0	~300mm	16 / 32	High threat
358F08	5.2	5207 × 2515	12.7 × 76.2	5.0	6200 × 120×120 × 5.0	5207 × 100 × 8.0	~300mm	18 / 36	Prison / defense
358F09	2.0	2007 × 2515	12.5 × 75	3.0–4.0	2700 × 60×60 × 2.5	2007 × 60 × 5.0	~300mm	7 / 14	Cost-performance
358F10	3.6	3607 × 2515	15 × 100	4.0–5.0	4500 × 100×100 × 3.0	3607 × 100 × 7.0	~300mm	13 / 26	Custom aperture

Table 2: Panel Mesh Options (Anti-Climb + Anti-Cut Tuning)

Option	Mesh Opening (mm)	Wire Diameter (mm)	Typical Panel Width	Typical Panel Heights	Anti-Climb Level	Anti-Cut Level	Visibility	Noise/Movement Risk	Best Use
Classic 358	12.7 × 76.2	4.0	2515mm	2.0–5.2m	Very High	High	Excellent	Low (with correct posts)	Prisons, airports
Heavy Wire	12.7 × 76.2	5.0	2515mm	3.0–5.2m	Very High	Very High	Excellent	Low	Defense, critical assets
Cost-Performance	12.5 × 75	3.0–4.0	2515mm	2.0–3.6m	High	Medium	Excellent	Medium	Warehouses
Wider Aperture	15 × 100	4.0	2515mm	2.0–4.2m	Medium	Medium	Excellent	Medium	Low-risk perimeters
Double Vertical	12.7 × 76.2	4.0 + double V	2515mm	3.6–5.2m	Very High	High	Excellent	Very Low	Maximum rigidity lines
High Visibility	12.7 × 76.2	3.0	2515mm	2.0–3.0m	High	Medium	Excellent	Medium	Public-facing
Stacked System	12.7 × 76.2	4.0	2515mm	4.2–5.2m	Very High	High	Excellent	Low (engineered joint)	Tall secure lines
PVC / Polymer Coat	12.7 × 76.2	4.0	2515mm	2.0–5.2m	Very High	High	Excellent	Low	Appearance + corrosion
Galfan Option	12.7 × 76.2	4.0	2515mm	2.0–5.2m	Very High	High	Excellent	Low	Enhanced corrosion
Custom Build	Per request	2.0–6.5	≤2515mm	2.0–5.2m	Project-based	Project-based	Excellent	Project-based	Special compliance

Table 3: Post + Clamp Bar Control (Where Real Failures Start)

Fence Height	Post Size	Post Thickness	Clamp Bar Width	Clamp Bar Thickness	Fixing Type	Fixing Count	Panel Overlap	Result if Under-Built	Recommended Use
2.0m	60×60	2.5mm	60mm	5.0mm	Security bolts	7–8	≥75mm	Edge lift	General security
2.4m	60×60	2.5mm	60mm	5.0mm	Security bolts	9	≥75mm	Panel movement	Higher delay
3.0m	80×80	2.5mm	80mm	6.0mm	Security bolts	11	≥75mm	Post rotation	Critical lines
3.3m	80×80	2.5mm	80mm	6.0mm	Security bolts	12	≥75mm	Wave-line drift	Public-facing tall
3.6m	100×100	3.0mm	100mm	7.0mm	Security bolts	13	≥75mm	Loosening over time	High deterrence
4.2m	100×100	4.0mm	100mm	8.0mm	Security bolts	15	≥75mm	Corner weakness	Infrastructure
4.5m	100×100	5.0mm	100mm	8.0mm	Security bolts	16	≥75mm	Emergency rework	High threat
5.2m	120×120	5.0mm	100mm	8.0mm	Security bolts	18	≥75mm	Attackable seam	Prison/defense
Any	Matched	Matched	Full-height	Min 5mm	Anti-tamper	Consistent	≥75mm	Peel route created	All sites
Any	Matched	Matched	Full-height	Upgraded	Permacone nut	Upgraded	≥75mm	Fastener attacks	High-risk

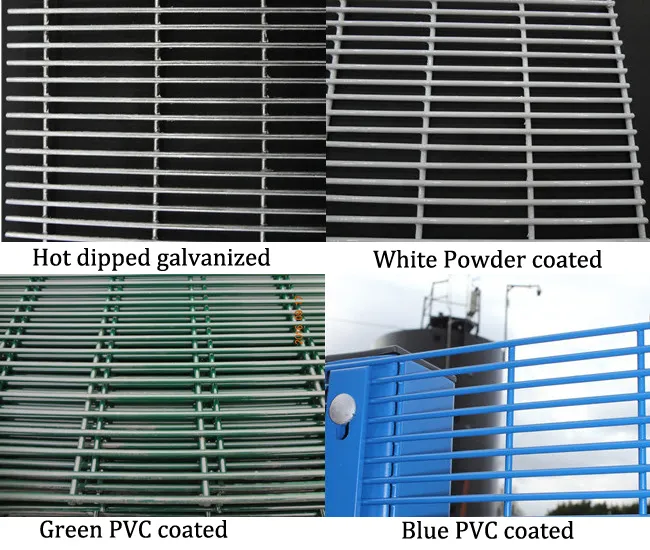

Table 4: Finish Options (The Difference Between “New for 3 Months” vs. “New for Years”)

Finish Type	Core Protection	Top Coat	Typical Thickness	Best Color Options	Corrosion Resistance	Scratch Resistance	Appearance Retention	Where It Fails If Cheap	Recommended Sites
Pre-Galv Wire + Weld	Zinc layer	None	Project-based	Metallic	Medium	Medium	Medium	Weld zones	Indoor/low exposure
Hot-Dip Galvanized	HDG	None	Heavy coat	Metallic	High	Medium	High	Handling rub points	General security
HDG + PVC/Polymer	HDG	PVC/Polymer	≥100µm top coat	RAL 6005 / RAL 9005	Very High	High	Very High	Edges if thin coat	Public-facing assets
Galfan + Powder	Galfan	Powder	≥60–100µm	Any RAL	Very High	High	Very High	Coating adhesion	Coastal/industrial
Powder Only	None	Powder	≥80µm	Any RAL	Low	Medium	Medium	Rust bloom fast	Not recommended
HDG + Double Coat	HDG	Powder + seal	High build	Black/Green	Very High	Very High	Very High	Corner chips	High-threat zones
Industrial Spec	HDG	Polymer	Project spec	Project spec	Very High	High	High	Fasteners first	Plants/substations
Architectural Spec	HDG	Powder	Project spec	RAL match	High	High	Very High	Gloss mismatch	Public projects
Fasteners Spec	Galv	Powder match	Project spec	Match panels	High	High	High	Seizing/rust	All sites
Clamp Bar Spec	Galv	Powder match	Project spec	Match panels	High	High	High	Edge rust	All sites

Table 5: Packing + Logistics Controls (Stop “Arrival Damage”)

Item	Packing Method	Protection Focus	Stops This Failure	Panel Protection	Post Protection	Clamp/Fastener Packing	Pallet Type	Container Loading	Result
Panels	Wooden/steel pallets + film	Edge & face rub	Scratches → rust	Corner guards	—	—	Strong pallet	Strapped tight	Cleaner install
Posts	Bundled + wrapped	Dents/scuffing	Paint damage	—	Separated layers	—	Strong pallet	Protected placement	Better appearance
Clamp Bars	Boxed + separators	Coating chips	Early corrosion	—	—	Set-packed	Cartons on pallet	No loose steel	Less rework
Bolts/Nuts	Small bags + cartons	Missing parts	Stop-work	—	—	Counted sets	Cartons on pallet	Labelled	Faster install
Razor/Barbed Add-on	Coil protected	Deformation	Unsafe handling	—	—	—	Separate pallet	Secured	Safer deployment
Post Caps	Bagged + boxed	Loss	Water ingress	—	—	Counted sets	Cartons	Labelled	Longer life
Brackets	Set-packed	Fit consistency	Loose fixing	—	—	Matched sets	Cartons	Labelled	Stable fence
Spacers/Washers	Set-packed	Clamp pressure	Edge lift	—	—	Matched sets	Cartons	Labelled	Uniform strength
Mixed Loads	Layered plan	Compression damage	Bent panels	Top-layer care	Side protection	Boxed	Strong pallet	No over-stack	Less claims
Final Seal	Full wrap + straps	Movement	Rubbing	Stable	Stable	Stable	Strong pallet	Forklift safe	Arrival ready

More Photos (Keep Original Sizes)

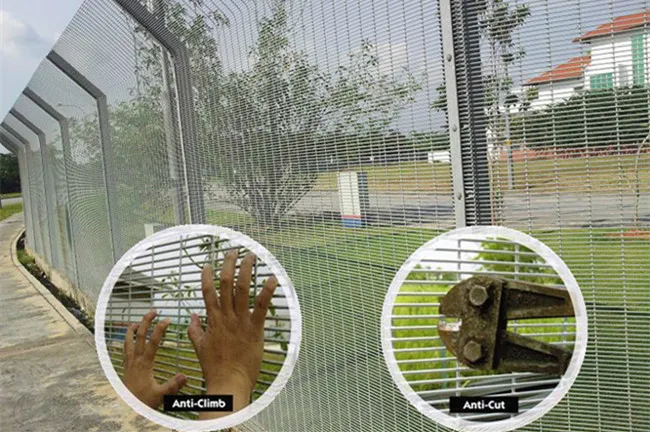

358-03: Bolt cutter cannot even stretch into small hole of 358 fence, no mention of cutting.

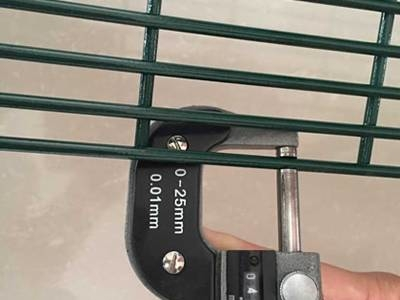

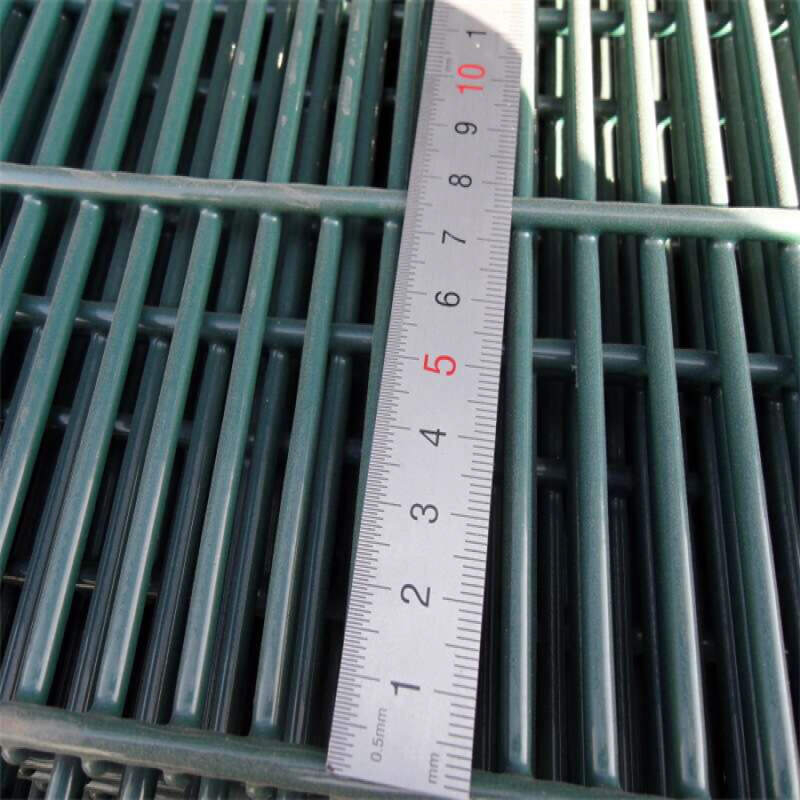

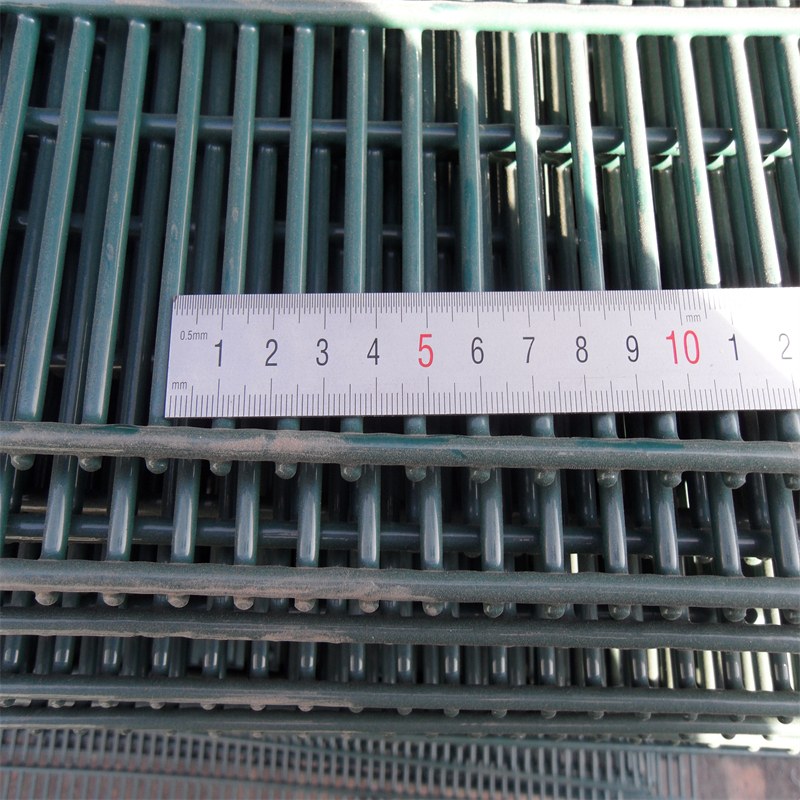

358-04: The wire diameter and mesh opening follow strictly the standard size.

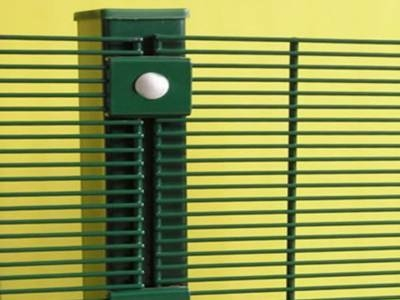

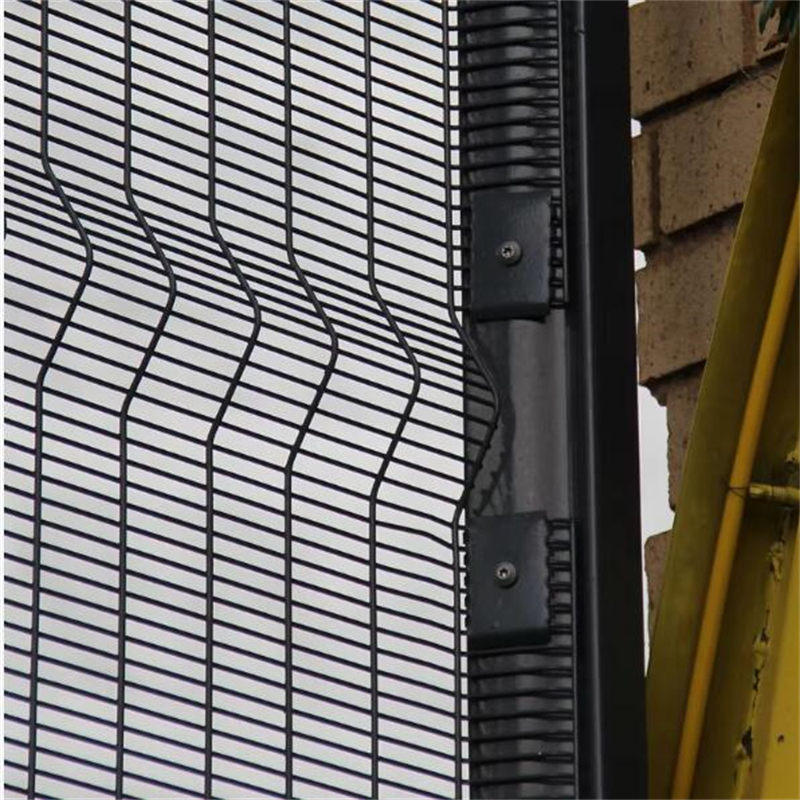

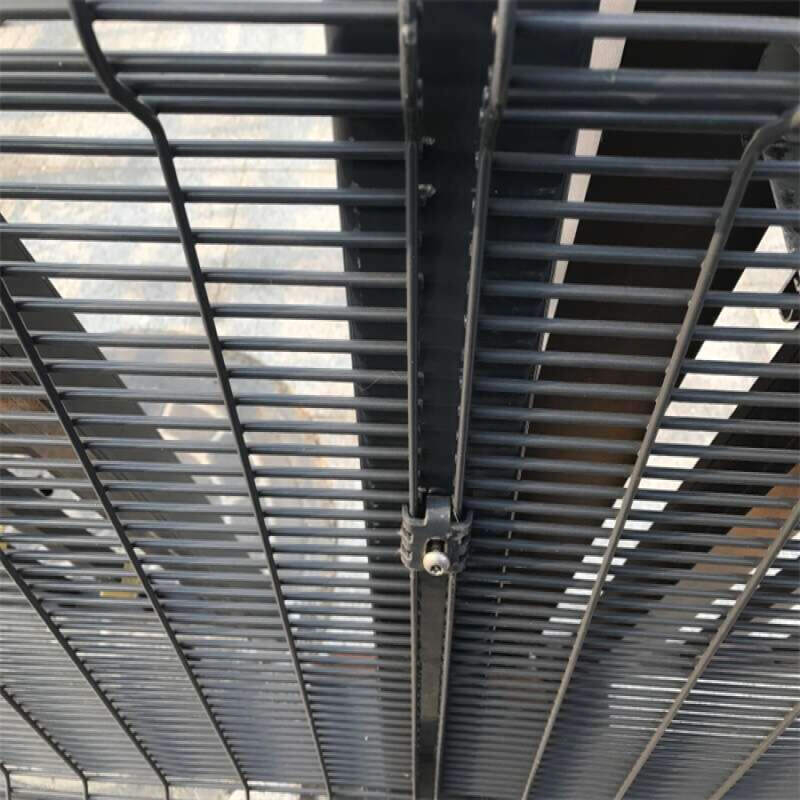

358-05: Two 358 anti-climb fence panels installed into a narrow post with 75mm overlap for a solid structure.

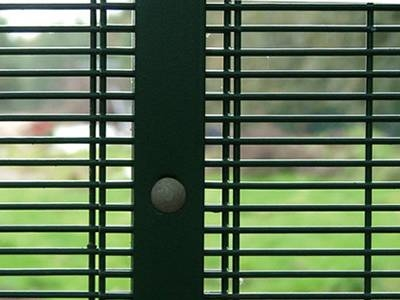

358-06: Two panels installed into a wide post with brackets (no overlap) but still firm when engineered correctly.

Packing (Keep Original Photo)

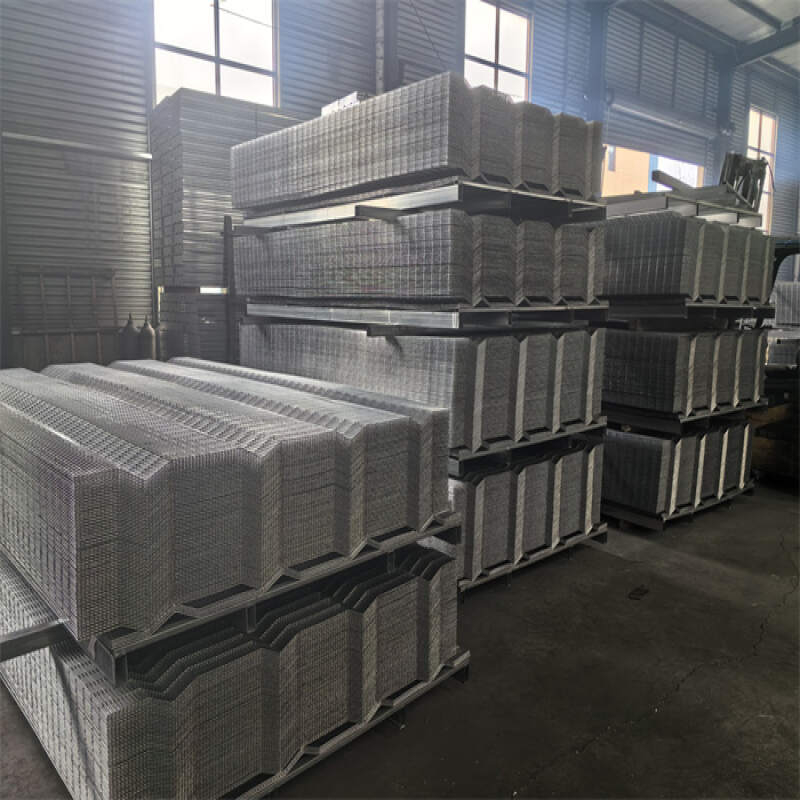

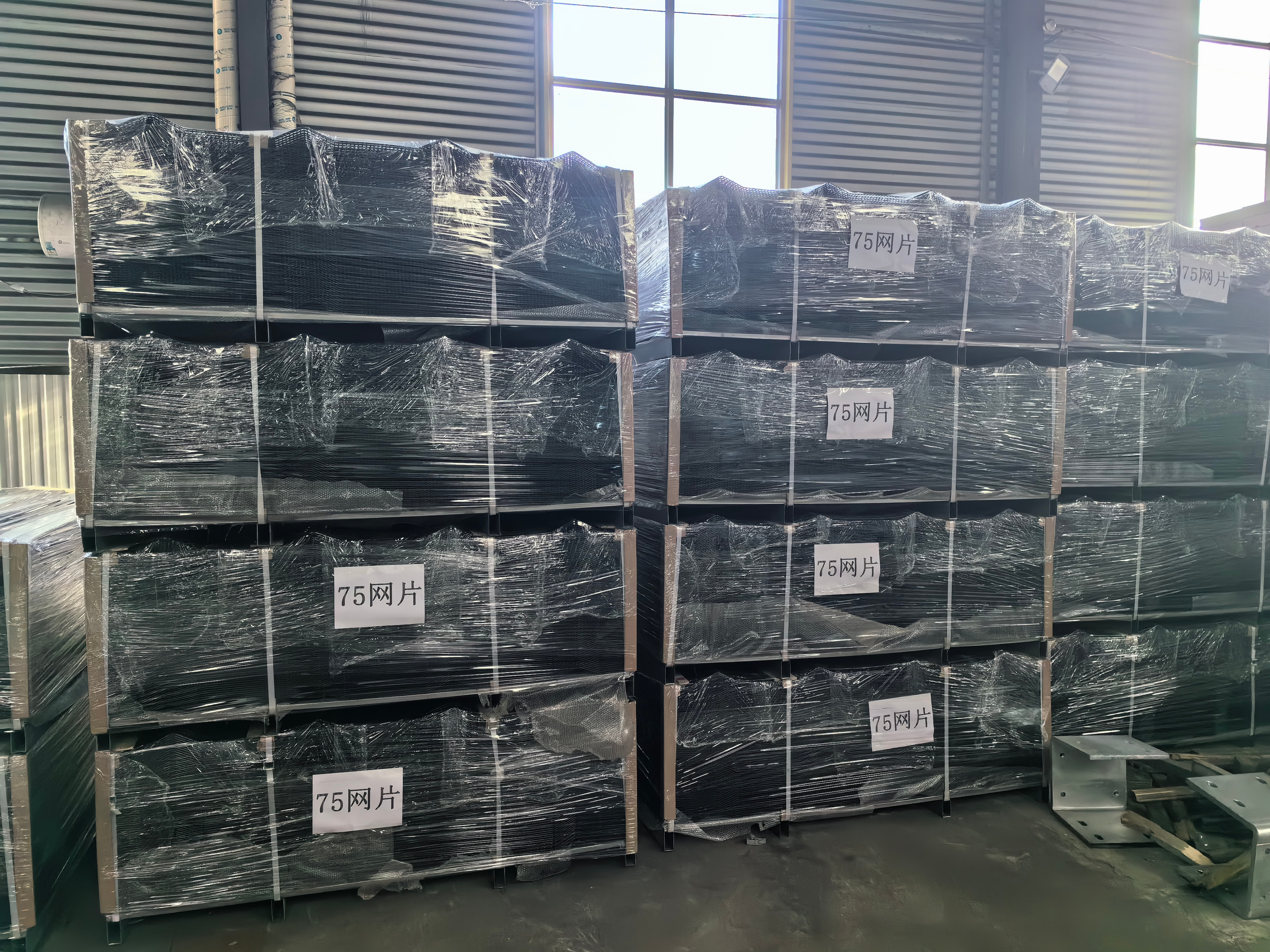

Pack the china 358 fence panels in strong pallets, wrap them with protective plastic film, and strap securely to prevent rubbing and impact damage during storage and transportation. Accessories are packed by complete set to avoid missing-part delays on site.

20240221133440112

358ACF-07: 358 anti-climb fence packed in pallets and enveloped by plastic film for transportation and storage.

Additional Visual Reference (Keep Original Photos)

Powder-Coated-High-Security-358-Anti-Climb-Welded-Wire-Mesh-Fence-for-Prison

358 security fence
Panel height	2100mm	2400mm	3000mm
Panel width	2500mm	2500mm	2500mm
Mesh size	12.7 x 76.2mm	12.7 x 76.2mm	12.7 x 76.2mm
Horizontal wire	4mm	4mm	4mm
Vertical wire	4mm	4mm	4mm
Posts	60 x 60 x 3 mm	60 x 60 x 3 mm	80 x 80 x 3 mm
Post length	2.8m	3.1m	4.0m
Fixings	8 galv bolt c/w Permacone secruity nut
No. of fixings	8	9	11

The design of anti-cutting has a strong body, can reduce the destroy and anti-climing.

Powder-Coated-High-Security-358-Anti-Climb-Welded-Wire-Mesh-Fence-for-Prison-1

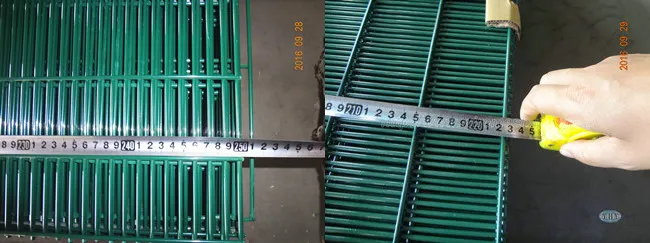

Quality inspection: Our company have passed ISO certificate, we produce and inspect the goods strictly according to the ISO documents to guarantee the quality.

Powder-Coated-High-Security-358-Anti-Climb-Welded-Wire-Mesh-Fence-for-Prison-2

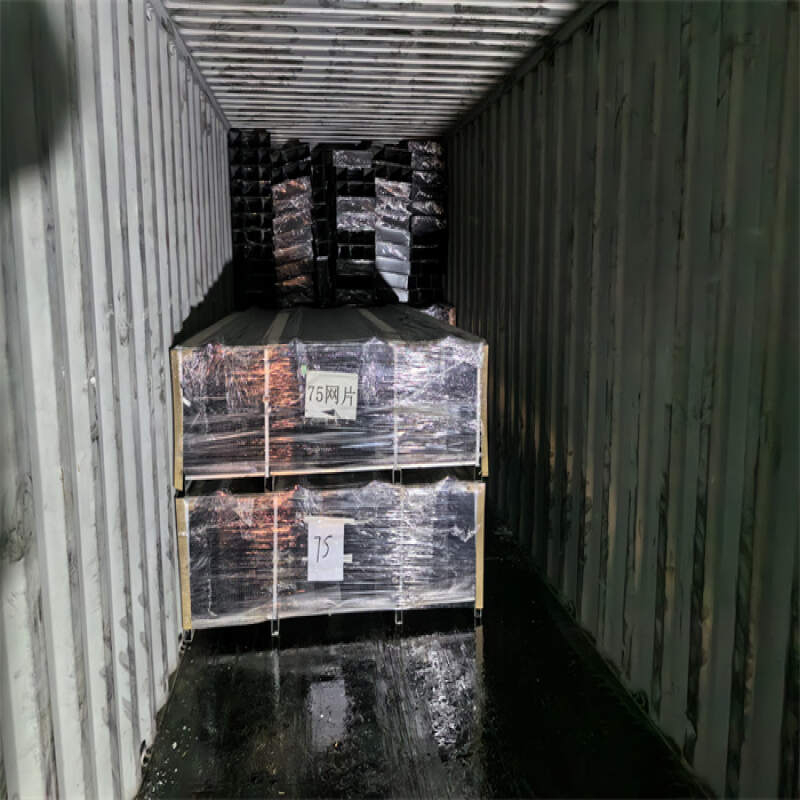

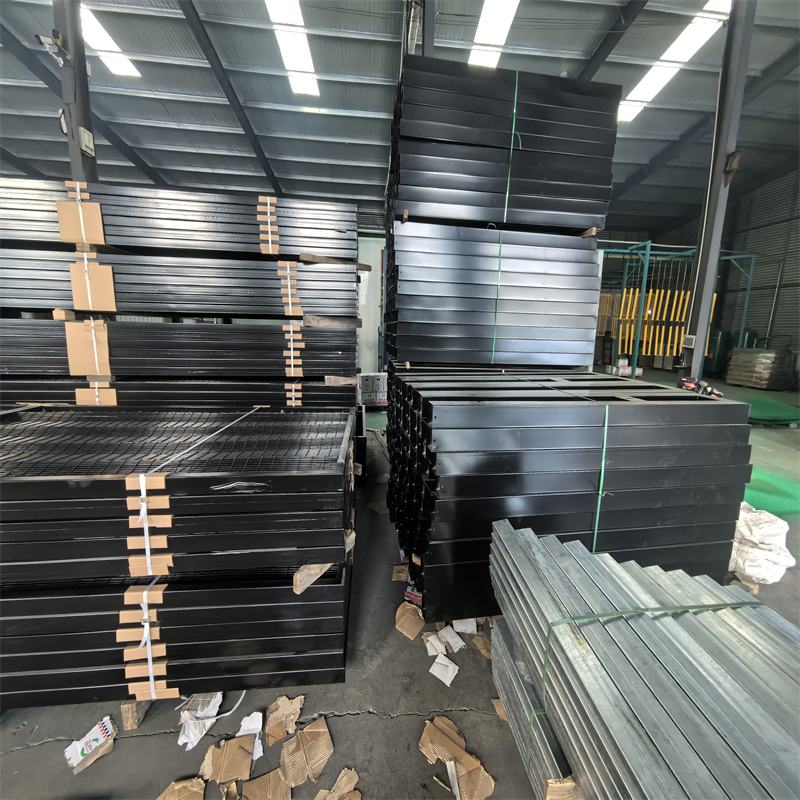

Packing and load: strong wooden pallets then load into the container.

Applications: china 358 fence

Prisons and correctional facilities
Military bases and defense zones
Airports, ports, and transport corridors
Power plants, substations, water treatment works
Warehouses, factories, logistics yards
Laboratories, petroleum and chemical facilities
Public-facing high-risk boundaries that require visibility + deterrence

Benefits: What a Correct china 358 fence System Delivers

A correctly specified china 358 fence system delivers real security value when it is engineered as a complete package. Tight apertures stop climbing routes, heavier wire plus full welding slows cutting, and properly sized posts with thick clamp bars stop edge-lifting and panel movement. The open mesh keeps visibility high for CCTV and alarms, while controlled coating and packing reduce lifetime maintenance and prevent early “looks damaged” complaints that trigger rework—especially when you choose higher-performance coatings like PVDF for demanding environments.

Standard and Manufacturing Control

POLYMETAL quality control focuses on weld integrity at every intersection, dimensional consistency for clamp fit and overlap, post compatibility across straight runs and corners, and finish performance that resists abrasion during transport and installation. Production flow typically follows: material selection → wire straightening/cutting → panel welding → galvanizing → optional polymer/powder coating → inspection → protective packing → shipment.

Top 18 TRAPS for china 358 fence (Especially #15)

TRAP #1: Buying “358” by name but receiving the wrong mesh opening

If the aperture is larger than required, anti-climb performance collapses fast.

TRAP #2: Accepting “approx wire” instead of locking wire diameter

Thin wire reduces cut resistance and makes panels easier to deform.

TRAP #3: Weak weld penetration that looks fine until the fence is attacked

Attackers exploit weld weakness; movement grows into a breach route.

TRAP #4: Thin clamp bars that flex and allow edge peel

Clamp bars are the real lock—thin bars create a lever point.

TRAP #5: Light posts on tall systems (wind becomes the stress test)

Post rotation loosens clamps and starts fence-line drift.

TRAP #6: Skipping overlap at posts and creating a straight seam weakness

No overlap = an easier vertical attack channel.

TRAP #7: Inconsistent bolt spacing that creates “soft points”

Uneven fixing pressure becomes the failure zone under force.

TRAP #8: Fasteners and clamps that rust first

Seized bolts and corrosion-driven maintenance cost explode later.

TRAP #9: Corners treated as “standard” instead of reinforced load points

Movement starts at corners and spreads down the run.

TRAP #10: Buying panels that don’t match post pitch (installers improvise)

Improvisation causes uneven overlaps, weak clamping, and visible defects.

TRAP #11: Thin post wall thickness that twists under tension

Twist loosens joints—your “secure line” becomes a moving line.

TRAP #12: Under-building gates and access points

Most breaches happen at access points—don’t make them weaker than the line.

TRAP #13: Coating that is too thin or poorly cured

Scratches become corrosion hotspots; public-facing lines look worn fast.

TRAP #14: Poor packaging that damages panels before installation

Rub marks and edge chips become instant rejection triggers.

TRAP #15: The hidden LOSS—when “looks right” china 358 fence fails under real conditions

This is the budget killer. The fence can look perfect on delivery, then weak posts twist, clamp bars flex, overlaps are wrong, and an attacker (or wind and vibration) finds the seam. The result is forced reinforcement, perimeter downtime, emergency rework, delayed handover, and reputation damage that costs far more than the original fence order.

TRAP #16: Mixing clamp systems and creating uneven pressure

One “softer” section becomes the attack target and alignment defect.

TRAP #17: Ordering tall height without a wind and stiffness plan

Height multiplies leverage—posts and clamps must be sized accordingly.

TRAP #18: Buying panels only instead of a complete system plan

Panels do not create security alone—posts, clamp bars, fixings, coating, and packing decide outcomes.

FAQs: china 358 fence

What does “358” mean?

It refers to the classic 3″ × 0.5″ pattern (about 76.2mm × 12.7mm) with a heavy security wire grade often around 4.0mm.

Why is it hard to climb?

The aperture is too small to form a reliable grip for fingers and toes.

Why is it hard to cut?

Dense welds and heavier wire slow cutting attempts and resist bolt-cutter leverage.

What is the most important installation detail?

Controlled overlap (commonly ≥75mm) and full-height clamp bars with consistent bolt spacing to prevent edge lifting.

How should it be packed?

Palletized and wrapped to prevent rubbing damage; accessories packed by complete set to avoid missing-part delays.

Conclusion

china 358 fence delivers real anti-climb and anti-cut performance only when it is bought as a system: correct mesh opening, correct wire diameter, full welding, correct post stiffness, thick clamp bars, consistent fixings, and finish protection that survives transport and installation. If you control the details, you get a perimeter that stays stable, acceptance-ready, and resistant to both attack and long-term drift.
