Buying commercial garrison fencing is not just choosing a clean architectural boundary. On real commercial sites, the fence is judged by one thing: whether it stays straight, tight, and intimidating after months of wind shifts, traffic vibration, delivery vehicle movement, repeated gate cycles, and daily contact.
The hidden danger is assuming all tubular garrison panels behave the same once installed. They do not. One weak rail frame, the wrong rail thickness, a spacing mismatch, under-sized posts, or bracket packages that do not match the post wall can trigger wave-lines, rattles, coating rub-through, leaning bays, and gates that drag—then rework that costs more than the fence itself.
POLYMETAL manufactures commercial garrison fencing as repeatable modules so panel geometry, rail/upright matching, bracket fit, and post stability remain consistent from the first bay to the last—without “site improvisation” that burns time and money. For sites that also require fast-moving perimeter control during construction phases, many buyers pair the permanent boundary plan with Australian temporary fencing to keep access points managed while the final commercial fence line is being installed.
Top 10 High-Risk Traps for Commercial Garrison Fencing Orders
Each item below looks minor on a purchase order—but becomes a jobsite crisis after posts are already set. Pay special attention to #7, because that is where buyers most often suffer the biggest loss.
Trap #1: Choosing a rail frame that is too light for the height and run length
Rails control straightness. If the rail frame is under-specified, your line develops visible wave-lines once brackets tighten and the run heats/cools. Lock the rail frame early: 40×40, 45×45, or 50×50, and match it to height and exposure.
Risk #2: Picking rail thickness to “save steel” instead of controlling stiffness
Rail thickness is stiffness. If thickness is too light, the fence flexes, fasteners loosen faster, and alignment becomes a constant adjustment. Typical rail thickness options include 1.60mm, 2.00mm, 2.50mm, and 3.00mm.
Oversight #3: Mixing panel widths without a layout plan
Most commercial bays are built around 2400mm width, with 2450mm used when site modules require it. When widths are mixed without planning, installers “force” alignment, stressing brackets and creating crooked lines that never look premium.
Warning #4: Upright size selected for appearance, not commercial abuse levels
Upright size changes stiffness and deterrence. Common options include 16×16, 25×25, and 30×30. Under-sized uprights can look neat on day one, then feel soft and bend-prone after minor impacts in high-traffic commercial zones.
Fault #5: Upright thickness treated like a cosmetic detail
Upright thickness is performance. Typical options include 0.80mm, 1.00mm, 1.20mm, and up to 2.00mm. Thin uprights bend first, and once the top line is bent, the whole fence looks “repaired.”
Problem #6: Spacing requested, but upright count doesn’t match the panel design
Spacing must match upright count. Typical builds are 16 pcs (~115mm), 17 pcs (~108mm), or 18 pcs (~100mm). If you demand a 100mm security feel but order a layout that does not support it, you get fabrication surprises or delivered panels that fail expectations.
Loss #7: Post height not engineered to panel height (the biggest money mistake)
This is the most common hidden failure point. If posts are too short, embedment and stability collapse, bays lean, brackets loosen, and the fence becomes a maintenance machine. Use this rule:
Fence post height must be panel height + 600mm.
When this is wrong, you pay twice—once for the fence, and again for post replacement, re-drilling, re-concreting, and downtime.
Pitfall #8: Post size selected without matching wall thickness
Post options commonly include 60×60, 65×65, 75×75, 80×80, and 100×100. Size alone is not enough—wall thickness matters:
1.6mm, 2.0mm, 2.5mm.
If wall thickness is too light, posts twist under bracket load and the fence “leans” even when panels are correct.
Danger #9: Brackets and fasteners not treated as a single system
Panels, posts, brackets, and fasteners must be designed together. Weak brackets or mismatched fasteners trigger over-tightening, stripped threads, bracket distortion, and movement that looks like “panel failure” but is actually fixing failure.
Checklist #10: Ordering panels without a receiving-ready kit plan
Commercial site loss often comes from logistics: mixed bundles, missing caps, wrong bracket counts, or unlabeled post heights. A clean install needs labeled bundles by height/width/rail group/spacing group, with matching post sets so installers cannot swap components and create alignment damage.

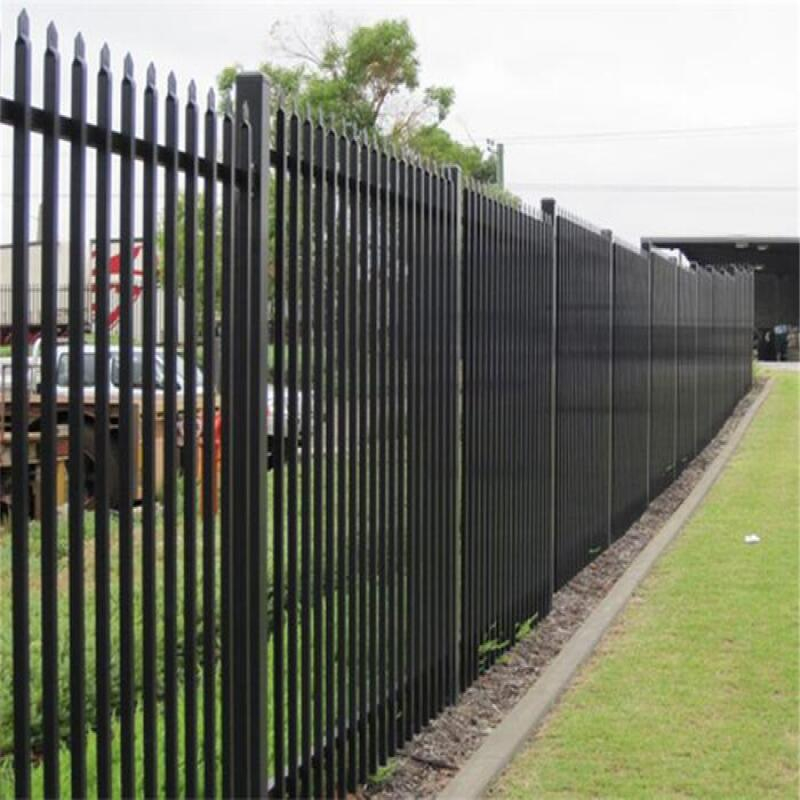

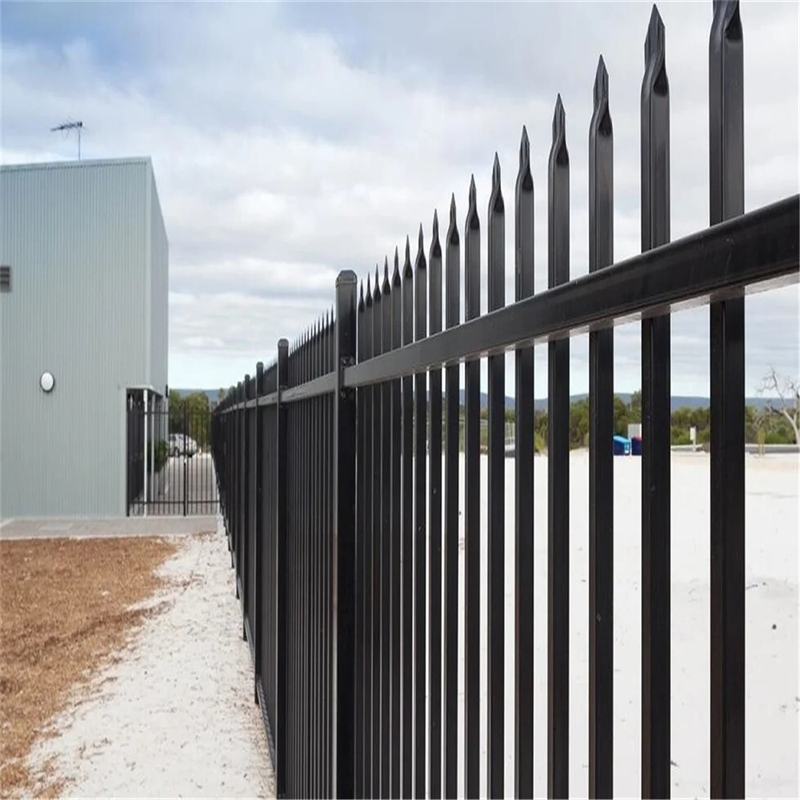

Product Description: POLYMETAL Commercial Garrison Fencing System
POLYMETAL commercial garrison fencing is a tubular steel picket panel and post system designed to deliver a strong security message and a clean architectural line at the same time. Panels are manufactured from low carbon steel (commonly Q195/Q235) with rail frames selected for stiffness and straightness across long commercial runs where visibility matters. Uprights can be configured in multiple sizes and thicknesses to match the site’s impact risk and the required deterrence level, and the system can be supplied as galvanised steel or galvanised then powder coated for stronger corrosion resistance and colour stability under daily contact and weather exposure.
Commercial projects often need gates and access control, not “panels only.” POLYMETAL can supply the fence as a complete package including matched posts, brackets, fasteners, caps, and gate options such as walkway gates, double swing gates, and sliding gate frames so the perimeter performs as one unified build instead of mixed components from multiple sources. For faster site turnaround, modular panel bays reduce on-site cutting and simplify repairs because damaged sections can be replaced without rebuilding the entire run.
Some commercial buyers also request tighter picket gaps (for example 80mm appearance gaps) and different panel widths (such as 2000mm wide modules) to match specific site conditions or security policies. POLYMETAL can manufacture those formats as custom builds while keeping the same “system discipline” so posts, brackets, and finish protection still match the delivered panels.
Specifications: Commercial Garrison Fencing (3 Tables, 10+ Configurations Each)
All configurations below follow your required selectable options: fence heights 1200/1500/1800/2100/2400, panel widths 2400/2450, rail frames 40×40 / 45×45 / 50×50, uprights 16×16 / 25×25 / 30×30, upright thickness 0.80 / 1.00 / 1.20 / 2.00, rail thickness 1.60 / 2.00 / 2.50 / 3.00, upright counts 16/17/18 with spacing profiles ~115/~108/~100, and post options 60×60 / 65×65 / 75×75 / 80×80 / 100×100 with wall thickness 1.6/2.0/2.5. Post height uses the rule: post height = panel height + 600mm.
Table 1: Standard Commercial Garrison Fencing (Balanced Spec)
| Fence Height | Fence Width | Rail Frame | Rail Thk | Upright | Upright Thk | Upright No. | Spacing | Post Option | Post Wall | Post Height |
| 1200mm | 2400mm | 40×40 | 1.60 | 16×16 | 1.00 | 18 | ~100mm | 60×60 | 1.6 | 1800mm |
| 1200mm | 2450mm | 40×40 | 2.00 | 25×25 | 1.00 | 17 | ~108mm | 65×65 | 1.6 | 1800mm |
| 1500mm | 2400mm | 45×45 | 2.00 | 25×25 | 1.00 | 18 | ~100mm | 65×65 | 2.0 | 2100mm |
| 1500mm | 2450mm | 45×45 | 2.00 | 25×25 | 1.20 | 17 | ~108mm | 75×75 | 2.0 | 2100mm |
| 1800mm | 2400mm | 45×45 | 2.50 | 25×25 | 1.20 | 18 | ~100mm | 75×75 | 2.0 | 2400mm |
| 1800mm | 2450mm | 50×50 | 2.00 | 30×30 | 1.00 | 17 | ~108mm | 80×80 | 2.0 | 2400mm |
| 2100mm | 2400mm | 50×50 | 2.50 | 30×30 | 1.20 | 18 | ~100mm | 80×80 | 2.5 | 2700mm |
| 2100mm | 2450mm | 50×50 | 2.50 | 30×30 | 1.20 | 17 | ~108mm | 100×100 | 2.0 | 2700mm |
| 2400mm | 2400mm | 50×50 | 3.00 | 30×30 | 1.20 | 18 | ~100mm | 100×100 | 2.5 | 3000mm |
| 2400mm | 2450mm | 50×50 | 3.00 | 30×30 | 2.00 | 17 | ~108mm | 100×100 | 2.5 | 3000mm |
Table 2: Heavy-Duty Commercial Garrison Fencing (High Wind / High Abuse)
| Fence Height | Fence Width | Rail Frame | Rail Thk | Upright | Upright Thk | Upright No. | Spacing | Post Option | Post Wall | Post Height |
| 1200mm | 2400mm | 45×45 | 2.50 | 25×25 | 1.20 | 18 | ~100mm | 65×65 | 2.0 | 1800mm |
| 1200mm | 2450mm | 45×45 | 2.50 | 30×30 | 1.20 | 17 | ~108mm | 75×75 | 2.0 | 1800mm |
| 1500mm | 2400mm | 50×50 | 2.50 | 30×30 | 1.20 | 18 | ~100mm | 75×75 | 2.5 | 2100mm |
| 1500mm | 2450mm | 50×50 | 3.00 | 30×30 | 1.20 | 17 | ~108mm | 80×80 | 2.5 | 2100mm |
| 1800mm | 2400mm | 50×50 | 3.00 | 30×30 | 1.20 | 18 | ~100mm | 80×80 | 2.5 | 2400mm |
| 1800mm | 2450mm | 50×50 | 3.00 | 30×30 | 2.00 | 17 | ~108mm | 100×100 | 2.5 | 2400mm |
| 2100mm | 2400mm | 50×50 | 3.00 | 30×30 | 2.00 | 18 | ~100mm | 100×100 | 2.5 | 2700mm |
| 2100mm | 2450mm | 50×50 | 3.00 | 30×30 | 2.00 | 17 | ~108mm | 100×100 | 2.5 | 2700mm |
| 2400mm | 2400mm | 50×50 | 3.00 | 30×30 | 2.00 | 18 | ~100mm | 100×100 | 2.5 | 3000mm |
| 2400mm | 2450mm | 50×50 | 3.00 | 30×30 | 2.00 | 17 | ~108mm | 100×100 | 2.5 | 3000mm |
Table 3: Value Commercial Garrison Fencing (Cost-Controlled but Buildable)
| Fence Height | Fence Width | Rail Frame | Rail Thk | Upright | Upright Thk | Upright No. | Spacing | Post Option | Post Wall | Post Height |
| 1200mm | 2400mm | 40×40 | 1.60 | 16×16 | 0.80 | 16 | ~115mm | 60×60 | 1.6 | 1800mm |
| 1200mm | 2450mm | 40×40 | 1.60 | 16×16 | 1.00 | 17 | ~108mm | 60×60 | 1.6 | 1800mm |
| 1500mm | 2400mm | 40×40 | 2.00 | 25×25 | 1.00 | 16 | ~115mm | 65×65 | 1.6 | 2100mm |
| 1500mm | 2450mm | 45×45 | 1.60 | 25×25 | 1.00 | 17 | ~108mm | 65×65 | 2.0 | 2100mm |
| 1800mm | 2400mm | 45×45 | 2.00 | 25×25 | 1.00 | 17 | ~108mm | 75×75 | 2.0 | 2400mm |
| 1800mm | 2450mm | 45×45 | 2.00 | 25×25 | 1.20 | 16 | ~115mm | 75×75 | 2.0 | 2400mm |
| 2100mm | 2400mm | 50×50 | 2.00 | 30×30 | 1.00 | 17 | ~108mm | 80×80 | 2.0 | 2700mm |
| 2100mm | 2450mm | 50×50 | 2.50 | 30×30 | 1.00 | 16 | ~115mm | 80×80 | 2.0 | 2700mm |
| 2400mm | 2400mm | 50×50 | 2.50 | 30×30 | 1.20 | 17 | ~108mm | 100×100 | 2.0 | 3000mm |
| 2400mm | 2450mm | 50×50 | 2.50 | 30×30 | 1.20 | 16 | ~115mm | 100×100 | 2.0 | 3000mm |
Applications
Commercial garrison fencing is widely used where a site needs a clean architectural boundary with real control and repeatable bay spacing. Typical commercial applications include warehouses, factories, workshops, logistics depots, storage yards, retail and commercial frontage, public buildings, school perimeters, car parks, road corridors, utilities, and any project where future repairs must be fast because damaged bays can be replaced without rebuilding entire runs.
Benefits
A properly specified commercial garrison fencing system delivers straight sight lines and consistent spacing that looks professional from day one. Modular panels speed installation, reduce on-site cutting, and simplify future repairs because individual bays can be swapped without rebuilding the whole perimeter. When rail frame, upright thickness, bracket strength, and post selection are matched correctly, the fence resists loosening under vibration, holds alignment through seasonal movement, and protects its finish longer at contact points.
Packing
POLYMETAL typically packs commercial garrison fencing panels in counted bundles with separation protection to reduce coating rub-through during transport. Bundles are wrapped and palletized for forklift handling with corner guards to protect ends and faces. Posts are bundled separately by size and wall thickness to prevent mix-ups and bending risk. Brackets, fasteners, and caps are packed as counted sets so site teams can verify quantities quickly and avoid missing-component delays that stop installation.
Standards and FAQS
Standards
Because compliance depends on project scope, the safest approach is to define coating expectations, corrosion protection requirements, colour targets, and installation method directly in the purchase specification. For commercial environments with frequent contact and harsh exposure, galvanised then powder coated systems are often selected to improve corrosion resistance and keep the fence appearance stable over time.
FAQS
Q: What panel width is most common for commercial garrison fencing?
A: 2400mm is the most common module. If you select 2450mm, keep it consistent across the run and align corners and gates to the same module.
Q: How do I get a true 100mm “security feel” spacing?
A: Choose a layout that supports it, commonly 18 uprights (~100mm). Spacing requests must match upright count.
Q: What is the #1 hidden cost mistake?
A: Post height. Use post height = panel height + 600mm. Short posts cause lean, movement, and rework.
Q: Can commercial garrison fencing include gates and sliding gate frames?
A: Yes. The best results come when panels, posts, brackets, and gates are supplied as a matched system so the perimeter stays straight and the gate lines remain stable.
Final Buying Reminder
If you want commercial garrison fencing to install straight, stay tight, and keep its finish, do not buy “a panel.” Buy a matched POLYMETAL system: lock height and width, specify rail frame and thickness, confirm upright size and count to match spacing, and engineer posts by size, wall thickness, and especially post height (panel height + 600mm). That is how you avoid delays, rework, and the loss that hits when the schedule is already locked—and it’s why smart buyers often compare their purchase order against a clear reference like China garrison fencing system specs before production starts.
