Crowd Control Barrier 79 x 40 Orange: 10 Brutal Traps Read

A crowd control barrier 79 x 40 orange looks simple until it hits real work: fast deployment, constant moving,stacking, truck vibration, wet ground, and impatient crews.

That’s where “similar” barriers stop being similar.Most buyer losses come from hidden geometry drift, tube under-spec, weak weld habits, wrong feet, and coatings that fail first at the weld. If you’re considering second-hand stock, read why used crowd control barriers are a bad idea (Top 10 reasons) before you buy.

This guide is written as a practical checklist for people who buy, specify, rent, or manage event and site perimeters.
In the market, “79 x 40” is commonly used to describe a barrier around 79 inches long × 40 inches high (approximately 2.0 m × 1.0 m) in a high-visibility orange finish.

POLYMETAL supplies the crowd control barrier 79 x 40 orange as a controlled system with size options, tube options, spacing options, and feet options—so the barrier behaves the same after unloading as it did in the quotation.

Why a “crowd control barrier 79 x 40 orange” is judged after unloading (not in a brochure)

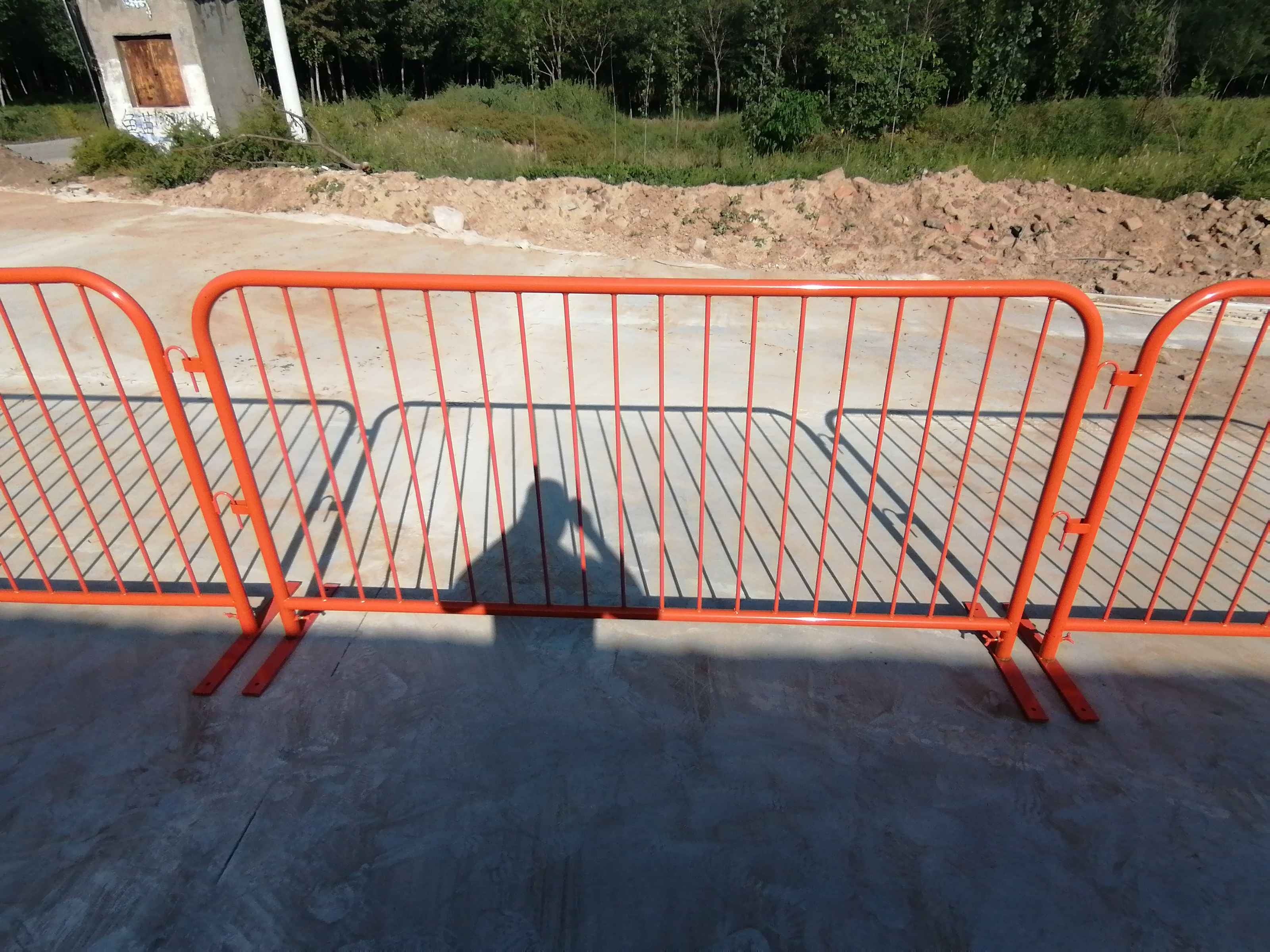

On real sites, a crowd control barrier 79 x 40 orange is judged by straightness over a long run, how the frame resists twist, whether uprights stay disciplined, whether feet sit flat on uneven surfaces, and whether stacking hooks and interlocks still align after repeated handling. A barrier that “looks the same” can still cost more through rework, complaints, and replacement.

Top 10 “you didn’t know” losses for crowd control barrier 79 x 40 orange buyers

Trap #1 (warning): Buying “79 x 40” as a label instead of a measured build

Many quotes write “79 x 40” but don’t lock the true finished length/height tolerance, hook position, and foot geometry. The result is mixed batches that don’t line up, don’t pin cleanly, or create gaps that fail crowd flow control. For a crowd control barrier 79 x 40 orange, insist on controlled dimensions and repeatable interlock geometry.

Trap #2 (risk): Frame tube OD is quoted, but wall thickness quietly drops

A seller can quote 32 mm or 38 mm frame tube and still undercut stiffness by reducing wall thickness. Twist shows up when barriers are dragged, stacked, or pushed. For a crowd control barrier 79 x 40 orange, tube OD and wall thickness must be treated as one system, not separate “nice-to-have” items.

Trap #3 (problem): Upright tube diameter and thickness are mismatched to spacing

Uprights that are too thin for tight spacing can “oil-can” under load; uprights that are too light for wide spacing can bend and stay bent. The buyer sees it later as ugly lines, misalignment, and a barrier that won’t stack right. A crowd control barrier 79 x 40 orange must match upright OD/thickness to the chosen spacing.

Trap #4 (oversight): Weld style looks fine—until coating reveals the weakness

Weak weld habits hide under fresh paint. Then coating chips at the heat-affected zone, rust blooms around weld points, and the barrier looks “old” in one season. A crowd control barrier 79 x 40 orange should be judged by weld consistency, edge finishing, and coating behavior at the weld, not only by the color on day one.

Trap #5 (pitfall): Feet are treated as a generic accessory, not the stability engine

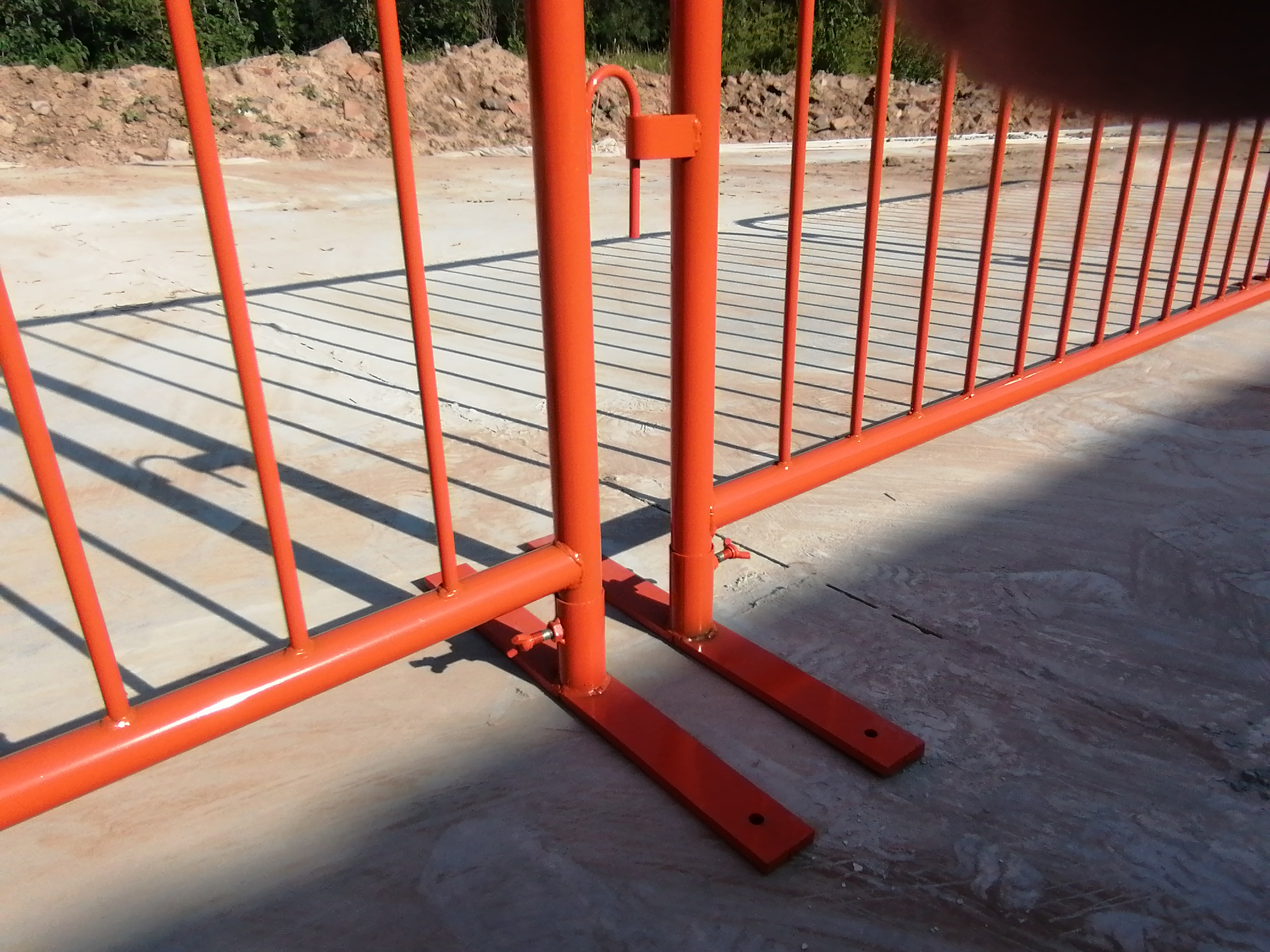

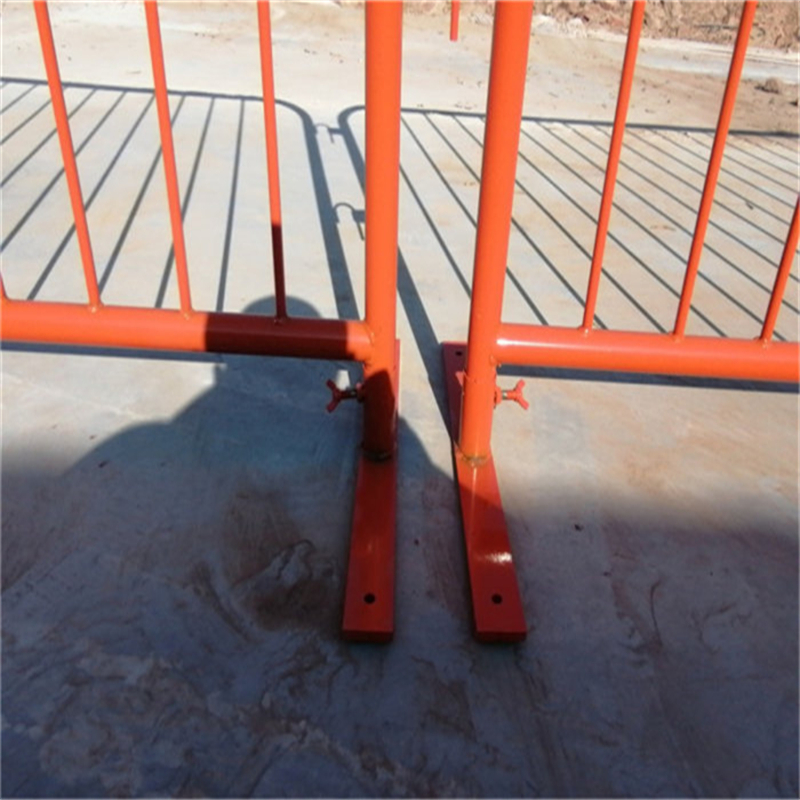

Wrong feet cause rocking, trip hazards, and premature damage because the barrier moves in ways it wasn’t designed to move. POLYMETAL offers flat steel feet (including 580 × 50 × 10 mm), plus wheel feet, bridge feet, and V feet options, so a crowd control barrier 79 x 40 orange matches the ground reality.

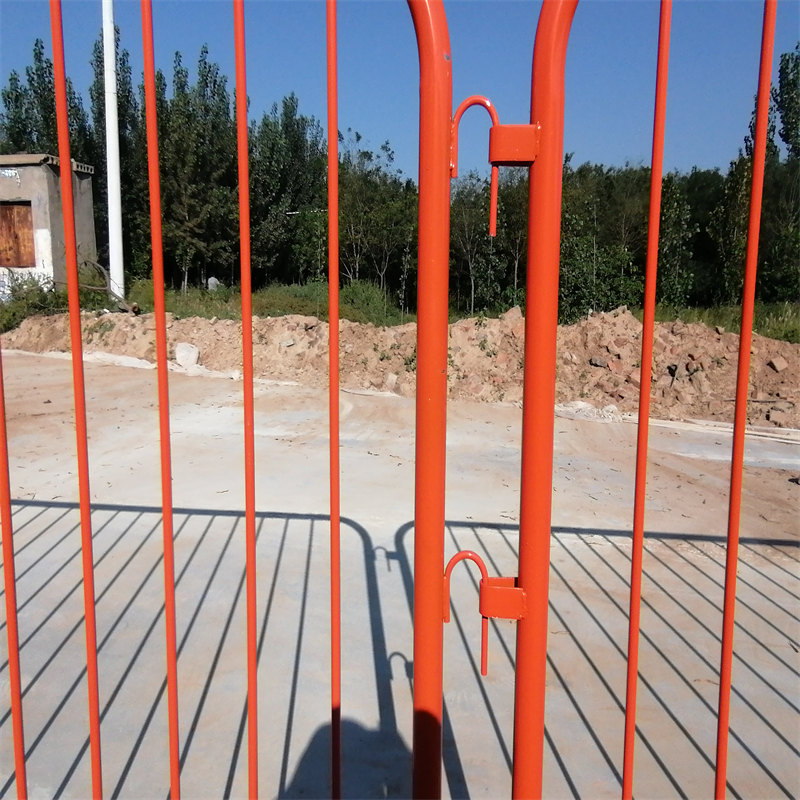

Trap #6 (loophole): Hooks, interlocks, and stackability are not controlled

Even small errors in hook placement create huge site pain: barriers won’t chain smoothly, stacks lean, forklift handling becomes risky, and rental fleets become inconsistent. A crowd control barrier 79 x 40 orange should be specified with interlock geometry, stacking targets, and consistent hook/loop positions.

Trap #7 (loss): “Orange” is treated as a color—while coating system and pretreatment are ignored

This is the hidden cost that hits hardest. Buyers think they purchased a crowd control barrier 79 x 40 orange, but what they really purchased is a coating decision. If pretreatment is weak, if powder is too thin, if cure is inconsistent, or if weld areas are not prepared correctly, the barrier starts failing at the exact points crews grab and drag. That becomes repainting, replacements, customer complaints, and fleet value loss. If you only remember one line: #7 is where “orange” becomes a money leak.

Trap #8 (damage): Packing and stillage decisions create transport scars that look like “factory defects”

Without correct stacking protection, barriers rub through coating, hooks deform, and feet gouge frames during transit. Then disputes start. A crowd control barrier 79 x 40 orange needs packing designed for the chosen finish and handling method.

Trap #9 (defect): Mixed tolerances across multiple width/height options create batch incompatibility

When a buyer mixes 2.0 m, 2.2 m, 2.5 m, and 2.6 m widths (or 1.0 m, 1.06 m, 1.1 m, 1.2 m heights) without tolerance control, the jobsite experiences uneven lines and interlock mismatch. POLYMETAL controls variant builds so each crowd control barrier 79 x 40 orange variant still connects cleanly as specified.

Trap #10 (checklist): Buying hardware last creates missing parts and install chaos

Pins, bridge feet, wheel feet, and special feet options are often decided too late. That creates delays and expensive “urgent” freight. A crowd control barrier 79 x 40 orange order should be quoted as a complete system: barrier + feet + interlocks + packing.

Product Description (POLYMETAL crowd control barrier 79 x 40 orange)

The POLYMETAL crowd control barrier 79 x 40 orange is a high-visibility steel barrier system designed for crowd guidance, perimeter definition, queue management, and controlled access at events, public works, construction interfaces, and temporary restricted zones.

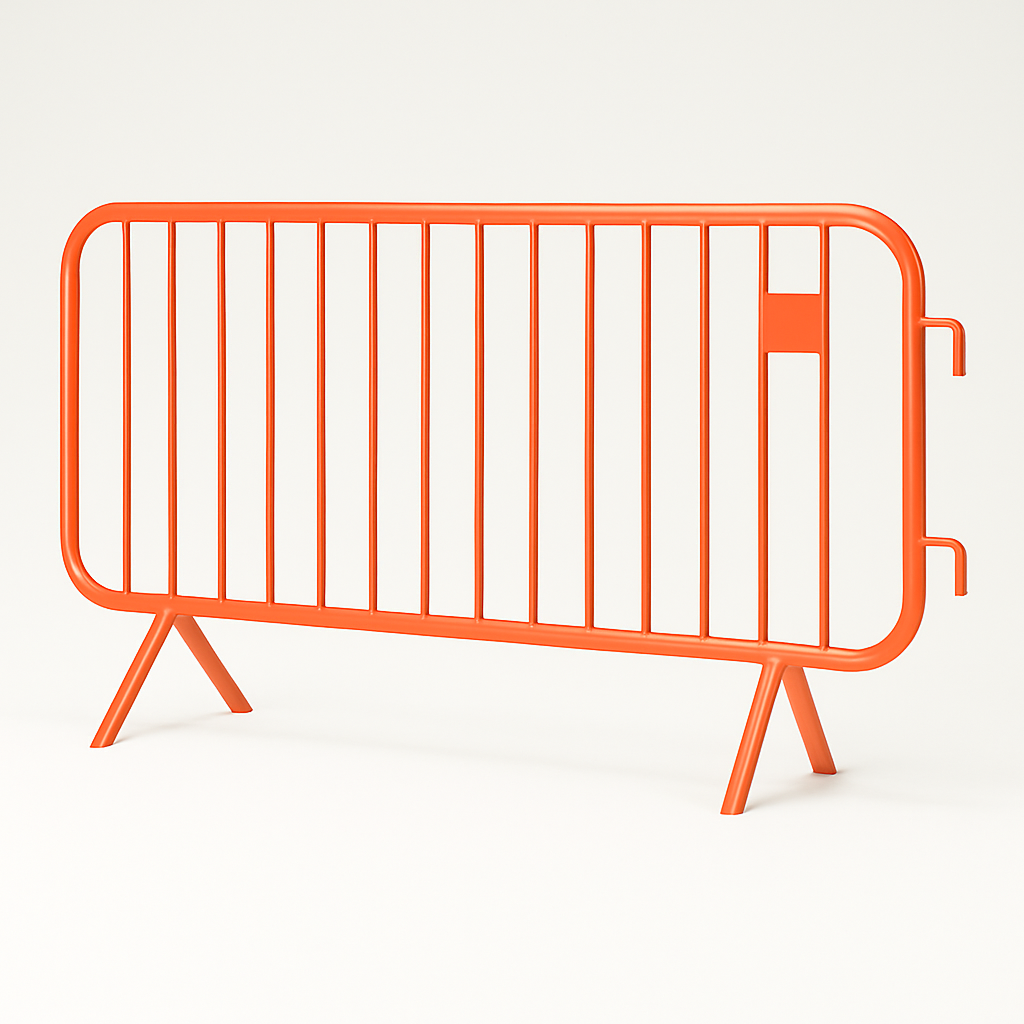

The barrier is built around a rigid frame tube with welded upright infill. The “79 x 40” format is typically supplied as an approximately 2.0 m length × 1.0 m height configuration in orange finish, with additional height and width options to suit different crowd pressure levels, sightline requirements, and deployment patterns.

Instead of treating barriers as a “look,” POLYMETAL treats them as a repeatable build: controlled tube OD and wall thickness options, upright OD and thickness options, disciplined spacing options, and feet options that match the ground conditions. The result is a crowd control barrier 79 x 40 orange that stacks cleanly, links consistently, and stays presentable across repeated cycles.

Specifications

Applications for crowd control barrier 79 x 40 orange

A crowd control barrier 79 x 40 orange is commonly used for event entrances, queue lanes, public works interfaces, pedestrian detours, temporary restricted zones, emergency crowd routing, venue perimeter rings, and site separation where high visibility reduces accidental crossings. The orange finish is selected when operators need instant visual signal in mixed-light conditions and high foot traffic.

Benefits of POLYMETAL crowd control barrier 79 x 40 orange

The main benefit is predictable behavior: straight runs that link cleanly, feet that match the ground, and a coating system that stays presentable after handling. A crowd control barrier 79 x 40 orange built as a controlled spec reduces hidden costs like misaligned chains, leaning stacks, chipped weld zones, repainting cycles, and premature replacement. When tube set, spacing, and feet options are chosen correctly, crews deploy faster and the barrier line looks professional instead of patched.

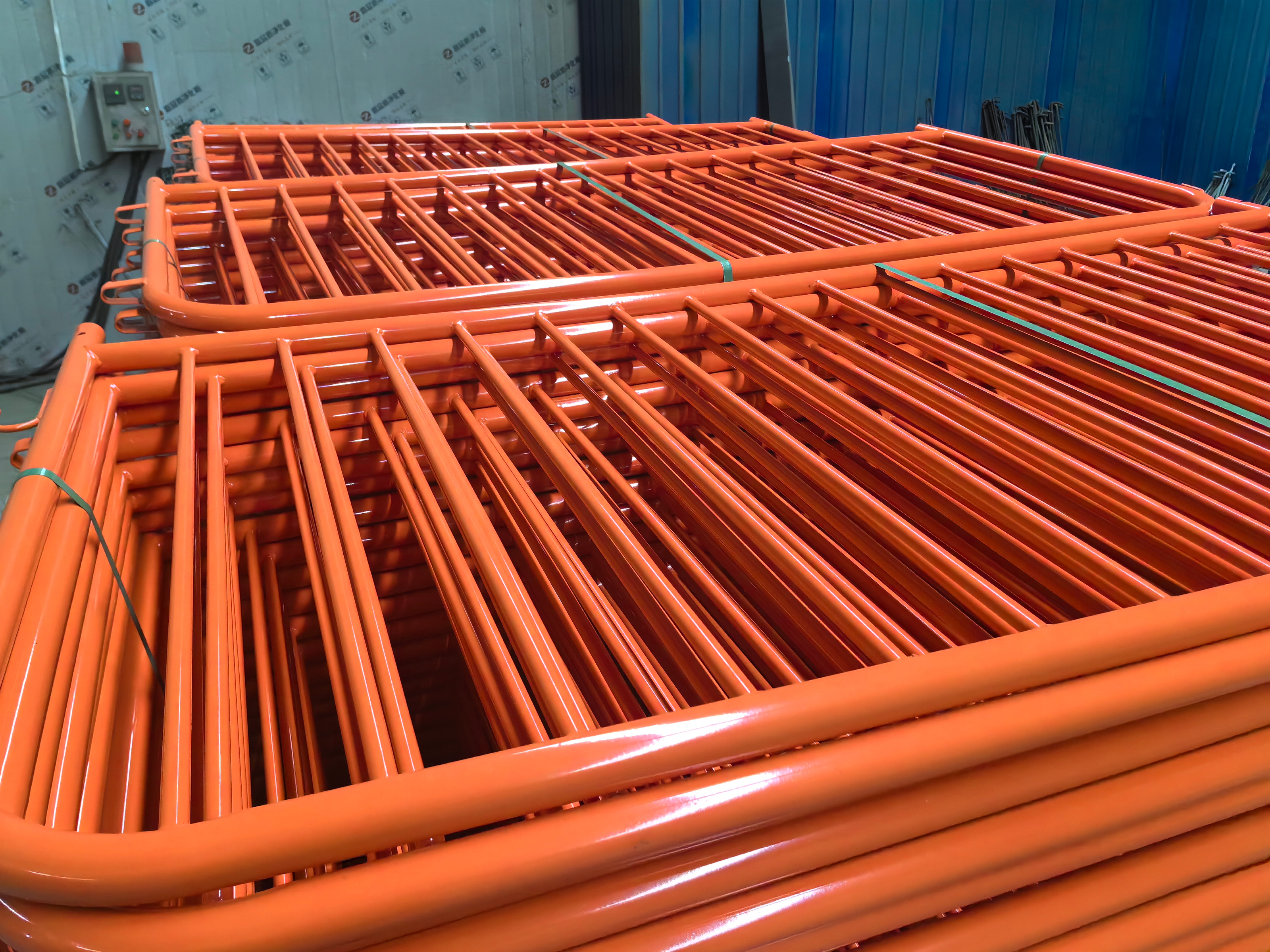

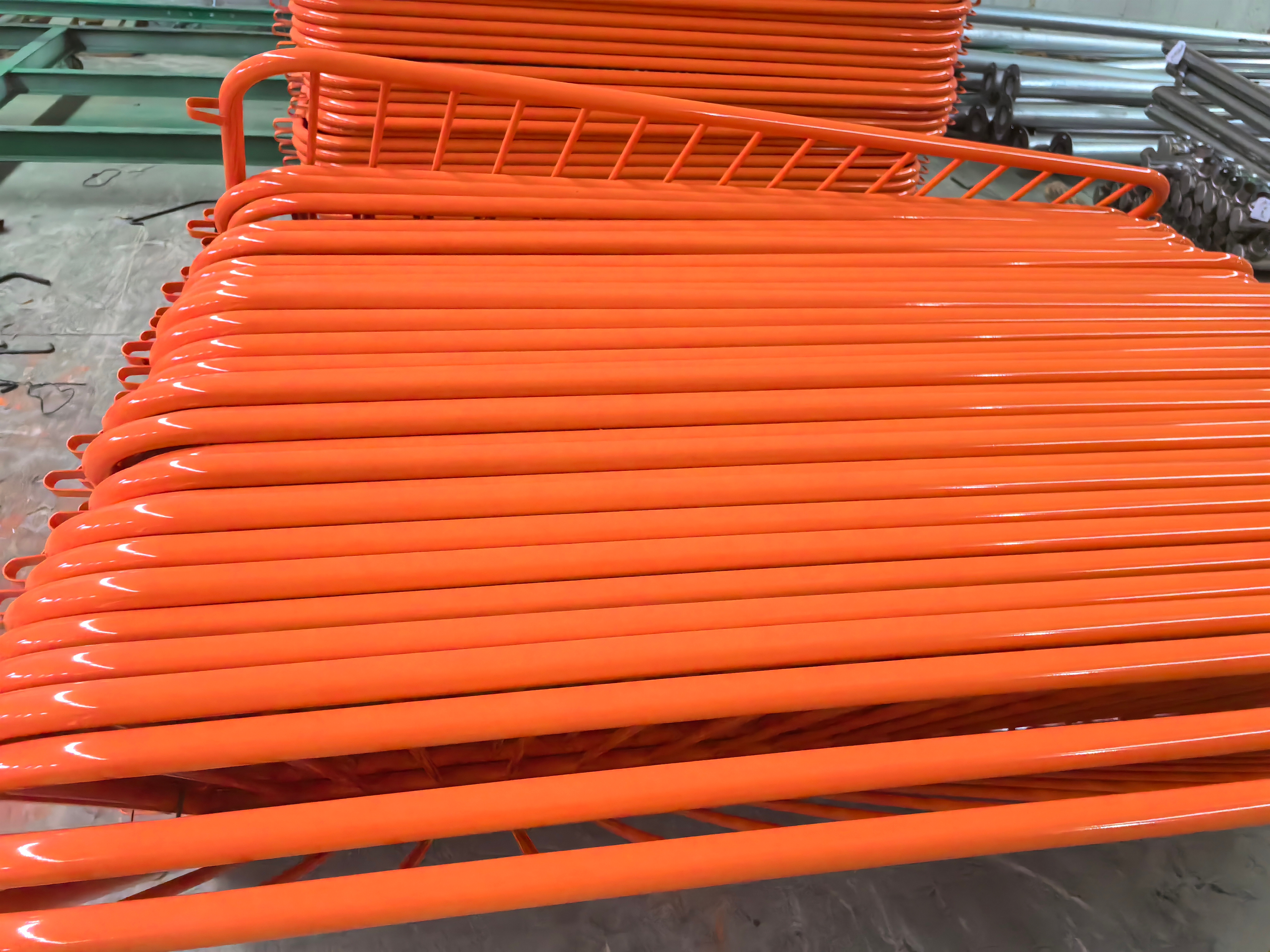

Packing for crowd control barrier 79 x 40 orange (preventing transport damage)

POLYMETAL can pack the crowd control barrier 79 x 40 orange in steel stillages or protected stacks with separators to reduce rub marks, plus controlled stacking to protect hooks and interlocks. Correct packing is not cosmetic—it prevents the common dispute where transport rub-through is mistaken as “factory coating failure,” and it protects the exact touch points that decide whether orange stays bright or turns into #7 losses.

Standards & Quality Control

Crowd barrier requirements vary by project and region, so POLYMETAL supplies the crowd control barrier 79 x 40 orange to customer specification with controlled drawings, inspection points, and finish controls. The practical rule is simple: write the measurable build into the PO—dimensions, tube OD, wall thickness, upright OD/thickness, spacing, feet type, and coating system.

FAQs (crowd control barrier 79 x 40 orange)

FAQ (guide): Is “79 x 40” always exactly 2.0 m × 1.0 m?

Not always. “79 x 40” is often used as an approximate market label. For a crowd control barrier 79 x 40 orange, you should confirm the exact finished length and height and the tolerance, especially if you must interlock with existing inventory.

FAQ (data): Which frame tube should I choose—25, 32, 35, or 38 mm?

Tube selection depends on handling intensity and expected crowd pressure. Rental and high-cycle operations typically move up in OD and/or wall thickness to reduce twist. For a crowd control barrier 79 x 40 orange, treat OD and wall thickness together (for example 32 mm × 2.0 mm behaves very differently than 32 mm × 1.5 mm).

FAQ (pattern): Does spacing matter if the barrier “looks secure”?

Yes. Spacing controls stiffness, handhold behavior, and visual containment. A crowd control barrier 79 x 40 orange can be built in 90/100/150/200 mm spacing depending on how you balance visibility, rigidity, and budget.

FAQ (insight): When should I choose wheel feet, bridge feet, or V feet?

Choose wheel feet when barriers are moved constantly; choose bridge feet when you need stable support over cables/curbs or to reduce trip points; choose V feet for uneven ground stability; and choose flat steel feet when you want simple, robust placement. POLYMETAL can supply these feet options for a crowd control barrier 79 x 40 orange so the barrier behaves correctly on the actual surface.

FAQ (danger): What is the fastest way to lose money on orange barriers?

Ignoring coating system control is exactly why #7 matters: pretreatment, coating thickness, cure control, and weld-area prep decide whether your crowd control barrier 79 x 40 orange stays bright and professional—or turns into repainting, complaints, and replacement. For buyers who also compare tube-based perimeter systems, see our related specification guide here: tube steel fence for sale AU
.
