Diplomat tubular fencing is chosen when a site needs a clean architectural line, controlled access, and a stronger “presence” than light decorative fencing. POLYMETAL builds diplomat tubular fencing as modular welded panels designed to stay straight across long runs, handle daily gate traffic, and keep spacing consistent so the whole perimeter looks engineered—not “patched.”

What Makes Diplomat Tubular Fencing Different

The system is defined by square-tube rails, welded tubular uprights, and repeatable post schedules. That repeatability matters in commercial projects: when every bay matches, installers move faster, gates align cleanly, and the finished line looks premium from day one, and for teams comparing temporary-style perimeter options during staging you can also review Heras fencing as a reference point for panelized site control.

Where Commercial Projects Lose Money

Most failures do not start at the factory. They start in the purchase order: the wrong rail frame size, the wrong upright thickness, a spacing mismatch, or posts that are too light for the height. When those details are wrong, panels drift, seams open, gates drag, and the perimeter looks “repaired” immediately.

POLYMETAL Product Description

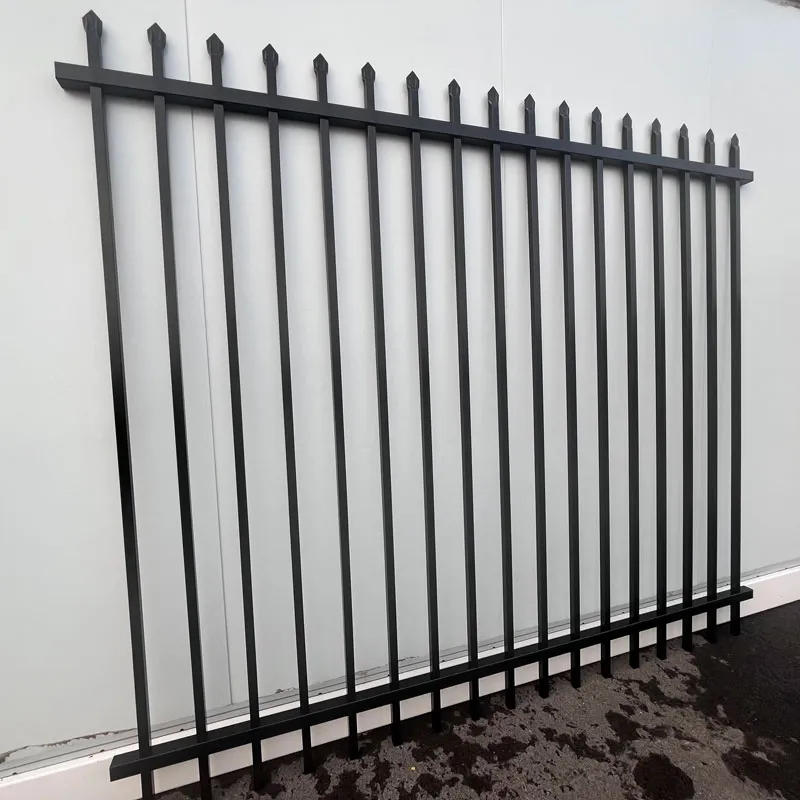

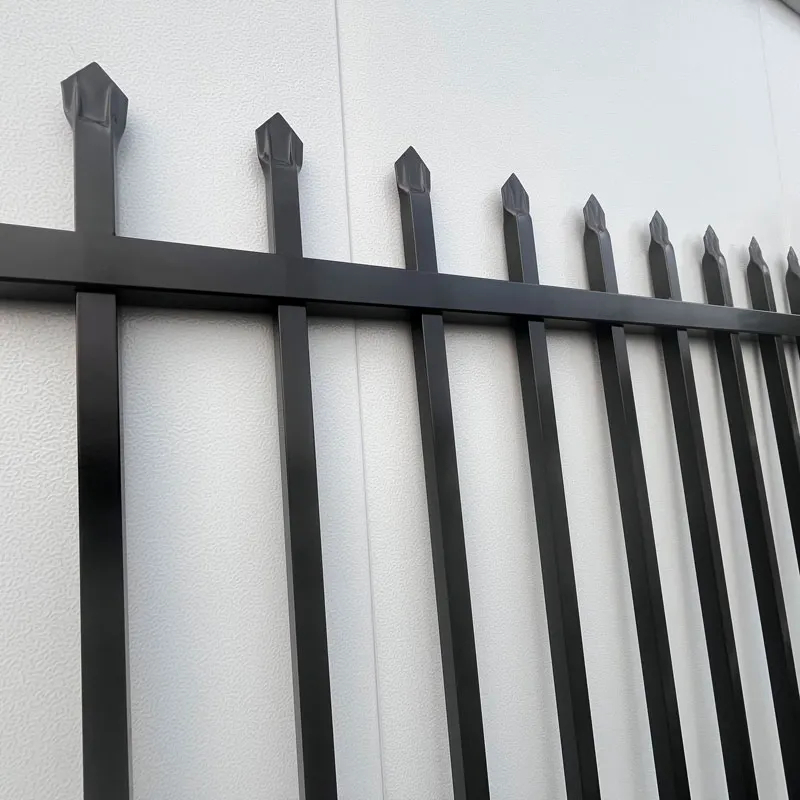

POLYMETAL diplomat tubular fencing is a welded panel system manufactured for commercial perimeter use where straight lines, controlled spacing, and reliable gate performance are required. The rails use square-tube frames (40×40mm, 45×45mm, or 50×50mm) to support consistent alignment, while uprights (16×16mm, 25×25mm, or 30×30mm) are selected to match the site’s visual intent and pressure zones.

Rail and upright thickness options allow the same diplomat style to scale from standard boundary control to heavier-duty security presence. Posts are specified to exceed the panel height by 600mm to support embedment and stability so the fence stays vertical under daily load, and if you want to compare a closely related commercial panel style for perimeter planning you can also view Hercules fence commercial for sale.

Specifications

Table 1 – Standard Diplomat Tubular Fencing Specs (40×40 Rail Frame) — 10 Models

Table 2 – Reinforced Diplomat Tubular Fencing Specs (45×45 Rail Frame) — 10 Models

Table 3 – Heavy-Duty Diplomat Tubular Fencing Specs (50×50 Rail Frame) — 10 Models

Table 4 – Anti-Climb Priority Diplomat Tubular Fencing Specs (18 Uprights / 100mm Spacing) — 10 Models

Table 5 – Commercial Height & Gate-Pressure Priority Diplomat Tubular Fencing Specs — 10 Models

Applications

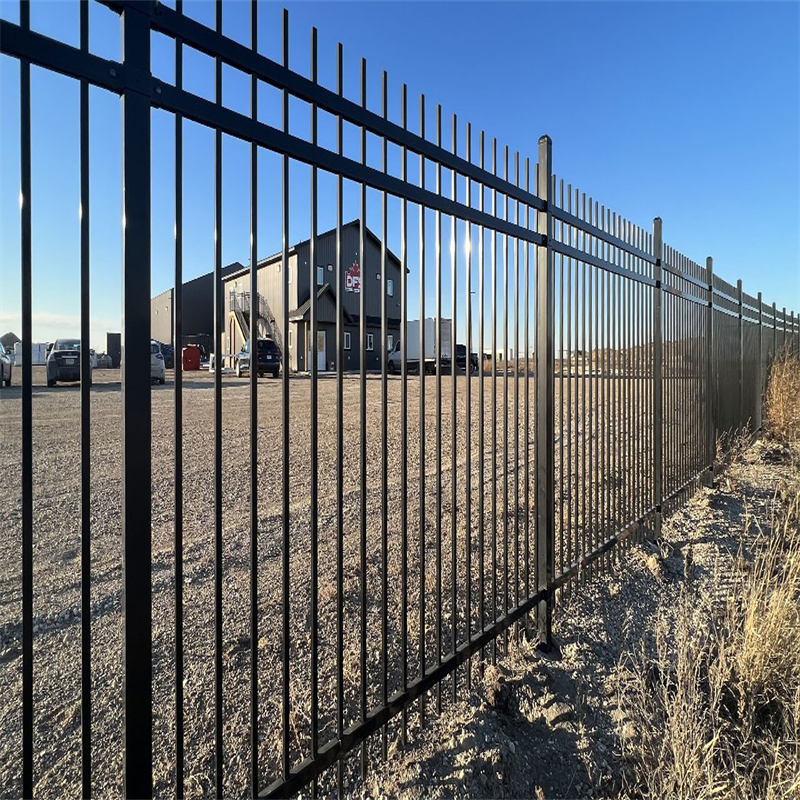

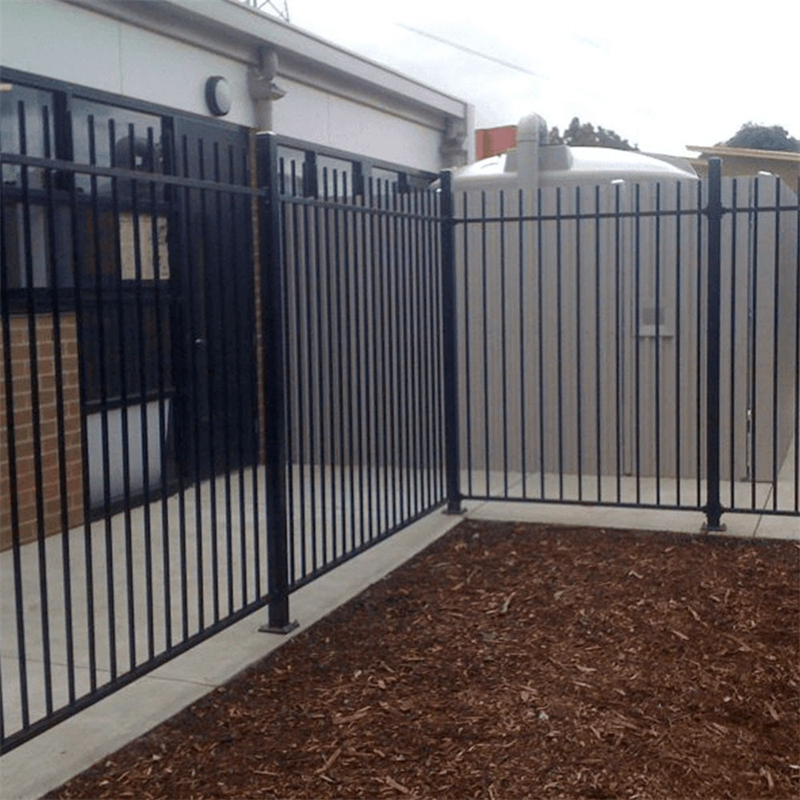

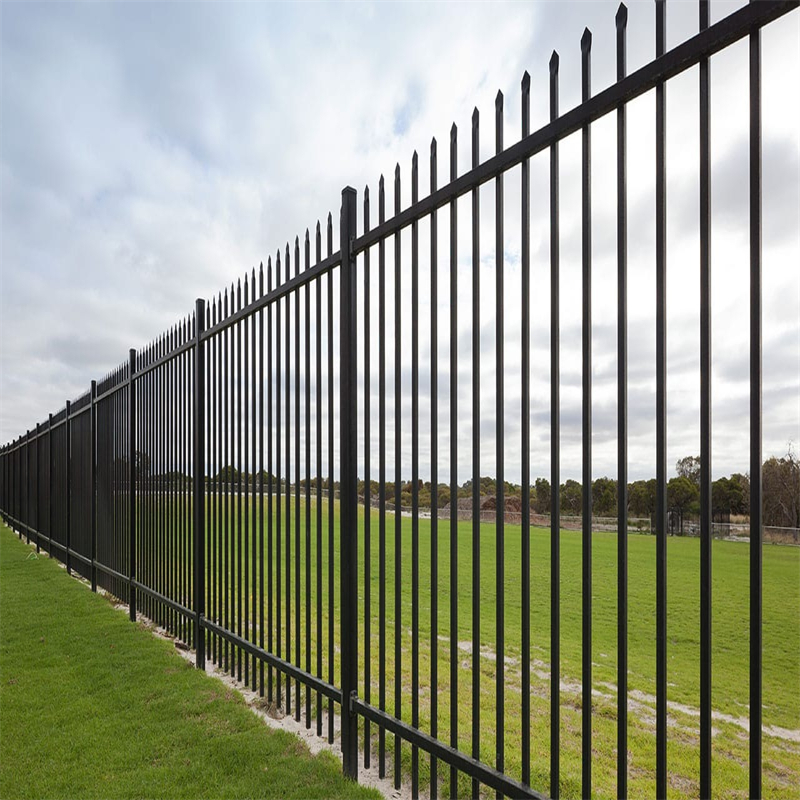

Commercial Perimeters

Diplomat tubular fencing is used for retail frontage, warehouses, logistics yards, workshops, commercial car parks, storage compounds, and mixed-use property boundaries where the perimeter must look professional and remain repeatable across long runs.

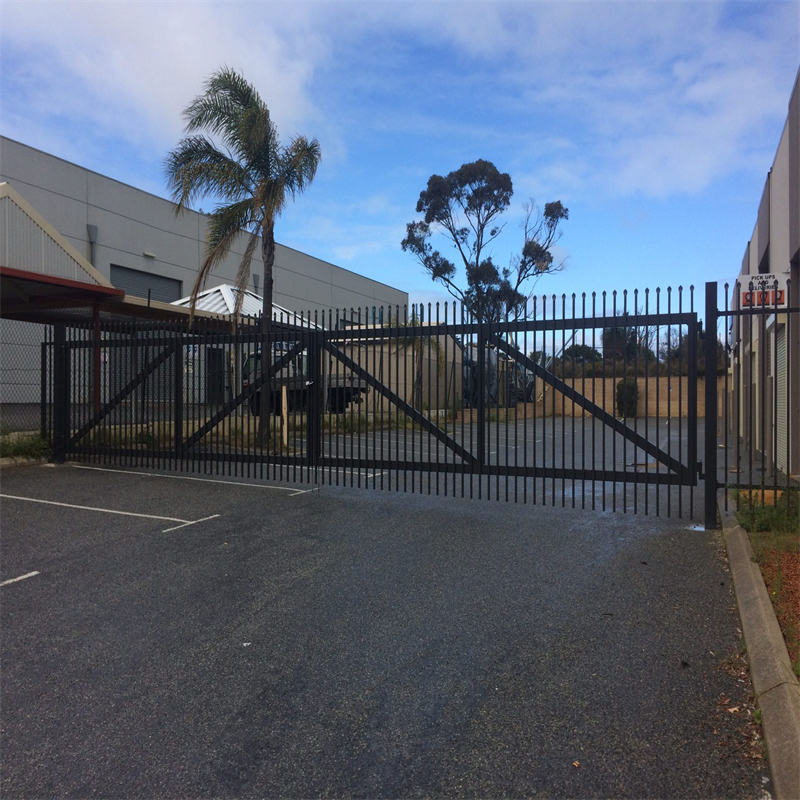

Gate-Heavy Sites

Projects with frequent pedestrian gates or vehicle access points use diplomat tubular fencing to keep bays aligned and reduce “dragging gate” issues caused by weak rails or under-built posts.

Benefits

Predictable Straight Lines

Standardised rail frames and spacing keep the perimeter visually consistent, which is critical for commercial sites where appearance is part of perceived control and security.

Scalable Strength

Rail and upright thickness options let the same diplomat style scale from lighter architectural lines to heavier pressure-zone builds at corners, returns, and gate bays.

Cleaner “Neighbour Profile”

Welded panels and consistent spacing reduce the “temporary patch” look that triggers complaints and makes a property look unmanaged.

Packing

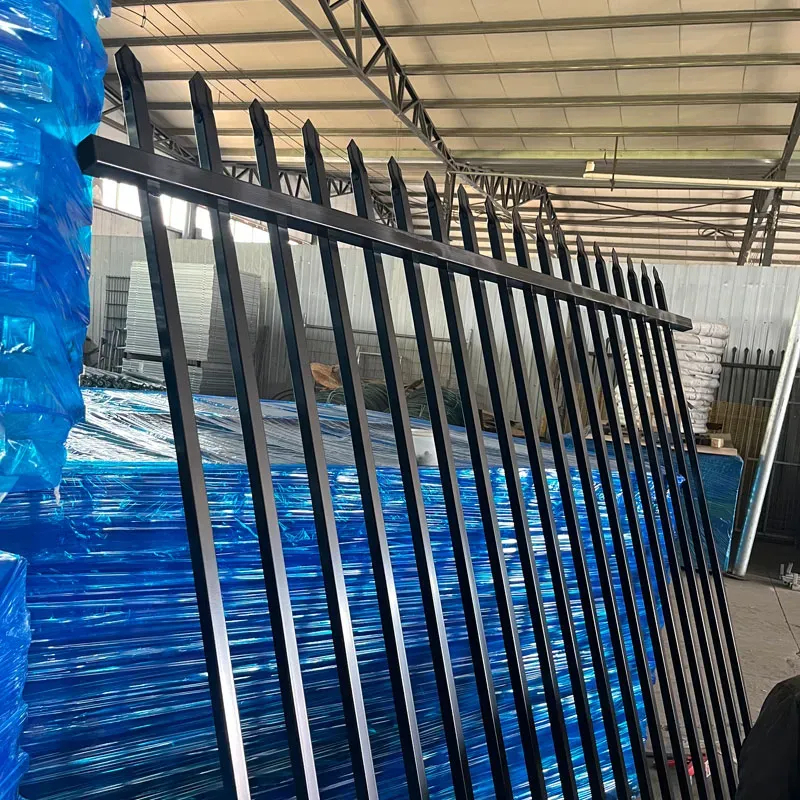

Panel Protection

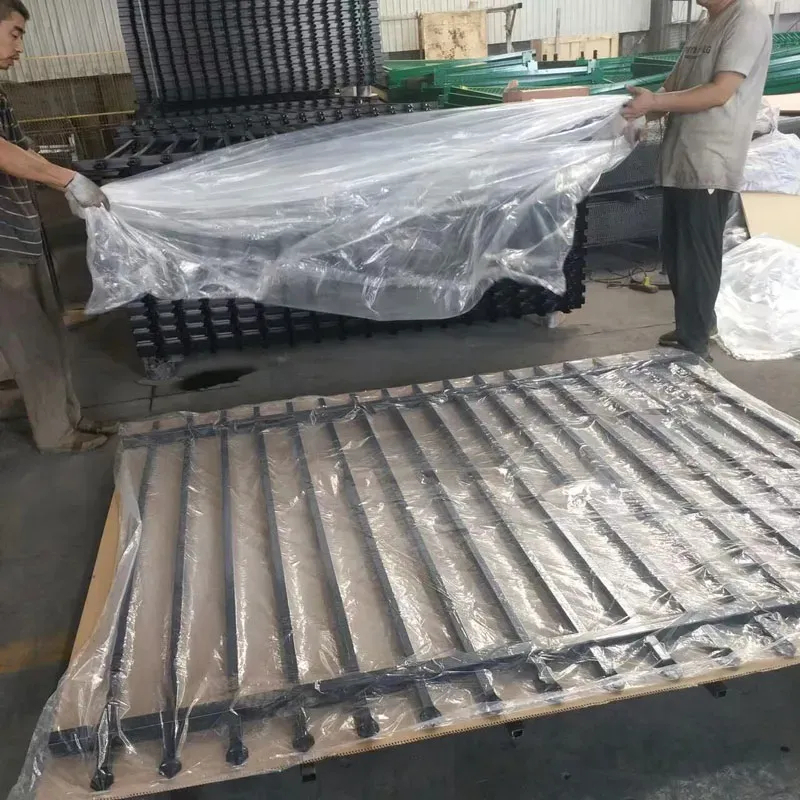

Panels are stacked flat with separation protection, wrapped to reduce rubbing, and palletised for forklift handling to protect straightness and finish during transport.

Post & Hardware Control

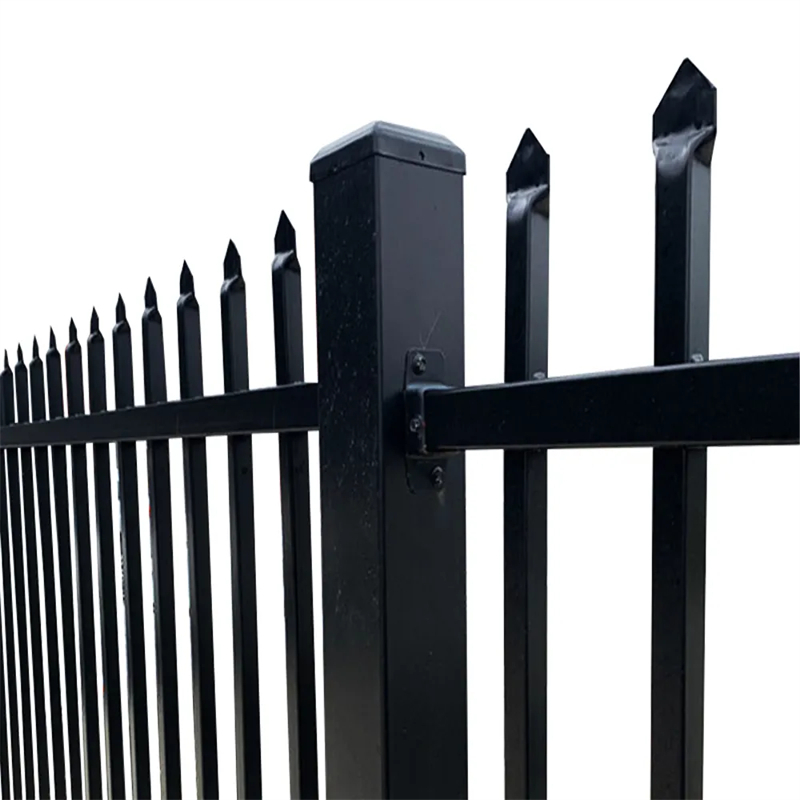

Posts are bundled by size and wall thickness, and accessories are packed in labelled cartons so installers do not mix clamp sets, caps, or gate hardware on site.

Standard

Commercial Specification Discipline

Diplomat tubular fencing is typically specified by a complete schedule: rail frame size, rail thickness, upright size, upright thickness, upright count/spacing, post size/wall, and post height (panel height + 600mm). This is the fastest way to prevent visible misalignment and rework.

Top 22 High-Risk Items for Diplomat Tubular Fencing (Especially #17)

Trap #1: Ordering “diplomat tubular fencing” without locking rail frame size

40×40, 45×45, and 50×50 are different products. If you do not lock it, you can receive mixed strength and mixed visual lines.

Risk #2: Choosing the right height but the wrong post wall thickness

Tall panels on light posts drift first, and the entire run starts to look crooked from a distance.

Warning #3: Missing rail thickness in the purchase order

1.60mm and 3.00mm do not behave the same at corners and gate bays.

Detail #4: Mixing 2400mm and 2450mm widths without a bay plan

One wrong width forces on-site patching that destroys the straight line.

Fact #5: Under-specifying uprights in pressure zones

Upgrading only the “easy middle bays” is the fastest way to get visible movement at corners.

Point #6: Treating upright thickness like a minor detail

0.80mm and 2.00mm are fundamentally different in rigidity and “presence.”

Note #7: Forgetting upright count controls finished spacing

16 pcs (115mm), 17 pcs (108mm), and 18 pcs (100mm) must stay consistent across the run.

Tip #8: Standardise spacing for a premium look

Consistent spacing reads “designed.” Mixed spacing reads “repaired.”

Hint #9: Not specifying post height as panel height + 600mm

Short posts mean shallow embedment, and shallow embedment means movement.

Idea #10: Treat corners as a different specification class

Corners take load first. Build them heavier than the middle bays.

Aspect #11: Ignoring gate return reinforcement

The first two bays beside every gate carry daily load and must be upgraded.

Insight #12: Choosing 16×16 uprights for high-traffic zones

They can look clean, but higher traffic demands thicker uprights or heavier rails to hold the line.

Checklist #13: Confirm upright count before fabrication starts

Once welded, spacing is locked. Fixing it later becomes replacement work.

Guide #14: Lock post sizes to height bands

Use a repeatable post schedule (60/65/75/80/100) that scales with height to avoid “snaking” lines.

Pattern #15: Finish damage happens during unloading

Rushed unloading bends corners and scratches coatings—damage that becomes visible immediately.

Problem #16: Ordering tall fences without upgrading rails

Height increases leverage. Light rails will show wave-lines in long runs.

Loss #17: The “perfect middle bays” failure that forces visible rework

This is the expensive failure: the middle bays look perfect, but corners and the first two bays beside every gate are under-built. Those areas take the daily load, they move first, and the whole perimeter looks “repaired.” The rework cost is brutal because it is visible and disruptive.

Cost #18: Buying panels without spare matching parts

One missing clamp set can stop an install and trigger unsafe temporary fixes.

Gap #19: Allowing uneven post lines

If posts drift, every seam broadcasts the error down the entire run.

Oversight #20: Accepting mixed post walls in one line

Mixed stiffness creates mixed movement, which makes the line look inconsistent over time.

Hazard #21: Letting site objects become ladders

Bins, pallets, and stacked materials placed near the fence turn a strong perimeter into a climb-assisted one.

Boost #22: A complete spec sheet is the fastest path to a perfect perimeter

When rails, uprights, spacing, posts, and heights are locked, installation becomes repeatable and the line looks premium.

FAQs

What widths are typical for diplomat tubular fencing panels?

Commercial projects commonly use 2400mm and 2450mm panel widths to suit bay planning and repeatable post spacing.

Which spacing option looks the most consistent?

18 uprights at 100mm spacing is the most uniform “security presence” line; 17 uprights at 108mm and 16 uprights at 115mm are also common when balancing cost and appearance.

How do I select post height?

Use a post height that is 600mm greater than the fence panel height to support embedment and stability.

Which rail frame should I choose: 40×40, 45×45, or 50×50?

40×40 suits standard boundaries, 45×45 suits reinforced long runs, and 50×50 is used for heavier-duty pressure zones, taller panels, and gate-heavy perimeters.

What causes the most expensive rework in diplomat tubular fencing?

Under-building corners and gate-adjacent bays while upgrading only the middle runs—those pressure zones move first and the entire perimeter looks “repaired.”
