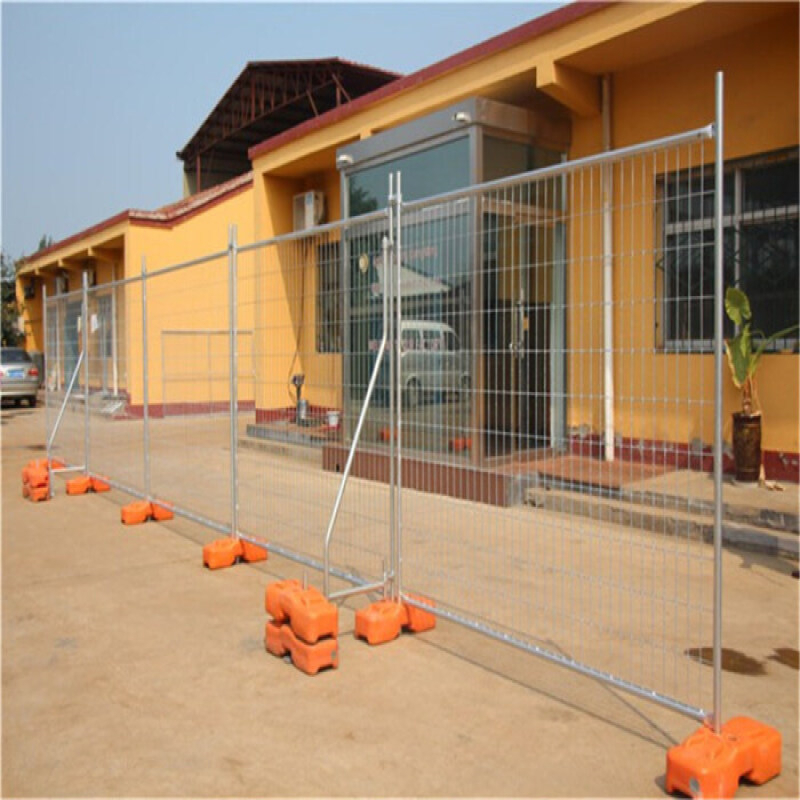

POLYMETAL galvanized temporary fence panels are built for fast site control without sacrificing stability, repeat-use durability, or a professional boundary line. They are widely used across Australia for construction sites, civil works corridors, events, crowd control zones, restricted-access areas, and short-term industrial separation where panels must be moved, stacked, re-installed, and still stay upright in real wind conditions.

A temporary fence line succeeds when it stays straight, stays joined, and stays standing. That is not luck—it is controlled specification: frame OD + wall thickness + mesh wire diameter + weld integrity + feet type + clamp security + stay spacing, supported by the right galvanizing level for the expected handling abuse.

Product Description

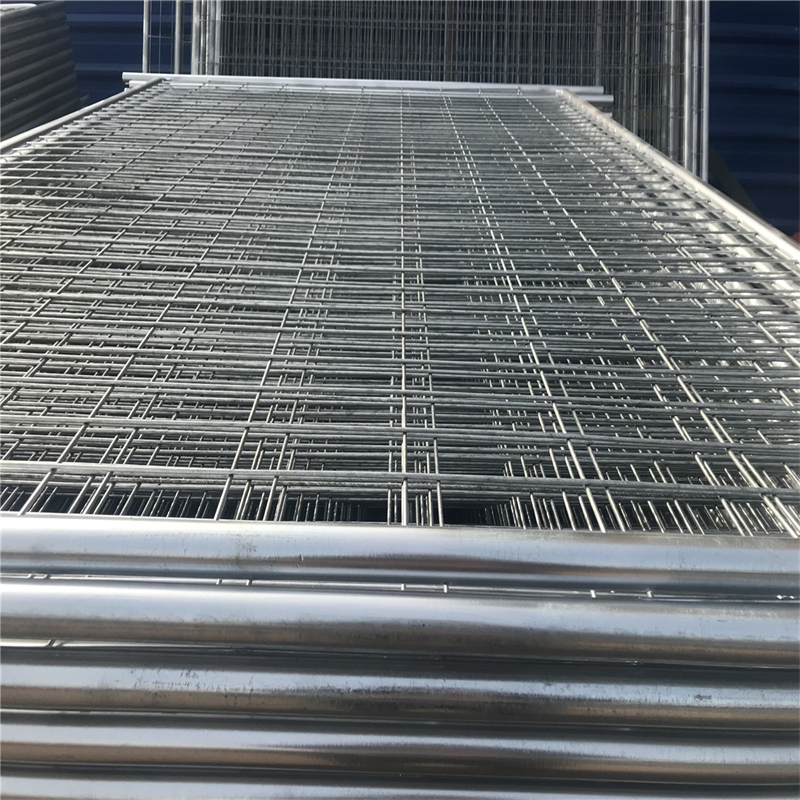

POLYMETAL galvanized temporary fence panels are manufactured as reusable steel panels built from round tube frames and welded mesh infill. Standard panel height is commonly 2100mm, with popular panel widths of 2400mm, 3300mm, and 3500mm to match site layouts and loading efficiency. Longer panels are commonly supplied with a middle rail to reduce span pumping and improve stiffness in wind corridors.

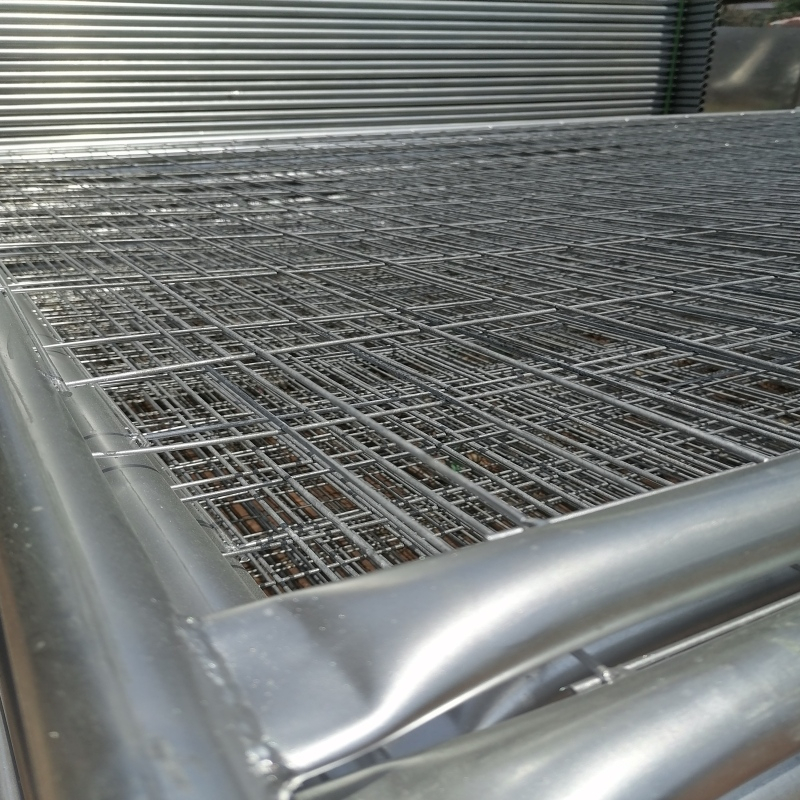

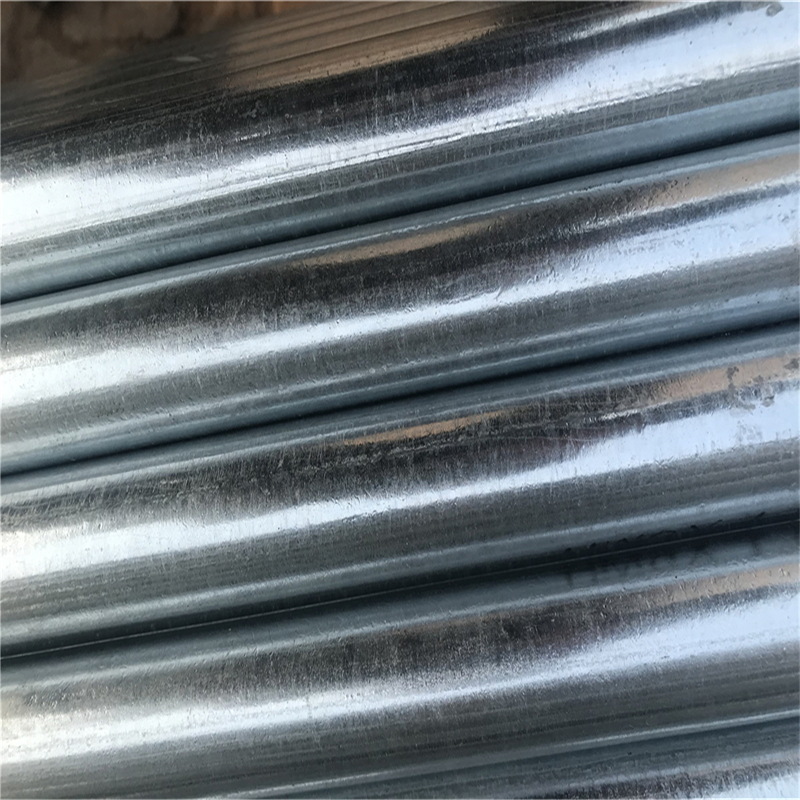

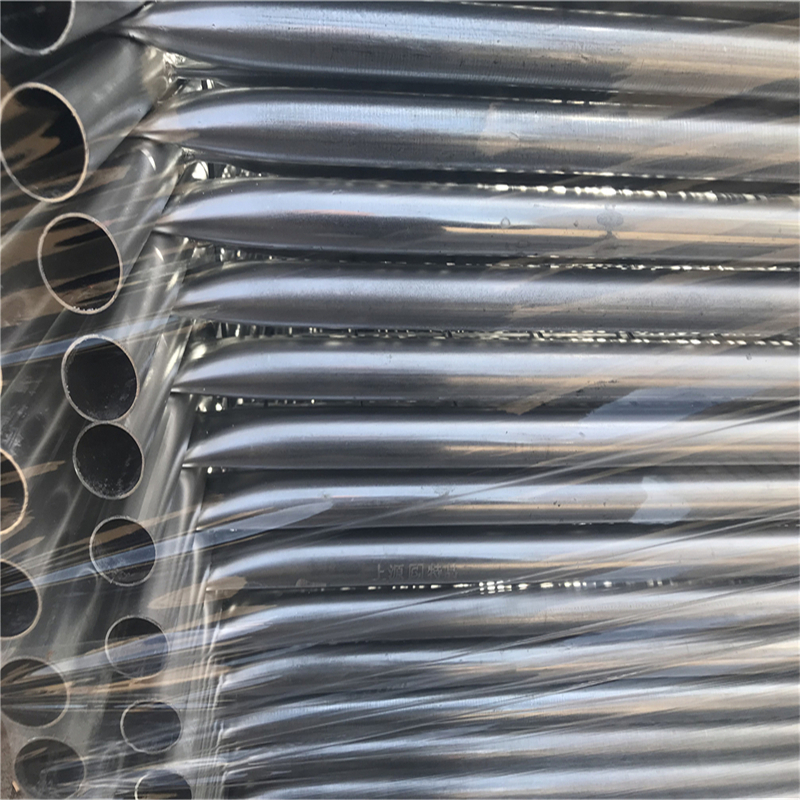

Frame tube options include OD32mm, OD38mm, OD40mm, and OD41mm with wall thickness choices of 1.0mm, 1.2mm, 1.4mm, 1.5mm, and 2.00mm to match exposure level and reuse intensity. The infill welded mesh is commonly 60mm × 150mm, balancing high visibility with practical resistance to casual climbing rhythm and tool reach. Wire diameter options commonly include 2.70mm, 3.00mm, and 4.00mm, selected by duty level and expected service life.

Galvanizing level is the real durability lever. Typical zinc schedules include 14 microns (light), 42 microns (standard hot dipped galvanized), and 100 microns (heavy hot dipped galvanized) for high-abuse, rental-heavy, or coastal exposure. For common 2.1m-high panels, the typical layout is 12 vertical wires with horizontal wire counts tied to panel length: 38 pcs for 2.1m×2.4m, 53 pcs for 2.1m×3.3m, and 56 pcs for 2.1m×3.5m. When specified and produced to the required tolerances, POLYMETAL systems can be supplied to comply with AS4687-2022.

Structure and System Logic for Galvanized Temporary Fence Panels

Galvanized temporary fence panels do not usually fail because “steel is weak.” They fail because movement is allowed to start. Wind load creates vibration, vibration creates micro-shifts at joins, micro-shifts become lean, lean spreads bay-by-bay, and one weak bay can turn into a line-wide stability problem. A stable line is built by locking the system, not by hoping the panels “feel heavy enough.”

Top 18 Traps You Don’t Know About Galvanized Temporary Fence Panels (Especially #14)

1. Trap #1: Choosing frame OD by price instead of wind exposure—small OD frames flex earlier and fatigue faster.
2. Trap #2: Buying “galvanized” without defining zinc microns—finish life collapses once stacking rubs breaks the coating.
3. Trap #3: Under-specifying frame wall thickness—panels bend at lift points and never stand straight again.
4. Trap #4: Ignoring the middle rail on 3300mm/3500mm panels—unsupported spans pump in wind and crack welds.
5. Trap #5: Selecting wire diameter too light—mesh intersections loosen after repeated handling and vibration.
6. Trap #6: No consistent wire count—uneven stiffness creates “soft bays” that fail first.
7. Trap #7: Weak weld discipline—one weak intersection becomes the first tear point under pressure.
8. Trap #8: Cheap clamps—movement becomes leverage and panels walk out of alignment.

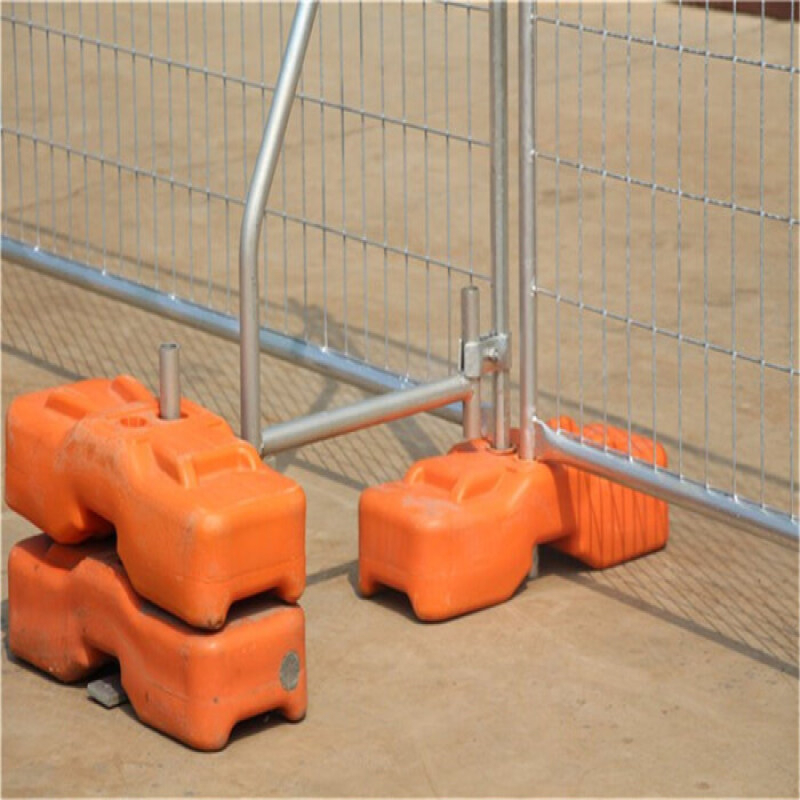

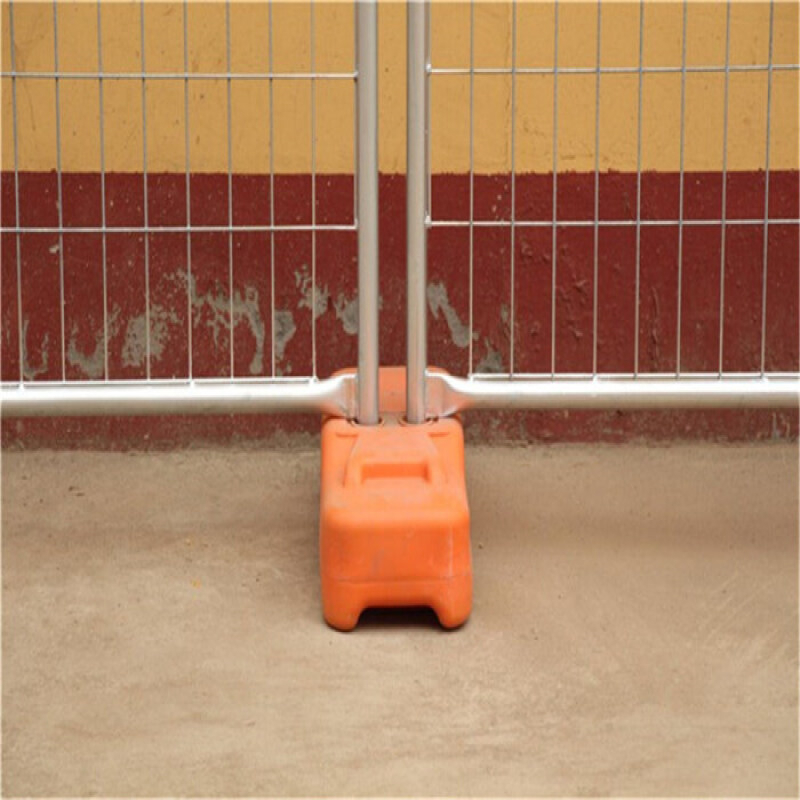

9. Trap #9: Wrong feet choice for ground conditions—poor base contact turns push loads into rocking.
10. Trap #10: Skipping separators in transport—abrasion removes zinc before the panel is installed.
11. Trap #11: Mixing panel sizes randomly—gaps form, transitions weaken, and the run becomes unstable.
12. Trap #12: Ignoring corner/end bracing—ends become hinge points that “teach” the line to lean.
13. Trap #13: Treating “temporary” as “low risk”—public areas multiply liability and shutdown cost.
14. Trap #14: Skipping stays and concrete feet in “moderate wind”—this is where lines fall, injuries happen, and projects get stopped.
15. Trap #15: Using light galvanizing on heavy-reuse rental cycles—handling damage turns into fast rust and sharp edges.
16. Trap #16: Poor panel squareness—twist causes permanent lean and hard-to-close joins.
17. Trap #17: No inspection routine—small damage becomes progressive failure across the run.
18. Trap #18: Overloading one bay (signage, tarps, wind catch)—the line fails where the wind load concentrates.

Specifications

Table 1. POLYMETAL Standard Galvanized Temporary Fence Panels — 10 Specs

Table 2. Heavy-Reuse + Wind-Zone Builds — 10 Specs

Table 3. Long-Run Perimeter Panels (3300/3500 With Middle Rail) — 10 Specs

Table 4. Galvanizing Level Options (14 / 42 / 100 Microns) — 10 Specs

Table 5. Rental Fleet “Consistency Packs” — 10 Specs

Applications

POLYMETAL galvanized temporary fence panels are commonly used for construction boundaries, demolition zones, road and rail projects, utility trenching, storage yards, event perimeters, crowd-control lanes, restricted public access zones, school maintenance works, and short-term industrial separation where fast installation and reliable stability are mandatory.

Benefits

POLYMETAL galvanized temporary fence panels deliver fast deployment, clear boundary control, and high visibility through welded mesh infill. Correctly specified frame OD and wall thickness help panels stay straight after repeated handling, while correct wire diameter and weld discipline keep the mesh tight without progressive loosening. With galvanizing levels from 14 to 100 microns, projects can choose the right balance of cost and service life, reducing maintenance, reducing call-backs, and reducing the risk that a “temporary” line becomes an expensive incident—especially when paired with wind-resistant temporary fencing.

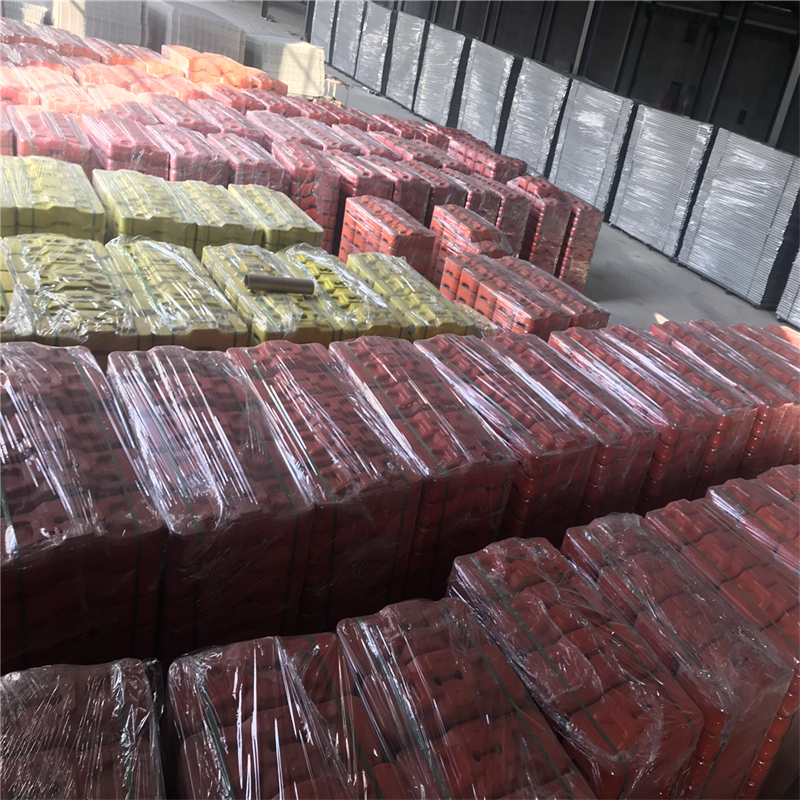

Packing

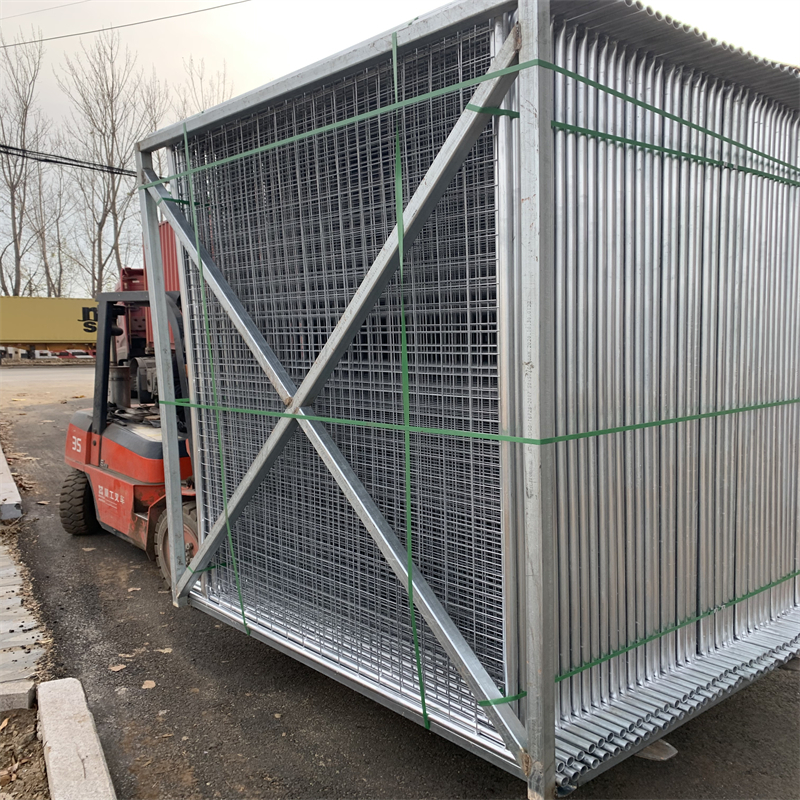

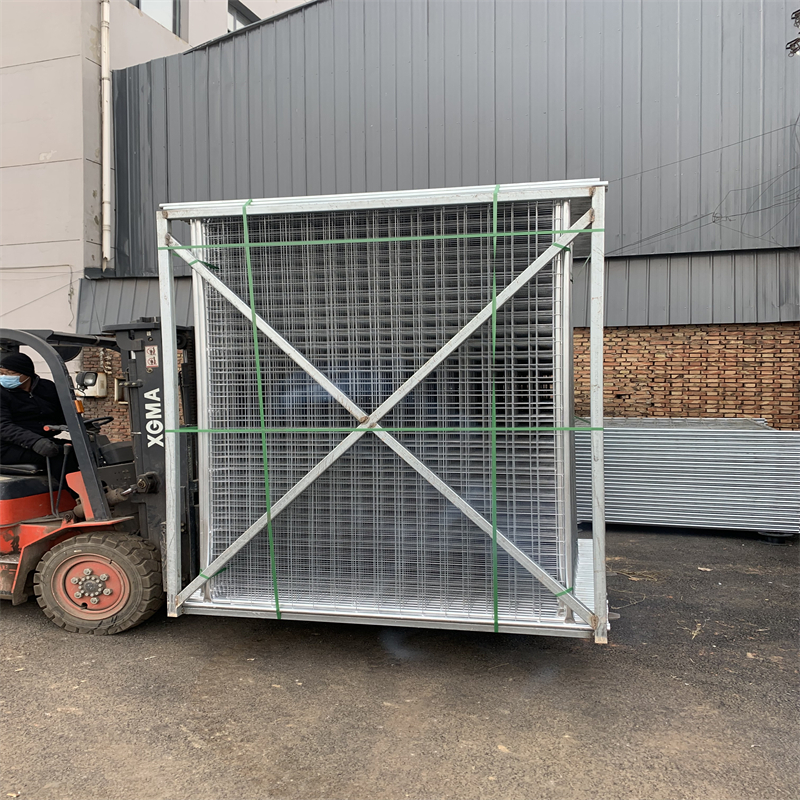

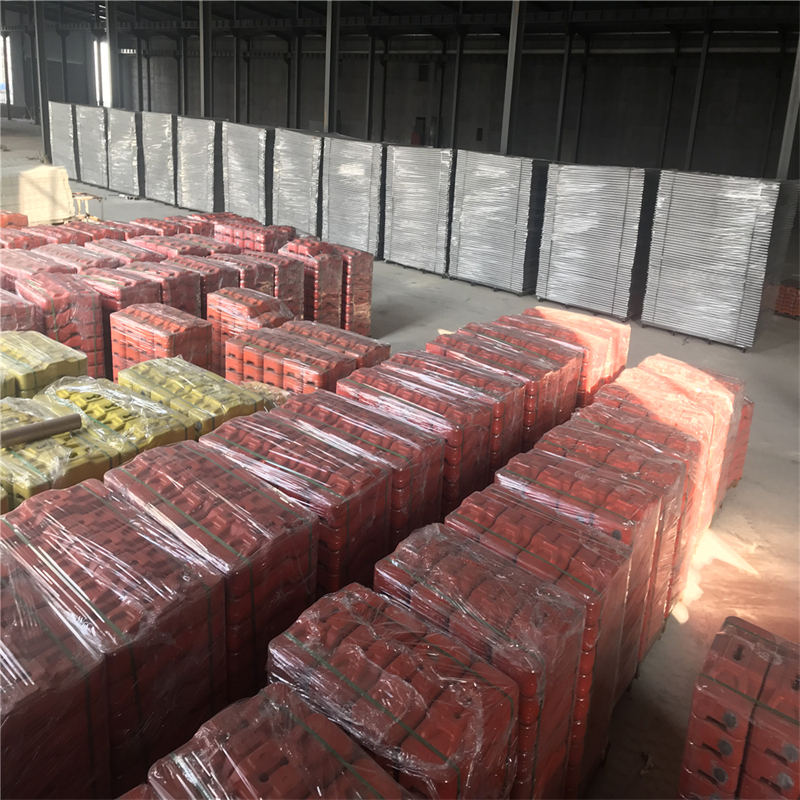

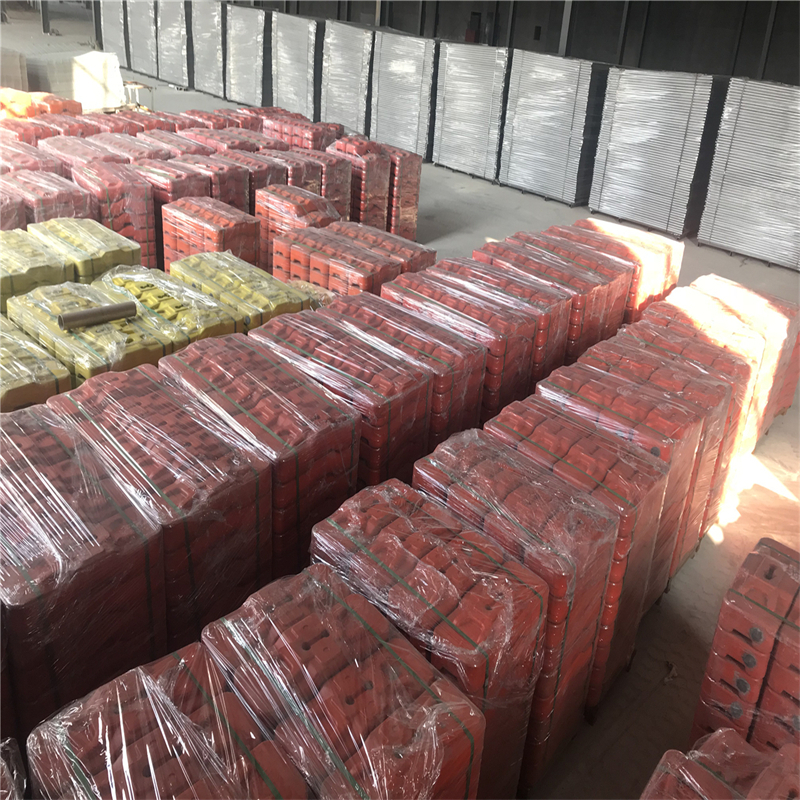

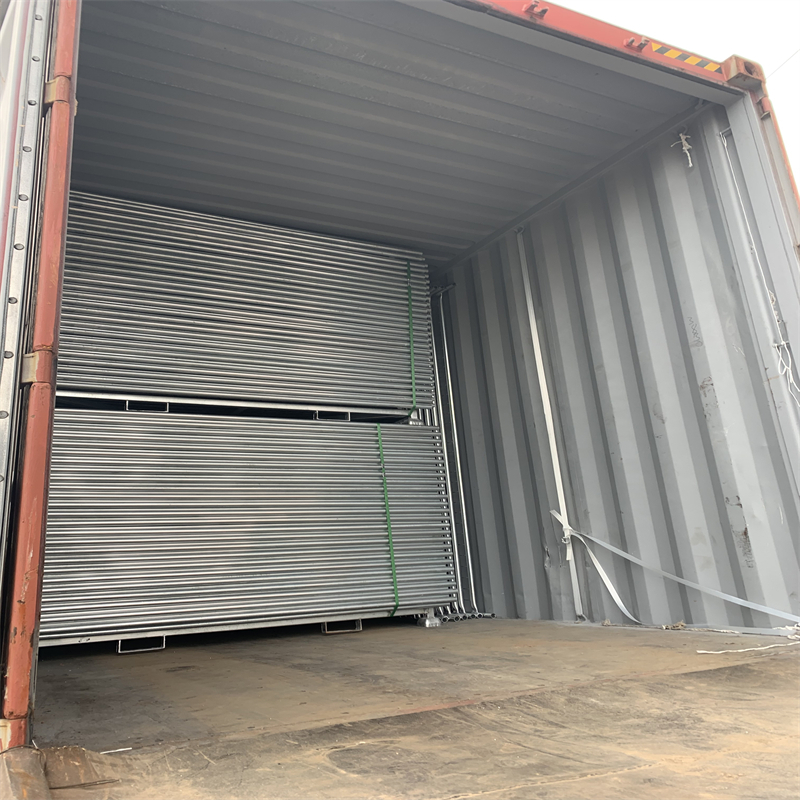

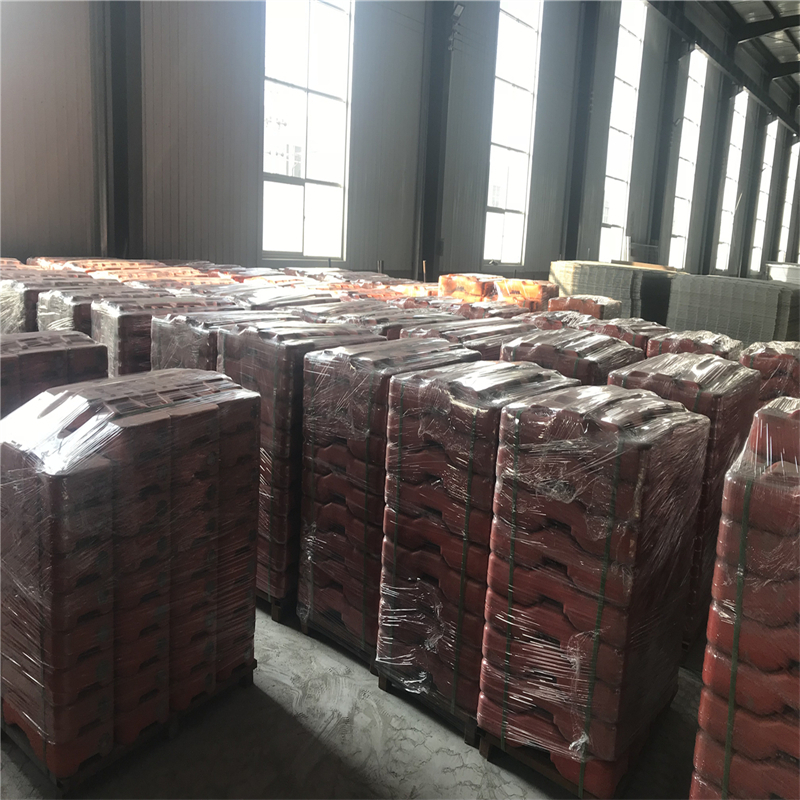

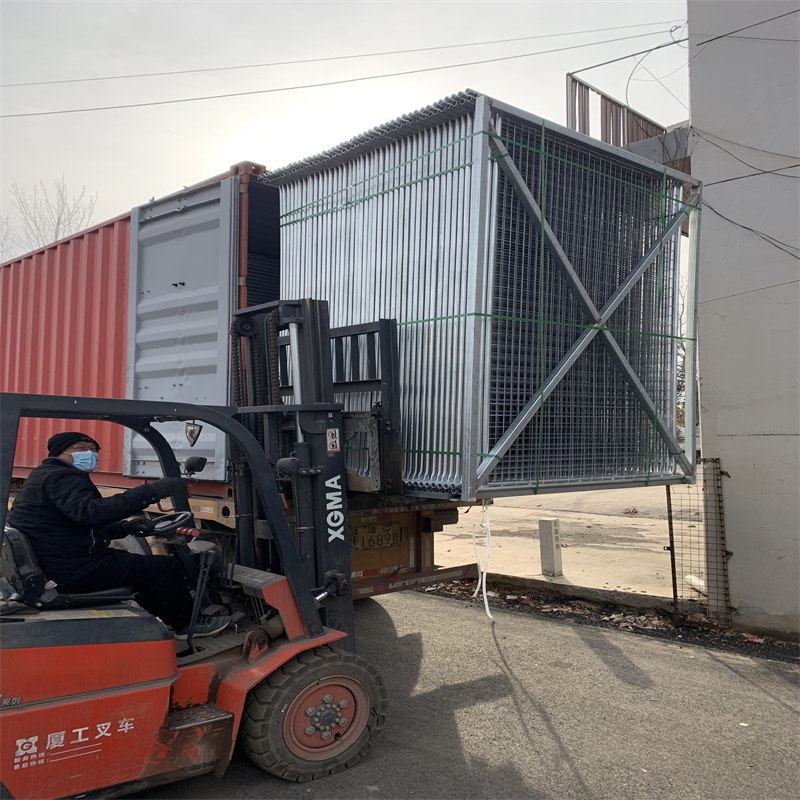

Panels are stacked with separation layers to reduce zinc abrasion, wrapped with protective film, and steel-strapped into stable bundles for forklift handling and container loading. Accessories such as clamps and fasteners are bagged and boxed for fast site counting. Where supplied, feet and stays are packed as matched sets to prevent missing components that trigger Trap #14 stability failure.

Standard and Quality Control

POLYMETAL galvanized temporary fence panels can be produced to comply with AS4687-2022 when specified and manufactured to the required tolerances. Production control focuses on frame tube thickness consistency, weld integrity at mesh intersections, panel squareness and flatness, and finish thickness control (14μm / 42μm / 100μm schedules). Final inspection commonly includes dimensional checks, weld review, surface finish checks, packing verification, and accessory counting so the delivered system installs tight and remains tight.

FAQs

What size is most common for galvanized temporary fence panels?

A very common standard is 2100mm high × 2400mm long, because it balances transport efficiency, stability, and fast installation.

When should 3300mm or 3500mm panels be used?

Long panels are efficient for straight runs, but they should use a middle rail and stronger stability planning to prevent wind pumping and progressive leaning.

Which galvanizing level should I choose?

14 microns suits short-duration use, 42 microns suits general metro projects, and 100 microns is preferred for heavy reuse, rental cycles, and coastal or harsh handling exposure.

What is the biggest hidden mistake buyers make?

Trap #14—skipping stays and proper feet strategy in “moderate wind”—because that’s where topple risk becomes stop-work cost.
