garrison fencing perth is usually selected because it looks architectural, feels secure, and keeps a clean boundary line without blocking the site. The expensive failure pattern is that many suppliers sell garrison fencing perth as a color and a photo, not as a controlled system. The difference only shows up after delivery: spear tips drift bay-to-bay, panels twist in long runs, black powder chips at weld zones, posts feel under-sized, and the fence line becomes a wave—turning a simple perimeter purchase into damage, rework, and wasted labor.
POLYMETAL garrison fencing perth schedules are built as measurable specifications. Buyers lock fence height, fence width, rail frame size, rail thickness, upright size, upright thickness, upright number, spacing schedule, post option, post wall thickness, and finishing discipline so the delivered batch installs straight, interlocks cleanly, and holds its black appearance through handling and weather exposure. If your project also requires a temporary perimeter solution for site staging, see Sydney temporary fence panels.
What “High-Security Garrison Fencing Perth” Means in Practice

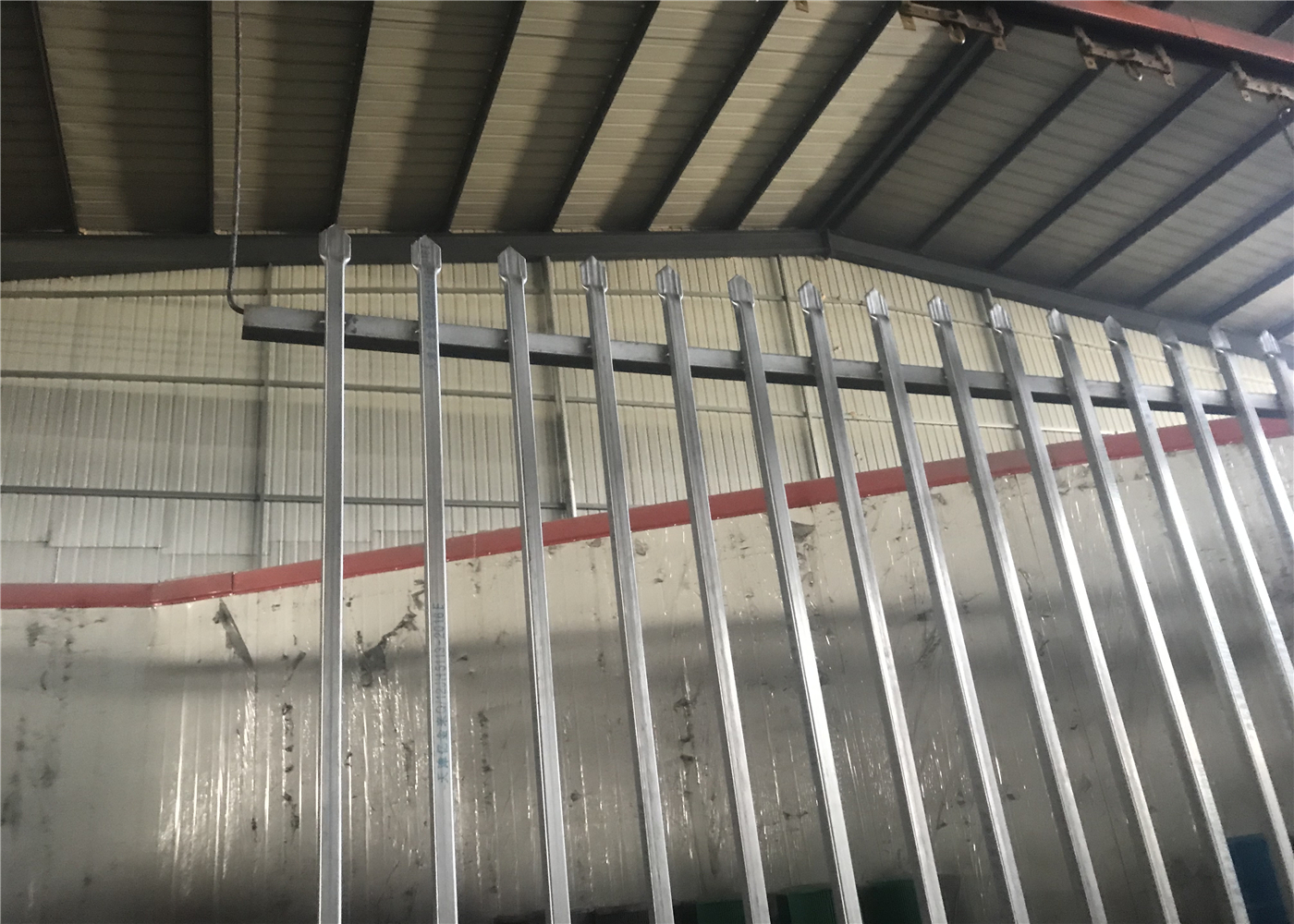

In the market, garrison fencing perth commonly refers to spear-top or crimped-spear tubular steel fencing panels finished in a durable black powder coat system, often specified as AkzoNobel Interpon powder coating for appearance control and weather resistance. The fence is judged not only by color, but by line discipline: whether spear tips align across a 50–200 meter run, whether rails remain straight, whether uprights stay evenly spaced, and whether posts hold alignment without drift. For Perth conditions, the real performance is decided by post stiffness, weld discipline, and coating build at cut points and weld zones where corrosion starts first.
Top 18 Procurement Pitfalls for garrison fencing perth (Especially #12)
Pitfall #1: Buying “black garrison” as a look instead of locking a measurable schedule
Two quotes can both say garrison fencing perth, but behave totally differently in service if rail frame, rail thickness, upright size, spacing, and post wall thickness are not fixed. If the purchase order is vague, silent downgrades arrive with the shipment.

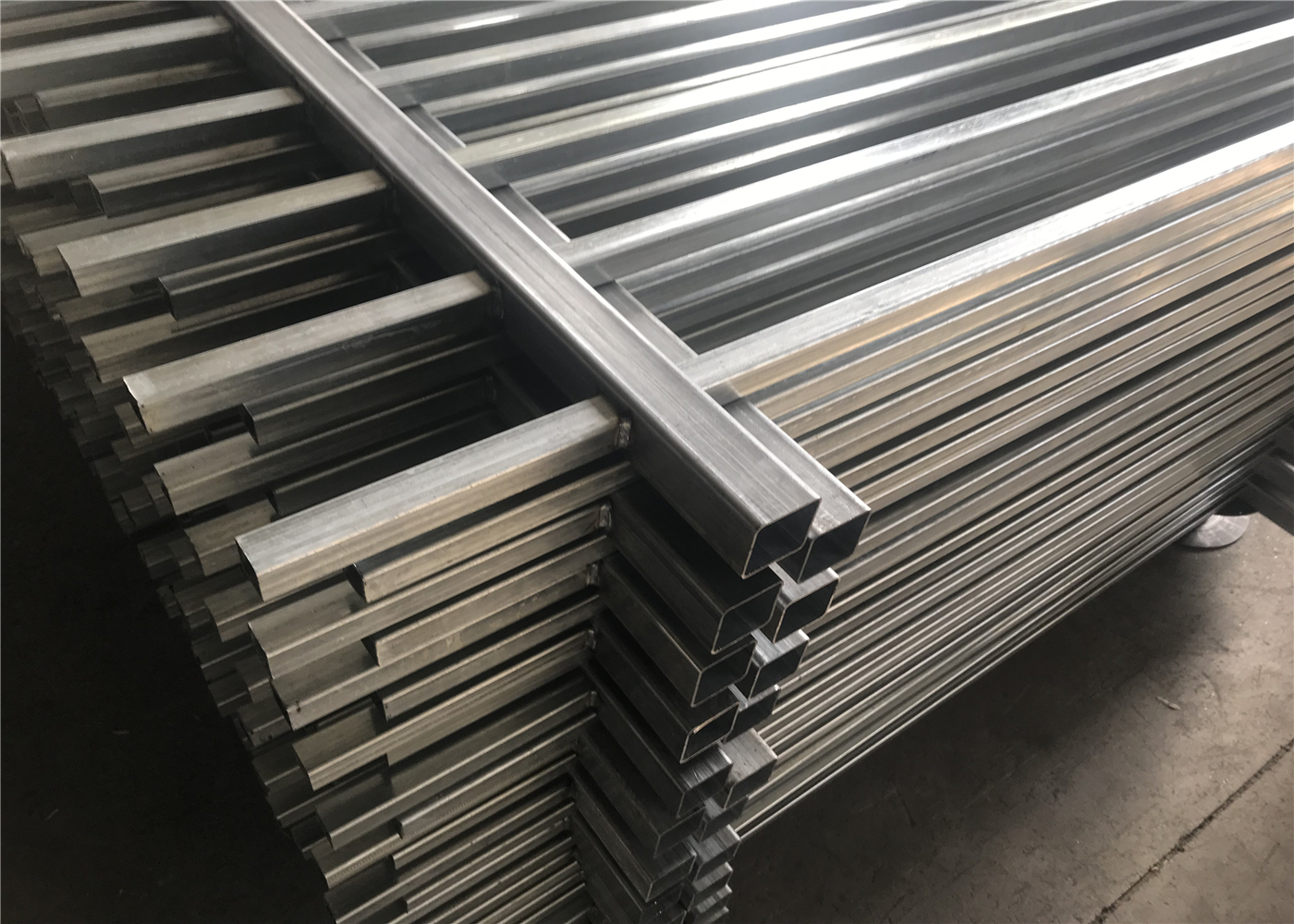

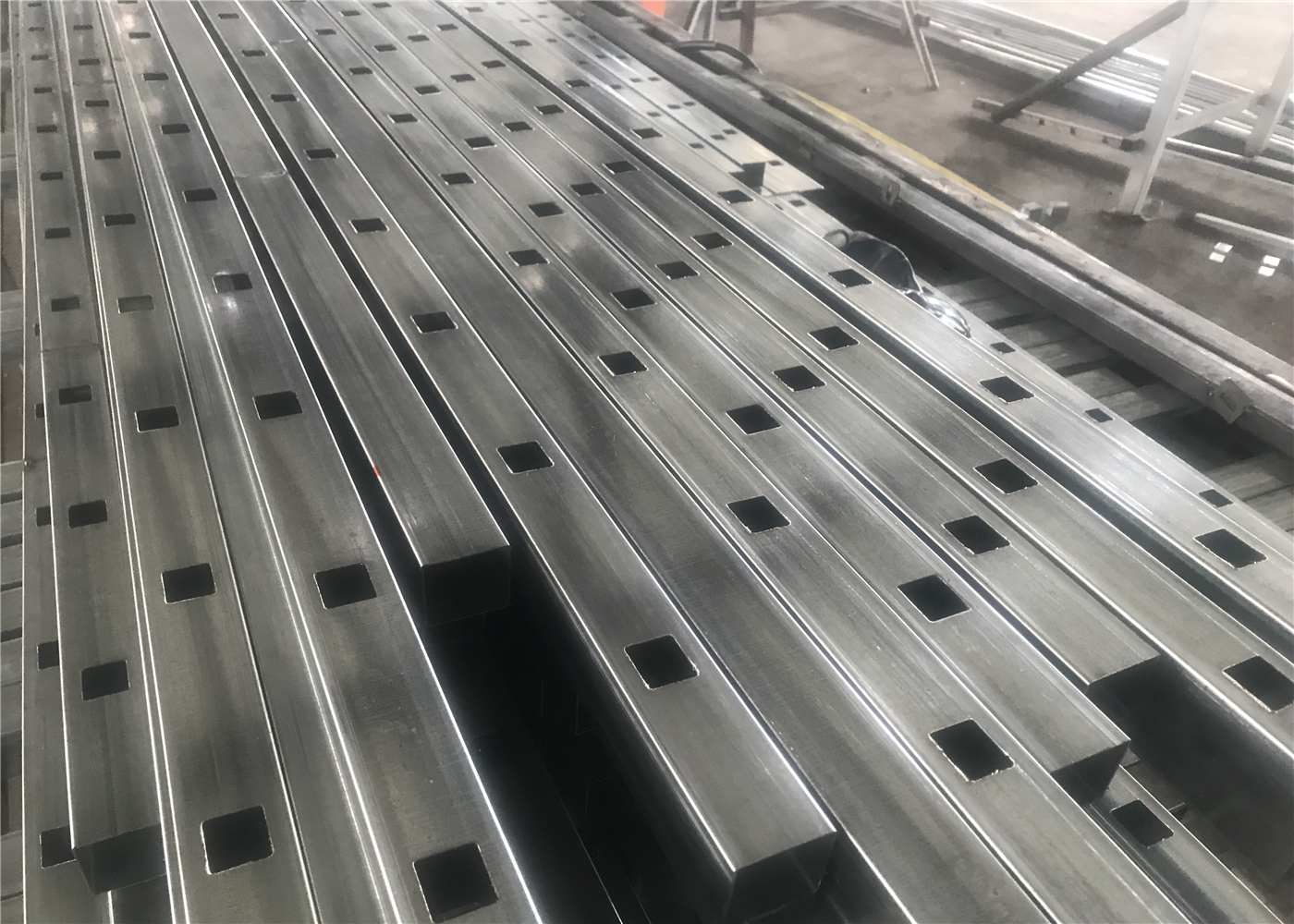

Pitfall #2: Treating rail frame as decoration, not the stiffness backbone
Rail frames like 40×40, 45×45, and 50×50 control straightness and handling stiffness. A crisp garrison fencing perth line usually has a rail size and thickness matched to height and long-run behavior.
Pitfall #3: Allowing rail thickness to float (the most common hidden downgrade)
Rails at 1.60mm do not behave like 2.50mm or 3.00mm under handling and wind. If rail thickness is not fixed, garrison fencing perth often arrives lighter than expected and becomes wavy after a few runs.
Pitfall #4: Choosing upright size without an alignment plan
Upright options such as 25×25, 30×30, and 16×16 change panel rigidity and spear alignment stability. If upright size is not locked, garrison fencing perth can arrive soft and visually inconsistent.
Pitfall #5: Forgetting upright thickness is separate from upright size
A 25×25 upright at 0.80mm dents and flexes far more than 1.20mm or 2.00mm. Thin uprights are the fastest way for garrison fencing perth to look “cheap” after handling.
Pitfall #6: Not specifying upright number per panel
If you need 16 pcs, 17 pcs, or 18 pcs per panel, state it. Upright number controls spacing discipline and the visual density of garrison fencing perth across long runs.
Pitfall #7: Treating spacing as a vague claim instead of a measurable schedule
Spacing drift is how climb points and visual inconsistency sneak in. garrison fencing perth should use a locked spacing schedule so every panel matches: 18 pcs = 100mm, 17 pcs = 108mm, 16 pcs = 115mm.

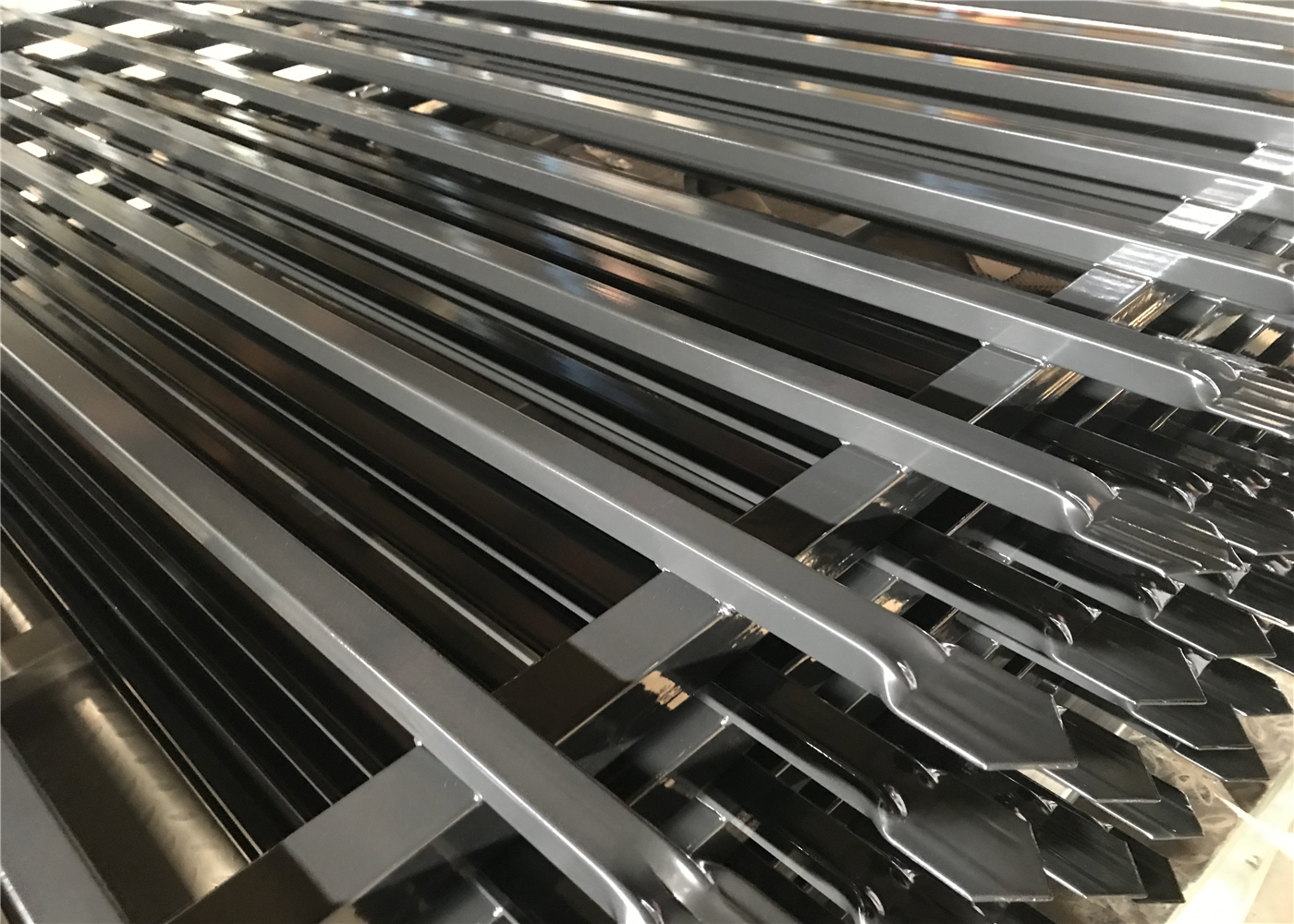

Pitfall #8: Buying spear or crimped-spear without controlling profile consistency
Spear profiles look premium only when consistent. If spear geometry drifts, spear lines wander and the boundary instantly looks low-grade on public-facing garrison fencing perth sites.
Pitfall #9: Ignoring panel squareness tolerances
A panel can be black and still be wrong. If squareness is off, installation becomes a fight, gaps appear, and garrison fencing perth lines look sloppy.
Pitfall #10: Assuming “powder coated” automatically equals exterior durability

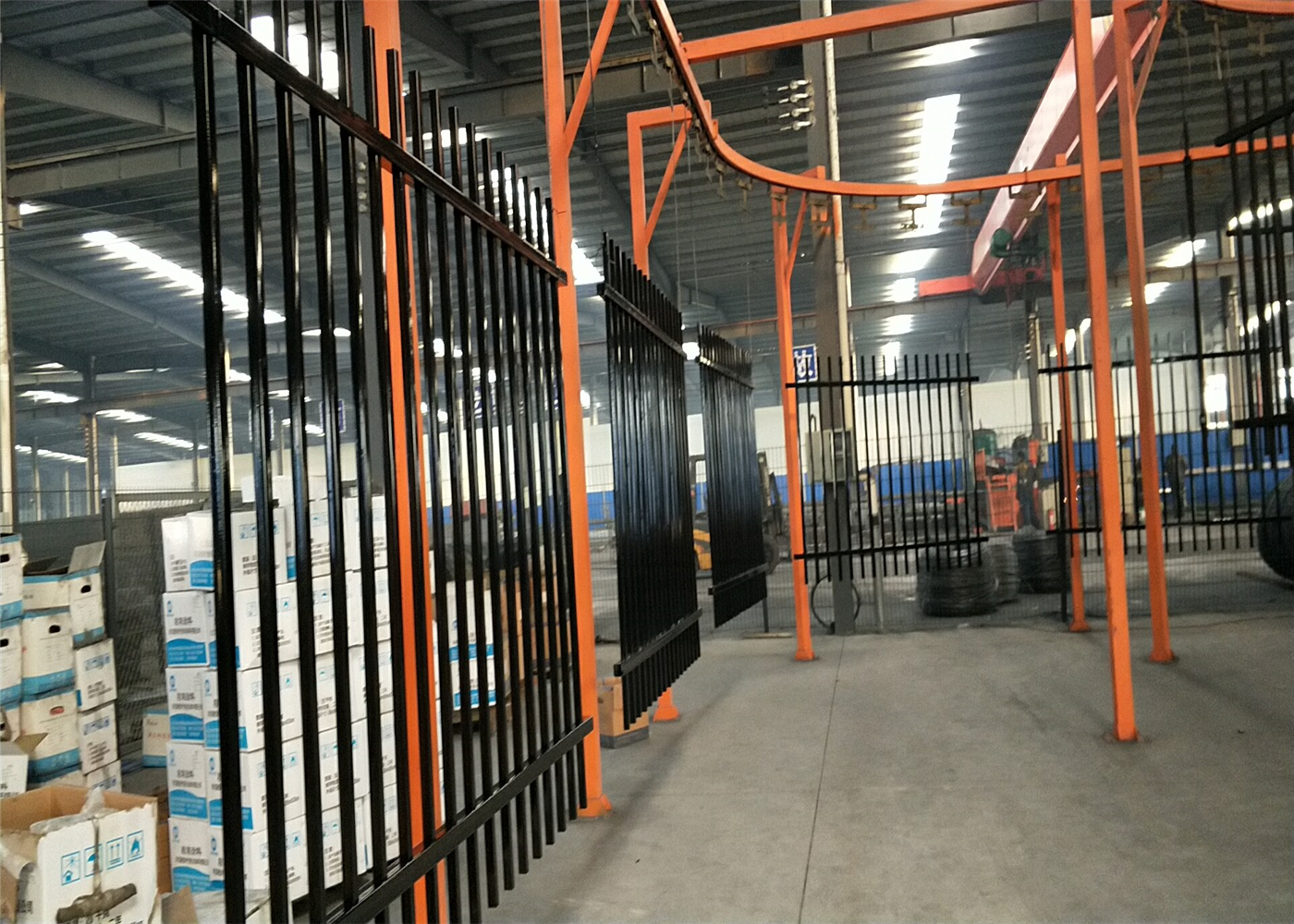

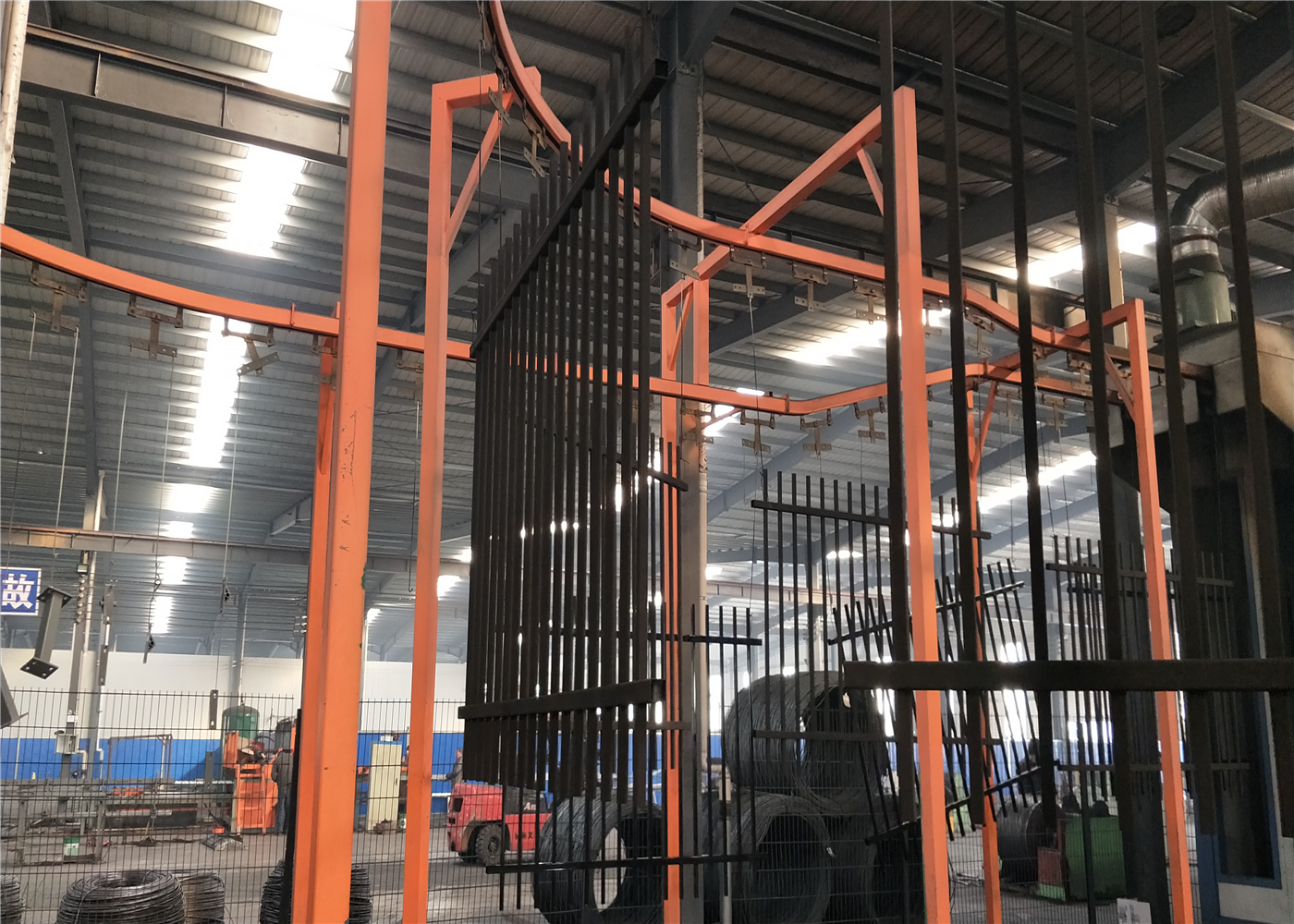

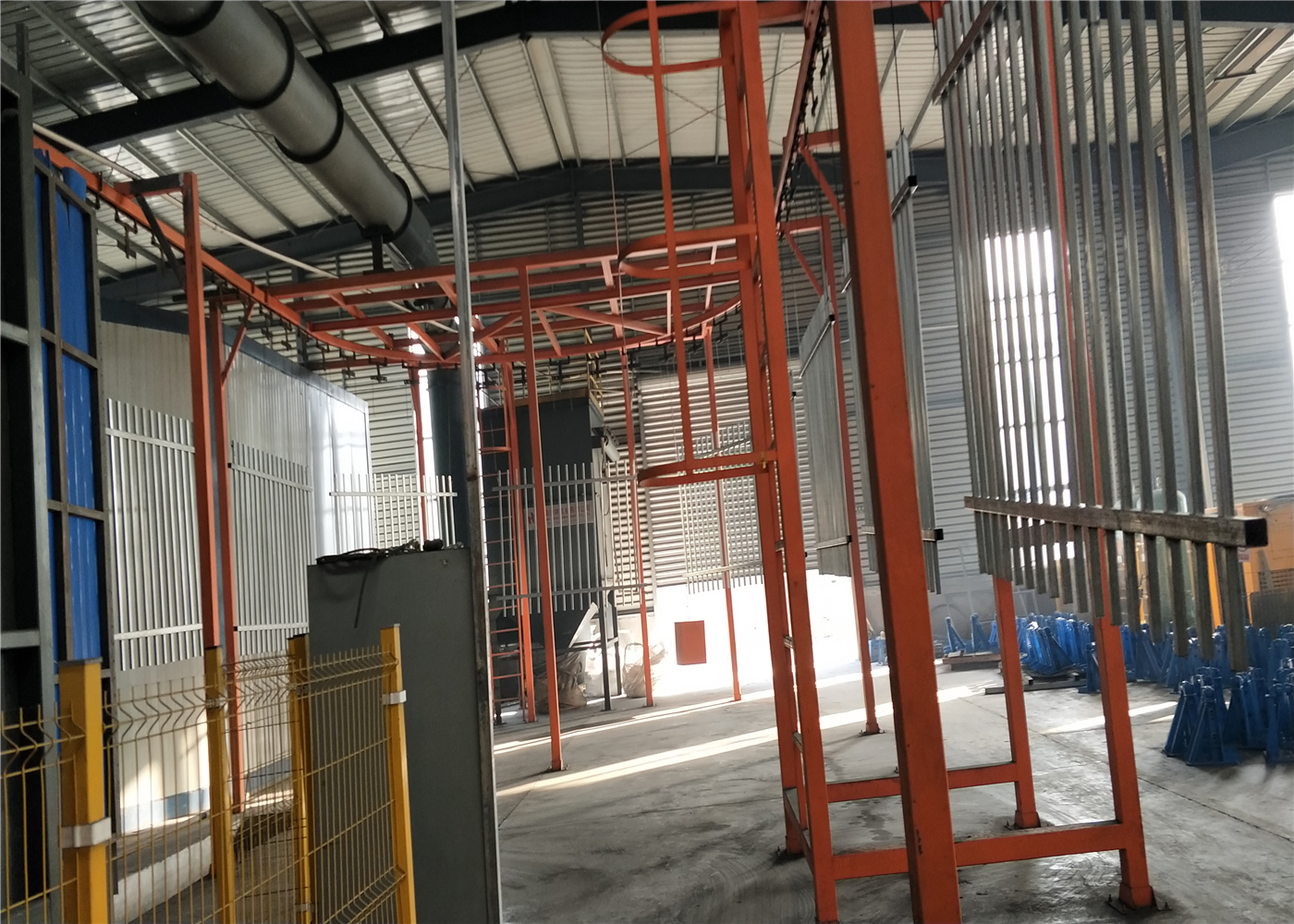

Powder performance depends on surface preparation, coating build, cure, and protection at weld zones and cut edges. If the finishing system is not controlled, garrison fencing perth chips first where the public sees it first.

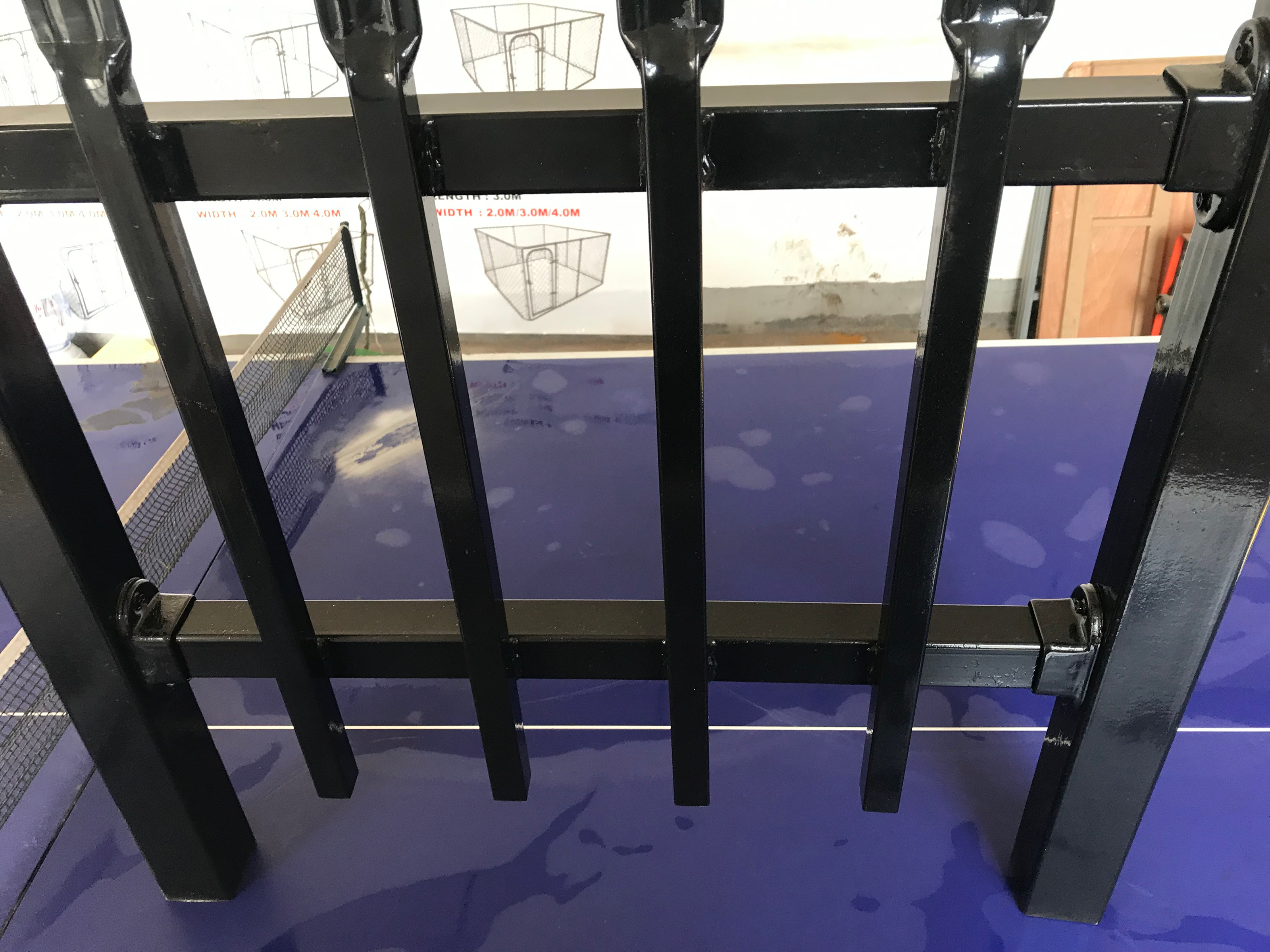

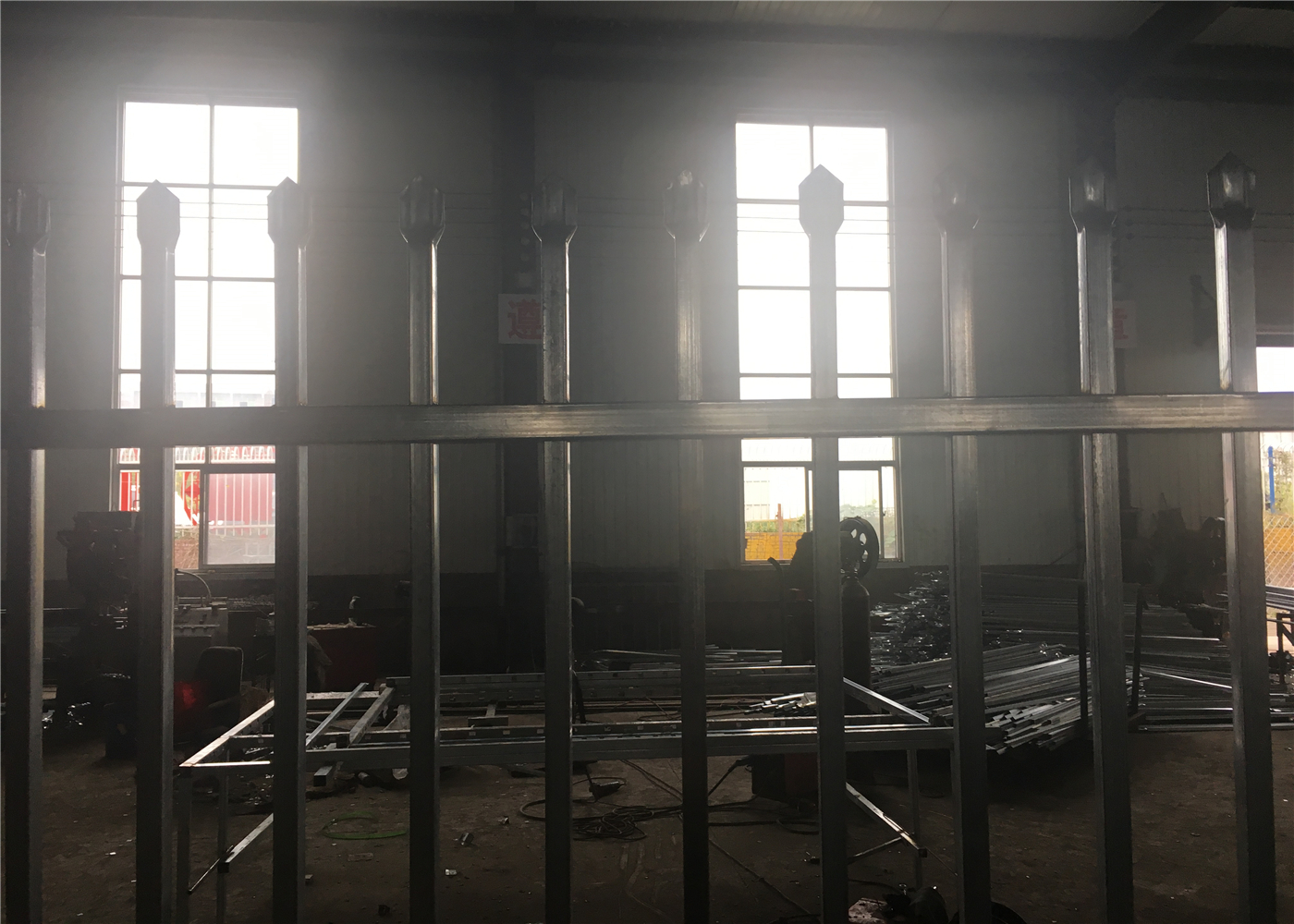

Pitfall #11: Treating welding as a checkbox instead of a quality driver
Weld discipline controls strength, squareness, and how powder behaves at the weld zone. Poor welding is a common cause of early cosmetic failure on garrison fencing perth installations.

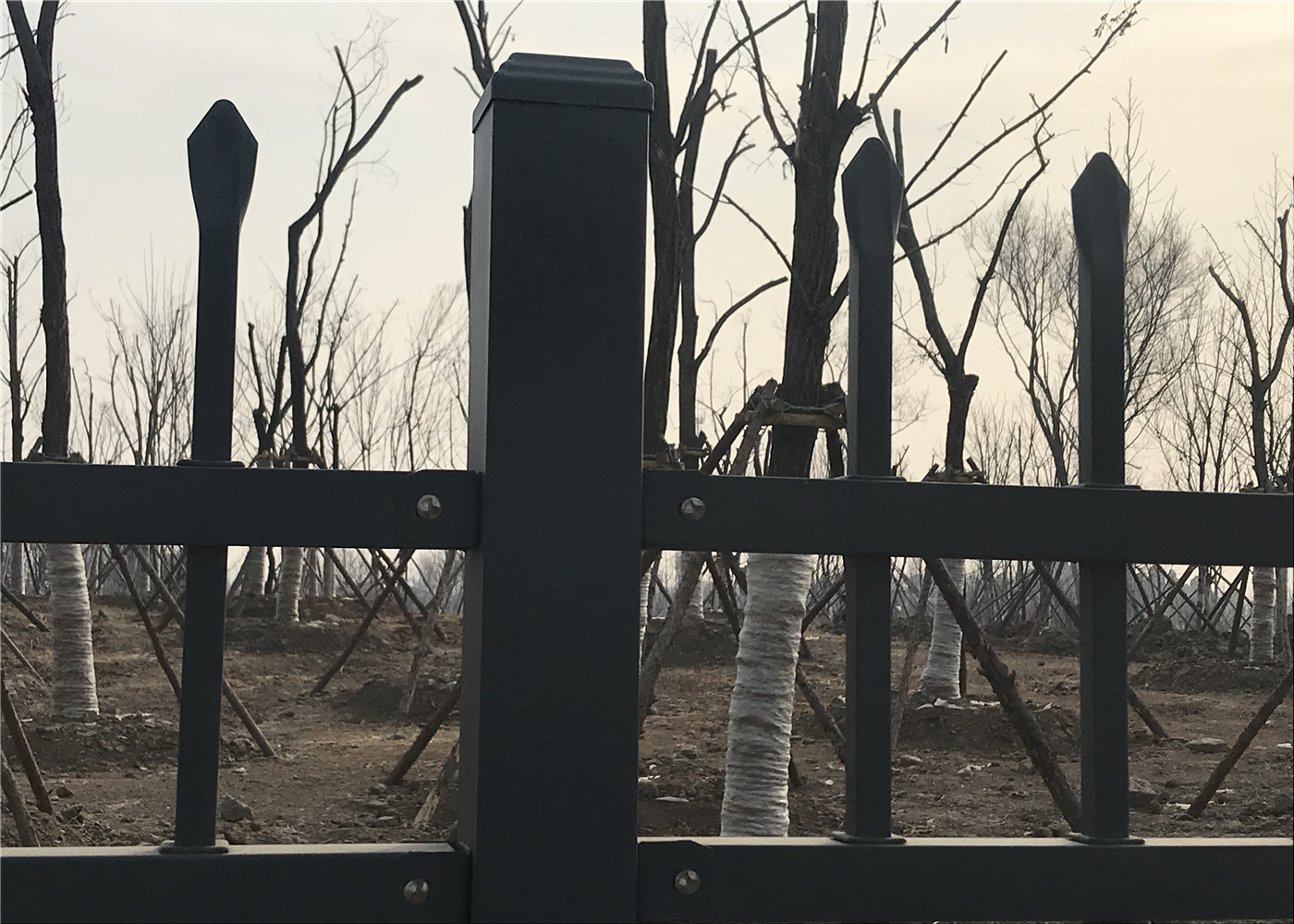

Pitfall #12 (Most Costly): Under-sizing posts or letting post wall thickness drift
Posts control the entire fence line. If post option and wall thickness are not locked, posts drift, panels rack, and straight runs become waves—turning garrison fencing perth into rework, callbacks, and wasted labor.
Pitfall #13: Not matching post size to fence height
Tall panels require appropriate post stiffness. If garrison fencing perth height increases but post size does not, drift increases and long-run alignment collapses.
Pitfall #14: Ignoring Perth corrosion reality (cut points and weld zones fail first)
Coastal air, wet handling, and jobsite abrasion attack the weak points first. If zinc strategy and powder build are not controlled, garrison fencing perth will show rust at weld zones and cut ends far earlier than expected.
Pitfall #15: Shipping without packing protection for black surfaces
Black finishes show rub marks and edge chips. If panels are not separated and strapped correctly, freight damage appears before garrison fencing perth installation starts.
Pitfall #16: Mixing batches without color control
Even “black” varies. Mixing lots without a controlled black standard can create visible shade differences along a garrison fencing perth boundary.
Pitfall #17: Buying without a measurable acceptance checklist
If you don’t define what “pass” means—straightness, squareness, upright count, spacing, post match, coating condition—you absorb the loss and the site fight.
Pitfall #18: Paying for “high-security” without linking it to measurable tube schedules
High-security is not a label; it is a schedule. If rail frame, rail thickness, uprights, spacing, and posts are not locked, garrison fencing perth becomes a marketing claim instead of a real system.
Product Description (POLYMETAL)

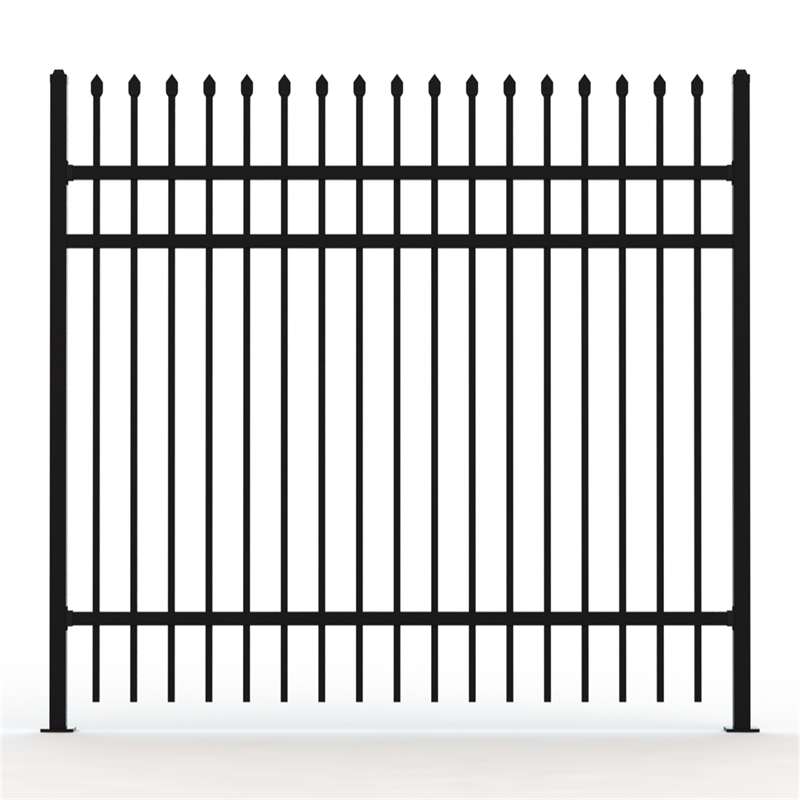

POLYMETAL garrison fencing perth is a high-security tubular garrison fence panel system designed for boundary lines where the finish must look architectural while the structure remains rigid and difficult to climb. Panels are produced in controlled heights and widths with measured rail frames and measured upright schedules to keep spear alignment crisp across long runs. Steel panels are typically manufactured from hot-dip galvanized steel, and aluminium material is also available for projects that prioritise lower weight and corrosion resistance. The black finish is applied as a controlled powder coating system, commonly specified as AkzoNobel Interpon powder coating, to deliver a consistent appearance that holds up under handling and outdoor exposure.
A multi-layer anti-corrosion system is used to support long service life: zinc protection for the steel base plus a controlled powder coating build for appearance and extra protection. With matched posts, measured post wall thickness, and disciplined welding, garrison fencing perth installs straight, stays straight, and avoids the expensive rework cycle created by drift, waves, and early coating failure. For matching installation hardware and base solutions, see flat steel base plate.
Specifications (POLYMETAL) — Solid Line Tables (3 Tables, 10+ Specs Each)
Rules used in tables: Rail frames = 40×40 / 45×45 / 50×50. Rail thickness = 1.60 / 2.00 / 2.50 / 3.00mm. Uprights = 25×25 / 30×30 / 16×16. Upright thickness = 0.80 / 1.00 / 1.20 / 2.00mm. Upright number + spacing: 18 pcs = 100mm, 17 pcs = 108mm, 16 pcs = 115mm. Post options = 60×60 / 65×65 / 75×75 / 80×80 / 100×100. Post wall = 1.60 / 2.00 / 2.50mm. Base plate option shown as 130×130mm with 4 pin holes.
Table 1: Perth Architectural Black Schedule (Interpon Powder Coated)
| Spec ID | Fence Height (mm) | Fence Width (mm) | Rail Frame | Rail Thick (mm) | Upright | Upright Thick (mm) | Upright No. | Spacing | Post Option | Post Wall (mm) | Fence Post Height (mm) | Post Type | Base Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PA-01 | 1200 | 2400 | 40×40 | 1.60 | 25×25 | 1.00 | 18 pcs | 100mm | 60×60 | 1.60 | 1800 | In-Ground | N/A |
| PA-02 | 1200 | 2450 | 40×40 | 2.00 | 25×25 | 1.20 | 17 pcs | 108mm | 60×60 | 2.00 | 1800 | In-Ground | N/A |
| PA-03 | 1500 | 2400 | 40×40 | 2.00 | 25×25 | 1.20 | 18 pcs | 100mm | 65×65 | 2.00 | 2100 | In-Ground | N/A |
| PA-04 | 1500 | 2450 | 45×45 | 2.00 | 16×16 | 1.20 | 18 pcs | 100mm | 65×65 | 1.60 | 2100 | In-Ground | N/A |
| PA-05 | 1800 | 2400 | 45×45 | 2.00 | 25×25 | 1.20 | 17 pcs | 108mm | 75×75 | 2.00 | 2400 | In-Ground | N/A |
| PA-06 | 1800 | 2450 | 45×45 | 2.50 | 30×30 | 1.20 | 17 pcs | 108mm | 75×75 | 2.50 | 2400 | In-Ground | N/A |
| PA-07 | 2100 | 2400 | 45×45 | 2.50 | 30×30 | 2.00 | 17 pcs | 108mm | 80×80 | 2.50 | 2700 | In-Ground | N/A |
| PA-08 | 2100 | 2450 | 50×50 | 2.00 | 25×25 | 1.20 | 16 pcs | 115mm | 80×80 | 2.00 | 2700 | In-Ground | N/A |
| PA-09 | 1200 | 2400 | 40×40 | 2.00 | 25×25 | 1.20 | 18 pcs | 100mm | 60×60 | 2.00 | 1200 | Base Plate | 130×130, 4 pin holes |
| PA-10 | 1500 | 2450 | 45×45 | 2.50 | 25×25 | 1.20 | 17 pcs | 108mm | 65×65 | 2.00 | 1500 | Base Plate | 130×130, 4 pin holes |
Table 2: Perth Heavy-Duty / Coastal Schedule (Higher Stiffness, Lower Drift)
| Spec ID | Fence Height (mm) | Fence Width (mm) | Rail Frame | Rail Thick (mm) | Upright | Upright Thick (mm) | Upright No. | Spacing | Post Option | Post Wall (mm) | Fence Post Height (mm) | Post Type | Base Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PC-01 | 1800 | 2400 | 45×45 | 2.50 | 25×25 | 2.00 | 18 pcs | 100mm | 80×80 | 2.50 | 2400 | In-Ground | N/A |
| PC-02 | 1800 | 2450 | 50×50 | 2.50 | 30×30 | 2.00 | 17 pcs | 108mm | 80×80 | 2.50 | 2400 | In-Ground | N/A |
| PC-03 | 2100 | 2400 | 50×50 | 2.50 | 30×30 | 2.00 | 18 pcs | 100mm | 100×100 | 2.50 | 2700 | In-Ground | N/A |
| PC-04 | 2100 | 2450 | 50×50 | 3.00 | 30×30 | 2.00 | 17 pcs | 108mm | 100×100 | 2.50 | 2700 | In-Ground | N/A |
| PC-05 | 2400 | 2400 | 50×50 | 3.00 | 30×30 | 2.00 | 18 pcs | 100mm | 100×100 | 2.50 | 3000 | In-Ground | N/A |
| PC-06 | 2400 | 2450 | 50×50 | 3.00 | 30×30 | 2.00 | 17 pcs | 108mm | 100×100 | 2.50 | 3000 | In-Ground | N/A |
| PC-07 | 1500 | 2400 | 45×45 | 2.50 | 25×25 | 1.20 | 18 pcs | 100mm | 75×75 | 2.50 | 2100 | In-Ground | N/A |
| PC-08 | 1500 | 2450 | 45×45 | 2.50 | 16×16 | 1.20 | 18 pcs | 100mm | 75×75 | 2.00 | 2100 | In-Ground | N/A |
| PC-09 | 1800 | 2400 | 45×45 | 2.50 | 30×30 | 2.00 | 17 pcs | 108mm | 80×80 | 2.50 | 1800 | Base Plate | 130×130, 4 pin holes |
| PC-10 | 2100 | 2450 | 50×50 | 2.50 | 30×30 | 2.00 | 18 pcs | 100mm | 100×100 | 2.50 | 2100 | Base Plate | 130×130, 4 pin holes |
Table 3: Perth Value Schedule (Cost-Controlled but Still Straight)
| Spec ID | Fence Height (mm) | Fence Width (mm) | Rail Frame | Rail Thick (mm) | Upright | Upright Thick (mm) | Upright No. | Spacing | Post Option | Post Wall (mm) | Fence Post Height (mm) | Post Type | Base Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PV-01 | 1200 | 2400 | 40×40 | 1.60 | 25×25 | 0.80 | 17 pcs | 108mm | 60×60 | 1.60 | 1800 | In-Ground | N/A |
| PV-02 | 1200 | 2450 | 40×40 | 1.60 | 16×16 | 1.00 | 16 pcs | 115mm | 60×60 | 1.60 | 1800 | In-Ground | N/A |
| PV-03 | 1500 | 2400 | 40×40 | 1.60 | 25×25 | 1.00 | 16 pcs | 115mm | 65×65 | 1.60 | 2100 | In-Ground | N/A |
| PV-04 | 1500 | 2450 | 45×45 | 2.00 | 16×16 | 1.20 | 18 pcs | 100mm | 65×65 | 1.60 | 2100 | In-Ground | N/A |
| PV-05 | 1800 | 2400 | 45×45 | 1.60 | 25×25 | 1.00 | 17 pcs | 108mm | 75×75 | 2.00 | 2400 | In-Ground | N/A |
| PV-06 | 1800 | 2450 | 45×45 | 2.00 | 16×16 | 1.00 | 16 pcs | 115mm | 75×75 | 2.00 | 2400 | In-Ground | N/A |
| PV-07 | 2100 | 2400 | 50×50 | 2.00 | 25×25 | 1.00 | 17 pcs | 108mm | 80×80 | 2.00 | 2700 | In-Ground | N/A |
| PV-08 | 2100 | 2450 | 45×45 | 2.00 | 25×25 | 1.20 | 16 pcs | 115mm | 80×80 | 2.00 | 2700 | In-Ground | N/A |
| PV-09 | 1200 | 2450 | 40×40 | 2.00 | 16×16 | 1.00 | 16 pcs | 115mm | 60×60 | 1.60 | 1200 | Base Plate | 130×130, 4 pin holes |
| PV-10 | 1500 | 2400 | 40×40 | 2.00 | 25×25 | 1.20 | 18 pcs | 100mm | 65×65 | 2.00 | 1500 | Base Plate | 130×130, 4 pin holes |

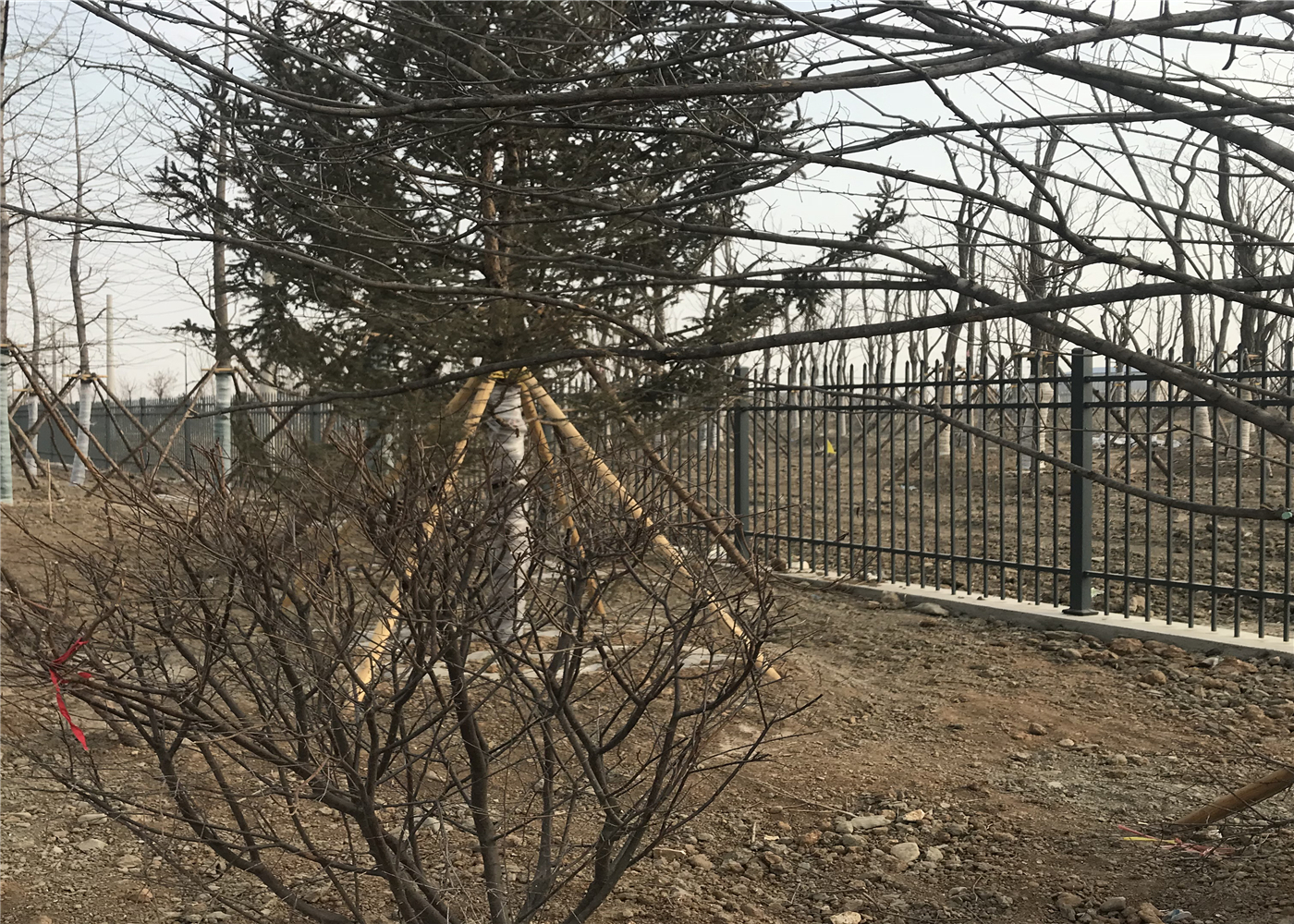

Applications (garrison fencing perth)
garrison fencing perth is widely applied for residential boundary lines that need an architectural black finish, schools and campuses where straight spear alignment improves safety perception, industrial and warehouse frontage where durable finishes reduce ongoing repainting, infrastructure corridors where long straight runs must remain visually disciplined, and public-facing sites where a clean perimeter look prevents complaints and brand damage. garrison fencing perth is also used for commercial frontage and estates where consistent spear lines signal “do not cross” without heavy visual obstruction.
Benefits (POLYMETAL)
The key benefit of garrison fencing perth is controlled appearance with real security. When rails, uprights, spacing, and posts are locked, the fence installs faster, stays straighter, and resists handling damage better. A controlled Interpon powder coated black finish reduces early chipping when surface preparation and curing discipline are followed, and the correct post option reduces drift and wave formation—so buyers keep a clean boundary that stays clean instead of paying for repairs, rework, and wasted labor.

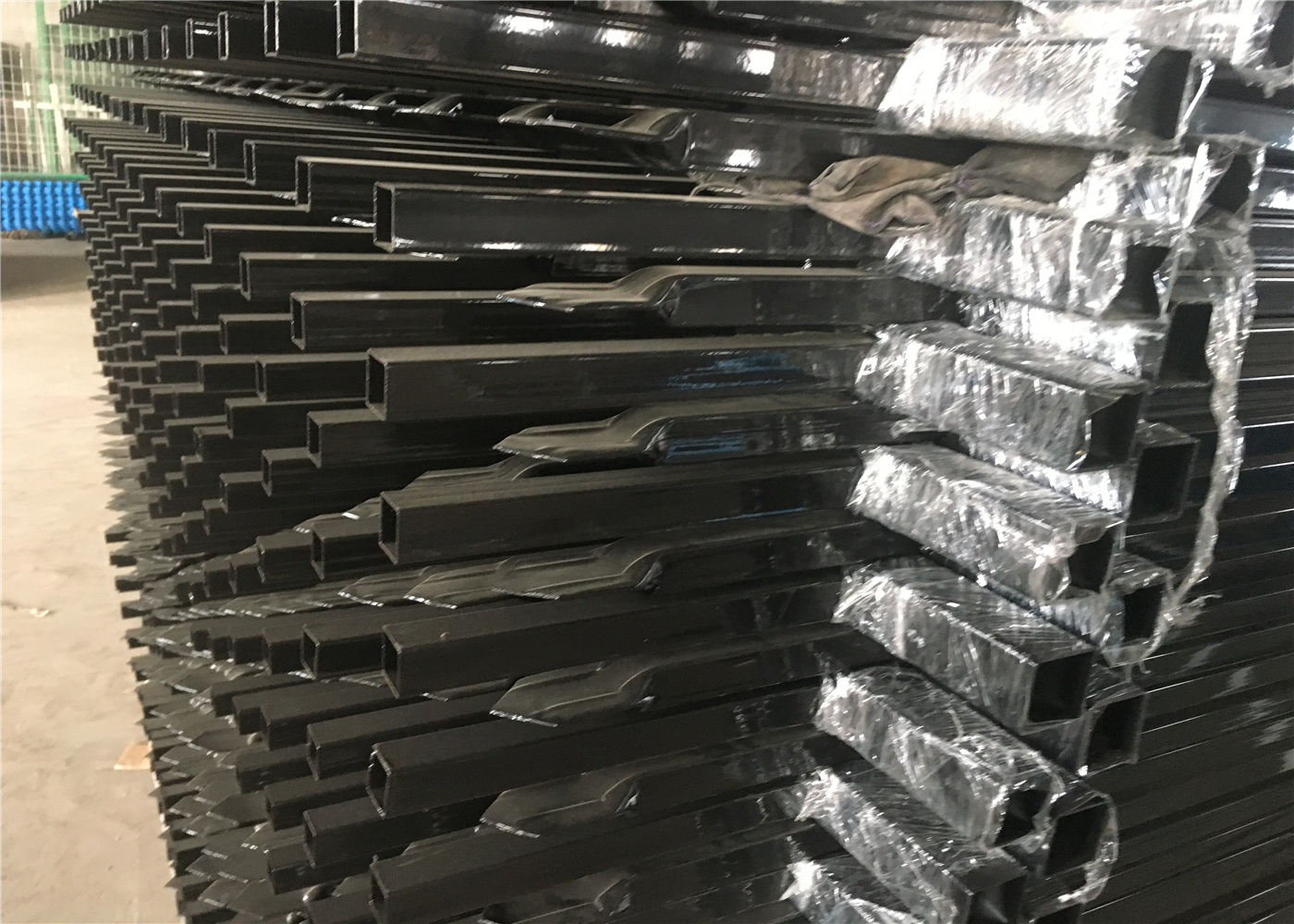

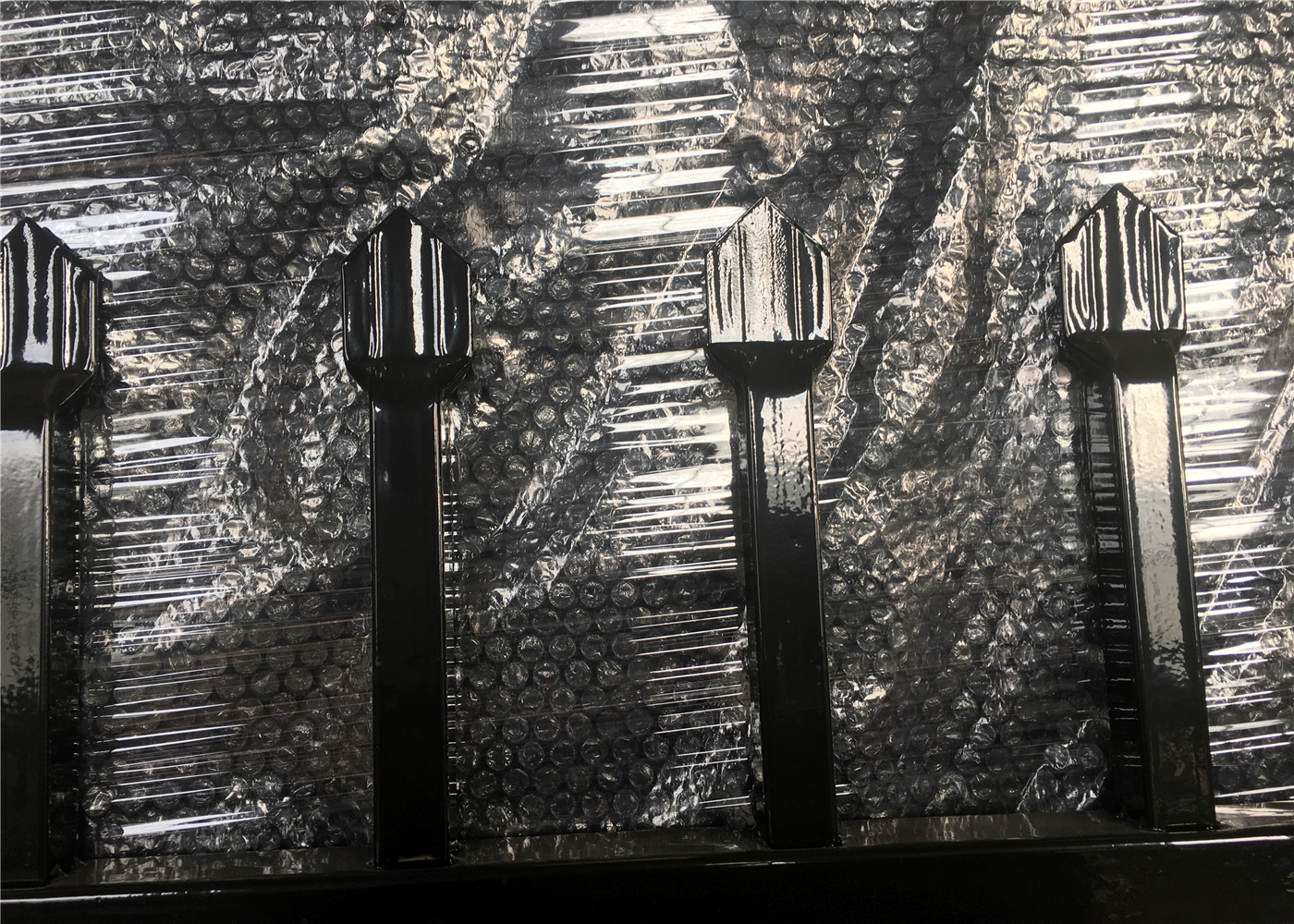

Packing

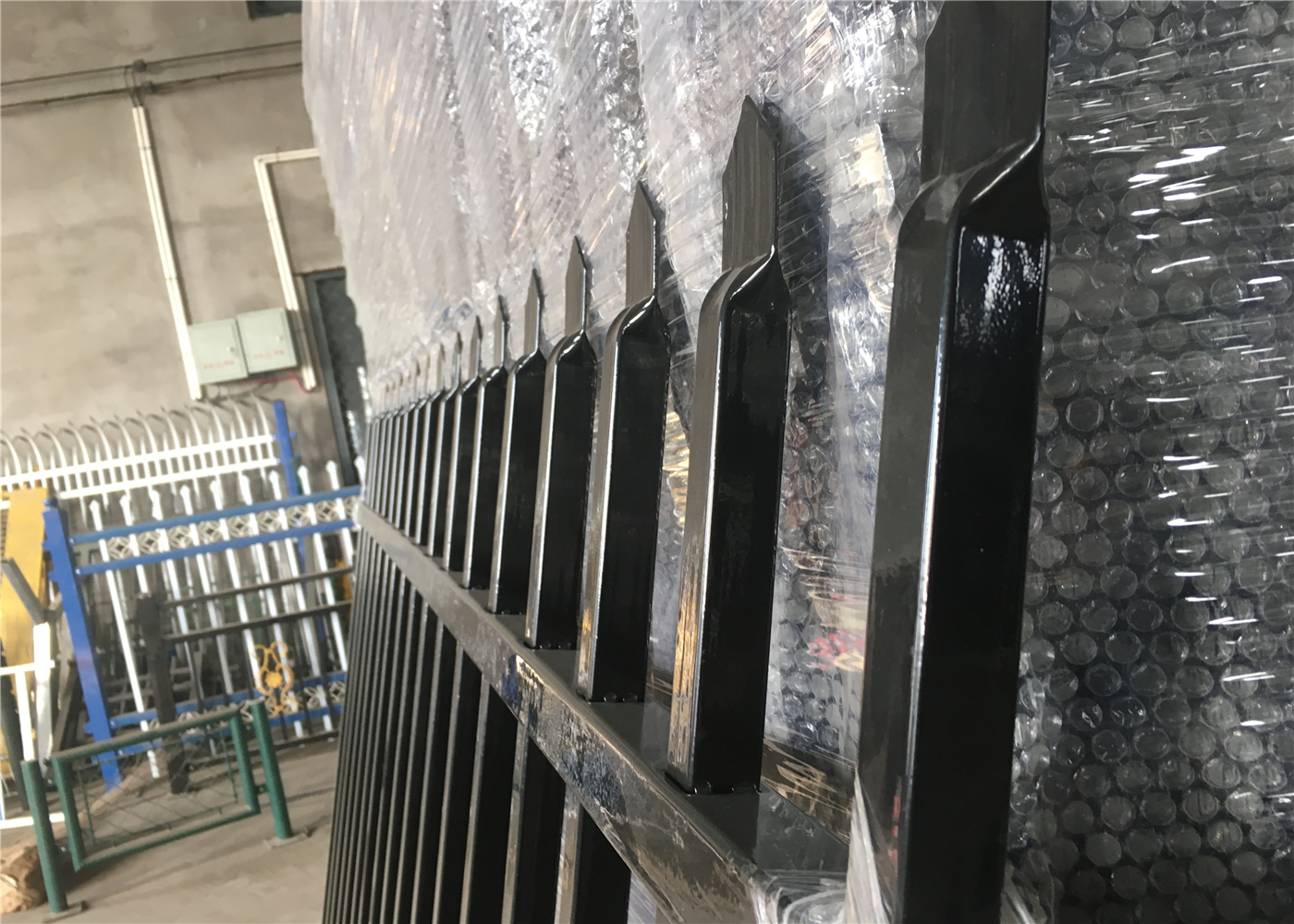

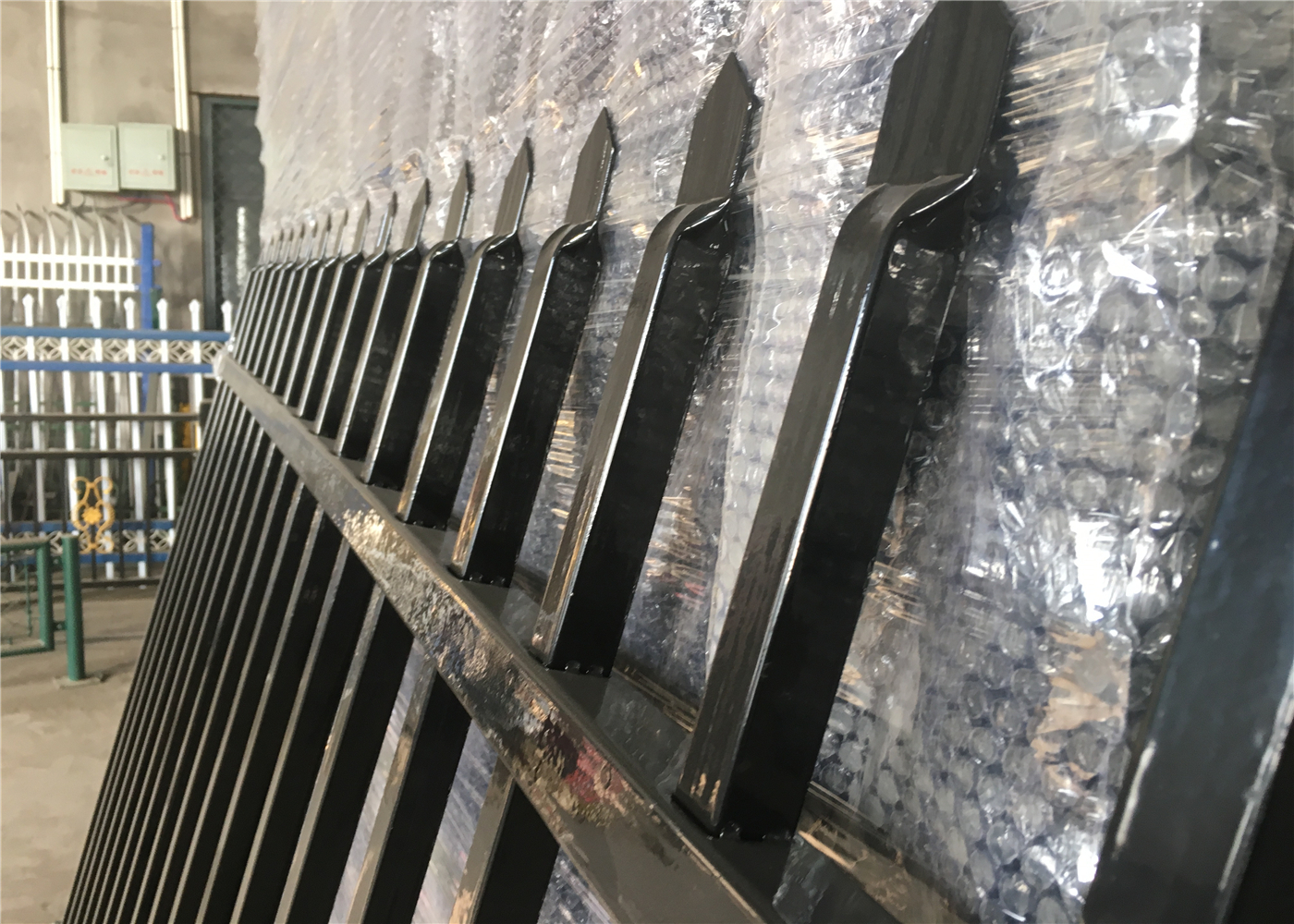

POLYMETAL packs garrison fencing perth to protect the black finish and preserve straightness. Panels are separated at contact points to prevent rub marks, edges are protected to reduce chips at corners, bundles are strapped square to reduce twist, and labels are applied by height schedule to prevent mixed installation runs. Posts, caps, and accessories are grouped to match the panel schedule so the site can stage runs without sorting losses.
Standard and FAQs
Standard
POLYMETAL garrison fencing perth production is supported by controlled manufacturing systems and inspection discipline that focus on measurable field performance: straightness, squareness, upright count, spacing consistency, post match to height, and finishing condition at weld zones and edges. Typical project requirements reference ISO-style quality controls and third-party inspection capability for export schedules.
FAQ 1: What is the fastest way to avoid wavy garrison fencing perth lines?
Lock rail frame + rail thickness, lock upright size + upright thickness, and match post option + post wall thickness to fence height so the line stays straight across long runs.
FAQ 2: Why do 16 / 17 / 18 uprights per panel matter?
Upright number controls spacing discipline and visual density. If the count drifts, the entire garrison fencing perth boundary looks inconsistent even if the color matches.
FAQ 3: What finish is common for black garrison fencing perth projects?
A hot-dip galvanized steel base plus a controlled black powder coating system is commonly used for outdoor exposure. Aluminium is also available where lower weight and corrosion resistance are prioritized.
FAQ 4: Which posts are common?
Common post options include 60×60, 65×65, 75×75, 80×80, and 100×100, with wall thickness selected to match height and loading so posts do not drift.
FAQ 5: Can POLYMETAL customize garrison fencing perth specifications?
Yes. POLYMETAL can customize garrison fencing perth by height, width, rail frame, rail thickness, upright size, upright thickness, upright number, spacing schedule, post option, post wall thickness, and finish requirements.
