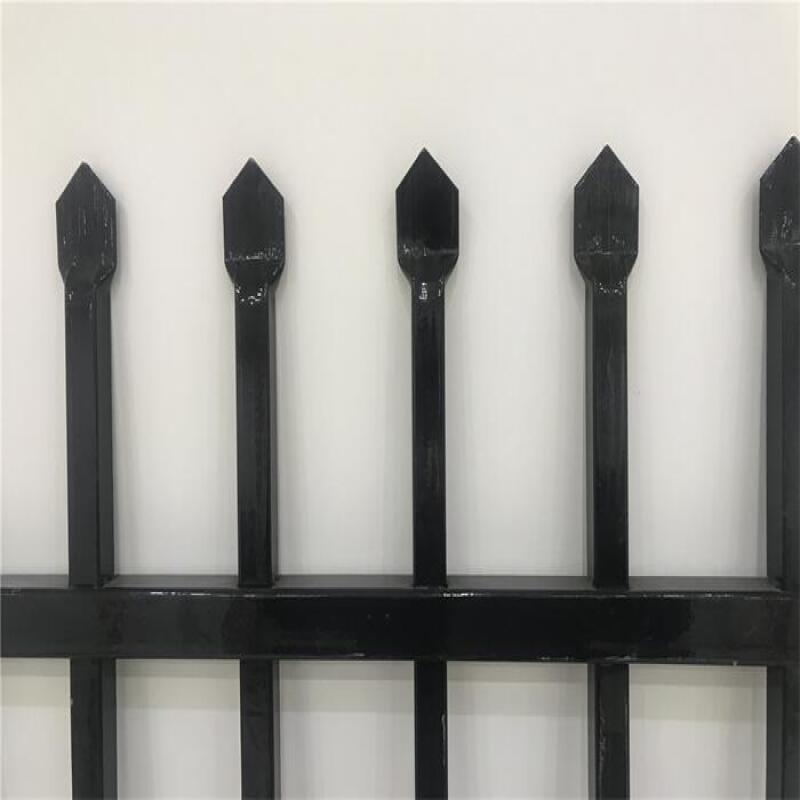

When people search garrison fencing Perth WA, they usually want a pressed-spear, square-tubular panel that looks clean on frontage, installs straight, and stays tight in real WA conditions—wind corridors, vehicle turbulence, coastal air, and constant site traffic. POLYMETAL garrison fencing panels are engineered to deliver that organized, architectural boundary effect, but only when the specification is treated as a complete system: rail frame + rail thickness + upright size + upright count/spacing + post option + post wall thickness + correct post height.
Product Description

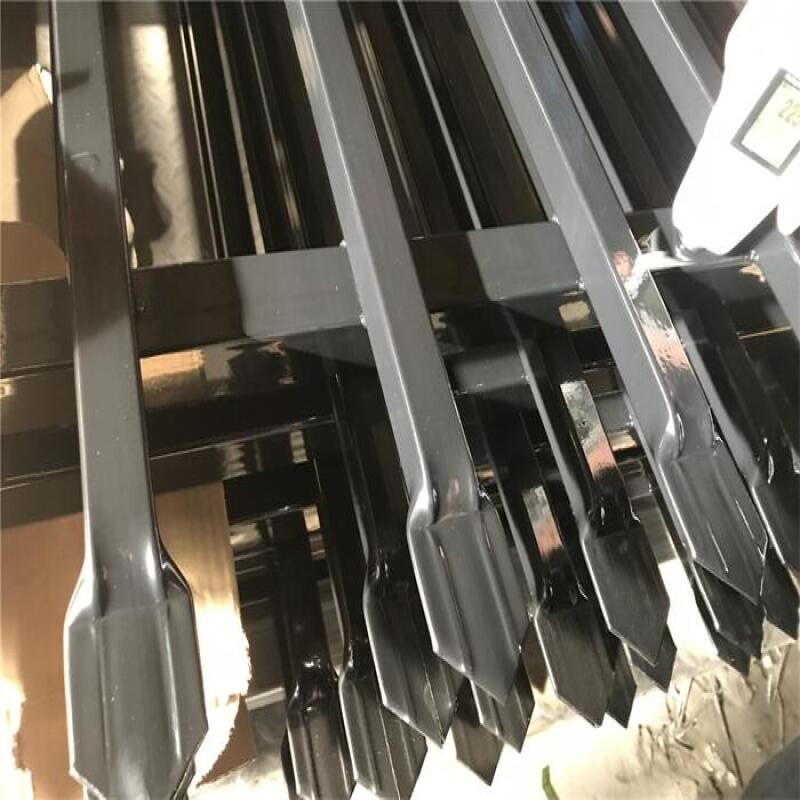

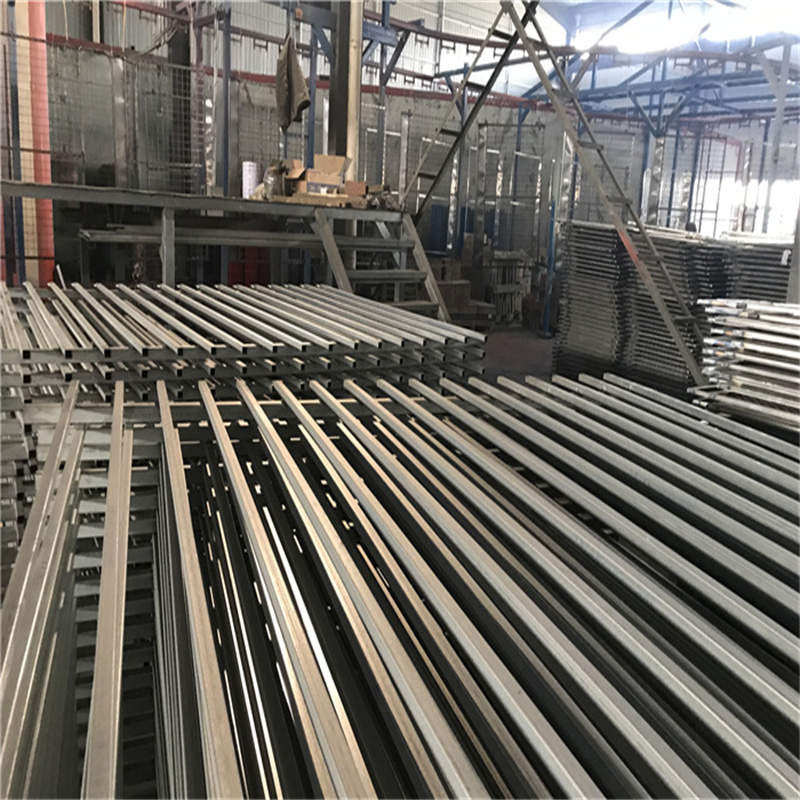

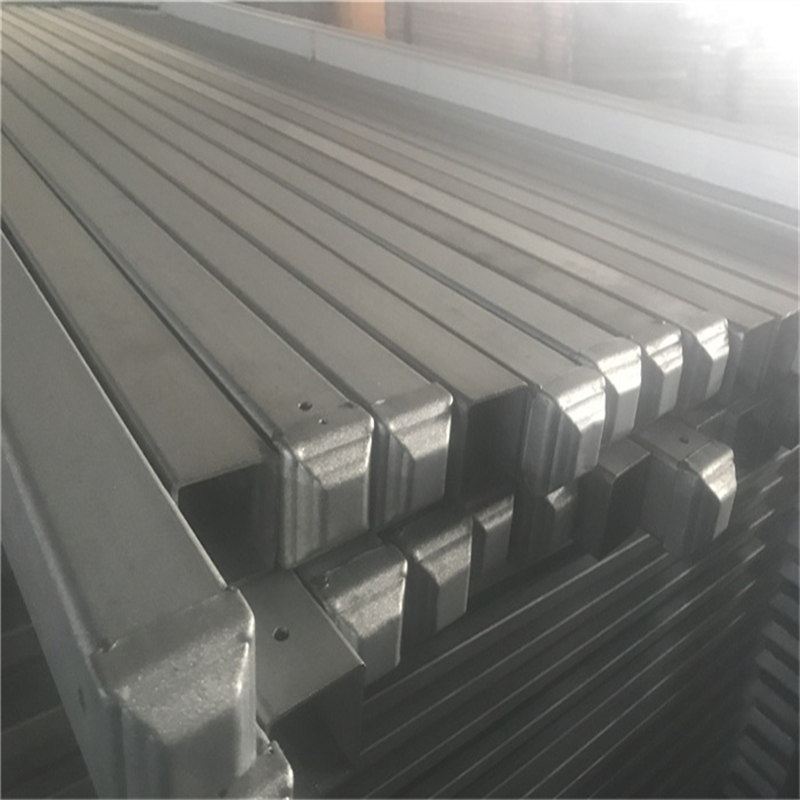

POLYMETAL garrison fencing Perth WA panel systems are manufactured from hot dipped galvanized steel sheet that is slit into strips and roll-formed into square tubes. This improves dimensional consistency, keeps tube corners crisp, and helps long runs stay visually straight once installed. After forming, the steel is treated with zinc phosphate to strengthen coating adhesion and improve corrosion resistance at the surface. A rich zinc epoxy layer is applied as a barrier coat, followed by a polyester powder-coated finish designed for UV stability, color retention, and long-term appearance—important for Perth frontage where a fence is often the first thing people see.

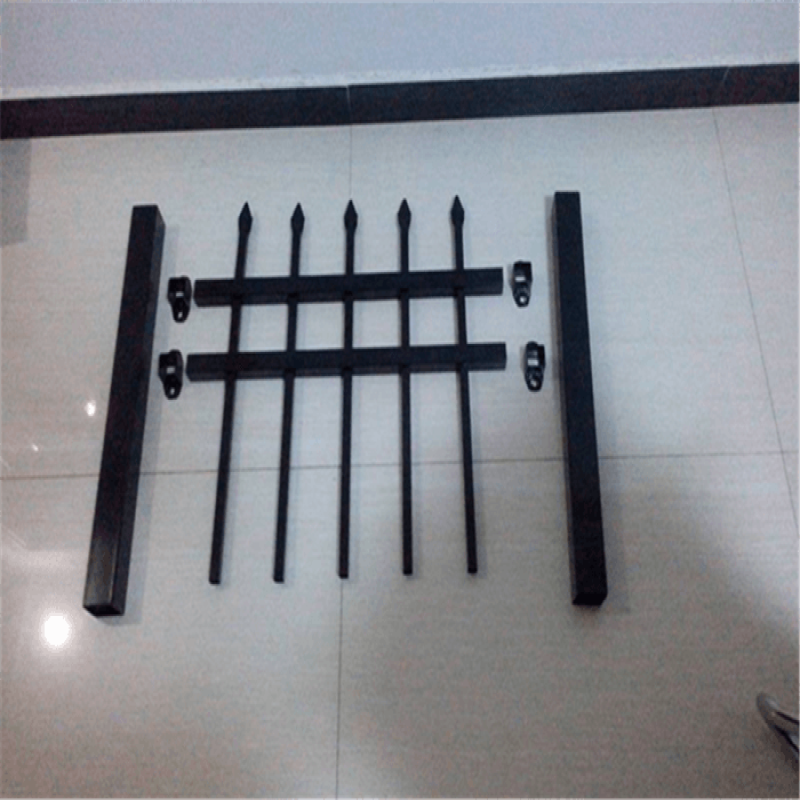

The panel structure uses square tubular rails—commonly 40×40mm, with 45×45mm and 50×50mm options—and punch-through welded square tubular uprights to keep alignment accurate. Uprights are typically 16×16mm, 25×25mm, or 30×30mm depending on the visual “weight,” site risk, and spacing rhythm required. When the rail stiffness, upright count, post size, and connection discipline are matched correctly, the fence line stays tight and quiet instead of rattling, leaning, or showing wave-like distortion.
Structure and System Logic for Garrison Fencing Perth WA
A garrison fence rarely fails instantly. It fails in stages: tiny movement begins at a weak post or connection, wind cycles amplify vibration, vibration loosens joints, loosened joints create leverage, and leverage creates gaps that spread bay-by-bay. In Perth WA, wind exposure and salt-laden air (especially near the coast) make it even more important to lock the system so movement doesn’t “start” and coating damage doesn’t become early corrosion.
Top 18 Traps You Don’t Know About Garrison Fencing Perth WA (Especially #14)
Trap #1: Buying “garrison” by looks, not by rail thickness—thin rails dent and the line never looks straight again.
Trap #2: Choosing rail frame size incorrectly for height—tall panels with small rails flex and show wobble.
Trap #3: Picking upright size for appearance only—wrong visual weight looks cheap or bulky and wastes budget.
Trap #4: Ignoring upright count—fewer uprights create easier hand placement and weaker impact rhythm.
Trap #5: Mixing spacing patterns on one run—your eye sees it immediately and the weakest bay gets tested first.
Trap #6: Cutting upright thickness—uprights deform earlier and the fence “ages” fast.
Trap #7: Treating weld quality as cosmetic—one soft bay becomes the first failure bay.
Trap #8: Under-building corners and terminations—corners multiply force and drift first.
Trap #9: Skipping anti-tamper fixing discipline—loose fixings turn vibration into leverage.

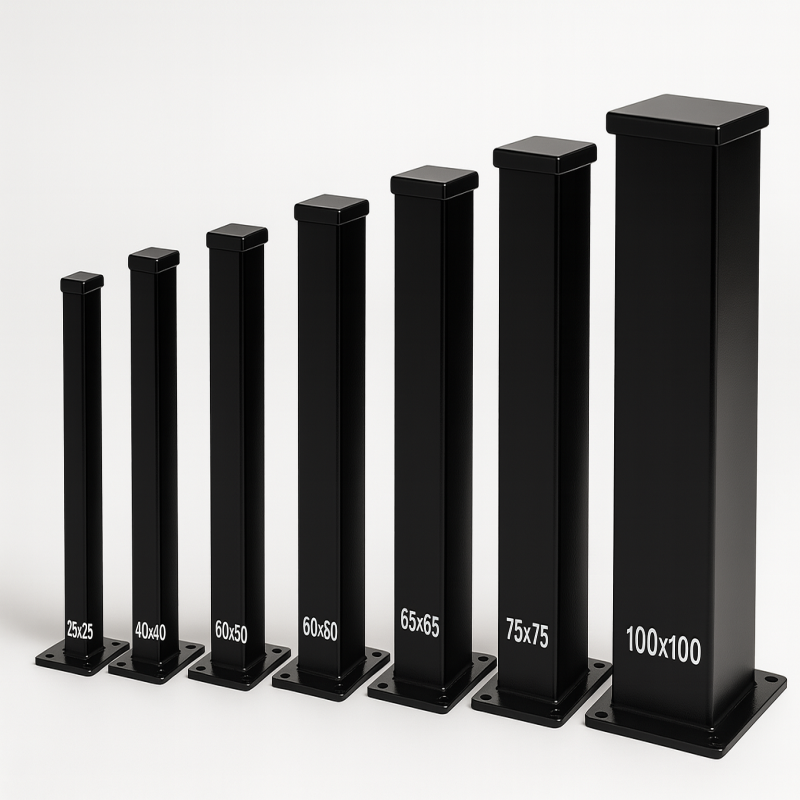

Trap #10: Choosing posts by “what’s in stock”—post section must match exposure and height.
Trap #11: Cutting post wall thickness—posts don’t look thinner, they just move more.
Trap #12: Under-specifying coating preparation—poor pretreatment makes powder fail at edges and weld zones.
Trap #13: Mixing batches/shades—frontage projects look patchy and “unfinished.”
Trap #14: Cutting post height (or not keeping post height ≥ panel height + 600mm)—this is the silent failure: posts flex first, flex becomes micro-movement, micro-movement becomes leverage, and leverage becomes gaps, re-tightening, repainting, and repeat call-backs.
Trap #15: No allowance for ground condition—poor footing planning turns wind into rocking motion.
Trap #16: Skipping straight-line control during install—once a line learns to lean, it keeps leaning.
Trap #17: Poor packing protection—transit rub marks become early corrosion starts.
Trap #18: Treating “premium look” as “low risk”—public-facing boundaries multiply complaint and liability cost.
Specifications: POLYMETAL Garrison Fencing Perth WA (5 Tables, 10 Specs Each)
Table 1. Standard Schedule Garrison fencing Perth WA
| Spec | Fence Height (mm) | Fence Width (mm) | Rail Frame (mm) | Rails Thickness (mm) | Upright (mm) | Upright Thickness (mm) | Upright No. (pcs) | Upright Spacing (mm) | Post Option (mm) | Post Wall (mm) | Post Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GF-01 | 1200 | 2400 | 40×40 | 1.60 | 16×16 | 0.80 | 17 | 108 | 60×60 | 1.60 | 1800 |
| GF-02 | 1200 | 2450 | 45×45 | 2.00 | 25×25 | 1.00 | 18 | 100 | 65×65 | 2.00 | 1800 |
| GF-03 | 1500 | 2400 | 40×40 | 2.00 | 25×25 | 1.20 | 17 | 108 | 65×65 | 2.00 | 2100 |
| GF-04 | 1500 | 2450 | 45×45 | 2.50 | 30×30 | 2.00 | 18 | 100 | 75×75 | 2.50 | 2100 |
| GF-05 | 1800 | 2400 | 45×45 | 2.00 | 25×25 | 1.20 | 18 | 100 | 75×75 | 2.00 | 2400 |
| GF-06 | 1800 | 2450 | 50×50 | 2.50 | 30×30 | 2.00 | 17 | 108 | 80×80 | 2.50 | 2400 |
| GF-07 | 2100 | 2400 | 50×50 | 3.00 | 30×30 | 2.00 | 17 | 108 | 80×80 | 2.50 | 2700 |
| GF-08 | 2100 | 2450 | 45×45 | 2.50 | 25×25 | 1.20 | 18 | 100 | 100×100 | 2.50 | 2700 |
| GF-09 | 2400 | 2400 | 50×50 | 3.00 | 30×30 | 2.00 | 16 | 115 | 100×100 | 2.50 | 3000 |
| GF-10 | 2400 | 2450 | 45×45 | 2.50 | 16×16 | 1.00 | 16 | 115 | 80×80 | 2.50 | 3000 |
Table 2. Tight-Spacing (100mm) “Premium Look” Garrison fencing Perth WA
| Spec | Fence Height (mm) | Fence Width (mm) | Rail Frame (mm) | Rails Thickness (mm) | Upright (mm) | Upright Thickness (mm) | Upright No. (pcs) | Upright Spacing (mm) | Post Option (mm) | Post Wall (mm) | Post Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PR-01 | 1200 | 2400 | 40×40 | 2.00 | 25×25 | 1.20 | 18 | 100 | 65×65 | 2.00 | 1800 |
| PR-02 | 1200 | 2450 | 45×45 | 2.50 | 30×30 | 2.00 | 18 | 100 | 75×75 | 2.50 | 1800 |
| PR-03 | 1500 | 2400 | 45×45 | 2.00 | 25×25 | 1.20 | 18 | 100 | 75×75 | 2.00 | 2100 |
| PR-04 | 1500 | 2450 | 50×50 | 2.50 | 30×30 | 2.00 | 18 | 100 | 80×80 | 2.50 | 2100 |
| PR-05 | 1800 | 2400 | 50×50 | 2.50 | 30×30 | 2.00 | 18 | 100 | 80×80 | 2.50 | 2400 |
| PR-06 | 1800 | 2450 | 45×45 | 2.50 | 25×25 | 1.20 | 18 | 100 | 100×100 | 2.50 | 2400 |
| PR-07 | 2100 | 2400 | 50×50 | 3.00 | 30×30 | 2.00 | 18 | 100 | 100×100 | 2.50 | 2700 |
| PR-08 | 2100 | 2450 | 50×50 | 3.00 | 25×25 | 1.20 | 18 | 100 | 100×100 | 2.50 | 2700 |
| PR-09 | 2400 | 2400 | 50×50 | 3.00 | 30×30 | 2.00 | 18 | 100 | 100×100 | 2.50 | 3000 |
| PR-10 | 2400 | 2450 | 50×50 | 3.00 | 25×25 | 1.20 | 18 | 100 | 100×100 | 2.50 | 3000 |
Table 3. Balanced Rhythm (108mm) Standard Commercial Builds Garrison fencing Perth WA
| Spec | Fence Height (mm) | Fence Width (mm) | Rail Frame (mm) | Rails Thickness (mm) | Upright (mm) | Upright Thickness (mm) | Upright No. (pcs) | Upright Spacing (mm) | Post Option (mm) | Post Wall (mm) | Post Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CR-01 | 1200 | 2400 | 40×40 | 1.60 | 16×16 | 0.80 | 17 | 108 | 60×60 | 1.60 | 1800 |
| CR-02 | 1200 | 2450 | 45×45 | 2.00 | 25×25 | 1.00 | 17 | 108 | 65×65 | 2.00 | 1800 |
| CR-03 | 1500 | 2400 | 40×40 | 2.00 | 25×25 | 1.20 | 17 | 108 | 65×65 | 2.00 | 2100 |
| CR-04 | 1500 | 2450 | 45×45 | 2.50 | 16×16 | 1.00 | 17 | 108 | 75×75 | 2.00 | 2100 |
| CR-05 | 1800 | 2400 | 45×45 | 2.00 | 25×25 | 1.20 | 17 | 108 | 75×75 | 2.50 | 2400 |
| CR-06 | 1800 | 2450 | 50×50 | 2.50 | 30×30 | 2.00 | 17 | 108 | 80×80 | 2.50 | 2400 |
| CR-07 | 2100 | 2400 | 50×50 | 3.00 | 30×30 | 2.00 | 17 | 108 | 80×80 | 2.50 | 2700 |
| CR-08 | 2100 | 2450 | 45×45 | 2.50 | 25×25 | 1.20 | 17 | 108 | 100×100 | 2.50 | 2700 |
| CR-09 | 2400 | 2400 | 50×50 | 3.00 | 30×30 | 2.00 | 17 | 108 | 100×100 | 2.50 | 3000 |
| CR-10 | 2400 | 2450 | 45×45 | 2.50 | 16×16 | 1.00 | 17 | 108 | 80×80 | 2.50 | 3000 |
Table 4. Open-View (115mm) Economy + Visibility Builds
| Spec | Fence Height (mm) | Fence Width (mm) | Rail Frame (mm) | Rails Thickness (mm) | Upright (mm) | Upright Thickness (mm) | Upright No. (pcs) | Upright Spacing (mm) | Post Option (mm) | Post Wall (mm) | Post Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| OV-01 | 1200 | 2400 | 40×40 | 1.60 | 16×16 | 0.80 | 16 | 115 | 60×60 | 1.60 | 1800 |
| OV-02 | 1200 | 2450 | 45×45 | 2.00 | 16×16 | 1.00 | 16 | 115 | 65×65 | 2.00 | 1800 |
| OV-03 | 1500 | 2400 | 40×40 | 2.00 | 25×25 | 1.00 | 16 | 115 | 65×65 | 2.00 | 2100 |
| OV-04 | 1500 | 2450 | 45×45 | 2.00 | 16×16 | 1.00 | 16 | 115 | 75×75 | 2.00 | 2100 |
| OV-05 | 1800 | 2400 | 45×45 | 2.00 | 25×25 | 1.20 | 16 | 115 | 75×75 | 2.00 | 2400 |
| OV-06 | 1800 | 2450 | 45×45 | 2.50 | 25×25 | 1.20 | 16 | 115 | 80×80 | 2.50 | 2400 |
| OV-07 | 2100 | 2400 | 50×50 | 2.50 | 30×30 | 2.00 | 16 | 115 | 80×80 | 2.50 | 2700 |
| OV-08 | 2100 | 2450 | 45×45 | 2.50 | 25×25 | 1.20 | 16 | 115 | 100×100 | 2.50 | 2700 |
| OV-09 | 2400 | 2400 | 50×50 | 3.00 | 30×30 | 2.00 | 16 | 115 | 100×100 | 2.50 | 3000 |
| OV-10 | 2400 | 2450 | 50×50 | 3.00 | 25×25 | 1.20 | 16 | 115 | 100×100 | 2.50 | 3000 |
Table 5. Heavy-Duty Post Emphasis (Wind Corridors / High Traffic)
| Spec | Fence Height (mm) | Fence Width (mm) | Rail Frame (mm) | Rails Thickness (mm) | Upright (mm) | Upright Thickness (mm) | Upright No. (pcs) | Upright Spacing (mm) | Post Option (mm) | Post Wall (mm) | Post Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HD-01 | 1200 | 2400 | 45×45 | 2.50 | 25×25 | 1.20 | 18 | 100 | 75×75 | 2.50 | 1800 |
| HD-02 | 1200 | 2450 | 50×50 | 3.00 | 30×30 | 2.00 | 17 | 108 | 80×80 | 2.50 | 1800 |
| HD-03 | 1500 | 2400 | 50×50 | 3.00 | 30×30 | 2.00 | 18 | 100 | 80×80 | 2.50 | 2100 |
| HD-04 | 1500 | 2450 | 45×45 | 2.50 | 25×25 | 1.20 | 17 | 108 | 100×100 | 2.50 | 2100 |
| HD-05 | 1800 | 2400 | 50×50 | 3.00 | 30×30 | 2.00 | 18 | 100 | 100×100 | 2.50 | 2400 |
| HD-06 | 1800 | 2450 | 50×50 | 3.00 | 25×25 | 1.20 | 17 | 108 | 100×100 | 2.50 | 2400 |
| HD-07 | 2100 | 2400 | 50×50 | 3.00 | 30×30 | 2.00 | 18 | 100 | 100×100 | 2.50 | 2700 |
| HD-08 | 2100 | 2450 | 50×50 | 3.00 | 30×30 | 2.00 | 16 | 115 | 100×100 | 2.50 | 2700 |
| HD-09 | 2400 | 2400 | 50×50 | 3.00 | 30×30 | 2.00 | 18 | 100 | 100×100 | 2.50 | 3000 |
| HD-10 | 2400 | 2450 | 50×50 | 3.00 | 30×30 | 2.00 | 17 | 108 | 100×100 | 2.50 | 3000 |
Applications: Garrison Fencing Perth WA

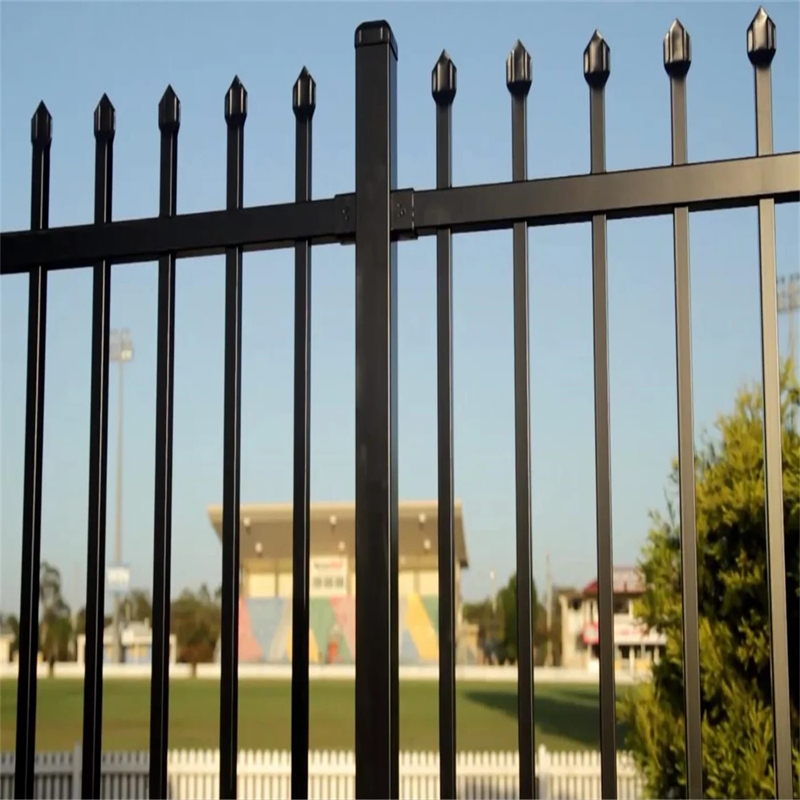

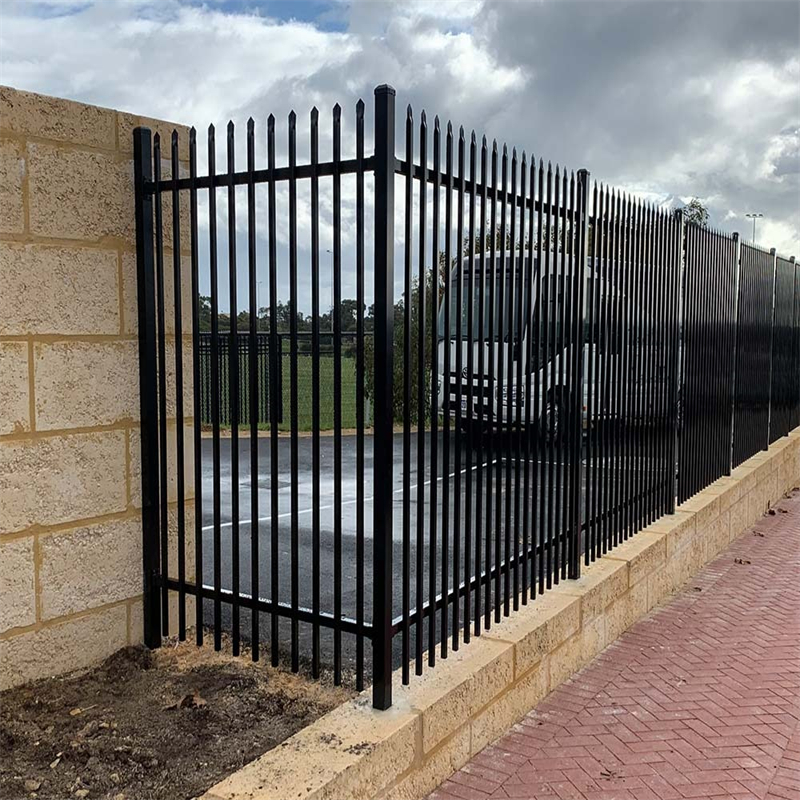

POLYMETAL garrison fencing Perth WA is commonly used for commercial frontage boundaries, schools, industrial estates, factories, parks, sports facilities, municipal fencing, walkways, public-space separation, warehouses, and residential estates where the boundary must look premium, remain straight, and resist everyday abuse.
Benefits: Why POLYMETAL Garrison Panels Work
A properly specified garrison system delivers clean architectural rhythm, visible deterrence through upright geometry and top profiles, high visibility for CCTV and patrol, and lower wind resistance than solid walls. When rail thickness, upright spacing, post sizing, and post height discipline are correct, the fence line stays quieter with less rattle, less loosening, and fewer call-backs—protecting both appearance and long-term maintenance budgets. For Australian-style options and common configurations, see garrison fence panels Australian.
Packing Garrison fencing Perth WA

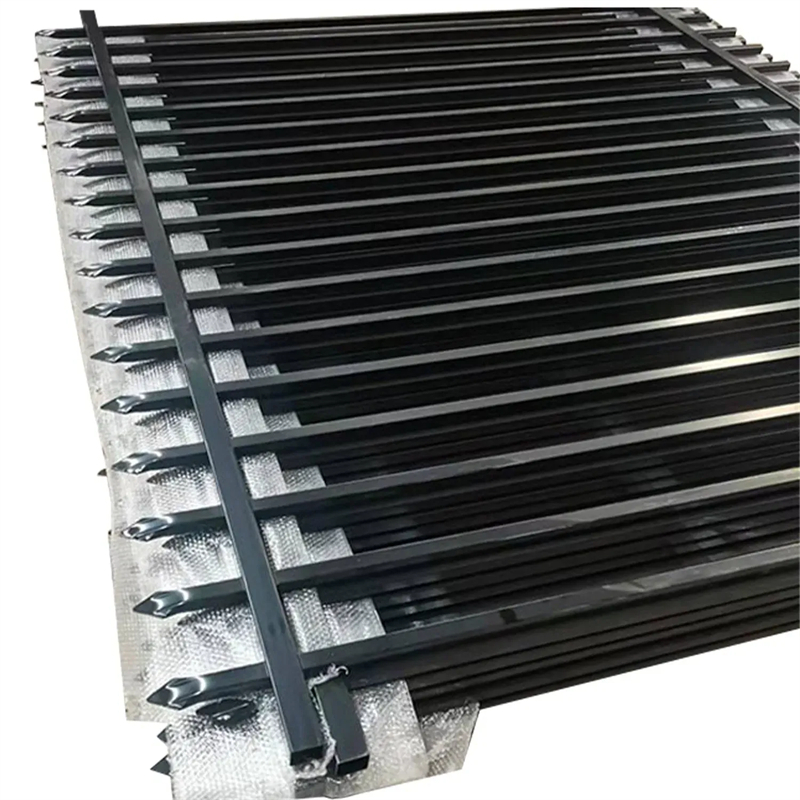

Panels are packed with separation layers to prevent rub marks, strapped into stable bundles, and palletized for forklift handling. Posts are bundled and wrapped to reduce scratching. Brackets and fasteners are bagged and boxed for fast counting so installation does not improvise missing hardware and create weak bays.
Standard and Quality Control

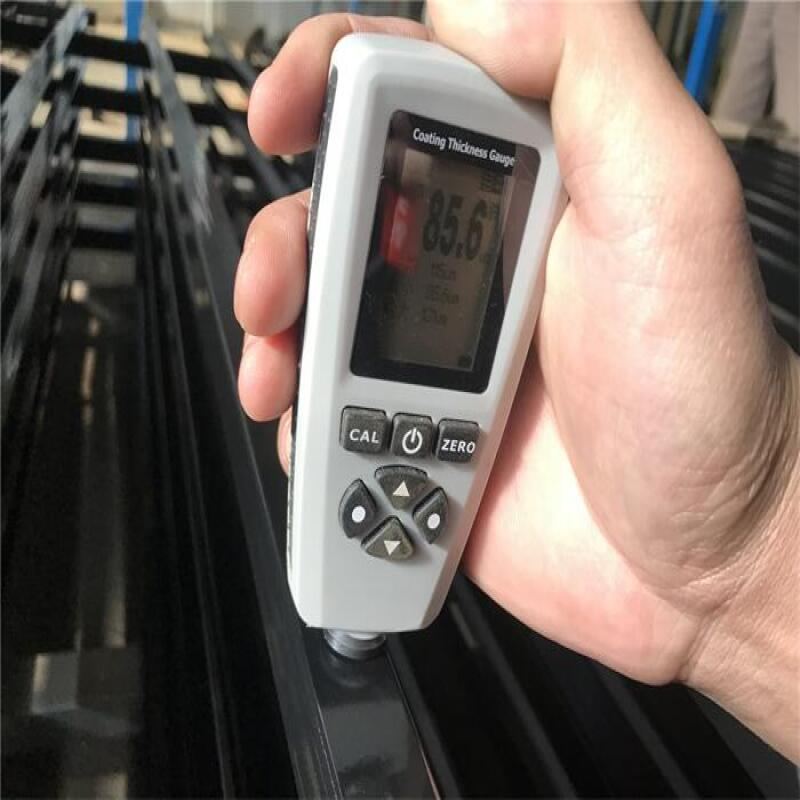

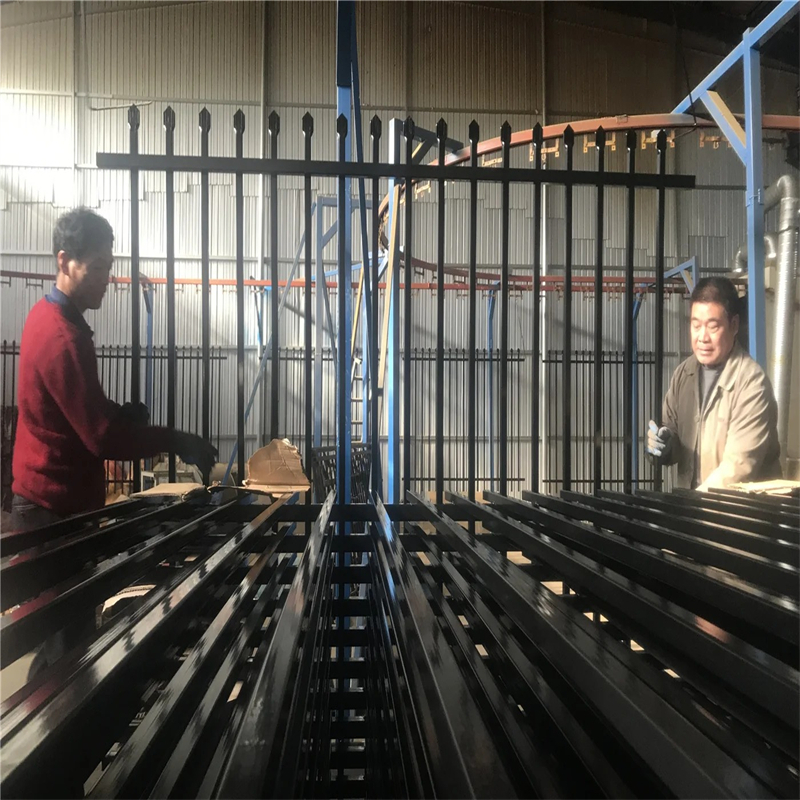

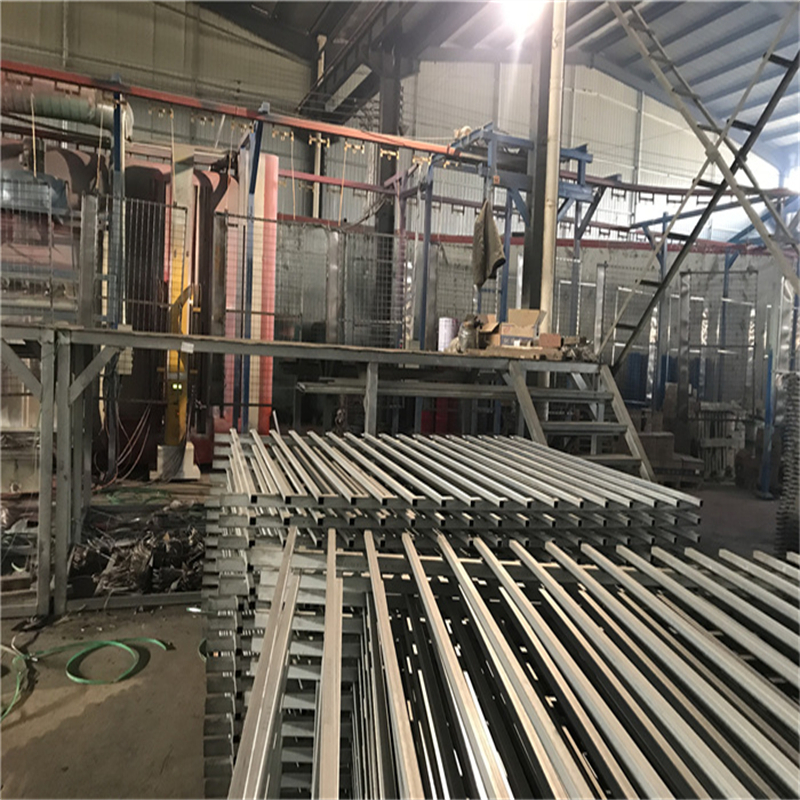

Production control focuses on tube wall thickness consistency, punch-through alignment accuracy, weld stability, panel straightness, coating adhesion, and finish uniformity. Inspection includes dimensional checks, weld review, surface finish checks, packing verification, and accessory counting so the delivered garrison fencing Perth WA installation stays straight through wind cycles and site traffic.
FAQs
What do buyers mean by “garrison fencing Perth WA”?
Most mean a pressed-spear or square-tubular garrison panel style that looks uniform, installs cleanly, and maintains a professional boundary line under Perth wind and daily impacts.
What is the fastest way to create visible failure?
Movement at the post line. Once movement starts, vibration turns it into leverage, and leverage turns it into gaps and ongoing repairs.
Why is post height so important?
Because posts control the fence line. Keeping post height at least 600mm above panel height is a major stability lever—Trap #14 is the common “it looked fine at handover” mistake.
Which spec choices matter most for straightness?
Rail thickness, upright count/spacing, post section size, post wall thickness, and correct post height—because the post line determines whether a fence stays tight or starts moving.
