Buying Hercules Security Fence Melbourne systems is not just picking a tough-looking boundary. On real Melbourne sites, the fence is judged by one thing: whether it stays straight, tight, and intimidating after months of wind shifts, traffic vibration, gate cycles, and daily contact.
The hidden risk is assuming every Hercules-style tubular panel behaves the same once installed. It does not. One weak rail frame, a thin upright, a spacing mismatch, or under-sized posts can trigger wave-lines, rattles, powder-coat rub-through, leaning bays, and gates that drag—then you pay twice to fix what should have been locked in the purchase order.
POLYMETAL manufactures Hercules security fencing as repeatable modules so panel geometry, rail/upright matching, and post stability remain consistent from the first bay to the last.
Top 10 High-Risk Traps for Hercules Security Fence Melbourne Orders
Each item below looks minor on paper—but becomes a site problem after posts are already set. Pay special attention to #7, because that is where many buyers suffer the biggest loss.
Danger #1: Rail frame too light for the height and run length

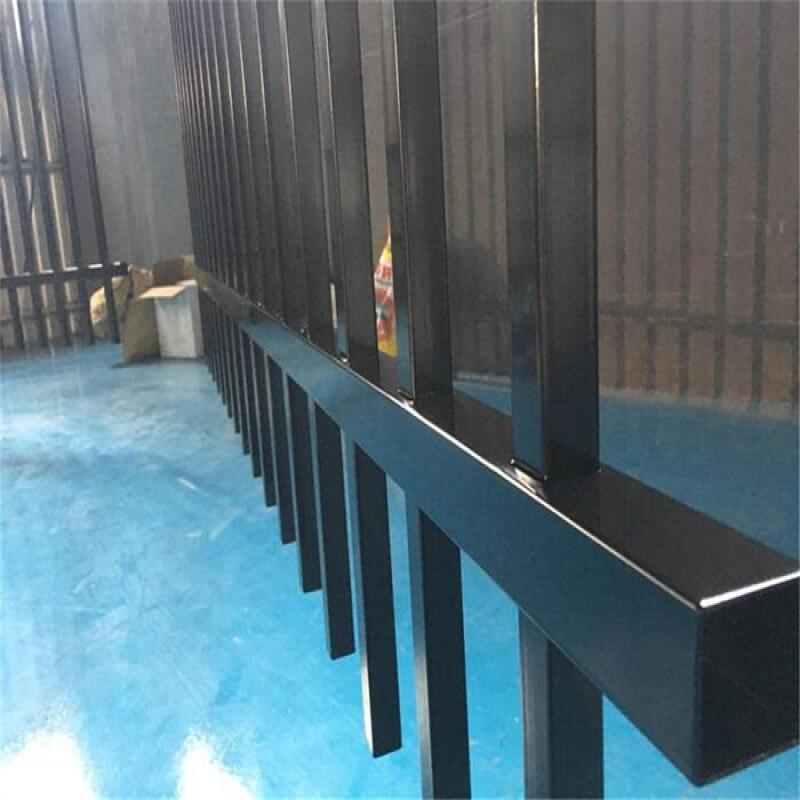

Rails control straightness. If the rail frame is under-specified, the fence line develops visible wave-lines once brackets tighten and the run heats/cools. Lock the rail frame early: 40×40, 45×45, or 50×50, and match it to exposure and height.
Trap #2: Rail thickness chosen to “save steel” instead of controlling stiffness
Hercules Security Fence Melbourne Thickness is stiffness. If the rail wall is too light, the fence flexes, fasteners loosen faster, and alignment becomes a constant adjustment. Typical rail thickness options include 1.60mm, 2.00mm, 2.50mm, and 3.00mm.
Oversight #3: Panel width varies across the same run
Most modular bays are built around 2400mm width (with 2450mm used for specific site modules). When widths vary without a layout plan, installers “force” alignment, stressing brackets and creating crooked lines that never look premium.
Warning #4: Upright size selected for appearance, not deterrence
Upright size drives stiffness and security feel. Common options include 16×16, 25×25, and 30×30. Under-sized uprights can look neat on day one, then feel soft and bend-prone after minor impacts.
Fault #5: Upright thickness treated like a cosmetic detail
Hercules Security Fence Melbourne Upright thickness is performance. Typical options include 0.80mm, 1.00mm, 1.20mm, and up to 2.00mm. Thin uprights bend first, and once the top line is bent, the whole boundary looks “repaired.”
Risk #6: Spacing requested, but upright count doesn’t match
Spacing must match upright count in the panel design. Typical builds are 16 pcs (~115mm), 17 pcs (~108mm), or 18 pcs (~100mm). If you demand a 100mm security feel but order a layout that doesn’t support it, you get fabrication surprises or delivered panels that fail expectations.
Loss #7: Post height not engineered to panel height (the biggest money mistake)
This is the most common hidden failure point. If posts are too short, embedment and stability collapse, bays lean, brackets loosen, and the fence becomes a maintenance machine. Use this rule:
Fence post height must be panel height + 600mm.
If this is wrong, you pay twice—once for the fence, and again for post replacement, re-drilling, re-concreting, and downtime.
Pitfall #8: Post size selected, but wall thickness ignored
Post options commonly include 60×60, 65×65, 75×75, 80×80, and 100×100. Size alone is not enough—wall thickness matters:
1.6mm, 2.0mm, 2.5mm.
If wall thickness is too light, posts twist under bracket load and the fence “leans” even when panels are correct.

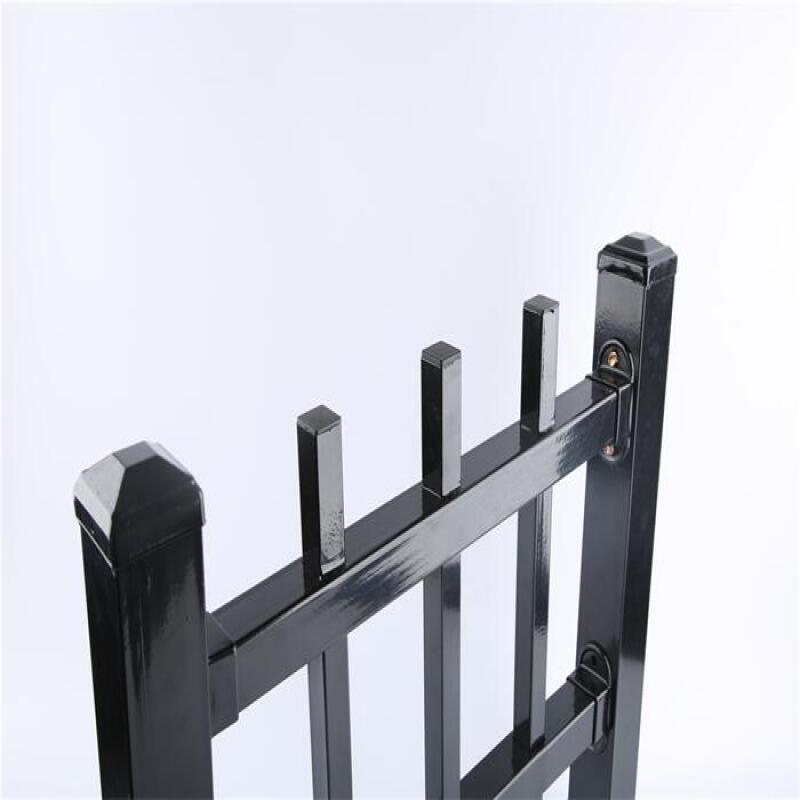

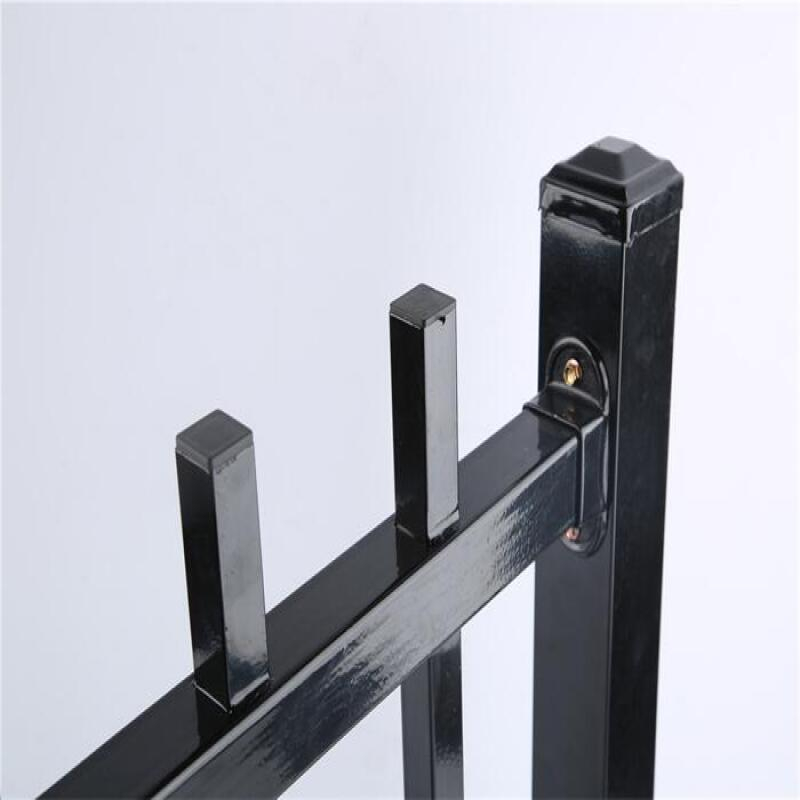

Problem #9: Brackets and fasteners not treated as a system
Panels, posts, brackets, and fasteners must be designed together. Weak brackets or mismatched fasteners trigger over-tightening, stripped threads, bracket distortion, and movement that looks like “panel failure” but is actually fixing failure.
Lesson #10: Ordering panels without a receiving-ready kit plan
Site loss often comes from logistics: mixed bundles, missing caps, wrong bracket counts, or unlabeled post heights. A clean install needs labeled bundles by height/width/rail group/spacing group, with matching post sets so installers cannot swap components and create alignment damage.

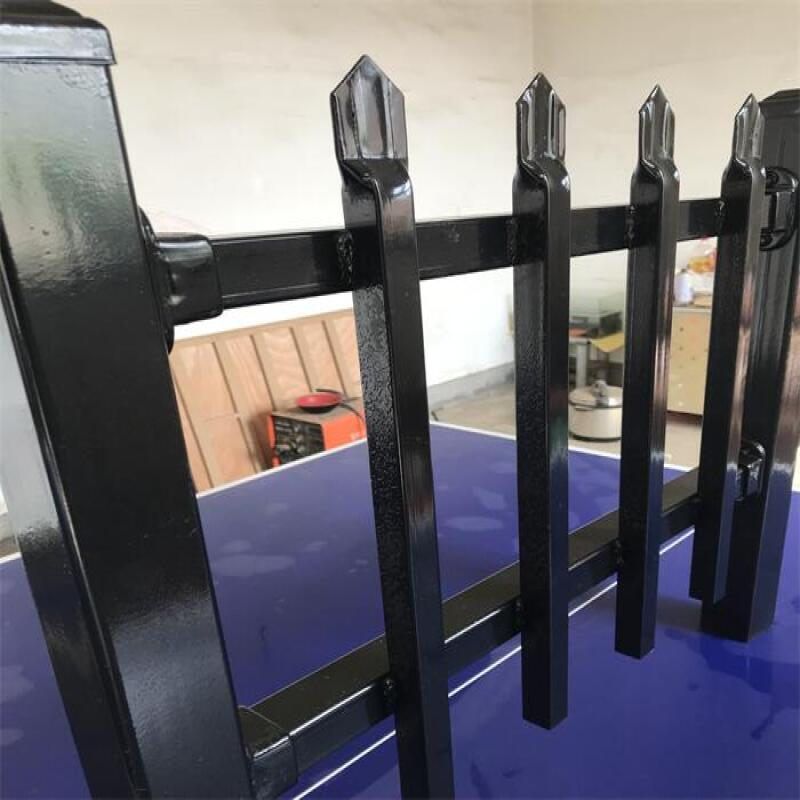

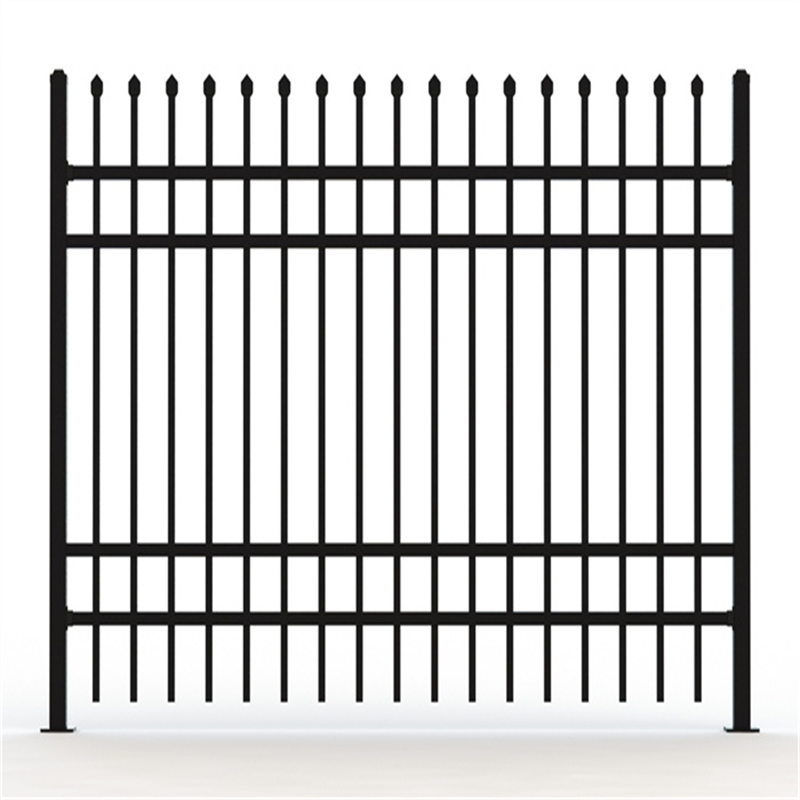

Product Description: POLYMETAL Hercules Security Fence System
POLYMETAL supplies Hercules security fencing as a modular tubular steel picket system designed to deliver a strong security presence and a clean architectural line at the same time.
Panels are manufactured from low carbon steel (commonly Q195/Q235) with rail frames selected for stiffness and straightness across long runs.
Uprights can be configured in multiple sizes and thicknesses to match the site’s impact risk and the required deterrence level.
For corrosion resistance and colour stability, systems can be supplied as galvanised steel, or galvanised then powder coated to protect the finish under daily contact and weather exposure.
A complete package can include panels, matched posts, brackets, fasteners, and caps so the perimeter installs as one consistent system instead of mixed components from multiple sources.
Specifications Hercules Security Fence Melbourne
| Spec Item | Options | Melbourne Site Notes |
| Fence Height (Panel) | 1200 / 1500 / 1800 / 2100 / 2400 mm | Taller panels need stronger rails and heavier posts. |
| Fence Width (Panel) | 2400 mm (common) / 2450 mm (option) | Keep one width per run to prevent forced alignment. |
| Rail Frame | 40×40 / 45×45 / 50×50 mm | Choose larger frames for long, highly visible frontages. |
| Rail Thickness | 1.60 / 2.00 / 2.50 / 3.00 mm | Thickness controls stiffness and reduces wave-lines. |
| Upright Size | 16×16 / 25×25 / 30×30 mm | Public-facing sites often select heavier uprights for “security feel.” |
| Upright Thickness | 0.80 / 1.00 / 1.20 / 2.00 mm | Match thickness to impact risk and panel height. |
| Upright Count / Spacing | 16 pcs (~115mm) / 17 pcs (~108mm) / 18 pcs (~100mm) | Do not request spacing without matching upright count. |
| Post Options | 60×60 / 65×65 / 75×75 / 80×80 / 100×100 mm | Select post size based on height + exposure + gate loading. |
| Post Wall Thickness | 1.6 / 2.0 / 2.5 mm | Under-thickness posts twist and create visible lean. |
| Post Height Rule | Post height = panel height + 600 mm | This is the #7 loss point—lock it before production. |
| Finish Options | Galvanised / Galvanised + Powder Coated | Powder coat over galvanising improves durability at contact points. |

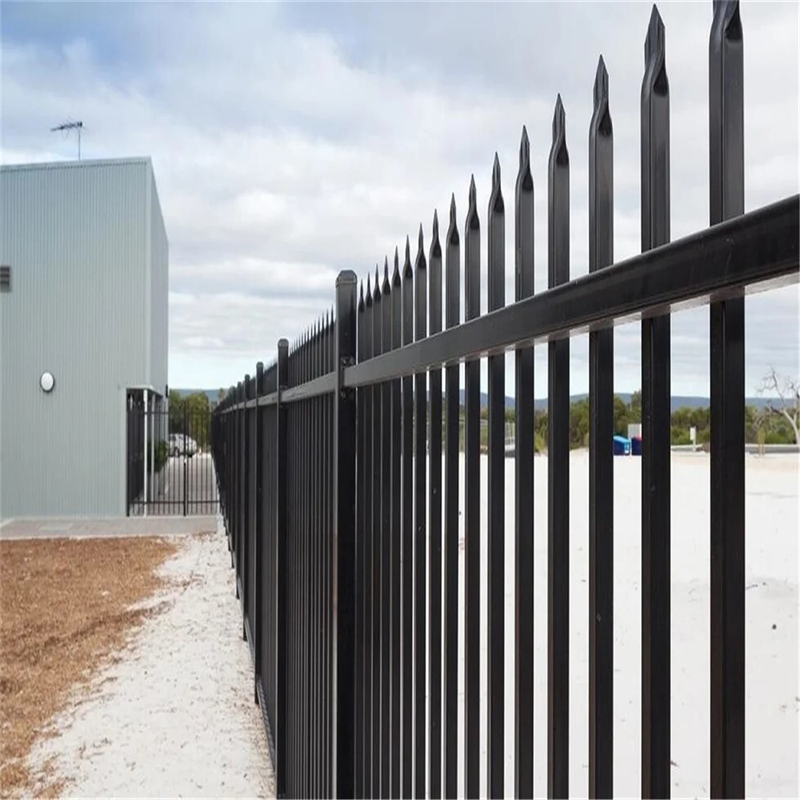

Applications

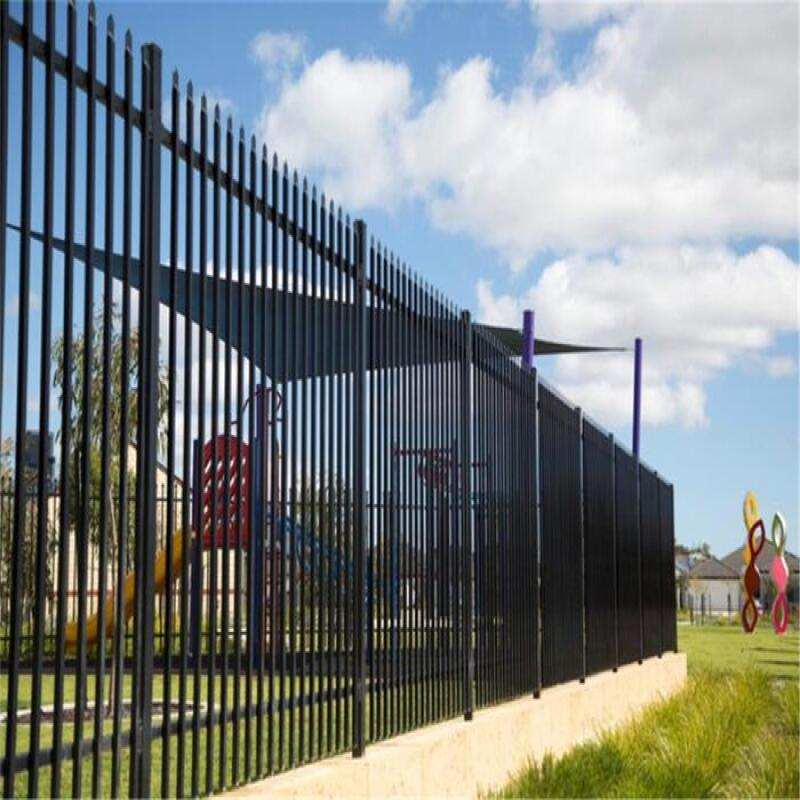

Hercules Security Fence Melbourne installations are common for schools, warehouses, logistics depots, storage yards, factories, commercial frontage, public buildings, parks, road corridors, utilities, pool boundaries, residential communities, and industrial properties where repeatable panels, strong posts, and reliable bracket systems reduce long-term maintenance and keep the boundary looking controlled.
Benefits Hercules Security Fence Melbourne
A properly specified Hercules security fence delivers a clear security message while maintaining straight sight lines and consistent spacing. Modular panels speed installation, reduce on-site cutting, and simplify future repairs because damaged bays can be replaced without rebuilding entire runs.
When rail frame, upright thickness, bracket strength, and post selection are matched correctly, the fence feels solid, resists loosening under vibration, and protects its finish longer at contact points.

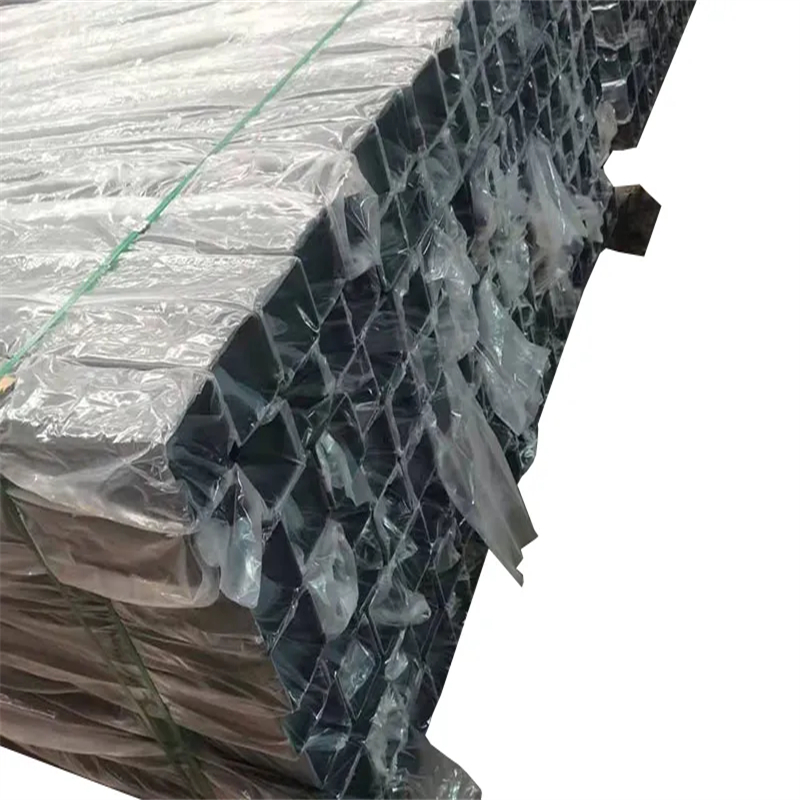

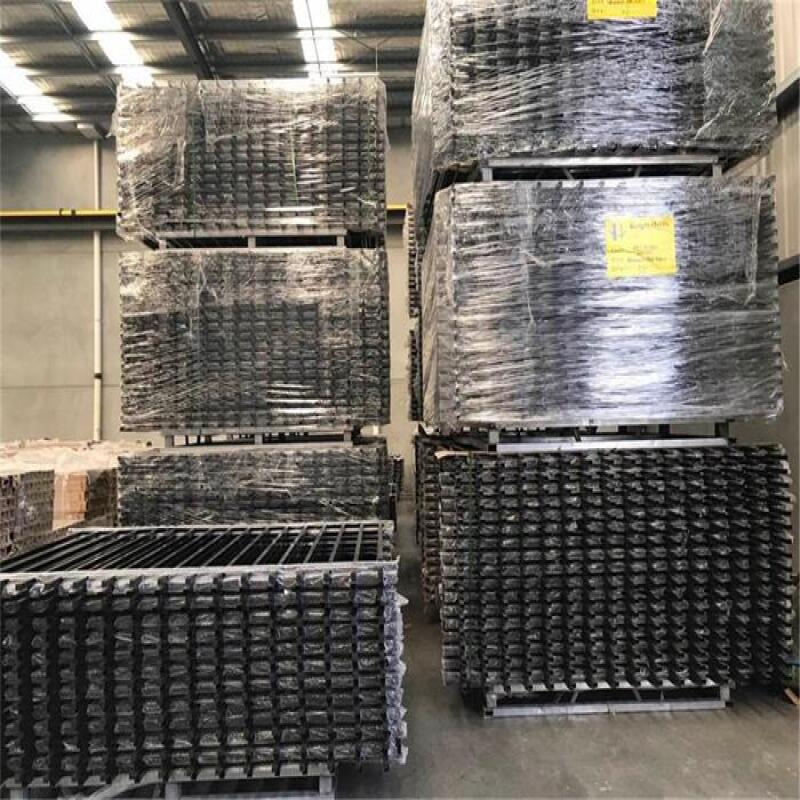

Packing Hercules Security Fence Melbourne

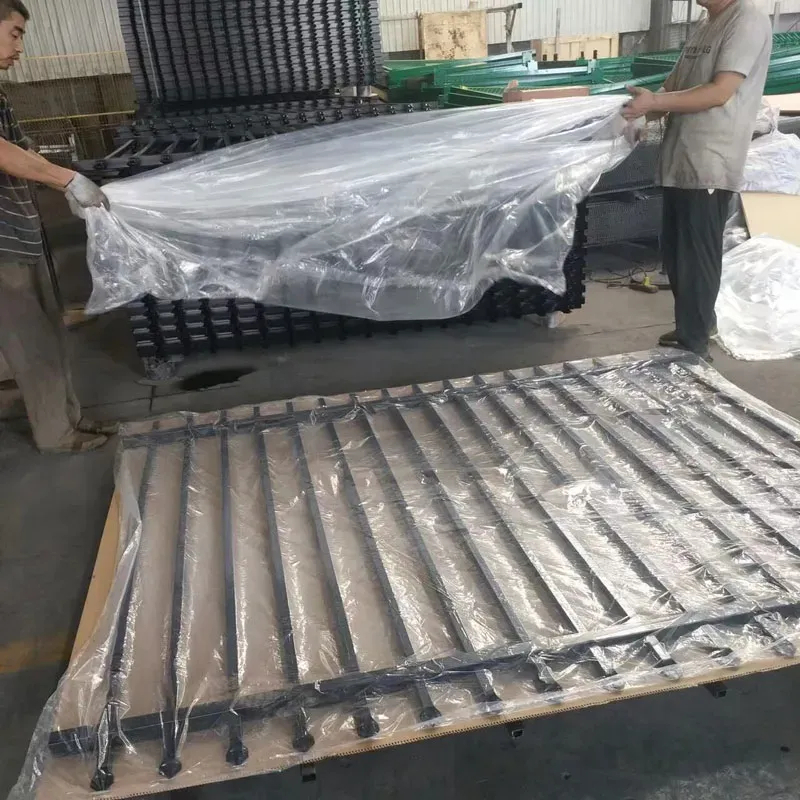

POLYMETAL typically packs Hercules security fencing panels in counted bundles with separation protection to reduce rub-through during transport. Bundles are wrapped and palletized for forklift handling with corner protection to reduce impact damage. Posts are bundled separately by size and wall thickness to prevent mix-ups and bending risk. Brackets, fasteners, and caps are packed as counted sets so site teams can verify quantities quickly and avoid missing-component delays.
Standards and FAQs
Standards Hercules Security Fence Melbourne
Because compliance depends on project scope, the safest approach is to define coating expectations, corrosion protection requirements, colour targets, and installation method directly in the purchase specification. For longer service life, a galvanised then powder coated system is commonly selected to reduce corrosion risk and improve finish stability under UV exposure and daily contact.
FAQs Hercules Security Fence Melbourne
Q: What’s the fastest way to avoid rework on Hercules Security Fence Melbourne projects?
A: Lock the system as a package: panel height/width, rail frame + thickness, upright count to match spacing, and posts sized by wall thickness and height.
Q: What is the most common hidden cost mistake?
A: Post height. Use post height = panel height + 600mm. Short posts cause lean, movement, and rework.
Q: Should I always choose 100mm spacing?
A: If you want a true 100mm security feel, select a layout that supports it, commonly 18 uprights (~100mm).
Q: Which rail frame is most common?
A: 40×40 is common for lighter heights; 45×45 and 50×50 are preferred as height and exposure increase.
Final Buying Reminder
If you want Hercules Security Fence Melbourne installs to stay straight, tight, and intimidating, do not buy “a panel.” Buy a matched POLYMETAL system: lock height and width, specify rail frame and thickness, confirm upright size and count, and engineer posts by size, wall thickness, and especially post height (panel height + 600mm). That is how you avoid delays, rework, and the loss that hits when schedules are already locked.
Hercules Security Fence Melbourne: When “Looks Strong” Still Turns Into Rework
Buying Hercules Security Fence Melbourne systems is not just picking a tough-looking boundary. On real Melbourne sites, the fence is judged by one thing: whether it stays straight, tight, and intimidating after months of wind shifts, traffic vibration, gate cycles, and daily contact.
The hidden risk is assuming every Hercules-style tubular panel behaves the same once installed. It does not. One weak rail frame, a thin upright, a spacing mismatch, or under-sized posts can trigger wave-lines, rattles, powder-coat rub-through, leaning bays, and gates that drag—then you pay twice to fix what should have been locked in the purchase order.
POLYMETAL manufactures Hercules security fencing as repeatable modules so panel geometry, rail/upright matching, and post stability remain consistent from the first bay to the last.
Top 10 High-Risk Traps for Hercules Security Fence Melbourne Orders
Each item below looks minor on paper—but becomes a site problem after posts are already set. Pay special attention to #7, because that is where many buyers suffer the biggest loss.
Danger #1: Rail frame too light for the height and run length
Rails control straightness. If the rail frame is under-specified, the fence line develops visible wave-lines once brackets tighten and the run heats/cools. Lock the rail frame early: 40×40, 45×45, or 50×50, and match it to exposure and height.
Trap #2: Rail thickness chosen to “save steel” instead of controlling stiffness
Thickness is stiffness. If the rail wall is too light, the fence flexes, fasteners loosen faster, and alignment becomes a constant adjustment. Typical rail thickness options include 1.60mm, 2.00mm, 2.50mm, and 3.00mm.
Oversight #3: Panel width varies across the same run
Most modular bays are built around 2400mm width (with 2450mm used for specific site modules). When widths vary without a layout plan, installers “force” alignment, stressing brackets and creating crooked lines that never look premium.
Warning #4: Upright size selected for appearance, not deterrence
Upright size drives stiffness and security feel. Common options include 16×16, 25×25, and 30×30. Under-sized uprights can look neat on day one, then feel soft and bend-prone after minor impacts.
Fault #5: Upright thickness treated like a cosmetic detail
Upright thickness is performance. Typical options include 0.80mm, 1.00mm, 1.20mm, and up to 2.00mm. Thin uprights bend first, and once the top line is bent, the whole boundary looks “repaired.”
Risk #6: Spacing requested, but upright count doesn’t match
Spacing must match upright count in the panel design. Typical builds are 16 pcs (~115mm), 17 pcs (~108mm), or 18 pcs (~100mm). If you demand a 100mm security feel but order a layout that doesn’t support it, you get fabrication surprises or delivered panels that fail expectations.
Loss #7: Post height not engineered to panel height (the biggest money mistake)
This is the most common hidden failure point. If posts are too short, embedment and stability collapse, bays lean, brackets loosen, and the fence becomes a maintenance machine. Use this rule:
Fence post height must be panel height + 600mm.
If this is wrong, you pay twice—once for the fence, and again for post replacement, re-drilling, re-concreting, and downtime.
Pitfall #8: Post size selected, but wall thickness ignored
Post options commonly include 60×60, 65×65, 75×75, 80×80, and 100×100. Size alone is not enough—wall thickness matters:
1.6mm, 2.0mm, 2.5mm.
If wall thickness is too light, posts twist under bracket load and the fence “leans” even when panels are correct.
Problem #9: Brackets and fasteners not treated as a system
Panels, posts, brackets, and fasteners must be designed together. Weak brackets or mismatched fasteners trigger over-tightening, stripped threads, bracket distortion, and movement that looks like “panel failure” but is actually fixing failure.
Lesson #10: Ordering panels without a receiving-ready kit plan
Site loss often comes from logistics: mixed bundles, missing caps, wrong bracket counts, or unlabeled post heights. A clean install needs labeled bundles by height/width/rail group/spacing group, with matching post sets so installers cannot swap components and create alignment damage.
Product Description: POLYMETAL Hercules Security Fence System
POLYMETAL supplies Hercules security fencing as a modular tubular steel picket system designed to deliver a strong security presence and a clean architectural line at the same time. Panels are manufactured from low carbon steel (commonly Q195/Q235) with rail frames selected for stiffness and straightness across long runs.
Uprights can be configured in multiple sizes and thicknesses to match the site’s impact risk and the required deterrence level. For corrosion resistance and colour stability, systems can be supplied as galvanised steel, or galvanised then powder coated to protect the finish under daily contact and weather exposure.
A complete package can include panels, matched posts, brackets, fasteners, and caps so the perimeter installs as one consistent system instead of mixed components from multiple sources.
Specifications (Table)
| Spec Item | Options | Melbourne Site Notes |
| Fence Height (Panel) | 1200 / 1500 / 1800 / 2100 / 2400 mm | Taller panels need stronger rails and heavier posts. |
| Fence Width (Panel) | 2400 mm (common) / 2450 mm (option) | Keep one width per run to prevent forced alignment. |
| Rail Frame | 40×40 / 45×45 / 50×50 mm | Choose larger frames for long, highly visible frontages. |
| Rail Thickness | 1.60 / 2.00 / 2.50 / 3.00 mm | Thickness controls stiffness and reduces wave-lines. |
| Upright Size | 16×16 / 25×25 / 30×30 mm | Public-facing sites often select heavier uprights for “security feel.” |
| Upright Thickness | 0.80 / 1.00 / 1.20 / 2.00 mm | Match thickness to impact risk and panel height. |
| Upright Count / Spacing | 16 pcs (~115mm) / 17 pcs (~108mm) / 18 pcs (~100mm) | Do not request spacing without matching upright count. |
| Post Options | 60×60 / 65×65 / 75×75 / 80×80 / 100×100 mm | Select post size based on height + exposure + gate loading. |
| Post Wall Thickness | 1.6 / 2.0 / 2.5 mm | Under-thickness posts twist and create visible lean. |
| Post Height Rule | Post height = panel height + 600 mm | This is the #7 loss point—lock it before production. |
| Finish Options | Galvanised / Galvanised + Powder Coated | Powder coat over galvanising improves durability at contact points. |
Table 1: Standard Hercules Security Fencing (Balanced Spec)
| Fence Height | Fence Width | Rail Frame | Rail Thk | Upright | Upright Thk | Upright No. | Spacing | Post Option | Post Wall | Post Height |
| 1200mm | 2400mm | 40×40 | 1.60 | 16×16 | 1.00 | 18 | ~100mm | 60×60 | 1.6 | 1800mm |
| 1200mm | 2450mm | 40×40 | 2.00 | 25×25 | 1.00 | 17 | ~108mm | 65×65 | 1.6 | 1800mm |
| 1500mm | 2400mm | 45×45 | 2.00 | 25×25 | 1.00 | 18 | ~100mm | 65×65 | 2.0 | 2100mm |
| 1500mm | 2450mm | 45×45 | 2.00 | 25×25 | 1.20 | 17 | ~108mm | 75×75 | 2.0 | 2100mm |
| 1800mm | 2400mm | 45×45 | 2.50 | 25×25 | 1.20 | 18 | ~100mm | 75×75 | 2.0 | 2400mm |
| 1800mm | 2450mm | 50×50 | 2.00 | 30×30 | 1.00 | 17 | ~108mm | 80×80 | 2.0 | 2400mm |
| 2100mm | 2400mm | 50×50 | 2.50 | 30×30 | 1.20 | 18 | ~100mm | 80×80 | 2.5 | 2700mm |
| 2100mm | 2450mm | 50×50 | 2.50 | 30×30 | 1.20 | 17 | ~108mm | 100×100 | 2.0 | 2700mm |
| 2400mm | 2400mm | 50×50 | 3.00 | 30×30 | 1.20 | 18 | ~100mm | 100×100 | 2.5 | 3000mm |
| 2400mm | 2450mm | 50×50 | 3.00 | 30×30 | 2.00 | 17 | ~108mm | 100×100 | 2.5 | 3000mm |
Table 2: Heavy-Duty Hercules Security Fencing (High Wind / High Abuse)
| Fence Height | Fence Width | Rail Frame | Rail Thk | Upright | Upright Thk | Upright No. | Spacing | Post Option | Post Wall | Post Height |
| 1200mm | 2400mm | 45×45 | 2.50 | 25×25 | 1.20 | 18 | ~100mm | 65×65 | 2.0 | 1800mm |
| 1200mm | 2450mm | 45×45 | 2.50 | 30×30 | 1.20 | 17 | ~108mm | 75×75 | 2.0 | 1800mm |
| 1500mm | 2400mm | 50×50 | 2.50 | 30×30 | 1.20 | 18 | ~100mm | 75×75 | 2.5 | 2100mm |
| 1500mm | 2450mm | 50×50 | 3.00 | 30×30 | 1.20 | 17 | ~108mm | 80×80 | 2.5 | 2100mm |
| 1800mm | 2400mm | 50×50 | 3.00 | 30×30 | 1.20 | 18 | ~100mm | 80×80 | 2.5 | 2400mm |
| 1800mm | 2450mm | 50×50 | 3.00 | 30×30 | 2.00 | 17 | ~108mm | 100×100 | 2.5 | 2400mm |
| 2100mm | 2400mm | 50×50 | 3.00 | 30×30 | 2.00 | 18 | ~100mm | 100×100 | 2.5 | 2700mm |
| 2100mm | 2450mm | 50×50 | 3.00 | 30×30 | 2.00 | 17 | ~108mm | 100×100 | 2.5 | 2700mm |
| 2400mm | 2400mm | 50×50 | 3.00 | 30×30 | 2.00 | 18 | ~100mm | 100×100 | 2.5 | 3000mm |
| 2400mm | 2450mm | 50×50 | 3.00 | 30×30 | 2.00 | 17 | ~108mm | 100×100 | 2.5 | 3000mm |
Table 3: Value Hercules Security Fencing (Cost-Controlled but Buildable)
| Fence Height | Fence Width | Rail Frame | Rail Thk | Upright | Upright Thk | Upright No. | Spacing | Post Option | Post Wall | Post Height |
| 1200mm | 2400mm | 40×40 | 1.60 | 16×16 | 0.80 | 16 | ~115mm | 60×60 | 1.6 | 1800mm |
| 1200mm | 2450mm | 40×40 | 1.60 | 16×16 | 1.00 | 17 | ~108mm | 60×60 | 1.6 | 1800mm |
| 1500mm | 2400mm | 40×40 | 2.00 | 25×25 | 1.00 | 16 | ~115mm | 65×65 | 1.6 | 2100mm |
| 1500mm | 2450mm | 45×45 | 1.60 | 25×25 | 1.00 | 17 | ~108mm | 65×65 | 2.0 | 2100mm |
| 1800mm | 2400mm | 45×45 | 2.00 | 25×25 | 1.00 | 17 | ~108mm | 75×75 | 2.0 | 2400mm |
| 1800mm | 2450mm | 45×45 | 2.00 | 25×25 | 1.20 | 16 | ~115mm | 75×75 | 2.0 | 2400mm |
| 2100mm | 2400mm | 50×50 | 2.00 | 30×30 | 1.00 | 17 | ~108mm | 80×80 | 2.0 | 2700mm |
| 2100mm | 2450mm | 50×50 | 2.50 | 30×30 | 1.00 | 16 | ~115mm | 80×80 | 2.0 | 2700mm |
| 2400mm | 2400mm | 50×50 | 2.50 | 30×30 | 1.20 | 17 | ~108mm | 100×100 | 2.0 | 3000mm |
| 2400mm | 2450mm | 50×50 | 2.50 | 30×30 | 1.20 | 16 | ~115mm | 100×100 | 2.0 | 3000mm |

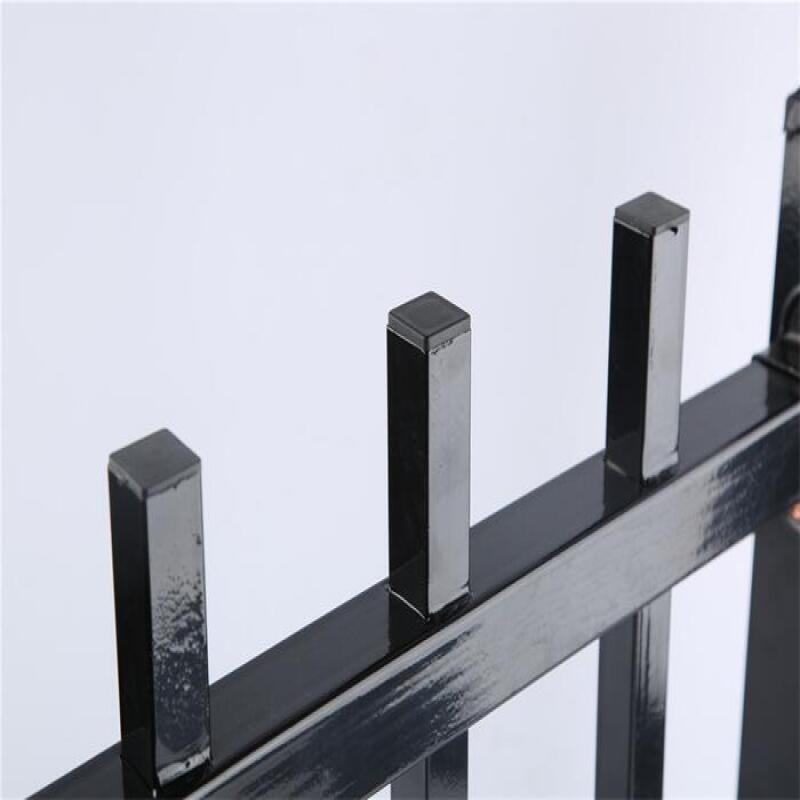

Pale head: Flat top .Horizontal rail as top. Pale welded face on rail.
Panel size | Pale:19×19,25×25 | Rails | Post | |||
Fence height(mm) | Fence width(mm) | Pale Thickness(mm) | Qty:Pale (pcs) | Cross Rails (mm) | Height (mm) | Square Post Section(mm) |
1800 | 2400 | 1.6 | 18 | 40×40×1.6/2.5 | 2700 | 65×65 ×3.0 |
2100 | 2400 | 1.6 | 18 | 40×40×1.6/2.5 | 3000 | 65×65 ×3.0 |
2400 | 2400 | 1.6 | 18 | 40×40×1.6/2.5 | 3300 | 65×65 ×3.0 |
2700 | 2100 | 1.6 | 15 | 40×40×1.6/2.5 | 3600 | 75×75 ×3.0 |
3000 | 2750 | 1.6 | 17 | 40×40×1.6/2.5 | 3900 | 75×75 ×3.0 |

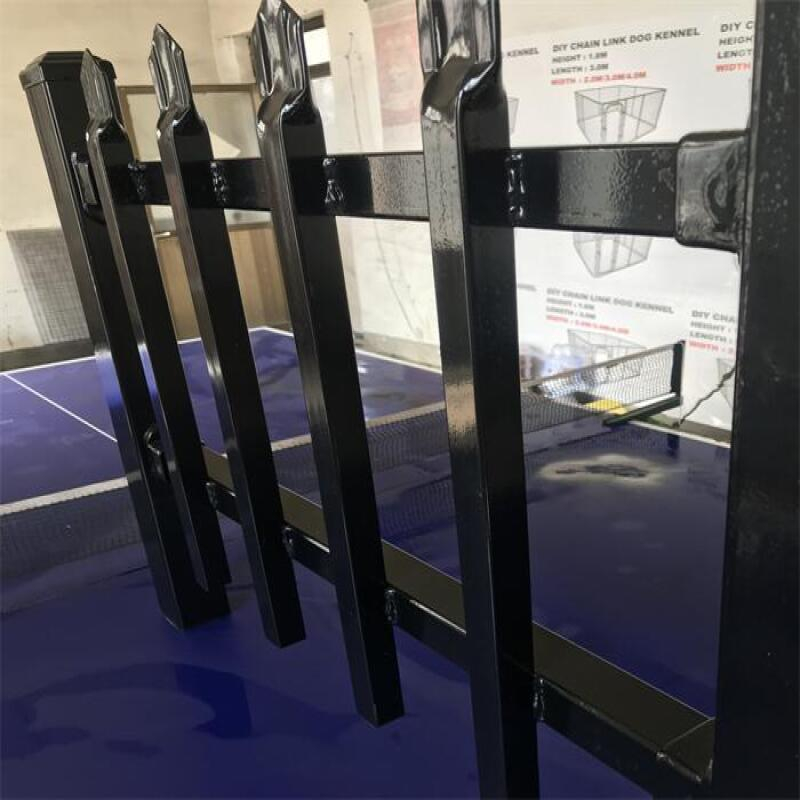

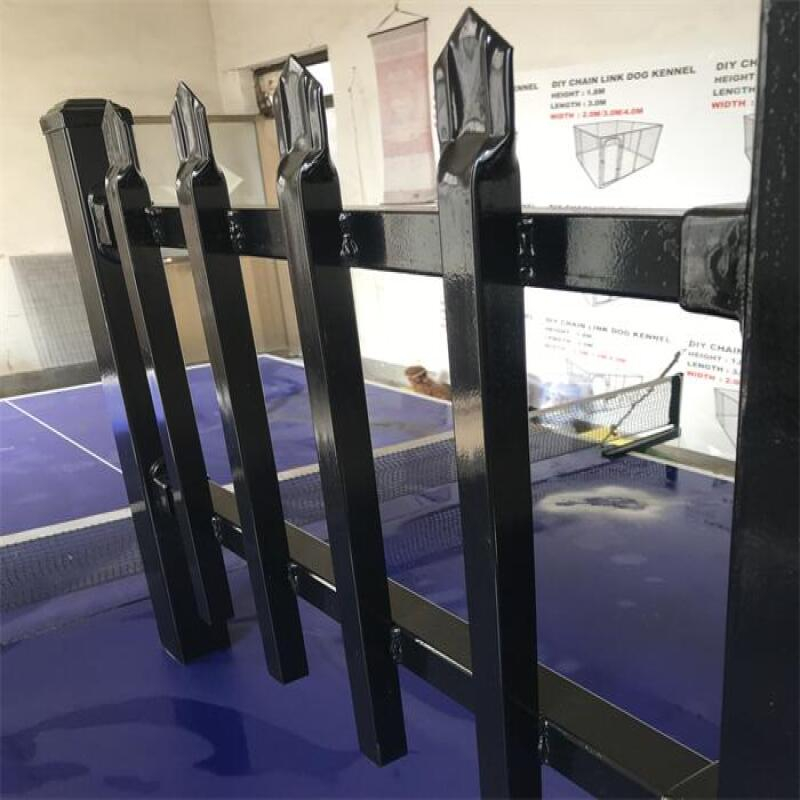

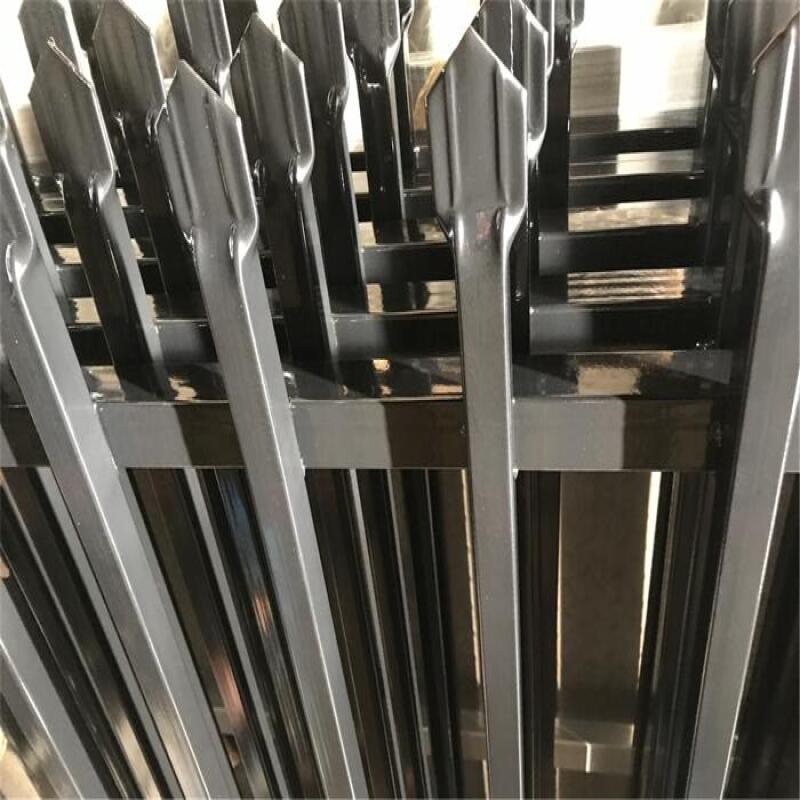

Pale punched through rail
Panel size | Pale: 25*25 | Rails | Post | |||
Fence height(mm) | Fence width(mm) | Pale Thickness(mm) | Qty:Pale (pcs) | Cross Rails (mm) | Height (mm) | Square Post Section(mm) |
1800 | 2400 | 1.2 | 18 | 40×40×1.6 | 2700 | 65×65 ×2.0 |
2100 | 2400 | 1.2 | 18 | 40×40×1.6 | 3000 | 65×65 ×2.0 |
2400 | 2400 | 1.2 | 18 | 40×40×1.6 | 3300 | 65×65 ×2.0 |
2700 | 2100 | 1.2 | 15 | 40×40×1.6 | 3600 | 65×65 ×2.0 |
Applications
Hercules Security Fence Melbourne installations are common for schools, warehouses, logistics depots, storage yards, factories, commercial frontage, public buildings, parks, road corridors, utilities, pool boundaries, residential communities, and industrial properties where repeatable panels, strong posts, and reliable bracket systems reduce long-term maintenance and keep the boundary looking controlled.
Benefits
A properly specified Hercules security fence delivers a clear security message while maintaining straight sight lines and consistent spacing. Modular panels speed installation, reduce on-site cutting, and simplify future repairs because damaged bays can be replaced without rebuilding entire runs. When rail frame, upright thickness, bracket strength, and post selection are matched correctly, the fence feels solid, resists loosening under vibration, and protects its finish longer at contact points—and for projects that also require a premium architectural safety infill, some buyers complement the perimeter with stainless steel rope mesh on balconies, atriums, or high-visibility guard zones.
Packing
POLYMETAL typically packs Hercules security fencing panels in counted bundles with separation protection to reduce rub-through during transport. Bundles are wrapped and palletized for forklift handling with corner protection to reduce impact damage. Posts are bundled separately by size and wall thickness to prevent mix-ups and bending risk. Brackets, fasteners, and caps are packed as counted sets so site teams can verify quantities quickly and avoid missing-component delays.
Standards and FAQs
Standards
Because compliance depends on project scope, the safest approach is to define coating expectations, corrosion protection requirements, colour targets, and installation method directly in the purchase specification. For longer service life, a galvanised then powder coated system is commonly selected to reduce corrosion risk and improve finish stability under UV exposure and daily contact.
FAQs
Q: What’s the fastest way to avoid rework on Hercules Security Fence Melbourne projects?
A: Lock the system as a package: panel height/width, rail frame + thickness, upright count to match spacing, and posts sized by wall thickness and height.
Q: What is the most common hidden cost mistake?
A: Post height. Use post height = panel height + 600mm. Short posts cause lean, movement, and rework.
Q: Should I always choose 100mm spacing?
A: If you want a true 100mm security feel, select a layout that supports it, commonly 18 uprights (~100mm).
Q: Which rail frame is most common?
A: 40×40 is common for lighter heights; 45×45 and 50×50 are preferred as height and exposure increase.
Final Buying Reminder
If you want Hercules Security Fence Melbourne installs to stay straight, tight, and intimidating, do not buy “a panel.” Buy a matched POLYMETAL system: lock height and width, specify rail frame and thickness, confirm upright size and count, and engineer posts by size, wall thickness, and especially post height (panel height + 600mm). That is how you avoid delays, rework, and the loss that hits when schedules are already locked.
