Most buyers initially treat Hercules security fencing as a simple metal product – a few rails, a row of spears, just another line in the security budget. Even when they study installed cost guides such as Garrison Fencing Prices, the focus often stays on dollars per metre instead of real risk per metre. In reality, the situation is far more dangerous. A poorly specified Hercules-style system can become a silent hazard that opens gaps, loopholes and weaknesses along your perimeter, turning “safety” into an expensive illusion. A single unnoticed defect or installation misstep is enough to trigger real risk, danger, damage, loss and long-term waste for both your site and your brand.

POLYMETAL Hercules security fencing systems are engineered to turn that threat into a powerful advantage, but only when the critical facts behind the design are understood. Once you treat each panel as a complete security system instead of a generic barrier, every dimension becomes vital data, every component becomes a strategic feature, and every small oversight becomes a clear warning signal instead of a nasty surprise.

This article is your fear-proof guide, profile and checklist in one. It exposes seven dangerous facts about Hercules security fencing design—seven distinct angles that reveal both the benefits and the hidden hazards in this style of fencing. The final crisis point is particularly brutal: ignore it and you invite a security, financial and legal disaster that can destroy profit, reputation and peace of mind long after the fence has been installed.

Product Overview of POLYMETAL Hercules Security Fencing

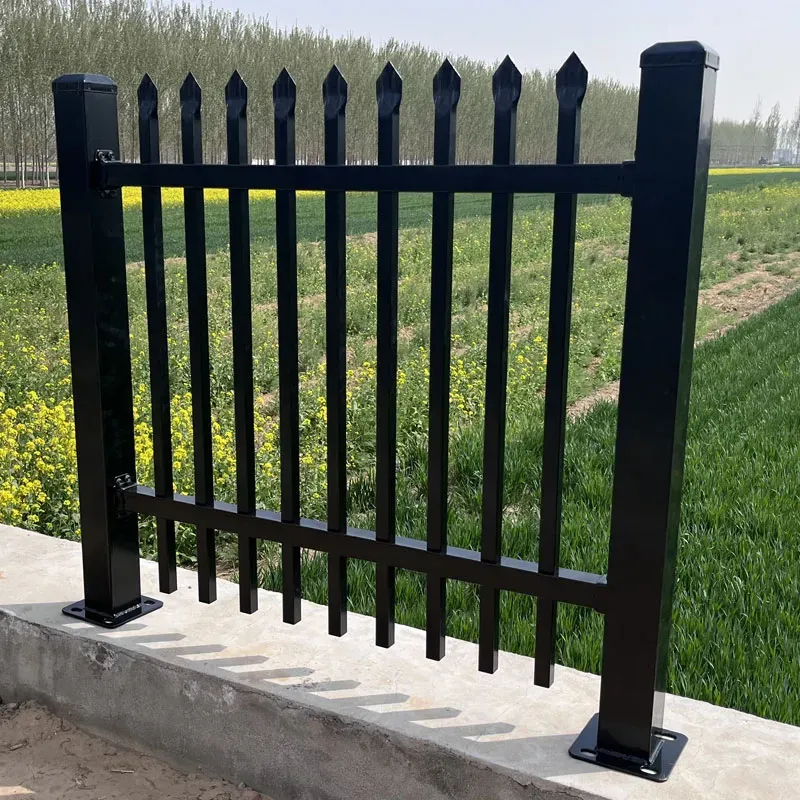

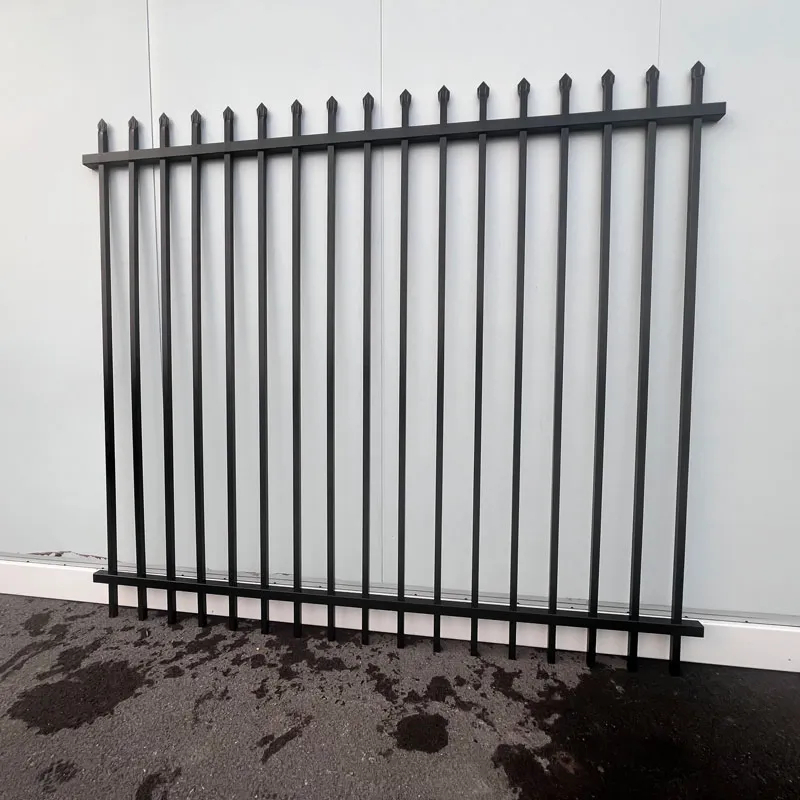

POLYMETAL Hercules security fencing is a heavy-duty, permanently installed garrison-style barrier designed for industrial estates, warehouses, substations, schools, logistics hubs, distribution centres and public facilities where ordinary chain link or light tubular systems are a proven weakness. Typical panels range from 1200 mm to 2400 mm in height and 2400–2450 mm in width, forming a tall, rigid outline that sends a clear sign and signal: this boundary is not meant to be crossed.

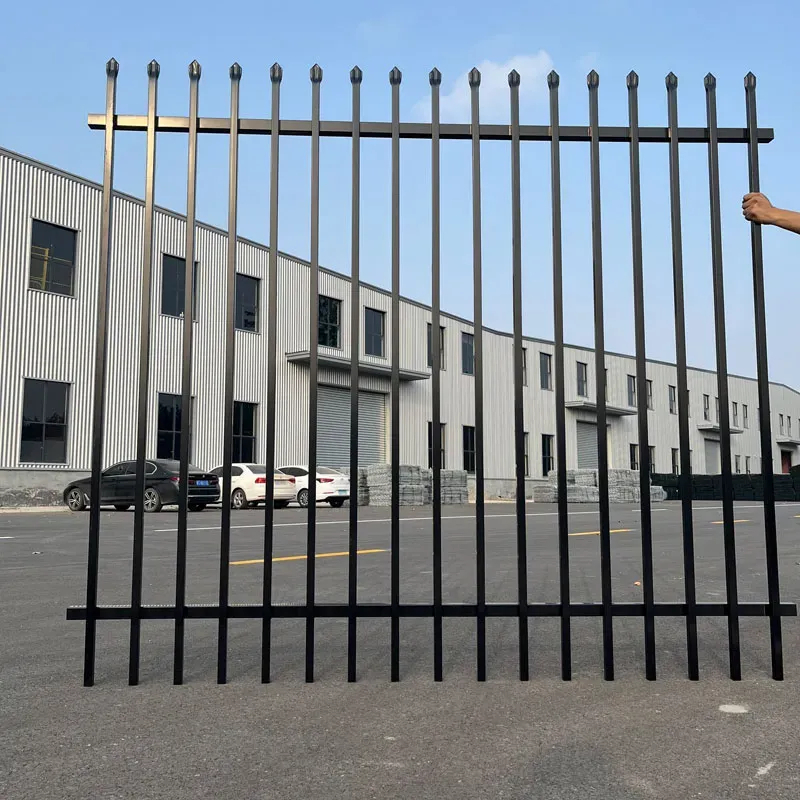

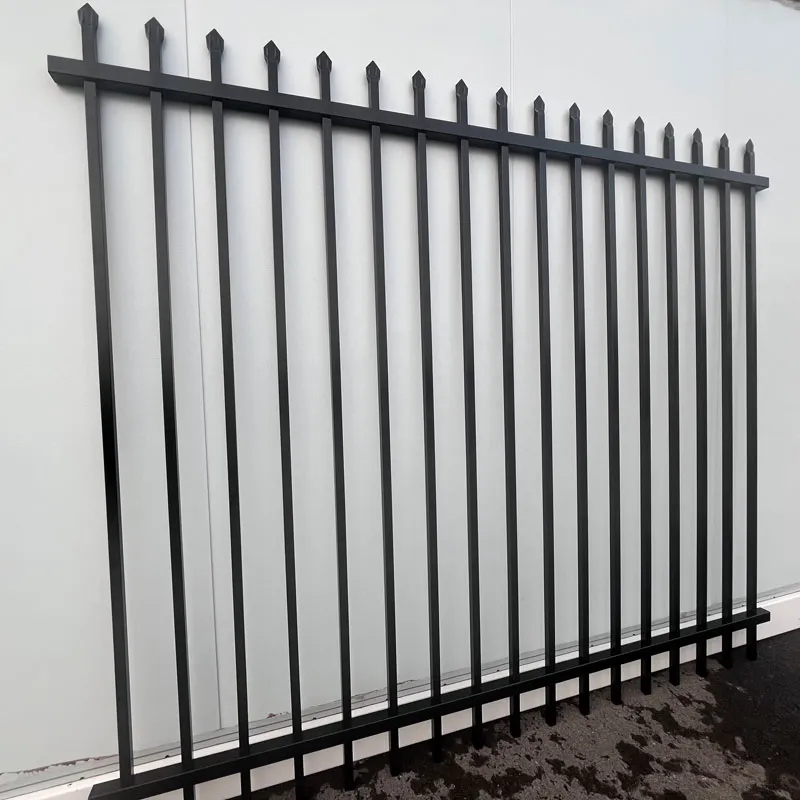

The frame is fabricated from square hollow section (SHS) rail frames in 40 × 40 mm, 45 × 45 mm or 50 × 50 mm sizes, welded into a strong, stable rectangular profile. Between the top and bottom rails runs a dense line of square vertical uprights in 16 × 16 mm, 25 × 25 mm or 30 × 30 mm. Uprights are typically spaced at 100 mm centres, creating an anti-climb pattern that removes convenient footholds and turns climbing attempts into a serious hazard rather than a quick misstep.

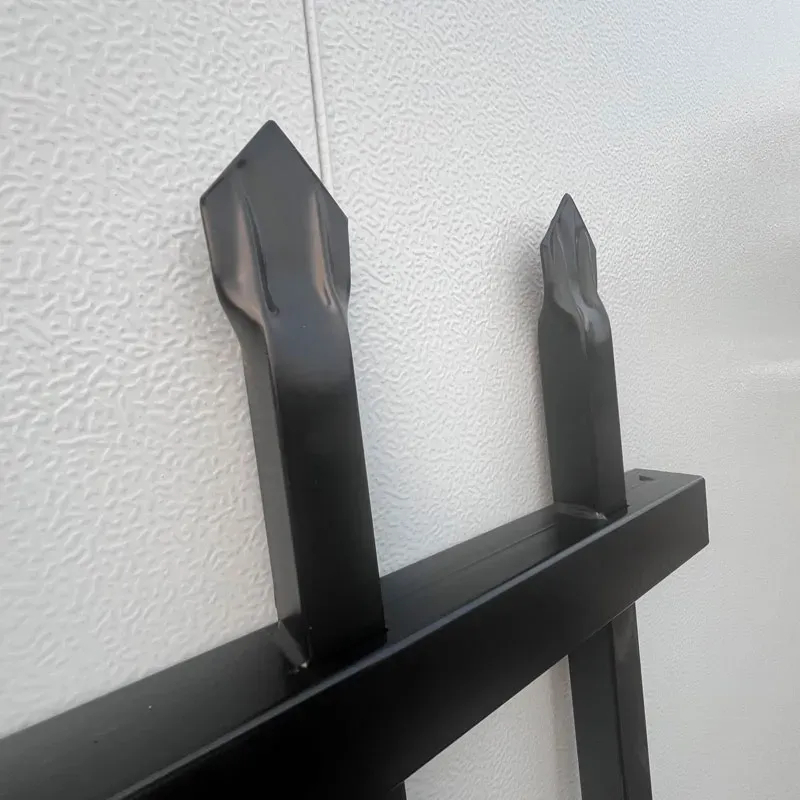

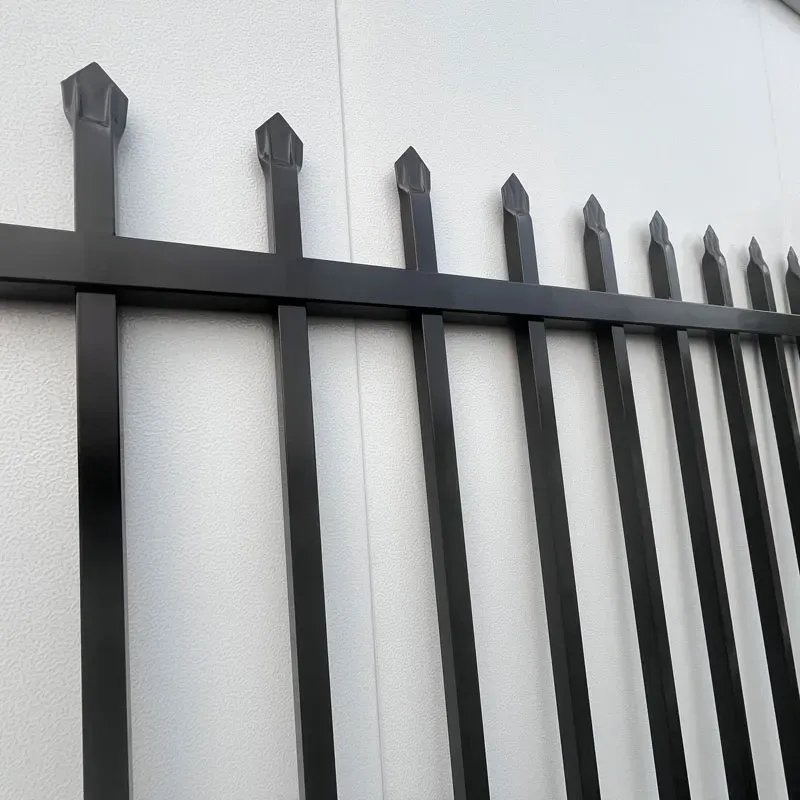

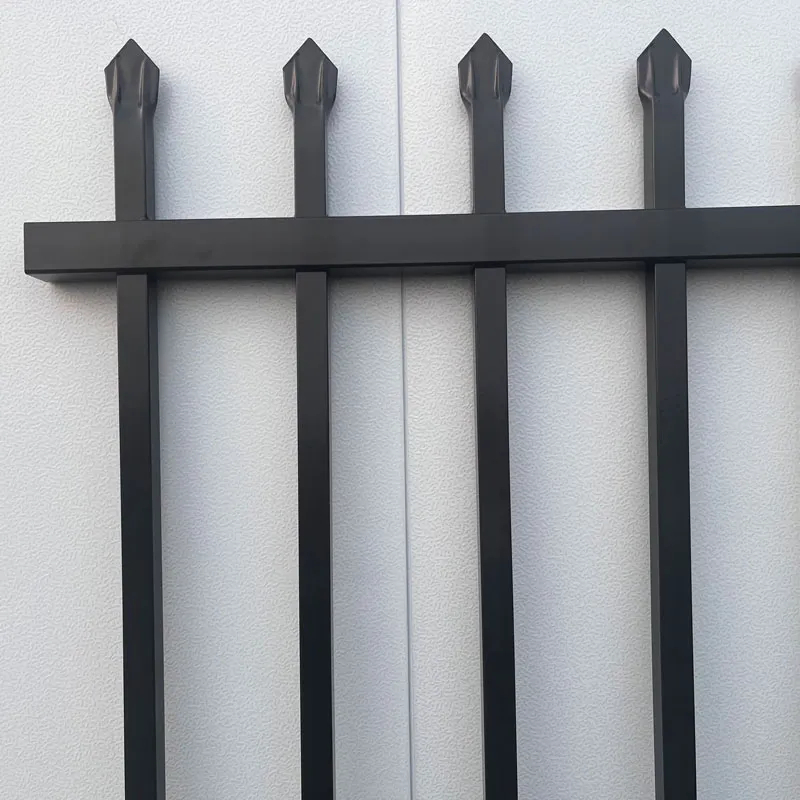

Each upright can be finished with a flat top, pressed spear, 45° mitred spear or other security head, transforming the top line of the fence into an intimidating feature that is extremely uncomfortable and risky to grip. With the rails set slightly inboard from the panel edges, POLYMETAL Hercules security fencing achieves a clean side view, a strong structural outline and a professional architectural appearance that matches modern commercial façades as well as high-security compounds.

Combined with matching posts from 60 × 60 mm up to 100 × 100 mm and correctly designed concrete footings, POLYMETAL Hercules security fencing delivers a rigid, permanent-looking barrier ideal for industrial sites, transport infrastructure, government facilities and prestige projects that demand robust protection, clean lines and long-term visual order.

Robust Welded Hercules Panel Structure

Every POLYMETAL Hercules security fencing panel is fully welded at each rail and picket intersection, forming a continuous, rigid structure rather than a loose assembly of parts. These 100% welded joints are engineered to withstand daily impact, vibration, wind loading and harsh weather exposure, providing a durable, long-lasting fencing solution that maintains alignment, security performance and appearance even in demanding commercial and industrial environments. This welded profile eliminates the weakness, flaw and long-term bug of clip-on systems, reducing the risk of loosening, failure and sudden openings in your perimeter line.

Specification Tables for POLYMETAL Hercules Security Fencing Systems

Table 1: Light Commercial POLYMETAL Hercules Security Fencing

Table 2: Standard Commercial POLYMETAL Hercules Security Fencing

Table 3: Heavy-Duty Security POLYMETAL Hercules Security Fencing

Table 4: Mixed Application POLYMETAL Hercules Security Fencing Options

Seven Dangerous Facts About Hercules Security Fencing Design

Truth 1: Dimensional Detail – The Small Height and Width Gap That Becomes a Big Risk

The first dangerous truth is that many Hercules security fences do not fail because the steel is weak, but because the dimensions are wrong. If your Hercules security fencing line is even slightly lower than specified, the barrier becomes easier to climb and easier to overlook. If the width is reduced without correctly recalculating post centres, small but critical gaps appear between panels and posts. These openings are not harmless details; they are defects and loopholes in your security outline. The rule is simple: fence height and width must be treated as hard principles, not flexible hints. Accurate dimensions provide predictable coverage, consistent patterns and fewer joints. Every dimensional shortcut is a visible sign that cost-saving has been prioritised over real protection.

Danger 2: Rail Frame Weakness – When the Main Structural Element Turns into a Flaw

The second danger hides in the rail frame. Hercules security fencing can look strong while concealing a structural weakness, bias or design error. A 40 × 40 mm rail with a thin wall may twist or deflect under impact, whereas a 45 × 45 mm or 50 × 50 mm rail with appropriate wall thickness retains its shape and strength for years. If the frame is under-specified, the fence slowly deforms under wind and crowd loads; rails bow, pickets drift out of line and gates stop closing properly. This is far more than a cosmetic downside; it is a structural fault and a clear warning sign that the system is drifting toward failure, damage and emergency repair cost.

Trap 3: Upright Size and Spacing – When Anti-Climb Turns into a Ladder

The third critical fact destroys a common myth: not every Hercules pattern is truly anti-climb. If uprights are too small or spaced too far apart, the fence effectively turns into a rigid ladder. Hands and feet quickly discover a repeating pattern of footholds, and the spear line becomes only a partial deterrent. POLYMETAL Hercules security fencing uses uprights in 16 × 16 mm, 25 × 25 mm or 30 × 30 mm at 100 mm spacing to create a robust anti-climb trait. Relax this pattern to chase a cheaper price and you create a gap between how your fence looks and how it actually performs. That gap is a real trap, a hidden weakness and a long-term pitfall for any serious security profile.

Risk 4: Post Height and Section – The Support That Fails When You Need It Most

The fourth risk lives in the posts. A Hercules panel is only as dependable as the post that supports it. Using a 60 × 60 mm post where a 75 × 75 mm or 80 × 80 mm section is required introduces a structural defect that will reveal itself under storm winds or impact. If the post height is too short, embedment depth and leverage are compromised, and the entire line can tilt, lean or crack at the base. This pattern of subtle movement, diagonal rails and hairline cracks around footings is a clear signal that the system is failing. Correct post size and height are not optional; they are a non-negotiable rule in any serious Hercules security fencing design.

Pitfall 5: Coating System – Corrosion as a Slow, Silent Hazard

The fifth fact exposes a silent hazard: corrosion. Even a perfectly fabricated POLYMETAL Hercules security fencing system will fail prematurely if the coating is poorly specified. Insufficient zinc, low-quality hot-dip galvanizing or inferior powder coating create a corrosion trend that begins as small stains and ends as serious structural loss. Every rust spot is data about material damage. Once spear tops, uprights and rail welds start to corrode, the fence loses both strength and aesthetic value. Neighbours, clients and inspectors see not a strong Hercules profile but a decaying one. POLYMETAL treats galvanizing and architectural-grade powder coating as a core element instead of a cosmetic extra, turning potential waste and long-term loss into a durable, visible benefit.

Warning 6: Installation Mistakes – Human Missteps That Create Loopholes

The sixth dangerous insight is that people can undermine even the best design. Poor installation introduces missteps and oversights that become real loopholes: misaligned post centres, uneven concrete footings, under-torqued brackets, unsealed cut ends and incomplete weld touch-ups. These faults are not factory bugs; they are site errors. When installers follow a strict guide and checklist—precise post spacing, correct footing depth, true line and level, fully tightened anti-tamper fasteners—the Hercules security fencing behaves as a continuous, high-performing barrier. When they improvise, they create gaps, faults and weak spots. The difference between a secure perimeter and a risky one often lies in these “small” mistakes that only show up after a failure or incident.

Crisis 7: Compliance Myth – The Legal Threat Behind a “Good-Looking” Fence

The seventh fact is the most dangerous because it concerns law and liability rather than just steel and paint. If your Hercules security fencing does not satisfy relevant security, boundary or safety standards for height, spacing and structural strength, you are sitting on a legal threat. In the event of an incident—injury, intrusion or property damage—investigators and insurers do not focus on marketing claims or glossy photos; they demand standards, test data, installation manuals and inspection records. A fence that looks impressive but fails these rules quickly becomes the centre of a crisis. By aligning design data, material choices, erection methods and documentation with serious security principles, POLYMETAL turns compliance from a comforting fantasy into a hard protective edge, transforming Hercules security fencing from a potential liability into a documented advantage.

Product Applications of POLYMETAL Hercules Security Fencing

POLYMETAL Hercules security fencing and matching welded garrison panels are developed for demanding environments where safety, access control and long-term durability are critical. Typical applications cover a wide range of high-risk and high-value sites, including commercial complexes, industrial operations, public infrastructure and critical utilities. In every application, the system aims to provide a clean, modern snapshot of security while maintaining appropriate visibility and alignment with surveillance and access-control strategies.

Packaging of POLYMETAL Hercules Security Fencing

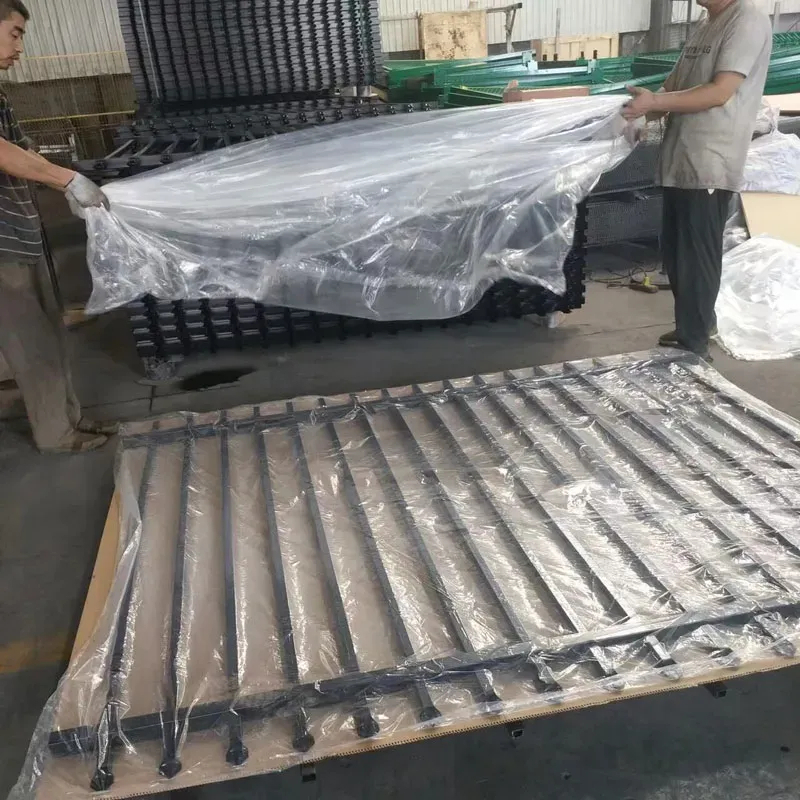

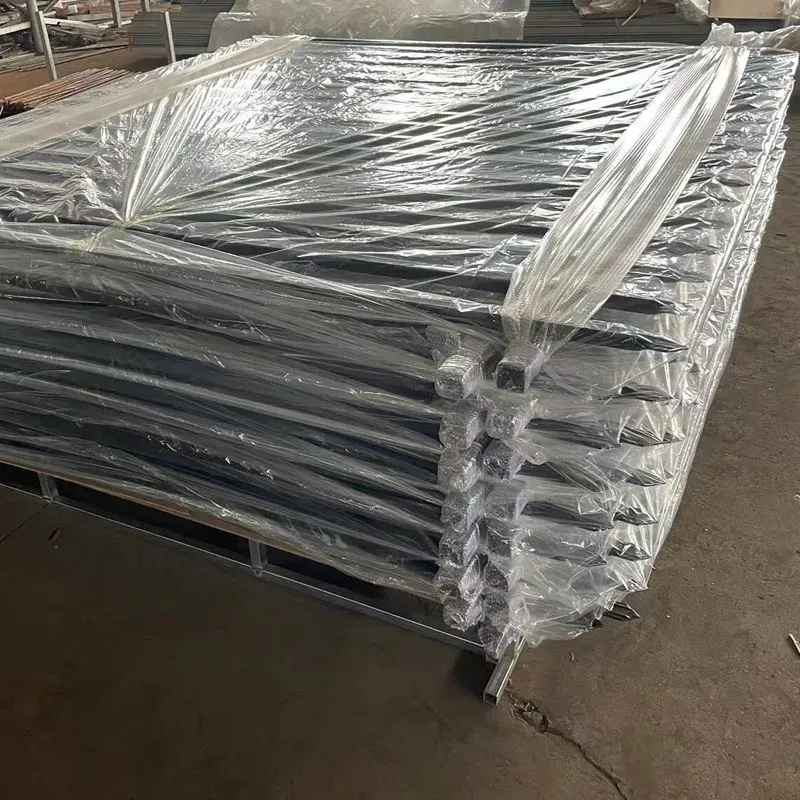

Each Hercules security fencing panel is individually protected with plastic film, stacked in uniform bundles and securely strapped onto reinforced steel or wooden pallets. Weight is transferred through the 40 × 40, 45 × 45 or 50 × 50 rail frames rather than the spear tops or uprights, avoiding damage to the anti-climb elements. Between each layer, spacers separate the pickets and rails to prevent abrasion, coating damage and impact marks during handling and transport.

Matching posts in 60 × 60, 65 × 65, 75 × 75, 80 × 80 and 100 × 100 sections are bundled and palletised, wrapped in plastic and clearly labelled by size and length so installation crews can identify the correct components at a glance. All accessories—including brackets, caps and fasteners—are packed in durable export cartons, coded and grouped per project. This disciplined packing pattern reduces waste, minimises on-site confusion and ensures that the Hercules security fencing arrives ready for efficient installation.

Production Process of POLYMETAL Hercules Security Fencing

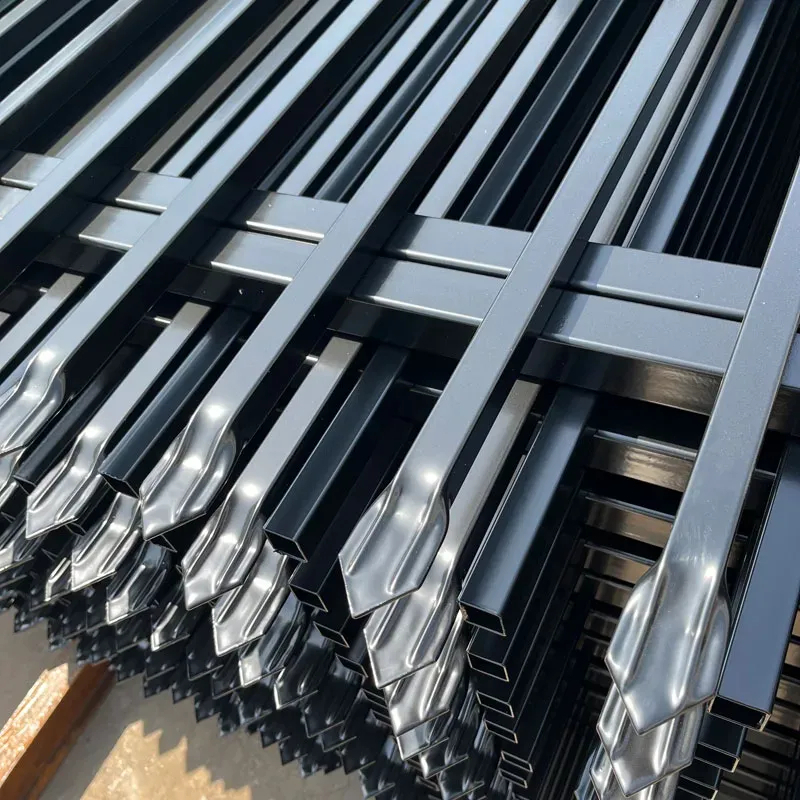

Production of POLYMETAL Hercules security fencing begins with certified Q235 or equivalent mild-steel SHS used for rails, uprights and posts. Rails are cut to precise widths such as 2400 mm and 2450 mm, while uprights are cut to match fence heights from 1200 mm to 2400 mm plus the allowance required for spear or decorative heads. Spear tops or flat caps are formed using precision tooling so every picket shares the same sharp, consistent profile and visual trait.

Cut components are loaded into calibrated welding jigs that lock rail frames and upright spacing to the specified pattern. This jigging process controls geometry, keeps panels square and preserves the anti-climb layout. Skilled welders or automated welding cells then fuse uprights to top and bottom rails using defined parameters that limit porosity, undercut and distortion. Welds are inspected visually and, on a sample basis, mechanically checked to ensure the Hercules security fencing achieves its design strength.

Panels then pass through surface preparation stages—degreasing, rinsing and, where necessary, abrasive cleaning—to remove oil, scale and contaminants. They are hot-dip galvanised so molten zinc reaches every surface, including weld roots and internal corners, creating a continuous corrosion-resistant layer. When a coloured architectural finish is required, panels move through powder-coating booths where an electrostatically charged polyester powder is applied and then oven-cured into a tough, UV-resistant coating. Final inspection checks dimensions, upright spacing, spear alignment, coating thickness and overall finish before panels are labelled, recorded and released for packing and shipment.

Standards and Compliance for POLYMETAL Hercules Security Fencing

POLYMETAL Hercules security fencing systems are designed in line with recognised garrison-style and commercial security fence principles, aligned with typical requirements for boundary, security and barrier systems in demanding markets, and working effectively alongside related perimeter solutions such as Tubular Security Fencing. Fence height, upright spacing, head style and structural layout are selected to provide an effective anti-climb barrier while preserving clear views for patrols and surveillance cameras.

Rails and posts are sized to withstand site-specific wind and impact loading when installed with correct post centres and footing details. Hot-dip galvanizing follows widely accepted international expectations for zinc thickness and coverage, providing a robust base layer against corrosion. Over this base, powder-coated finishes use architectural-grade polyester powders applied electrostatically and oven-cured to create a smooth, UV-resistant skin that resists chipping, fading and chemical attack.

Internal quality systems govern design, welding, coating, inspection, traceability and documentation, turning theoretical standards into a practical rule set that guides every production step. By treating standards as essential truths rather than optional notes, POLYMETAL converts compliance into a real benefit. The result is Hercules security fencing that not only looks strong and contemporary, but also carries the data, test information and documented processes needed to minimise legal risk, avoid hidden lifecycle cost and give specifiers, contractors and owners a powerful edge in audits, approvals and insurance reviews.
