When people search jaybro crowd control barriers, they are usually trying to source Australian-style pedestrian barriers for events, civil works, queue control, and site segregation. The costly surprise is that many crowd control barriers are quoted as a “look,” not a controlled system. On real jobs, money is lost through mismatch in panel size, tube selection, upright spacing, base stability, welding control, and packing damage, which then shows up as slow installation, wobbly lines, or early corrosion at weld zones.
To avoid “one photo, ten different realities,” procurement should lock barrier performance to the same mindset used on higher-risk perimeter products. For example, if your site also specifies anti-climb panels for security-sensitive zones, you can reference our 358 anti-climb wire mesh as a checklist-style example of how controlled aperture, wire diameter, panel rigidity, and finish documentation reduce downstream rework—then apply the same discipline to crowd control barrier tube selection, spacing, and coating requirements.
POLYMETAL builds crowd control barriers as a repeatable export product with measurable options for height, width, frame tube, upright tube, spacing, feet systems, and finish selection, so buyers comparing jaybro crowd control barriers can lock performance to a written specification, not a photo.
Top 10 brutal procurement traps for jaybro crowd control barriers (Especially #7)
Trap #1: Treating “jaybro crowd control barriers” as a keyword, not a dimensional schedule
With jaybro crowd control barriers, the first loss happens when the purchase order fails to lock the dimensional schedule. If height and width ranges are not written clearly (1.0m, 1.06m, 1.1m, 1.2m and 2.0m, 2.2m, 2.5m, 2.6m), installers face gaps, misaligned runs, and mismatched truck loading assumptions. A jaybro crowd control barriers line is only as straight as the dimensional discipline across the entire batch.
Trap #2: Choosing frame tube by habit instead of load path for jaybro crowd control barriers
Many buyers compare jaybro crowd control barriers by price, then discover the frame tube is under-specified for the load path. Frame tube OD (25mm, 32mm, 35mm, 38mm) changes stiffness more than expected. A light frame may suit queue guidance, while higher wind or pushing loads require a heavier frame. If you do not align jaybro crowd control barriers frame OD and wall thickness to the job, you pay twice: once for the shipment, then again for replacements or extra bracing on site.
Trap #3: Ignoring wall thickness tolerance until jaybro crowd control barriers start “breathing” in the line
Wall thickness (1.5mm, 1.6mm, 2.00mm) is where “same appearance” becomes different stiffness and dent resistance. In real jaybro crowd control barriers runs, small thickness variation across many panels creates an uneven feel at connection points and corners, and crews start fighting the line instead of installing it.
Trap #4: Buying upright tube as a cosmetic detail, not a bending and dent control in jaybro crowd control barriers
On many sites, the weakness of jaybro crowd control barriers shows up in the uprights, not the frame. Upright tube OD (19mm, 16mm, 12mm) and thickness (0.7mm, 0.80mm, 1.0mm, 1.2mm) control how well the infill stays straight after transport and repeated handling. If uprights dent easily, spacing becomes inconsistent and jaybro crowd control barriers look “wavy” even when frames are straight.
Trap #5: Spacing assumptions that fail the “hands + boots + crowd push” reality for jaybro crowd control barriers
Spacing is a hidden performance control in jaybro crowd control barriers. Options like 90mm, 100mm, 150mm, and 200mm change both visual control and practical containment. If spacing is not written into the jaybro crowd control barriers spec, suppliers may default to what is easiest, and the delivered batch may not match your intended safety and control level.

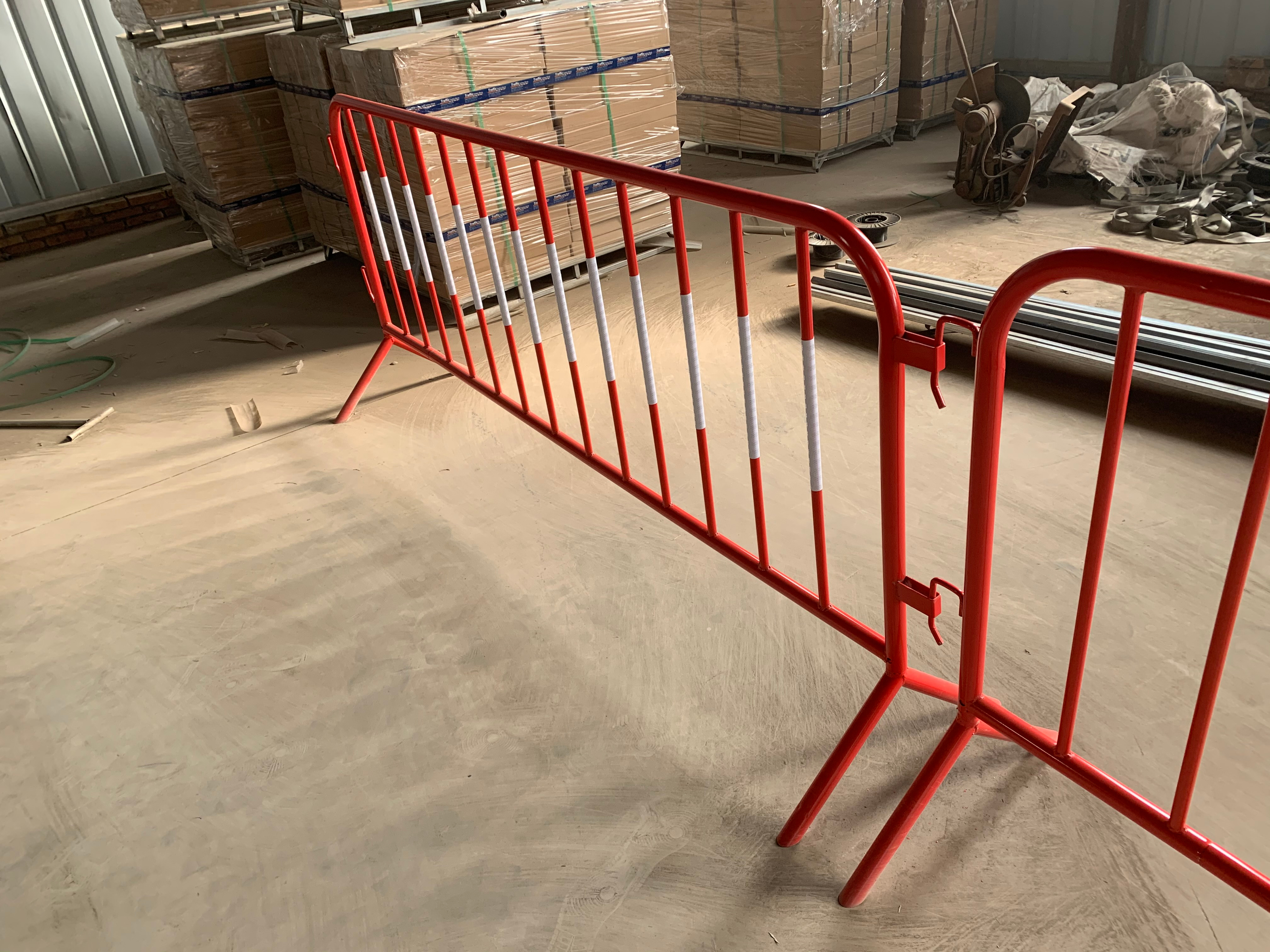

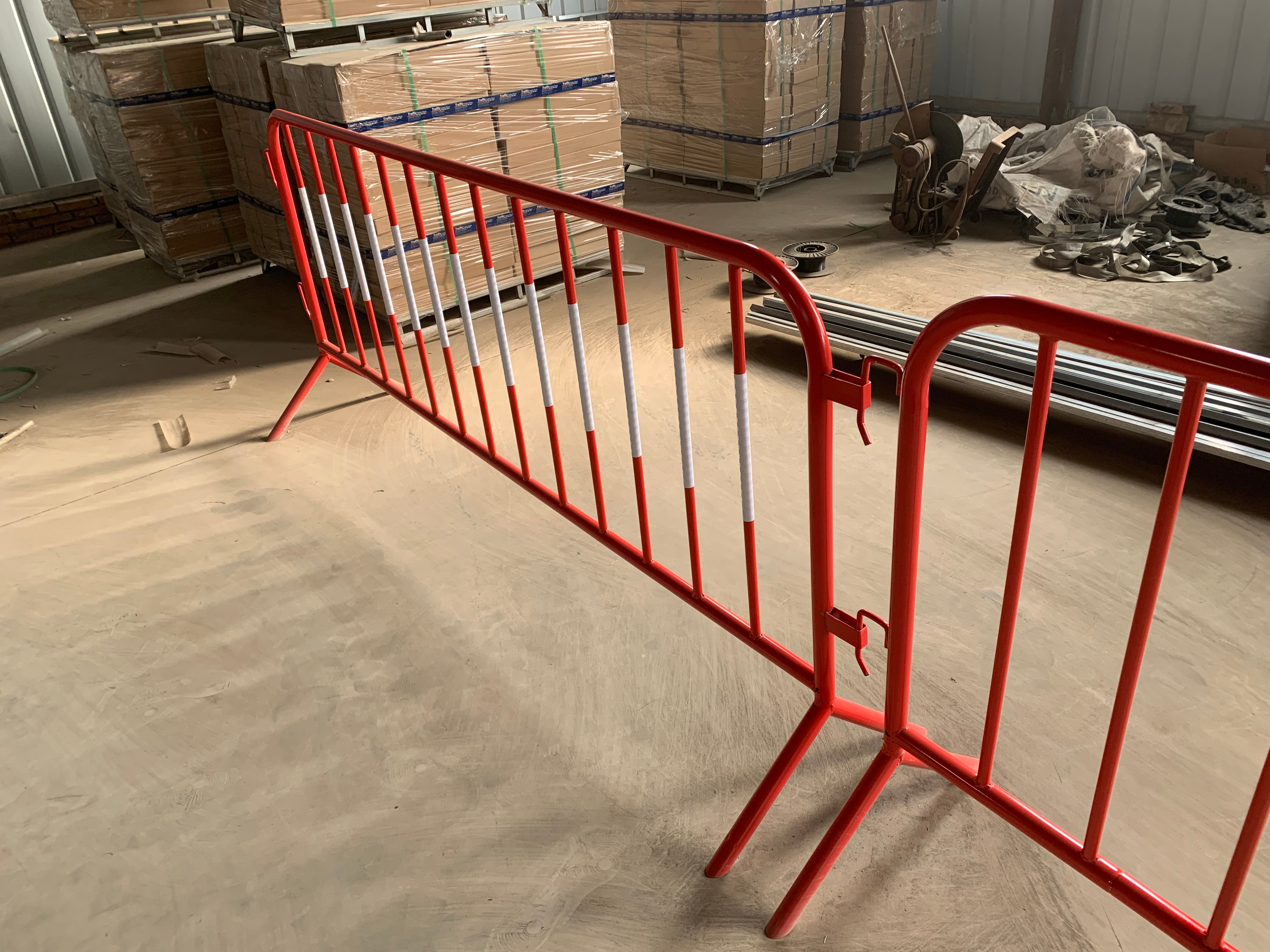

Trap #6: Not specifying how jaybro crowd control barriers connect and stay aligned over long runs
Hooks, interlock profiles, pins, and anti-lift details are not accessories; they are the system for jaybro crowd control barriers. Without controlled connector geometry and pin sizing, jaybro crowd control barriers comparisons become meaningless because the line drifts, rattles, or unlocks under repeated movement. The result is constant repositioning labor and complaints that the barrier line “won’t stay put.”
Trap #7: Picking feet from a photo instead of the ground condition for jaybro crowd control barriers (this is where most losses happen)

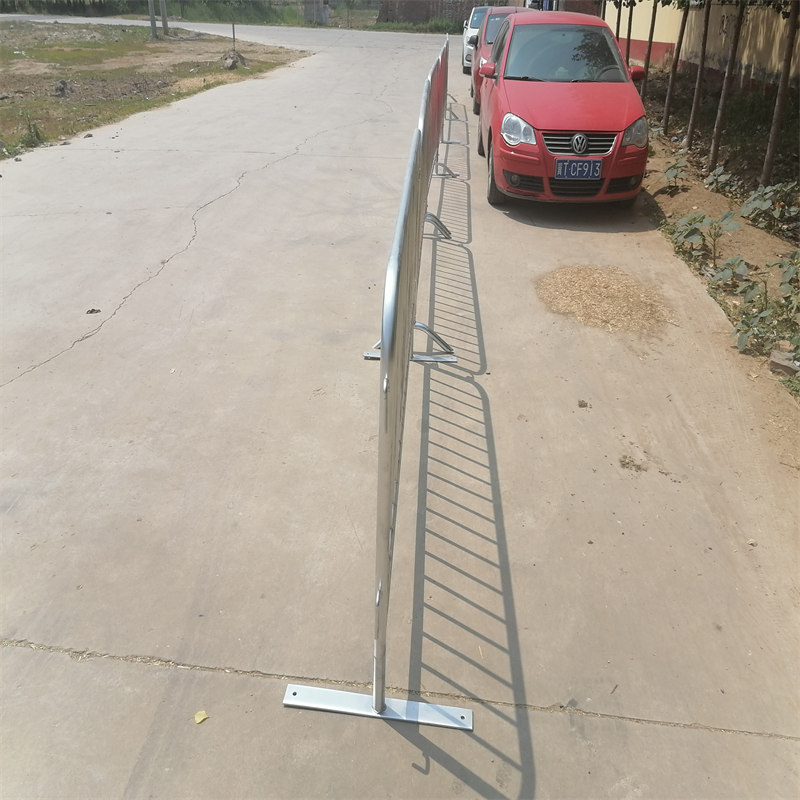

This is the most common hidden cost in jaybro crowd control barriers procurement. Feet selection must match ground type, slope, wind exposure, and whether the line will be pushed or hit by carts. Flat steel bases (580x50x10mm) offer stable contact, but different jobs require different feet systems: wheel feet for fast redeployment, bridge feet for better bridging on uneven ground, and V feet for enhanced stance and resistance to tipping. If jaybro crowd control barriers feet are wrong, barriers “walk,” sink, or wobble, causing constant labor waste and safety complaints.
Trap #8: Finish selection that ignores weld-zone corrosion behavior in jaybro crowd control barriers
Many jaybro crowd control barriers failures do not happen on day one. They show later at welds and contact points after handling and weather exposure. The fix is not “choose a prettier finish,” but specify surface preparation, coating type, and packing protection so jaybro crowd control barriers finish survives loading, unloading, and reuse cycles.
Trap #9: Forgetting packing engineering and paying for scratches, bent uprights, and missing pins in jaybro crowd control barriers
Export packing must prevent panel-on-panel abrasion and upright denting, especially for jaybro crowd control barriers shipped long distance. If pins, clips, and small parts are not packaged as a controlled kit, the job site becomes a scavenger hunt, and crews waste hours doing “installation by improvisation” while the jaybro crowd control barriers line sits unfinished.
Trap #10: Ordering jaybro crowd control barriers without an acceptance checklist (and discovering problems after unloading)
Without a simple acceptance checklist for jaybro crowd control barriers—dimensions, tube OD, thickness, spacing, weld appearance, coating coverage, foot type, connector function, pin quantity, and packing integrity—buyers can only argue with photos after the fact. A written jaybro crowd control barriers checklist closes the loophole that causes the most procurement disputes.
POLYMETAL jaybro crowd control barriers specification options
Table 1: Standard crowd control barrier (event + queue control)
| Specification Item | POLYMETAL Options |
|---|---|
| Keyword reference | jaybro crowd control barriers search-equivalent sizes and configurations (specified by dimensions, tube, spacing, feet) |
| Panel height options | 1.0m / 1.06m / 1.1m / 1.2m |
| Panel width options | 2.0m / 2.2m / 2.5m / 2.6m |
| Frame tube OD options | 25mm / 32mm / 35mm / 38mm |
| Frame wall thickness options | 1.5mm / 1.6mm / 2.00mm |
| Upright tube OD options | 19mm OD / 16mm OD / 12mm OD |
| Upright thickness options | 0.7mm / 0.80mm / 1.0mm / 1.2mm |
| Vertical spacing options | 90mm / 100mm / 150mm / 200mm |
| Base plate (flat steel) | 580 x 50 x 10mm (flat steel base option) |
| Feet systems | Standard flat feet, wheel feet, bridge feet, V feet available |
| Connection method | Hook-and-eye / pin connection (as specified), anti-lift options available |
| Finish options | Hot dip galvanized or powder coated over galvanized (as specified) |
Table 2: Heavy-duty crowd control barrier (high-traffic + repeated handling)
| Specification Item | POLYMETAL Options |
|---|---|
| Use case | jaybro crowd control barriers style barriers for high footfall, venue turnover, and contractor reuse cycles |
| Panel height options | 1.06m / 1.1m / 1.2m (or 1.0m by request) |
| Panel width options | 2.2m / 2.5m / 2.6m (or 2.0m by request) |
| Recommended frame tube OD | 32mm / 35mm / 38mm (25mm available for light duty) |
| Recommended frame wall thickness | 1.6mm / 2.00mm (1.5mm available) |
| Recommended upright tube OD | 19mm OD / 16mm OD (12mm OD available for economy builds) |
| Recommended upright thickness | 0.80mm / 1.0mm / 1.2mm (0.7mm available) |
| Spacing control | 90mm / 100mm for tighter control; 150mm / 200mm for faster visual guidance lines |
| Base plate (flat steel) | 580 x 50 x 10mm, optimized for repeated handling and stable stance |
| Feet systems | Bridge feet for uneven ground; V feet for improved stance; wheel feet for rapid redeployment |
| Welding control | Continuous welding strategy at load points; weld cleanup and coating protection as specified |
| Accessories | Link pins, anti-trip base profile options, corner solutions, and signage brackets available |
Table 3: Custom procurement schedule (projects that need zero guesswork)
| Specification Item | POLYMETAL Options |
|---|---|
| Project control goal | Match jaybro crowd control barriers procurement intent to a measurable spec and acceptance checklist |
| Heights to lock on PO | 1.0m / 1.06m / 1.1m / 1.2m (choose one or multiple, but list each clearly) |
| Widths to lock on PO | 2.0m / 2.2m / 2.5m / 2.6m (choose one or multiple, but list each clearly) |
| Frame tube OD | 25mm / 32mm / 35mm / 38mm (specify per duty level) |
| Frame wall thickness | 1.5mm / 1.6mm / 2.00mm (specify per duty level) |
| Upright tube OD | 19mm OD / 16mm OD / 12mm OD (choose based on dent resistance needs) |
| Upright thickness | 0.7mm / 0.80mm / 1.0mm / 1.2mm (choose based on reuse cycle) |
| Infill spacing | 90mm / 100mm / 150mm / 200mm (choose based on control and visual intent) |
| Base plate | Flat steel 580 x 50 x 10mm or project-specific base geometry (write exact requirement) |
| Feet selection (must be written) | Wheel feet / bridge feet / V feet / standard flat feet (match to ground, slope, wind exposure) |
| Finish selection | Hot dip galvanized, or powder coated over galvanized (write coating class and touch-up requirement) |
| Packing selection | Palletized bundles or stillage packing with abrasion protection, pin kits, and label control |
Product description (POLYMETAL)
POLYMETAL crowd control barriers are engineered as modular steel panels designed to build clean, stable pedestrian control lines for events, worksites, and public access management. Buyers sourcing jaybro crowd control barriers typically want predictable panel alignment, reliable connection geometry, and feet systems that match real ground conditions. POLYMETAL supplies crowd control barriers in multiple height and width schedules with selectable frame tube ODs and wall thickness, controlled upright tube selections, and defined spacing options so the barrier behaves consistently from the first panel to the last. Finish options include hot dip galvanizing and powder coating over galvanizing to suit corrosion exposure, while packing configurations are built to reduce transport scratches, upright denting, and missing parts that cause avoidable site delays.
Applications for jaybro crowd control barriers style systems
These barriers are used for queue management at stadiums and venues, pedestrian segregation on construction sites, event perimeter control, entry and exit lane creation, temporary walkway guidance, loading zone separation, crowd direction at festivals and concerts, public works access management, and short-term hazard isolation where fast deployment and repeatable line geometry are required.
Benefits (why a controlled spec beats “same as photo”)
A controlled jaybro crowd control barriers specification reduces rework by locking height, width, tube selection, spacing, and feet type into a single procurement schedule. It improves installation speed because connectors align consistently, it improves stability because base and feet match ground conditions, it protects appearance because packing prevents abrasion and denting, and it protects service life because finish selection is matched to exposure and handling cycles. POLYMETAL also supports project consistency by producing repeatable batches with documented options rather than ad-hoc substitutions.

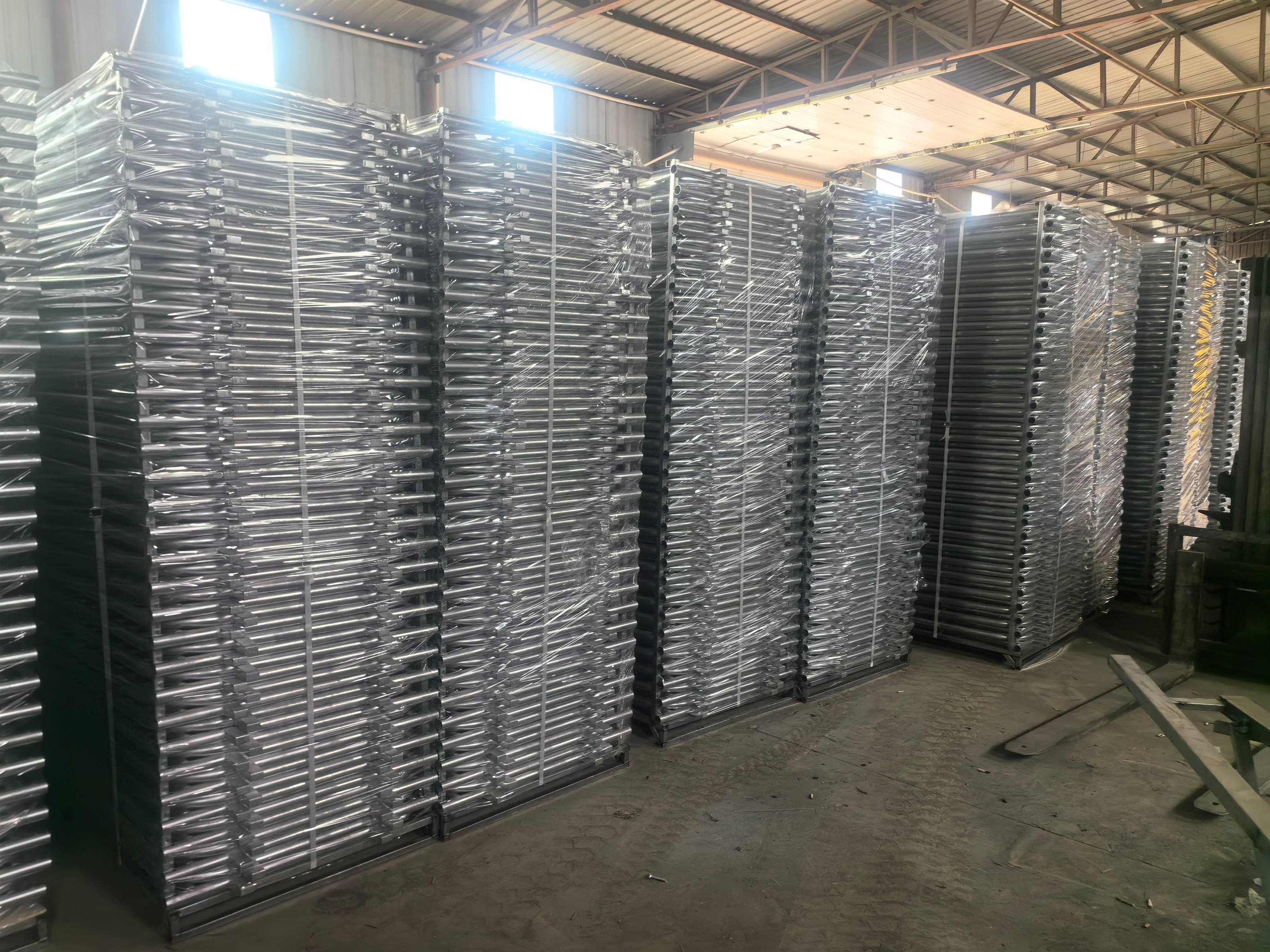

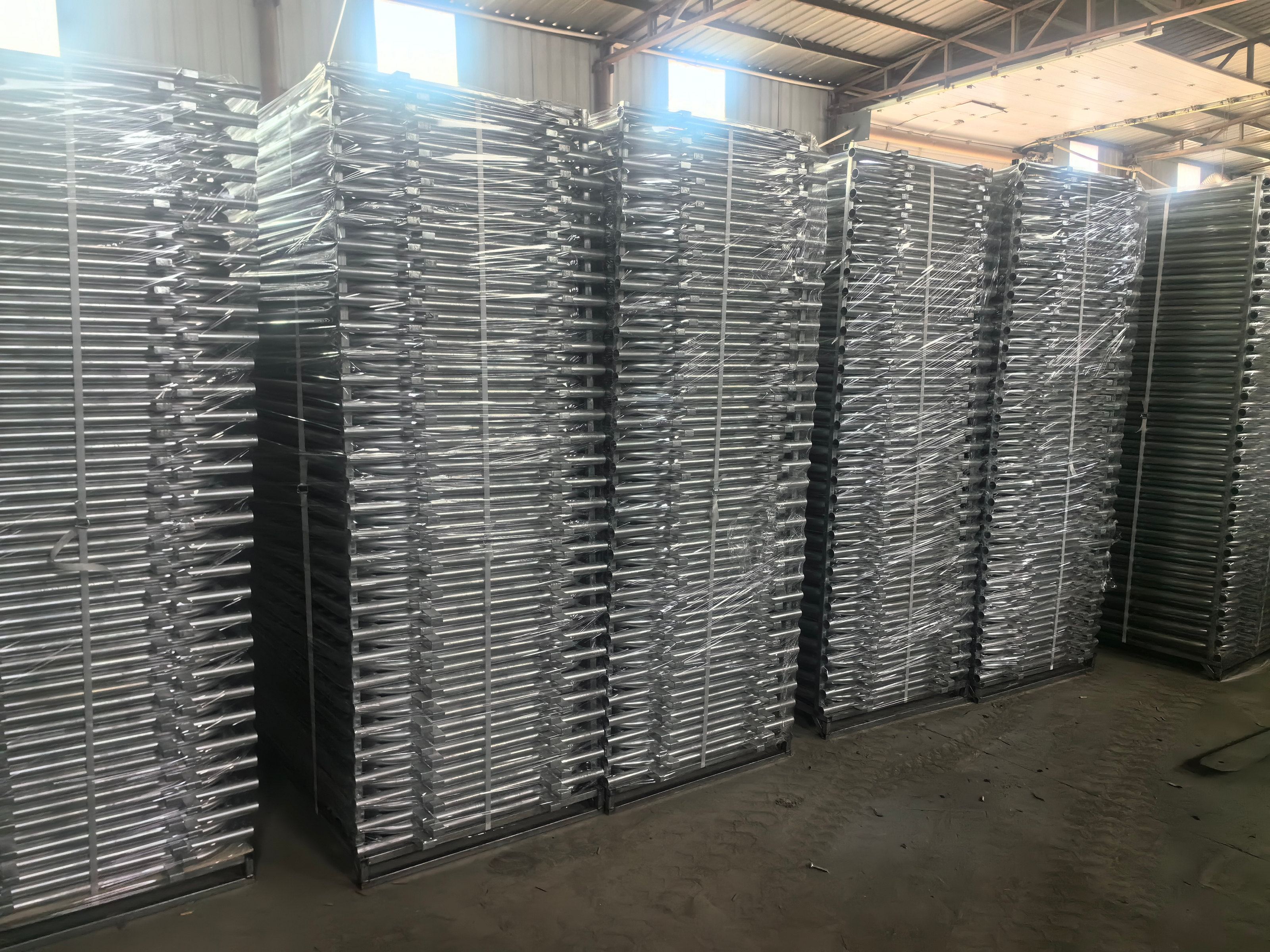

Packing (export-focused, site-friendly)
POLYMETAL packs crowd control barriers in protected bundles or stillages to reduce panel-on-panel abrasion, upright denting, and coating scratches during loading and unloading. Connection pins, clips, and small accessories are packed as controlled kits so each shipment arrives as a complete system, reducing the most common jobsite delay in jaybro crowd control barriers style purchases: missing small parts. Packing labels can be organized by barrier size, feet type, and finish to support fast counting and fast deployment.
Standards and documentation references (typical procurement language)
Many buyers specify hot dip galvanizing performance to AS/NZS 4680 for fabricated steel articles and powder coating to AS/NZS 4506 where powder coating is required, while project requirements may also reference site risk controls, venue authority requirements, and structural considerations such as wind exposure where barrier lines can be affected. If you need to align coating language with what Australian buyers expect (film build targets, cure, adhesion, and durability expectations), you can reference our powder coatings guide and then mirror that same “measurable and inspectable” approach in your barrier specification. The key procurement principle is to write the measurable requirements (dimensions, tube OD, thickness, spacing, feet type, finish, connectors, packing) so inspection is objective at delivery.
FAQs (jaybro crowd control barriers buying questions)
What sizes should I order first?
Most buyers start by locking one height and one width (for example 1.1m high and 2.2m or 2.5m wide) so every run aligns cleanly, then add other sizes only when the site layout truly demands it.
Which frame tube and thickness is “best”?
There is no single best; 25mm can suit light duty queue guidance, while 32mm to 38mm with 1.6mm to 2.00mm wall thickness is typically chosen when durability, repeated handling, and higher push loads are expected.
How do I choose spacing?
Choose tighter spacing (90mm or 100mm) when control and containment are more important, and choose wider spacing (150mm or 200mm) when the goal is fast visual guidance with lower material weight.
Which feet should I use?
Match feet to ground conditions: wheel feet for rapid redeployment, bridge feet for uneven ground and edge transitions, and V feet when you want a wider stance and improved resistance to tipping. This decision is the biggest loss-prevention lever in jaybro crowd control barriers procurement.
Can POLYMETAL supply both galvanized and powder coated?
Yes, POLYMETAL can supply hot dip galvanized and powder coated over galvanized options, with packing engineered to protect the finish during shipment and repeated handling.
What should be on my acceptance checklist?
Confirm height, width, frame tube OD, frame wall thickness, upright OD, upright thickness, spacing, base plate dimension (580x50x10mm if specified), feet type (wheel/bridge/V), connector function, finish coverage at weld zones, and completeness of pins and accessory kits.
