POLYMETAL portable sheep panels are rugged, lightweight, and built for temporary fencing on farms and in yards. Each 4ft panel combines a high-strength 7-rail frame with a tool-free interlocking system for faster, less labor-intensive setup than wooden alternatives.
4ft Portable Sheep Panels — Dimensions & Build
Our portable sheep panels measure 1320mm (4ft) × 976mm (3.2ft) and are manufactured from high-quality galvanised q235 steel. Interlocking hoops secure adjacent panels and help them stand firm on varied surfaces, so pens and lanes can be assembled rapidly and stored with minimal heavy lifting.
| Material | Galvanized Steel |
| Panel Size | 1320mm (4ft) × 976mm (3.2ft) |
| Top Horizontal Rail | OD22mm |
| Intermediate & Bottom Horizontal Rail | OD20mm |
| Internally Vented Upright | 25×25mm |
| Flat Bracing | 25×3mm Flat |
| Color | Silver, Black, Dark Green, Grey |
| Finish | Galvanized or Powder Coated |
Weather-Resistant, Hot-Dip Galvanised Protection
Suitable for indoor or outdoor use, each panel is hot-dip galvanised to form a protective zinc barrier against rust and weathering. This extends the service life of your portable sheep panels while reducing maintenance and replacement needs.
Custom Options for Portable Sheep Panels
As a professional manufacturer, POLYMETAL can tailor size, rail spacing, materials, colours and surface treatments to your yard design or handling requirements. These sheep panels also come with matching gates, posts and farm fence accessories — providing end-to-end support from design to delivery.
Product Customizable Specifications List
| Crossbeam & Vertical Pipe | Outer diameter, wall thickness, length |
| Overall Product | Dimensions, wall thickness, quantity, spacing |
| Accessory Requirements | Required accessories and accessory specifications |
| Surface Treatment Method | Overall hot-dip galvanizing, spraying, or other |
| Product Material | Galvanized steel, aluminum, or other |
| Process Flow | Different welding processes, pre-treatment, surface treatment, etc. |
Note: The sizes listed are standard. POLYMETAL can customise to meet your specific use cases.
Why Choose POLYMETAL Portable Sheep Panels?
Portable
Fast to set up, remove and store — highly flexible for portable sheep yards and shows.
Robust
Interlocking hoops stabilise the system; premium steel and full-welds add strength. Optional high-zinc or PVC coating improves durability.
Environment Protection
Panels join via welded bracket lugs and pins — no digging or foundations required, helping protect pastures.
Livestock Protection
Smooth welds and no sharp edges for animal safety when using portable sheep panels.
Cost-Effective
Years of service with minimal maintenance and low initial cost.
Stable Quality
Each 4ft panel undergoes strict QC: wall thickness, coating and overall strength checks.
Optimal Design
Panel geometry reduces entrapment risk and helps prevent livestock injury.
Product Details
- Top and bottom posts feature a simple interlocking system — no special tools required.
- Mix panel sizes to build lanes, pens, and custom handling systems.
- Use our plastic post caps to keep water and debris out, protecting panel integrity over time.

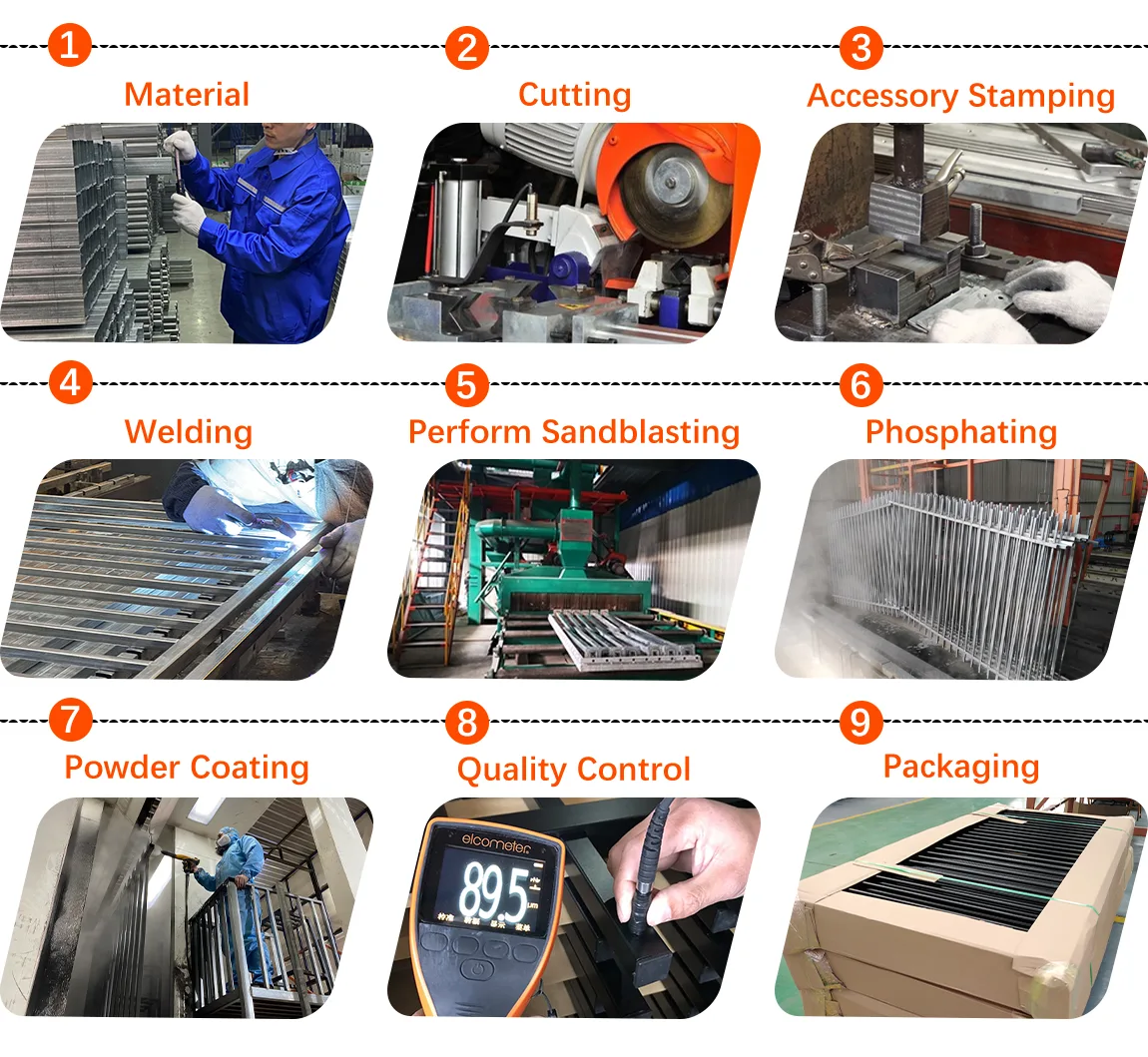

Sheep Fence Panels Production Process
Material
Verify tube OD and wall thickness per drawings to ensure consistent quality of portable sheep panels.
Cutting
Unload and cut profiles to the required lengths.
Accessory Stamping
Form components to spec via precision die pressing.
Welding
All tube sections are galvanised before welding, then assembled with advanced techniques.
Sandblasting
Clean and roughen surfaces to remove rust, oil and scale.
Phosphating
Improve corrosion resistance and coating adhesion, important for portable sheep panels.
Powder Coating
Apply epoxy-polyester powder and cure at high temperature for added durability.
Quality Control
Inspect strength, wall thickness and coating thickness for every panel.

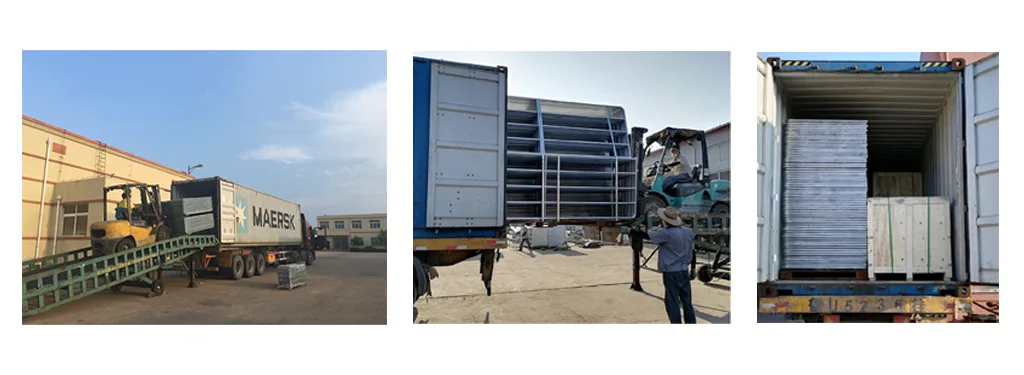

Packaging
Professional packing secures products for safe transport.

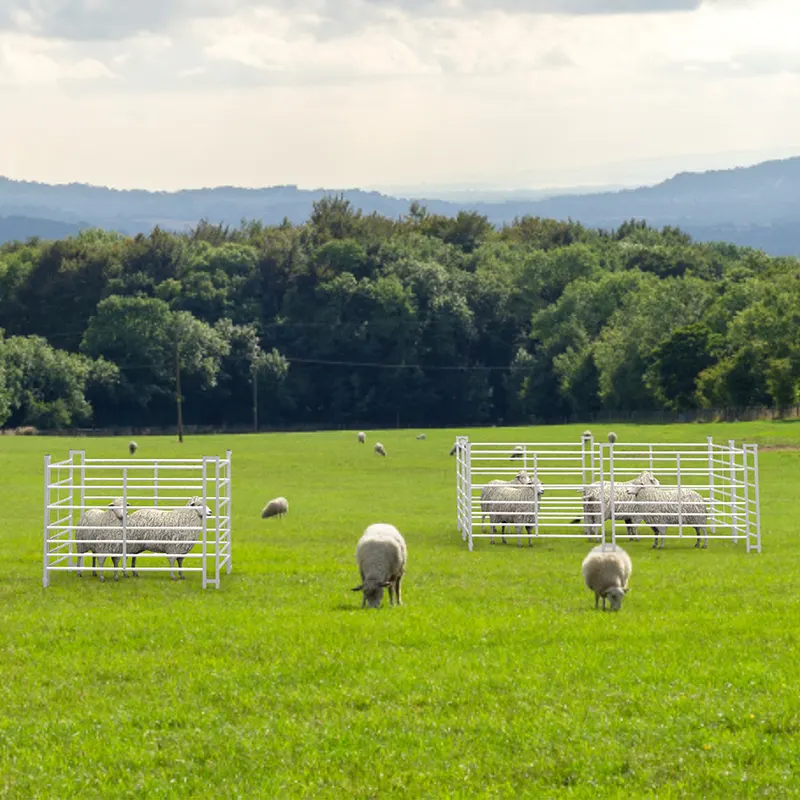

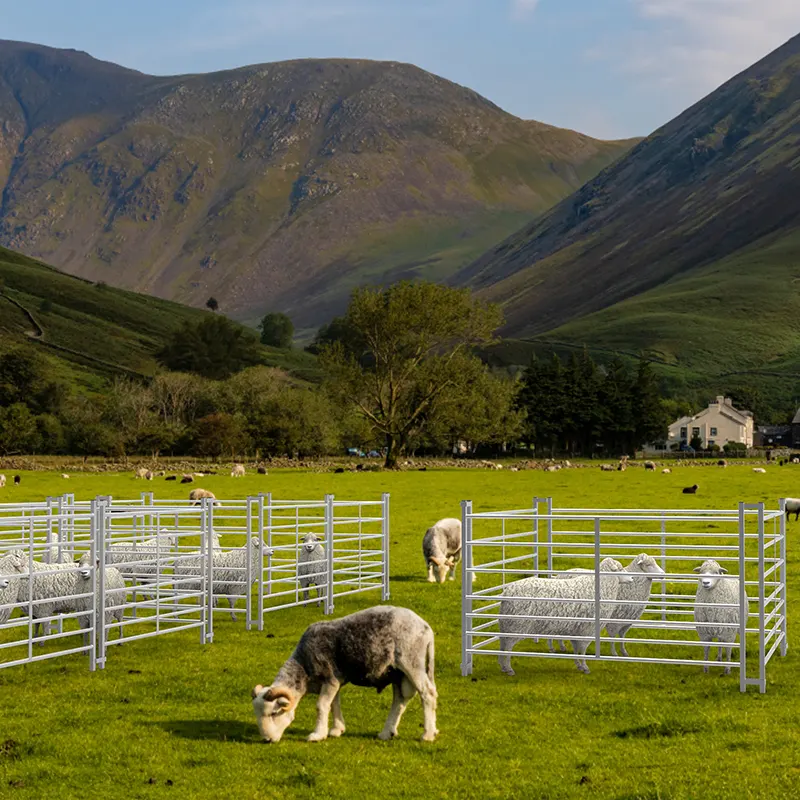

4ft Portable Sheep Panels — Applications
 |  |
 |  |
- Sheep Enclosures: Build secure pens with good visibility and ventilation.
- Pasture Dividers: Create rotational grazing cells to improve pasture health.
- Temporary Fencing: Ideal for livestock shows, fairs and moves between paddocks.
You May Want To Know About the Sheep Fence Panels (FAQ)
Q: What are the dimensions of the 4ft sheep fence panels?
A: Common sizes include 4ft × 3ft, 5ft × 3ft, 6ft × 3ft and 8ft × 3ft. POLYMETAL also supports custom dimensions for portable sheep panels.
Q: Can the portable sheep hurdle panels be customised?
A: Yes. We offer custom options for size, colour and design so you can match yard layouts and handling needs.
Q: Are the products easy to assemble and disassemble?
A: Yes. Our portable sheep panels use pin/hoop interlocks for quick, secure connections — no special tools required.
Q: Can the product be used for other livestock?
A: Primarily designed for sheep and goats, and suitable for other small to medium livestock (e.g., pigs, calves) depending on panel spacing.
Q: What is the typical price range?
A: Pricing varies by size, material and custom options. Please contact POLYMETAL for a quote.
Q: How long is the delivery time?
A: Lead times depend on order quantity and customisation. We’ll confirm an accurate schedule when you place your order.
