POLYMETAL manufactures powder coated clear view fence systems engineered for long-term security and visibility. Our panels combine a zinc-aluminium corrosion-protection base (aligned to SANS 10244-2 expectations for many projects) with a premium powder-coated top layer for clean appearance, strong colour retention, and extended service life.

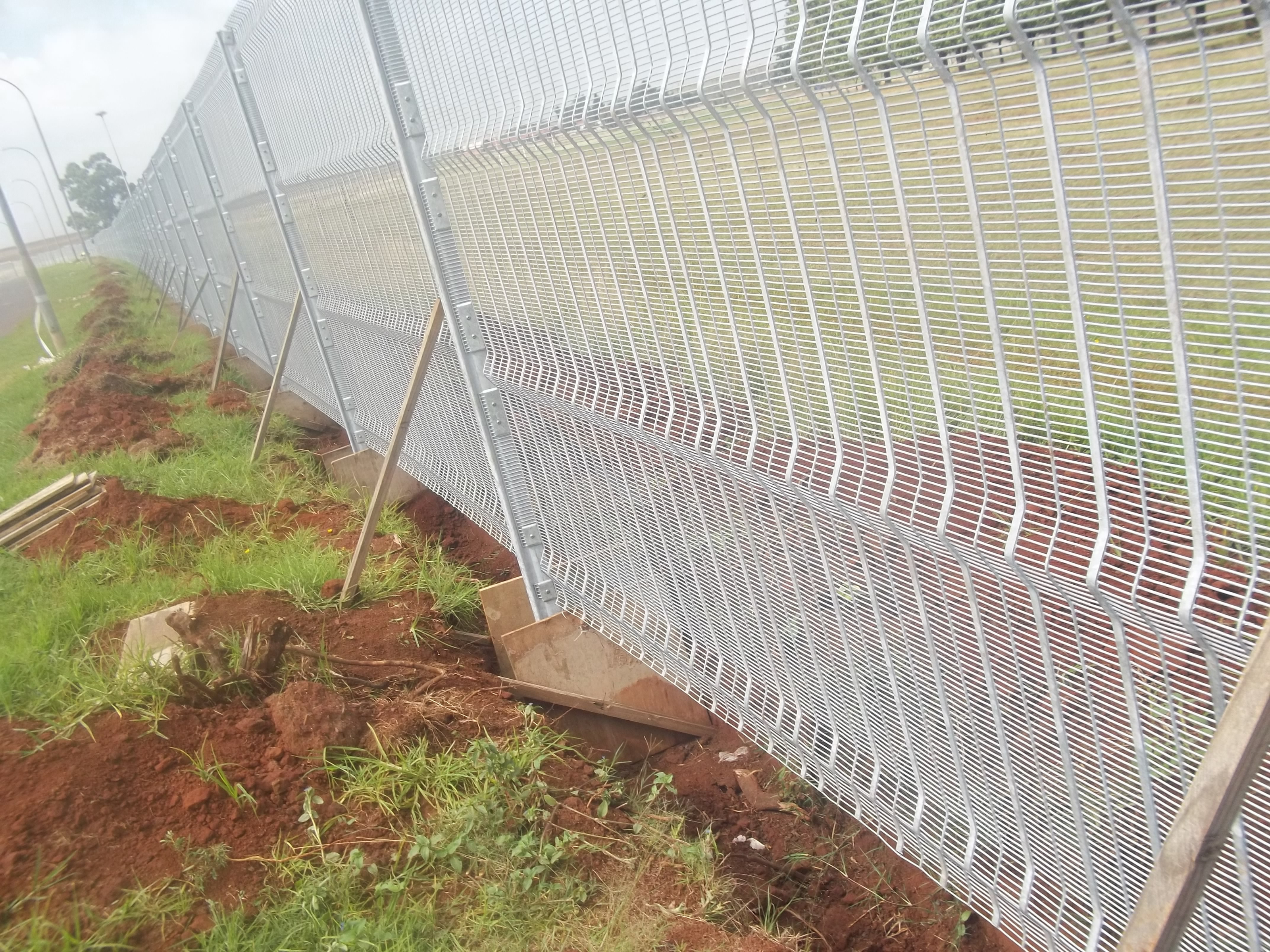

Also known as “see-through” or “clear view” fencing, these welded mesh panels use tight apertures and rigid welds to discourage climbing and cutting while maintaining excellent sightlines for CCTV and patrol observation. The result is a high-security boundary that stays visually open—no blocked views and fewer blind spots, and if your project also needs temporary perimeter management you can read temp fence blocks: 7 powerful tips.
Long-Life Corrosion Protection: Zn-Al Base + Powder Top Coat
Our corrosion system is built around a zinc/aluminium mix (95% Zn, 5% Al), designed to outperform standard galvanizing in harsh outdoor environments. Over the metallic base, POLYMETAL applies a durable powder coating (typical 60–80 microns) for weather resistance and an even, professional finish.
This powder coated clear view fence solution is widely selected for coastal zones and industrial areas where moisture, salts, and airborne contaminants accelerate corrosion. For colour performance, we use industry-proven powder systems to help maintain a consistent look under UV exposure and daily weathering, and you can also review razor wire mesh price for related perimeter budgeting guidance.
Powder Coated Clear View Fence Panels Specifications
Below is a practical specification baseline. POLYMETAL can customize panel width, bend quantity, posts, clamps, and coating packages to match BOQ/RFQ requirements.
| Fence Height (mm) | Fence Width A (mm) | Mesh Aperture 1 High Security (mm) | Mesh Aperture 2 Medium Security (mm) | Mesh Aperture 3 Low Security (mm) | Wire Diameter (mm) | V Folds | Fence Width Options (mm) |
|---|---|---|---|---|---|---|---|
| 1200 | 2900 | 12.7 x 76.2 | 25 x 75 | 50 x 76 | 3 / 4 4/5.6 | 2 x 50mm depth | 2950 / 3000 / 3050 |
| 1500 | 2900 | 12.7 x 76.2 | 25 x 75 | 50 x 76 | 3 / 4 4/5.6 | 3 x 50mm depth | 2950 / 3000 / 3050 |
| 1800 | 2900 | 12.7 x 76.2 | 25 x 75 | 50 x 76 | 3 / 4 4/5.6 | 4 x 50mm depth | 2950 / 3000 / 3050 |
| 2000 | 2900 | 12.7 x 76.2 | 25 x 75 | 50 x 76 | 3 / 4 4/5.6 | 4 x 50mm depth | 2950 / 3000 / 3050 |
| 2100 | 2900 | 12.7 x 76.2 | 25 x 75 | 50 x 76 | 3 / 4 4/5.6 | 4 x 50mm depth | 2950 / 3000 / 3050 |
| 2200 | 2900 | 12.7 x 76.2 | 25 x 75 | 50 x 76 | 3 / 4 4/5.6 | 4 x 50mm depth | 2950 / 3000 / 3050 |
| 2300 | 2900 | 12.7 x 76.2 | 25 x 75 | 50 x 76 | 3 / 4 4/5.6 | 4 x 50mm depth | 2950 / 3000 / 3050 |
| 2400 | 2900 | 12.7 x 76.2 | 25 x 75 | 50 x 76 | 3 / 4 4/5.6 | 4 x 50mm depth | 2950 / 3000 / 3050 |
| 3000 | 2900 | 12.7 x 76.2 | 25 x 75 | 50 x 76 | 3 / 4 4/5.6 | 4 x 50mm depth | 2950 / 3000 / 3050 |
Fencing Post Specifications for Heights 1200mm, 1500mm, and 1800mm
| Fence Height | Post Length Options (mm) | Tapering Post A (mm) | Tapering Post B (mm) | Square Post (mm) | Rectangle Post (mm) | I Post (mm) | IPE Post (mm) | C Post (mm) | T Post (mm) | Wall Thickness (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1200mm | 1800, 2300, 2500, 2700 | 85 x 45, Depth: 85 | 150 x 75 x 150 | 60×60, 76×76, 80×80, 100×100 | 60×80, 80×100, 100×150 | 70×44, 55×100 | 55×100, 100×68, 74×120 | 60×80, 80×100, 100×150 | 100×60, 76×40 | 1.6 – 6.0 |
| 1500mm | 2100, 2600, 2800, 3000 | 85 x 45, Depth: 85 | 150 x 75 x 150 | 60×60, 76×76, 80×80, 100×100 | 60×80, 80×100, 100×150 | 70×44, 55×100 | 55×100, 100×68, 74×120 | 60×80, 80×100, 100×150 | 100×60, 76×40 | 1.6 – 6.0 |
| 1800mm | 2400, 2900, 3100, 3300 | 85 x 45, Depth: 85 | 150 x 75 x 150 | 60×60, 76×76, 80×80, 100×100 | 60×80, 80×100, 100×150 | 70×44, 55×100 | 55×100, 100×68, 74×120 | 60×80, 80×100, 100×150 | 100×60, 76×40 | 1.6 – 6.0 |
Powder Coated Clear View Fence Post Specifications for Heights 2000mm, 2100mm, and 2200mm
| Fence Height | Post Length Options (mm) | Tapering Post A (mm) | Tapering Post B (mm) | Square Post (mm) | Rectangle Post (mm) | I Post (mm) | IPE Post (mm) | C Post (mm) | T Post (mm) | Wall Thickness (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2000mm | 2600, 3100, 3300, 2300 | 85 x 45, Depth: 85 | 150 x 75 x 150 | 60×60, 76×76, 80×80, 100×100 | 60×80, 80×100, 100×150 | 70×44, 55×100 | 55×100, 100×68, 74×120 | 60×80, 80×100, 100×150 | 100×60, 76×40 | 1.6 – 6.0 |
| 2100mm | 2700, 3200, 3400, 3600 | 85 x 45, Depth: 85 | 150 x 75 x 150 | 60×60, 76×76, 80×80, 100×100 | 60×80, 80×100, 100×150 | 70×44, 55×100 | 55×100, 100×68, 74×120 | 60×80, 80×100, 100×150 | 100×60, 76×40 | 1.6 – 6.0 |
| 2200mm | 2800, 2300, 3500, 3700 | 85 x 45, Depth: 85 | 150 x 75 x 150 | 60×60, 76×76, 80×80, 100×100 | 60×80, 80×100, 100×150 | 70×44, 55×100 | 55×100, 100×68, 74×120 | 60×80, 80×100, 100×150 | 100×60, 76×40 | 1.6 – 6.0 |
Fencing Post Specifications for Heights 2300mm, 2400mm, and 3000mm
| Fence Height | Post Length Options (mm) | Tapering Post A (mm) | Tapering Post B (mm) | Square Post (mm) | Rectangle Post (mm) | I Post (mm) | IPE Post (mm) | C Post (mm) | T Post (mm) | Wall Thickness (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2300mm | 2900, 2400, 3600, 3800 | 85 x 45, Depth: 85 | 150 x 75 x 150 | 60×60, 76×76, 80×80, 100×100 | 60×80, 80×100, 100×150 | 70x44x2, 55×100 | 55×100, 100×68, 74×120 | 60×80, 80×100, 100×150 | 100×60, 76×40 | 1.6 – 6.0 |
| 2400mm | 3000, 3500, 3700, 3900 | 85 x 45, Depth: 85 | 150 x 75 x 150 | 60×60, 76×76, 80×80, 100×100 | 60×80, 80×100, 100×150 | 70x44x2, 55×100 | 55×100, 100×68, 74×120 | 60×80, 80×100, 100×150 | 100×60, 76×40 | 1.6 – 6.0 |
| 3000mm | 3600, 4100, 4300, 4500 | 85 x 45, Depth: 85 | 150 x 75 x 150 | 60×60, 76×76, 80×80, 100×100 | 60×80, 80×100, 100×150 | 70x44x2, 55×100 | 55×100, 100×68, 74×120 | 60×80, 80×100, 100×150 | 100×60, 76×40 | 1.6 – 6.0 |
Wire Specifications
| Wire Diameter (Vertical x Horizontal) | Aperture (mm) | Tensile Strength (MPa) | Weld Strength (%) |
|---|---|---|---|
| 5.6mm x 4mm | 75mm x 12.7mm | 500 – 650 | 60% – 80% |
| 4mm x 3mm | 75mm x 25mm | 500 – 650 | 60% – 80% |
| 4mm x 3mm | 75mm x 50mm | 500 – 650 | 60% – 80% |
Powder Coated Clear View Fence Zinc Coating Options
| Wire Diameter | Lightly Galvanised (g/m²) | Fully Galvanised (g/m²) | Galfan Coated (g/m²) |
|---|---|---|---|
| 5.60mm | 80 | 290 | 220 |
| 4.00mm | 60 | 275 | 220 |
| 4.00mm | 50 | 255 | 195 |
Powder Coated Clear View Fence Color Coatings Options
| Coating Type | Specification | Component Composition |
|---|---|---|
| Powder Coating | 60-80 microns | N/A |
| Thermoplastic | 250 microns min. | N/A |
| Zinc/Aluminium Mix | N/A | 95% Zinc, 5% Aluminium |
Materials
POLYMETAL sources fencing steel in compliance with common international steel grading expectations used in welded mesh manufacturing. If your BOQ specifies particular grades (e.g., Q195/Q235 equivalents), please advise and we will confirm mill certificates and test documentation per project requirements.
Security Powder Coated Clear View Fence Options for Different Applications
POLYMETAL can supply multiple clear-view security levels by aperture and wire diameter. Choose the best option based on your risk level, site exposure, and required service life.

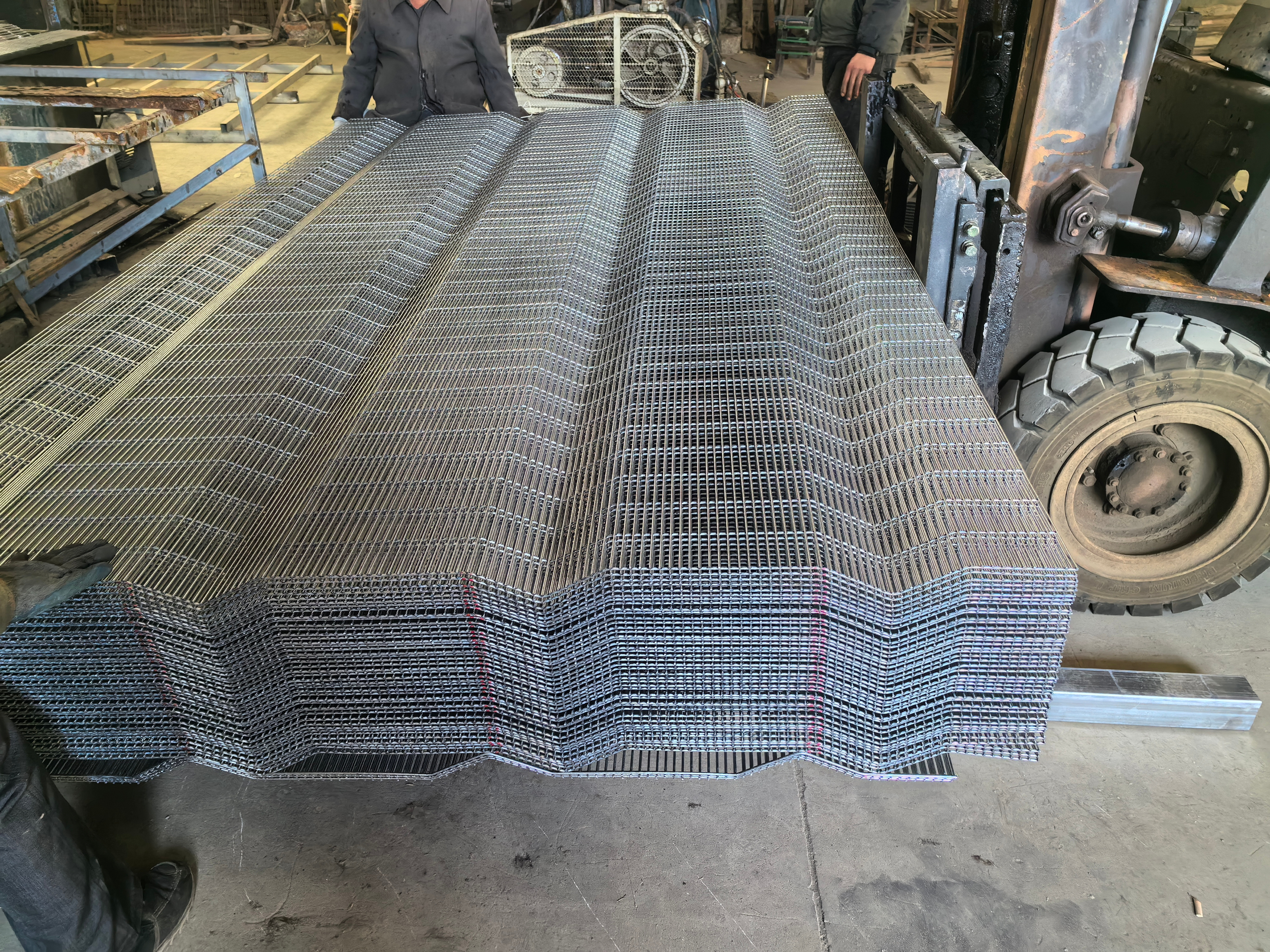

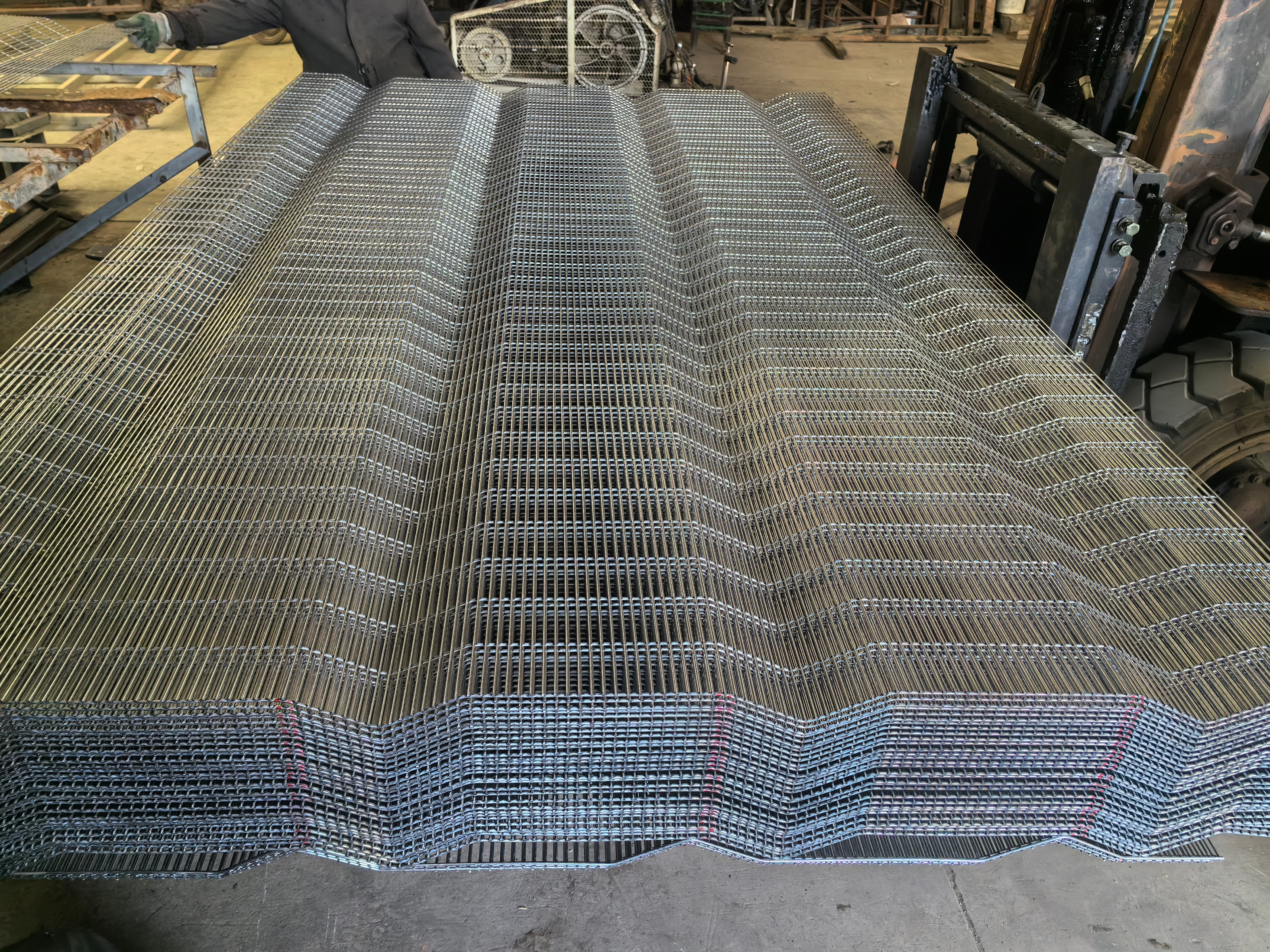

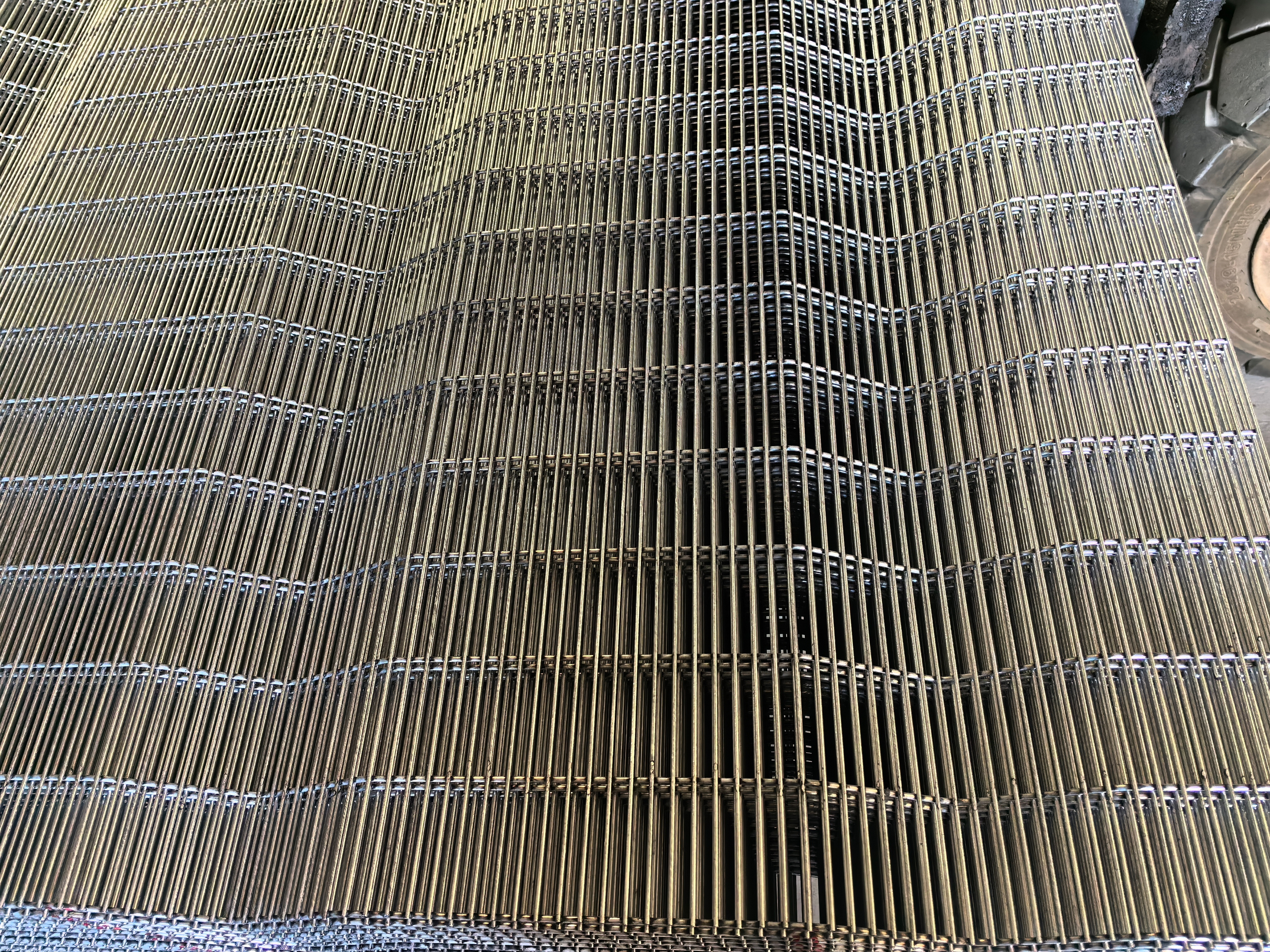

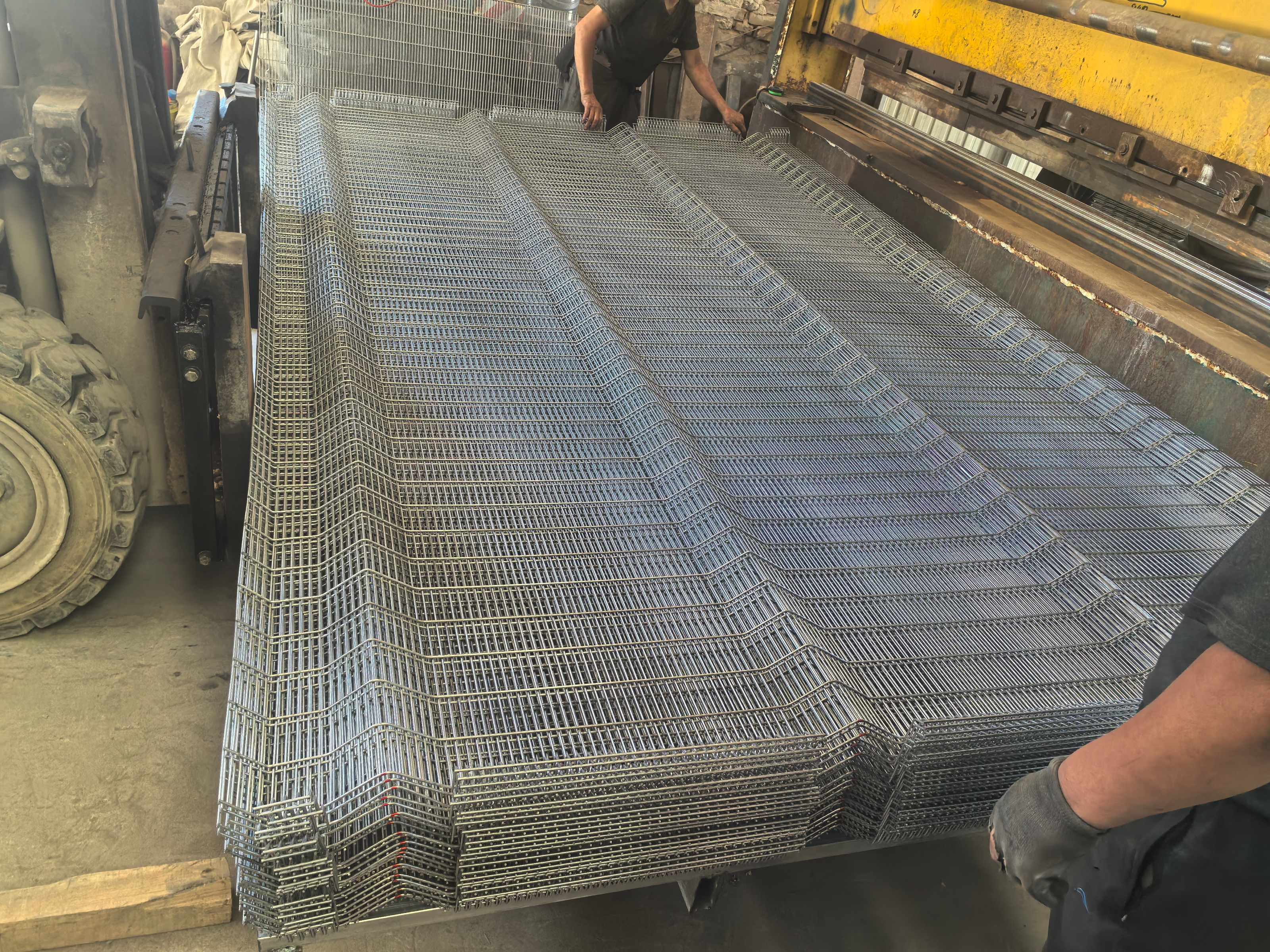

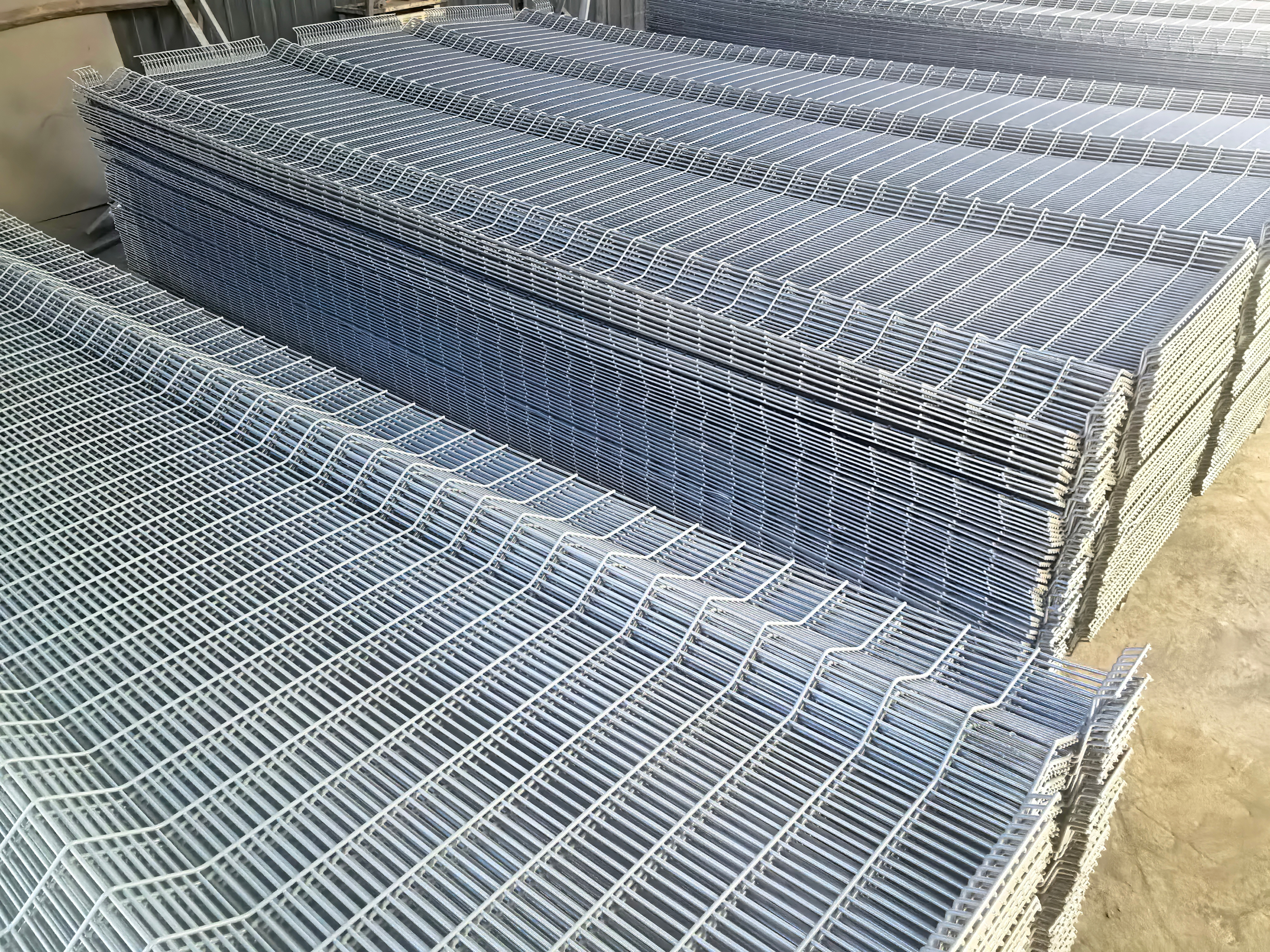

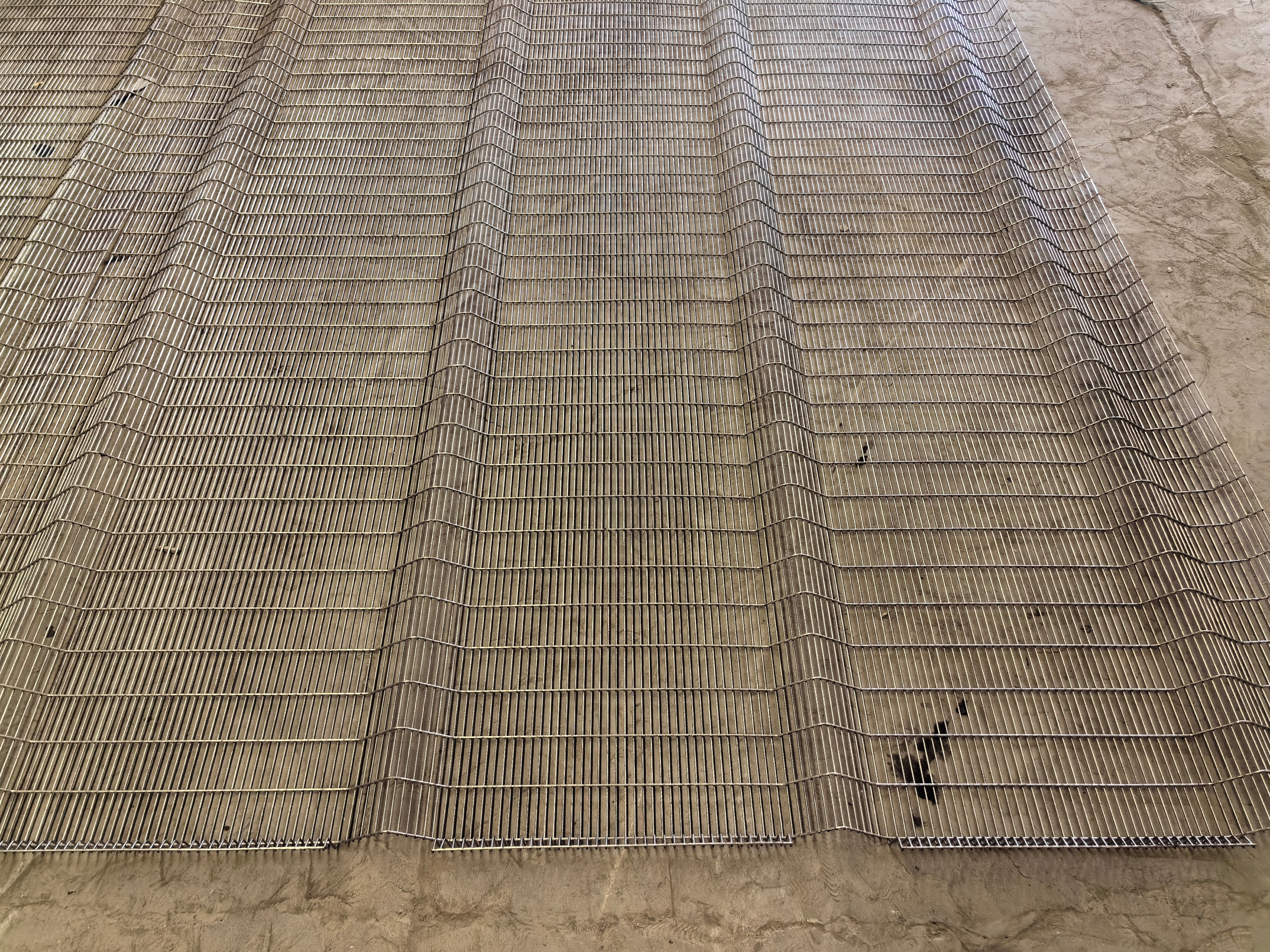

Option 1: High-Security Powder Coated Clear View Fence (Bended Panels)
A high-security, see-through welded mesh design with bends to increase rigidity is suitable for high-risk areas and premium perimeter projects. Typical high-security aperture is 76.2 x 12.7mm with common wire combinations such as 4.0mm vertical and 3.0mm horizontal (project-dependent).
Option 2: Economic Clear View Fence (Light-Duty Wire)
A cost-effective solution for long-distance perimeters where visual openness is required uses the same clear-view concept with a lighter wire selection for improved pricing.
Option 3: Wide-Aperture See-Through Fence for Long Runs
For long boundary lines where budget is the priority, wider apertures (e.g., 200 x 50mm) can reduce material weight while maintaining a see-through appearance.
Key Features of POLYMETAL Powder Coated Clear View Fence
- High rigidity and security level (tight apertures + welded mesh)

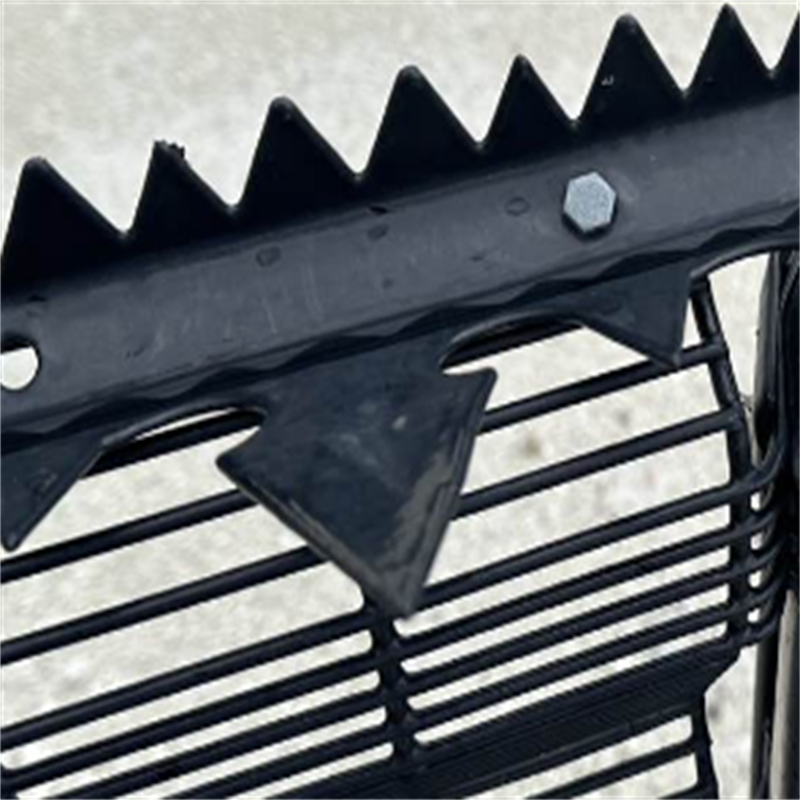

- Compatible with barbed wire or razor wire additions
- Difficult to climb and cut due to dense wire spacing
- Anti-finger / anti-reach-through performance (aperture dependent)
- Excellent corrosion resistance with Zn-Al base + powder coat
- Maintains clear sightlines for CCTV and patrol monitoring
- Available in multiple RAL colours
- Easy delivery and installation with matched posts and brackets
- Long service life with low maintenance
Typical Applications Powder Coated Clear View Fence
- Power facilities and substations
- Wind farms and solar plants
- Landfills and utility sites
- Correctional facilities and military zones
- Airports and railway corridors
- Industrial zones and logistics yards
- Residential estates and factory boundary lines
Conclusion: Powder Coated Clear View Fence
A powder coated clear view fence from POLYMETAL is a smart long-term choice for high-security perimeters that must remain visually open. With a durable Zn-Al base coat and a premium powder-coated finish, the system delivers strong corrosion resistance, clean appearance, and reliable service life in demanding environments. Share your BOQ (heights, apertures, wire sizes, post types, coating targets, and RAL colour), and POLYMETAL will provide a complete system quotation: panels + posts + clamps + anti-tamper fixings.
