SNS Wire Rope Slope Protection Mesh – 5 Essential Features

SNS Wire Rope Slope Protection Mesh is specially designed to prevent rocks and debris from falling onto roads, railways and other important infrastructure. It also helps to control various slope-related geological hazards, such as snow slides, slope erosion and flying rocks. In a typical system, the wire mesh for slope protection consists of two layers: the inner layer is gabion mesh or chain link mesh, and the outer layer is stainless steel knotted rope mesh or stainless steel ferrule rope mesh. The mesh is unrolled or draped over the slope and firmly fixed with anchor bolts. In this way, loose rocks and soil are contained and guided to the foot of the slope behind the SNS Wire Rope Slope Protection Mesh instead of falling directly onto the road, which greatly improves the safety of passengers and vehicles.

What Is Rockfall Slope Protection Mesh?

Rockfall Slope Protection Mesh refers to a range of active rockfall protection systems installed and anchored directly onto mountain or slope surfaces. Compared with passive rockfall barrier systems, which are installed beside the road to catch falling rocks, active systems cover the slope surface to prevent stones and soil from detaching and falling.This type of system is widely used for slope protection, mountain protection, vegetation protection and road protection, effectively reducing damage caused by natural disasters such as rockfalls and landslides.

Common types of rockfall protection mesh include:

• Chain link mesh
• Wire rope mesh
• Spider spiral rope mesh
• Hexagonal mesh

Rockfall Debris Flow Network

The rockfall debris flow network is made of 3 mm high-strength steel wire with a tensile strength of at least 1770 N/mm². Thanks to its flexible structure, the debris flow netting adapts perfectly to the terrain and provides excellent energy absorption under concentrated loads.To absorb impact energies from 250 to 8000 KJ, 5 to 19 strands of steel wire are bundled into rings with a diameter of 300 or 350 mm. A secondary fine mesh can be added to block softer rocks and smaller stones, providing multi-level protection.

The main components of the rockfall network typically include:

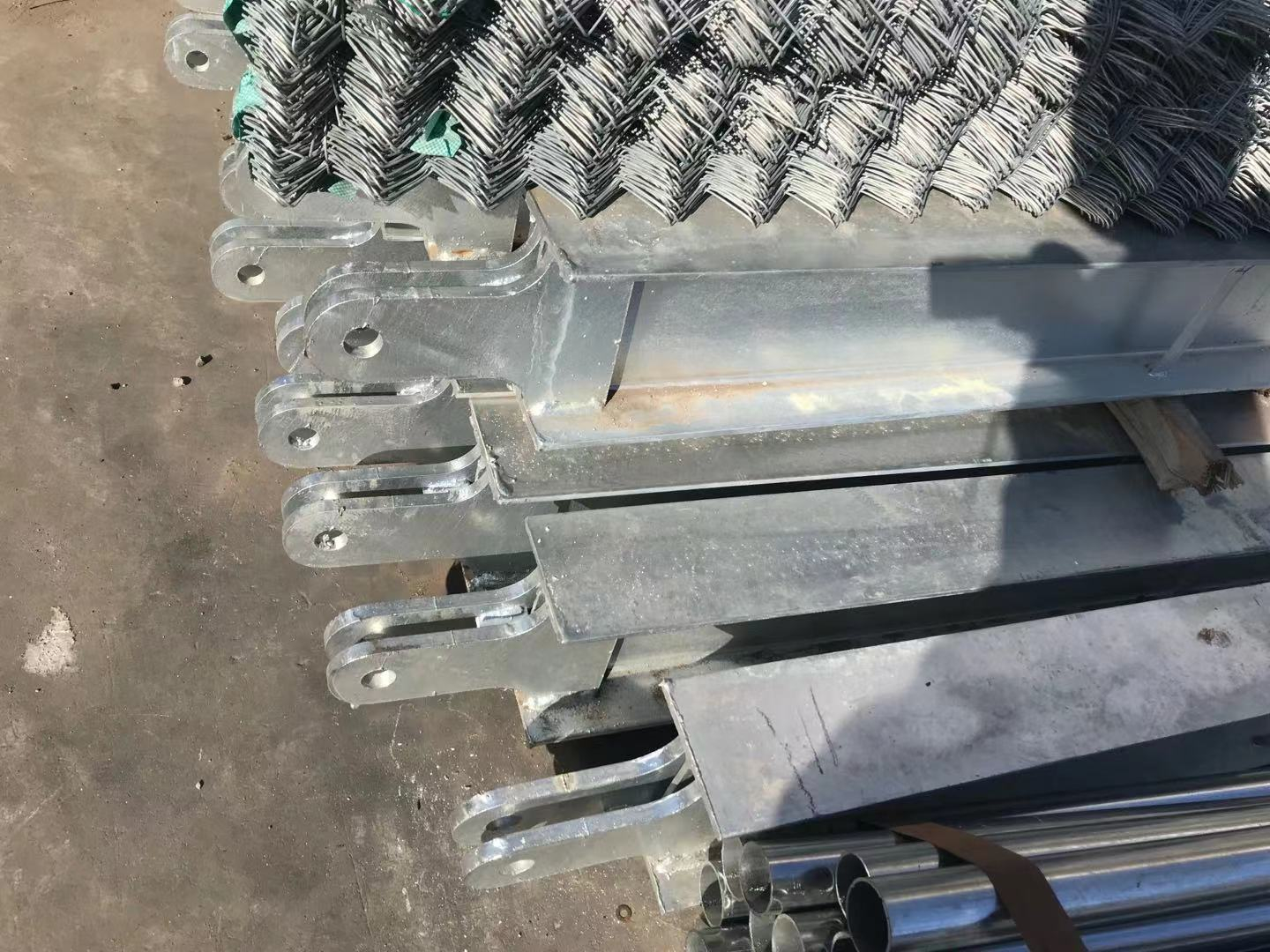

• Base plates and posts
• Energy-dissipating brakes
• Rope anchorages and anchors

Rockfall netting is suitable for rockfall control, landslides, debris flow protection, shallow landslides
and avalanche mitigation.

Key Advantages of SNS Wire Rope Slope Protection Mesh

01. High-Quality Steel Wire

SNS Wire Rope Slope Protection Mesh uses hot-dip galvanized steel wire rope as the main raw material.Through precise mechanical processing, a durable and reliable slope protection net is formed, offering long-term protection under harsh outdoor conditions.

02. High-Quality Metal Buckles

The connection points between the steel wire ropes are securely fixed with high-quality metal buckles.This ensures strong joints, a stable structure and excellent performance under impact loads on steep slopes.

03. Strict Quality Inspection

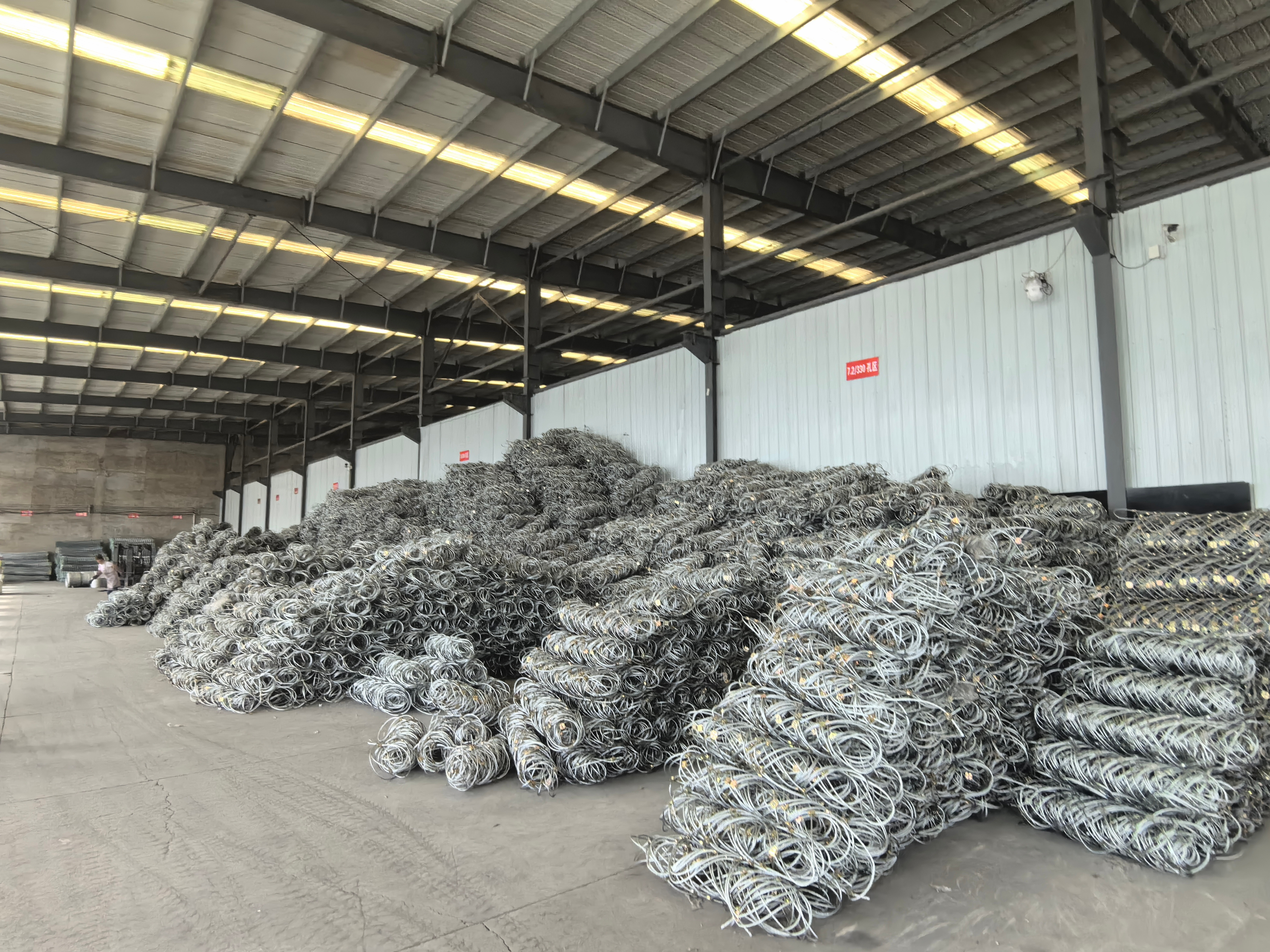

Each batch of SNS Wire Rope Slope Protection Mesh is tested before delivery. Only when all sizes,mechanical properties and surface treatments meet the standards will the products be shipped. With products kept in stock, fast and reliable delivery can be guaranteed for urgent projects.

Rockfall Debris Flow Netting – Main Features

• High tensile strength combined with excellent flexibility.
• Energy absorption capacity up to 8000 KJ.
• Flexible application range for different terrains and slope geometries.
• Quick and easy installation, reducing labor and construction time.
• Minimal maintenance requirements and long service life.

Rockfall Protection Netting – Technical Data

Wire Rope Net Solutions for Rock and Slope Stabilization

For rock and slope stabilization projects, SNS Wire Rope Slope Protection Mesh can be combined with different wire rope net solutions to suit specific engineering requirements.

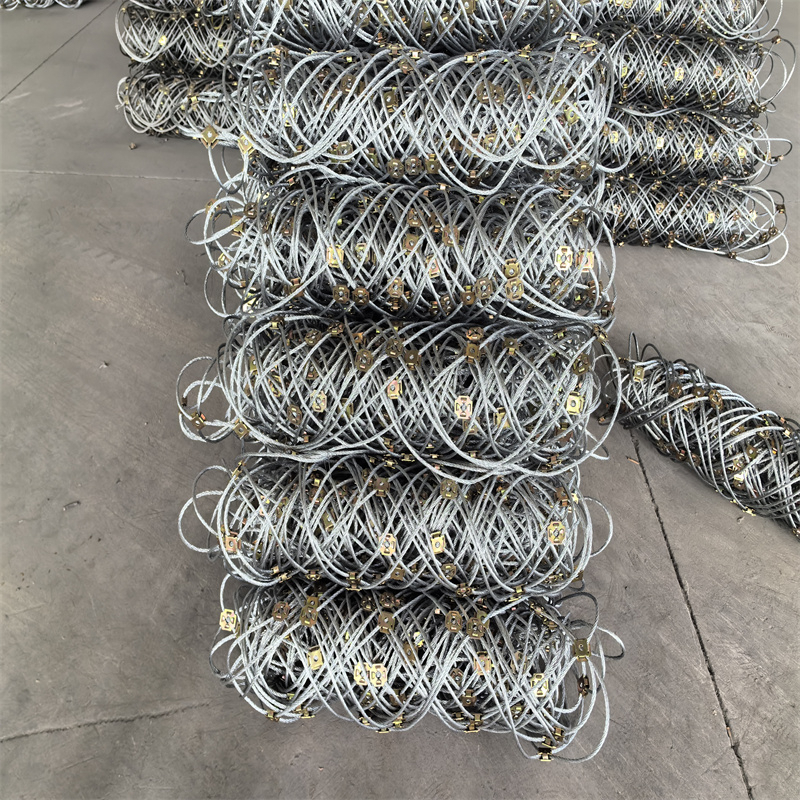

1. Wire Rope Net

Steel wire rope net is one of the most commonly used rockfall barriers, including galvanized wire rope net and PVC-coated wire rope net. The wire ropes intersect and are fixed by clips, providing significantly
higher tensile strength than single steel wires.Wire rope nets can be used alone to block large rocks, or combined with chain link mesh or hexagonal wire mesh to intercept both large and small stones. This combination offers comprehensive protection for slopes in complex environments.

• Material: High carbon steel, stainless steel 304 316 etc.
• Surface treatment: Galvanized or PVC coated.
• Wire rope diameter: 8–20 mm.
• Wire rope mesh size: 20 × 20 – 360 × 360 mm.
• Standard panel size: 4 m × 4 m, 4.5 m × 4.5 m.
• Supporting rope diameter: 12 mm, 16 mm.
• Sewing rope diameter: 8 mm.

Material	Stainless steel wire mesh, steel rope
Feature	Fixed by wire rope bolts and/or support ropes through steel anchors (prestressed) and cable anchor rods, with special anchor plates and edge support where necessary to ensure overall stability.
Usage	The system is mainly composed of flexible mesh covering the side slope with potential geological hazards, thereby achieving effective protection and stabilization of the slope surface.
Mesh type	Woven
Advantage	1. High flexibility, high protection strength and easy to spread, adapting to almost any slope topography with standardized and systematized installation procedures. 2. Using modular installation methods, the construction period is short and overall construction cost is reduced.

Galvanized Wire Rope Net Rockfall Barrier

Galvanized wire rope net is one of the most commonly used rockfall barrier systems. It is manufactured from hot-dip galvanized steel wire rope. The intersecting wire ropes are clamped and fixed with special clips, which gives the mesh much higher tensile strength than ordinary steel wire meshes.Galvanized wire rope net can be used on its own or in combination with a chain link fence or hexagonal wire mesh. When it is used alone, it is ideal for high and steep rock faces where the stones are large and the impact energy is very high. When it is combined with a chain link fence or hexagonal wire mesh, it is suitable for loose mountains or slopes with many small stones. In this case, the inner chain link or hexagonal mesh stops the small stones, while the outer galvanized wire rope net absorbs and transfers the main impact load.

Components

• Galvanized wire rope net.
  The main component of the steel wire rope rockfall barrier system. It is woven from 8 mm steel wire rope into a diamond-shaped wire rope mesh. The steel wire rope provides high tensile strength and excellent load-bearing capacity.
• Chain link fence.
  Chain link fence is used together with the galvanized wire rope net to compensate for the limitation of larger openings. It is installed behind or inside the wire rope net to block smaller stones from falling. The chain link mesh is made from hot-dip galvanized steel wire for corrosion and rust resistance.
• Wire rope anchor.
  Made of steel wire rope, the wire rope anchor fastens the galvanized wire rope net and chain link mesh securely to the rock face. Compared with concrete anchors, wire rope anchors have higher tensile strength and better flexibility.
• Supporting rope.
  Supporting ropes are placed along the edges and inside the galvanized wire rope net to share the load and distribute the pressure of the system. They are also made from 8 mm steel wire rope, ensuring high load capacity and tensile strength.
• Sewing rope.
  Sewing ropes connect adjacent wire rope panels and form a continuous protective system on the mountain or slope. Made from 8 mm steel wire rope, sewing ropes provide high loading capacity and prevent stone
  leakage at the joints.

GWRN-01: Galvanized wire rope net is the most common rockfall barrier type.

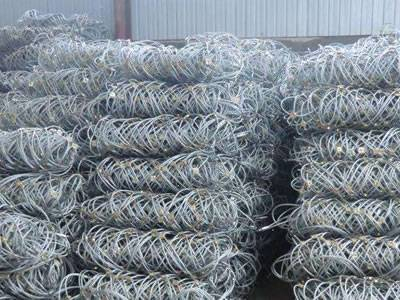

GWRN-02: Galvanized wire rope net.

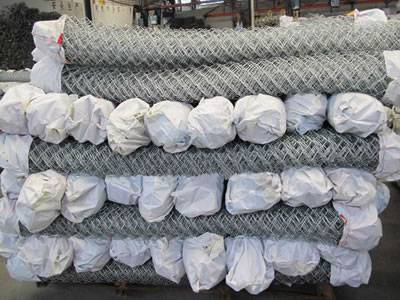

GWRN-03: Chain link meshes used as secondary protection.

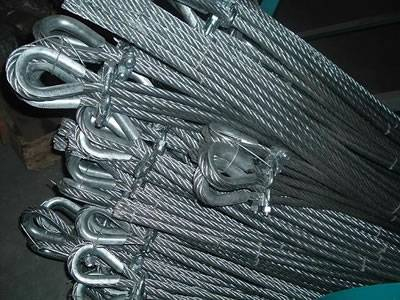

GWRN-04: Wire rope anchor.

GWRN-05: Sewing rope.

Features of SNS Wire Rope Slope Protection Mesh

• High tensile strength and excellent impact resistance.
• Suitable for both active and passive rockfall protection systems.
• High load capacity for large stones and high-energy impacts.
• Environmentally friendly and visually blends into natural surroundings.
• Corrosion and rust resistance thanks to hot-dip galvanized surface treatment.
• Durable with a long service life, even in harsh climates and under repeated impacts.

Applications of Galvanized Wire Rope Net

Galvanized wire rope net can be used in both active rockfall barrier systems and passive rockfall barrier systems.

• Widely used on mountains and slopes to prevent stones from falling onto roads, railways and other
  infrastructure.
• Helps to prevent landslides, debris flows, snow avalanches and other natural hazards, thereby
  protecting people, vehicles and property.

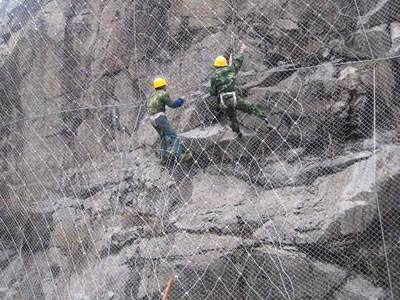

GWRN-06: Active galvanized wire rope net system.

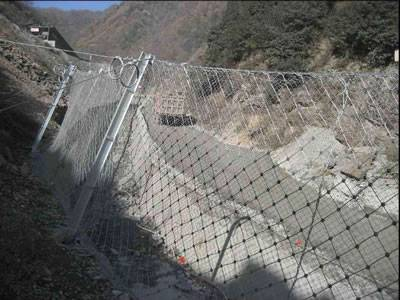

GWRN-07: Passive galvanized wire rope net system.

Specifications of  SNS Wire Rope Slope Protection Mesh

• Material: hot-dip galvanized steel wire rope.
• Steel wire rope diameter: 8 mm.
• Steel wire rope mesh size: 300 mm × 300 mm.
• Chain link mesh wire diameter: 2.2 mm.
• Chain link mesh size: 50 mm × 50 mm.
• Supporting rope diameter: 12 mm or 16 mm.
• Sewing rope diameter: 8 mm.

Opening (mm)	Wire diameter (metal wire) (mm)	Wire diameter (PVC coated) inner/outside (mm)	Strands
60 × 80	Ø2.0–2.8	Ø2.0/3.0–2.5/3.5	3
80 × 100	Ø2.0–3.2	Ø2.0/3.0–2.8/3.8	3
80 × 120	Ø2.0–3.2	Ø2.0/3.0–2.8/3.8	3
100 × 120	Ø2.0–3.4	Ø2.0/3.0–2.8/3.8	3
100 × 150	Ø2.0–3.4	Ø2.0/3.0–2.8/3.8	3
120 × 150	Ø2.0–4.0	Ø2.0/3.0–3.0/4.0	3

Features of Wire Mesh for Slope Protection

• The original slope geometry is maintained.
• Re-vegetation of the slope surface is possible.
• Prevents buildup of water pressure behind the mesh.
• More aesthetically pleasing than many conventional protection measures.

Applications of SNS Wire Rope Slope Protection Mesh

SNS Wire Rope Slope Protection Mesh is ideal for:

• Local stability of natural and cut slopes
• Rockfall protection along roads and railways
• Landslide and debris flow mitigation
• Shallow landslide and surface erosion control

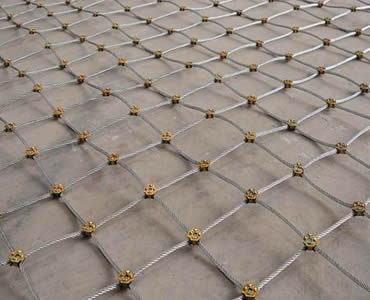

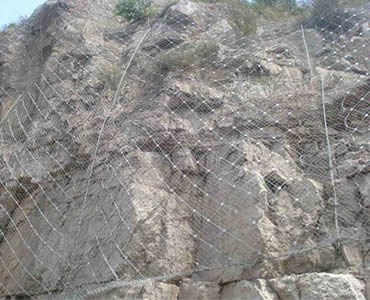

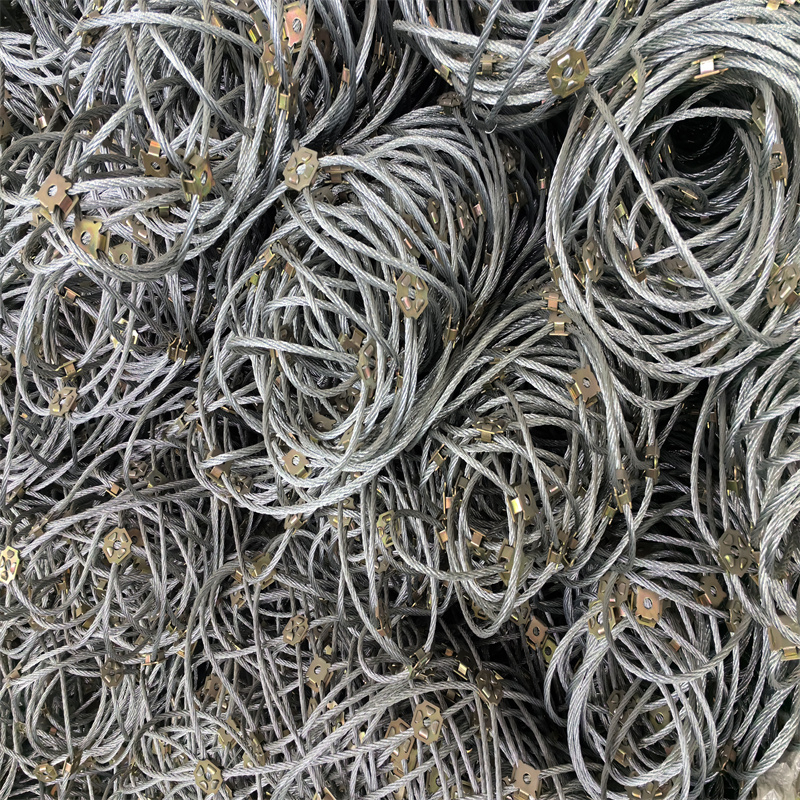

Cross clamps securely combine stainless steel ropes to form a solid and firm slope protection mesh.	The slope protection rope mesh controls falling rocks and guides them safely to the foot of the slope.	Slope protection rope mesh prevents rocks from falling onto the railway and ensures the safe passage of trains.

Additional Advantages of  SNS Wire Rope Slope Protection Mesh

• Simple installation and easy to spread on the slope surface.
• High flexibility – mesh size can be customized according to the slope geometry.
• Soft structure combined with high protective strength.
• Excellent adaptability to steep and irregular terrains.
• Good resistance to corrosion and long working life.
• Easy to repair and almost maintenance-free during service.

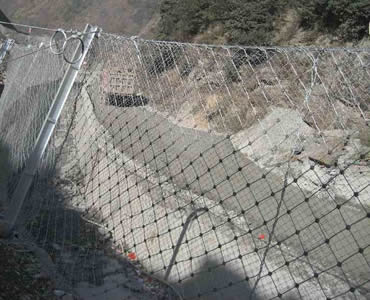

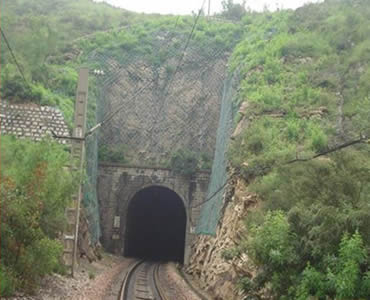

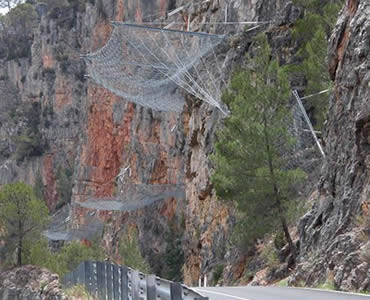

Slope protection rope mesh installed at the foot of the slope prevents rocks from rolling onto the road.	Vertically installed rope mesh collects falling rocks and protects expressways from rockfall damage.	Wire mesh for slope protection ensures that trains can travel safely along the railway line.	Wire mesh for slope protection is easy to spread over the slope, making installation fast and efficient.
