Spear Top Steel Fence Panels: Power Guide to Top 10 Traps

Spear top steel fence panels are selected when projects need an architectural “security presence” that still looks clean on public-facing boundaries. The spear-top profile discourages climbing and adds a strong anti-entry signal, while the tubular panel format delivers repeatable installation and consistent straight lines across long runs. On real sites, success is measured by one thing: whether the fence line stays aligned after transport handling, wind exposure, daily vibration, and pressure at corners and gate zones.

POLYMETAL manufactures spear top steel fence panels as controlled modules so rail frame size, rail thickness, upright (picket) size, upright thickness, upright spacing, post selection, and finish protection remain consistent across the run. That consistency prevents the classic jobsite nightmare: panels that arrive looking fine, then show wave-lines, loose fixings, bent pickets, or early corrosion once installed—especially on projects that also rely on modular perimeter control like Australian temporary fencing during early construction stages.

Why Buyers Choose Spear Top Steel Fence Panels

Security presence without blocking sight lines

Spear top steel fence panels keep visibility for supervision while still presenting a strong “no easy entry” signal. Real security is not just height—it’s rail stiffness, picket spacing discipline, and posts that resist leverage at corners, ends, and gate bays.

Professional appearance that stays straight

For schools, commercial frontage, parks, factories, and public assets, a straight spear-top line looks controlled. A fence that rattles, leans, or shows uneven spacing looks weak and gets tested.

Long-life finish when the base protection is right

Hot-dip galvanizing and powder coating are used to fight corrosion and preserve appearance. If the order focuses only on color and ignores coating discipline and handling protection, “low maintenance” becomes early rework.

Top 10 High-Risk Traps for Spear Top Steel Fence Panels Orders

Each trap below looks minor on a purchase order—but becomes expensive once posts are set and the fence line must stay straight. Pay special attention to #7, because that is where many buyers suffer the biggest loss.

Trap #1: Buying “spear top panels” without locking the rail frame size

If you don’t lock 40×40 vs 45×45 vs 50×50, suppliers can substitute lighter rails that flex under wind and vibration. That flex becomes visible wave-lines across long runs.

Trap #2: Choosing rail thickness for price instead of stiffness

Rails are the spine. If thickness is downgraded (1.6mm when the site needs 2.0–2.5mm), rails can oil-can under pressure and loosen fixings over time.

Trap #3: Ignoring upright size and thickness, then watching pickets bend

16×16, 25×25, and 30×30 uprights look similar from a distance but behave differently under handling and impact. Thin uprights deform first and make the fence look repaired immediately.

Trap #4: Treating picket spacing as “close enough”

If you don’t lock upright number and spacing (16pcs/115mm, 17pcs/108mm, 18pcs/100mm), you can receive wider spacing that reduces security feel and creates panel-to-panel inconsistency.

Trap #5: Ordering fence height without enforcing the post height rule

A fence becomes a lever if posts are too short. The safe rule is: post height = fence panel height + 600mm so embed depth can resist wind and leverage over time.

Trap #6: Choosing posts by appearance instead of load

If a higher fence is paired with undersized posts or thin post walls, the fence can look fine on day one and then lean after wind events and vibration cycles.

Trap #7: Cutting corners on corrosion protection—then rust starts where stress is highest

This is the biggest loss point. Corrosion begins at welds, cut points, drill points, and stressed joints—then spreads under coating. Once rust blooms, panels become replacement stock fast, especially when posts are already set.

Trap #8: Specifying “powder coating” without locking the full finish system

A color coat is not corrosion protection by itself. If galvanizing level and coating discipline are not locked, performance varies wildly between suppliers even when the fence looks identical in photos.

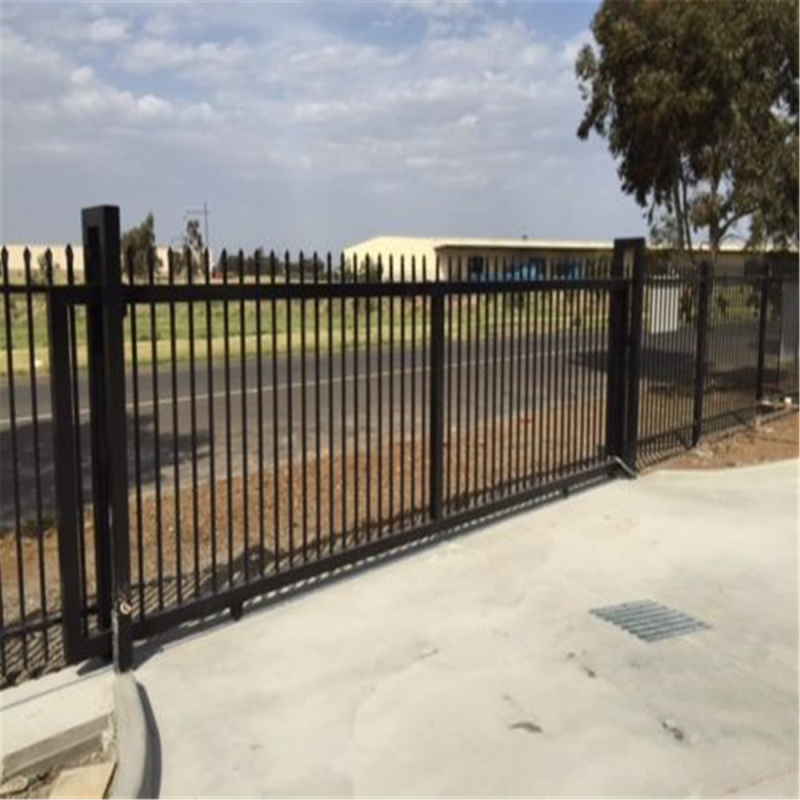

Trap #9: Forgetting gates and corners need stronger specs

Most failures appear at corners and gates first. If you use the same post size everywhere, mid-run panels can look perfect while gate posts rotate and corner bays drift.

Trap #10: Underestimating packing and handling—then panels arrive pre-bent

Mixed bundles, no separation protection, and poor banding cause rub marks, dents, and bent pickets before installation. Scratched coating accelerates corrosion at contact points.

Product Description: POLYMETAL Spear Top Steel Fence Panels

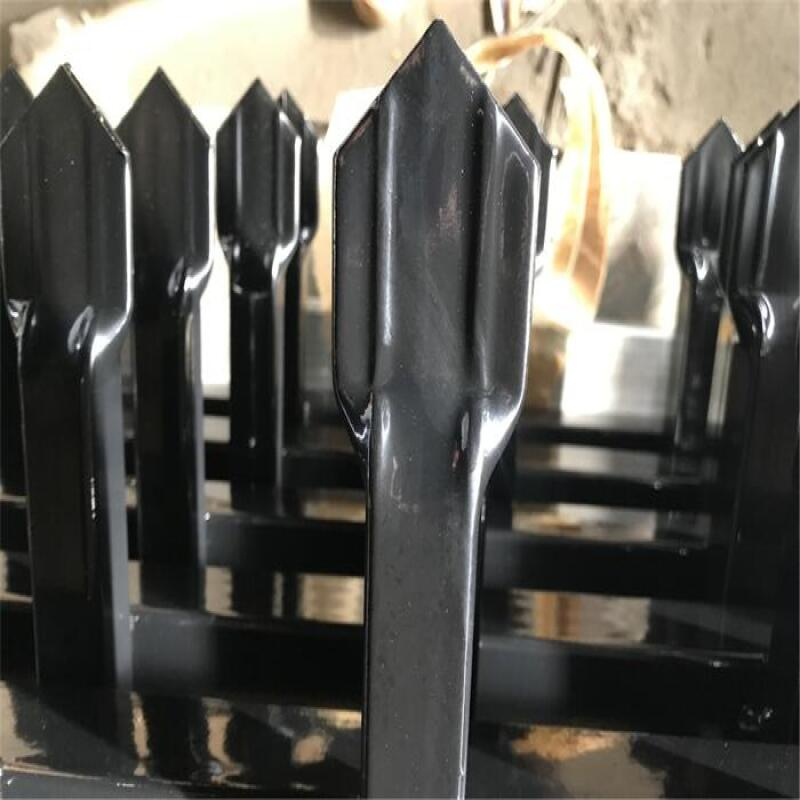

POLYMETAL spear top steel fence panels are manufactured for commercial and public-facing perimeters where straightness, security presence, and repeatable installation matter. Panels are built as modular sections using tubular rails and tubular pickets with spear-top finishes to discourage climbing and maintain a consistent anti-entry appearance. Rail frame options of 40×40mm, 45×45mm, and 50×50mm allow stiffness control, while upright options of 16×16mm, 25×25mm, and 30×30mm—with matched upright thickness—help prevent bending during transport and service. With galvanized steel and powder coating, the system delivers long-life corrosion resistance and professional appearance under real duty cycles, and it is often paired with event and site-control solutions from a temporary crowd control barriers supplier when projects need secure perimeters plus managed access zones.

Specifications (3 Tables, 10+ Configurations Each)

Notes used in the tables: Fence widths are 2400mm and 2450mm. Upright count/spacing: 16pcs (115mm), 17pcs (108mm), 18pcs (100mm). Post options: 60×60, 65×65, 75×75, 80×80, 100×100 (wall thickness 1.6mm / 2.0mm / 2.5mm). Upright thickness: 0.80mm / 1.00mm / 1.20mm / 2.00mm. Rail thickness: 1.60mm / 2.00mm / 2.50mm / 3.00mm. Post height rule: post height = fence panel height + 600mm.

Table 1: Standard Commercial Duty (Balanced Cost + Clean Line)

Table 2: Heavy Duty / High Handling Cycles (Thicker Rails + Stronger Posts)

Table 3: Maximum Security / High Wind / Reinforced Load (Strongest Options)

Applications

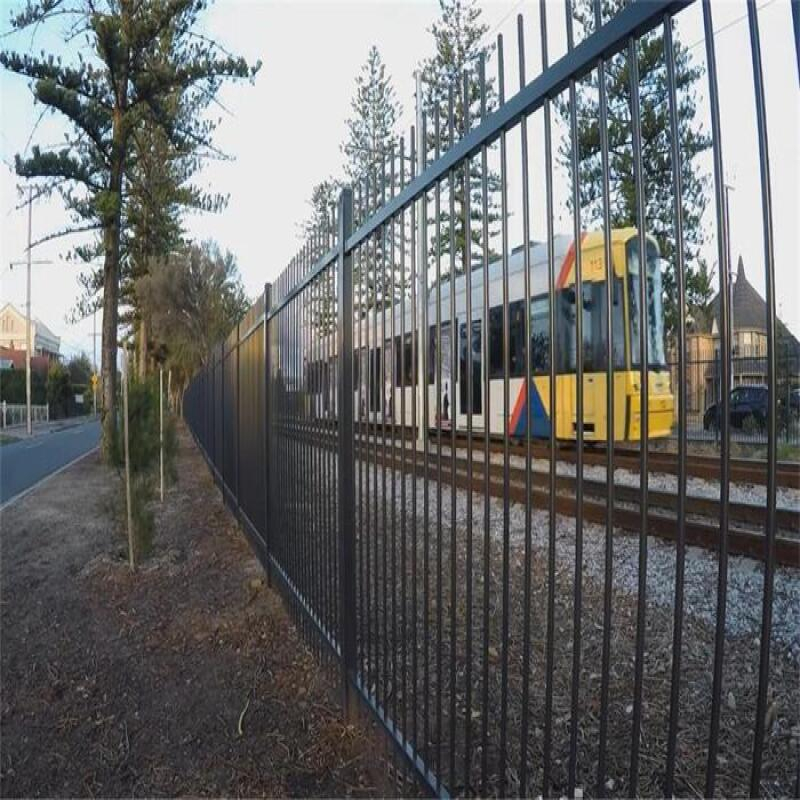

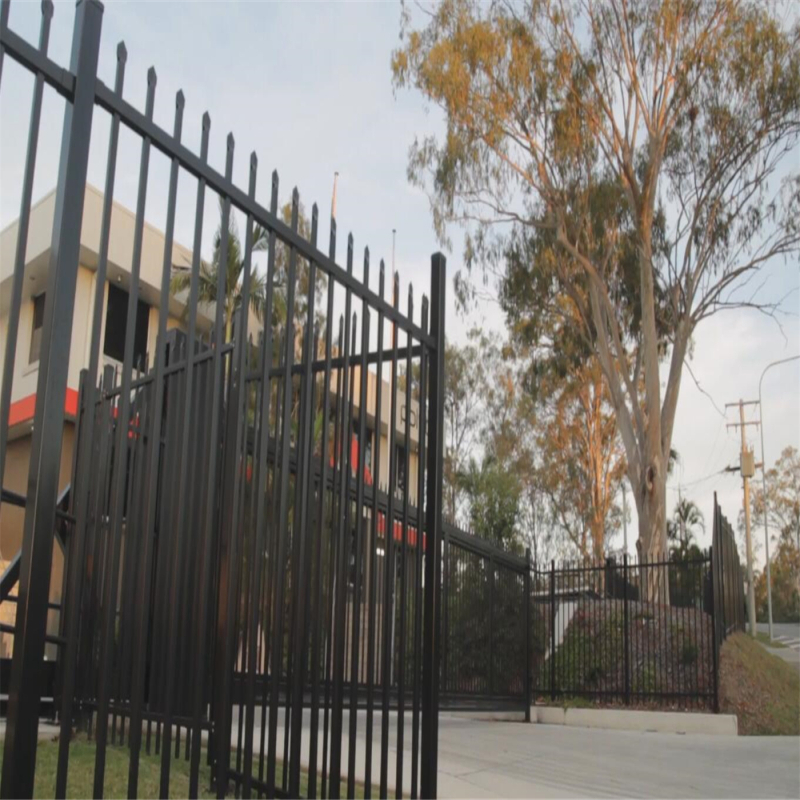

Spear top steel fence panels are widely used for schools, warehouses, factories, commercial frontage, parks, rail corridors, utilities, government facilities, car parks, storage yards, and controlled-access zones where a strong security look and long-life corrosion resistance are required.

Benefits

Straight-line security presence

Matched rail frames and posts keep the spear-top line clean and aligned across long runs.

Stronger resistance to bending and racking

Upright thickness control and rail stiffness reduce picket bending, panel twist, and visible wave-lines after handling.

Fast, repeatable installation

Panelized systems reduce on-site measuring errors and simplify future repairs by swapping bays.

Low maintenance finish performance

Galvanizing plus powder coating reduces corrosion risk and keeps public-facing boundaries looking controlled.

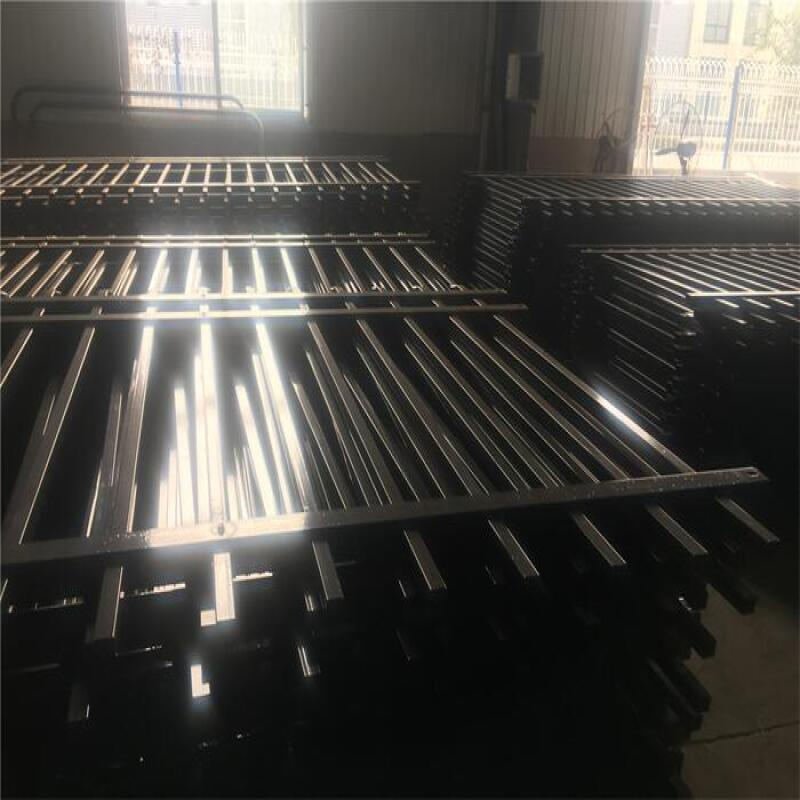

Packing

POLYMETAL typically packs spear top steel fence panels in counted bundles with separation protection at contact points to reduce rub marks and coating scuffs. Bundles are banded and palletized for forklift handling, labeled by height group, width group (2400/2450), rail frame option (40×40 / 45×45 / 50×50), upright size, upright thickness, and upright count. Posts are packed separately by size and wall thickness (60×60 to 100×100; 1.6/2.0/2.5mm wall) to prevent mix-ups, and accessories are packed as counted cartons so installers can verify components immediately on arrival.

Standards and FAQs

Standards

A professional spear top steel fence panels purchase specification should lock fence height and width, rail frame size and rail thickness, upright size and upright thickness, upright count and spacing, post size and wall thickness, post height rule (panel height + 600mm), finish system (galvanized base + powder coat), and packing rules that prevent pre-bending and coating damage.

FAQs

Q: Which upright spacing is the most security-focused?

A: 18 pickets per panel with 100mm spacing delivers the tightest pattern listed and a stronger security feel.

Q: Which rail frame should I choose?

A: 40×40 suits many standard programs; 45×45 and 50×50 increase stiffness and are preferred for high wind zones, higher fence heights, and longer runs.

Q: Why must post height be panel height + 600mm?

A: Embed depth controls stability. The extra 600mm supports foundations so the fence resists wind and leverage without leaning over time.

Q: What is the biggest hidden loss point?

A: Corrosion control (#7). If galvanizing and handling discipline are weak, rust starts at stressed points and spreads under coating—forcing replacement after posts are already set.

Ornamental Garden / Hercules-Style Option (Tubular Steel)

Tubular steel ornamental garden Hercules fence programs are often specified in 1200mm height × 2450mm width with stain-resistant powder systems such as Interpon powder. With well-equipped testing equipment and strong technical force, the system is used across multiple export markets including America, Europe, Australia, Africa and the Middle East.

Optional General Range (Ornamental Fence Reference)

Application (Ornamental Fence Reference)

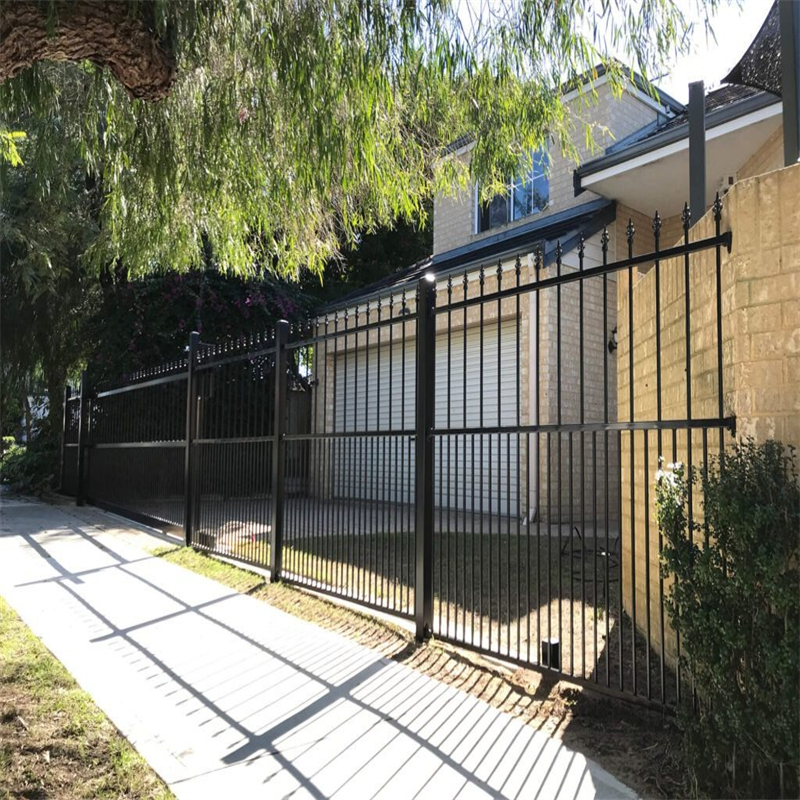

The ornamental garden fence is widely used in a community, estate, residential district and many commercial districts.
