stain black garrison fencing is chosen because it looks architectural, feels secure, and visually “disappears” compared with bright zinc finishes. But the expensive failure pattern is that many suppliers sell stain black garrison fencing as a color, not as a controlled system.
The real difference appears after delivery: spear lines drift bay-to-bay, panels twist in long runs, powder chips at weld zones, and posts feel under-sized—turning a simple fence purchase into damage, rework, and wasted labor.
POLYMETAL stain black garrison fencing is built as a measurable specification, not a photo. Buyers lock fence height, fence width, rail frame size, upright size, upright quantity, spacing schedule, post option and post wall thickness, and finishing discipline so the delivered batch installs straight, interlocks cleanly, and holds its black appearance through handling and weather exposure. For matching fixing hardware and clean installation detail, see our garrison fencing brackets.
What “Stain Black” Really Means in Practice
In the market, stain black garrison fencing often refers to black powder coated garrison fence panels, commonly with spear top or crimped spear profiles.
The fence is judged not only by color, but by line discipline: whether spear tips align, whether rails remain straight across a 50–200 meter run, whether uprights stay evenly spaced, and whether posts hold alignment without drift.
A controlled stain black garrison fencing schedule prevents the most common on-site losses: uneven panels, chipped finish, and inconsistent geometry that makes the entire boundary look low-grade.
Top 17 Procurement Traps for stain black garrison fencing (Especially #11)
Trap #1: Buying a “black look” instead of locking a measurable stain black garrison fencing schedule
Two quotes can both say “black powder” but behave totally differently in service. If the purchase order does not lock fence height, fence width, rail frame, upright size, and spacing, the supplier can downgrade silently to meet price.
Trap #2: Treating rail frame as decoration, not the stiffness backbone
Rail frame options like 40×40, 45×45, and 50×50 control stiffness and straightness. A stain black garrison fencing line that looks crisp usually has rail size and rail thickness matched to load and span behavior.
Trap #3: Allowing rail thickness to float (the most common hidden downgrade)
Rails at 1.60mm do not behave like 2.50mm or 3.00mm under handling and wind. If rail thickness is not fixed, stain black garrison fencing often arrives lighter than expected and becomes wavy after a few installs.
Trap #4: Picking upright size without a rigidity and spear alignment plan
Upright options such as 25×25, 30×30, and 16×16 affect panel feel and the long-run visual line. If you do not lock upright size, stain black garrison fencing often arrives with softer uprights and inconsistent spear alignment.
Trap #5: Forgetting upright thickness is a separate control from upright size
A 25×25 upright at 0.80mm will dent and flex more than 1.20mm or 2.00mm. Thin uprights are the fastest way for stain black garrison fencing to look “cheap” after handling.
Trap #6: Not specifying upright quantity per panel
If you need 16 pcs, 17 pcs, or 18 pcs per panel, it must be stated. Upright quantity directly controls spacing discipline and the look of stain black garrison fencing across long runs.
Trap #7: Treating spacing as a vague claim instead of a measurable schedule
Spacing drift is how climb points and visual inconsistency sneak in. stain black garrison fencing should use a locked spacing schedule (including 100mm where required) so every panel matches.
Trap #8: Buying “crimped spear” without controlling the spear profile consistency
Crimped spear can look premium when consistent, but inconsistent crimp geometry makes spear lines wander. That creates instant brand damage on public-facing boundaries.
Trap #9: Ignoring panel squareness tolerances
A panel can be black and still be wrong. If squareness is off, installation becomes a fight, gaps appear, and stain black garrison fencing lines look sloppy.
Trap #10: Assuming “black powder” equals exterior durability
Powder coat performance depends on surface prep and coating build. If the coating system is not controlled, stain black garrison fencing chips first at weld zones and contact points.
Trap #11 (Most Costly): Under-sizing posts or letting post wall thickness drift
Posts control the entire fence line. If post option and wall thickness are not locked, posts drift, panels rack, and straight runs become waves. This trap turns stain black garrison fencing into rework and wasted labor.
Trap #12: Not matching post size to fence height and loading
Tall panels need appropriate post section size. If stain black garrison fencing height increases but post size does not, stiffness drops and drift increases.
Trap #13: Relying on “galvanized steel” claims without defining the corrosion strategy
Some fences use pre-galvanized tube; others use hot dip galvanizing after fabrication. The corrosion strategy must match the environment and the expected service life.
Trap #14: Treating welding as a checkbox instead of a quality driver
Weld discipline controls squareness, strength, and how powder performs at the weld zone. Poor welding is the #1 cause of early cosmetic failure on stain black garrison fencing.
Trap #15: Shipping without packing protection for black surfaces
Black finishes show rub marks and edge chips. If stain black garrison fencing is not separated and strapped correctly, freight damage appears before installation starts.
Trap #16: Mixing multiple suppliers or batches without controlling color consistency
Even “black” can vary. If you mix lots without a controlled standard, stain black garrison fencing can show visible shade differences after installation.
Trap #17: Not using an acceptance checklist before balance payment
If you don’t define what “pass” means—straightness, squareness, upright count, spacing, post match, coating condition—you absorb the loss and the site fight.

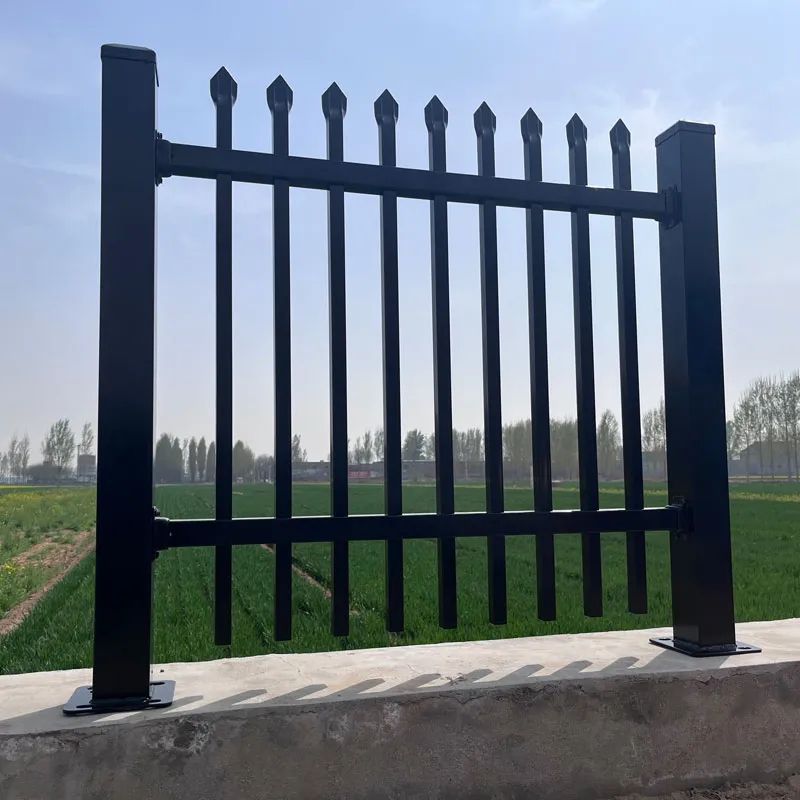

Product Description
POLYMETAL stain black garrison fencing is a powder coated garrison fence panel system designed for security boundaries where the finish must look architectural while the structure remains rigid and difficult to climb.
The panels are built around controlled rail frames, controlled upright sizes and quantities, and repeatable welding discipline so the fence stays square during transport, installation, and service. Black powder coating is applied as a controlled finishing system to deliver an even, strong appearance that holds up under handling and outdoor exposure.
For corrosion resistance, the fence can be manufactured using pre-galvanized tube fabrication or produced as a fully hot dip galvanized panel after welding depending on lifecycle and environment. stain black garrison fencing is suitable for residential boundaries, industrial frontage, infrastructure corridors, and public-facing sites where straight fence lines, consistent spear alignment, and durable black finish prevent costly site issues.
Specifications (3 Tables, 10+ Specs Each)
Table 1: Standard Architectural Schedule (stain black garrison fencing)
| Spec ID | FENCE HEIGHT (mm) | FENCE WIDTH (mm) | RAIL FRAME | RAILS THICKNESS (mm) | UPRIGHT | UPRIGHT THICKNESS (mm) | UPRIGHT NUMBER | UPRIGHT SPACING | POST OPTION | POST WALL (mm) | FENCE POST HEIGHT (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A-01 | 1200 | 2400 | 40×40 | 1.60 | 25×25 | 1.00 | 18 pcs | 100mm | 60×60 | 1.60 | 1800 |
| A-02 | 1500 | 2400 | 40×40 | 2.00 | 25×25 | 1.20 | 18 pcs | 100mm | 65×65 | 2.00 | 2100 |
| A-03 | 1800 | 2400 | 45×45 | 2.00 | 25×25 | 1.20 | 18 pcs | 100mm | 75×75 | 2.00 | 2400 |
| A-04 | 1800 | 2400 | 45×45 | 2.50 | 30×30 | 1.20 | 17 pcs | 108mm | 75×75 | 2.50 | 2400 |
| A-05 | 2100 | 2400 | 45×45 | 2.50 | 30×30 | 2.00 | 17 pcs | 108mm | 80×80 | 2.50 | 2700 |
| A-06 | 2100 | 2400 | 50×50 | 2.00 | 25×25 | 1.20 | 16 pcs | 115mm | 80×80 | 2.00 | 2700 |
| A-07 | 2400 | 2400 | 50×50 | 2.50 | 30×30 | 2.00 | 18 pcs | 100mm | 100×100 | 2.50 | 3000 |
| A-08 | 2400 | 2400 | 50×50 | 3.00 | 30×30 | 2.00 | 17 pcs | 108mm | 100×100 | 2.50 | 3000 |
| A-09 | 1500 | 2400 | 40×40 | 1.60 | 16×16 | 1.20 | 18 pcs | 100mm | 65×65 | 1.60 | 2100 |
| A-10 | 1800 | 2400 | 45×45 | 1.60 | 16×16 | 1.00 | 16 pcs | 115mm | 75×75 | 1.60 | 2400 |
Table 2: Crimped Spear / Heavy Line Schedule (2.1m × 2.4m Focus)
| Spec ID | FENCE HEIGHT (mm) | FENCE WIDTH (mm) | RAIL FRAME | RAILS THICKNESS (mm) | UPRIGHT | UPRIGHT THICKNESS (mm) | UPRIGHT NUMBER | UPRIGHT SPACING | POST OPTION | POST WALL (mm) | FENCE POST HEIGHT (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C-01 | 2100 | 2400 | 45×45 | 2.50 | 25×25 | 1.20 | 18 pcs | 100mm | 80×80 | 2.00 | 2700 |
| C-02 | 2100 | 2400 | 50×50 | 2.00 | 25×25 | 1.20 | 17 pcs | 108mm | 80×80 | 2.50 | 2700 |
| C-03 | 2100 | 2400 | 50×50 | 2.50 | 30×30 | 2.00 | 18 pcs | 100mm | 100×100 | 2.50 | 2700 |
| C-04 | 2100 | 2400 | 45×45 | 3.00 | 30×30 | 2.00 | 17 pcs | 108mm | 100×100 | 2.50 | 2700 |
| C-05 | 1800 | 2400 | 45×45 | 2.00 | 25×25 | 1.20 | 16 pcs | 115mm | 75×75 | 2.00 | 2400 |
| C-06 | 1800 | 2400 | 50×50 | 2.50 | 25×25 | 2.00 | 18 pcs | 100mm | 80×80 | 2.50 | 2400 |
| C-07 | 2400 | 2400 | 50×50 | 2.50 | 30×30 | 2.00 | 18 pcs | 100mm | 100×100 | 2.50 | 3000 |
| C-08 | 2400 | 2400 | 50×50 | 3.00 | 30×30 | 2.00 | 17 pcs | 108mm | 100×100 | 2.50 | 3000 |
| C-09 | 1500 | 2400 | 45×45 | 2.00 | 25×25 | 1.00 | 18 pcs | 100mm | 75×75 | 2.00 | 2100 |
| C-10 | 1200 | 2400 | 40×40 | 2.00 | 25×25 | 1.00 | 18 pcs | 100mm | 65×65 | 2.00 | 1800 |
Table 3: Value Schedule (Cost-Controlled but Still Straight)
| Spec ID | FENCE HEIGHT (mm) | FENCE WIDTH (mm) | RAIL FRAME | RAILS THICKNESS (mm) | UPRIGHT | UPRIGHT THICKNESS (mm) | UPRIGHT NUMBER | UPRIGHT SPACING | POST OPTION | POST WALL (mm) | FENCE POST HEIGHT (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| V-01 | 1200 | 2400 | 40×40 | 1.60 | 25×25 | 0.80 | 17 pcs | 108mm | 60×60 | 1.60 | 1800 |
| V-02 | 1500 | 2400 | 40×40 | 1.60 | 25×25 | 1.00 | 16 pcs | 115mm | 65×65 | 1.60 | 2100 |
| V-03 | 1800 | 2400 | 45×45 | 1.60 | 25×25 | 1.00 | 17 pcs | 108mm | 75×75 | 2.00 | 2400 |
| V-04 | 1800 | 2400 | 45×45 | 2.00 | 16×16 | 1.20 | 18 pcs | 100mm | 75×75 | 2.00 | 2400 |
| V-05 | 2100 | 2400 | 45×45 | 2.00 | 25×25 | 1.20 | 16 pcs | 115mm | 80×80 | 2.00 | 2700 |
| V-06 | 2100 | 2400 | 50×50 | 2.00 | 25×25 | 1.00 | 17 pcs | 108mm | 80×80 | 2.00 | 2700 |
| V-07 | 2400 | 2400 | 50×50 | 2.50 | 30×30 | 1.20 | 17 pcs | 108mm | 100×100 | 2.00 | 3000 |
| V-08 | 2400 | 2400 | 50×50 | 2.00 | 30×30 | 1.00 | 16 pcs | 115mm | 100×100 | 2.00 | 3000 |
| V-09 | 1500 | 2400 | 45×45 | 1.60 | 16×16 | 1.00 | 18 pcs | 100mm | 75×75 | 1.60 | 2100 |
| V-10 | 1200 | 2400 | 40×40 | 1.60 | 16×16 | 1.00 | 18 pcs | 100mm | 65×65 | 1.60 | 1800 |

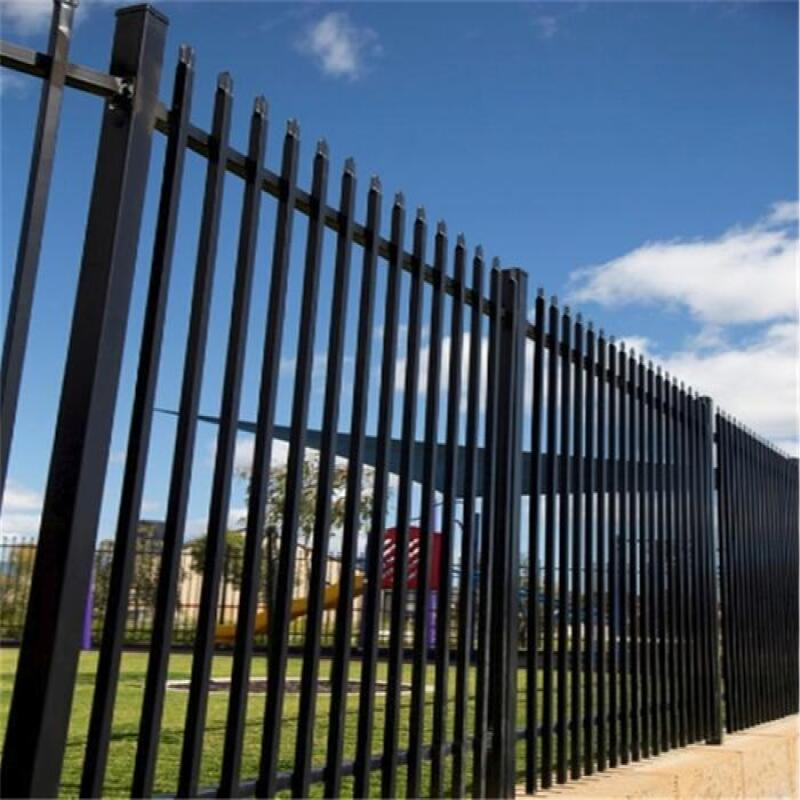

Applications (stain black garrison fencing)
stain black garrison fencing is widely applied for residential boundary lines that need an architectural black finish, schools and campuses where straight spear alignment improves safety perception, industrial and warehouse frontage where durable finishes reduce ongoing repainting, rail and infrastructure corridors where long straight runs must remain visually disciplined, and public-facing sites where a clean perimeter look prevents complaints and brand damage. If you also need matching entry solutions, explore our types of steel fence gates for sale to pair compatible gates with your black garrison fence line.
Benefits (POLYMETAL)
The key benefit of stain black garrison fencing is controlled appearance with real security. When rails, uprights, spacing, and posts are locked, the fence installs faster, stays straighter, and resists handling damage better. A controlled black powder system reduces early chipping, and the correct post option reduces drift and wave formation—so buyers gain a clean boundary that stays clean, instead of paying for repairs and rework.

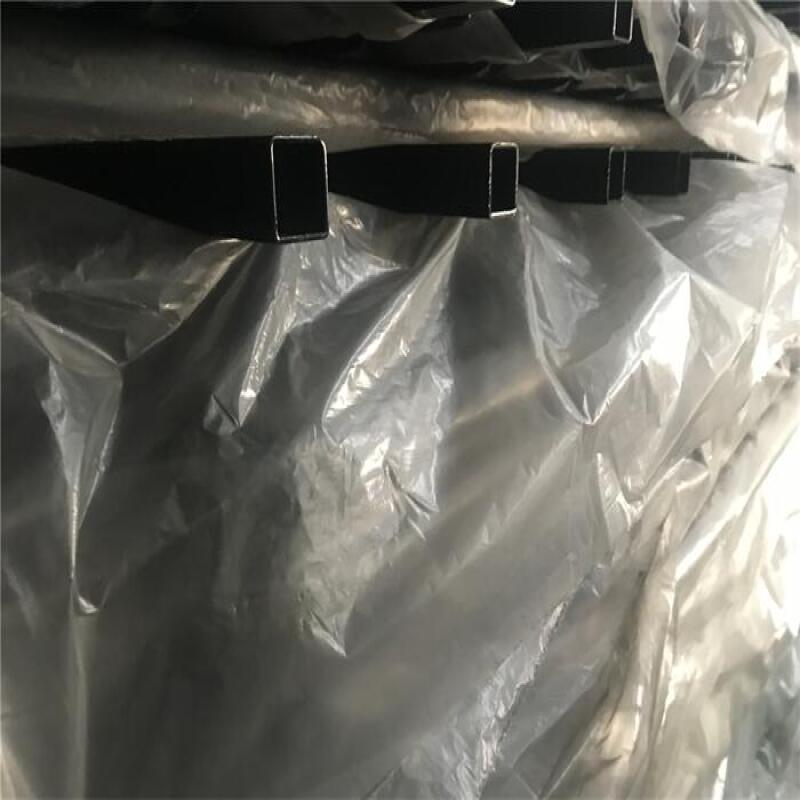

Packing
POLYMETAL packs stain black garrison fencing to protect the black finish and preserve straightness. Panels are separated at contact points to prevent rub marks, edges are protected to reduce chips at corners, bundles are strapped square to reduce twist, and labels are applied by height schedule to prevent mixed installation runs. Posts and accessories are grouped to match the panel schedule so the site can stage runs without sorting losses.
Standard and FAQs
stain black garrison fencing projects commonly control corrosion performance and finish expectations by specifying galvanizing strategy (pre-galvanized tube or hot dip galvanizing after fabrication) and powder coating discipline for exterior exposure, supported by repeatable supplier quality controls such as ISO-based manufacturing systems. The most important field controls remain measurable: straightness, squareness, spacing, and post match to height.
FAQ 1: What is the safest way to avoid wavy black fence lines?
Lock rail frame + rail thickness, lock upright size + upright thickness, and match the post option and post wall thickness to the fence height so the line stays straight across long runs.
FAQ 2: Why does upright count (16 / 17 / 18) matter for stain black garrison fencing?
Upright count controls the spacing discipline and the visual density of the fence. If the count drifts, the entire boundary looks inconsistent even if the color matches.
FAQ 3: What coating system is common for stain black garrison fencing?
A controlled black powder coat over a corrosion protection strategy (pre-galvanized or hot dip galvanized base) is commonly used to deliver both appearance and durability.
FAQ 4: Which post sizes are common for black garrison fencing?
Common post options include 60×60, 65×65, 75×75, 80×80, and 100×100, with wall thickness selected to match height and loading requirements.
FAQ 5: Can the fence size and specification be customized?
Yes. POLYMETAL can customize stain black garrison fencing by height, width, rail frame, upright size, spacing schedule, post option, and finish requirements.
