Stainless steel aviary mesh (ferrule-pressed or hand-woven/knotted) protects delicate feathers, preserves natural behavior, and provides open, light-filled habitats. The mesh’s smooth, snag-free surface, high tensile capacity, and long service life make it the preferred enclosure material for zoos, sanctuaries, bird gardens, and private collections.
Why choose stainless steel aviary mesh?
- Smooth, feather-safe surface: The polished, snag-resistant interface helps prevent feather and toe injuries.
- Lightweight yet strong: Easy handling and installation with robust performance against snow, rain, and gale.
- Highly flexible & configurable: Rope diameter, aperture, width, and length can be tailored to species and habitat size.
- Excellent visibility: Diamond openings keep sightlines open for visitors and monitors natural behaviors.
- Corrosion resistance & longevity: Marine-grade stainless options with service life often exceeding 30 years; minimal maintenance.
Stainless Steel Aviary Mesh in Use

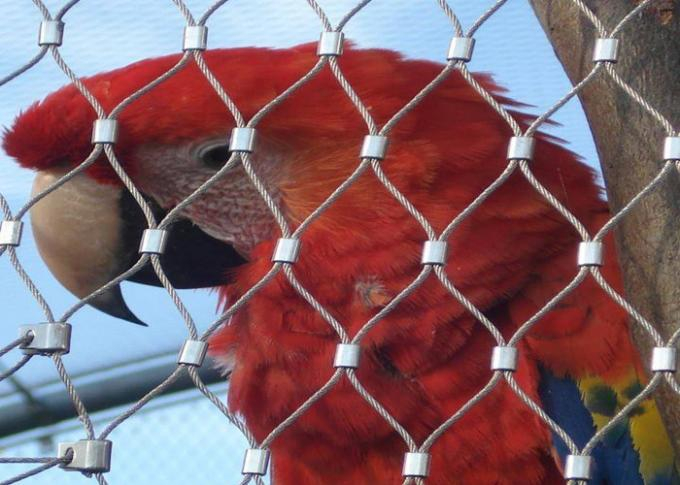

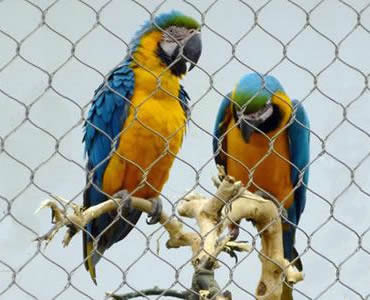

 Stainless steel knotted rope mesh lets flamingos play happily and safely. |  Knotted rope mesh supports a natural parrot habitat for comfort and enrichment. |
 Ferrule rope mesh suits zoos and homes—scaled for different bird species. |  Ferrule mesh panels provide generous, natural flight space. |
Stainless Steel Aviary Mesh Details
- Rope material: High-quality stainless steel 304, 316, 304L, 316L.
- Rope diameter: 1.2–3.2 mm (other diameters available).

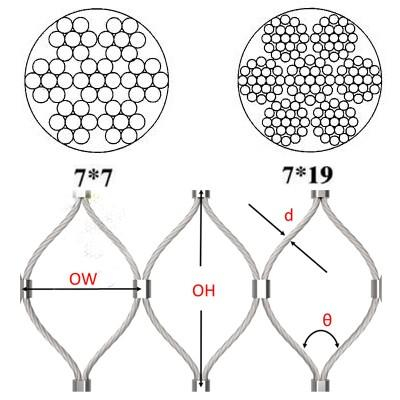

- Rope construction: 7×7 and 7×19 (also 1×7 and 1×19 supplied).
- Opening size: 25×25 mm, 38×38 mm (other sizes on request).

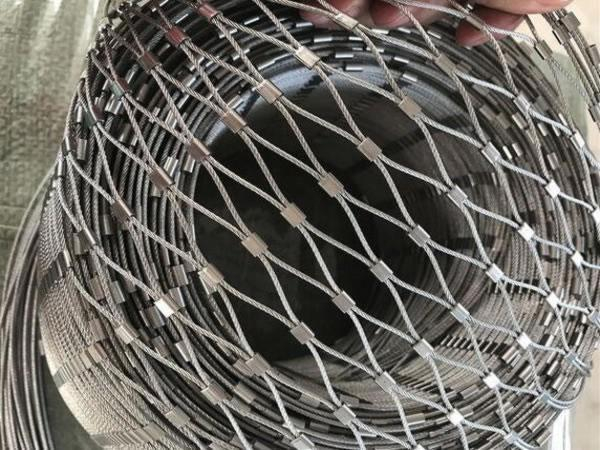

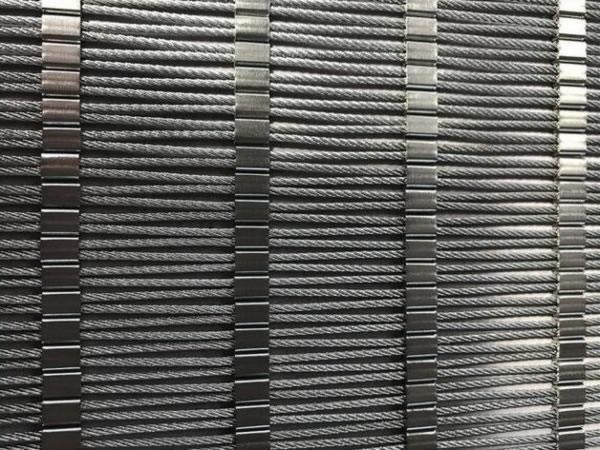

- Mesh type: Ferrule rope mesh or knotted rope mesh.
| Bird species | Code | Rope construction | Rope diameter | Aperture | Normal break | ||
|---|---|---|---|---|---|---|---|
| Inch | mm | Inch | mm | (lbs) | |||
| Small birds | SARM-01 | 7 × 7 | 1/16 | 1.6 | 1 × 1 | 25 × 25 | 480 |
| SARM-02 | 7 × 7 | 3/64 | 1.2 | 1 × 1 | 25 × 25 | 270 | |
| SARM-03 | 7 × 19 | 3/64 | 1.2 | 0.8 × 0.8 | 20 × 20 | 270 | |
| Eagle | SARM-04 | 7 × 7 | 3/32 | 2.4 | 3 × 3 | 76 × 76 | 920 |
| SARM-05 | 7 × 19 | 1/8 | 3.2 | 3 × 3 | 76 × 76 | 1600 | |
| Ostrich | SARM-06 | 7 × 7 | 3/32 | 2.4 | 2 × 2 | 51 × 51 | 920 |
| SARM-07 | 7 × 7 | 5/64 | 2.0 | 2 × 2 | 51 × 51 | 920 | |
| Flamingo | SARM-08 | 7 × 7 | 5/64 | 2.0 | 3 × 3 | 76 × 76 | 676 |
| SARM-09 | 7 × 7 | 5/64 | 2.0 | 2.4 × 2.4 | 60 × 60 | 676 | |
| SARM-10 | 7 × 7 | 5/64 | 2.0 | 2 × 2 | 51 × 51 | 676 | |
| Parrot | SARM-11 | 7 × 7 | 5/64 | 2.0 | 2 × 2 | 51 × 51 | 676 |
| SARM-12 | 7 × 7 | 1/16 | 2.4 | 2 × 2 | 51 × 51 | 920 | |
| SARM-13 | 7 × 7 | 1/16 | 2.4 | 1.5 × 1.5 | 38 × 38 | 480 | |
| SARM-14 | 7 × 7 | 1/16 | 2.4 | 1 × 1 | 25 × 25 | 480 | |
| SARM-15 | 7 × 7 | 3/64 | 1.2 | 1 × 1 | 25 × 25 | 270 | |
| Crane | SARM-16 | 7 × 7 | 3/32 | 2.4 | 3 × 3 | 76 × 76 | 920 |
| SARM-17 | 7 × 7 | 3/32 | 2.4 | 2 × 2 | 51 × 51 | 920 | |
| SARM-18 | 7 × 7 | 5/64 | 2.0 | 3 × 3 | 76 × 76 | 676 | |
| SARM-19 | 7 × 7 | 5/64 | 2.0 | 2.4 × 2.4 | 60 × 60 | 676 | |
| SARM-20 | 7 × 7 | 5/64 | 2.0 | 2 × 2 | 51 × 51 | 676 | |

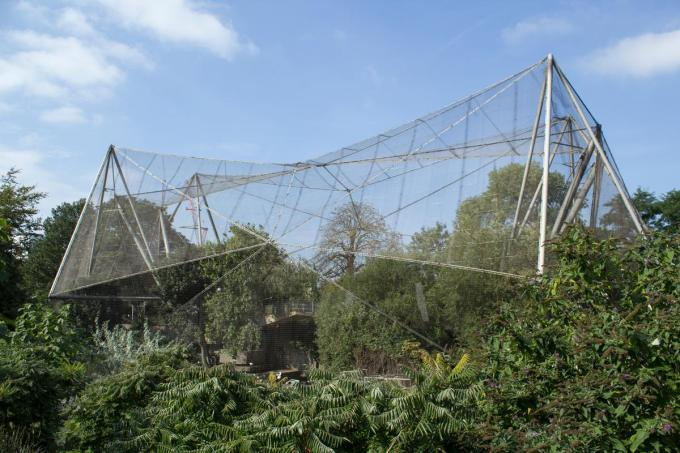

Knotted and Ferruled Type Stainless Steel Wire Rope Aviary Wire Mesh — Zoo Projects
 |  |  |
Structure & Formability Stainless Steel Aviary Mesh

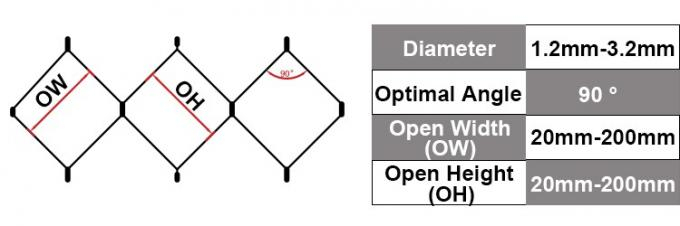

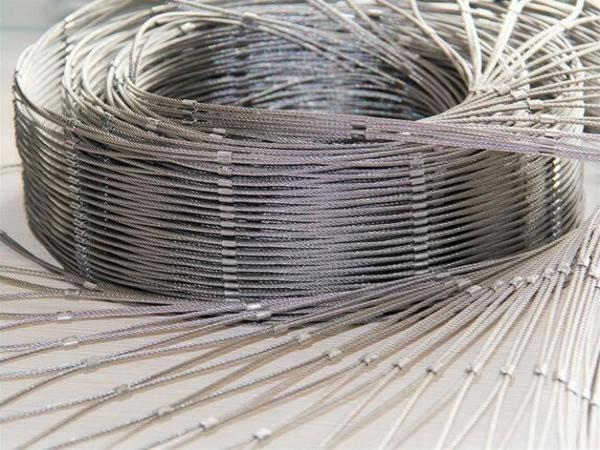

The stainless steel rope mesh uses a unique hand-woven interlocking technique with standard 7×7 and 7×19 cables, creating diamond openings from 1″ through 4″. Panels can be tensioned into three-dimensional forms—funnel-like, cylindrical, or spherical—supporting immersive, species-appropriate habitats.
 |  |
Packaging & Delivery Stainless Steel Aviary Mesh
- Inner: plastic foam and carton box.
- Outer: fumigated wooden cases.
- Typical delivery: within 15 days for steel cable mesh.
 |  |
 |  |
Design & Installation Notes
- Species-specific sizing Choose aperture and rope diameter to prevent escape and protect feathers/feet (see tables above).
- Framing & tension Use perimeter cables/frames with calibrated tensioners; avoid over-tensioning to keep diamond geometry uniform.
- Interfaces Detail at doors, keeper access, and service penetrations with reinforced edges or clamp plates.
- Environmental loads Verify snow, wind, and impact loads; select 316/316L for coastal or high-pollution sites.
- Maintenance Rinse periodically; inspect anchors, swages, and turnbuckles annually; re-tension as needed.
 |  |
Summary:
Stainless steel aviary mesh combines animal welfare, visitor experience, and long-term durability. With customizable apertures and rope diameters, smooth feather-safe surfaces, and excellent transparency, it is the gold-standard enclosure material for modern aviaries.
