“Cheap” becomes expensive in stainless steel cable wire rope mesh when buyers treat it like a generic net. The real cost shows up later: uneven tension, distorted apertures, ferrules that loosen, edge buckles that don’t match the load path, and a panel that looks fine on day one but turns into a maintenance problem under weather, movement, and daily use.
POLYMETAL builds stainless steel cable wire rope mesh as a repeatable, measurable system—so the mesh performs like a product, not like a guess. For sites that also need fast acoustic compliance and complaint-risk control, add temporary noise barriers for sale as a compatible temporary perimeter upgrade.
What Stainless Steel Cable Wire Rope Mesh Really Is
Stainless steel cable wire rope mesh is a modern architectural and protection material designed for decoration, safety, and long-life outdoor use. It combines lightweight behavior with high strength, corrosion resistance, good softness, fatigue resistance, impact resistance, and strong breaking force.
In practical projects, stainless steel cable wire rope mesh is chosen because it can span large areas with minimal visual blockage while still delivering containment, barrier, or façade functions that stay durable over time.
Product Description (POLYMETAL Stainless Steel Cable Wire Rope Mesh)
POLYMETAL stainless steel cable wire rope mesh is engineered for global decoration and protection where long service life, corrosion resistance, and stable structure are required.
The mesh is close to nature, visually clean, and widely used for animal enclosures because the flexible surface reduces injury risk to birds and animals while preventing rodents and other animals from biting through.
In architectural uses, the same stainless steel cable wire rope mesh provides a modern “soft-structure” safety solution for facades, guard infill, green walls, and large-span protection zones—without the heavy appearance of rigid welded panels. For public-facing builds and event sites where flow control matters as much as perimeter aesthetics, pair it with crowd control barriers for sale to keep entrances, queues, and access routes disciplined.
Build Options
Cable Structure Options
Cable structure is controlled by rope diameter. For stainless steel cable wire rope mesh, 7×7 construction is commonly used in the 1.0–3.0mm range, while 7×19 construction is commonly used in the 3.0–6.0mm range to increase flexibility and fatigue resistance under repeated movement.
Woven Rope Mesh vs Ferrule Rope Mesh

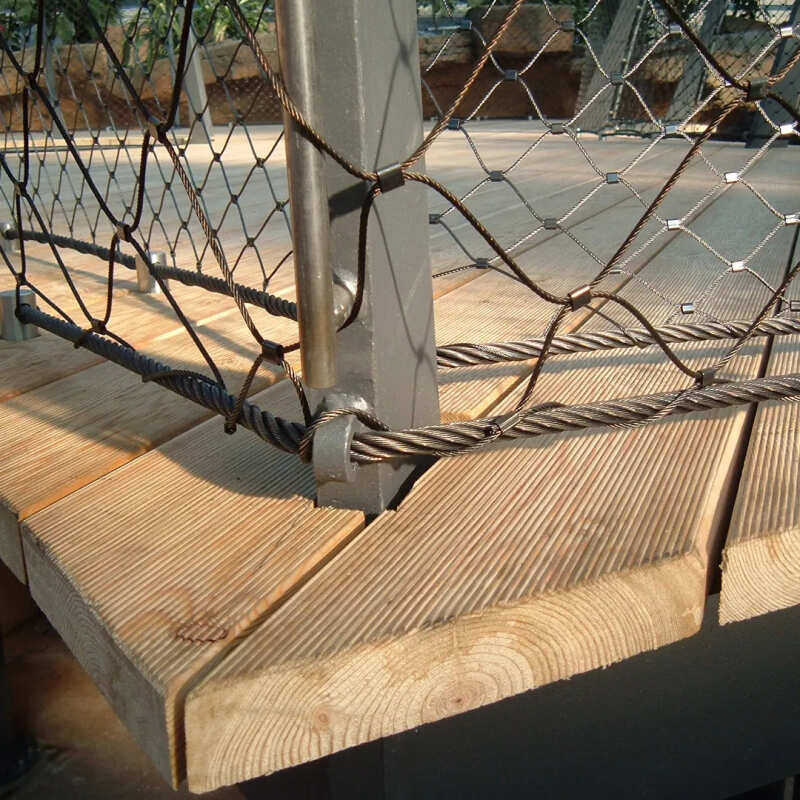

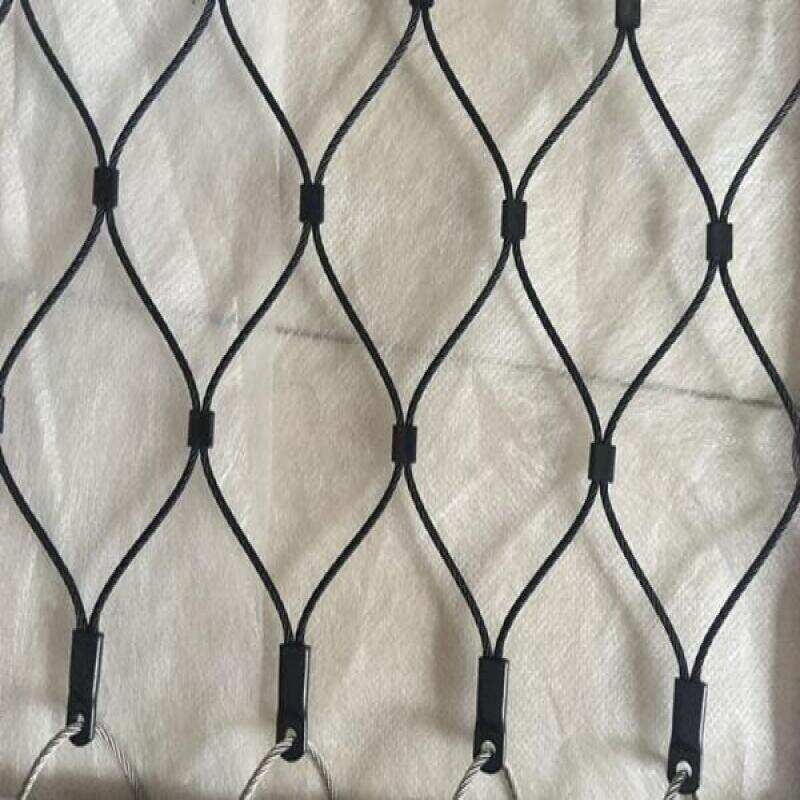

Woven rope mesh is formed through interweaving, creating a continuous pattern that distributes load smoothly. Ferrule rope mesh uses metal ferrules (buckles) to connect cables into a consistent aperture grid. For ferrule systems, POLYMETAL supports eye buckles, edge buckles, open buckles, and close buckles. Open buckles are the usual choice for production speed and field handling, while other buckle types can be manufactured to meet special edge, frame, or aesthetic requirements.

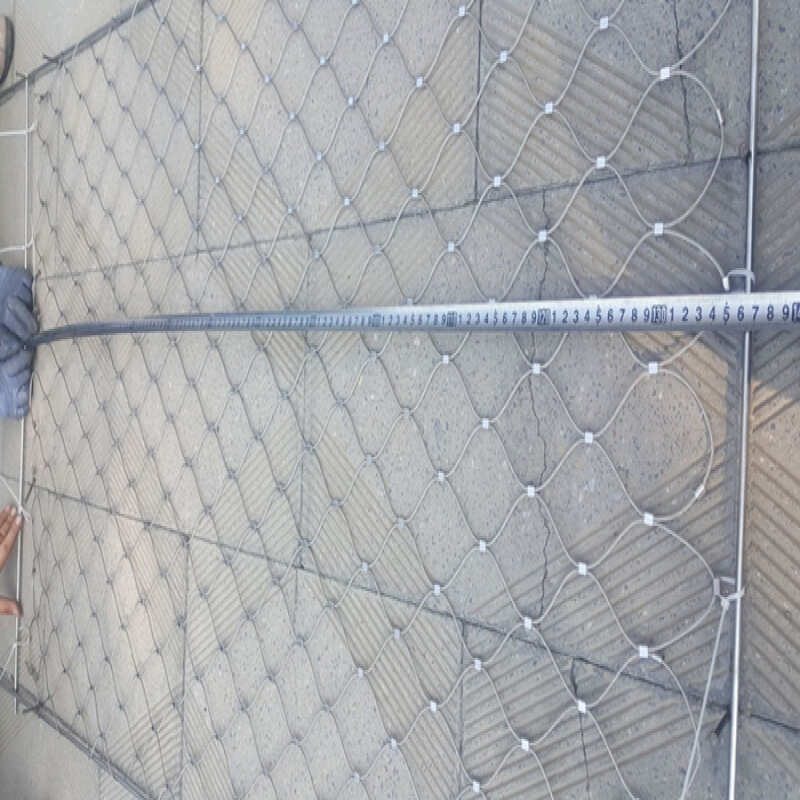

Detailed Image
Specifications (Data-First Control for Procurement)
Stainless steel cable wire rope mesh performance is controlled by specification, not promises. Lock the rope construction, rope diameter, mesh aperture, edge termination, and frame strategy—then you control how the mesh behaves in real installations.
Table 1 — Core Options Snapshot
| Specification Item | POLYMETAL Options | Why It Matters (Outcome Control) |
|---|---|---|
| Material grade | Stainless steel (commonly 304 / 316) | Controls corrosion resistance, especially coastal and industrial zones |
| Mesh type | Woven rope mesh / Ferrule rope mesh | Controls stiffness feel, visual pattern, and installation method |
| Rope structure | 7×7 (1.0–3.0mm); 7×19 (3.0–6.0mm) | Controls flexibility, fatigue resistance, and long-term movement behavior |
| Rope diameter | 1.0 / 1.2 / 1.5 / 1.6 / 2.0 / 2.4 / 3.0 / 3.2 / 3.5mm (custom) | Controls strength, stiffness, and deformation under load |
| Mesh aperture (X×Y) | 20×38 up to 180×313 and beyond (custom) | Controls containment level, appearance, and climb/handhold behavior |

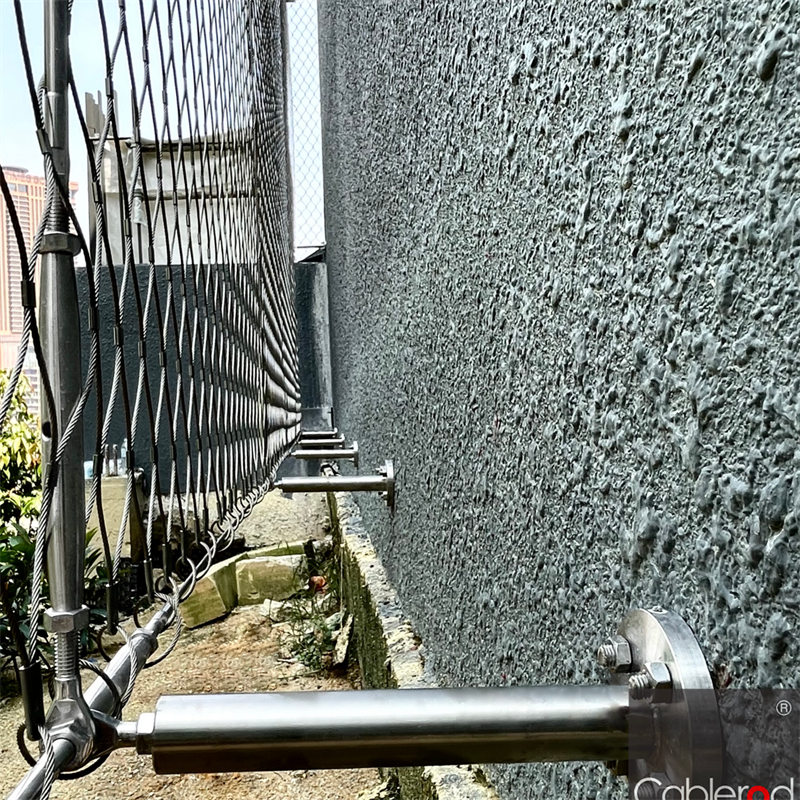

| Edge termination | Eye/edge buckles, open/close buckles; rope border; frame available | Controls load transfer and prevents edge “unzipping” under tension |
| Finish | Natural stainless finish; cleaned/passivated options | Controls appearance consistency and corrosion performance in harsh environments |
| Manufacturing method | Handmade mesh forming | Controls accuracy of aperture and consistent tension across panels |
Table 2 — Standard Model Examples (Rope Structure / Diameter / Aperture)
| Model | Rope Structure | Rope Diameter (mm) | Rope Diameter (inch) | Mesh Aperture (mm) |
|---|---|---|---|---|
| BNF10020 | 7×7 | 1.0 | 1/25 | 20×38 |
| BNF10040 | 7×7 | 1.0 | 1/25 | 40×70 |
| BNF10150 | 7×7 | 1.0 | 1/25 | 150×300 |
| BNF12050 | 7×7 | 1.2 | 3/64 | 50×87 |
| BNF12060 | 7×7 | 1.2 | 3/64 | 60×104 |
| BNF12070 | 7×7 | 1.2 | 3/64 | 70×121 |
| BNF12080 | 7×7 | 1.2 | 3/64 | 80×139 |
| BNF15030 | 7×7 | 1.5 | 1/17 | 30×50 |
| BNF15040 | 7×7 | 1.5 | 1/17 | 40×75 |
| BNF15100 | 7×7 | 1.5 | 1/17 | 100×175 |
| BNF15180 | 7×7 | 1.5 | 1/17 | 180×313 |
| BNF16050 | 7×7 | 1.6 | 1/16 | 50×87 |
| BNF16060 | 7×7 | 1.6 | 1/16 | 60×104 |
| BNF16080 | 7×7 | 1.6 | 1/16 | 80×139 |
| BNF20030 | 7×7 | 2.0 | 5/64 | 30×40 |
| BNF20060 | 7×7 | 2.0 | 5/64 | 60×106 |
| BNF20100 | 7×7 | 2.0 | 5/64 | 100×173 |
| BNF24070 | 7×7 | 2.4 | 3/32 | 70×121 |
| BNF24090 | 7×7 | 2.4 | 3/32 | 90×156 |
| BNF30050 | 7×19 | 3.0 | 3/25 | 50×90 |
| BNF30080 | 7×19 | 3.0 | 3/25 | 80×140 |
| BNF32090 | 7×19 | 3.2 | 1/8 | 90×156 |
| BNF32120 | 7×19 | 3.2 | 1/8 | 120×208 |
| BNF35050 | 7×19 | 3.5 | 7/51 | 50×90 |
| BNF35100 | 7×19 | 3.5 | 7/51 | 100×300 |
Applications

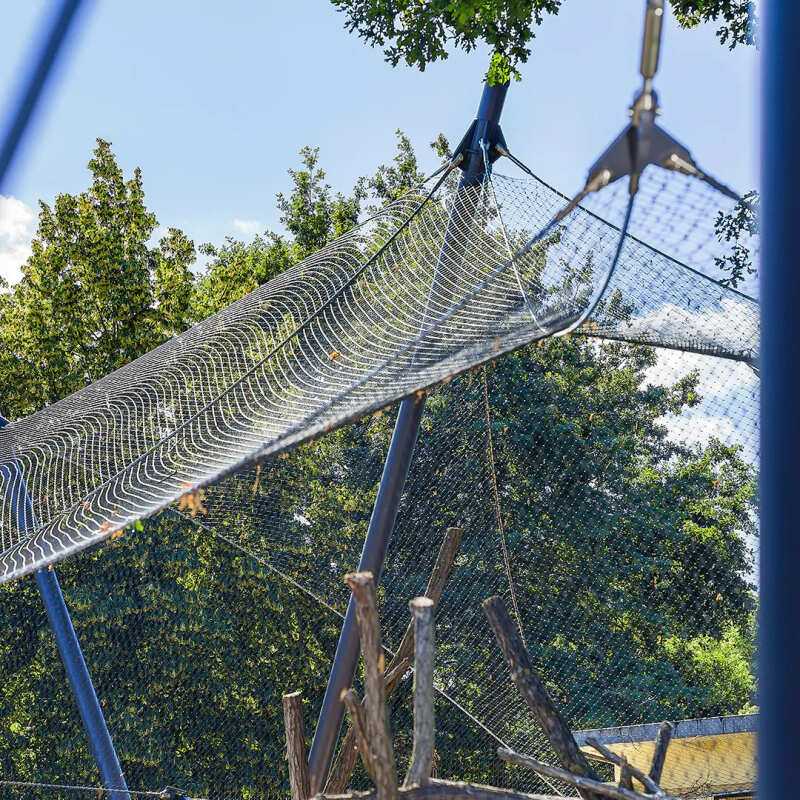

Stainless steel cable wire rope mesh is widely used in zoo and wildlife park enclosures, where safety, durability, and reduced animal injury risk are critical. It is also used for garden decoration, bird aviaries, monkey fences, leopard cages, tiger and lion enclosures, forest networks, and modern architectural projects that require open visibility with reliable containment.

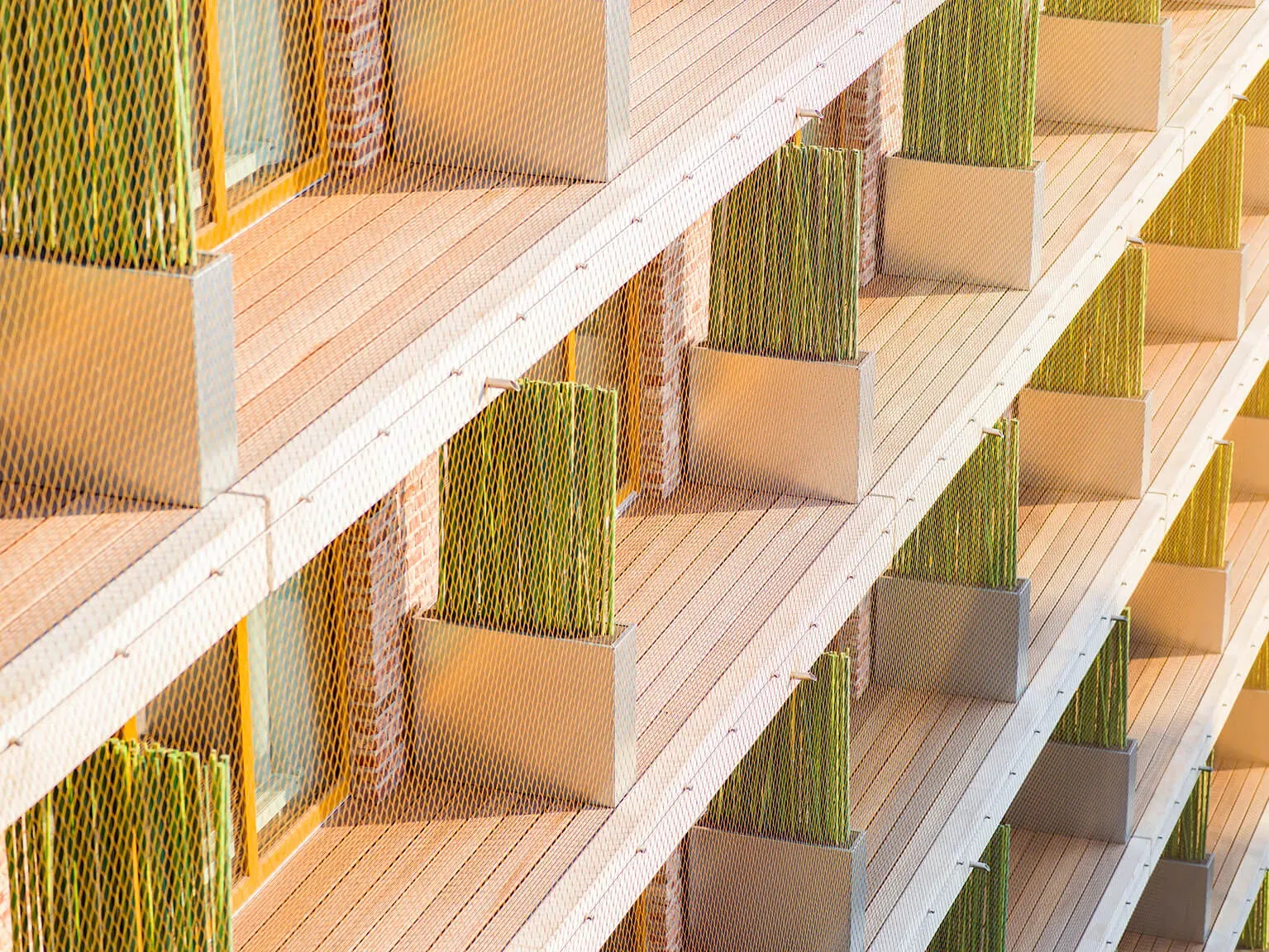

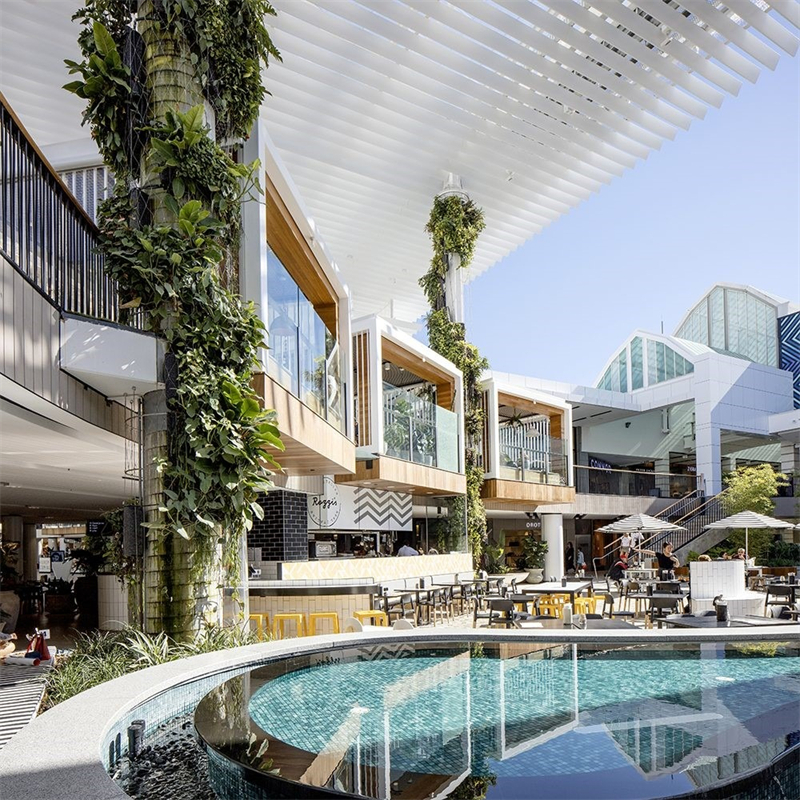

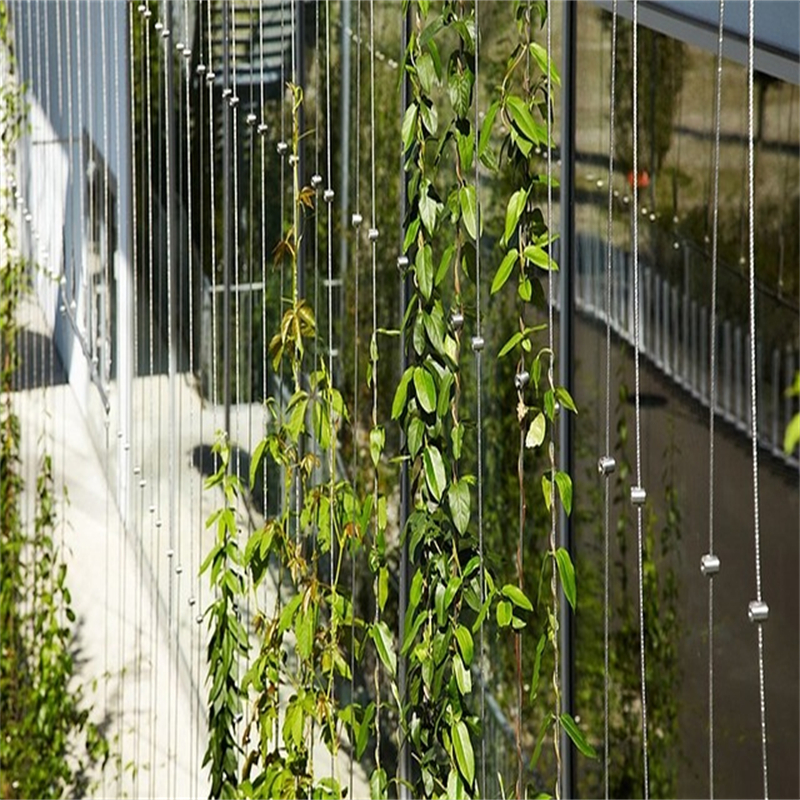

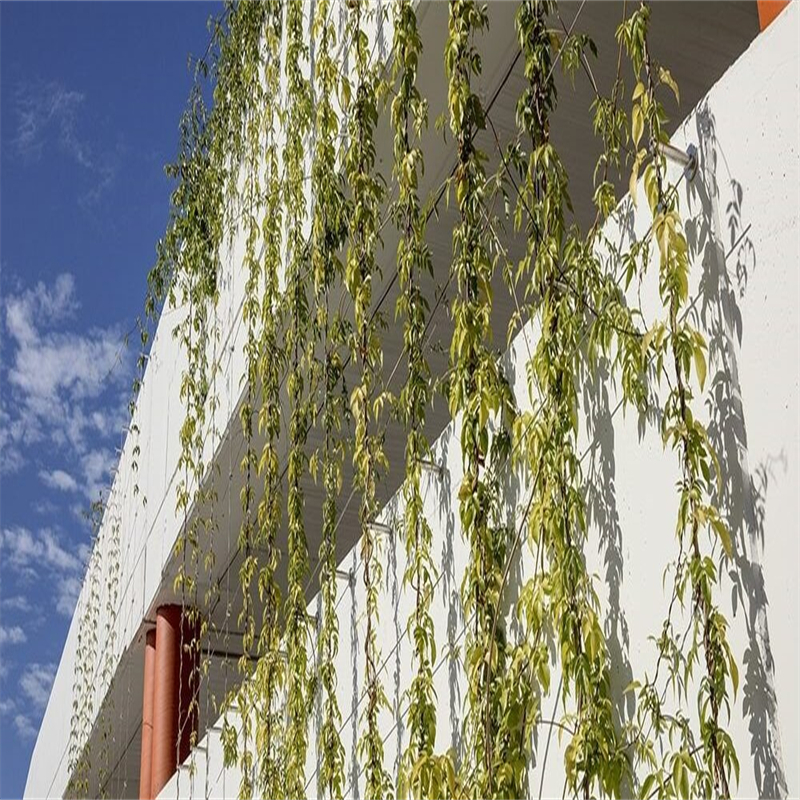

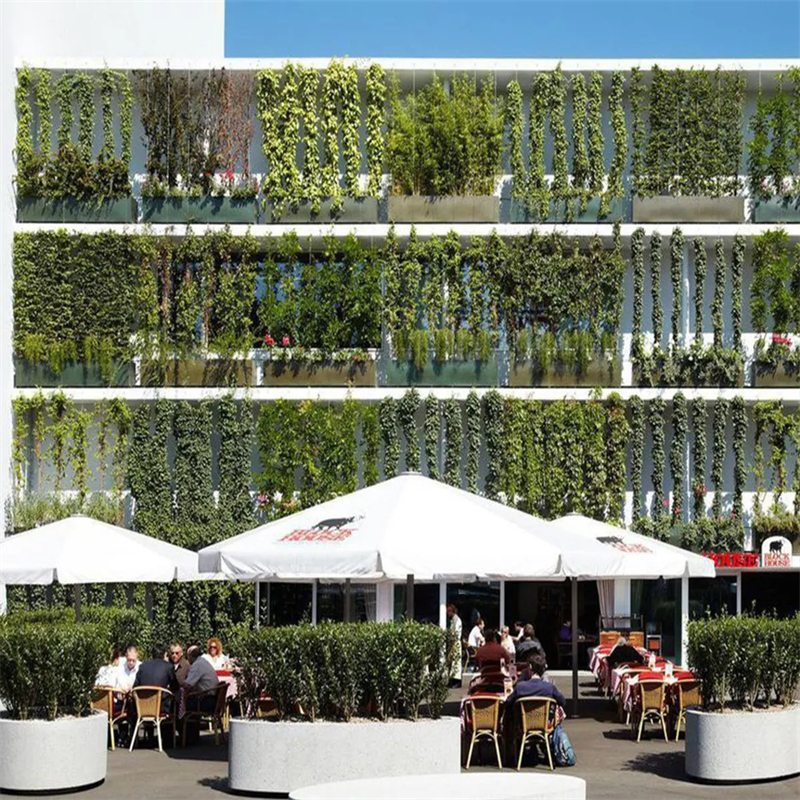

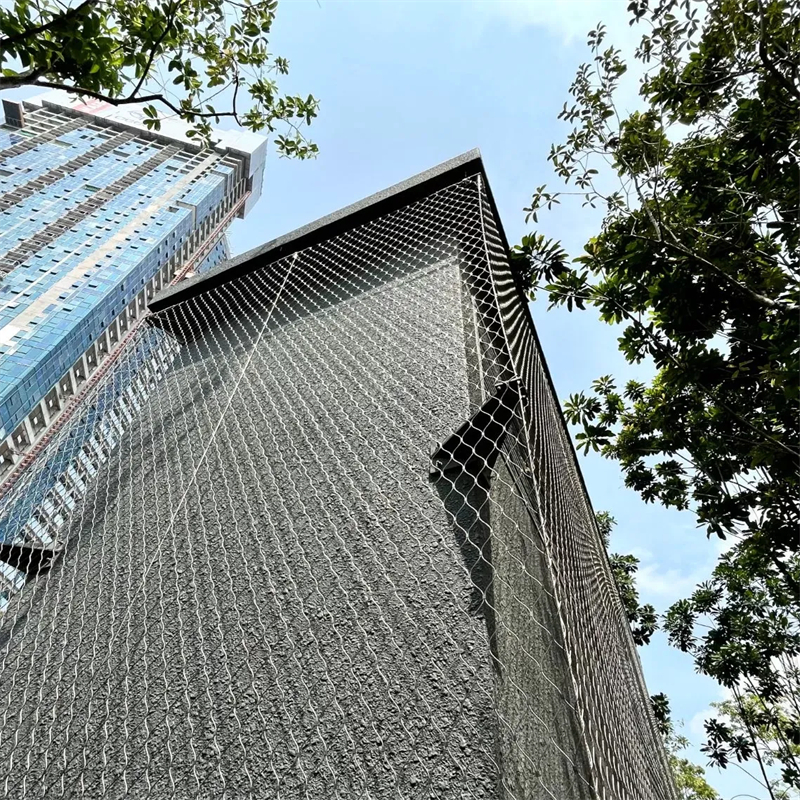

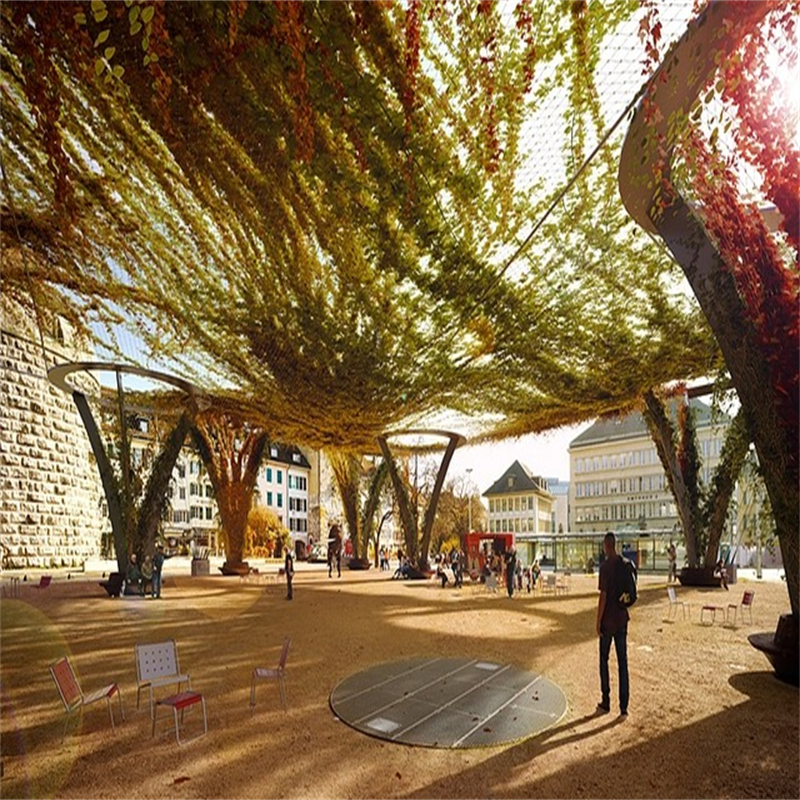

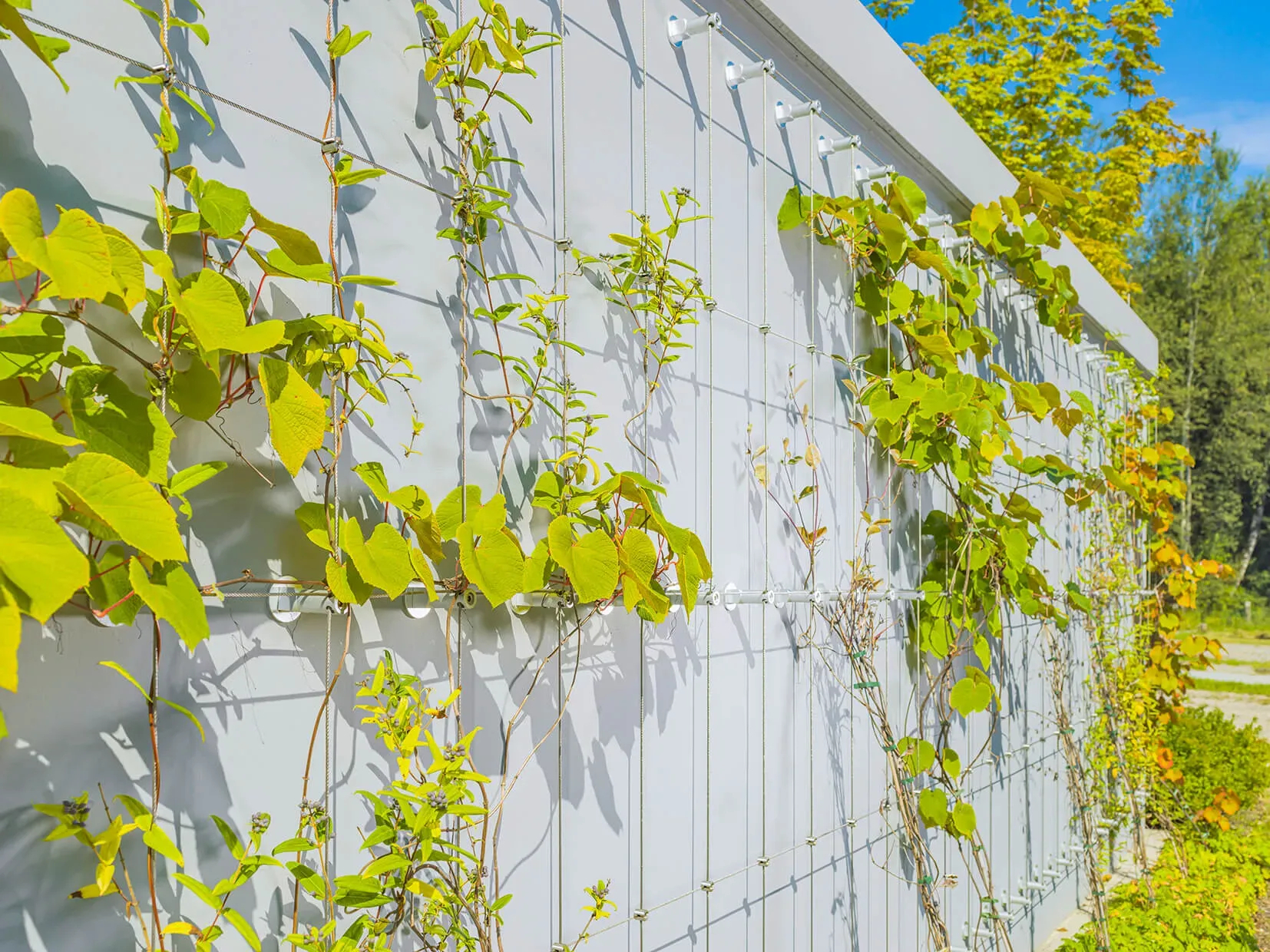

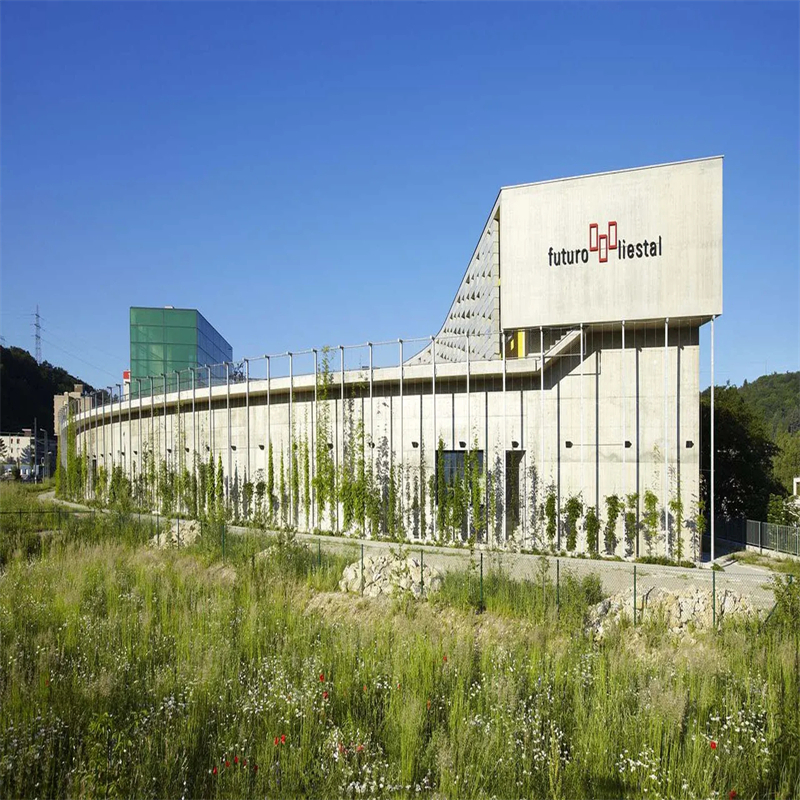

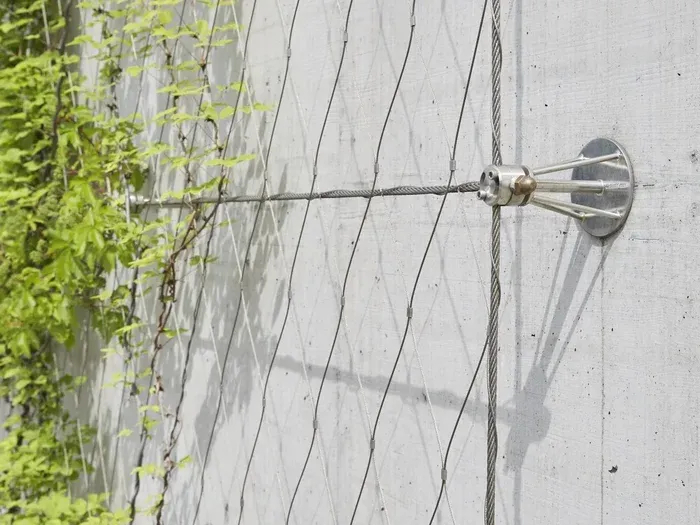

In building and landscape projects, stainless steel cable wire rope mesh is commonly selected for green facades, guardrail infill, atrium protection, stair void protection, bridge-side safety, rooftop screens, and feature walls where the mesh must remain visually light while surviving years of outdoor exposure.
Benefits
The core benefit of stainless steel cable wire rope mesh is controlled real-world behavior: it stays durable under impact, resists corrosion in wet climates, and maintains a clean aesthetic with minimal visual obstruction. Its flexibility allows it to absorb force rather than crack like rigid panels, while the cable structure provides high breaking force and fatigue resistance for long-term safety performance.
Packing
POLYMETAL packs stainless steel cable wire rope mesh for export survival: wrapped with protective plastic film, then placed into a wooden box for edge protection and stable stacking. Packaging can be customized to match project risk, including framed panel protection, labeled bundles for fast installation sorting, and reinforced corner protection to prevent deformation during transport.
Standards
Stainless steel cable wire rope mesh procurement commonly references corrosion resistance requirements (grade selection), material safety (non-poisonous, non-irritant characteristics for animal and public environments), and measurable acceptance rules such as rope diameter tolerance, aperture tolerance, edge termination method, and visual finish consistency. For professional purchasing, the purchase order should lock acceptance rules: rope construction (7×7 or 7×19), mesh aperture (X×Y), edge/buckle type, frame requirements (if any), and inspection checkpoints for tension consistency and ferrule integrity.

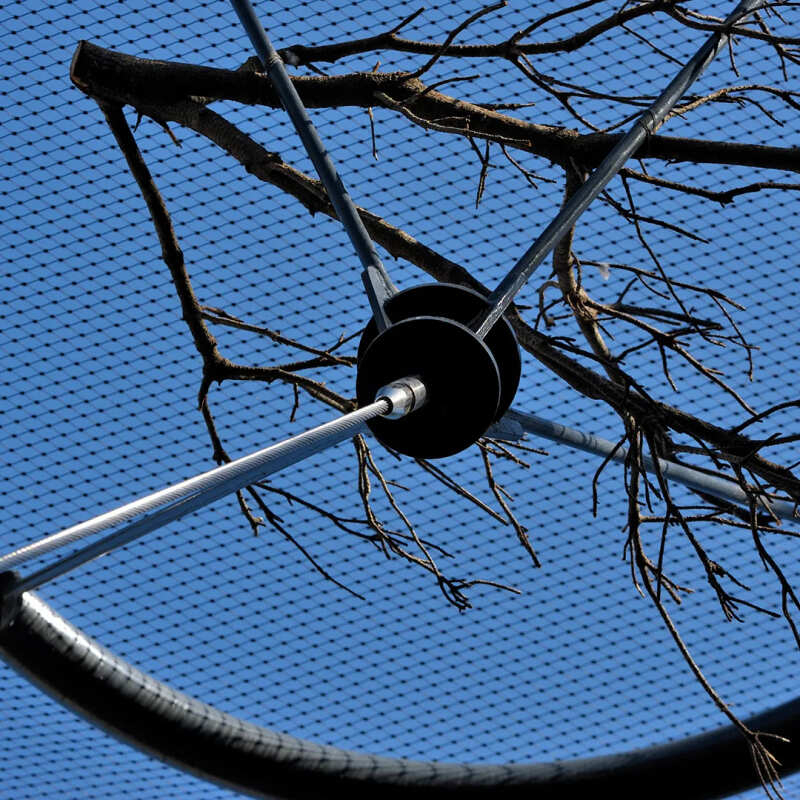

Top 10 Procurement Traps for Stainless Steel Cable Wire Rope Mesh (Especially #7)
The fastest way to lose money is to buy stainless steel cable wire rope mesh by appearance only. The following Top 10 items are practical failure patterns that trigger rework, damage, and long-term risk.
Trap #1 — Danger: Ordering “mesh size” without locking rope structure
A mesh aperture means little if rope structure is undefined. 7×7 and 7×19 behave differently under movement. Lock the construction first, then the diameter, then the aperture.
Pitfall #2 — Problem: Choosing rope diameter by price instead of load path
If the mesh is carrying real safety loads, ultra-thin cables deform, apertures drift, and edges “walk” under tension. Match rope diameter to the real containment requirement.
Warning #3 — Flaw: Ignoring edge termination and buckle selection
Most failures start at the edge. If the edge buckle type, spacing, and border rope strategy are not written into the order, the mesh can unzip, loosen, or tear out at fixing points.
Oversight #4 — Mistake: Not specifying aperture tolerance and panel squareness
A rope mesh panel can look acceptable but be dimensionally inconsistent. That triggers ugly joints, uneven tension, and time-consuming site correction. Lock measurable tolerances.
Defect #5 — Gap: Buying mesh only and forgetting the frame strategy
Many projects need a frame to control tension, alignment, and installation speed. If the frame is an afterthought, the mesh becomes hard to install cleanly and may sag over time.
Hazard #6 — Threat: Underestimating corrosion exposure (grade selection)
Indoor and coastal installations are not the same. If grade selection is wrong, surface staining and corrosion risk rise fast, especially near salt spray and chemical atmospheres.
Loss #7 — Crisis: Not writing a “no-sag, no-shift” acceptance rule into the PO
This is where buyers get hit. If the PO does not lock: (1) edge termination method, (2) border cable specification, (3) target tension behavior, (4) allowable aperture drift, and (5) fixing-point plan, the stainless steel cable wire rope mesh may look fine at installation but gradually shifts under load and movement. That creates visible sag, misaligned apertures, and repeated tightening—turning a premium solution into ongoing maintenance cost.
Downside #8 — Failure: Treating ferrules as “standard” without integrity control
Ferrule quality and crimp integrity decide whether the grid holds its geometry. Poor ferrules loosen under vibration and handling. Lock ferrule material and crimp quality rules.
Loophole #9 — Damage: Skipping receiving inspection before installation
Check rope diameter, aperture, edge terminations, and finish condition on arrival. Catching issues before installation prevents labour waste and rework under schedule pressure.
Checklist #10 — Rule: Failing to define the quotation inputs
A clean quote requires five inputs: rope diameter, mesh aperture (X×Y), width, height, and quantity. Without these, projects often receive the wrong build and pay twice.
FAQs
What information is required for a fast quotation?
Rope diameter, mesh aperture (X×Y), finished width, finished height, and quantity. These five inputs allow fast pricing and correct production planning for stainless steel cable wire rope mesh.
Which rope structure should I choose: 7×7 or 7×19?
7×7 is commonly used for smaller diameters and a slightly firmer feel, while 7×19 is commonly used for larger diameters where higher flexibility and fatigue resistance are preferred.
Can the specifications be customized?
Yes. Rope diameter, mesh aperture, panel size, edge termination, buckle type, and optional frames can be customized to match the project load path and installation method.
How is the mesh produced?
The mesh is made by hand-forming to maintain consistent pattern control and stable structure across each panel.
How is stainless steel cable wire rope mesh packed for export?
The mesh is wrapped with protective plastic film and then packed into a wooden box. Packing can be customized based on panel size, framing, and handling risk to prevent deformation.
What is the typical lead time?
Custom sample time is typically 5–7 days. Mass production time is commonly 10–15 days depending on quantity. Stock items can ship in 2–3 days after payment. Express delivery is commonly 3–7 days, and air shipping is commonly 3–10 days.
