Stainless steel knotted rope mesh is made from high tensile stainless steel wires in grades 304, 316, 304L and 316L. The main rope constructions are 7 × 7 and 7 × 19, and 1 × 7 and 1 × 19 are also available. The standard mesh angle is 90°. Thanks to its excellent softness, the mesh will not hurt hands, animals or birds, so it is widely used as stainless steel zoo mesh to protect animals while allowing visitors to enjoy them safely. It is also commonly used as stainless steel aviary mesh and bird cage mesh to provide birds with a comfortable living environment.
 | |

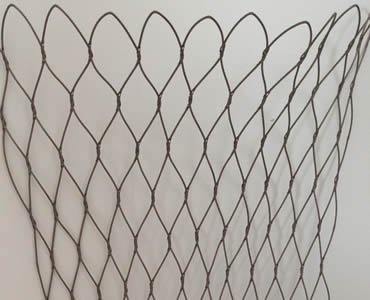

| Knotted cable mesh is made from stainless steel ropes without ferrules, and the standard angle is 90°. | Knotted rope mesh has an aesthetic appearance, making it suitable for decoration. |
Packaging Details:
- Packed stainless steel knotted rope mesh in rolls with plastic bag inside and carton box or wooden case outside.
- Packed stainless steel mesh netting according to customers’ requirements.
Features:
Our stainless steel knotted rope mesh has significant advantages over similar products in many aspects.
| Feature | Description |
|---|
| Soft but strong. | Knotted rope mesh is made of stainless steel ropes with 7 × 7 and 7 × 19 constructions, so the mesh is very soft and will not hurt people or animals, while the overall structure is firm and can withstand heavy snow and strong winds. |
| High flexibility and wide application. | Stainless steel knotted cable mesh has a unique structure with customized width, length, rope diameter and opening size, and irregular shapes are also available, which gives it high flexibility and allows it to be used in many different locations and designs. |
| Excellent visibility. | Stainless steel rope mesh has distinctive rhombic openings that provide excellent visibility, making it ideal for zoo enclosures and bird cages, allowing visitors to watch animals clearly while effectively preventing injuries and safely shortening the distance between visitors and animals. |
 | |

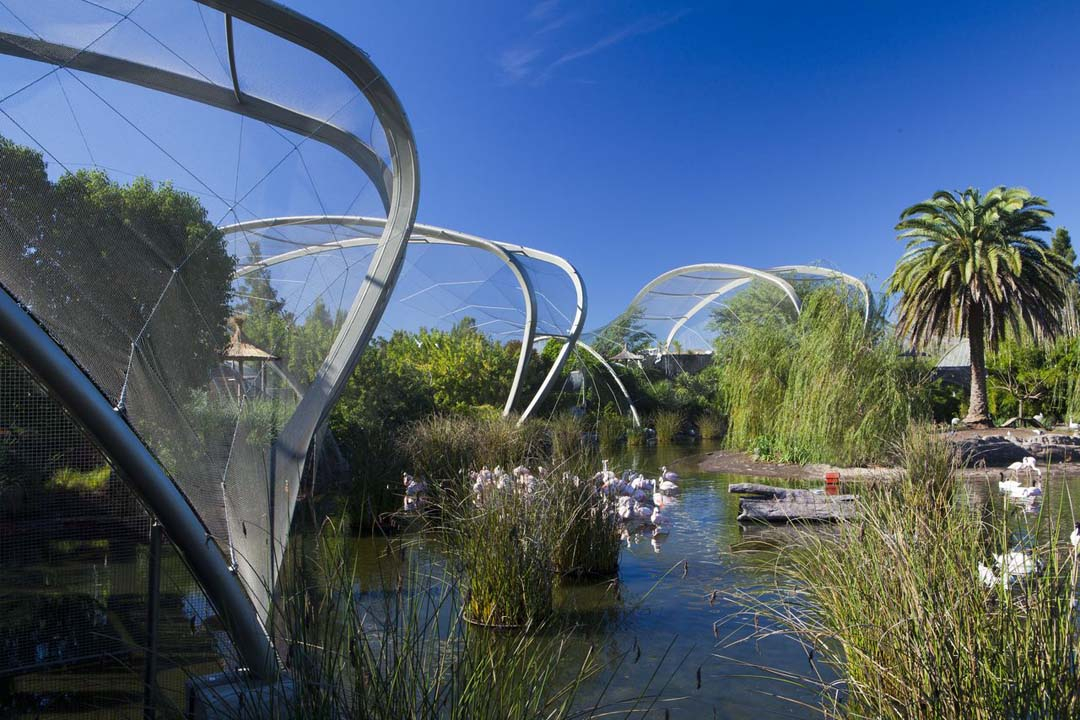

| The application of stainless steel wire rope mesh, rope woven mesh |
|---|
| Stainless steel wire rope mesh and rope woven mesh can be used both indoors and outdoors, including balustrade infills, horizontal or vertical fall protection, dividers, façade cladding, green walls and versatile design elements, as well as complex zoo solutions such as lightweight three-dimensional free-flight aviaries or big cat enclosures, animal enclosure mesh, animal cages, bird netting, agriculture, residential and sports areas, fall security, ocean parks, garden decoration, construction and renovation projects. |
 |
Advantages of Stainless Steel Knotted Rope Mesh
- Close to nature and environmentally friendly. Stainless steel wire rope mesh can be used in almost any climate or environment. It is rust resistant even under strong sunlight, rain, snow and fog, giving it a service life of more than 30 years. It can be reused and requires no maintenance after installation.
- Luxury appearance. Stainless steel rope mesh has a smooth surface and diamond-shaped openings. The knotted cable mesh itself becomes a beautiful landscape in zoos, parks and buildings.
- Outstanding elasticity and buffering ability. Stainless steel knotted rope mesh has excellent elasticity and buffering capacity, so it can safely withstand impacts from animals when used in zoos. Neither the animals nor the stainless steel wire cable mesh will be harmed, and it provides a safe and comfortable living environment for animals and birds.
 | |

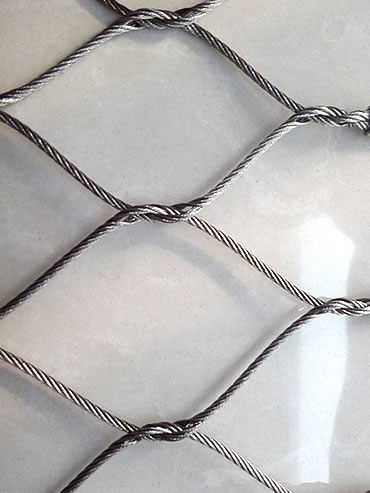

| Knotted rope mesh with diamond holes provides excellent visibility. | Rope mesh with knots is soft to the touch but very firm in structure. |
The Specification of Stainless Steel Knotted Rope Mesh
| Code | Rope Construction | Rope Diameter | Opening Size | Breaking Force |
|---|
| Inch | mm | Inch | mm | kN |
|---|
| SKRM-01 | 7 × 19 | 1/8 | 3.2 | 4.7″ × 4.7″ | 120 × 120 | 7.38 |
|---|
| SKRM-02 | 7 × 19 | 1/8 | 3.2 | 4″ × 4″ | 102 × 102 | 7.38 |
|---|
| SKRM-03 | 7 × 19 | 1/8 | 3.2 | 3.6″ × 3.6″ | 90 × 90 | 7.38 |
|---|
| SKRM-04 | 7 × 19 | 1/8 | 3.2 | 3″ × 3″ | 76 × 76 | 7.38 |
|---|
| SKRM-05 | 7 × 19 | 1/8 | 3.2 | 2″ × 2″ | 51 × 51 | 7.38 |
|---|
| SKRM-06 | 7 × 7 | 3/32 | 2.4 | 4″ × 4″ | 102 × 102 | 4.18 |
|---|
| SKRM-07 | 7 × 7 | 3/32 | 2.4 | 3.6″ × 3.6″ | 90 × 90 | 4.18 |
|---|
| SKRM-08 | 7 × 7 | 3/32 | 2.4 | 3″ × 3″ | 76 × 76 | 4.18 |
|---|
| SKRM-09 | 7 × 7 | 3/32 | 2.4 | 2.4″ × 2.4″ | 60 × 60 | 4.18 |
|---|
| SKRM-10 | 7 × 7 | 3/32 | 2.4 | 2″ × 2″ | 51 × 51 | 4.18 |
|---|
| SKRM-11 | 7 × 7 | 5/64 | 2.0 | 3″ × 3″ | 76 × 76 | 3.17 |
|---|
| SKRM-12 | 7 × 7 | 5/64 | 2.0 | 2.4″ × 2.4″ | 60 × 60 | 3.17 |
|---|
| SKRM-13 | 7 × 7 | 5/64 | 2.0 | 2″ × 2″ | 51 × 51 | 3.17 |
|---|
| SKRM-14 | 7 × 7 | 5/64 | 2.0 | 1.5″ × 1.5″ | 38 × 38 | 3.17 |
|---|
| SKRM-15 | 7 × 7 | 1/16 | 1.6 | 3″ × 3″ | 76 × 76 | 2.17 |
|---|
| SKRM-16 | 7 × 7 | 1/16 | 1.6 | 2″ × 2″ | 51 × 51 | 2.17 |
|---|
| SKRM-17 | 7 × 7 | 1/16 | 1.6 | 1.5″ × 1.5″ | 38 × 38 | 2.17 |
|---|
| SKRM-18 | 7 × 7 | 1/16 | 1.6 | 1.2″ × 1.2″ | 30 × 30 | 2.17 |
|---|
| SKRM-19 | 7 × 7 | 1/16 | 1.6 | 1″ × 1″ | 25 × 25 | 2.17 |
|---|
| SKRM-20 | 7 × 7 | 3/64 | 1.2 | 2″ × 2″ | 51 × 51 | 1.22 |
|---|
| SKRM-21 | 7 × 7 | 3/64 | 1.2 | 1.5″ × 1.5″ | 38 × 38 | 1.22 |
|---|
| SKRM-22 | 7 × 7 | 3/64 | 1.2 | 1.2″ × 1.2″ | 30 × 30 | 1.22 |
|---|
| SKRM-23 | 7 × 7 | 3/64 | 1.2 | 1″ × 1″ | 25 × 25 | 1.22 |
|---|
| SKRM-24 | 7 × 7 | 3/64 | 1.2 | 0.8″ × 0.8″ | 20 × 20 | 1.22 |
|---|
| All parameters above can be customized according to project requirements. |
|---|
