Stainless steel knotted rope mesh is a flexible, high-strength architectural mesh hand-woven from stainless steel wire ropes.Each intersection is individually knotted to form a stable diamond pattern that combines the strength of wire rope with the transparency of an open net.The result is a lightweight but extremely robust barrier system for safety, protection and modern design.
 |  |
What is stainless steel knotted rope mesh?

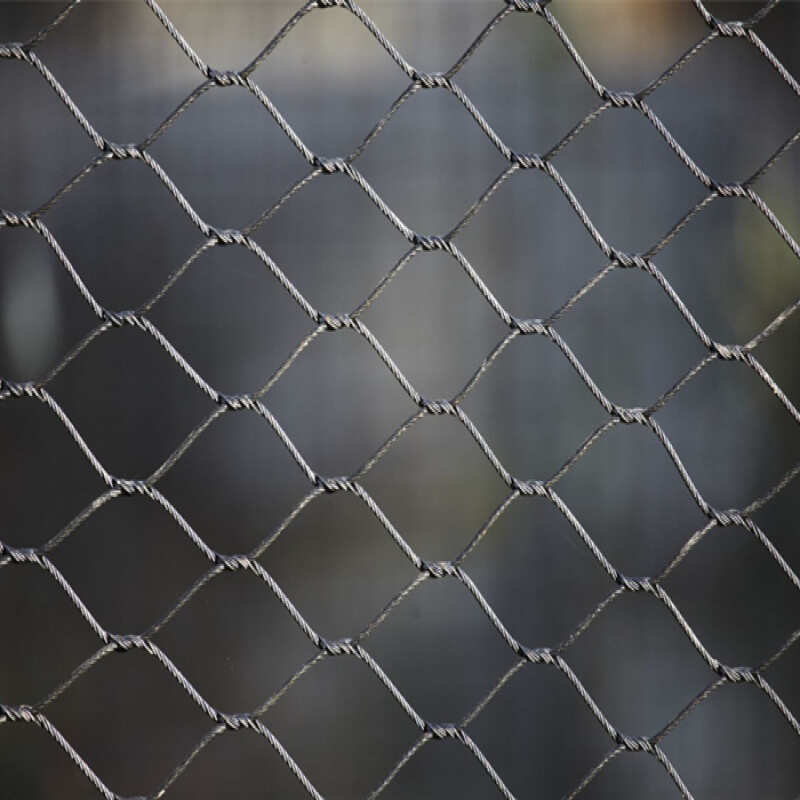

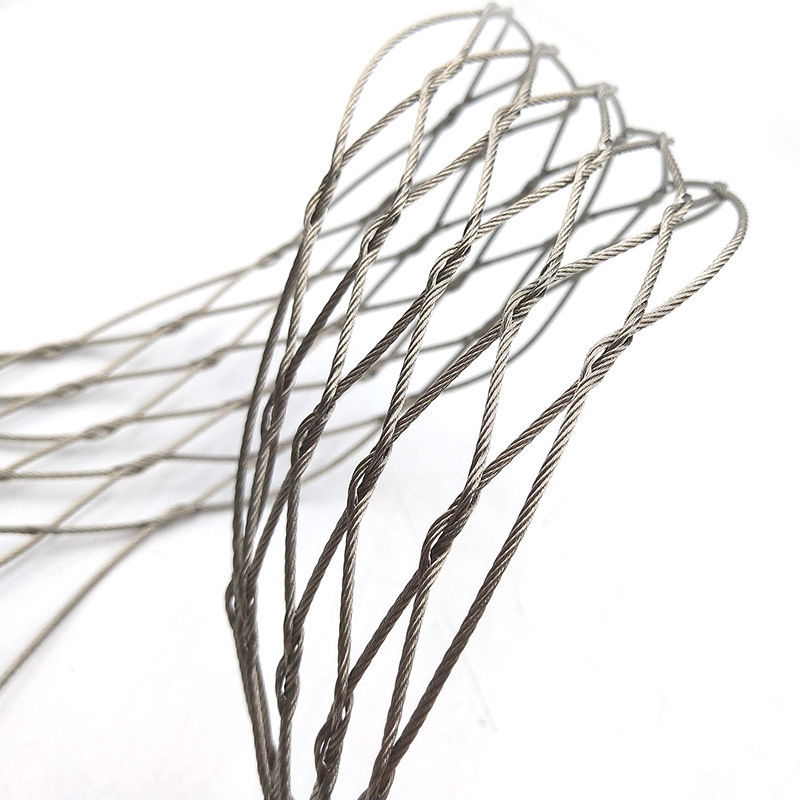

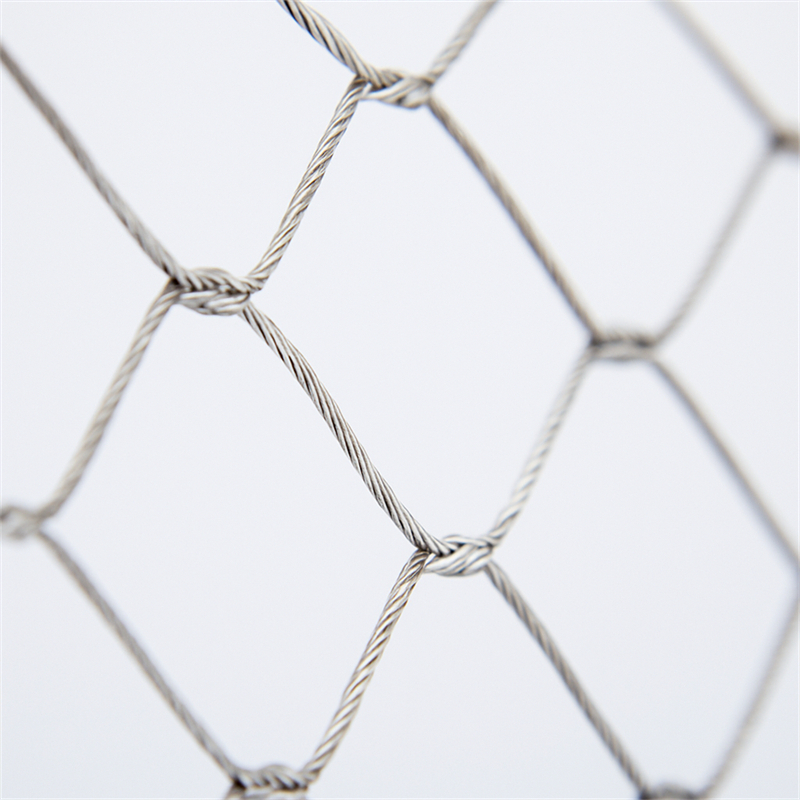

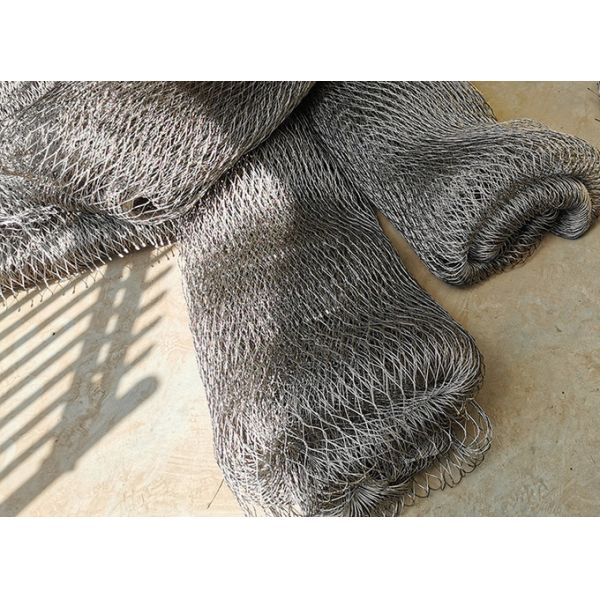

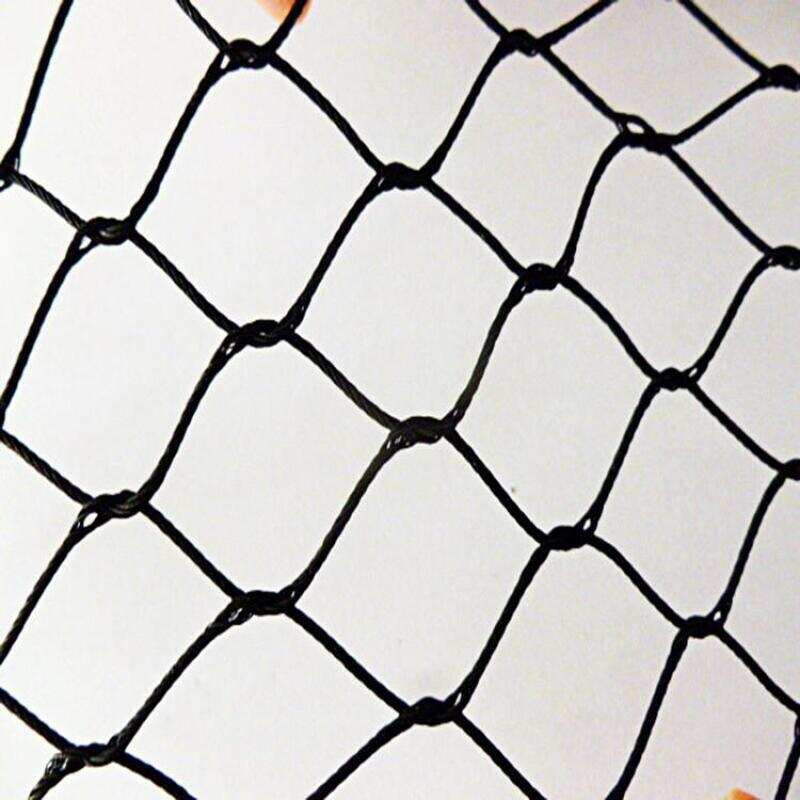

Stainless steel knotted rope mesh is a flexible net made from stainless steel wire ropes that are woven and knotted together. Each crossing point is a real knot, not a clamp. The mesh forms diamond-shaped openings and can be pulled tight between frames. It is strong, light in weight and looks very open, so it is widely used for zoo enclosures, bird aviaries, balustrades, façades and safety nets.
Main features of stainless steel knotted rope mesh
This mesh is made from AISI 304 or 316 stainless steel, so it resists rust and weather very well. The knotted structure keeps the mesh opening very stable and uniform. The surface is soft and flexible, which is friendly for animals and safe for people. The open area is high, so the mesh does not block views or air. At the same time, the wire ropes give high strength and long service life with almost no maintenance.
What is ferrule rope mesh?

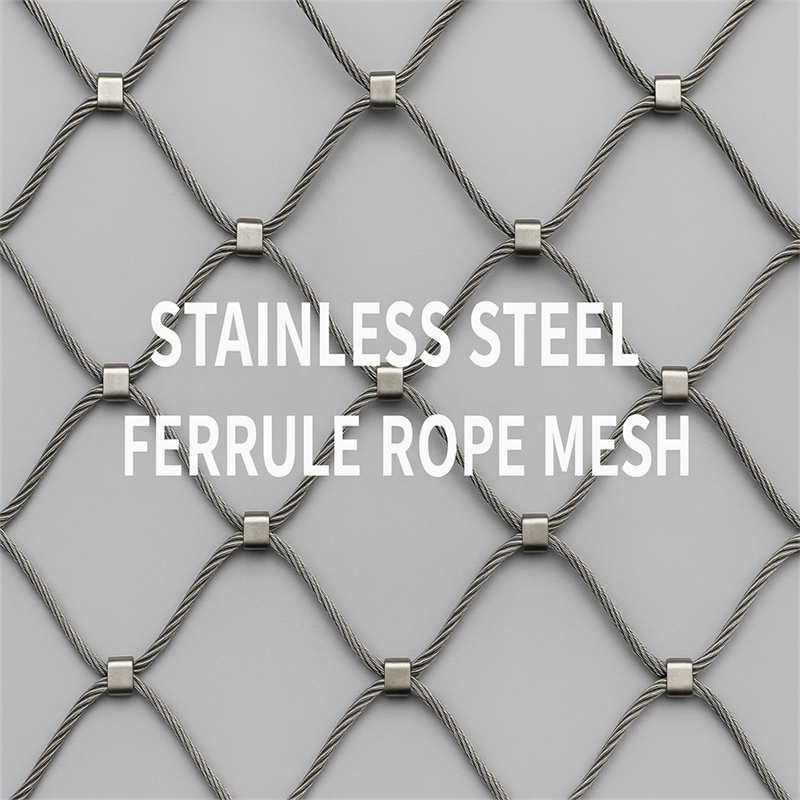

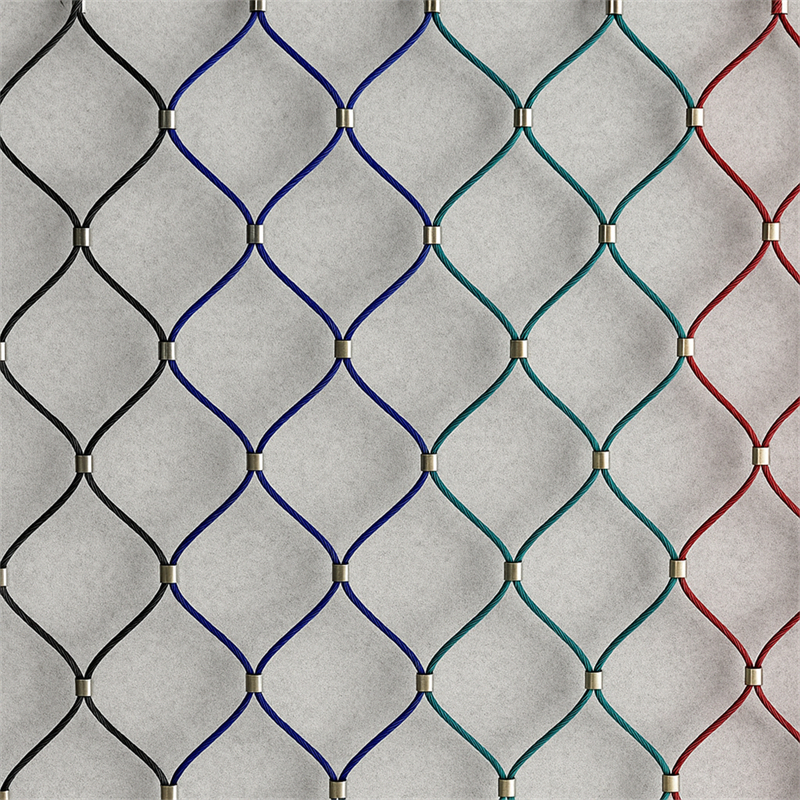

Ferrule rope mesh is also made from stainless steel wire ropes, but the crossing points are fixed with metal ferrules (small sleeves), not with knots. Two sets of parallel cables are joined by these ferrules to form the diamond shape. Ferrule mesh has a very modern, technical look because the ferrules are clearly visible and create a regular pattern on the surface.
Simple comparison: knotted rope mesh vs ferrule rope mesh
Knotted rope mesh is woven and locked by knots, while ferrule rope mesh is connected by ferrules. Knotted mesh is lighter because it has no extra metal pieces at the intersections. It usually offers a little more transparency and a more “soft” appearance, especially for zoo and animal projects. Ferrule mesh looks more geometric and decorative, which many architects like for façades and balustrades.
Advantages of stainless steel knotted rope mesh

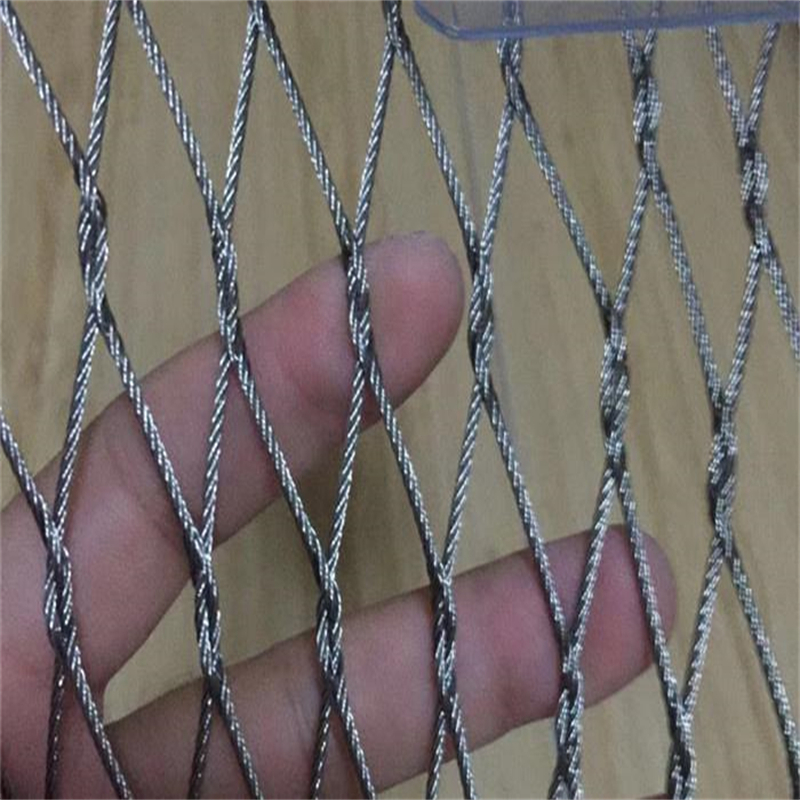

Knotted rope mesh gives very high safety because the knots cannot slip and the mesh opening stays stable under tension or impact. The lighter weight makes transport and installation easier, especially on large areas. The smooth rope without hard ferrules is kinder to feathers, fur and skin, which is ideal for birds and animals. With its clean, almost invisible look and strong stainless steel structure, stainless steel knotted rope mesh provides long-term protection and a very clear view at the same time.
- AISI 316 stainless steel wire rope with precise diameter control

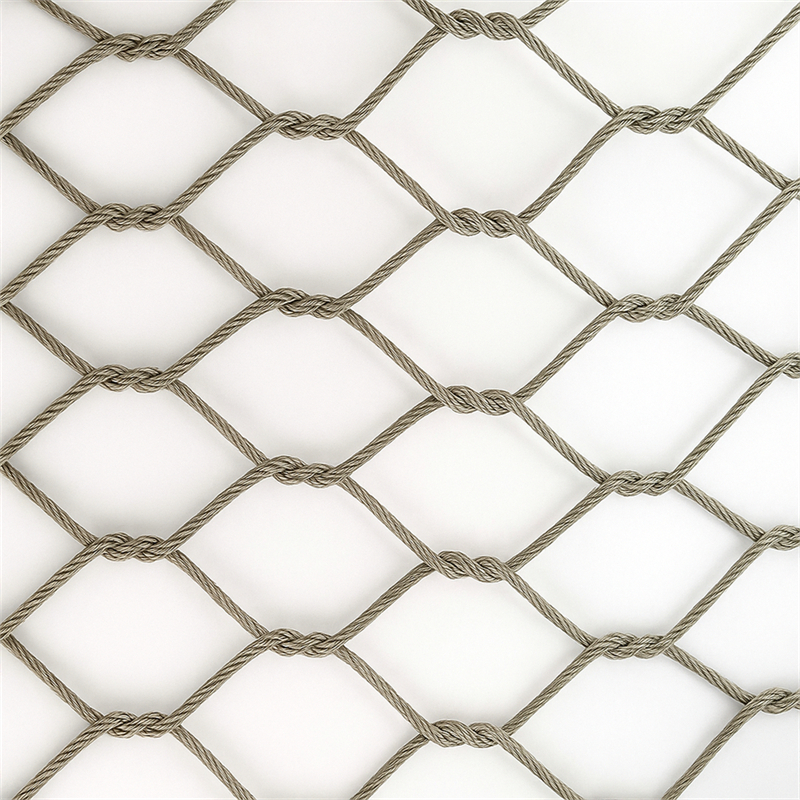

- Hand-tied stainless steel knots at every cable intersection
- A defined mesh aperture matched to safety and visibility requirements
- A controlled installation angle and open area for optical performance
- Reinforced edge cables designed for reliable long-term tensioning
With this structure, stainless steel knotted rope mesh is ideal for balustrades, bridges, zoo aviaries, big cat enclosures, green façades, stadium fall protection and high-rise safety nets.
Secret Detail #1 – The Knot Quality Decides Whether the Mesh Reaches Its Full Strength
The rope itself can have a very high breaking load, but only tight, uniform knots can transfer that strength into the finished panel.In our stainless steel knotted rope mesh, every knot is pulled to a controlled tension so the panel safely carries the nominal breaking load of the rope in real projects.
Key technical advantages and performance
Stainless steel knotted rope mesh delivers a performance combination that traditional welded mesh, chain link and glass infill cannot match.
- High strength with very low self-weight on the main structure
- Excellent corrosion resistance in coastal, urban and humid climates
- High flexibility for flat, cylindrical and free-form surfaces
- Very high transparency with open area up to 94%
- Soft, impact-friendly surface for people and animals
- Long service life with almost no maintenance
Secret Detail #2 – AISI 316 Stainless Steel Quietly Prevents Early Rust Stains on Your Project
304 and 316 stainless steels look similar in the catalog, but in outdoor and coastal environments only AISI 316 keeps the mesh clean and bright year after year.
We manufacture stainless steel knotted rope mesh in AISI 316 for all exterior and high-humidity applications so you avoid ugly tea-staining and pitting on valuable projects.
Standard specifications – light-duty stainless steel knotted rope mesh
Light-duty specifications are perfect for interior balustrades, stair infill, small animal aviaries and short-span protective barriers.
These meshes combine small apertures with fine wire diameters to give a soft, elegant appearance with reliable safety performance.
| WIRE ROPE DIAMETER (mm) | MESH APERTURE (mm) | ANGLE (degrees) | OPEN AREA (%) | MATERIAL | NOMINAL BREAKING LOAD (lbs) | WIRE ROPE STRUCTURE |
|---|---|---|---|---|---|---|
| 1.2 | 20 × 35 | 60 | 68 | AISI 316 | 480 | 7×7 |
| 1.2 | 25 × 40 | 60 | 71 | AISI 316 | 480 | 7×7 |
| 1.2 | 30 × 50 | 60 | 75 | AISI 316 | 480 | 7×7 |
| 1.5 | 25 × 40 | 60 | 69 | AISI 316 | 920 | 7×7 |
| 1.5 | 30 × 50 | 60 | 73 | AISI 316 | 920 | 7×7 |
| 1.5 | 35 × 60 | 60 | 77 | AISI 316 | 920 | 7×7 |
| 1.5 | 40 × 70 | 60 | 80 | AISI 316 | 920 | 7×7 |
| 1.6 | 25 × 43 | 60 | 68 | AISI 316 | 1,000 | 7×7 |
| 1.6 | 30 × 52 | 60 | 72 | AISI 316 | 1,000 | 7×7 |
| 1.6 | 35 × 60 | 60 | 75 | AISI 316 | 1,000 | 7×7 |
| 1.8 | 30 × 52 | 60 | 73 | AISI 316 | 1,380 | 7×7 |
| 1.8 | 35 × 60 | 60 | 76 | AISI 316 | 1,380 | 7×7 |
| 1.8 | 40 × 69 | 60 | 79 | AISI 316 | 1,380 | 7×7 |
| 2.0 | 35 × 60 | 60 | 74 | AISI 316 | 1,760 | 7×7 |
| 2.0 | 40 × 69 | 60 | 77 | AISI 316 | 1,760 | 7×7 |
Secret Detail #3 – Mesh Aperture Controls Real Safety, Not Just Rope Diameter
Many buyers look only at wire rope diameter, but mesh aperture is what actually limits head, hand and object passage.
In our stainless steel knotted rope mesh, each aperture is locked to the right wire diameter so you achieve both the required safety class and the clean visual line you want.
Standard specifications – medium-duty stainless steel knotted rope mesh
Medium-duty specifications are used for façades, green walls, zoo aviaries for medium and large birds, and safety barriers with longer spans.
They balance visual lightness with increased strength and stiffness.
| WIRE ROPE DIAMETER (mm) | MESH APERTURE (mm) | ANGLE (degrees) | OPEN AREA (%) | MATERIAL | NOMINAL BREAKING LOAD (lbs) | WIRE ROPE STRUCTURE |
|---|---|---|---|---|---|---|
| 2.0 | 50 × 87 | 60 | 82 | AISI 316 | 1,760 | 7×7 |
| 2.0 | 60 × 104 | 60 | 85 | AISI 316 | 1,760 | 7×7 |
| 2.0 | 70 × 121 | 60 | 87 | AISI 316 | 1,760 | 7×7 |
| 2.4 | 50 × 87 | 60 | 80 | AISI 316 | 2,650 | 7×7 |
| 2.4 | 60 × 104 | 60 | 83 | AISI 316 | 2,650 | 7×7 |
| 2.4 | 70 × 121 | 60 | 86 | AISI 316 | 2,650 | 7×7 |
| 2.4 | 80 × 139 | 60 | 89 | AISI 316 | 2,650 | 7×7 |
| 3.0 | 60 × 104 | 60 | 81 | AISI 316 | 4,400 | 7×19 |
| 3.0 | 70 × 121 | 60 | 84 | AISI 316 | 4,400 | 7×19 |
| 3.0 | 80 × 139 | 60 | 87 | AISI 316 | 4,400 | 7×19 |
| 3.0 | 90 × 156 | 60 | 89 | AISI 316 | 4,400 | 7×19 |
| 3.2 | 80 × 139 | 60 | 86 | AISI 316 | 5,050 | 7×19 |
| 3.2 | 90 × 156 | 60 | 88 | AISI 316 | 5,050 | 7×19 |
| 3.2 | 100 × 173 | 60 | 90 | AISI 316 | 5,050 | 7×19 |
| 3.2 | 120 × 208 | 60 | 92 | AISI 316 | 5,050 | 7×19 |
Secret Detail #4 – The Installation Angle Quietly Changes the Effective Aperture on Site
All apertures in the table are defined at a 60° reference angle.
If you change the angle when you install stainless steel knotted rope mesh, the diamond becomes visually wider or taller and the effective opening changes.
We design every project around a defined angle so the finished mesh matches your drawings and safety tests.
Standard specifications – heavy-duty stainless steel knotted rope mesh
Heavy-duty specifications are engineered for big cat enclosures, bear habitats, stadium fall protection, bridge barriers and high-rise safety nets.
These meshes use thicker wire ropes and larger apertures for maximum strength with impressive transparency.
| WIRE ROPE DIAMETER (mm) | MESH APERTURE (mm) | ANGLE (degrees) | OPEN AREA (%) | MATERIAL | NOMINAL BREAKING LOAD (lbs) | WIRE ROPE STRUCTURE |
|---|---|---|---|---|---|---|
| 3.2 | 100 × 173 | 60 | 87 | AISI 316 | 5,050 | 7×19 |
| 3.2 | 120 × 208 | 60 | 90 | AISI 316 | 5,050 | 7×19 |
| 3.2 | 150 × 260 | 60 | 92 | AISI 316 | 5,050 | 7×19 |
| 4.0 | 100 × 173 | 60 | 86 | AISI 316 | 8,800 | 7×19 |
| 4.0 | 120 × 208 | 60 | 88 | AISI 316 | 8,800 | 7×19 |
| 4.0 | 150 × 260 | 60 | 91 | AISI 316 | 8,800 | 7×19 |
| 4.0 | 180 × 312 | 60 | 93 | AISI 316 | 8,800 | 7×19 |
| 4.0 | 200 × 346 | 60 | 94 | AISI 316 | 8,800 | 7×19 |
| 4.5 | 120 × 208 | 60 | 87 | AISI 316 | 11,000 | 7×19 |
| 4.5 | 150 × 260 | 60 | 90 | AISI 316 | 11,000 | 7×19 |
| 4.5 | 180 × 312 | 60 | 92 | AISI 316 | 11,000 | 7×19 |
| 4.5 | 200 × 346 | 60 | 93 | AISI 316 | 11,000 | 7×19 |
| 4.5 | 230 × 399 | 60 | 94 | AISI 316 | 11,000 | 7×19 |
| 5.0 | 150 × 260 | 60 | 88 | AISI 316 | 14,300 | 7×19 |
| 5.0 | 200 × 346 | 60 | 92 | AISI 316 | 14,300 | 7×19 |
Secret Detail #5 – Rope Structure Decides How the Mesh Reacts to Heavy Impact
The same wire diameter behaves very differently in 7×7 and 7×19 constructions.
For stainless steel knotted rope mesh, 7×7 gives a stiffer, more structural feeling, while 7×19 absorbs impact better and bends without permanent damage.
We select the rope structure by application so your barrier resists real loads instead of only looking strong on paper.
How to choose stainless steel knotted rope mesh
Choosing the right stainless steel knotted rope mesh at the start protects safety, appearance and budget throughout the life of the project.
- Define the function: balustrade, façade, aviary, predator cage, safety net or bridge barrier
- Set design loads and permitted deflection for the mesh surface
- Choose mesh aperture according to head, hand and object sizes or animal species
- Select wire diameter based on span length and impact level
- Pick the required open area for view, ventilation and privacy
- Confirm AISI 316 stainless steel for all demanding environments
Secret Detail #6 – Using “Random” Aviary Mesh Sizes Can Quietly Stress Animals
If the aperture is too small, birds and animals feel visually trapped; if it is too large, they feel exposed and nervous.
Our stainless steel knotted rope mesh for zoos is matched to each species so the enclosure feels natural and calm while still giving keepers and visitors maximum safety.
Key applications of stainless steel knotted rope mesh
Balustrades, bridges and guardrails
Stainless steel knotted rope mesh is widely used as infill for balconies, stairs, pedestrian bridges and skywalks.
It keeps users safe without blocking views, and its low wind resistance reduces the load on the structure compared with solid panels.
Secret Detail #7 – Copying “Standard” Mesh Sizes Can Cause Expensive Rework
Many projects simply copy a mesh size seen in photos.
When span, load or deflection limits are different, the mesh can sag, fail tests or feel unsafe, forcing re-ordering and re-installation.
By using our defined stainless steel knotted rope mesh specifications, you secure the correct size at the first attempt and avoid hidden costs.

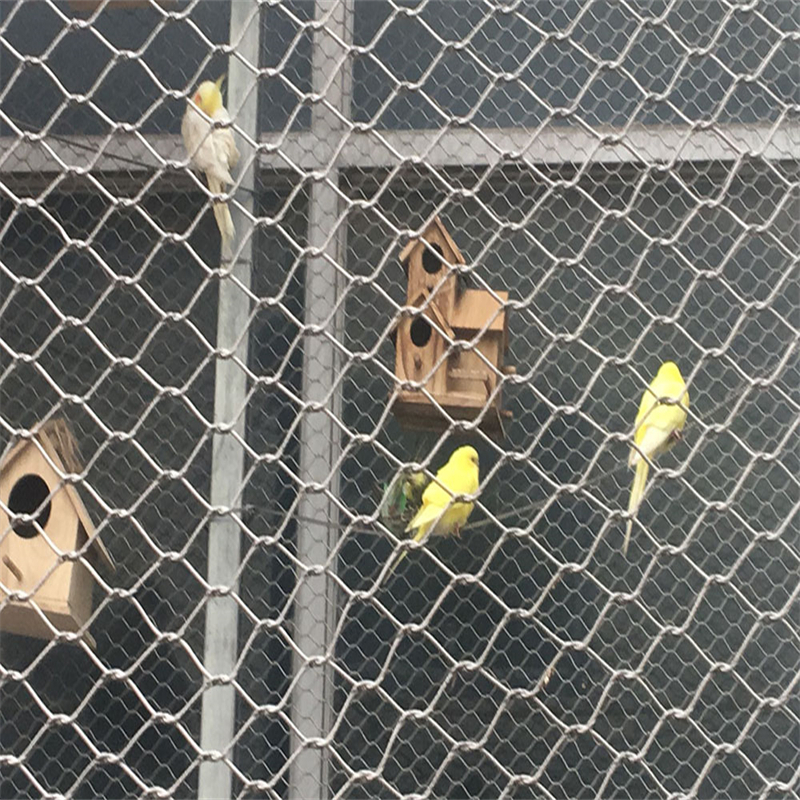

Zoo aviaries and animal enclosures
For zoos and wildlife parks, stainless steel knotted rope mesh provides strong, claw-resistant containment with a soft surface that protects animals on impact.
The high transparency brings visitors visually close to birds, primates and big cats while maintaining reliable safety for staff and guests.
Secret Detail #8 – Aperture Size Influences Animal Behaviour Long Before It Affects Strength
Even when the mesh is mechanically strong enough, the wrong aperture can disturb natural behaviour, change movement patterns and increase stress.
Our stainless steel knotted rope mesh ranges for zoo applications combine species comfort with long-term structural reliability.
Façades, green walls and building envelopes
On façades, stainless steel knotted rope mesh works as a transparent secondary skin.
It supports climbing plants for natural shading, shapes the building with clean lines, and provides fall protection around openings and balconies in one integrated system.
Stadiums, arenas and high-rise safety nets
In stadiums and high-rise buildings, stainless steel knotted rope mesh is used for fall protection along stands, atriums and façade edges.
It preserves clear sightlines and airflow while forming a continuous, reliable safety barrier.
Secret Detail #9 – Panel Geometry and Edge Reinforcement Decide Real Safety, Not Only Wire Strength
A single cable can show a very high breaking load, but if panel geometry and edges are weak, the barrier fails at much lower forces.
We design stainless steel knotted rope mesh as complete panels with balanced cable layout and strong edge reinforcement so the installed system performs exactly as required.
Installation and framing of stainless steel knotted rope mesh
Stainless steel knotted rope mesh must be combined with a properly engineered frame and tensioning system to achieve the expected performance and appearance.
- Use stainless steel flat bars, angles, tubes or perimeter cables as frames
- Fix the frame firmly to the main structure before installing the mesh
- Attach mesh panels to edge cables using suitable terminals and connectors
- Tension the mesh gradually and evenly along all edges
- Check diamond shape, deflection and edge line before final locking
Secret Detail #10 – Uneven Tension Creates “Bellies” That Are Costly to Remove
When one side of the panel is tensioned more than the others, the stainless steel knotted rope mesh develops permanent waves and bellies.
Our installation guidance specifies pretension values and anchor spacing so the surface stays flat from the first day and does not require expensive re-tensioning.
Manufacturing and quality control
As a dedicated manufacturer of stainless steel knotted rope mesh, we control every critical step from wire to finished panel.
- Wire rope drawing and stranding with tight diameter tolerances
- Hand-knotted intersections with uniform geometry and knot tightness
- Accurate panel dimensions for width, height and cable count
- Strong border cables and reinforced corners on all panels
- Inspection of appearance, aperture, angle and open area on each batch
Secret Detail #11 – Factory-Controlled Pretension and Knotting Secure Long-Term Stability
When knots and panel dimensions are controlled in the factory, the mesh arrives on site ready to be tensioned to the designed values.
This guarantees that stainless steel knotted rope mesh remains stable, safe and visually clean throughout its long service life, even in demanding architectural and zoo applications.
Ordering stainless steel knotted rope mesh
You can order stainless steel knotted rope mesh as ready-to-install panels tailored to your drawings:
- Custom panel sizes according to project layout
- Mesh apertures and wire diameters selected from our specification tables
- AISI 316 stainless steel wire rope and accessories for outdoor projects
- Finished panels with edge cables and corner details ready for tensioning
With these clearly defined specifications and powerful secrets, stainless steel knotted rope mesh protects your project with high strength, long life and a confident, modern architectural appearance.
