Stainless steel peacock rope mesh

Stainless steel peacock rope mesh is a flexible wire-rope netting specially designed for peacock and large bird enclosures. It combines the high strength of stainless steel cable with a soft, elastic mesh structure to create a safe, durable and visually open environment for birds.

Compared with traditional welded wire mesh or chain-link fencing, stainless steel rope mesh offers:

• Better protection for delicate tail feathers
• Longer service life in outdoor conditions
• A more elegant, almost “invisible & clearvu ” appearance

It is widely used in zoos, bird parks, private gardens, ecological hotels and high-end landscape projects.

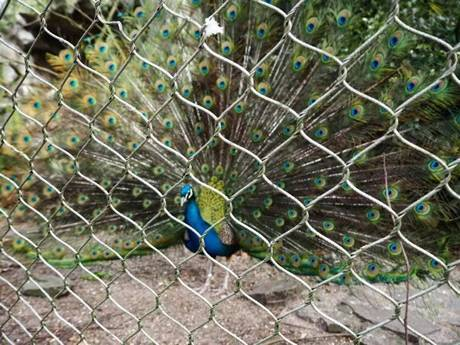

PEF-03: Wire rope peacock fencing give a beautiful visual effect.

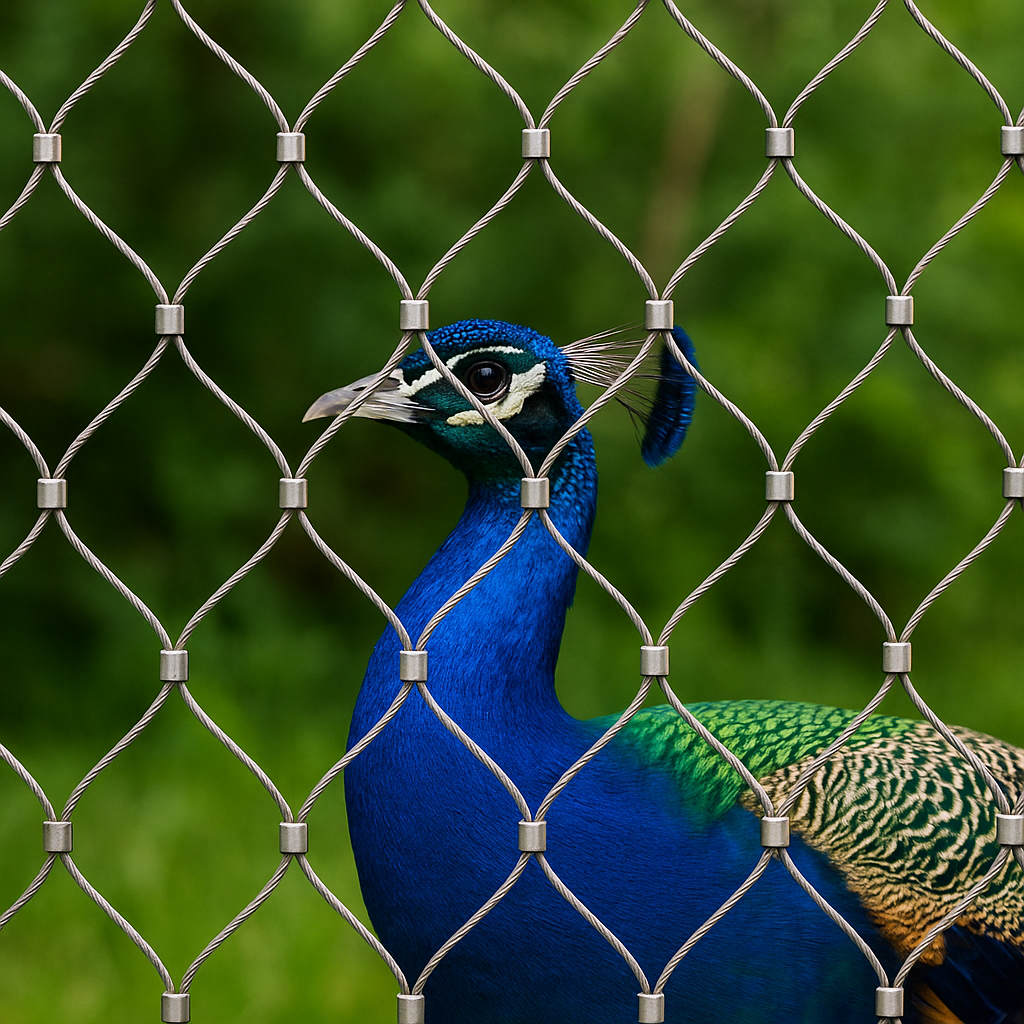

PEF-04: Ferrules rope mesh peacock fencing provide a good view.

2. Key Features

1. High Strength and Safety
   The stainless steel wire rope has excellent tensile strength. Even under impact or climbing, the mesh maintains its shape and prevents birds from escaping or predators from entering.

2. Soft and Feather-Friendly
   The mesh is flexible rather than rigid. When peacocks touch or brush against it, the mesh gives slightly, reducing the risk of feather breakage and injury.

3. Outstanding Corrosion Resistance
   Made from high-quality 304 or 316 stainless steel, the mesh resists rust in outdoor, humid or rainy environments. Service life can reach many years with minimal maintenance.

4. Beautiful and Transparent Appearance
   The diamond-shaped openings and slender cables make the mesh highly transparent. From a distance, the barrier is unobtrusive, allowing visitors to enjoy a clear, natural view of the peacocks.

5. Excellent Ventilation and Light
   The open structure ensures free airflow and abundant sunlight, helping maintain a healthy, dry and comfortable living space for the birds.

6. Flexible Design and Easy Installation
   The mesh can be cut and formed into flat fences, curved walls, domes or large-span aviary roofs. It can be fixed to steel, wood or concrete frames with tension cables and standard hardware.

3. Typical Applications Stainless steel peacock rope mesh

• Large outdoor peacock aviaries

• Garden and courtyard peacock runs

• Mixed-species bird habitats and walk-through bird parks

• Landscape fences and viewing corridors

• Roof netting for bird protection while keeping the space open

4. Technical Specifications (Example)

The following specifications are typical values commonly used for peacock enclosures. They can be adjusted according to project requirements.

4.1 Mesh Aperture (Opening Size)

• 30 × 30 mm (approx. 1.2″ × 1.2″)
  For young birds or where higher security is required.

• 40 × 40 mm (approx. 1.6″ × 1.6″)
  Standard choice for most peacock aviaries, balancing safety and visibility.

• 50 × 50 mm (approx. 2″ × 2″)
  For large enclosures where maximum transparency and a light visual effect are desired.

Smaller apertures increase safety and prevent small birds from passing through; larger apertures improve visibility and reduce overall weight.

4.2 Wire Rope Diameter

• 1.2 mm
  Very light and flexible; suitable for small birds or interior partitions.

• 1.5 mm
  Recommended for most peacock enclosures; offers a good balance between strength and visual lightness.

• 1.8–2.0 mm
  For large-span structures, public areas, or where people may lean on or touch the mesh more frequently.

Thicker rope increases load-bearing capacity and impact resistance, but also slightly increases visual presence and cost.

4.3 Rope Structures Stainless steel peacock rope mesh

Common stainless steel wire rope constructions used for peacock mesh include:

• 7×7 Construction

  • Medium flexibility, relatively firm

  • Suitable for standard aviary walls and straight fences

• 7×19 Construction

  • Very flexible and soft

  • Ideal for curved surfaces, domes and complex three-dimensional shapes

The choice of rope structure depends on the shape and design of the enclosure. For large curved aviaries and dome roofs, 7×19 is usually preferred.

4.4 Materials Stainless steel peacock rope mesh

• AISI 304 Stainless Steel

  • Standard grade with good corrosion resistance

  • Suitable for most inland and normal outdoor environments

  • Cost-effective option for general projects

• AISI 316 Stainless Steel

  • Enhanced corrosion resistance, especially in coastal or highly humid environments

  • Recommended for seaside zoos, resorts and long-term premium projects

  • Higher-grade material with longer expected service life

4.5 Surface and Accessories

• Surface Finish

  • Natural stainless steel finish

  • Smooth surface, easy to clean and maintain

• Typical Accessories

  • Stainless steel edge cables

  • Turnbuckles and tensioners for adjusting mesh tension

  • Stainless steel clips / ferrules for cable connections

  • Anchor plates, eye bolts or other fittings to connect the mesh to the main structure

5. Recommended Configuration for Stainless steel peacock rope mesh

For a typical outdoor peacock aviary in a garden, zoo or bird park, a commonly used configuration is:

6. Installation and Maintenance Stainless steel peacock rope mesh

• The mesh panels are usually fixed to a steel, wood or concrete frame.
• Edge cables and turnbuckles are used to tension the mesh and keep it flat and stable.
• Routine maintenance mainly consists of visual inspection and occasional cleaning with water to remove dust or bird droppings.
