stainless steel rope mesh bag 10 Powerful Warnings

stainless steel rope mesh bag is a flexible, high-performance stainless steel cable net product that is shaped and finished as a ready-to-use bag. Using marine-grade stainless steel wire rope and precision ferrules, a stainless steel rope mesh bag combines low weight, very high strength and outstanding visibility. It is widely used as a safety catch bag, crane and hoist load bag, architectural feature bag, zoo enrichment bag and anti-fall rope mesh bag for tools, parts and debris. Typical finished bag sizes include 30 × 35 cm, 30 × 60 cm, 35 × 60 cm, 50 × 70 cm, 100 × 70 cm, 100 × 80 cm and 82.5 × 120 cm, giving you a practical range from compact tool bags to deep safety catch baskets. In workshops, stadiums, offshore platforms and zoological parks, the stainless steel rope mesh bag is often the last barrier between a minor incident and a major accident. When you specify and install it correctly, it quietly protects people, equipment and structures for years; when you ignore a few critical warnings, it can become the hidden weak link that leads to loss and damage.

What Is a stainless steel rope mesh bag?

A stainless steel rope mesh bag is made from high-tensile stainless steel wire rope woven mesh or ferrule-pressed into a mesh, then formed into a three-dimensional bag or basket with a reinforced mouth and bottom. The diamond or square apertures deform elastically under load, distributing forces through the rope network and back into the suspension points, lugs or rings. In addition to the mesh, the overall bag geometry is carefully set: common sizes are 30 × 35 cm, 30 × 60 cm and 35 × 60 cm for hand-carried bags, plus 50 × 70 cm, 100 × 70 cm, 100 × 80 cm and 82.5 × 120 cm for larger crane or hoist bags. Typical construction features include stainless steel wire rope diameters from 1.0–3.2 mm, mesh apertures from 20 × 20 mm up to 150 × 150 mm, rope constructions of 7 × 7 and 7 × 19, and material grades AISI 304 / 304L for indoor and mild outdoor use or AISI 316 / 316L for marine and highly corrosive environments.

Fact #1 – Load path fact that controls real stainless steel rope mesh bag safety

The first critical fact is that mesh aperture, wire rope diameter, bag depth, mouth diameter, overall size (for example 30 × 35 cm, 35 × 60 cm or 100 × 80 cm) and suspension point spacing together define the real load path of a stainless steel rope mesh bag. If the aperture is too large for the selected wire diameter, if the bag body is made too deep for the mesh, or if the mouth is supported at too few points, the mesh can stretch excessively under load and concentrate stress in a few wires. This can lead to sudden tearing or uncontrolled deformation when the bag is fully loaded. Balancing these parameters correctly gives controlled deflection, high energy absorption and reliable containment of tools, parts, samples or stones.

Materials, Rope Structures and Corrosion Resistance

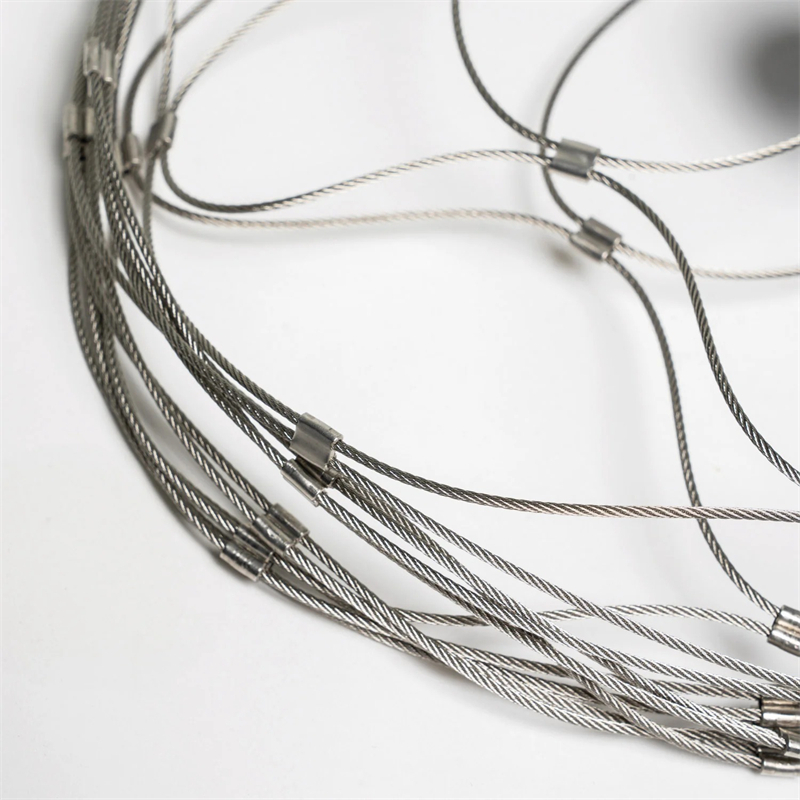

stainless steel rope mesh bag is produced from cold-drawn stainless steel wire stranded into cables before weaving or ferrule pressing. Two main rope structures are used: 7 × 7, compact and relatively stiff, ideal for bags with small apertures and neat shaping; and 7 × 19, very flexible, ideal for larger bags, deep catch nets and irregular loads. For interior workshops and dry climates, AISI 304 / 304L provides robust performance; for offshore decks, chemical plants and coastal stadiums, AISI 316 / 316L with molybdenum offers superior resistance to pitting and crevice corrosion so that the stainless steel rope mesh bag keeps its full strength for decades.

Detail #2 – Material selection detail that blocks hidden corrosion

A decisive detail is the choice of stainless steel grade for your stainless steel rope mesh bag. If you use AISI 304 in aggressive marine or chemical zones, corrosion can begin invisibly inside ferrules, in folds at the bag bottom and around lugs where moisture accumulates. Over time this hidden attack reduces wire diameter and can create sharp edges that cut slings or gloves. Upgrading to AISI 316 / 316L for exposed bags blocks this hidden corrosion route and preserves the breaking load of every strand.

Specification Table 1 – General Purpose stainless steel rope mesh bag

This table shows typical mesh specifications for general-purpose stainless steel rope mesh bags used for architectural features, storage and light tool-catching duties across standard bag sizes such as 30 × 35 cm, 35 × 60 cm and 50 × 70 cm.

WIRE ROPE DIAMETER	MESH APERTURE	Angle degrees:	Light Transmittance (%)	Material	Nominal Breaking Load (lbs)	WIRE ROPE STRUCTURES
1.0 mm	20 × 20 mm	60°	70%	AISI 304	600	7 × 7
1.2 mm	25 × 25 mm	60°	72%	AISI 304	800	7 × 7
1.2 mm	30 × 30 mm	60°	74%	AISI 304	800	7 × 7
1.5 mm	30 × 40 mm	60°	76%	AISI 304	1,150	7 × 7
1.5 mm	35 × 50 mm	60°	78%	AISI 304	1,150	7 × 7
1.6 mm	40 × 50 mm	70°	80%	AISI 316	1,250	7 × 7
1.6 mm	40 × 60 mm	70°	82%	AISI 316	1,250	7 × 7
1.6 mm	50 × 60 mm	70°	83%	AISI 316	1,250	7 × 7
2.0 mm	50 × 70 mm	70°	85%	AISI 316	2,000	7 × 7
2.0 mm	60 × 80 mm	70°	87%	AISI 316	2,000	7 × 7
2.0 mm	70 × 90 mm	75°	88%	AISI 316	2,000	7 × 7
2.4 mm	70 × 100 mm	75°	89%	AISI 316	3,100	7 × 7
2.4 mm	80 × 110 mm	75°	90%	AISI 316	3,100	7 × 7
2.4 mm	80 × 120 mm	75°	91%	AISI 316	3,100	7 × 7
3.0 mm	100 × 150 mm	80°	93%	AISI 316	4,600	7 × 19

Insight #3 – Shaping insight that keeps the stainless steel rope mesh bag stable

One key insight is that the way you shape and seam the stainless steel rope mesh bag determines how it behaves when filled. A well-designed bag uses continuous mesh from bottom to rim, with reinforced edge cables and evenly spaced lifting rings, sized appropriately for the chosen bag format such as 30 × 60 cm or 50 × 70 cm. This avoids local overstress at corners and stops the contents from shifting dangerously when the bag is hoisted, swung or set down.

stainless steel rope mesh bag for Safety Catch and Dropped-Object Control

On offshore platforms, high-rise projects and industrial plants, a stainless steel rope mesh bag is an ideal solution for dropped-object control and local catch nets. Compact bags around 30 × 35 cm or 35 × 60 cm are perfect for tool sets and loose hardware, while larger 50 × 70 cm, 100 × 70 cm, 100 × 80 cm and 82.5 × 120 cm bags are used as deep catch baskets below work areas. The mesh structure allows superb airflow and visibility, while the stainless steel rope mesh bag safely retains falling items and prevents damage below.

Specification Table 2 – Heavy-Duty stainless steel rope mesh bag for Safety Use

WIRE ROPE DIAMETER	MESH APERTURE	Angle degrees:	Light Transmittance (%)	Material	Nominal Breaking Load (lbs)	WIRE ROPE STRUCTURES
1.6 mm	30 × 50 mm	60°	78%	AISI 316	1,250	7 × 7
1.6 mm	40 × 60 mm	70°	80%	AISI 316	1,250	7 × 7
2.0 mm	40 × 70 mm	70°	82%	AISI 316	2,000	7 × 7
2.0 mm	50 × 80 mm	70°	84%	AISI 316	2,000	7 × 7
2.0 mm	60 × 90 mm	75°	86%	AISI 316	2,000	7 × 7
2.4 mm	50 × 80 mm	70°	85%	AISI 316	3,100	7 × 7
2.4 mm	60 × 90 mm	75°	87%	AISI 316	3,100	7 × 7
2.4 mm	70 × 100 mm	75°	89%	AISI 316	3,100	7 × 7
3.0 mm	70 × 110 mm	75°	90%	AISI 316	4,600	7 × 19
3.0 mm	80 × 120 mm	80°	91%	AISI 316	4,600	7 × 19
3.0 mm	90 × 130 mm	80°	92%	AISI 316	4,600	7 × 19
3.2 mm	90 × 140 mm	80°	93%	AISI 316	5,100	7 × 19
3.2 mm	100 × 150 mm	80°	94%	AISI 316	5,100	7 × 19
3.2 mm	100 × 160 mm	85°	95%	AISI 316	5,100	7 × 19
3.2 mm	120 × 180 mm	85°	96%	AISI 316	5,100	7 × 19

Risk #4 – Handling risk that exposes you to falling loads

A stainless steel rope mesh bag is only as safe as the way you handle it. If the lifting eyes or rings are undersized, if the slings are not properly matched or if the bag is loaded beyond the rated nominal breaking load for its mesh and overall size, you create a real handling risk. When the bag is moved over people or equipment, this risk directly threatens safety and property. Correct load rating, visible tagging and trained handling procedures eliminate this danger.

Warning #5 – Edge hardware warning around the bag mouth

The mouth of a stainless steel rope mesh bag is a critical zone. If the edge cable, ferrules, shackles and connecting hardware are not designed for the same loads as the mesh, the bag will fail at the rim instead of in the body. Sharp edges can also cut ropes, straps or hands during operation. Using smooth stainless steel rings, correctly pressed ferrules and fully rated connectors at the mouth removes this warning and keeps the entire bag working as one system.

stainless steel rope mesh bag for Zoo, Display and Architectural Use

In zoos and public buildings, a stainless steel rope mesh bag can be used as a decorative yet functional element: hanging planters, enrichment feeders, suspended sculptures and transparent storage bags that match stainless steel rope mesh façades and balustrades. Smaller 30 × 35 cm and 30 × 60 cm bags are ideal for enrichment toys and feed, while larger 50 × 70 cm, 100 × 70 cm, 100 × 80 cm and 82.5 × 120 cm bags can carry branches, fodder or display elements. The flexible mesh conforms to irregular objects but always returns to its original outline, giving designers a creative tool that is both safe and visually light.

Specification Table 3 – Zoo and Display stainless steel rope mesh bag

WIRE ROPE DIAMETER	MESH APERTURE	Angle degrees:	Light Transmittance (%)	Material	Nominal Breaking Load (lbs)	WIRE ROPE STRUCTURES
1.0 mm	20 × 20 mm	60°	70%	AISI 304	600	7 × 7
1.2 mm	20 × 25 mm	60°	72%	AISI 304	800	7 × 7
1.2 mm	25 × 25 mm	60°	73%	AISI 304	800	7 × 7
1.5 mm	25 × 30 mm	60°	75%	AISI 304	1,150	7 × 7
1.5 mm	30 × 35 mm	60°	77%	AISI 304	1,150	7 × 7
1.5 mm	30 × 40 mm	60°	78%	AISI 304	1,150	7 × 7
1.6 mm	35 × 40 mm	70°	80%	AISI 304	1,250	7 × 7
1.6 mm	35 × 45 mm	70°	81%	AISI 304	1,250	7 × 7
1.6 mm	40 × 50 mm	70°	82%	AISI 304	1,250	7 × 7
2.0 mm	40 × 60 mm	70°	84%	AISI 316	2,000	7 × 7
2.0 mm	45 × 65 mm	70°	85%	AISI 316	2,000	7 × 7
2.0 mm	50 × 70 mm	70°	86%	AISI 316	2,000	7 × 7
2.4 mm	50 × 80 mm	75°	88%	AISI 316	3,100	7 × 7
2.4 mm	60 × 90 mm	75°	89%	AISI 316	3,100	7 × 7
2.4 mm	60 × 100 mm	75°	90%	AISI 316	3,100	7 × 7

Trap #6 – Mesh aperture trap that lets small items escape

A frequent trap is specifying a stainless steel rope mesh bag with apertures that are too large for the smallest items you intend to hold. Bolts, samples, enrichment toys or stones can slip through, defeating the whole purpose of the bag. Checking the smallest diameter or diagonal of your objects and matching the aperture accordingly avoids this trap and keeps everything securely contained.

Cost #7 – Lifecycle cost pattern that punishes fabric and plastic bags

When you compare stainless steel rope mesh bag with traditional fabric, canvas or plastic bags, a clear lifecycle cost pattern appears. Fabric tears, UV destroys plastics and constant replacement consumes budget and time. A stainless steel rope mesh bag in AISI 316 stands up to UV, abrasion, cleaning and heavy loads year after year. The initial investment is quickly recovered through fewer replacements, less downtime and reduced waste.

Benefit #8 – Versatility benefit that extends stainless steel rope mesh bag use

One powerful benefit of stainless steel rope mesh bag is its versatility. The same basic technology can be adapted for crane lifting bags, safety catch bags, architectural feature bags, zoo enrichment bags and storage baskets, in sizes ranging from 30 × 35 cm to 82.5 × 120 cm. By standardising on one stainless steel rope mesh family, you simplify maintenance, spare parts and training while extending usage across multiple departments and sites.

Hazard #9 – Installation hazard you cannot afford to ignore

The most serious hazard for stainless steel rope mesh bag systems is poor installation and connection. Under-tensioned bag mouths, wrongly crimped ferrules, mixed metals without isolation or low-grade shackles create hidden weak points that only reveal themselves when the bag is fully loaded or suddenly shocked. Especially Hazard #9 is the one you cannot ignore: if you skip correct tensioning, ferrule control and hardware selection, you invite sudden bag opening, falling loads and real loss in the form of injuries, structural damage and expensive shutdowns long after the installer has left the site.

Payoff #10 – Long-term payoff and safety reward of stainless steel rope mesh bag

When you specify stainless steel rope mesh bag correctly – matching wire diameter, mesh aperture, bag geometry and size, material grade, rope structure and hardware to your real loads and environment – the payoff is powerful and long-lasting, and the same engineering discipline directly upgrades any Bridge Railing Stainless Rope Mesh you use on surrounding walkways and platforms. You gain a clean, modern and extremely robust bag system that works in harmony with your bridge and balustrade protection, protects people and assets every day, reduces maintenance to simple cleaning and visual checks, and gives you a strong safety and image boost while shielding your operation from the heavy losses caused by overlooked design, handling and installation mistakes.
