steel tubular fence panels for sale are chosen because they offer a clean architectural boundary with a strong “security feel” and predictable site set-out. The hidden problem is that many panels look identical in photos, yet behave very differently once installed. A slightly thinner rail wall, under-built posts, inconsistent upright count, or low-grade coating can turn a straight run into visible wave-lines, annoying rattles, early corrosion, and site rejection when the schedule is already tight.

Brand Overview: POLYMETAL

POLYMETAL supplies steel tubular fence panels for sale as a matched perimeter system instead of random batches. Panel geometry, rail frame size, wall thickness, upright profile and density, post pairing, and finish control are locked together so installers don’t have to “fix it on site” with uneven gaps, crooked lines, or noisy joints. This system-first approach helps buyers avoid the most expensive outcome: panels that arrive “acceptable,” then fail alignment and appearance checks after installation.

Product Description: POLYMETAL steel tubular fence panels for sale

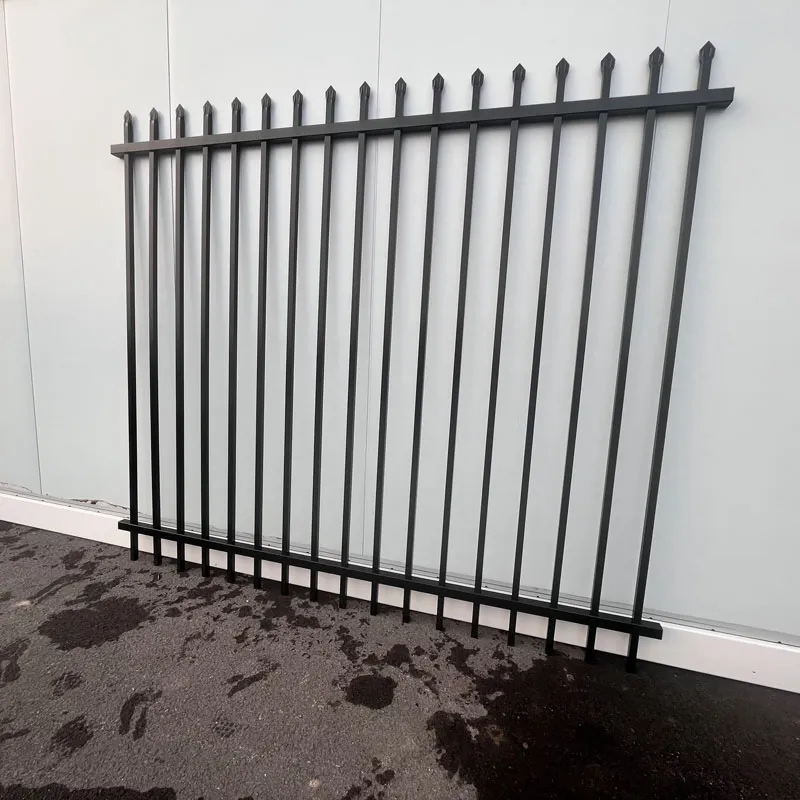

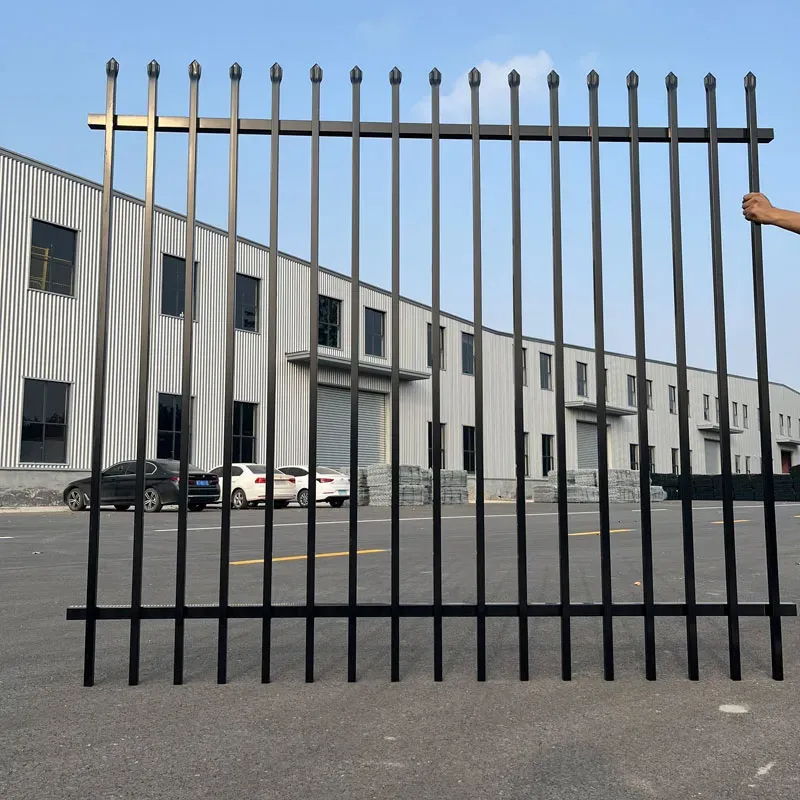

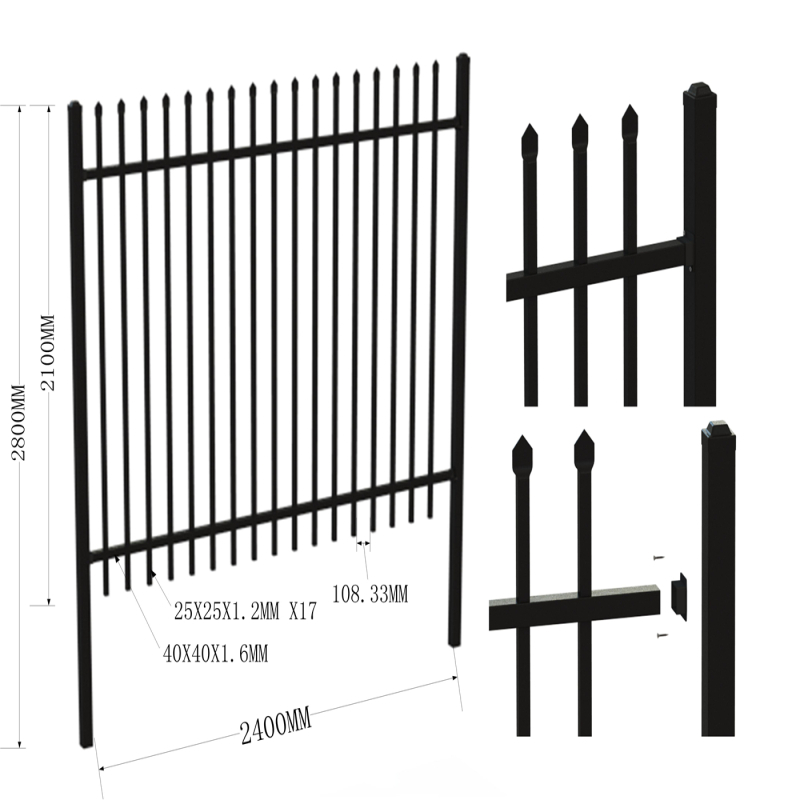

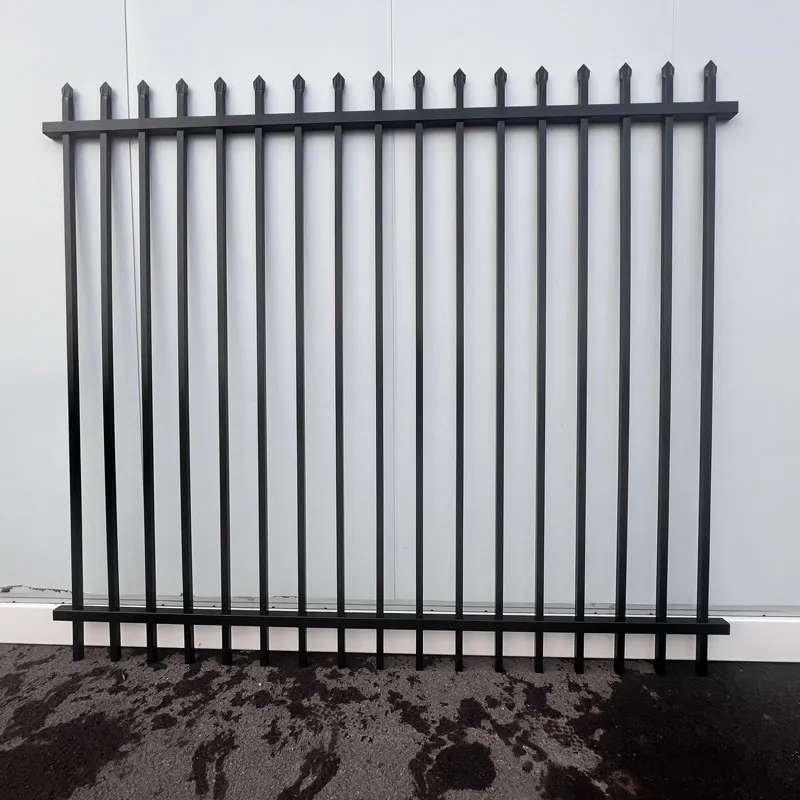

POLYMETAL steel tubular fence panels for sale are manufactured from welded tubular rails and uprights to form a rigid security panel with a modern, professional finish. Standard panel widths are commonly 2400mm and 2450mm to match practical site set-out patterns, while typical heights include 1200mm, 1500mm, 1800mm, 2100mm, and 2400mm. Rail frames are specified as 40×40mm, 45×45mm, or 50×50mm to control stiffness over long runs, with rail thickness options such as 1.60mm, 2.00mm, 2.50mm, and up to 3.00mm where wind load, abuse level, or “dead-straight” presentation demands higher rigidity—especially when buyers also compare perimeter-control hardware and deployment strategies via buy crowd control barriers for coordinated site safety planning

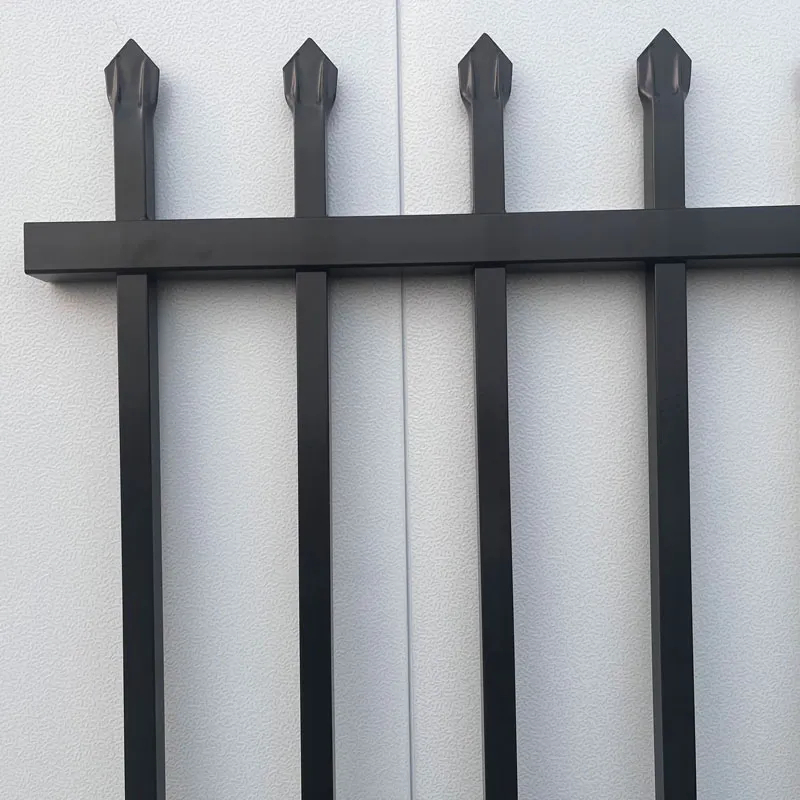

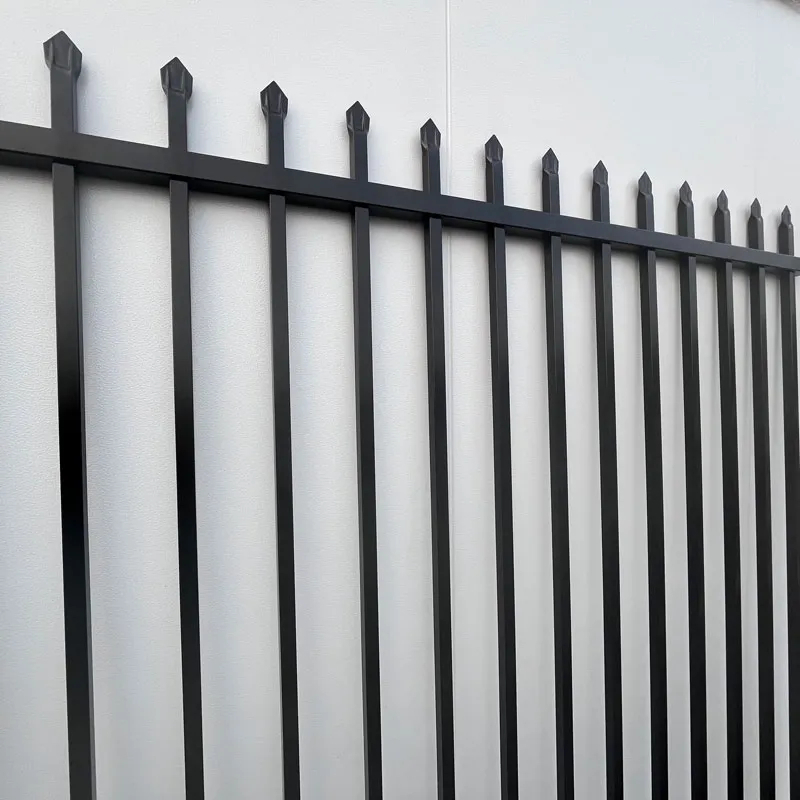

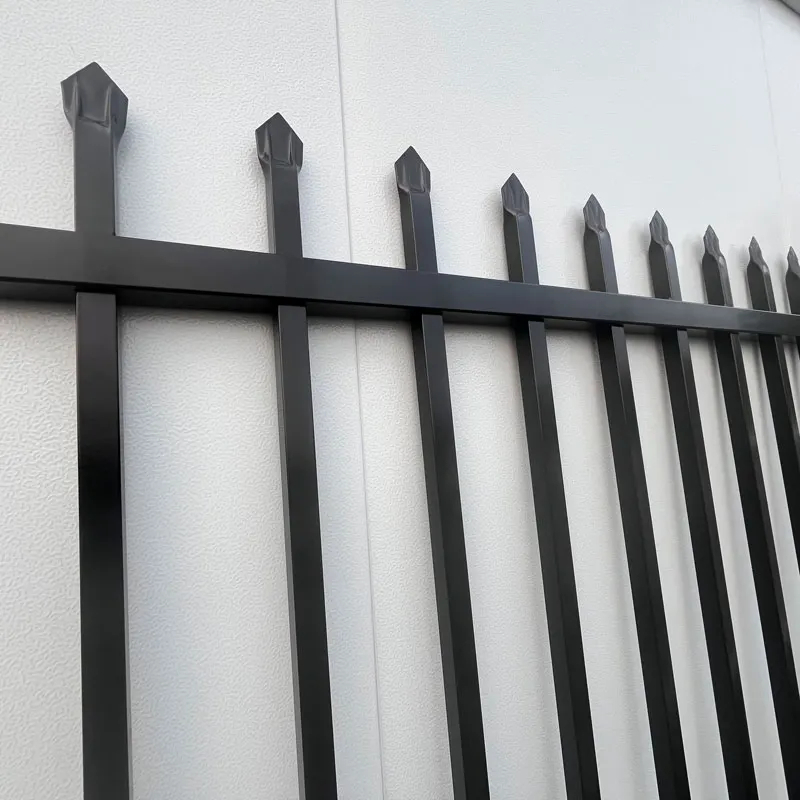

Upright profiles commonly include 16×16mm, 25×25mm, and 30×30mm with upright thickness options of 0.80mm, 1.00mm, 1.20mm, and 2.00mm depending on handling durability and the required “security feel.” Upright density is controlled by locking upright count—commonly 16 pcs (≈115mm gap), 17 pcs (≈108mm gap), or 18 pcs (≈100mm gap)—with a 100mm spacing target to prevent a patchy look and inconsistent gaps across the same project frontage.

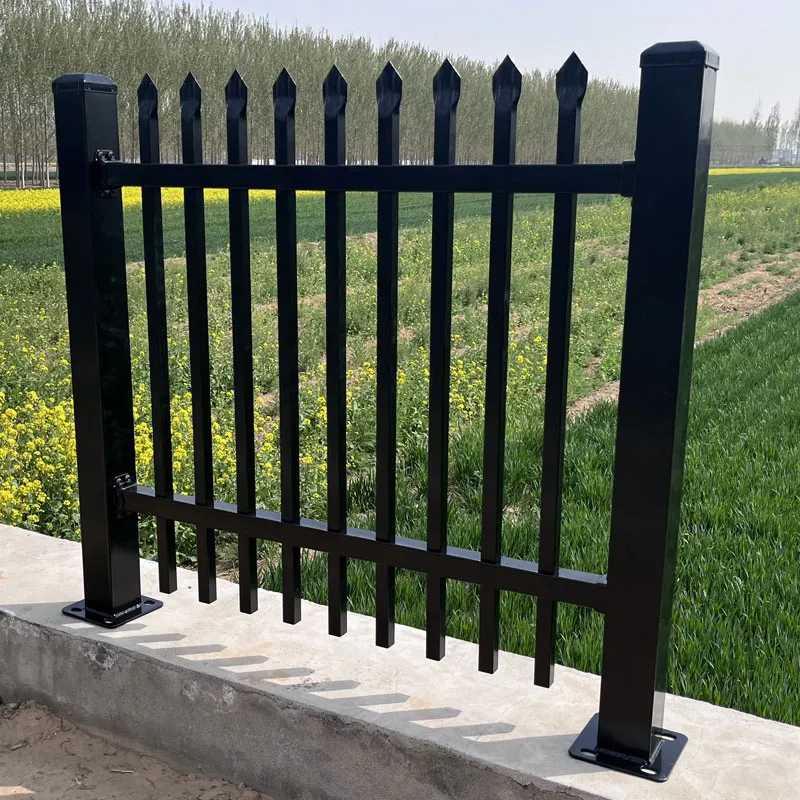

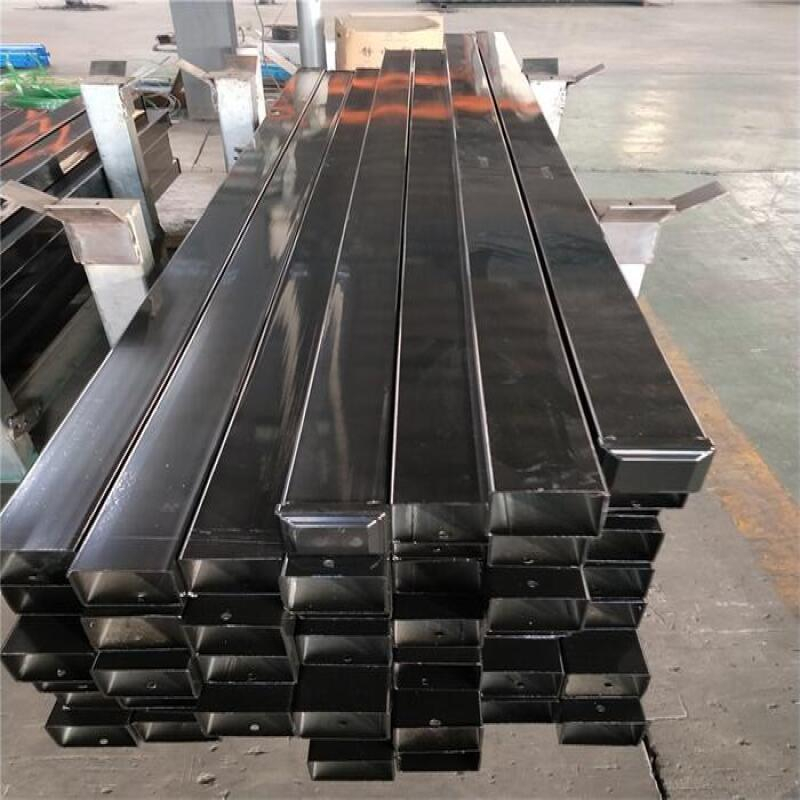

Post planning is what stops a straight fence line becoming a “snake line.” POLYMETAL pairs panels with posts sized for stability (60×60mm, 65×65mm, 75×75mm, 80×80mm, or 100×100mm) using wall thickness options of 1.6mm, 2.00mm, and 2.50mm. To support embedment and reduce long-term lean, the practical rule is applied consistently: post height is greater than panel height by 600mm.

Specifications: steel tubular fence panels for sale

Table 1: 2400mm Width System Builds (Project Standard)

Table 2: 2450mm Width System Builds (Set-Out Flex)

Table 3: Heavy-Duty Upgrade Map (Stop Wave-Lines, Reduce Rattle)

Applications: steel tubular fence panels for sale

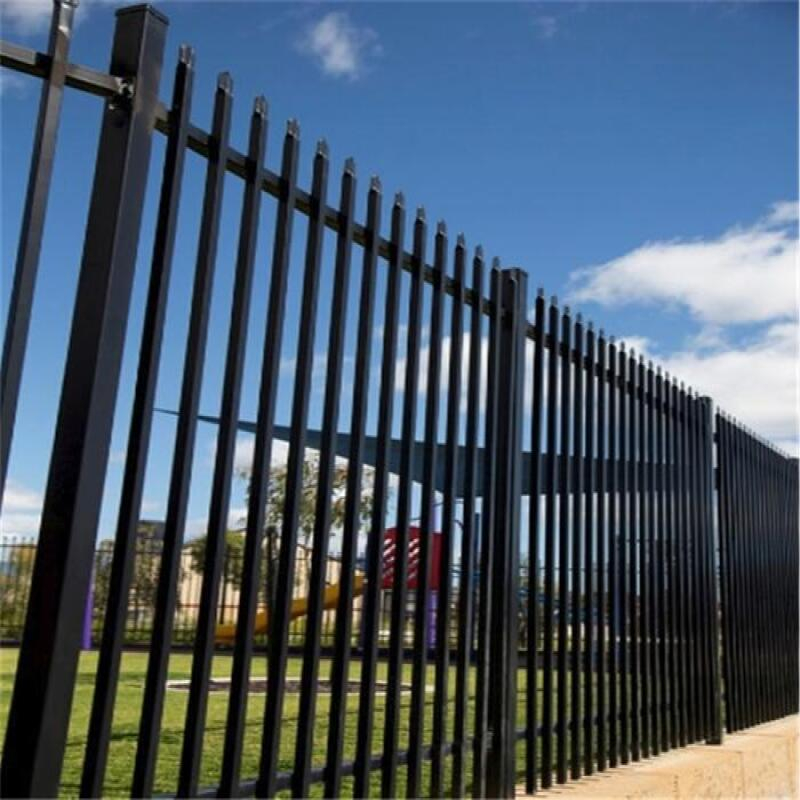

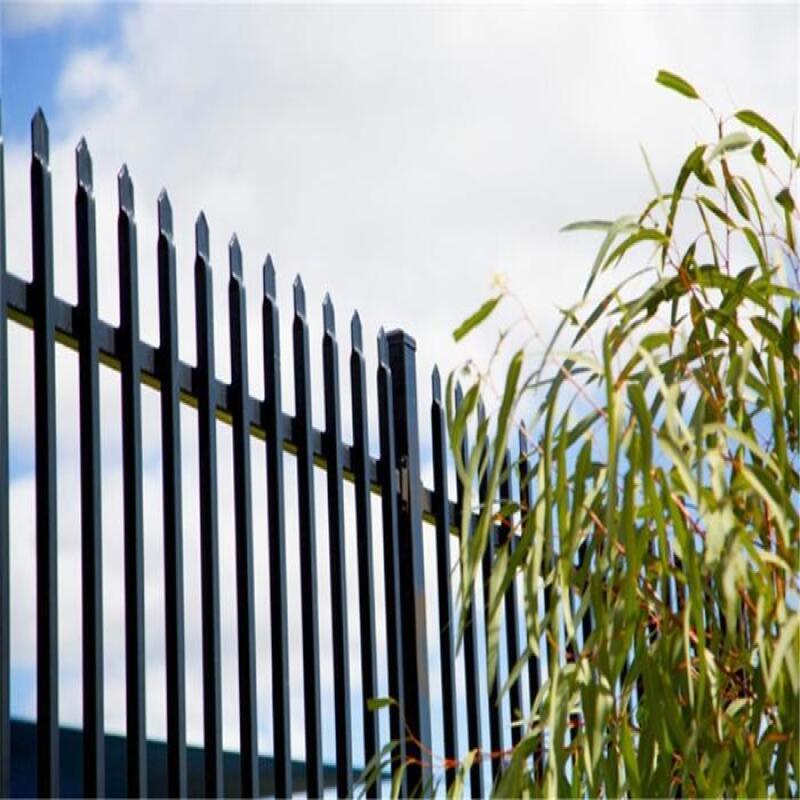

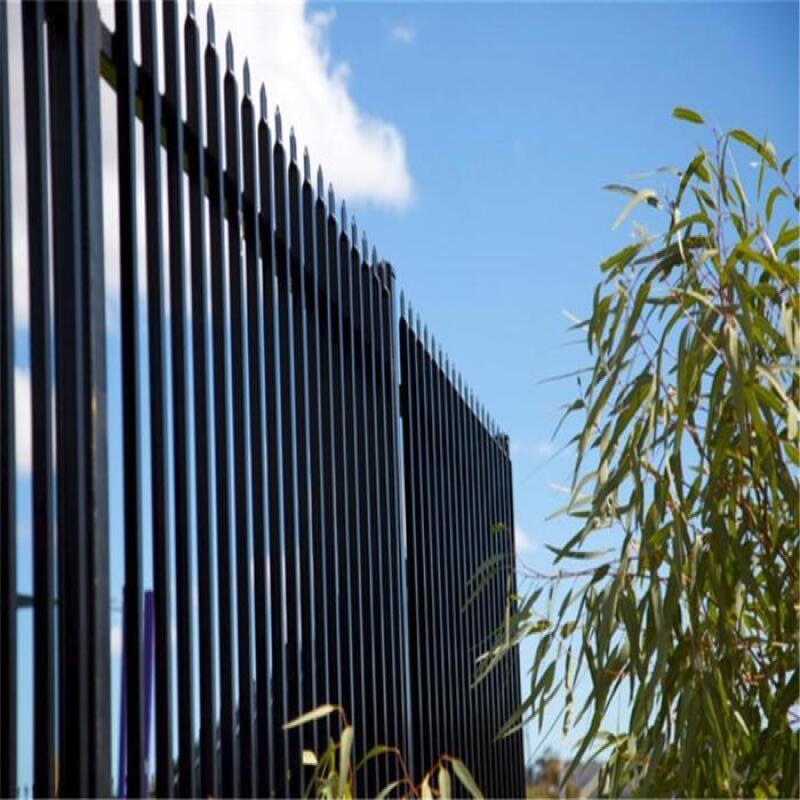

steel tubular fence panels for sale are widely used for villas and residential estates, schools and public facilities, commercial frontages, warehouses and factories, industrial site boundaries, gardens and community perimeters, sports venues, convention centers, and public-facing boundaries where a clean look must still communicate strong perimeter control.

Benefits: What a Correct System Delivers

When rail frame size and rail thickness are correctly specified, the fence line stays straight across long runs instead of forming visible wave-lines. When upright count and spacing are locked, the fence presents as consistent and professional instead of looking patched. When posts are paired correctly and the post height rule (panel + 600mm) is followed, long-term leaning risk drops sharply. When coating is controlled and protected during packing, the finish arrives acceptance-ready rather than scratched, chalked, or damaged.

Packing: Protect Straightness, Protect Finish

Packing is treated as part of performance. Panels should be separated with foam, film, or protective spacers to stop rubbing. Palletizing improves stability, while strapping reduces movement inside containers and prevents corner impact damage. Hardware sets should be packed complete (brackets, screws, caps, bolts, nuts) to prevent missing parts that force unsafe on-site improvisation and slow installation.

Standard and Quality Control

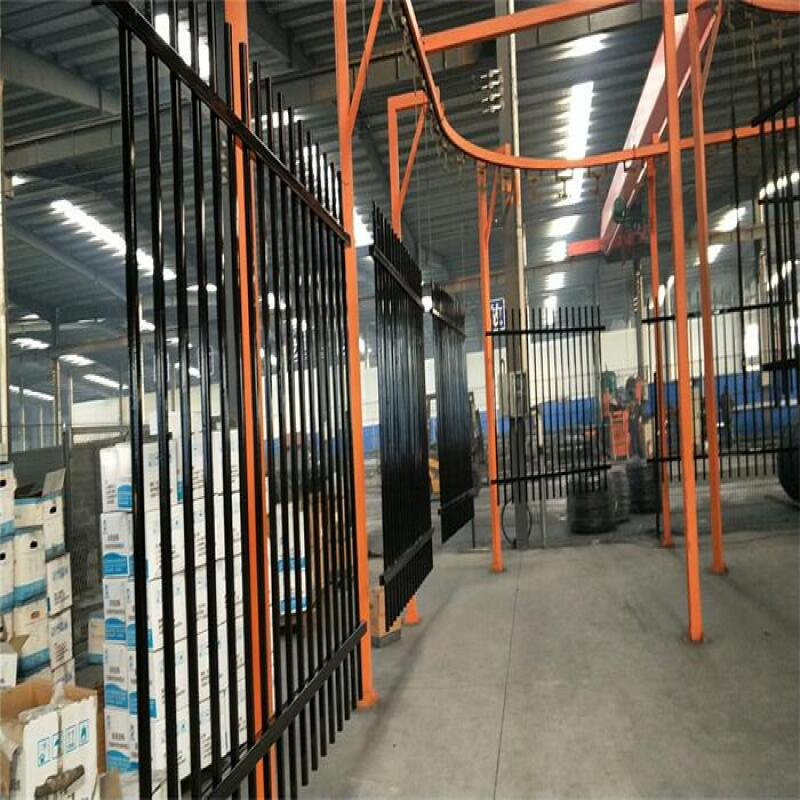

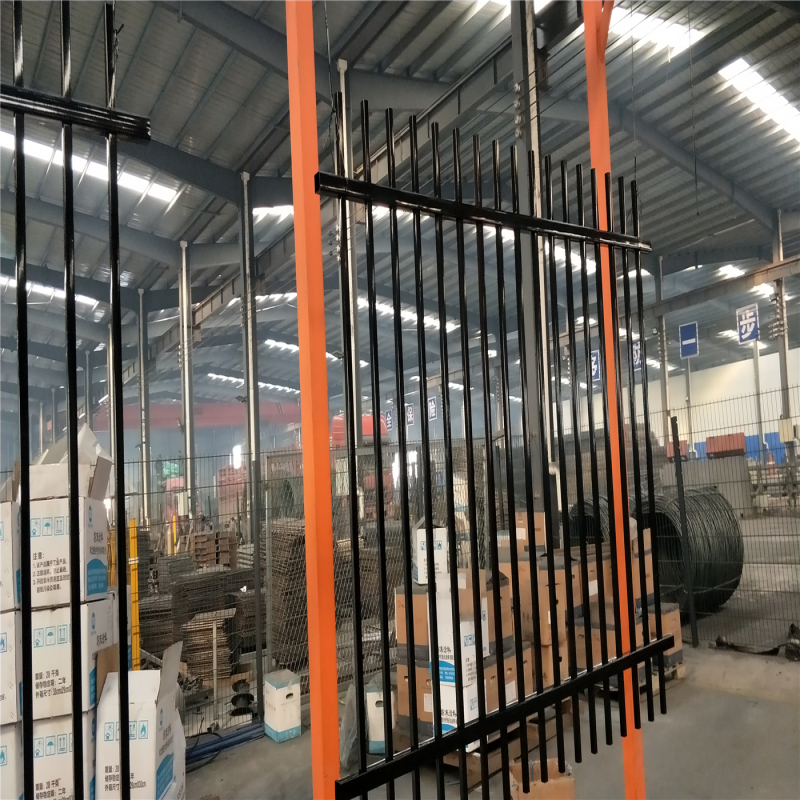

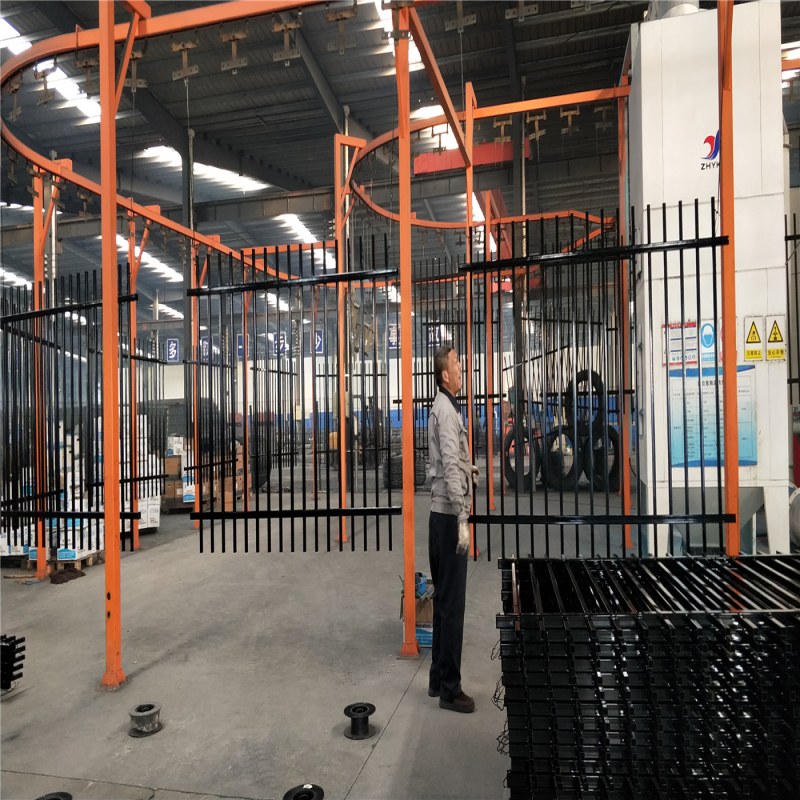

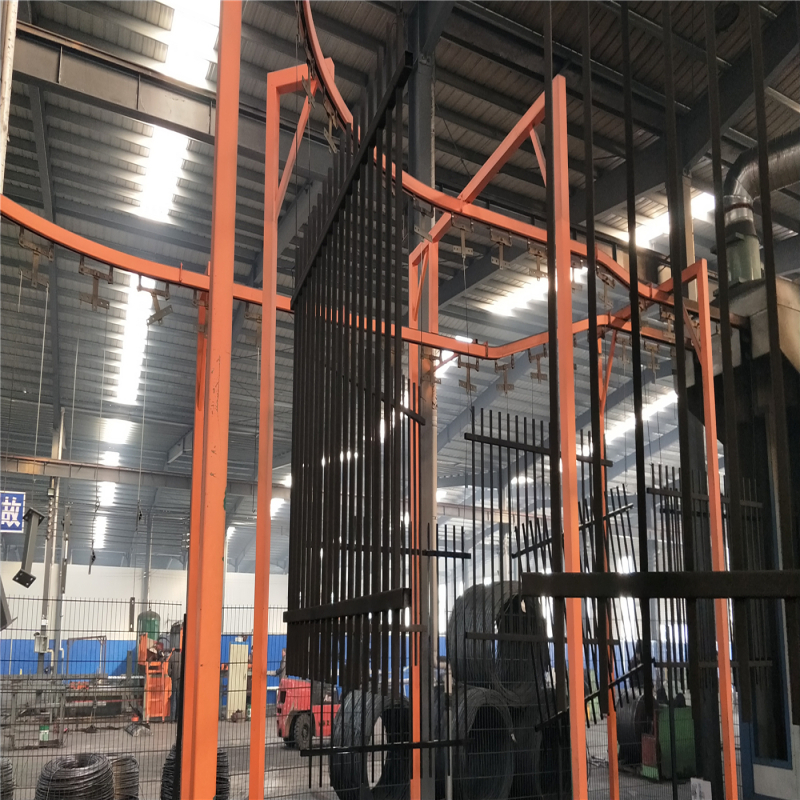

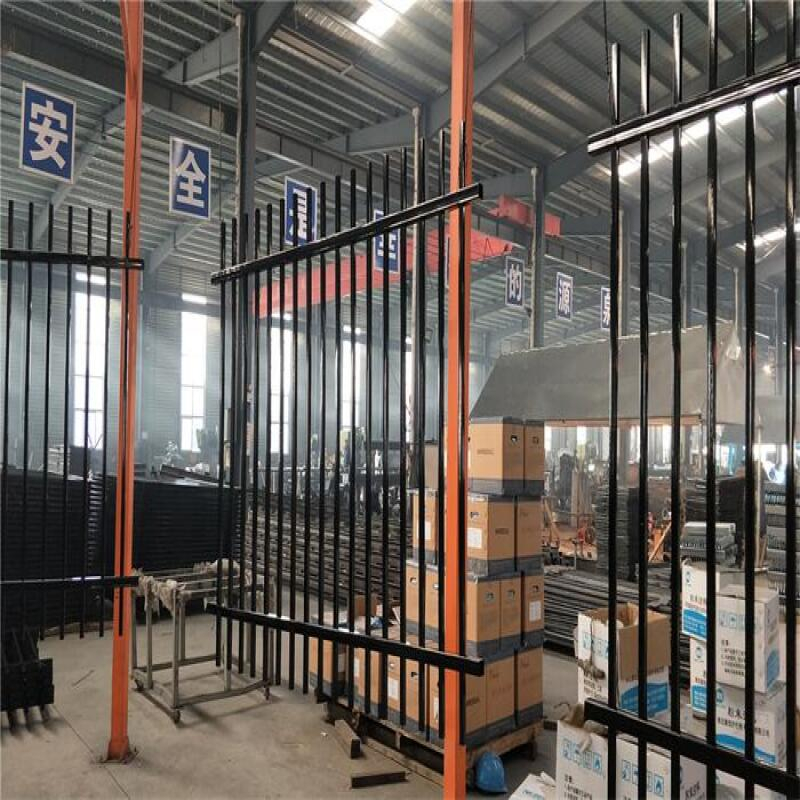

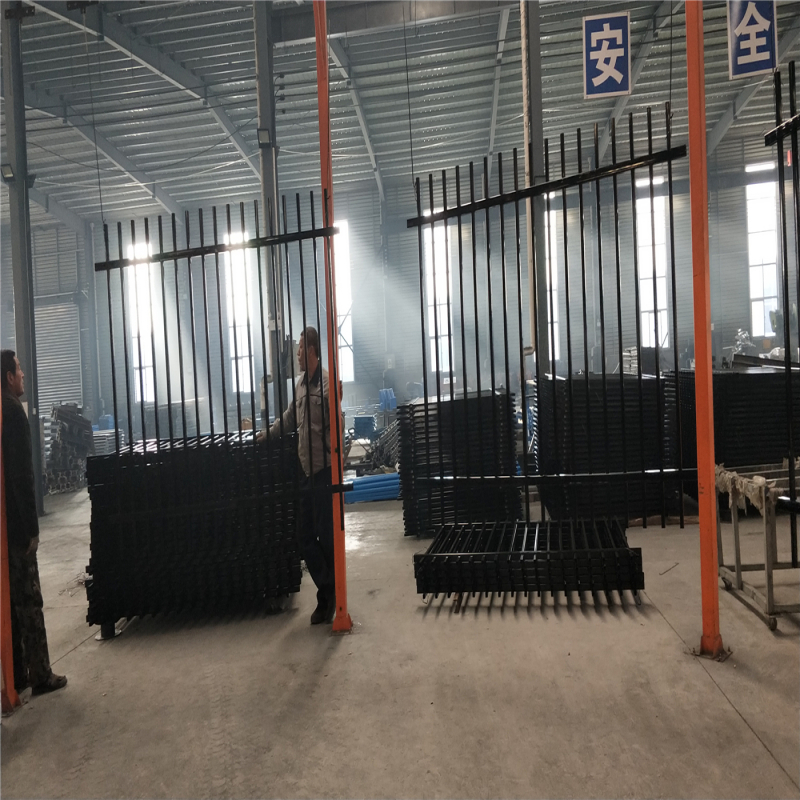

POLYMETAL production follows a practical control flow: raw material selection → cutting → punching and jig positioning → full welding → weld cleanup → surface preparation → coating → inspection → protective packing. Quality control focuses on repeatable dimensions, weld integrity, coating adhesion, and post pairing discipline so each shipment matches the previous batch and long runs stay straight and quiet after installation.

Top 15 TRAPS for steel tubular fence panels for sale (Especially #13)

TRAP #1: Buying by photo and ignoring rail thickness

Thin rails flex, loosen joints, and create noisy vibration and uneven lines.

TRAP #2: Using 40×40 rails where 45×45 or 50×50 is required

Under-sized frames amplify movement and cause visible wave-lines over distance.

TRAP #3: Treating upright thickness as “minor”

0.80mm uprights bend in handling and never present perfectly straight again.

TRAP #4: Not locking upright count (16/17/18) in the order

“Similar spacing” turns into inconsistent gaps and a patchy-looking frontage.

TRAP #5: Saying “100mm spacing” without a jig-controlled plan

Spacing discipline comes from count and jig positions, not estimation.

TRAP #6: Mixing upright profiles (16×16 / 25×25 / 30×30) in one run

Even if color matches, the face pattern won’t—rejection risk rises fast.

TRAP #7: Under-building posts and expecting panels to stay straight

Weak posts twist and rotate, creating drift, loose fixings, and wave-lines.

TRAP #8: Ignoring post wall thickness

Thin post walls lose clamp pressure and alignment after normal load cycles.

TRAP #9: Breaking the post height rule (Panel + 600mm)

Shallow embedment is a direct path to leaning and future rework.

TRAP #10: Accepting poor panel squareness

Out-of-square panels cannot form clean straight runs, even with skilled installers.

TRAP #11: Treating corners and ends as standard posts

Movement often starts at corners, then spreads down the entire run.

TRAP #12: Weak brackets or inconsistent fixing sets

Loose joints create rattle, visible defects, and repeat call-backs.

TRAP #13: The hidden LOSS—your “acceptable” panels fail after install

This is the budget killer. Under-sized rails, under-built posts, inconsistent upright density, or weak coating control can turn into rattles, lean, and wave-lines after normal handling. That triggers rejection, rework, replacement panels, delayed handover, and reputation damage when timelines are already tight.

TRAP #14: Choosing coating without controlling thickness and curing

Thin or poorly cured coating scratches easily and ages fast—dark colors show everything.

TRAP #15: Buying panels only instead of a complete system plan

Panels without matched posts, spacing plan, fixings, and finish targets force on-site improvisation—and improvisation creates failure points.

FAQs: steel tubular fence panels for sale

FAQ 1: What widths are most common?

2400mm and 2450mm are common widths used for clean set-out and consistent bay planning.

FAQ 2: How do I control the final look across long runs?

Lock upright count (16/17/18), upright profile, and a 100mm spacing target in the RFQ so every batch repeats the same face pattern.

FAQ 3: Which rail frame should I choose?

40×40mm suits many standard boundaries, 45×45mm improves stiffness for cleaner long runs, and 50×50mm is preferred when maximum rigidity and quiet joints matter most.

FAQ 4: What post height should I use?

Use the practical stability rule: post height is panel height + 600mm (e.g., 1800mm panel → 2400mm post).

FAQ 5: What post options are typical?

Common post sections include 60×60mm, 65×65mm, 75×75mm, 80×80mm, and 100×100mm with wall thickness options of 1.6mm, 2.0mm, and 2.5mm chosen by height, wind exposure, and abuse level.

FAQ 6: How should panels be packed for shipping?

Use separators/foam or film between panels, palletize for stability, strap for container safety, and pack hardware by complete set to prevent missing parts and on-site improvisation.

Conclusion

steel tubular fence panels for sale deliver real straightness, stability, and clean public-facing presentation only when they are bought as a system: correct rail stiffness, correct upright thickness and density, correct post pairing with the +600mm rule, controlled surface preparation and coating, and packing that prevents rub damage. Control these details and you get a fence line that stays straight, quiet, acceptance-ready, and far less likely to trigger rework when pressure is highest—especially when projects also specify durable infill materials like stainless steel crimped wire mesh for airflow, screening, or reinforcement in sensitive zones.
