Steel Tubular Garrison Security Fence:13 Brutal Costly Traps

Steel Tubular Garrison Security Fence is also called steel picket fencing or tubular security fencing. It is chosen when a site needs a hard-to-climb perimeter with a clean architectural look for schools, rail corridors, industrial facilities, depots, warehouses, and public-facing boundaries.

A Steel Tubular Garrison Security Fence works because vertical tubes (pickets) pass through the rails and are welded to the rails to form a rigid panel, then finished with corrosion control and a durable black powder coat.

POLYMETAL produces Steel Tubular Garrison Security Fence using consistent tube inputs, controlled spacing, repeatable welding discipline, and a finishing system designed for long service life.

Depending on project needs, the steel can be pre-galvanized tube fabrication or full hot dip galvanizing after welding, then finished in black powder coated Interpon brand for a strong, even appearance. Learn more about compatible gate options and matching layouts in our garrison fencing gates guide.

What Buyers Think They’re Buying vs. What Actually Fails on Site

Most buyers judge a Steel Tubular Garrison Security Fence by height, color, and a photo.

Real losses show up later: climb gaps that appear when spacing is not locked, welds that crack because heat input is inconsistent, coating that chips first at cut points and weld toes, and fence lines that look “wavy” because upright counts and spacing drift from panel to panel.

If you treat Steel Tubular Garrison Security Fence as a keyword instead of a controlled specification, you pay twice—once in the invoice, and again in rework, damage, and wasted labor.

Top 13 Procurement Traps for Steel Tubular Garrison Security Fence (Especially #7)

Trap #1: Buying “black fence” instead of locking the Steel Tubular Garrison Security Fence geometry

If you do not lock fence height, fence width, rail frame size, and upright size together, two quotes can look identical but install completely differently. A Steel Tubular Garrison Security Fence must be dimensioned as a system, not as a picture.

Trap #2: Treating rail frame as decoration, not the main stiffness path

Rail frame options like 40×40, 45×45, and 50×50 change panel stiffness more than buyers expect. A Steel Tubular Garrison Security Fence that feels rigid in-hand usually has the rail frame and rail thickness matched to the site’s pushing loads and wind exposure.

Trap #3: Allowing upright size to float (25×25 vs 30×30 vs 16×16) without a climb and rigidity plan

Steel Tubular Garrison Security Fence performance depends on picket stiffness and climb resistance. If upright size is not fixed, suppliers may downgrade to meet price, and the fence becomes easier to deform or climb.

Trap #4: Forgetting that upright thickness is a separate control from upright size

A 25×25 upright at 0.80 mm behaves very differently from 1.20 mm or 2.00 mm. For Steel Tubular Garrison Security Fence, thickness drift is a hidden failure driver because it changes rigidity, weld stability, and long-run straightness.

Trap #5: Not specifying upright quantity per panel (16 / 17 / 18) as a locked schedule

Upright count controls spacing and climb points. If the Steel Tubular Garrison Security Fence schedule does not lock 16 pcs, 17 pcs, or 18 pcs per panel, the delivered batch may mix counts and spacing, causing visible line inconsistency and compliance risk.

Trap #6: Letting spacing be described loosely (“around 100 mm”) instead of measurable

Steel Tubular Garrison Security Fence needs a measurable upright spacing (for example 100 mm, or a defined centers schedule such as 108 mm / 115 mm). Loose spacing language is how climb gaps and visual “waves” sneak in.

Trap #7 (Most Costly): Accepting “welded” without defining the welding method + anti-rust sequence

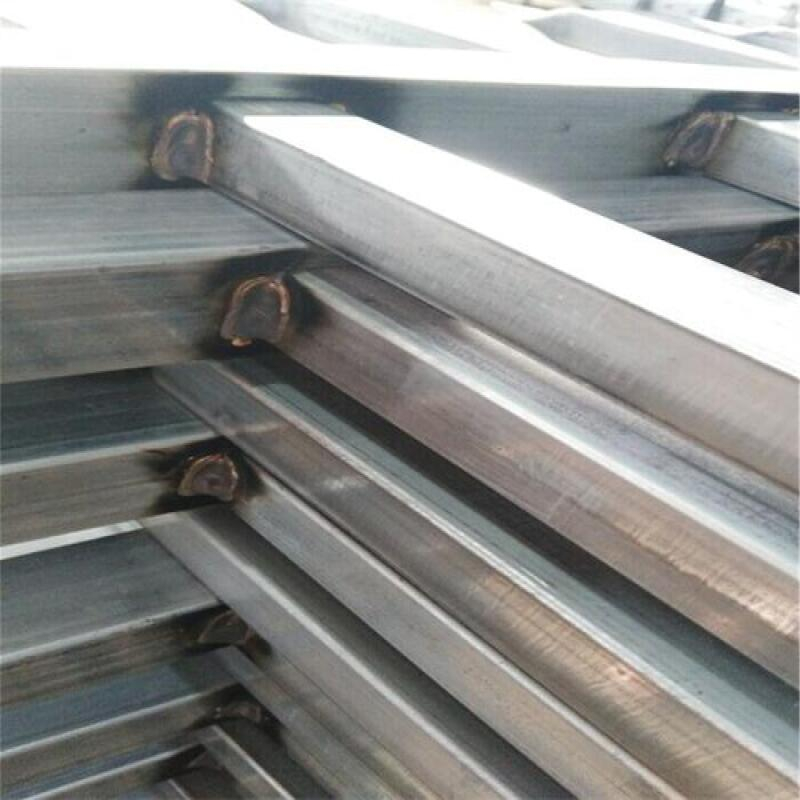

A Steel Tubular Garrison Security Fence can be welded with controlled MIG using stainless filler discipline, or with silicon bronze (where specified for certain finishing strategies). If welding heat and sequence are uncontrolled, the panel can warp, weld toes can crack, and coating can fail first at the weld line. This is the trap that triggers the most rework, repainting, and site complaints.

Trap #8: Choosing pre-galvanized tube without controlling cut-edge protection

Pre-galvanized tube can be effective when the fabrication process controls cut points and weld burn-off. If edge protection is not controlled, a Steel Tubular Garrison Security Fence may start rusting at weld zones and cut ends long before the powder coat “looks” damaged.

Trap #9: Choosing hot dip galvanizing without controlling drain marks and fit-up tolerances

Hot dip galvanizing after welding can deliver excellent corrosion resistance, but it changes surface profile and can affect fit-up if tolerances are not planned. Steel Tubular Garrison Security Fence must be designed for galvanizing flow, venting, and consistent thickness so panels stay straight and assemble clean.

Trap #10: Buying “Interpon powder coat” without defining the duplex intent

Interpon powder is a strong finishing option, but performance depends on the base layer (pre-galv or hot dip galvanizing), surface preparation, and coating build. A Steel Tubular Garrison Security Fence lasts longer when the whole finishing stack is defined, not just the powder brand name.

Trap #11: Ignoring post selection and post wall thickness until posts start drifting

A Steel Tubular Garrison Security Fence is only as straight as its posts. If post size and wall thickness are not locked, installers may fight alignment, and panels may rack under load. Posts must be selected as part of the system schedule.

Trap #12: Mixing panel widths (2000 vs 2400) without matching post centers and loading plan

If a project mixes widths, it must also plan post centers, gates, corners, and transitions. Steel Tubular Garrison Security Fence becomes expensive when installers have to “solve” missing logic on site.

Trap #13: Not specifying packing protection for black finishes

Black powder coated Steel Tubular Garrison Security Fence can arrive with rub marks if panels are not separated, strapped correctly, and edge-protected. Packing is not cosmetic; it prevents claim losses and rework.

Product Description

POLYMETAL Steel Tubular Garrison Security Fence is a welded tubular panel system designed for high-visibility security boundaries where appearance and climb deterrence must both be controlled.

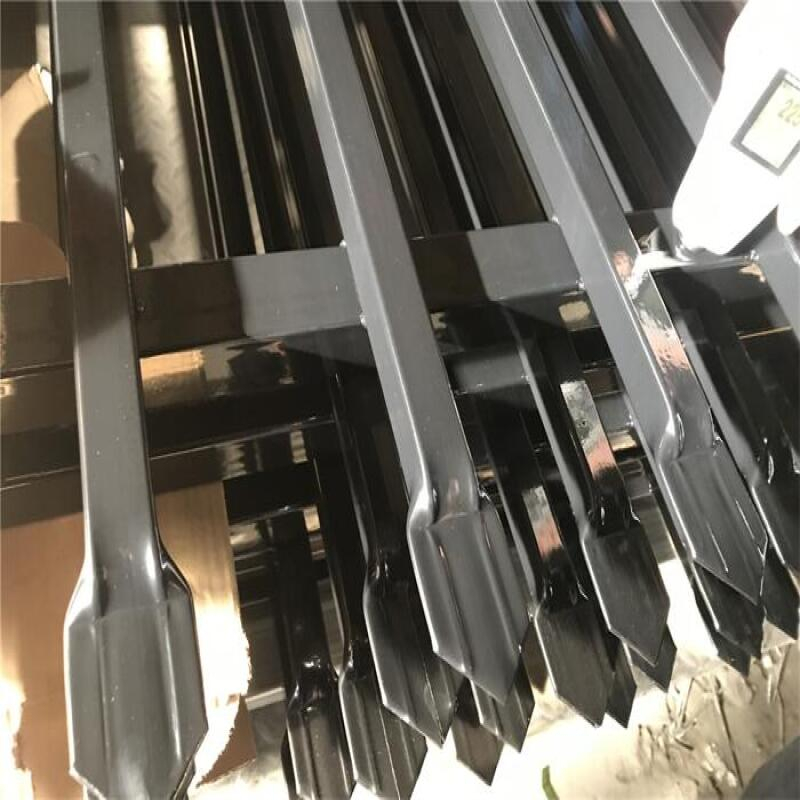

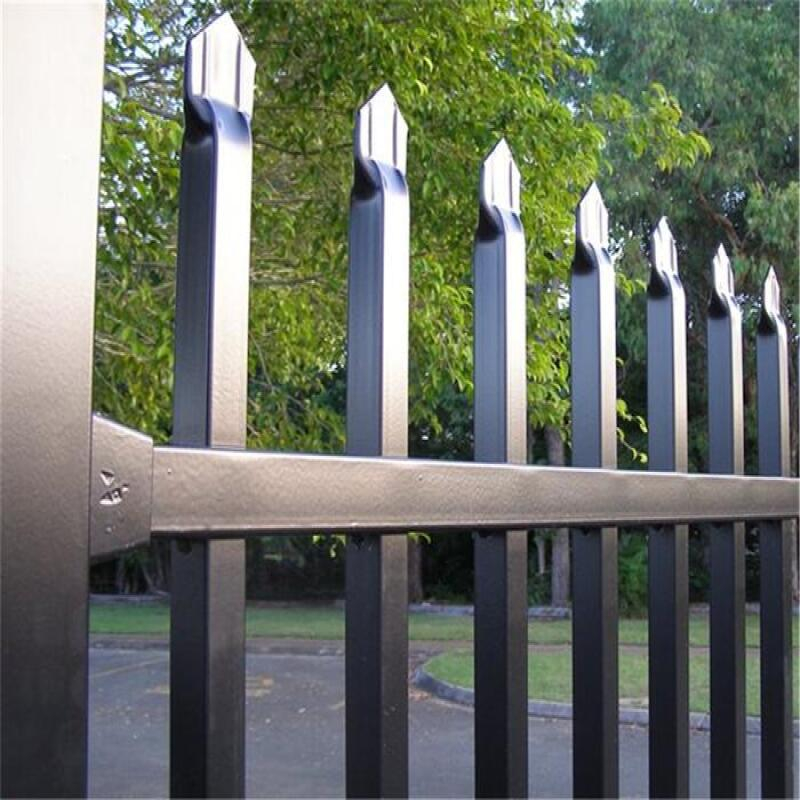

Vertical tubes pass through the rails and are welded to the rails to create a rigid picket panel that stays square during transport, installation, and service. The system is commonly supplied in black powder coated finishing using Interpon brand, delivering a clean architectural finish that visually “disappears” while still communicating a strong perimeter.

For corrosion resistance, the fence can be manufactured using pre-galvanized steel tube fabrication or produced as a fully hot dip galvanized panel after welding, depending on the project’s lifecycle and environment.

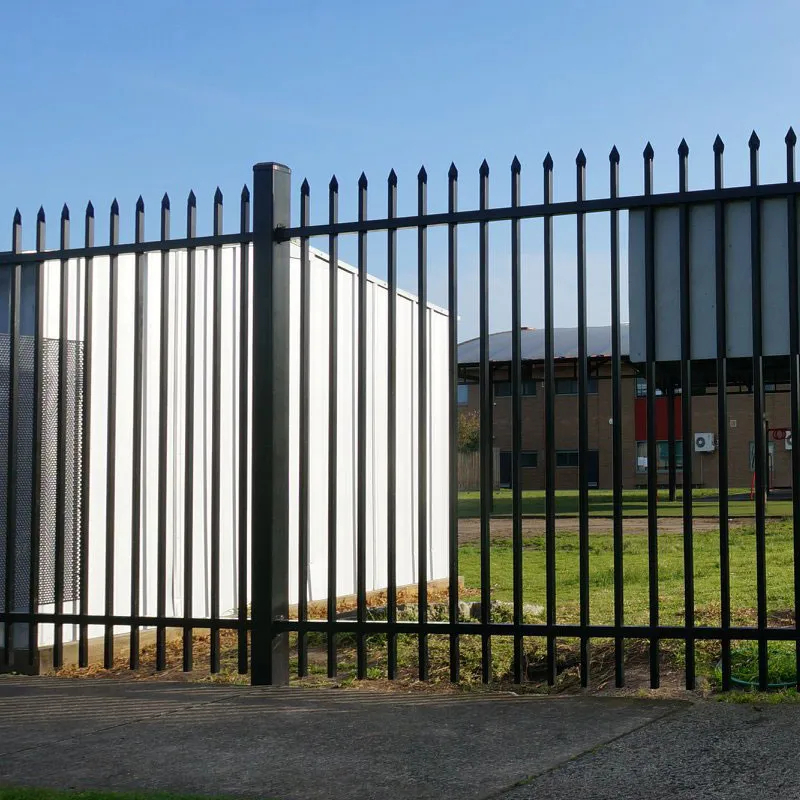

Steel Tubular Garrison Security Fence is suitable for school fencing, rail protection, industrial frontage, depots, and infrastructure sites where controlled spacing, controlled welding, and controlled coating prevent costly site issues.

If your project also needs high-transparency safety infill for façades, rails, or protective zones, you can reference our stainless steel flexible wire mesh netting for compatible architectural protection solutions.

Specifications (Steel Tubular Garrison Security Fence)

Standard Size Snapshot (Common Schedule)

Steel Tubular Garrison Security Fence common sizes are height 1800 mm or 2100 mm, length 2000 mm or 2400 mm, vertical tube 25×25 steel tube thickness 1.2 mm, rails 40×40 steel tube thickness 1.6 mm, tube spacing commonly 125 mm or 140 mm centre, with custom production available upon request.

Applications (Steel Tubular Garrison Security Fence)

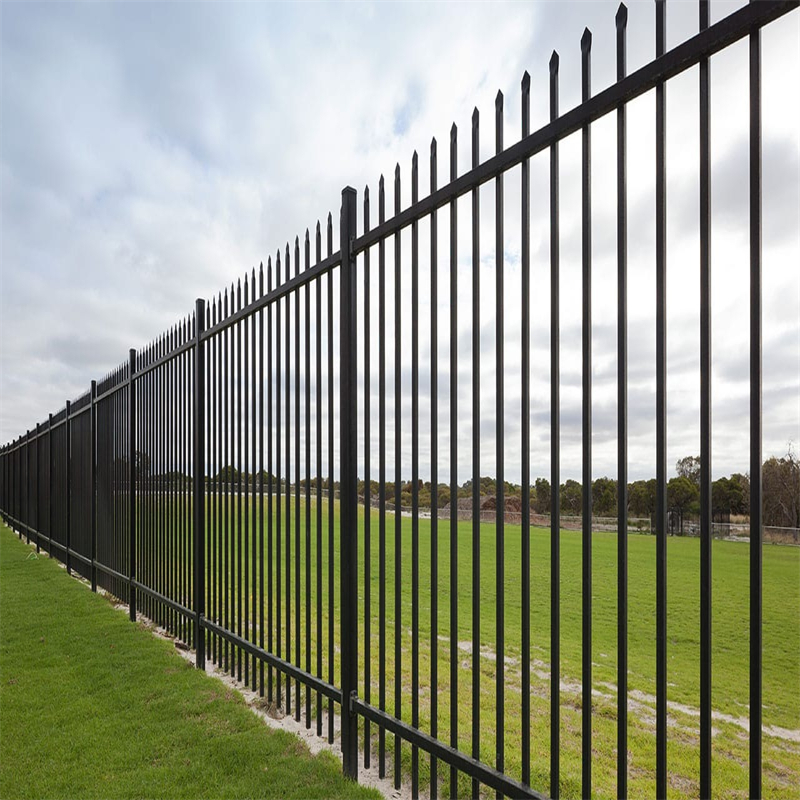

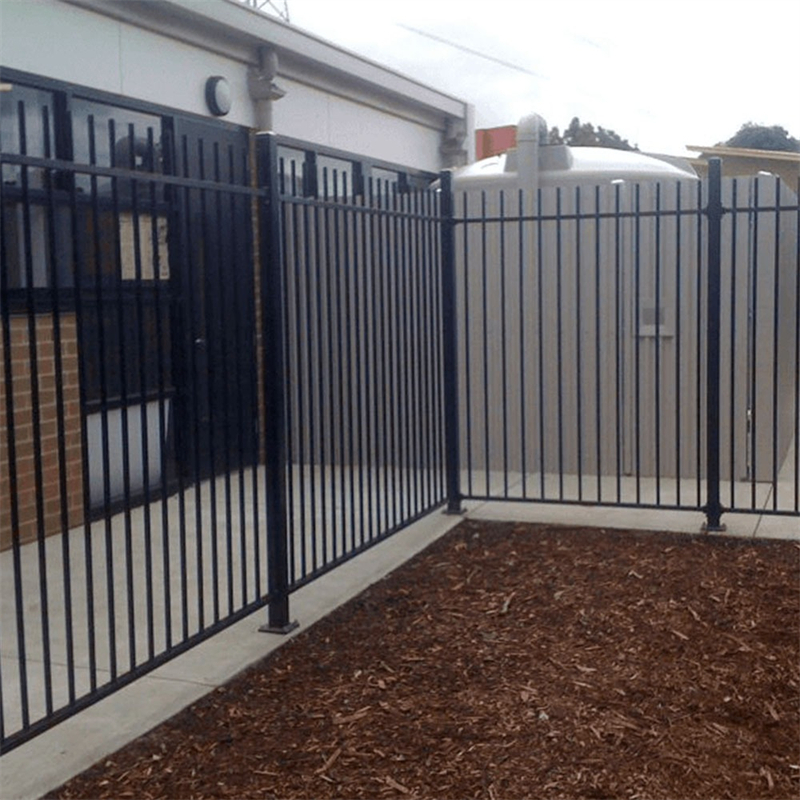

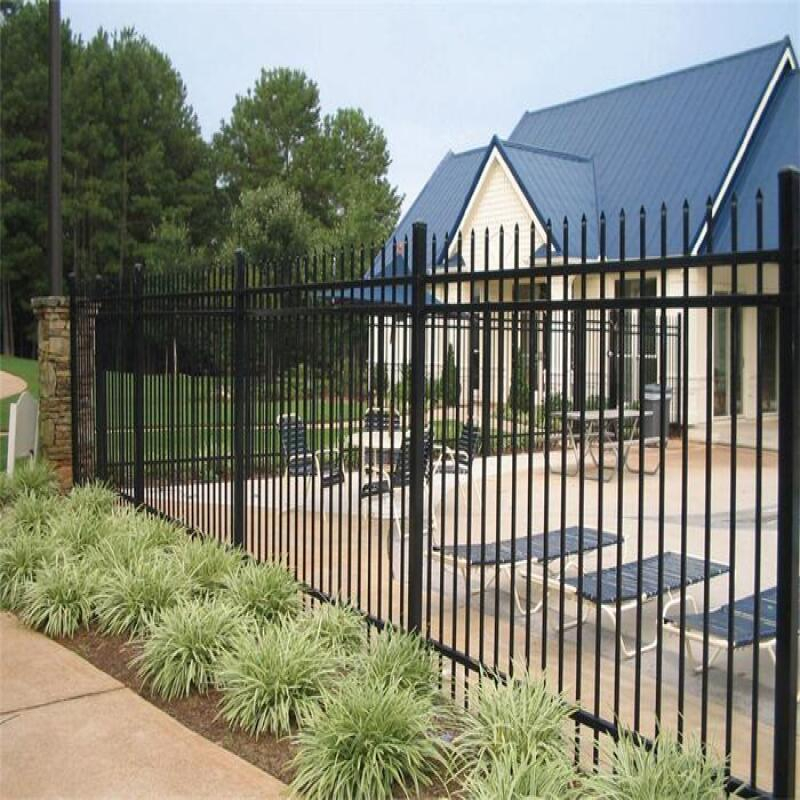

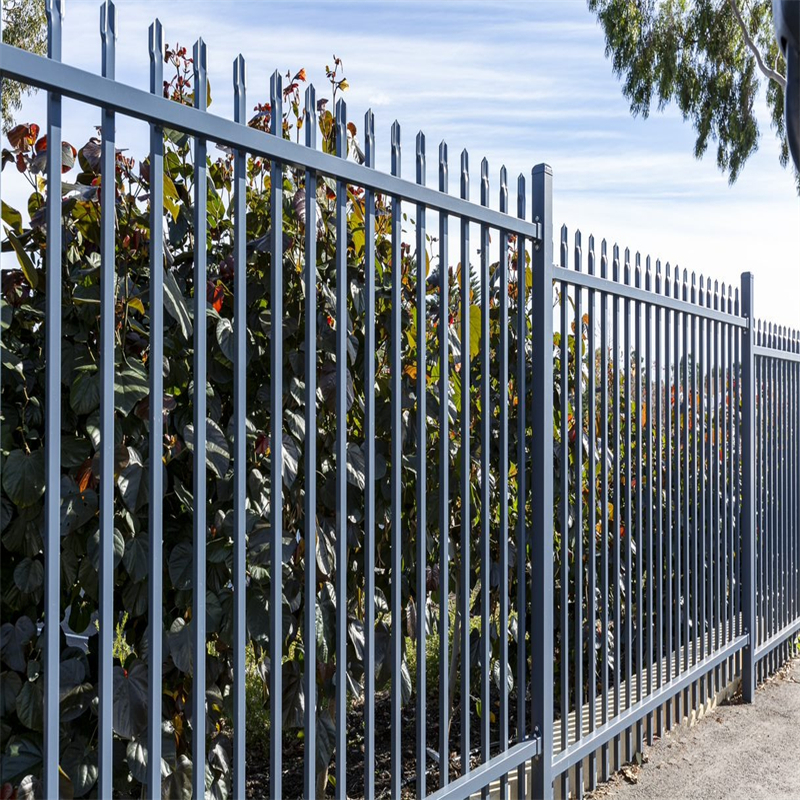

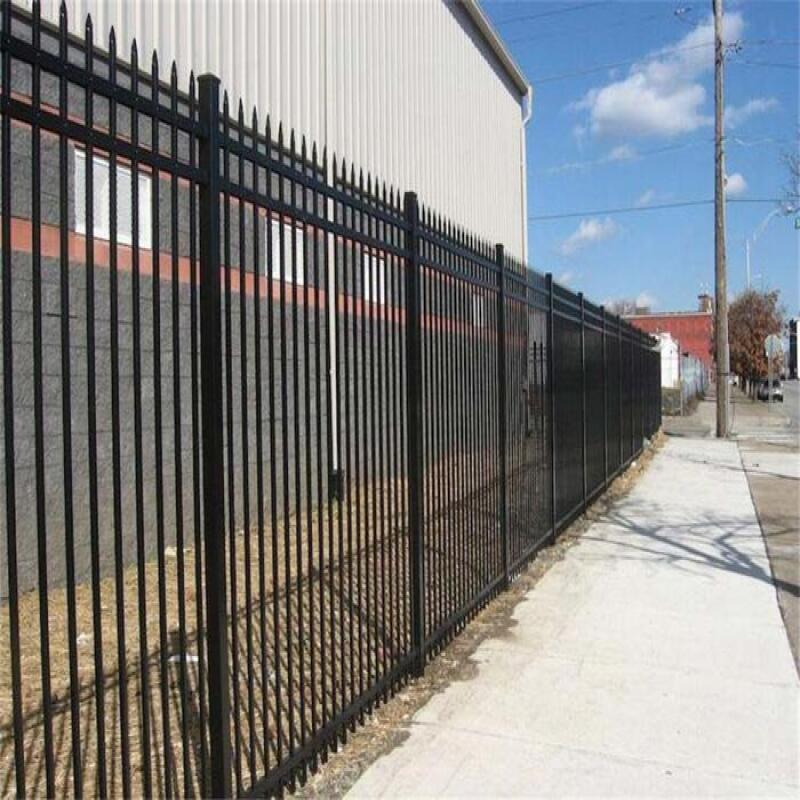

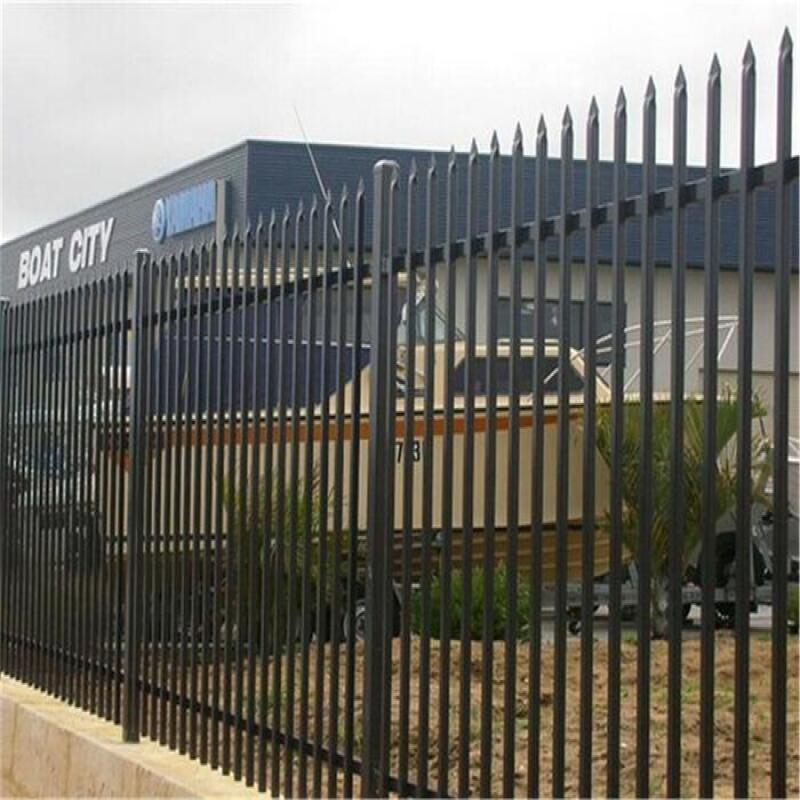

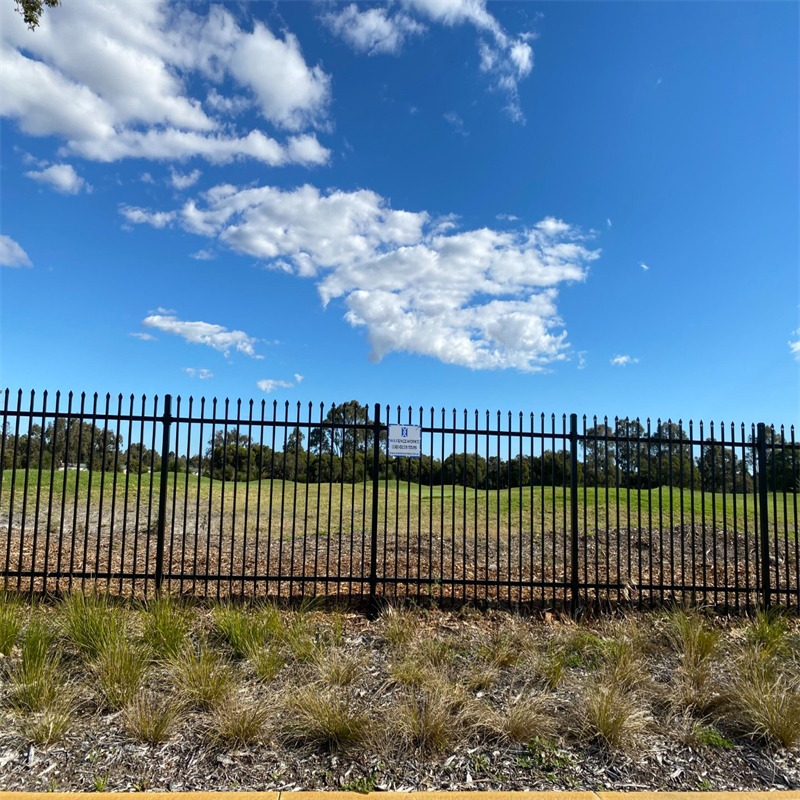

Steel Tubular Garrison Security Fence is widely used for school boundaries where a clean look and controlled climb resistance matter, rail and transport corridors where fencing must remain straight across long runs, industrial buildings and warehouses where durable black finishes reduce visual clutter, infrastructure and utility sites where panels must tolerate handling and maintenance activity, and commercial frontage where an architectural perimeter is required without a heavy “prison bar” look.

Benefits (Steel Tubular Garrison Security Fence)

Steel Tubular Garrison Security Fence delivers a rigid welded panel that installs faster than loose pickets, provides repeatable spacing and picket count when the schedule is locked, supports long straight fence lines with consistent visual alignment, and resists corrosion through pre-galvanized or hot dip galvanizing strategies paired with black Interpon powder coating. A controlled POLYMETAL Steel Tubular Garrison Security Fence specification reduces call-backs because the rails, uprights, posts, and finish are built to behave consistently from the first panel to the last.

Packing (Protection for Black Powder Coated Panels)

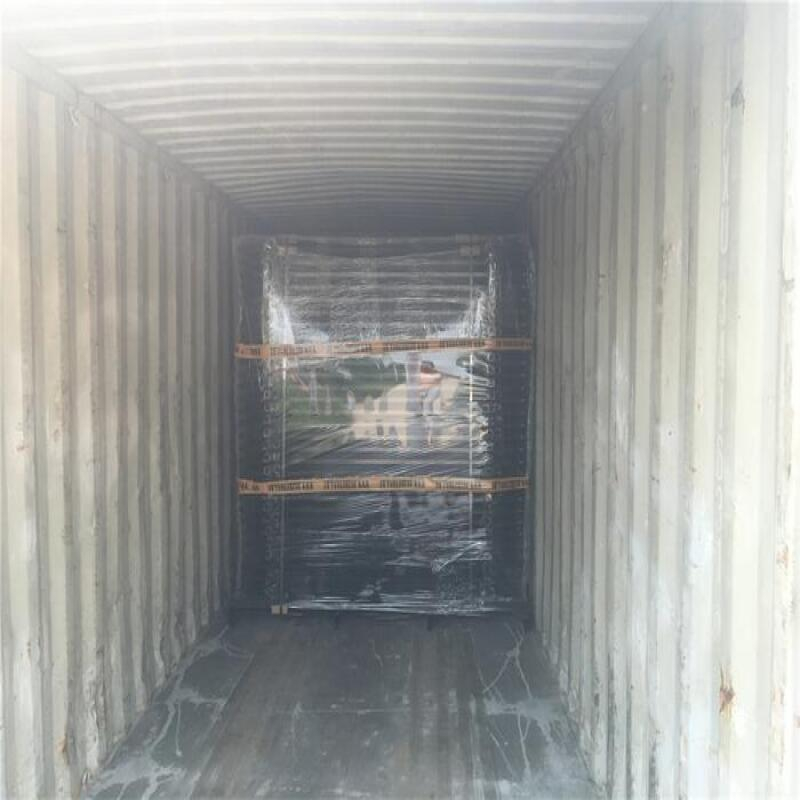

POLYMETAL Steel Tubular Garrison Security Fence packing is designed to prevent rub marks, edge chips, and transport twist. Panels are stacked with separation to protect the black powder finish, contact points are protected at rail corners and cut ends, bundles are strapped square to reduce handling distortion, and labels are applied by height and width schedule to avoid mixed installation runs. Packing can be adapted for container loading plans, site unloading method, and staged installation sequencing.

Standards & Quality Controls

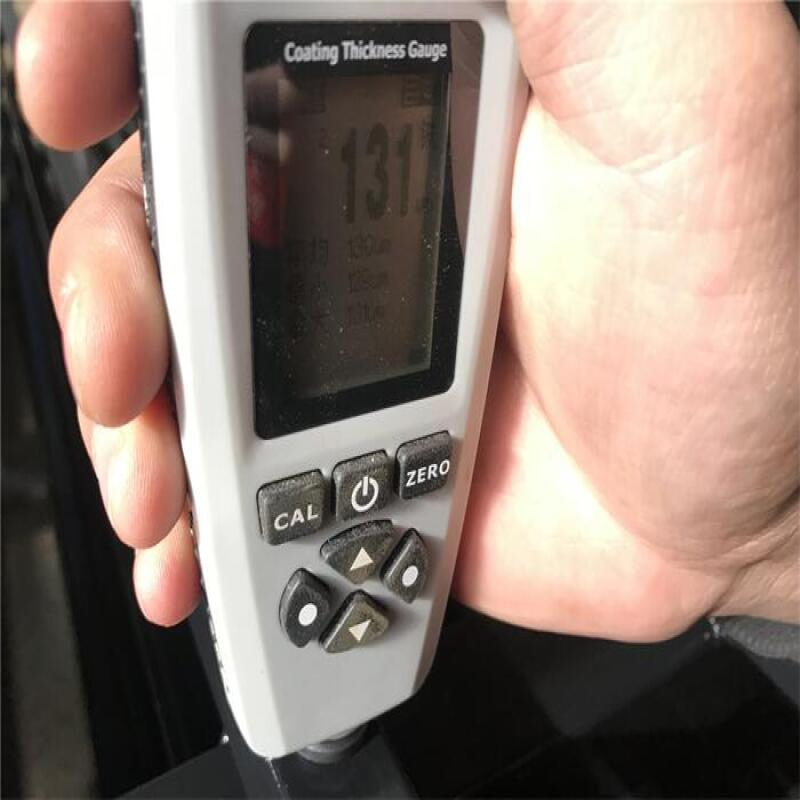

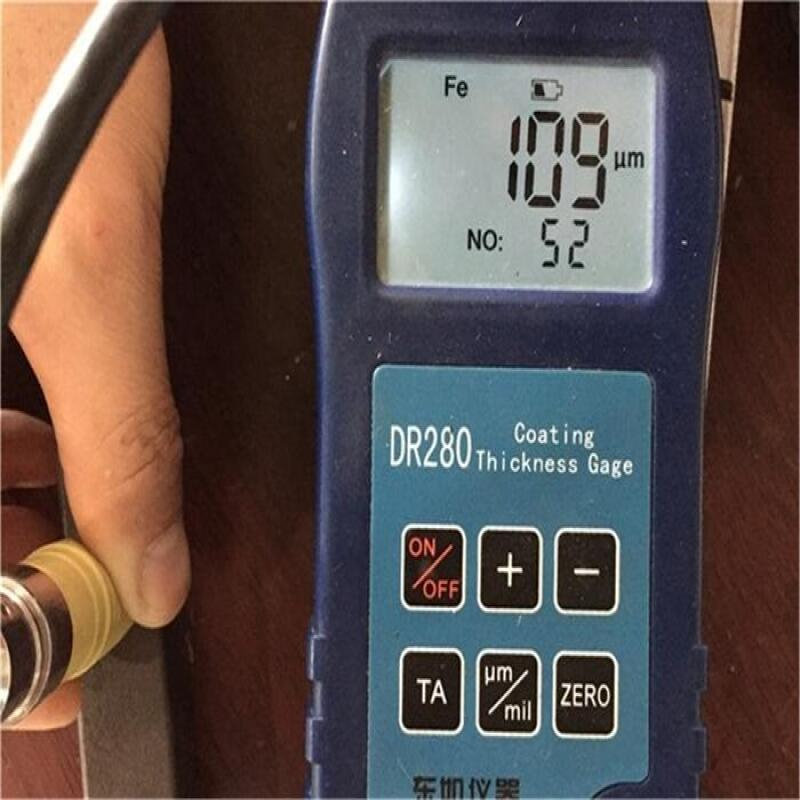

Steel Tubular Garrison Security Fence projects commonly control corrosion protection by specifying either pre-galvanized tube discipline or hot dip galvanizing after welding, then confirming powder coating performance for exterior exposure. POLYMETAL quality control typically focuses on measurable checks such as rail frame size, rail thickness, upright size and thickness, upright count per panel, spacing consistency, weld appearance and continuity, panel squareness, coating coverage at weld zones, and packaging protection for black finishes.

FAQs (Steel Tubular Garrison Security Fence)

Q1: What is the most common finish for Steel Tubular Garrison Security Fence?

Black powder coated finishing is the most common, often specified as Interpon brand for durable exterior performance and a clean architectural look.

Q2: Should I choose pre-galvanized tube or hot dip galvanized panels?

Pre-galvanized tube can be cost-effective when fabrication controls cut-edge protection and weld zones, while hot dip galvanizing after welding typically maximizes corrosion resistance for harsher environments. The best choice depends on site exposure and lifecycle expectations for the Steel Tubular Garrison Security Fence.

Q3: Why does upright count (16/17/18) matter so much?

Because upright count directly controls spacing, climb points, and visual straightness across a fence line. A consistent count is a key control for Steel Tubular Garrison Security Fence.

Q4: What rail frame should I pick: 40×40, 45×45, or 50×50?

40×40 is a common baseline for many sites, while 45×45 and 50×50 improve stiffness for higher loads, longer runs, or more demanding security expectations. Rail thickness should be matched to the rail frame for the Steel Tubular Garrison Security Fence schedule.

Q5: What post sizes are typically used?

Common post options include 60×60, 65×65, 75×75, 80×80, and 100×100 with wall thickness options such as 1.6 mm, 2.0 mm, and 2.5 mm to match the Steel Tubular Garrison Security Fence height and site conditions.

Q6: Can POLYMETAL produce custom sizes?

Yes. Steel Tubular Garrison Security Fence can be custom produced by height, width, rail frame, upright size, spacing schedule, post options, and finishing requirements based on your project.

Q7: What information should I send for a fast quotation?

Send your Steel Tubular Garrison Security Fence height and width schedule, rail frame choice, rail thickness, upright size and thickness, upright count or spacing target, post size and wall thickness, finish requirement (pre-galv or hot dip + black powder), and destination/packing preference.

Contact (POLYMETAL)

Email or call POLYMETAL for Steel Tubular Garrison Security Fence drawings, packing plan, and a project-matched specification schedule based on your height, width, rail, upright, and post requirements.
