Your One-Stop Wire Mesh Fence Supplier | POLYMETAL
Sydney Temporary Fence Panels are the first barrier between your project and an expensive safety problem. Our panels are manufactured from low carbon steel wire and heavy-duty galvanized tube, giving you a rigid, reusable system for construction sites, civil works, events, concerts, festivals, and any temporary crowd-control area in Sydney and across Australia.
Each panel is hot-dipped galvanized, with flattened horizontal tubes for extra strength, and welded wire mesh designed to resist impact, climbing and deformation. By choosing the right height, width, frame tube and mesh aperture, you reduce accidents, site loss and downtime from the very first day of installation.
Fact #1: The 2.1m x 2.4m profile that protects most Sydney sites
Most professional contractors in Sydney rely on 2.1m high x 2.4m long panels with 32–40mm frame tubes because this profile gives the best balance of security, stability and easy handling. Anything lighter quickly becomes a hidden cost when panels bend, fall, or need early replacement.
 |  |  |
 |  |  |
Core Construction of Our Sydney Temporary Fence Panels
Our Sydney Temporary Fence Panels are manufactured using hot-dipped galvanized tube and high-strength welded mesh panels. The frame is made from round steel tube, the infill is welded low carbon steel wire mesh, and every joint is designed for long-term reuse under Australian conditions.
Material: low carbon steel wire and hot dipped galvanized tube steel. Surface treatment: galvanizing before welding, anti-rust spray painting, and optional silver powder coating for a bright, clean finish. This triple protection gives a long service life even in coastal Sydney environments.
Risk #2: The frame tube thickness trap that causes panel failure
A common mistake is choosing panels with thin wall tubes under 1.5mm. They may look similar at first, but they bend and dent after a few moves. Our standard Sydney Temporary Fence Panels use 2.0mm wall thickness on key models, eliminating this weakness and protecting your investment over many hire cycles.

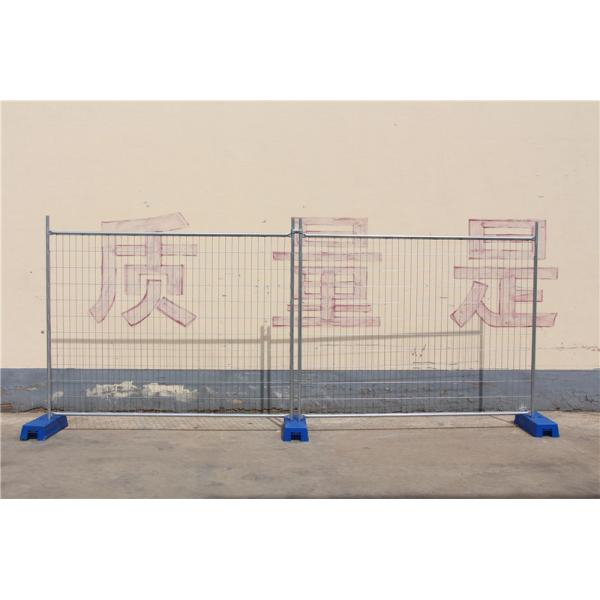

Standard Sydney Temporary Fence Panel Specifications – 2.1m x 2.4m
Below is our most popular Sydney Temporary Fence Panel configuration for construction and general hire use, designed for strength, stability and fast installation.
| Description | Specification – Standard Panel (Model STP-2124-32) |
|---|---|
| Panel height (H) | 2100 mm |
| Panel length (L) | 2400 mm |
| Frame tube outside diameter | 32 mm round tube |
| Frame tube wall thickness | 2.0 mm |
| Vertical brace tube | 32 mm round tube, full height centre brace |
| Horizontal tube design | Top and bottom tubes smashed flat at ends for higher load resistance |
| Mesh wire material | Low carbon steel wire, hot-dipped galvanized |
| Mesh wire diameter | 4.0 mm |
| Mesh aperture | 60 x 150 mm welded mesh |
| Horizontal wire pitch | 150 mm |
| Vertical wire pitch | 60 mm |
| Weld method | Fully welded at every intersection, anti-cut and anti-climb |
| Surface protection | Hot-dipped galvanized after fabrication |
| Zinc coating on frame pipe | Approx. 300 g/m² |
| Zinc coating on mesh wire | Approx. 200 g/m² |
| Average panel weight | 18–20 kg per panel |
| Typical application | General construction, residential builds, light civil works in Sydney |
Insight #3: Mesh aperture 60x150mm vs 75x75mm and how it changes security
Mesh aperture is not just a visual choice. A 60x150mm opening makes climbing harder and increases panel rigidity, while 75x75mm gives a strong, square look and excellent crowd control visibility. Choosing the wrong mesh aperture for your Sydney Temporary Fence Panels can quietly increase theft, trespass and safety risks.
Heavy-Duty Sydney Temporary Fence Panel Specifications – 2.1m x 3.3m
For long runs, civil projects and high-traffic event perimeters, the 2.1m x 3.3m heavy-duty panel gives you more coverage per panel and stronger frames with larger tubes.
| Description | Specification – Heavy Duty Panel (Model STP-2133-40) |
|---|---|
| Panel height (H) | 2100 mm |
| Panel length (L) | 3300 mm |
| Frame tube outside diameter | 40 mm round tube |
| Frame tube wall thickness | 2.0 mm |
| Vertical brace quantity | 2 vertical braces for higher rigidity |
| Mesh wire diameter | 4.5 mm |
| Mesh aperture | 75 x 75 mm welded mesh |
| Mesh height coverage | From bottom frame to top frame for full security |
| Horizontal wire pitch | 75 mm |
| Vertical wire pitch | 75 mm |
| Surface treatment | Hot-dipped galvanized, anti-rust spray and optional silver powder coating |
| Corrosion protection level | Long-term outdoor use without rusting under normal site conditions |
| Average panel weight | 24–26 kg per panel |
| Recommended use | Major public events, stadiums, roadworks and heavy-duty construction |
| Standard compatibility | Designed to meet Australian temporary fencing performance requirements |
Warning #4: The zinc coating level that signals real anti-rust performance
If zinc coating is too light, temporary fence panels quickly show red rust at welds and corners. Our Sydney Temporary Fence Panels use a high zinc rate on both pipe and wire, which keeps your hire fleet bright and reduces the silent damage that forces early replacement.
Size Overview for Sydney Temporary Fence Panels
We manufacture multiple panel sizes to suit different sites, including the most popular 2.1m x 2.4m, 2.1m x 3.3m and 2.1m x 3.5m Sydney Temporary Fence Panels.
| Item | Size and Technical Snapshot |
|---|---|
| Panel size option 1 | 2.1 m (H) x 2.4 m (L), 32 mm frame tube, 4.0 mm wire, 60 x 150 mm mesh |
| Panel size option 2 | 2.1 m (H) x 3.3 m (L), 40 mm frame tube, 4.5 mm wire, 75 x 75 mm mesh |
| Panel size option 3 | 2.1 m (H) x 3.5 m (L), 40 mm frame tube, 4.5 mm wire, 60 x 150 mm mesh |
| Panel size option 4 | 1.8 m (H) x 2.4 m (L), 32 mm frame tube, 3.5–4.0 mm wire |
| Panel size option 5 | 1.8 m (H) x 2.9 m (L), 32 mm frame tube, 60 x 150 mm mesh |
| Standard frame tube range | 25 mm, 32 mm, 38 mm, 40 mm, 42 mm, 48 mm and 60 mm O.D. |
| Tube wall thickness range | 1.5 mm to 2.5 mm for Sydney Temporary Fence Panels |
| Wire diameter range | 3.0–5.0 mm depending on model and application |
| Mesh aperture options | 60 x 150 mm, 75 x 75 mm, 75 x 100 mm and other custom apertures |
| Corrosion system | Galvanizing before welding + anti-rust spray painting + silver powder coating |
| Zinc rate on pipe | Approx. 300 g/m² for long-term outdoor exposure |
| Zinc rate on wire | Approx. 200 g/m² for welded mesh |
| Panel connection | Galvanized clamps with M10 bolts and nuts |
| Base type | Heavy-duty blow-moulded plastic feet or concrete-filled feet |
| Usage pattern | Reusable, rentable, resale-ready for Australian temporary fencing hire fleets |
| Custom production | Different specifications available according to your drawing or special inquiry |
Danger #5: The unstable base defect that can trigger crowd accidents
Even strong panels can become dangerous if low-quality feet are used. Lightweight or cracked bases create an invisible defect in your system. Our Sydney Temporary Fence Panels are matched with heavy-duty plastic or temporary fence concrete-filled feet to keep fences upright under wind load and crowd pressure, reducing fall-over accidents and liability.

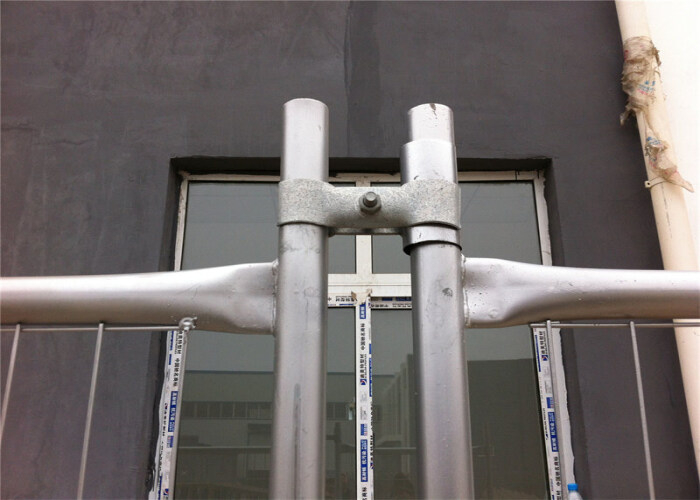

Feet, Clamps and Bracing System for Sydney Temporary Fence Panels
To build a safe temporary fence line, panels must work together with the right clamps, bases and bracing. We supply a complete system so you can install quickly and keep the line straight and stable.
| Accessory / Element | Specification and Function |
|---|---|
| Temporary fence feet size | Approx. 600 x 230 x 150 mm heavy-duty plastic base |
| Base filling option | Concrete-filled core for high stability on Sydney job sites |
| Base weight | 28–32 kg per foot for standard models |
| Clamp type | Hot-dipped galvanized heavy-duty clamp, pressed shape |
| Bolt and nut | M10 hot-dip galvanized bolt with safety nut |
| Bracing post | 32–40 mm tube brace, fixed to panel and base |
| Bracing spacing | Every 3–4 panels or as required by site conditions |
| Top extension compatibility | Optional barb wire arm or shade cloth support |
| Pedestrian gate panel | Custom swing gate panel compatible with standard feet |
| Vehicle gate set | Wider gate panels with reinforced frame and strong clamps |
| Concrete surface installation | Bases sit on the slab, no drilling or damage required |
| Soil surface installation | Bases can be levelled on compacted soil or gravel |
| Wind load performance | Optimised combination of panel, base and brace for outdoor use |
| System reusability | Panels, clamps and bases designed for many hire rotations |
| Colour option | Natural galvanized silver with optional powder coated feet |
Benefit #6: Smart panel sizing that boosts installation speed
Using 3.3m and 3.5m Sydney Temporary Fence Panels on long straight runs cuts down the number of clamps and bases you need. This simple benefit saves labour every time your team installs or moves the fence, adding direct profit to your project or hire business.
Applications of Sydney Temporary Fence Panels
Our panels are widely used to secure construction sites, private property, major public events, sports venues, concerts, festivals and temporary work zones. The system is fast to install, easy to remove, and leaves no damage to existing landscaping or pavements.
For event organisers, clean and uniform Sydney Temporary Fence Panels create a professional image and clear crowd control lines. For builders, the high-strength frames, tight mesh and stable bases protect tools, materials and equipment from theft and vandalism.
Advantage #7: Packing and handling features that reduce transport loss
Panels that are poorly packed suffer bent frames and broken welds during transport. Our panels are bundled on steel pallets, strapped and protected, which lowers hidden damage and keeps your fleet looking new for longer – a direct advantage for hire operators and contractors.
Packing, Loading and Standards for Sydney Temporary Fence Panels
As a direct manufacturer, we control the packing and loading process of every shipment of Sydney Temporary Fence Panels to guarantee that panels arrive straight, clean and ready to use.
| Packing / Standard Item | Detailed Specification |
|---|---|
| Panel stacking method | Panels stacked flat in bundles on heavy-duty steel pallets |
| Bundle quantity (2.1 x 2.4 m) | 50 panels per steel pallet, strapped tightly |
| Bundle quantity (2.1 x 3.3 m) | 40 panels per steel pallet, depending on shipping height |
| Protection material | Plastic film and edge protectors to prevent abrasion |
| Clamp packing | Clamps packed in strong woven bags or cartons, then on pallets |
| Foot packing | Temporary fence feet stacked in rows on pallets or in steel cages |
| Container loading | Panels and accessories loaded by forklift with blocking and bracing |
| 40’HC container capacity (2.1 x 2.4 m) | Up to approx. 560–600 panels with matching clamps and feet |
| 40’HC container capacity (2.1 x 3.3 m) | Up to approx. 420–450 panels with accessories |
| Production standard | Panels designed to comply with Australian temporary fencing requirements |
| Steel tube standard | High-quality structural steel tube suitable for welding and galvanizing |
| Welding standard | Full-perimeter welding on frames and every mesh intersection |
| Surface finish control | Each batch inspected for uniform zinc coating and smooth surface |
| Quality inspection | Dimension, weld, coating thickness and appearance checked panel by panel |
| Traceability | Each shipment labelled with model, size and batch information |
Why Choose Our Sydney Temporary Fence Panels
Our Sydney Temporary Fence Panels are engineered as a wind resistant temporary fence system, easy to install in-ground or above-ground without digging, allowing repeated use and long-term rental, and 100% compliant with Australian site expectations. With strong frames, precise mesh apertures, heavy zinc coating and professional packing, you lock in safety, durability and real profit on every project.
Tell us your required height, width, frame tube size, mesh aperture (60 x 150 mm or 75 x 75 mm) and quantity, and we will produce wind resistant Sydney Temporary Fence Panels that match your drawing and your market exactly – without hidden risks or weak points.
