Tecco mesh is a high tensile strength steel wire mesh system designed for active slope stabilization and rockfall protection. It belongs to the family of high-strength steel wire grids and is installed tightly against the slope surface using anchors, spike plates and boundary ropes to reinforce unstable rock or soil.
High steel wire grids generally use high-strength steel wire of 2.0 mm, 3.0 mm, 4.0 mm or can be customized as required. The system is generally composed of high-strength steel wire grids, steel anchors, anchor plates and support ropes for slope protection.
High strength steel wire mesh systems are generally suitable for reinforcement and protection of soil or rock slopes with potential geological disasters such as slipping, collapse, shallow movement, weathering and rockfall.

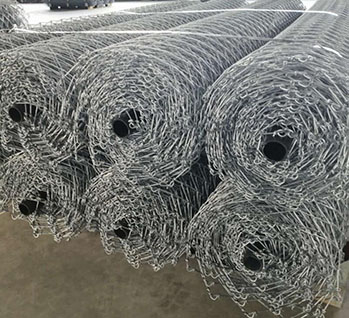

High Tensile Steel Wire Mesh for Rockfall Netting

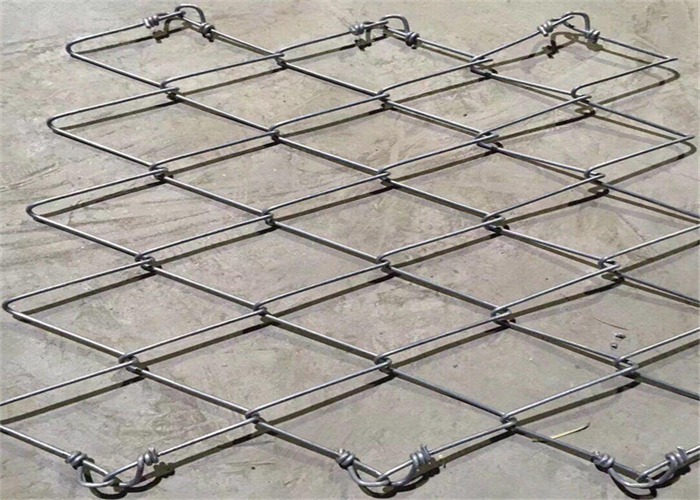

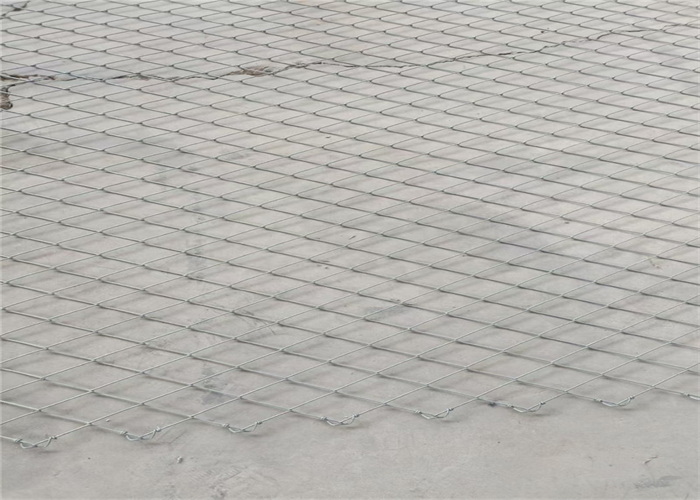

 High tensile steel wire mesh for rockfall netting. |  Close view of high tensile rockfall mesh on the slope. |
Rockfall Wire Mesh Application

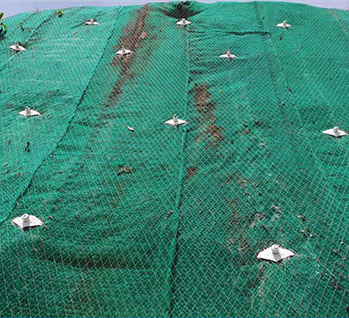

 Rockfall wire mesh installed on a rocky slope. |  Application of rockfall mesh for slope reinforcement. |
Tecco Mesh Slope Stabilization System
The Tecco slope stabilization system is an important active protection type in rockfall barrier projects. This system mainly consists of tecco mesh, wire rope anchors, spike plates, boundary ropes, sewing ropes and specialized clips. The tecco meshes are fastened tightly to the slope by wire rope anchors and spike plates through prestressed tension. Then the boundary rope, sewing rope and clips reinforce the tecco mesh to make the facing solid and firm. When landslides or debris flows occur, large stones or debris are blocked by the tecco mesh and the impact on the ground is greatly reduced.
Complete Tecco Mesh System Components
- Tecco mesh. Main part of the tecco slope stabilization system. It is made of high tensile steel wire and has excellent corrosion resistance performance. The 1770 N/mm² tensile strength supplies maximum protection for the slope and people.
- Steel anchor. The steel anchor is made of deformed steel bar with 25 mm diameter. It is mainly used to fix the tecco mesh onto the rock or soil slopes and supply overall stability to the slope and tecco mesh.
- Claw type spike plate. The claw type spike plate is commonly used with nails to fasten the tecco mesh onto the slope firmly. The claw design makes the spike plate a more stable and firm structure.
- Soil or rock nails. Used with claw type spike plates to fix the tecco mesh onto the mountain. High tensile strength and solid structure provide long service life and good performance.
- Clips. The clips are used to connect neighboring tecco mesh panels firmly. They are an alternative to sewing rope and the connection is commonly made without overlap.
- Sewing rope. Used for connecting neighboring tecco meshes with overlaps. It can be used instead of clips where required.
- Boundary rope. Passes through the tecco mesh and is then fixed onto the anchors to improve tecco mesh and system stability.
Tecco Mesh Components – Photo Gallery

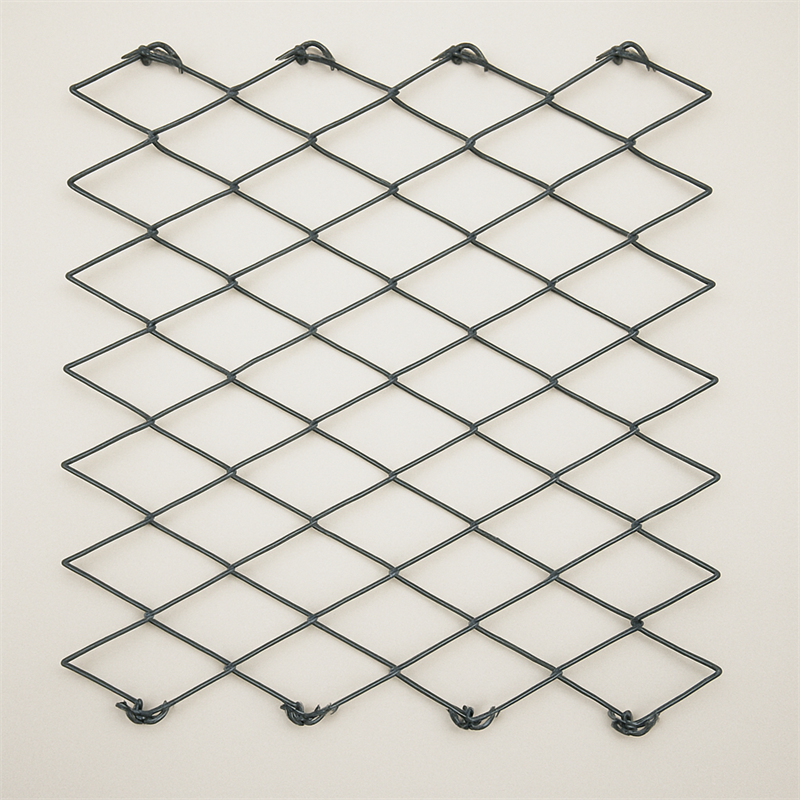

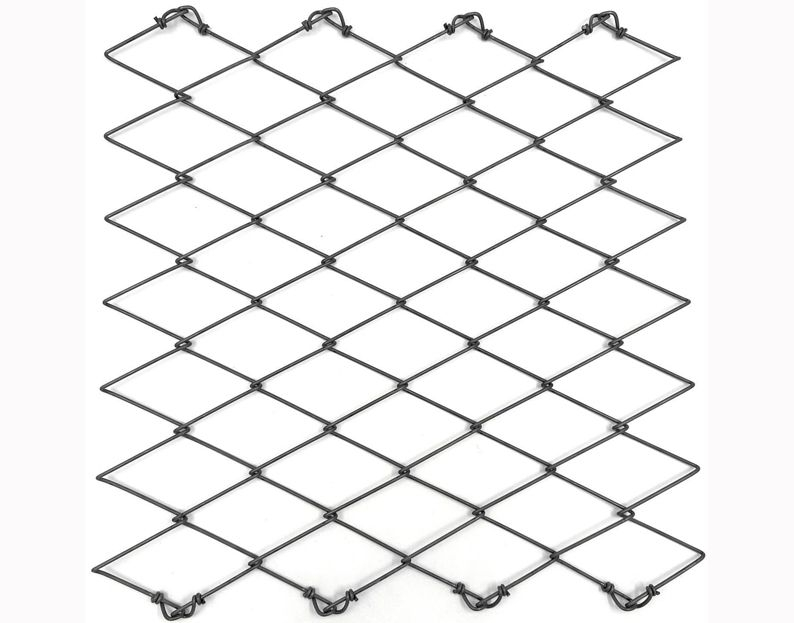

 TM-02: Tecco mesh. |  TM-03: Steel anchor. |
 TM-04: Claw type spike plate. |  TM-05: Sewing rope. |

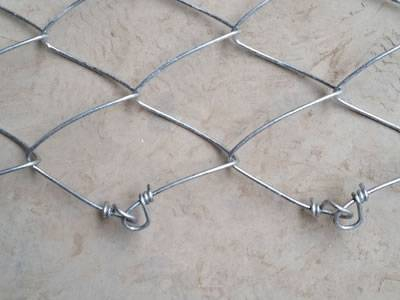

 TM-06: Rhomboid mesh is stable in the irregular mountains. |  TM-07: Knotted ends make the tecco mesh stable and solid. |
Standard Specifications of Tecco Mesh
- Wire diameter: 3 mm or 4 mm.
- Mesh type: rhomboid hole.
- Mesh size: inscribed circle diameter is 65 mm.
- Tensile strength: minimum 1770 MPa.
- Corrosion treatment: hot dipped galvanized or zinc-aluminum coated.
- Zinc thickness: no less than 150 g/m².
- Breaking load of single wire: 12.5 kN.
- Roll width: 1 m – 3.5 m.
- Roll length: 10 m – 30 m.
Technical information
| Model | Wire Ø | Opening (inscribed) | Typical diamond diagonals* | Typical roll sizes** | Typical usage note |
|---|---|---|---|---|---|
| G40/2 | 2.0 mm | ~40 mm | ~55 × 80 mm | 3.5 m × 10/20 m | Maximum surface control with light weight |
| G45/2 | 2.0 mm | ~45 mm | ~62 × 95 mm | 3.5 m × 20 m | Tight grid; fine fragments |
| G50/2 | 2.0 mm | ~50 mm | ~70 × 115 mm | 1.0–3.9 m × 10–30 m | Balance of control & drainage |
| G65/2 | 2.0 mm | ~65 mm | ~83 × 143 mm | 3.5 m × 40 m | Lightweight, long rolls, fast coverage |
| G65/3 | 3.0 mm | ~65 mm | ~83 × 143 mm | 3.5 m × 20 m | Standard stabilization |
| G65/4 | 4.0 mm | ~65 mm | ~83 × 138 mm | 3.5 m × 20 m | Higher mechanical reserve |
| G80/2 | 2.0 mm | ~80 mm | ~102 × 177 mm | 3.5 m × 10/20/30 m | Lightest 80-mm option; very open |
| G80/3 | 3.0 mm | ~80 mm | ~102 × 177 mm | 3.5 m × 20 m | Open grid with robust capacity |
| G80/4 | 4.0 mm | ~80 mm | ~102 × 177 mm | 3.5 m × 20 m | Heavy-duty slopes |

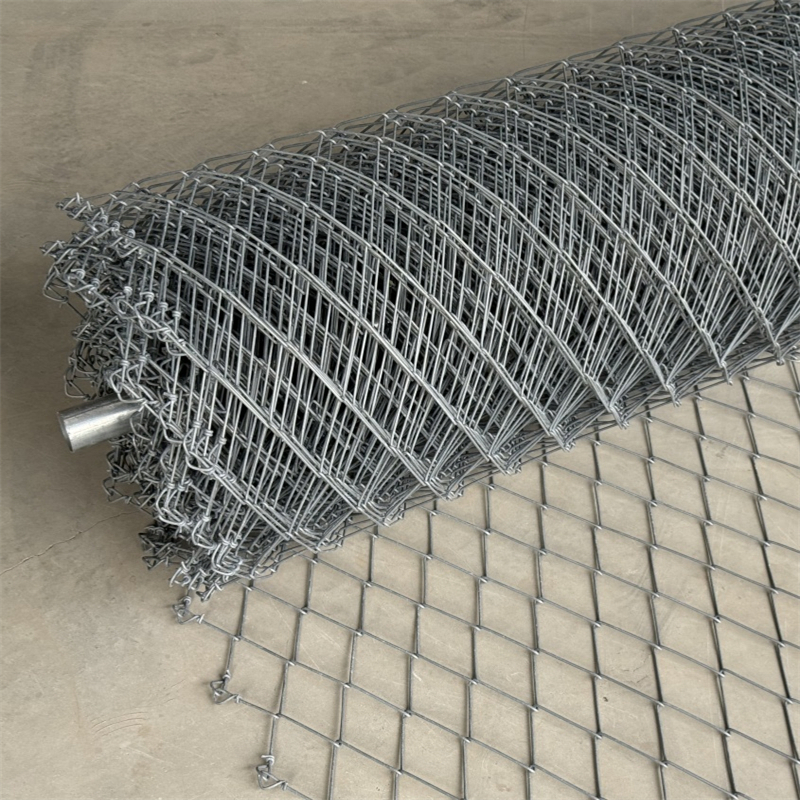

| G80/4.6 | 4.6 mm | ~80 mm | ~102 × 173 mm | 3.5 m × 10/20 m | Maximum robustness/top class |
Performance and Quality of Tecco Mesh
Tecco mesh is used to stabilize slopes with its high tensile strength steel wire that comes in 3.0 mm, 4.0 mm or 2.0 mm options with a tensile strength of ≥ 1,770 N/mm². The surface of the tecco mesh is specially treated with a Zn/Al alloy coating, heavy zinc coating, or stainless-steel wire is directly used. A special knotting process is applied to ensure that the connections between the links are secure. Quality inspectors check the raw materials and overall specifications of the mesh. To ensure the tensile strength of 1 m of mesh is no less than 150 kN/m, all production processes are carried out with care to ensure high impact resistance, corrosion resistance and a long service life.
High Tensile Strength Steel Mesh – Tecco Mesh Edges Tightly Knotted
- Wire tensile strength: 256 ksi (1770 N/mm²); 198 ksi (1370 N/mm²); 129 ksi (890 N/mm²).
- Wire diameters: 0.125 inch (3 mm), 0.158 inch (4 mm), 0.08 inch (2 mm).
- Materials: Galfan wire (95% Zn / 5% Al coating); hot-dipped galvanized wire (zinc coating ≥ 200 g/m²); stainless steel 304.
- Coating: 0.41 oz/ft² min, 125 g/m²; 200 g/m².
- Mesh apertures: 3.3″ × 5.6″ (83 × 143 mm); 3.3″ × 5.4″ (83 × 138 mm); 4.0″ × 6.97″ (102 × 177 mm); 2.44″ × 3.74″ (62 × 95 mm); 2.56″ × 2.56″ (65 × 65 mm), etc.
- Mesh heights: 0.43″ (11 mm); 1.18″ (30 mm).
- Mesh strength: 150 kN/m.

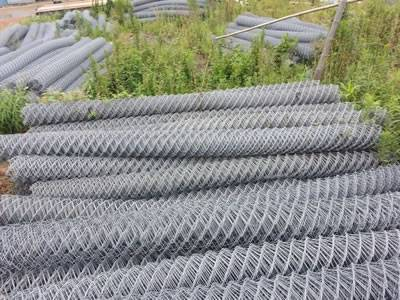

Tecco Mesh in Rolls
- Mesh edge tightly knotted.
- Roll width: 3.5 m, 2.85 m, 2.9 m, 1 m, etc.
- Roll length: 10 m, 20 m, 30 m, etc.
- Weight: 1.8 kg/m²; 3.3 kg/m²; 2.6 kg/m²; 1.45 kg/m²; 1.2 kg/m².
Features of Tecco Mesh
- Safety. The tecco mesh can be used to stabilize many kinds of slopes, including rock and loose soil slopes.
- High tensile strength. The tecco mesh is made of high tensile spring wire, with tensile strength more than 1770 MPa, supplying maximum protection to the slope and people.
- Environmental friendly. The rhomboid mesh allows plants to grow regularly and makes the slope or mountain more beautiful.
- Rhomboid mesh structure. This structure provides optimal stability for geological conditions and can be tightly secured on the slope, even on irregular mountains.

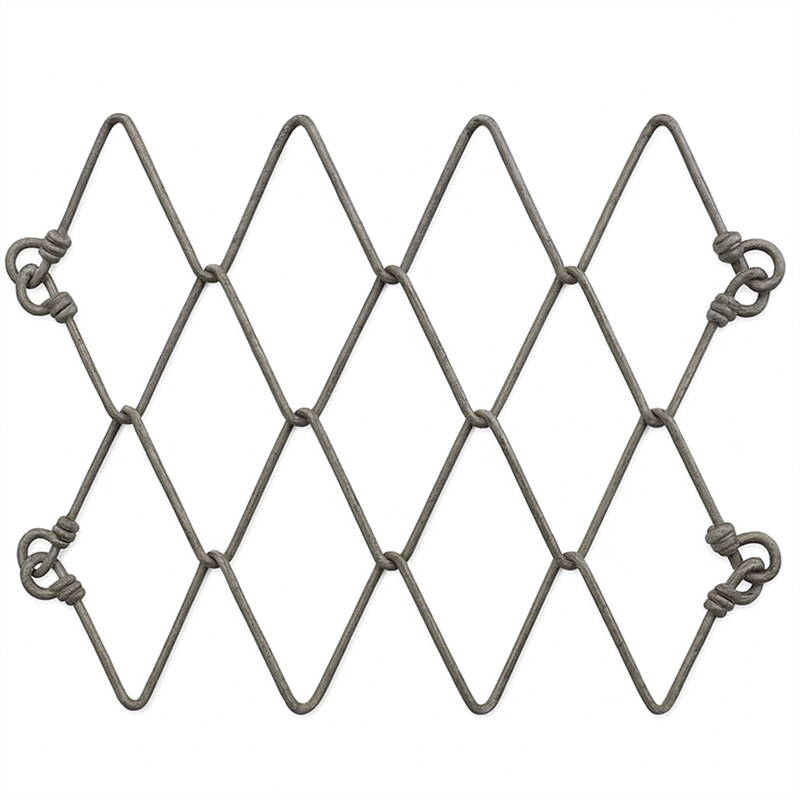

- Knotted ends. Different from chain link fences with wrapped edges, tecco mesh has knotted ends which improve tensile strength and structural stability.
- Lightweight. Tecco mesh has an excellent strength-to-weight ratio, making it easy to transport and install.
- Durable. Corrosion-resistant surfaces and high tensile steel ensure long service life.
Additional Key Advantages
- Anti-corrosion.
- Easy to install.
- Don’t need maintenance.
Tecco Mesh System – Main Components
The TECCO mesh system consists of four main components that are carefully coordinated with each other:
TECCO Mesh. TECCO mesh is made of high-tensile steel wire with an ultimate tensile strength of 1770 N/mm².
TECCO Spike Plates. Rigid spike plates reinforced with ribbing ensure optimal load transmission from soil or rock anchors to the TECCO mesh. These plates are placed over the anchor heads and tightened to pre-tension the mesh onto the slope. The plates are galvanized and have dimensions of 13.0″ × 7.5″ × 0.3″/0.4″ (330 mm × 190 mm × 8/10 mm), 13.0″ × 7.08″ × 0.3″/0.4″ (330 mm × 180 mm × 8/10 mm), 13.0″ × 7.5″ × 0.3″/0.4″ (330 mm × 205 mm × 8/10 mm), etc.
TECCO Connection Clips T2 / T3. High-strength steel wire connection clips enable mesh sections to be joined without overlapping and still guarantee 100% force transfer. These clips are hot-dip galvanized and consist of 0.16″ (4 mm) or 0.25″ (6 mm) thick steel spirals.
Soil or Rock Nails (Steel Anchor). Adapted to local soil and rock static requirements, the TECCO mesh can be anchored with commercial soil or rock nails. The main anchors of the system are installed in a grid typically from 6.6 to 13.1 ft (2.0 to 4.0 m) horizontal and vertical spacing, depending on site analysis and modeling. Anchors consist of commercially available steel bars ranging from 1.0 to 1.25 in (25 to 32 mm). Self-drilling grout injection anchors are also permitted. Additional anchors may also be used to provide added support at boundaries, low points and hollows.
Applications of Tecco Mesh
- The tecco slope stabilization system is suitable for soil-textured and similar slope surfaces. It can stabilize the slope and replace traditional mortar slag stone structures. It is also environmental friendly and supports plant growth.
- It can be used on strongly weathered rock slopes and for bank strengthening.
- It can be used to control water and soil loss and to support external-soil spray seeding.
With its high tensile strength, durable corrosion protection and efficient system components, tecco mesh, often used together with steel ring nets, provides a reliable and long-lasting solution for active slope stabilization and rockfall protection in highways, railways, mining, hydropower and other infrastructure projects.
