Tubular Steel Fence Sydney: 10 Dangerous Power Traps

If you are buying tubular steel fence sydney systems, the biggest risk is assuming every tubular fence behaves the same once it is installed.
Across Sydney jobs—coastal air, mixed soils, tight sites, long straight frontages, and repeated gate traffic—small specification errors become visible fast: wave-lines, rattles, rub-through on powder coat, stripped fasteners, leaning posts, and gates that drag.
POLYMETAL builds tubular steel fencing as a repeatable system so the panel, bracket, and post package matches the job from the first bay to the last—without “site improvisation” that burns time and money.

Top 10 High-Risk Checks for tubular steel fence sydney Orders

Each item below is a buying problem that looks minor on a purchase order—but becomes a site crisis after posts are already set.Pay special attention to #7, because it is where many buyers take the biggest loss.

Risk #1: Rail frame is too light for the fence height and run length

Rails control straightness. If the rail frame is under-specified, the fence line can develop a visible “wave” as brackets are tightened and the run heats/cools.
For Sydney installs, lock the rail frame option early: 40×40, 45×45, or 50×50 (with thickness that matches exposure and height).

Trap #2: Panel width is inconsistent across the perimeter

Most bays are built around 2400mm width, and some projects use 2450mm to match specific site modules.
When widths vary without a layout plan, installers “force” alignment, which stresses brackets and loosens fixings.
Keep the fence width consistent across each run to avoid alignment damage.

Oversight #3: Upright size is mixed without a zoning plan

Upright size changes stiffness and the security feel. Typical options include 16×16, 25×25, and 30×30.
If you mix sizes across one frontage, the fence reads uneven and flexes inconsistently.
Standardize upright size by zone (public frontage vs industrial boundary) instead of mixing “because it’s available.”

Danger #4: Upright thickness is chosen like a cosmetic detail

Upright thickness is performance. Common options include 0.80mm, 1.00mm, 1.20mm, and up to 2.00mm.
If thickness is too light for fence height and spacing, the fence feels soft, brackets loosen faster, and impacts leave permanent bends.

Warning #5: Spacing is specified but the upright count does not match

Spacing must match the upright count in the panel design. Typical builds are:
16 pcs (~115mm),
17 pcs (~108mm),
or 18 pcs (~100mm).
If you demand 100mm spacing but order a layout that does not match, you get fabrication surprises or a delivered panel that fails expectations.

Cost #6: “Powder coat” is specified without defining the full coating process

Surface finish affects lifespan and appearance. If you specify “powder coat” without stating the process (typically galvanised + powder coated), you risk early rust bleed at cut ends, bracket contact points, and rub areas.
For architectural installs, define the finish clearly and require packing that protects faces and corners.

Failure #7: Post height is not engineered to panel height (this is where you lose money)

This is the most common hidden failure point. If posts are not tall enough, you cannot achieve proper embedment geometry and the line becomes unstable.
A practical rule is: Fence post height must be panel height + 600mm.
When this is wrong, you pay twice—once for the steel, and again for post replacement, re-drilling, re-concreting, and downtime.

Pitfall #8: Post size is selected but wall thickness is ignored

Post options commonly include 60×60, 65×65, 75×75, 80×80, and 100×100.
But size alone is not enough—wall thickness matters: 1.6mm, 2.0mm, 2.5mm (and heavier options).
If wall thickness is too light, posts twist under bracket load and the fence “leans” even when panels are correct.

Gap #9: Brackets and fasteners are not treated as a single system

Panels, posts, brackets, and fasteners must be designed as one package.
If brackets are weak or fasteners do not match post wall thickness, installers over-tighten, strip threads, or deform brackets.
That creates movement and visible misalignment—then the project wastes time blaming the panels.

Lesson #10: Ordering “a fence” instead of a receiving-ready kit

Site loss often comes from logistics: mixed bundles, missing caps, wrong bracket counts, or unlabeled post heights.
For Sydney projects, insist on labeled bundles by panel height, panel width, rail frame group, upright spacing group, and matching post sets—so installers cannot swap components by accident.

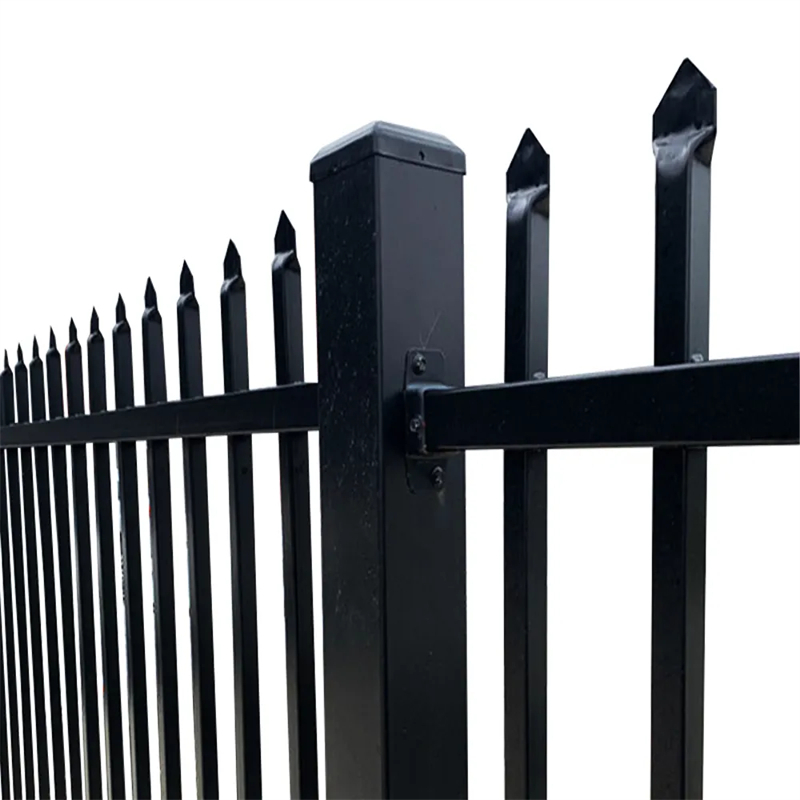

Product Overview: POLYMETAL Tubular Steel Fence System

POLYMETAL supplies tubular steel fence systems as modular panels designed for fast installation and a clean architectural line.

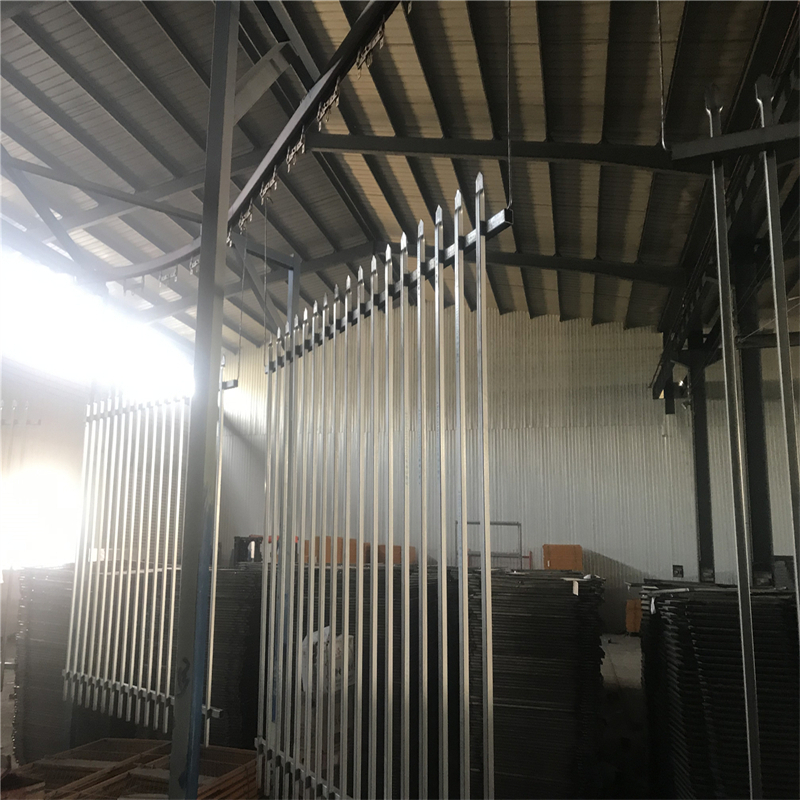

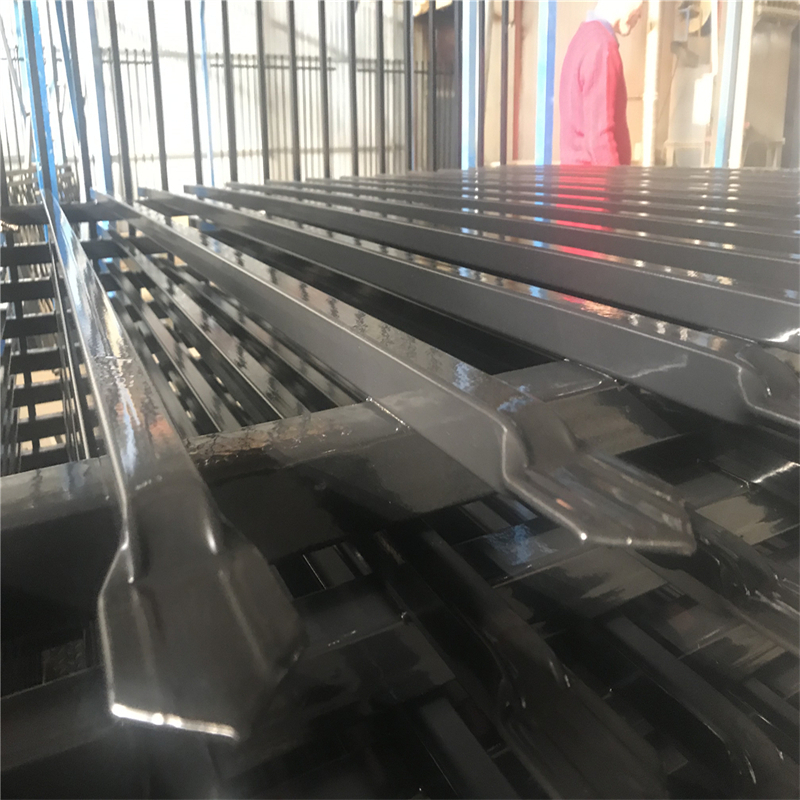

Panels are manufactured from low carbon steel such as Q195/Q235 and can be supplied galvanised and powder coated for long-term durability.
Colours can be supplied in black, green, white, blue and other common project colours; where a specific colour is required, it should be defined clearly (including RAL options and Interpon powder systems where specified).
A complete system can include panels, brackets, fasteners, post caps, and gate options so your perimeter performs as one unified build rather than mixed components from multiple sources.

Specifications Tubular Steel Fence Sydney

Post Height Planning Tubular Steel Fence Sydney

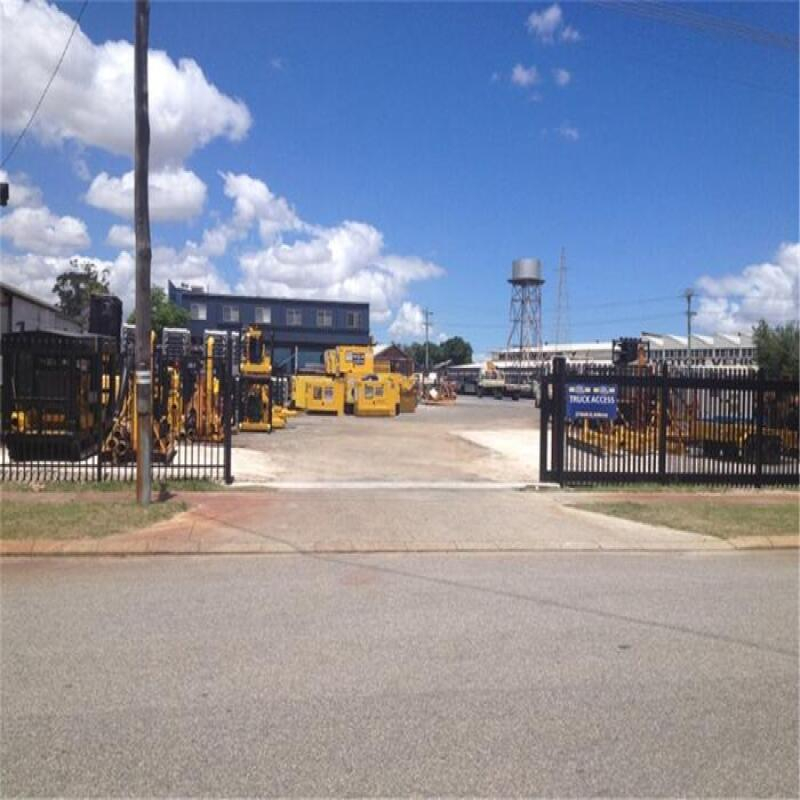

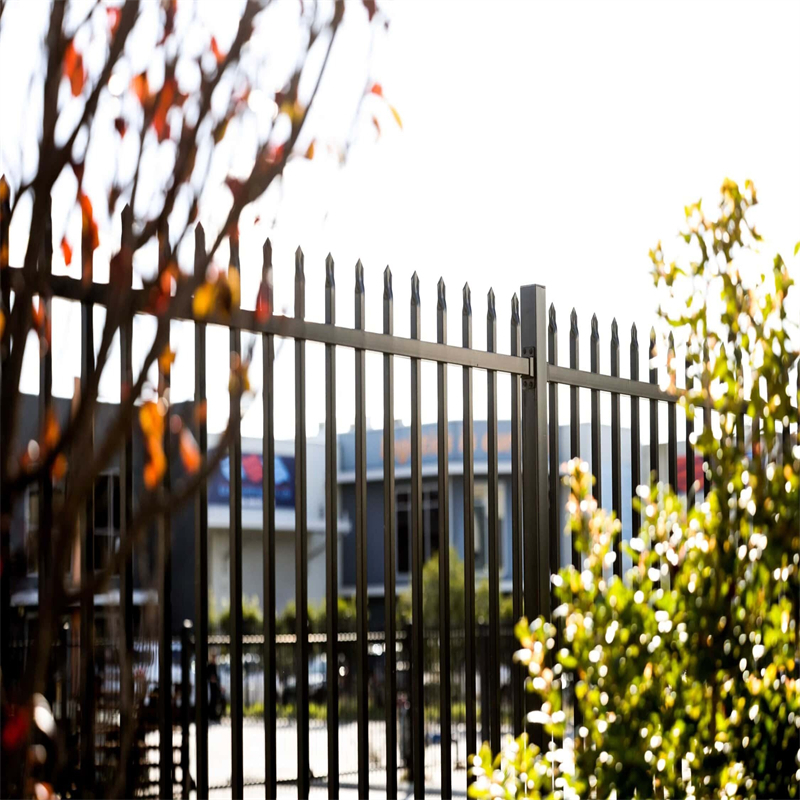

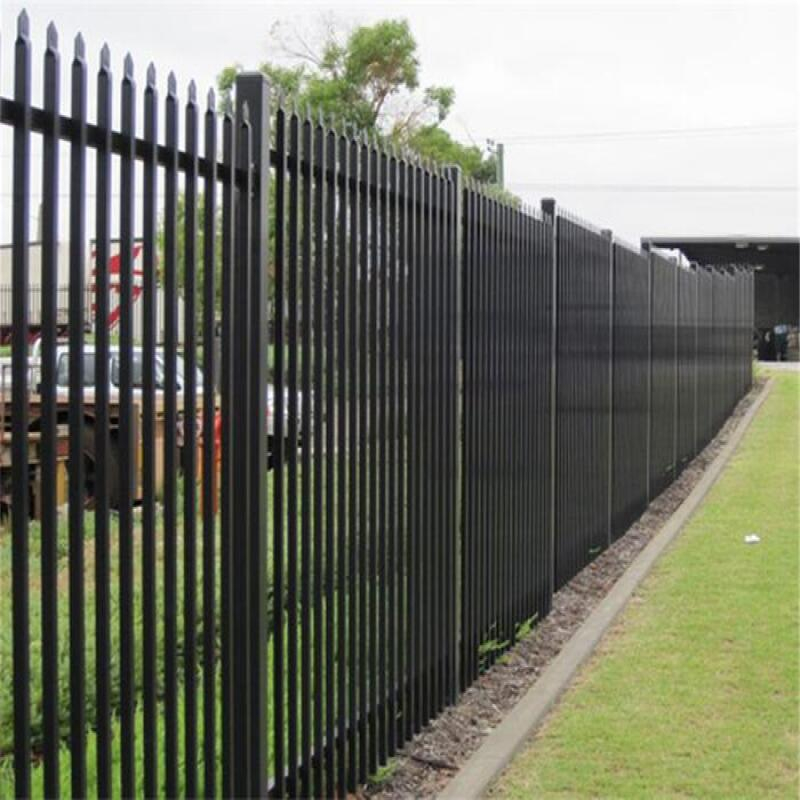

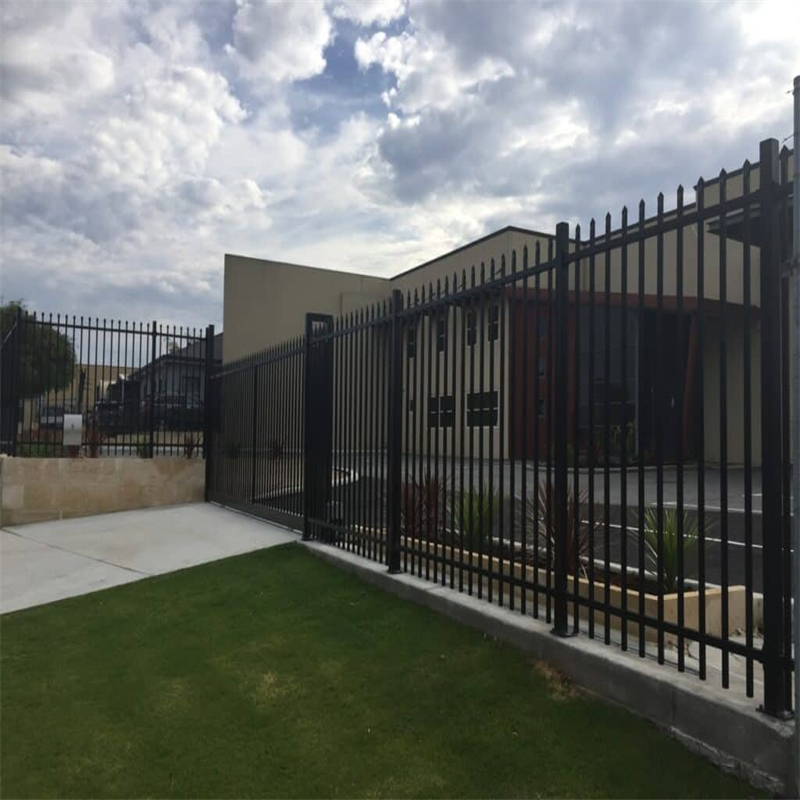

Applications Tubular Steel Fence Sydney

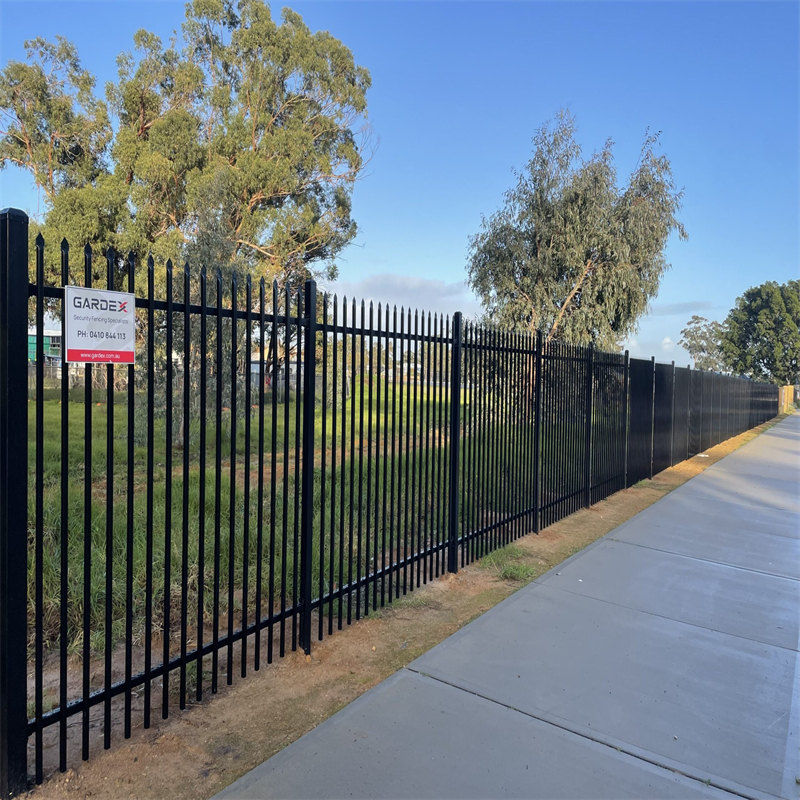

tubular steel fence sydney systems are commonly used where a clean architectural look is required but the site still needs real boundary control.
Typical uses include residential and villa boundaries, commercial frontage, factories and workshops, public buildings, parks, road corridors, storage yards, and school perimeters—especially where repeatable bays speed installation and allow easy section replacement later.

Benefits

A properly specified tubular steel fence system delivers straight sight lines, consistent spacing, and predictable installation because every bay is built to the same module.
It reduces on-site cutting and patching, improves visual quality on public-facing boundaries, and supports faster repairs because a damaged panel can be swapped without rebuilding the whole run.
When posts, brackets, and panel stiffness are matched correctly, the fence feels solid, stays aligned, and holds its finish longer under daily contact.

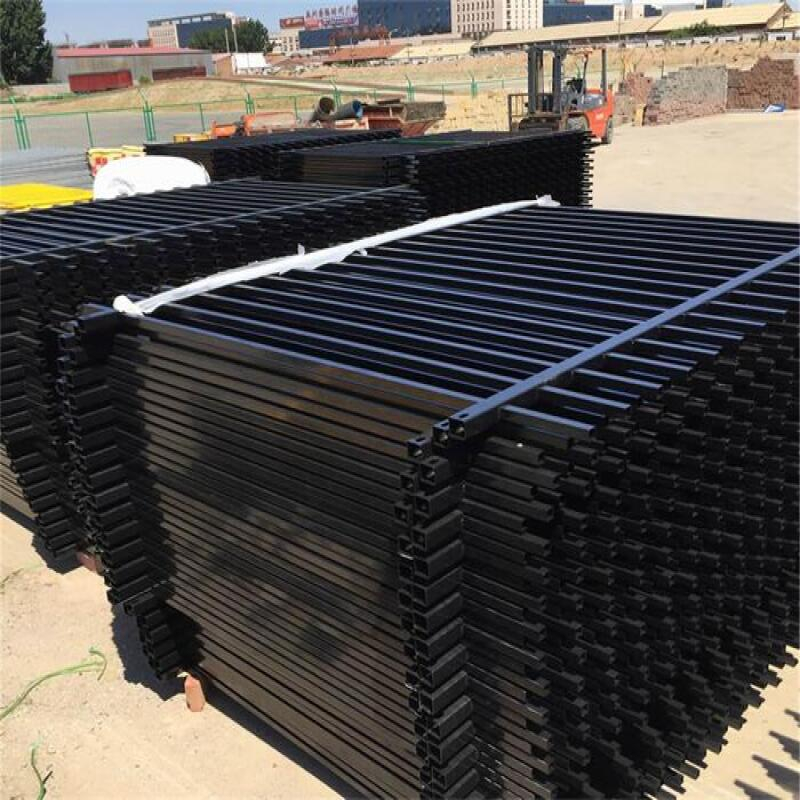

Packing Tubular Steel Fence Sydney

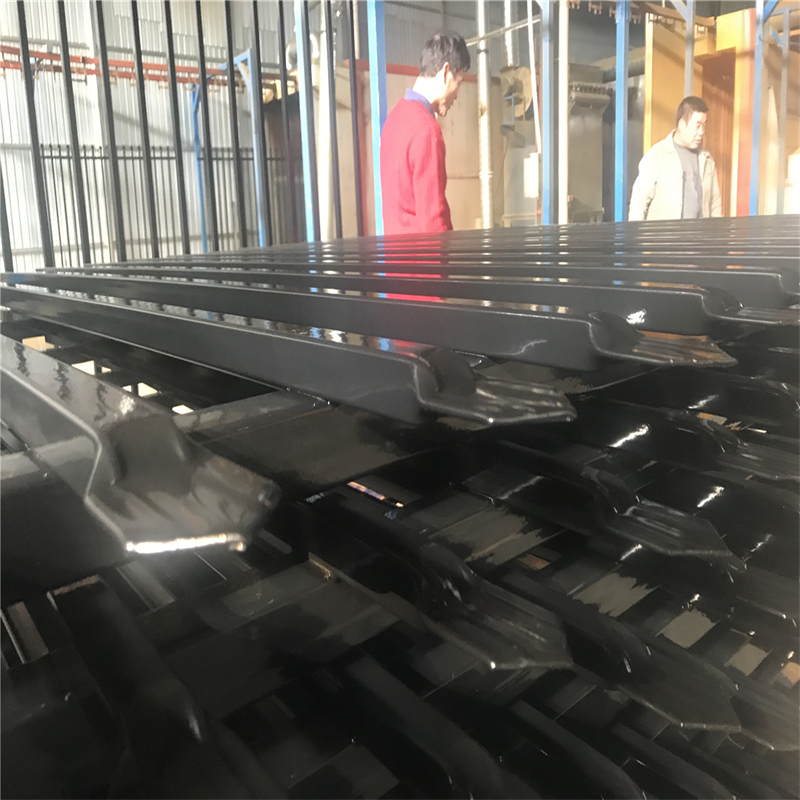

POLYMETAL typically packs tubular steel fence panels in counted bundles to protect faces and corners during transport and unloading.
Panels are stacked with separation protection to reduce rub damage, then wrapped and palletized for forklift handling.
Posts are bundled separately by size and wall thickness to prevent mix-ups and bending risk.
Brackets, fasteners, and caps are packed as counted sets to simplify site receiving.
For multi-height projects, every bundle is labeled by panel height group, panel width group, rail frame group, and upright spacing group so installers do not swap components and create alignment problems.

Standards and FAQs

Standards

Because compliance depends on project scope, the safest approach is to define coating expectations, corrosion protection requirements, colour targets, and installation method directly in the purchase specification.
POLYMETAL can align rail frames, upright layouts, spacing, post selection, and finish to your stated project requirements so the delivered fence is buildable and consistent on site—and when the site requires a higher-security reference point, many buyers compare specifications against 358 welded mesh fencing before locking the final perimeter standard.

FAQs

Q: What panel width should I choose for tubular steel fence sydney projects?
A: 2400mm is the most common module. If you choose 2450mm to match site bays, keep it consistent across the run and align corners and gates to the same module.

Q: Is 100mm spacing always the right choice?
A: 100mm is a common target for a stronger security feel, but it must match upright count and the panel layout. Choose 18 uprights where a true 100mm spacing feel is required.

Q: What rail frame should I use?
A: 40×40 is widely used for standard heights, while 45×45 and 50×50 are preferred as height increases or exposure becomes tougher. The goal is straightness and stiffness, not “minimum steel.”

Q: What is the most common hidden cost mistake?
A: Post height. Use the rule: post height must be panel height + 600mm. When posts are wrong, the entire fence becomes unstable and replacement costs hit hard.

Q: Which posts should I choose?
A: Post size (60×60 to 100×100) must be matched with wall thickness (1.6 to 2.5mm) and fence height. A heavier panel with a light post is a guaranteed alignment problem.

Final Buying Reminder

If you want tubular steel fence sydney installs to stay straight, tight, and visually clean, do not buy “a panel.”
Buy a matched POLYMETAL system: panel height and width locked, rail frame and thickness defined, upright size and spacing confirmed, and post size/wall thickness/height engineered to the panel—especially the post height rule (panel height + 600mm).
That is how you avoid delays, rework, and the hidden loss that hits when the schedule is already locked.
