BTO-22 Galvanized Concertina Razor
Product Details:
| Place of Origin: | China |
| Brand Name: | LNF-Razor Wire |
| Certification: | ISO |
| Model Number: | BTO plus CBT series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1tons |
|---|---|
| Price: | 400$ per ton |
| Packaging Details: | Bulk load |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 ton per month |
|
Detail Information |
|||
| Surface Treatment: | Galvanized,PVC Coated,NON,hot Dipped Galvanized | Type: | Barbed Wire Coil,Barbed Wire Strand,Galvanized,BTO-22,BTO-30 |
|---|---|---|---|
| Material: | Iron Wire,Steel Wire,Hot Dipped Galvanized Steel,galvanized Wire | Razor Type: | Cross Razor,Single Razor,barbed Wire,Double Lines Or Single Line,Single Coil And Cross Coil |
| Product Name: | Barbed Wire,cheap Galvanized Barbed Wire Price Weight Per Meter,Concertina/Hot Dipped Galvanized Razor Barbed Wire/Airport Fencing,BTO-10 Concertina Hot Dipped Galvanized Razor Barbed Wire | Application: | Protection,military Sentry Defence,construction And So On,Barrier,prison |
| Packing: | Water-proof Paper | Barb Length: | 1.5-3.0cm,1.5-3mm,30,28 |
| Color: | Silver,blue,Requirement,Green | Feature: | Protection Performance,easy To Install,Great Protection |
| Wire Diameter: | 1.6-3.2mm,2.2mm,3.0mm,2.0 | Barb Distance: | 7.5cm-15cm,3.5'',8'',6'',4'' |
| Usage: | Preserve,army,Garden Fence,residential,wall Fence Etc | Surface: | Galvainzed,hot Dipped Galvanized,pvc Coated |
| Razor Thickness: | 0.2-0.7mm,1-20mm,0.3mm-0.6mm,0.45--0.65mm | Wire Dia: | 13GA,usually Size From 1.4mm - 2.5mm,12.5GA,2.5+/-0.1 |
| Sample: | Free | Coil Diameter: | 360-1000mm,450mm-900mm,Mm450.500.600.750.800.900.950.980 |
| Barbed Space: | 6-15mm,26~100mm | ||
Product Description
BTO-22 Galvanized Concertina Razor Barbed Wire 15 Years Experience Good Price
Material: Galvanized Steel Sheet and wire or Stainless Steel Sheet and Wire, PVC(Epoxy), Electrophoretic
1. Galvanized Steel Sheet and Wire
① Hot dipped galvanzied steel sheet with electric galvanized wire
② Hot dipped galvanized steel sheet with Hot dipped Galvanized wire
③ High galvanized steel sheet with high galvanized wire
2. Stainless Steel Sheet and Wire
430,304, 316, 316L

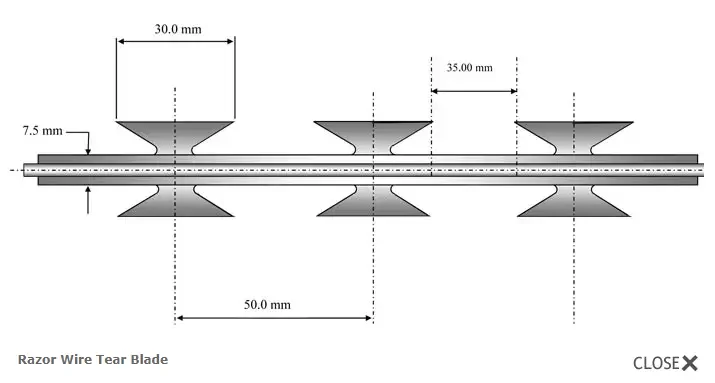

BTO-30 Razor Blade Specification
Razor Blade Style:BTO-30
Razor Thickness:0.5±0.05mm
Inner wire Dia.: 2.5±0.1mm
Razor Barb Length: 2.5±0.1mm
Razor Barb Spacing: 45±1mm
|
Reference No.
|
Thickness
|
Wire diameter
|
Barbe length
|
Barbe length
|
Barbe spacing
|
|
BTO-10
|
0.5 +/- 0.05
|
2.5 +/- 0.1
|
10 +/- 1
|
13 +/- 1
|
26 +/- 1
|
|
BTO-12
|
0.5 +/- 0.05
|
2.5 +/- 0.1
|
15 +/- 1
|
15 +/- 1
|
26 +/- 1
|
|
BTO-18
|
0.5 +/- 0.05
|
2.5 +/- 0.1
|
18 +/- 1
|
15 +/- 1
|
33 +/- 1
|
|
BTO-22
|
0.5 +/- 0.05
|
2.5 +/- 0.1
|
22 +/- 1
|
15 +/- 1
|
34 +/- 1
|
|
BTO-28
|
0.5 +/- 0.05
|
2.5
|
28
|
15
|
45 +/- 1
|
|
BTO-30
|
0.5 +/- 0.05
|
2.5
|
30
|
18
|
45 +/- 1
|
|
CBT-60
|
0.6+/- 0.05
|
2.5 +/- 0.1
|
60 +/- 2
|
32 +/- 1
|
100 +/- 2
|
|
CBT-65
|
0.6 +/- 0.05
|
2.5 +/- 0.1
|
65 +/- 2
|
21 +/- 1
|
100 +/- 2
|
|
Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
|
450mm
|
33
|
8M
|
CBT-65
|
Single coil
|
|
500mm
|
41
|
10M
|
CBT-65
|
Single coil
|
|
700mm
|
41
|
10M
|
CBT-65
|
Single coil
|
|
960mm
|
53
|
13M
|
CBT-65
|
Single coil
|
|
500mm
|
102
|
16M
|
BTO-10.15.22
|
Cross type
|
|
600mm
|
86
|
14M
|
BTO-10.15.22
|
Cross type
|
|
700mm
|
72
|
12M
|
BTO-10.15.22
|
Cross type
|
|
800mm
|
64
|
10M
|
BTO-10.15.22
|
Cross type
|
|
960mm
|
52
|
9M
|
BTO-10.15.22
|
Cross type
|
Razor Type Wire Specification
The lengh and the diameter of the coil can be desighed according to the customers' need.
Conventional Weight and Diameter of per coil Razor: 500mmx10kg/coil which cover meter 10 meters (when spacing meter is 0.35-0.4meter)
Package:
1. Inner waterproof paper with woven bag outside, 50 coils be a bundle with strips
2. Be packed into carton
3. 50coils be a pallet.
4. as customers' requirement
It plays the role of protection in mines, gardens and apartments, frontier and sentry defence, and enclosure of prisons.

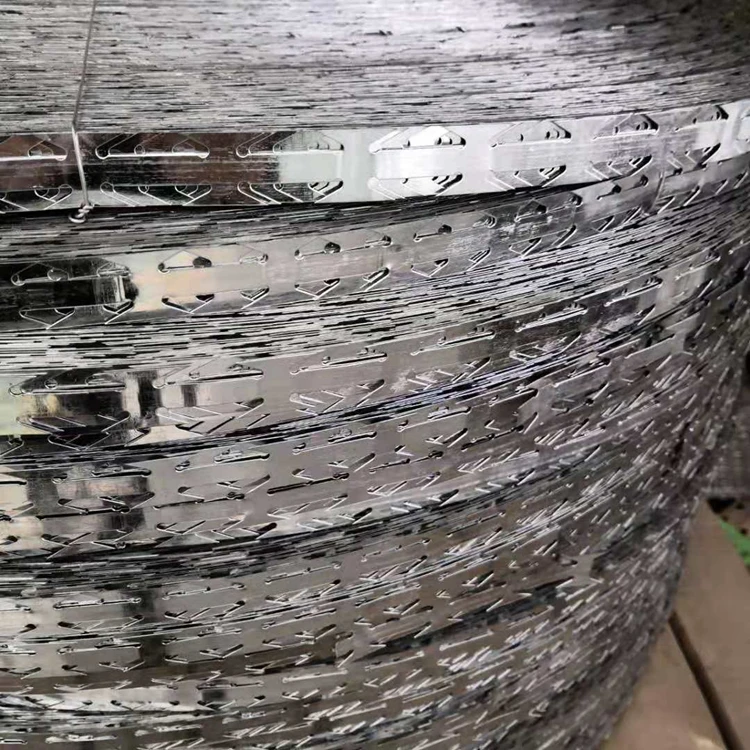

Razor barbed wire is a central strand of high tensile wire, and a steel tape punched into a shape with barbs. The steel tape is cold crimped tightly to the wire. Razor wire is manufactured with a galvanized tape (Zinc coating ranging from 120 gsm to 275 gsm) and Galvanized core wire (diameter: 2.5mm) with zinc coating 90 gsm to 275 gsm). For more critical razor wire applications, stainless steel tape and stainless steel core wire is used.
Razor wire is available in two forms:
Unclipped
Clipped in concertina form

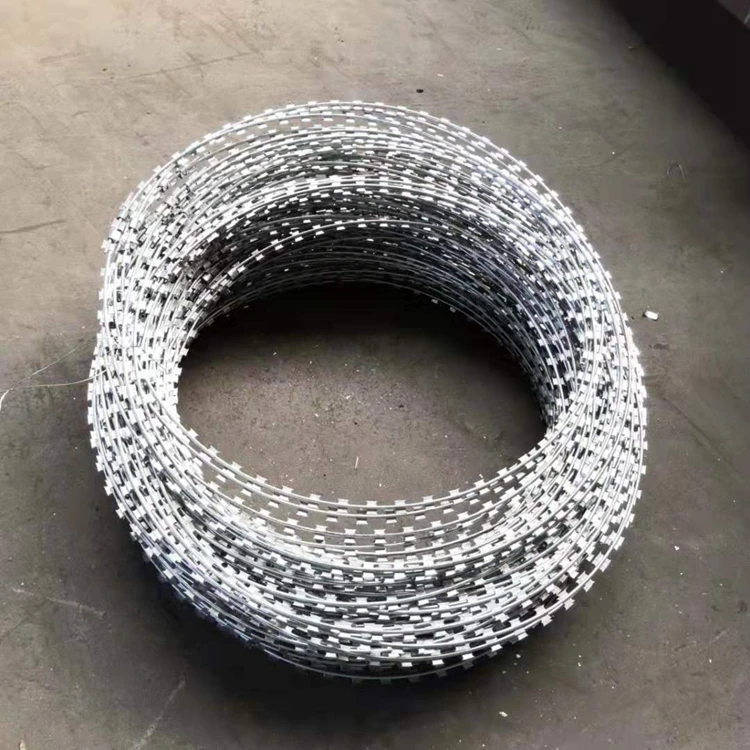

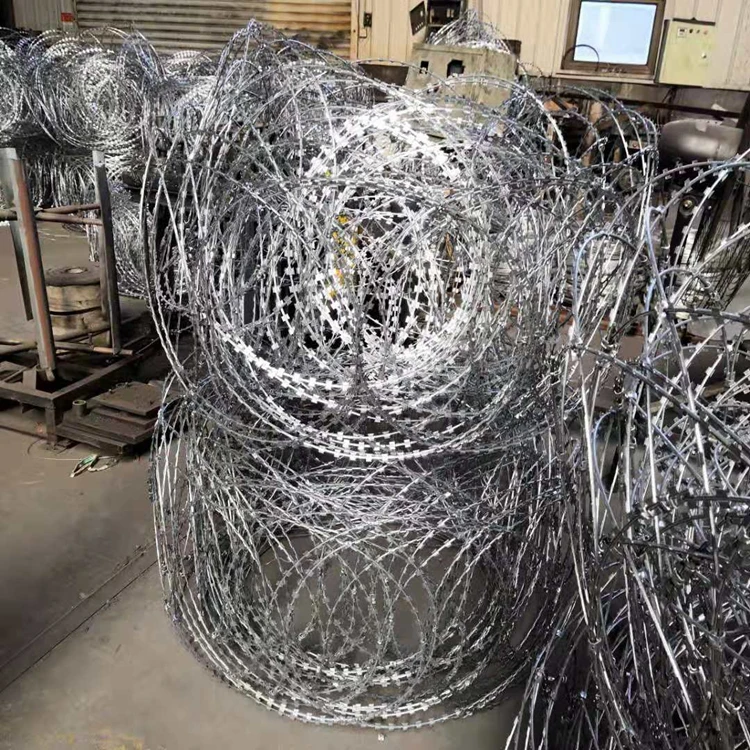

Razor wire in concertina form, the coils diameter ranges from 300mm to 1000mm. Lower diameters usually consist of three clips per loop and higher diameters consist of five clips per loop.
Unclipped
Clipped in concertina form
Razor wire in concertina form, the coils diameter ranges from 300mm to 1000mm. Lower diameters usually consist of three clips per loop and higher diameters consist of five clips per loop.
Razor Barbed Wire is a new kind of protection fence with such advantages as beautiful appearance, economical cost, practicality and convenient construction. It plays the role of protection in mine, garden apartment, frontier post and prison, etc

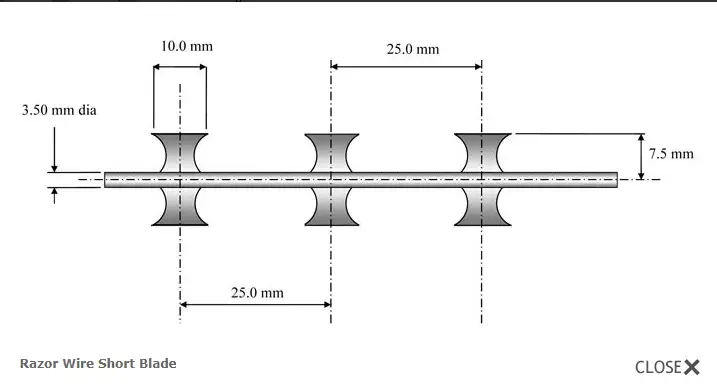

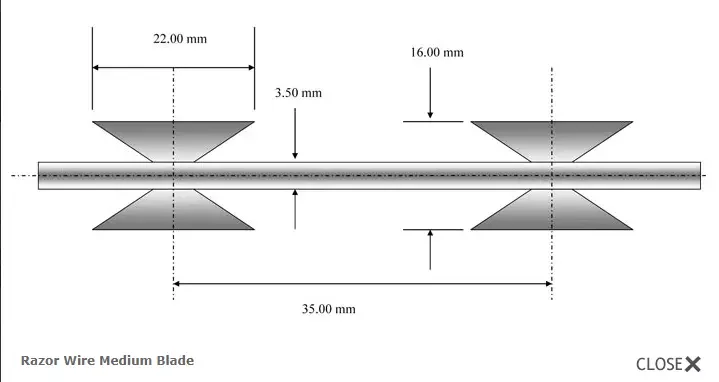

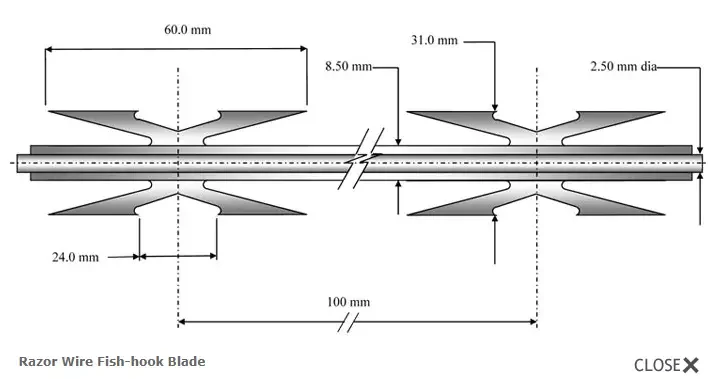

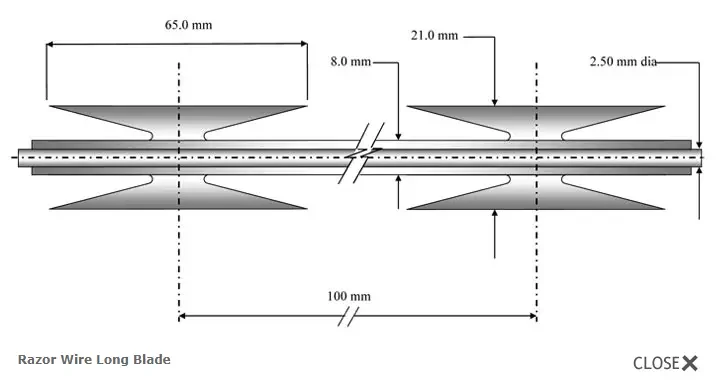

razor barbed wire specifications,as bellow:
|
Reference
Number |
Thickness
mm |
Wire Dia.
mm |
Barb Length
mm |
Barb Width
mm |
Barb Spacing
mm |
|
BT0-12
|
0.5±0.05
|
2.5±0.1
|
12±1
|
15±1
|
26±1
|
|
BT0-15
|
0.5±0.05
|
2.5±0.1
|
18±1
|
15±1
|
33±1
|
|
BT0-22
|
0.5±0.05
|
2.5±0.1
|
22±1
|
15±1
|
34±1
|
|
BT0-30
|
0.5±0.05
|
2.5±0.1
|
30
|
18
|
45±1
|
|
CBT-60
|
0.6±0.05
|
2.5±0.1
|
60±2
|
32±1
|
100±2
|
|
CBT-65
|
0.6±0.05
|
2.5±0.1
|
65±2
|
21±1
|
100±2
|

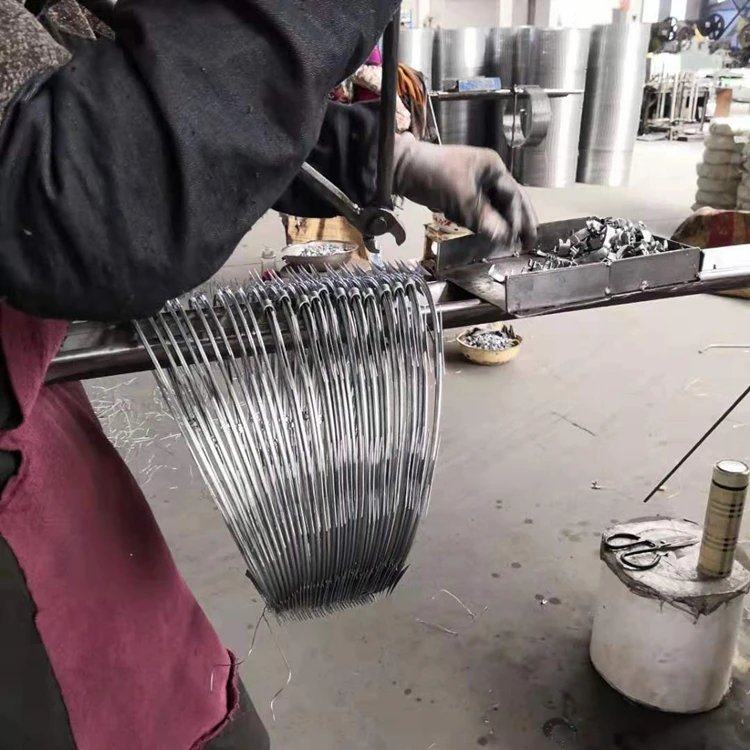

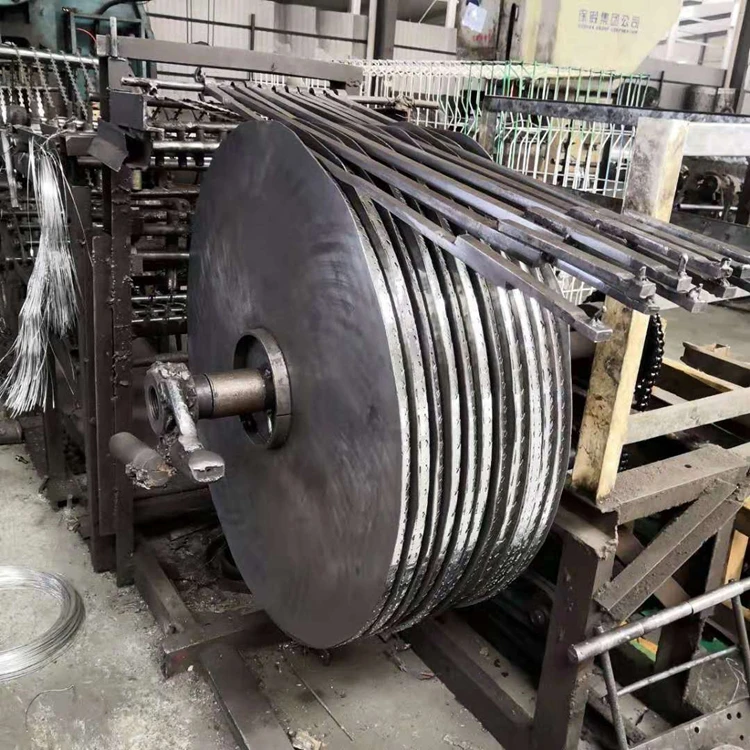

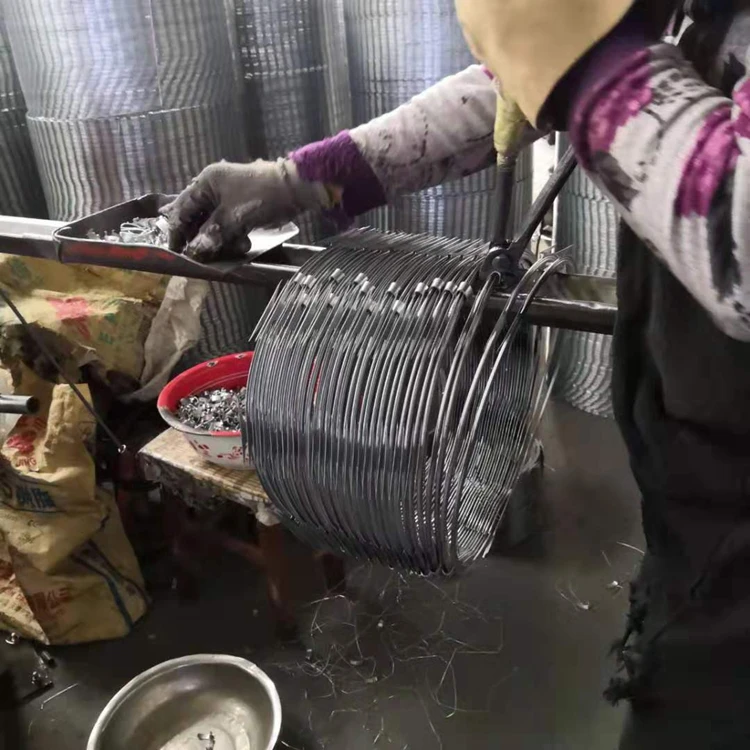

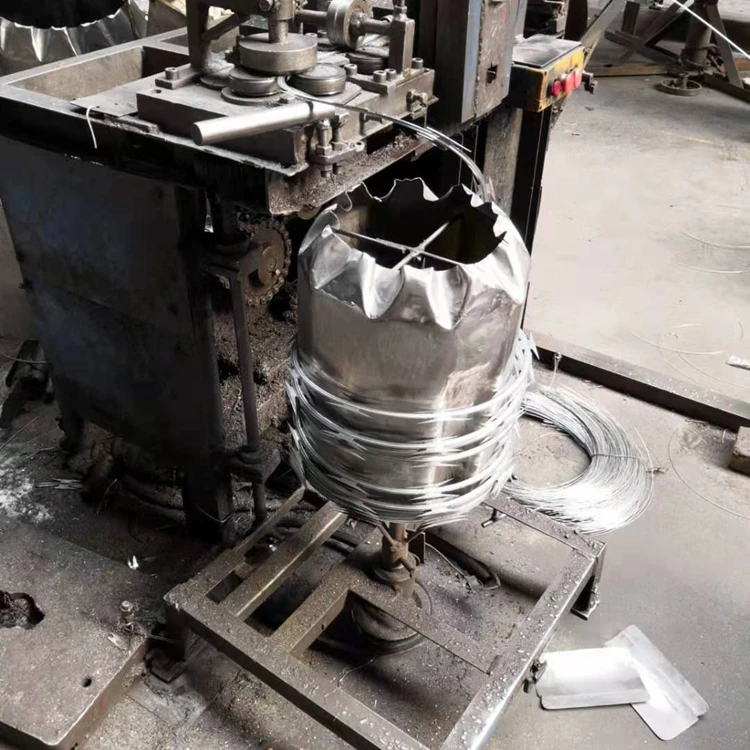

Razor barbed wire producing:

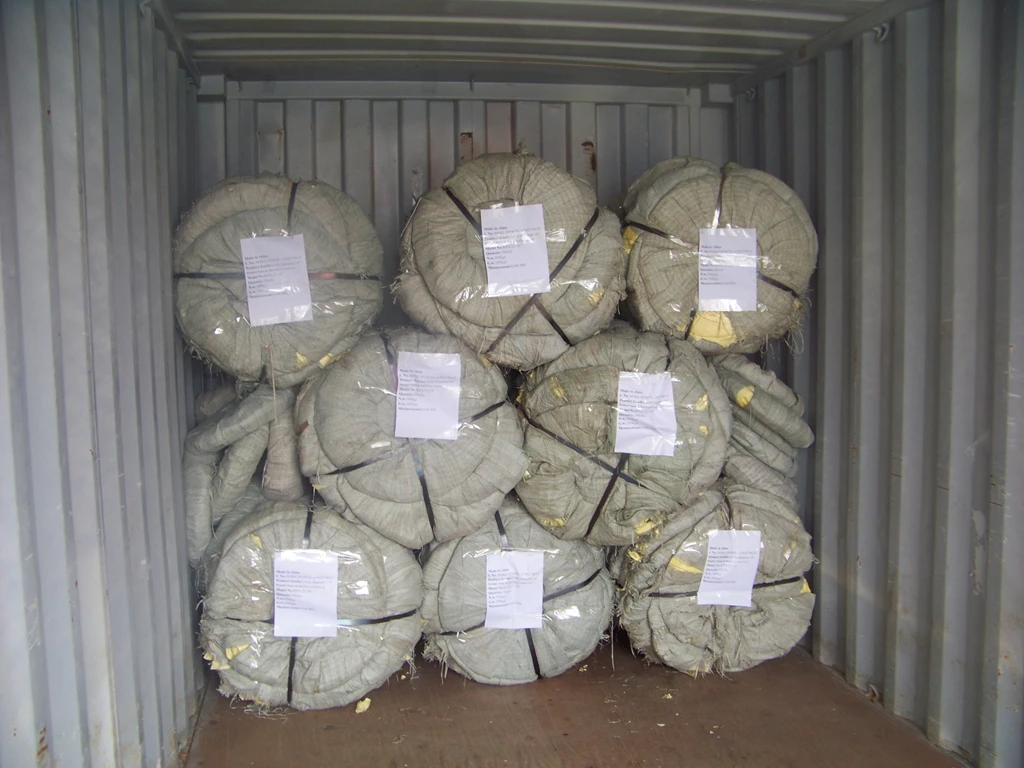

Packaging & Shipping
razor barbed wire package:woven bag,in pallet,in bulk
Want to Know more details about this product
