50x100mm/100x150mm Welded Razor Mesh
Product Details:
Place of Origin: | Europea Design China Made |
Brand Name: | Razor Welde Wire Mesh |
Certification: | ISO |
Model Number: | 75mmx150mm |
Payment & Shipping Terms:
Minimum Order Quantity: | 500 liner meter |
---|---|
Price: | 16.66$ per liner meter |
Packaging Details: | All metal Pallets |
Delivery Time: | 7 work days |
Payment Terms: | TT30% deposit balance 70% at sight of finished products |
Supply Ability: | 10000 liner meters |
Detail Information |
|||
Materials: | Carbon Steel Or Stainless Steel | Blade Length: | Blade Length: 22/30/60mm |
---|---|---|---|
Square: | 50X50mm,100x100mm, 50X100mm Etc | Rhombus Hole: | 50X100mm/75X150m/150X300mm |
Height: | 1.2/1.5/1.8/2.1/2.4m | Width: | 2.5m / 3.0m / 6.0m Etc |
Product Description
50x100mm/100x150mm Welded Razor Mesh|Razor Wire Fencing (BTO-22/BTO-30/CBT-65)

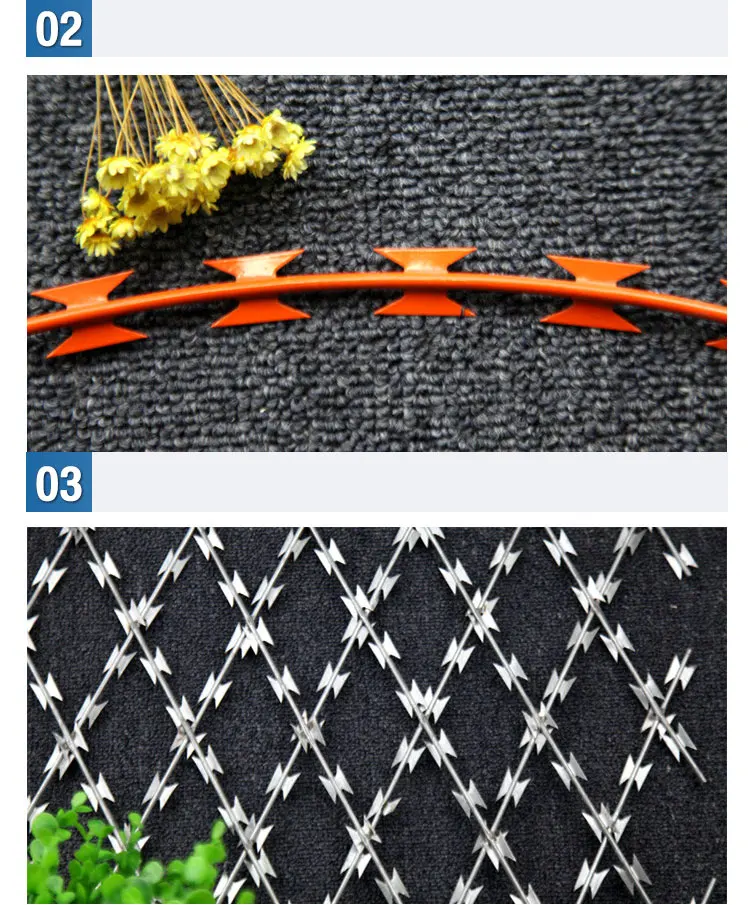

Welded Razor Mesh is the straight razor wire be welded together and be designed as diamond or oblique square pattern mesh fence used to protect commercial, industrial and government institutions. The product is virtually impossible to climb or cut with standard tools. Though it acts as an entrapment, yet has a neat appearance.
Welded Razor Mesh is the straight razor wire be welded together and be designed as diamond or oblique square pattern mesh fence used to protect commercial, industrial and government institutions. The product is virtually impossible to climb or cut with standard tools. Though it acts as an entrapment, yet has a neat appearance.
Diamond mesh size : 75x150mm, 100x200mm, 150x300mm
Oblique Square mesh size : 150mm, 200mm, 300mm
Zinc coating: Barbs 200-275 grams or on request; Core wire 90-120 grams or on request
The width and length could be produced as per the customers' requirement
The width and length could be produced as per the customers' requirement
Welded Razor Mesh
300 mm Welded Razor Mesh
450 mm Welded Razor Mesh
600 mm Welded Razor Mesh
NOT: Up to the installation purpose available in different mesh sizes, heights and lenghts.
Welded razor wire mesh is a multi-functional, high security mesh fencing made of straight-blade netting welded together, packaging into a roll form for transport. Welded Razor Wire Mesh is used in operations to pave the field after the installation of a blade barrier. This product can protect you and your property, and ensures the safety of the protective barriers.
This welded razor wire mesh security fence product is almost impossible to climb or cut off with the standard tools, also it has a neat appearance.

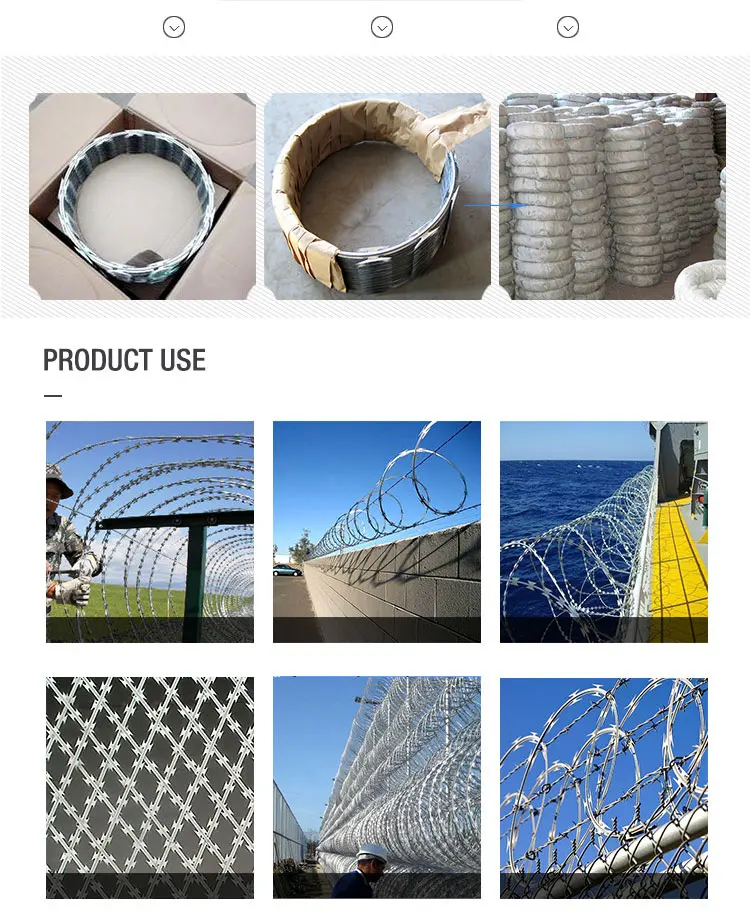

Welded razor wire mesh is installed in various parts of the world's airports, military bases, water substation, the border fence, oil depots, factories and so on.
Welded razor wire fence Hole Type:
1.Square Hole Size:100mmx100mm,150mmx150mm,200mmx200mm.
2.Diamond Hole Size:75mmx150mm,100mmx200mm,150mmx300mm.
Gauge diameter
|
Hole shape
|
Mesh width
|
Suited blade specifications
|
100mm×100mm
|
Square hole,diamond
|
1.2m ~ 2.4m
|
BTO-10.12.18.22.28.30, CBT-60.65
|
100mm×150mm
|
Square hole,diamond
|
1.2m ~ 2.4m
|
BTO-10.12.18.22.28.30, CBT-60.65
|
100mm×200mm
|
Square hole,diamond
|
1.2m ~ 2.4m
|
BTO-10.12.18.22.28.30, CBT-60.65
|
150mm×300mm
|
Square hole,diamond
|
1.2m ~ 2.4m
|
BTO-10.12.18.22.28.30, CBT-60.65
|
other nets hole can according to customers' special needs)
|
The benefits of welded razor wire mesh :
A. It is almost impossible to climb.
B. High-strength steel core very difficult to cut off.
C. Powerful security fence barriers neat appearance.
D. No secondary use, so he will not be stolen.
E. Extremely simple to install, needs three to four to install molding.
Welded razor mesh (or Welded razor fence or Diamond razor mesh) is a straight razor barbed wire , welded mesh processed, which can be welded into a diamond, rectangular hole (aperture can be produced according to customers’ requirements), nice, and the card cannot climb down, blocking strong deterrent force strong. It can be integrated with other fence and can also be used alone.
This kind of razor wire is extremely easy to install, Features of welded razor wire fence:
1 .Non-climbing;
2. Robust welded structure;
3 .Zinc coating improve corrosive resistance;
4. Available in square and diamond profile.
This Welded Razor Wire Mesh security fence product is almost impossible to climb or cut off with the standard tools, also it has a neat appearance.



eference
number
|
Thickness
(mm)
|
Wire dia
(mm)
|
Barb length
(mm)
|
Bard width
(mm)
|
Bard spacing
(mm)
|

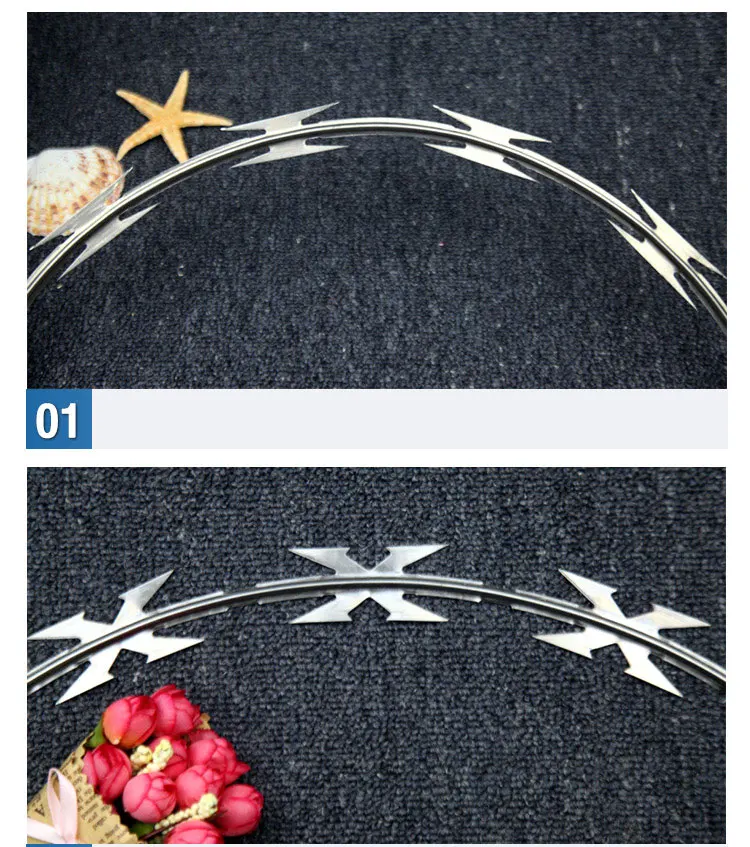

BTO-12
|
0.5±0.05
|
2.5±0.1
|
12±1
|
15±1
|
26±1
|
BTO-15
|
0.5±0.05
|
2.5±0.1
|
18±1
|
15±1
|
33±1
|
BTO-22
|
0.5±0.05
|
2.5±0.1
|
22±1
|
15±1
|
34±1
|
BTO-30
|
0.5±0.05
|
2.5±0.1
|
30
|
18
|
45±1
|
CBT-60
|
0.6±0.05
|
2.5±0.1
|
60±2
|
32±1
|
100±2
|
CBT-65
|
0.6±0.05
|
2.5±0.1
|
65±2
|
21±1
|
100±2
|

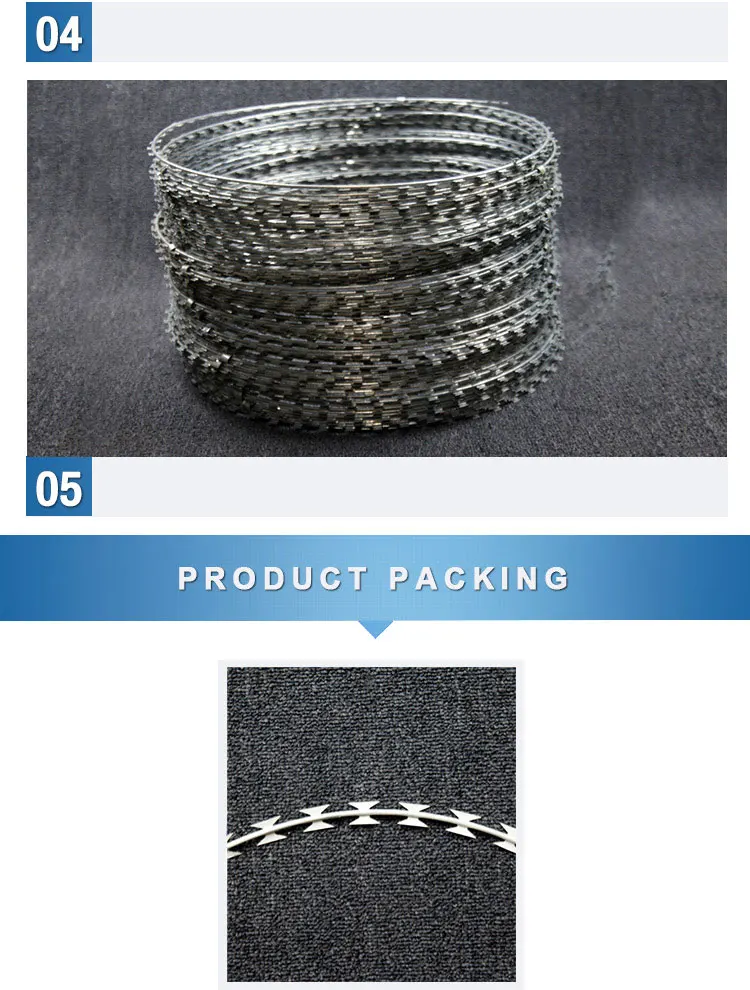

Barbed Tape Wire Specification
|
|||||
Loop Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
|
450mm
|
33
|
7-8M
|
CBT-60.65
|
Single coil
|
|
500mm
|
56
|
12-13M
|
CBT-60.65
|
Single coil
|
|
700mm
|
56
|
13-14M
|
CBT-60.65
|
Single coil
|
|
960mm
|
56
|
14-15M
|
CBT-60.65
|
Single coil
|
|
450mm
|
56
|
8-9m(3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
500mm
|
56
|
9-10M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
10-11M(3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
8-10M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
700mm
|
56
|
10-12M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
800mm
|
56
|
11-13M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
900mm
|
56
|
12-14M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
960mm
|
56
|
13-15M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
980mm
|
56
|
14-16M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
