Double wire mesh fence/Pvc coated twin wire 868 fence panel/welded wire mesh fence

Double wire mesh fence/Pvc coated twin wire 868 fence panel/welded wire mesh fence

  • High Light

    wire mesh fencing

    ,

    anti climb fence

  • Materials
    Q235 Steel
  • Color
    RAL 6005 Or 9003 And So On
  • Treatment
    Hot Dipped Glavanized
  • Mesh Opening
    50mm X 200mm ,55mm X 200mm
  • Diameter
    656 ,868
  • Type
    Weld
  • Warranty
    5 -25 Years Depand On The Treatment
  • Main Market
    Europea ,Middle East ,USA ,AU Etc
  • Accessoires
    Clamp And Post Caps Etc
  • Customized
    Available
  • Feature
    Rigidity
  • Application
    Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence, 868 Fence
  • Trade Mark
    N/M
  • Sample
    Free But Pay Freight Cost
  • Place of Origin
    Europea Design China Made
  • Brand Name
    LNF-2d fencing panels
  • Certification
    ISO
  • Model Number
    868 and 656 twin wire
  • Minimum Order Quantity
    500 liner meter
  • Price
    3.88$ per liner meter
  • Packaging Details
    All metal Pallets
  • Delivery Time
    7 work days
  • Payment Terms
    TT30% deposit balance 70% at sight of finished products
  • Supply Ability
    10000 liner meters

Double wire mesh fence/Pvc coated twin wire 868 fence panel/welded wire mesh fence

Double wire mesh fence/Pvc coated twin wire 868 fence panel/welded wire mesh fence

Twin Wire fencing is a popular fencing choice for sports grounds. It is made for relatively low to medium perimeter security fencing needs. It is typically made of 868 or 656 mesh.
Double wire mesh fence/Pvc coated twin wire 868 fence panel/welded wire mesh fence 0

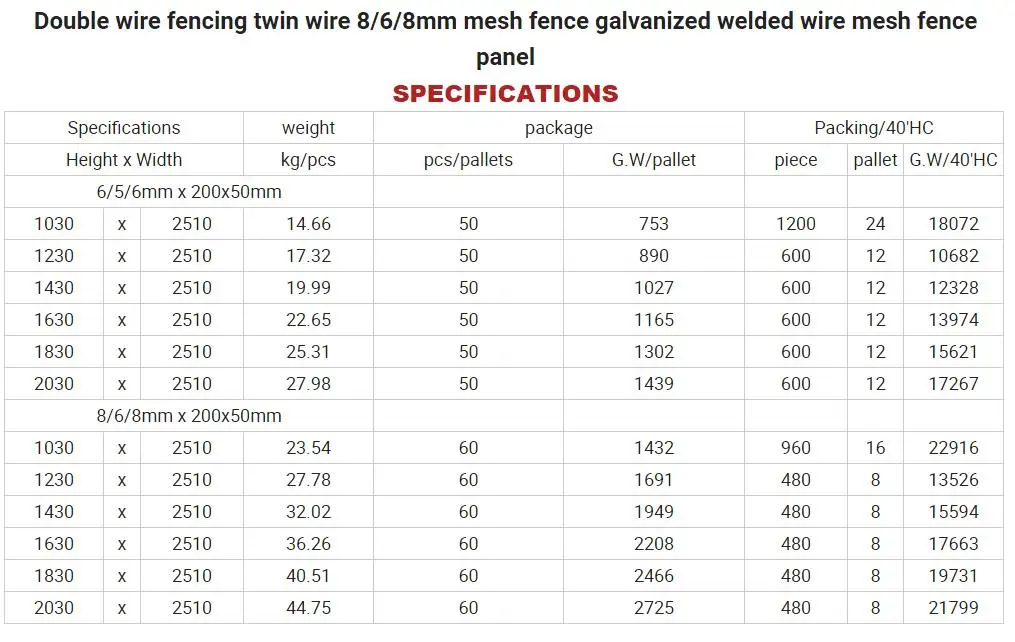

Specification
Double wire mesh fence/Pvc coated twin wire 868 fence panel/welded wire mesh fence 1

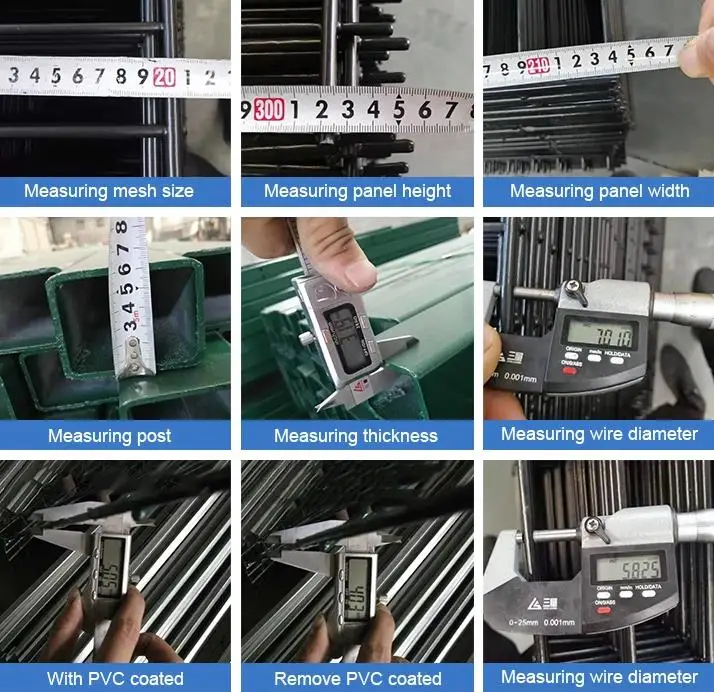

Quality Control
Double wire mesh fence/Pvc coated twin wire 868 fence panel/welded wire mesh fence 2
Hot Sale Product
Double wire mesh fence/Pvc coated twin wire 868 fence panel/welded wire mesh fence 3
Double wire mesh fence/Pvc coated twin wire 868 fence panel/welded wire mesh fence 4
Double wire mesh fence/Pvc coated twin wire 868 fence panel/welded wire mesh fence 5

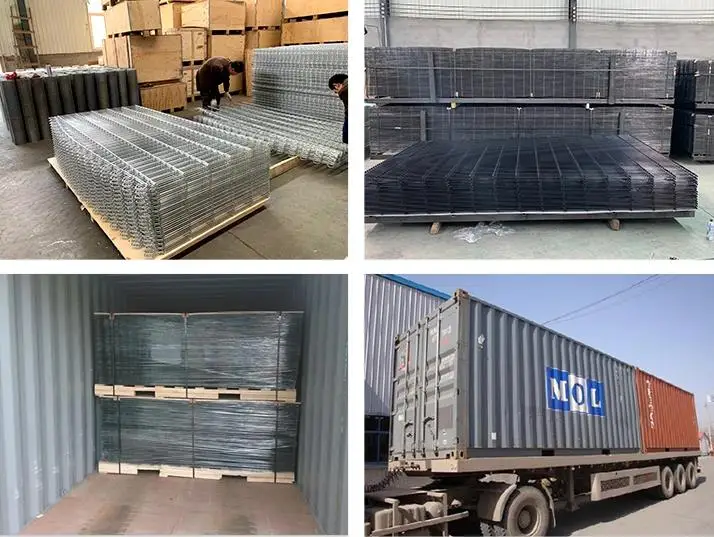

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Double wire mesh fence/Pvc coated twin wire 868 fence panel/welded wire mesh fence 6



656 welded wire mesh fence
Our 656mesh consists of double 6mm horizontal wires together with single 5mm vertical wires.
Mesh openings: 200mm x 50mm.
Panel Heights: 630mm, 830mm, 1030mm, 1230mm, 1430mm, 1630mm, 1830mm, 2030mm, 2230mm, 2430mm, 3030mm
Panel Width: 2010mm or 2510mm
Panel Coating Finish : Galvanized or Polyester Powder Coated


868 welded wire mesh fence

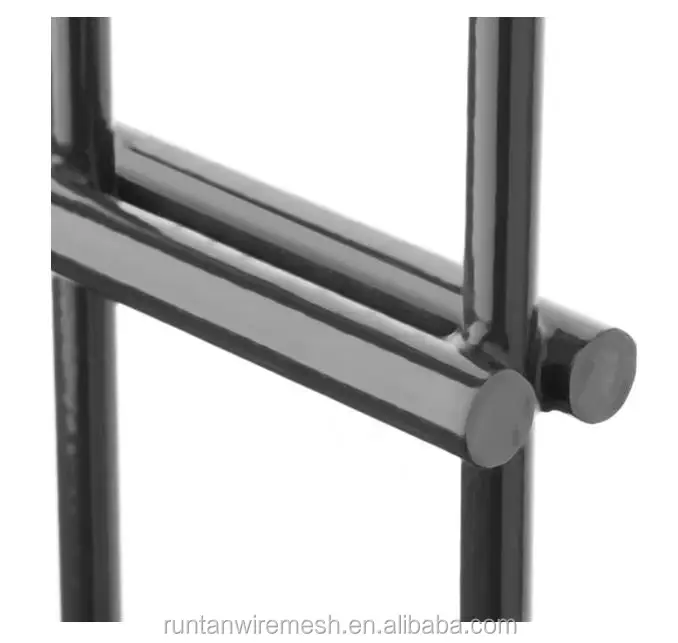

868 twin wire mesh offers the same mesh panel as the 656, but with even greater strength by incorporating double 8mm horizontal with the single 6mm vertical wires.
Mesh openings: 200mm x 50mm.
Panel Heights: 630mm, 830mm, 1030mm, 1230mm, 1430mm, 1630mm, 1830mm, 2030mm, 2230mm, 2430mm
Panel Width: 2010mm or 2510mm
Panel Coating Finish : Galvanized or Polyester Powder Coated



Twins welded wire mesh fence specification:

Panel(mm)

Height * Width

Mesh Size
mm.
Wire Diameter Post of Height
mm
Wire Dia
mm
Wire Dia
mm
Wire Dia
mm
630 × 2500 50 × 200 8x2 + 6 6x2 + 5 6x2 + 4 1100
830 × 2500 50 × 200 8x2 + 6 6x2 + 5 6x2 + 4 1300
1030 × 2500 50 × 200 8x2 + 6 6x2 + 5 6x2 + 4 1500
1230 × 2500 50 × 200 8x2 + 6 6x2 + 5 6x2 + 4 1700
1430 × 2500 50 × 200 8x2 + 6 6x2 + 5 6x2 + 4 1900
1630 × 2500 50 × 200 8x2 + 6 6x2 + 5 6x2 + 4 2100
1830 × 2500 50 × 200 8x2 + 6 6x2 + 5 6x2 + 4 2400
2030 × 2500 50 × 200 8x2 + 6 6x2 + 5 6x2 + 4 2600
2230 × 2500 50 × 200 8x2 + 6 6x2 + 5 6x2 + 4 2800
2430 × 2500 50 × 200 8x2 + 6 6x2 + 5 6x2 + 4 3000





Features:
Anti-cut-through, double wire mesh panels
The wide range of height options
A range of wire mesh sizes
RAL colours available
Suitable for:
School playgrounds
Public buildings
Schools
Car parks
Business parks and retail premises



1.product description
twin wire mesh fence (wire mesh mats, wire fencing, double wire fencing) are protective fences that, thanks to their different designs, can be used in a variety of ways.
The vertical and horizontal wire fencing forms a high-quality safety fence, suited to their particular location.
Whilst light twin wire mesh fence is generally installed in private areas, the high-security double wire fencing is ideally suited for protecting company premises, government buildings and high-security public buildings.

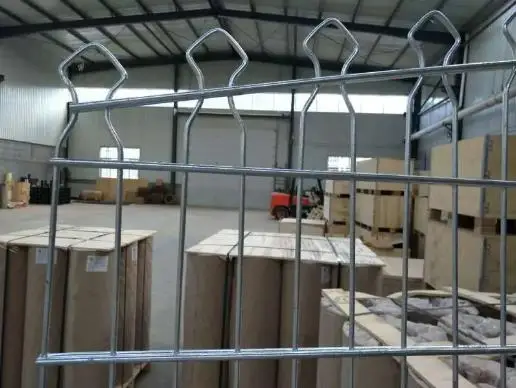

High-security twin wire mesh fence is also available as pointed or wavy fences.
Upon request, additional barbed wire with razor-sharp hooks can be added, with blades positioned close together.
The galvanised material of twin wire mesh fence is manufactured in classic green as standard but is also available in several other colours. They have been used for many decades as reliable security fences and are highly valued when it comes to industrial property protection as well as in private areas.
2.the most popular specification
New design Alibaba China hot sale twin wire mesh fence
3.post size
This system usually choose Square Post, Rectangular Post and round post, it's height is 0.5m longer than the height of fence panel
rectangular post:40mm x 60mmx1.5 / 2.0mm
square post: 60mm x60mmx1.5 / 2.0mm
round post:60mm x1.5/2mm
rectangular/square post
New design Alibaba China hot sale twin wire mesh fence
round post
New design Alibaba China hot sale twin wire mesh fence
4.process
Raw Material--cutting--welding--PVC painting--quality control--packingNew design Alibaba China hot sale twin wire mesh fence
5.quality control
New design Alibaba China hot sale twin wire mesh fence
6.packing
1>panels
1.rubber mat at the bottom of the pallet to avoid the pallet destroying the panels.
2.4 metal corners to keep the pallet more strong.
The 3.metal plate under the plastic bandage to reduce the pressure of fence panels.
4.wooden plate at the top of fence panel which can protect the fence panels avoid being
crushed by other pallets.
2>post
Each fence post is covered by the cap (save your installing time and cost of labour)
then with plastic film, then metal pallet.
3>accessories
Clips and screws are packed by sets, plastic film + carton box.
Carton Box Dimensions: 300*300*400mm
New design Alibaba China hot sale twin wire mesh fence
7.application in life
twin wire mesh fence (wire mesh mats, wire fencing, double wire fencing) are protective fences that, thanks to their different designs, can be used in a variety of ways. such as commercial,agricultural,residential buildings,e
