4This bird cage wire range covers only two premium products:
- Stainless steel rope mesh bird cage wire
- Stainless steel welded wire mesh bird cage wire
Both options are designed for long-life indoor and outdoor bird cages, aviaries, breeding rooms, zoo enclosures and safety partitions. Every panel is manufactured from high quality AISI 304 or AISI 316 stainless steel to deliver strength, hygiene and corrosion resistance for serious bird keepers and professional facilities.
Secret Detail #1: Choosing the Wrong Bird Cage Wire Type Can Quietly Kill Your Birds’ Safety
If you mix cheap low-carbon steel q195 mesh with stainless steel bird cage wire in the same project, corrosion can accelerate, welds can weaken and rust particles can fall into feed and water trays. A consistent stainless steel system keeps the structure strong and the birds’ environment clean over many years, avoiding hidden risks that build up slowly inside the cage.

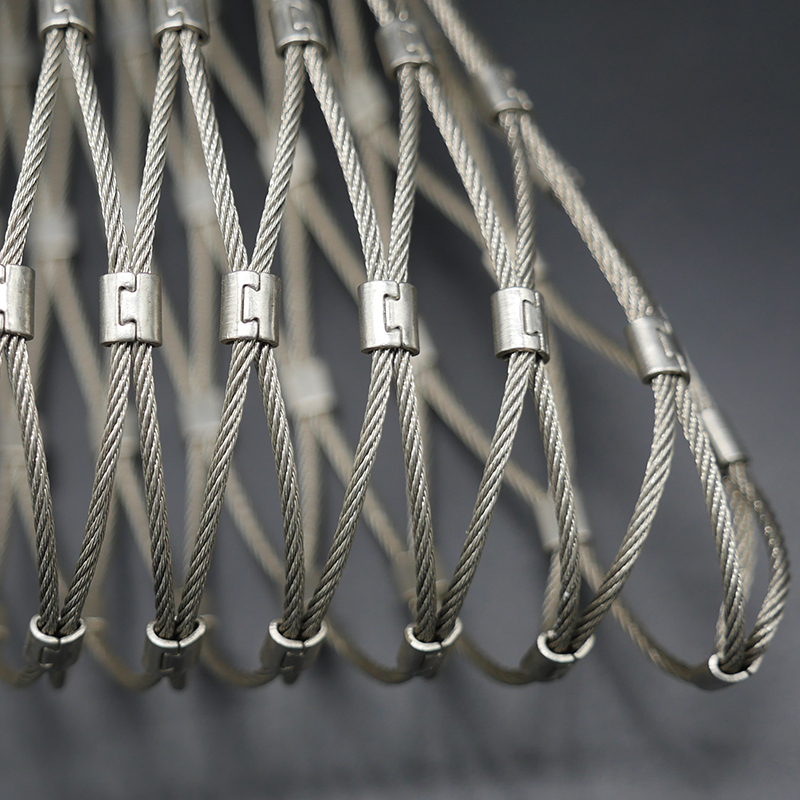

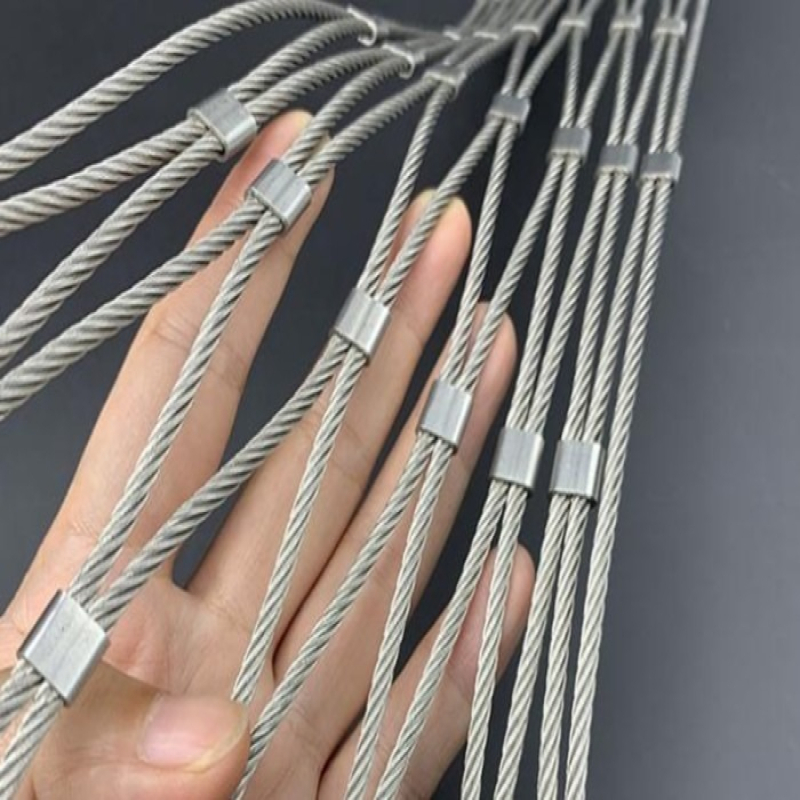

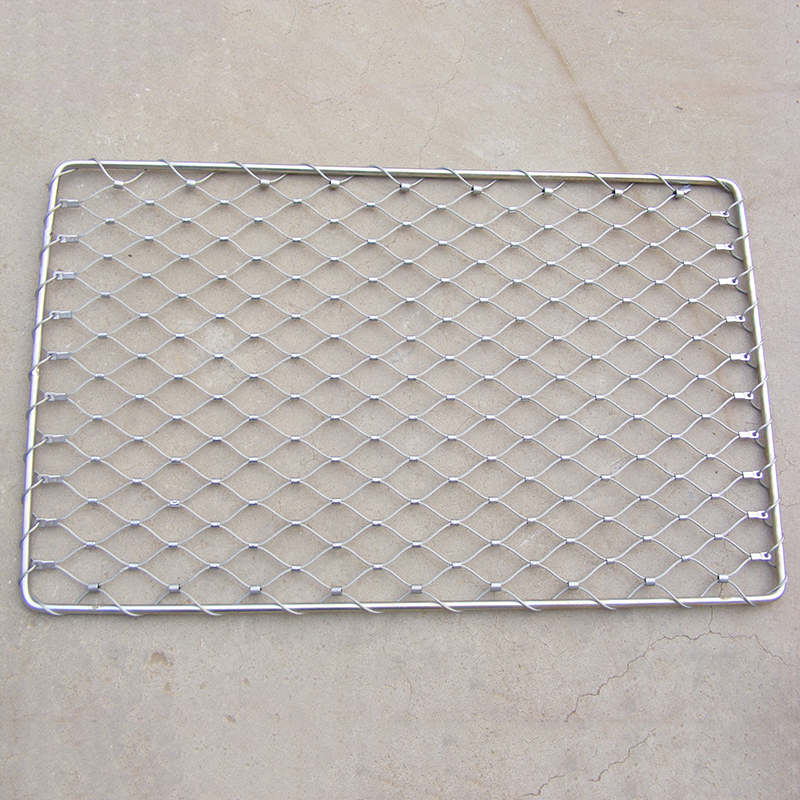

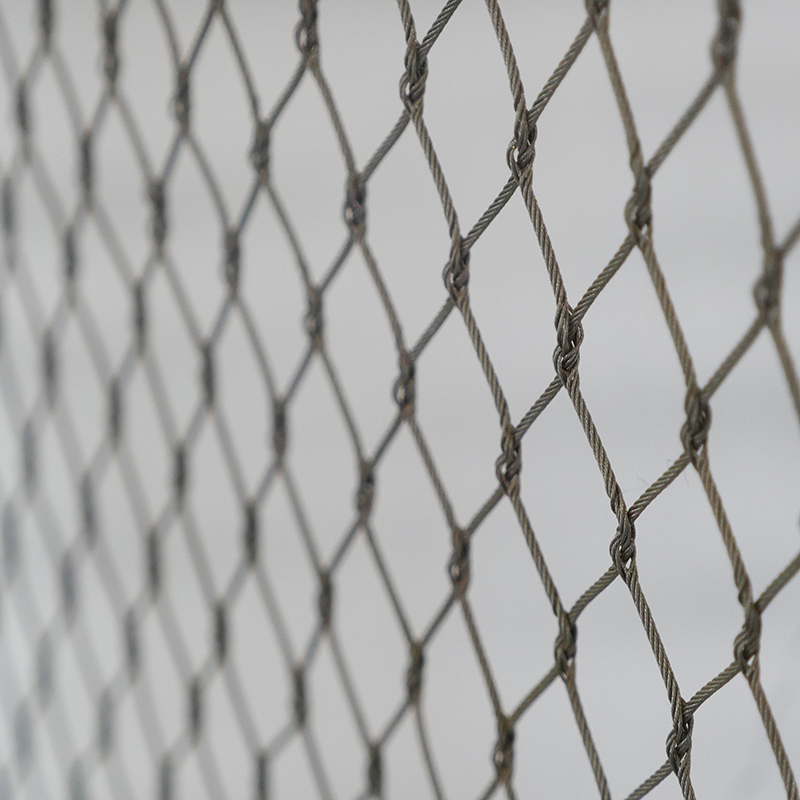

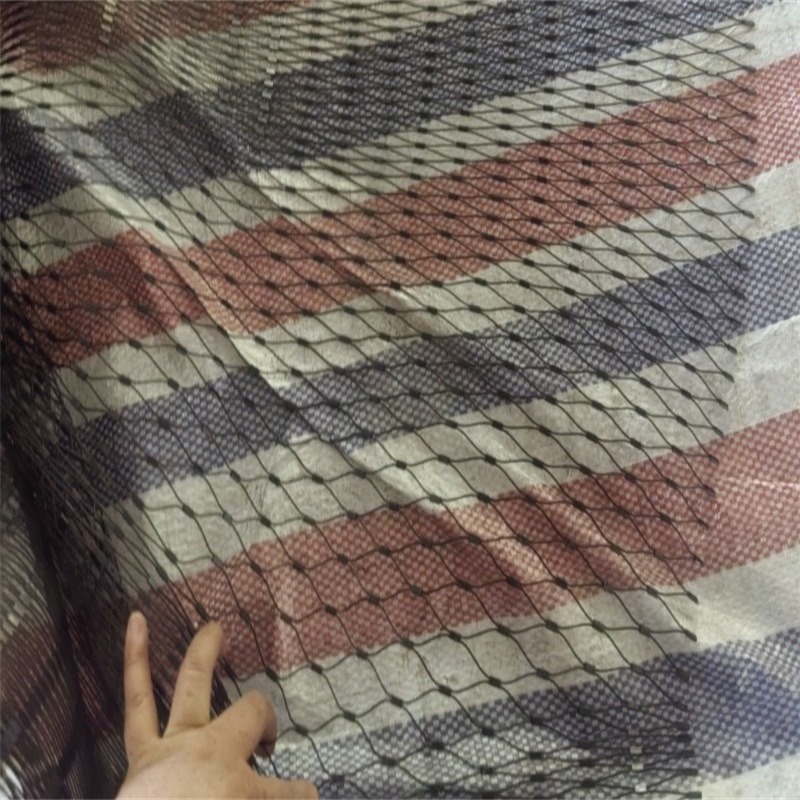

Stainless Steel Rope Mesh Bird Cage Wire
Stainless steel rope mesh bird cage wire is a flexible diamond mesh made from multi-strand stainless wire ropes. It is ideal for:
- Large parrots and macaws
- Outdoor walk-in aviaries

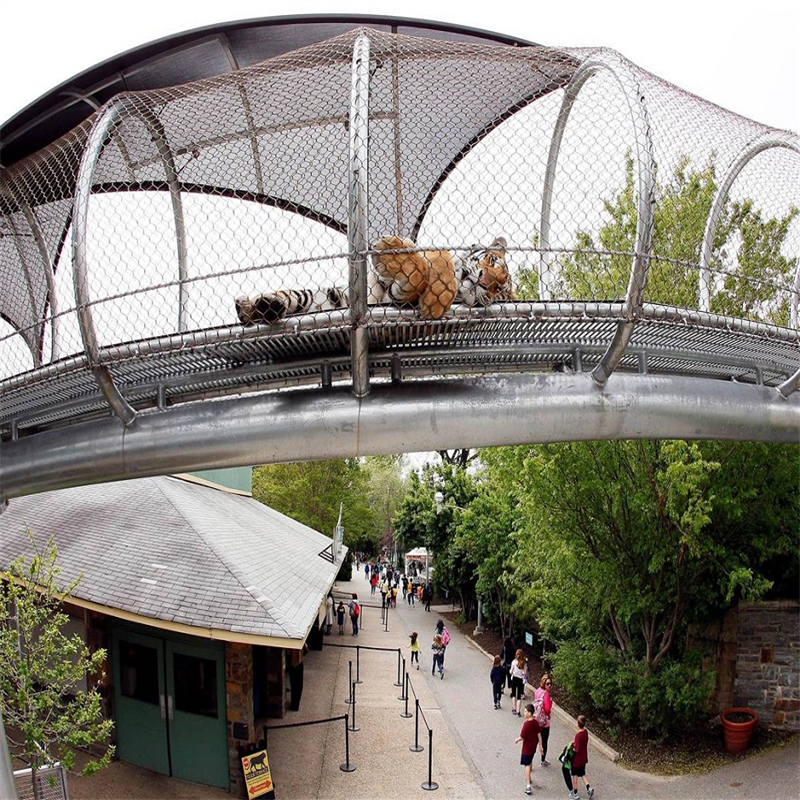

- Zoo and show bird cages where visibility and safety are equally important
Rope mesh bird cage wire offers high impact resistance with controlled deflection, a soft, snag-free surface that protects feathers and skin, excellent light transmittance and viewing comfort, and can be cut and shaped on site to fit complex cages and curved frames.
Rope Mesh Specifications for Small and Medium Birds
| Wire Rope Diameter (mm) | Mesh Aperture (mm) | Angle (degrees) | Light Transmittance (%) | Material | Nominal Breaking Load (lbs) | Wire Rope Structures |
|---|---|---|---|---|---|---|
| 1.2 | 20 | 60 | 60 | AISI 304 stainless steel | 485 | 7×7 |
| 1.2 | 25 | 60 | 64 | AISI 304 stainless steel | 485 | 7×7 |
| 1.2 | 30 | 60 | 68 | AISI 304 stainless steel | 485 | 7×7 |
| 1.2 | 35 | 60 | 71 | AISI 304 stainless steel | 485 | 7×7 |
| 1.2 | 40 | 60 | 74 | AISI 304 stainless steel | 485 | 7×7 |
| 1.2 | 45 | 60 | 76 | AISI 304 stainless steel | 485 | 7×7 |
| 1.2 | 50 | 60 | 78 | AISI 304 stainless steel | 485 | 7×7 |
| 1.2 | 55 | 60 | 80 | AISI 304 stainless steel | 485 | 7×7 |
| 1.2 | 60 | 60 | 82 | AISI 304 stainless steel | 485 | 7×7 |
| 1.2 | 65 | 60 | 84 | AISI 304 stainless steel | 485 | 7×7 |
| 1.2 | 70 | 60 | 85 | AISI 304 stainless steel | 485 | 7×7 |
| 1.2 | 75 | 60 | 86 | AISI 304 stainless steel | 485 | 7×7 |
| 1.2 | 80 | 60 | 87 | AISI 304 stainless steel | 485 | 7×7 |
| 1.2 | 85 | 60 | 88 | AISI 304 stainless steel | 485 | 7×7 |
| 1.2 | 90 | 60 | 89 | AISI 304 stainless steel | 485 | 7×7 |
Secret Detail #2: Using Aperture Only from a Catalog Can Let Small Birds Escape
If you select bird cage wire only by nominal mesh aperture, very small birds may still squeeze through or get stuck at corners and doors. You must match aperture to the smallest head and shoulder width of the birds in the cage. A few millimeters of mistake can mean dangerous escape gaps in high corners that nobody notices until it is too late, turning a perfect-looking cage into a risky one.
Rope Mesh Specifications for Large Parrots and Outdoor Aviaries
For heavy beaks and more aggressive birds, stainless steel rope mesh bird cage wire with thicker ropes and larger mesh is recommended to resist chewing and jumping loads over many years of use.
| Wire Rope Diameter (mm) | Mesh Aperture (mm) | Angle (degrees) | Light Transmittance (%) | Material | Nominal Breaking Load (lbs) | Wire Rope Structures |
|---|---|---|---|---|---|---|
| 1.6 | 25 | 60 | 58 | AISI 316 stainless steel | 880 | 7×19 |
| 1.6 | 30 | 60 | 62 | AISI 316 stainless steel | 880 | 7×19 |
| 1.6 | 35 | 60 | 66 | AISI 316 stainless steel | 880 | 7×19 |
| 1.6 | 40 | 60 | 70 | AISI 316 stainless steel | 880 | 7×19 |
| 1.6 | 45 | 60 | 73 | AISI 316 stainless steel | 880 | 7×19 |
| 1.6 | 50 | 60 | 76 | AISI 316 stainless steel | 880 | 7×19 |
| 1.6 | 55 | 60 | 78 | AISI 316 stainless steel | 880 | 7×19 |
| 1.6 | 60 | 60 | 80 | AISI 316 stainless steel | 880 | 7×19 |
| 1.6 | 70 | 60 | 83 | AISI 316 stainless steel | 880 | 7×19 |
| 1.6 | 80 | 60 | 86 | AISI 316 stainless steel | 880 | 7×19 |
| 1.6 | 90 | 60 | 88 | AISI 316 stainless steel | 880 | 7×19 |
| 1.6 | 100 | 60 | 89 | AISI 316 stainless steel | 880 | 7×19 |
| 1.6 | 120 | 60 | 91 | AISI 316 stainless steel | 880 | 7×19 |
| 1.6 | 140 | 60 | 92 | AISI 316 stainless steel | 880 | 7×19 |
| 1.6 | 160 | 60 | 93 | AISI 316 stainless steel | 880 | 7×19 |
Secret Detail #3: Underestimating Beak Force Can Make Rope Mesh Fail Years Earlier
Large parrots and macaws can bite and bend under-sized bird cage wire day after day. If rope diameter and breaking load are not chosen for the real beak strength and jumping force of the birds, ferrules and cable intersections can slowly deform until a gap opens. The damage often appears after several seasons, when replacement is expensive and birds are already used to that cage layout.
Secret Detail #4: Ignoring Installation Angle Can Turn Safe Mesh into Dangerous Openings
Stainless steel rope mesh bird cage wire changes its effective opening when installed at different angles. A mesh panel designed for 60 degrees can create significantly larger diagonal gaps if installed vertically like a square. When angle is not controlled, the same mesh can be safe in drawings but oversize in real cages, leaving escape points near perches, feeding doors and service access areas.

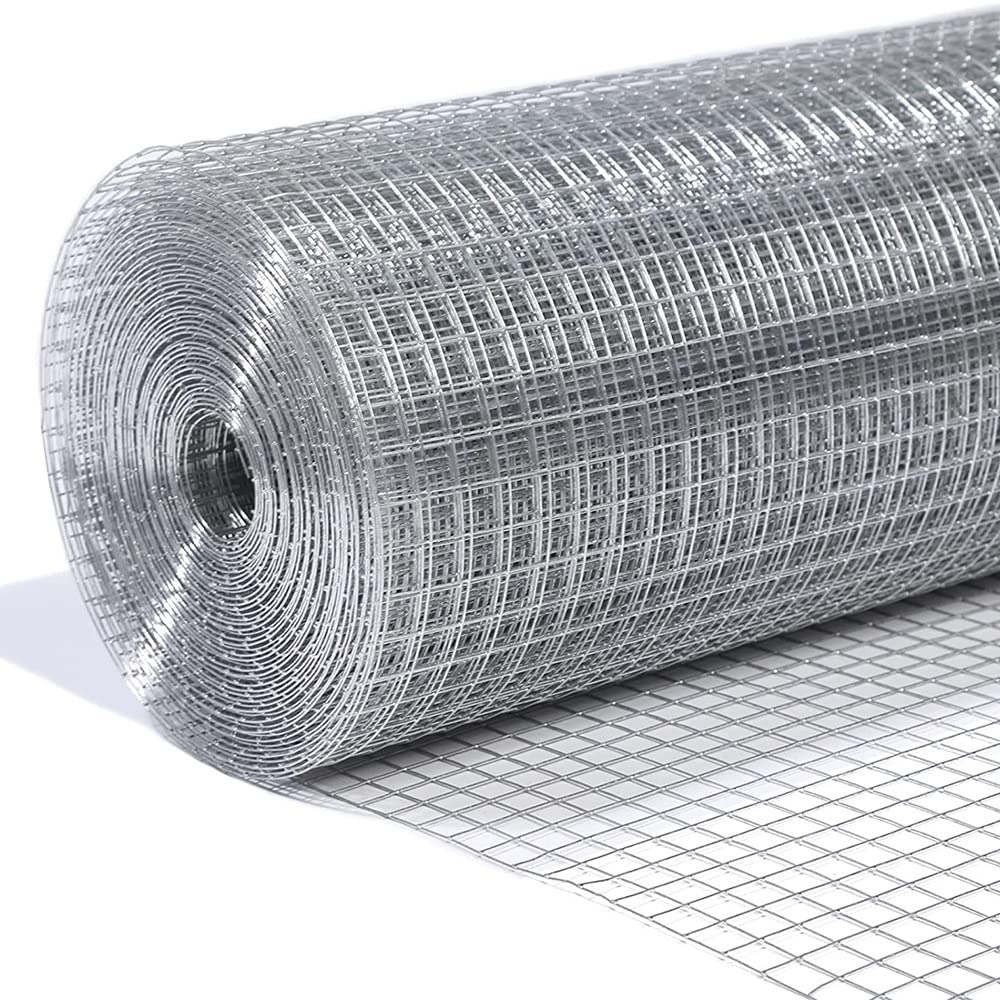

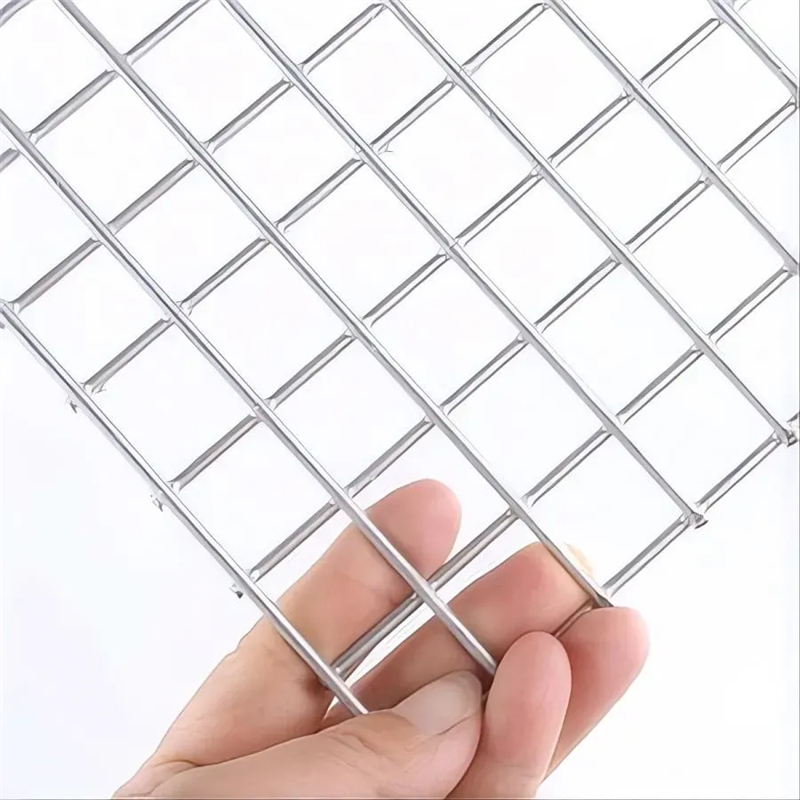

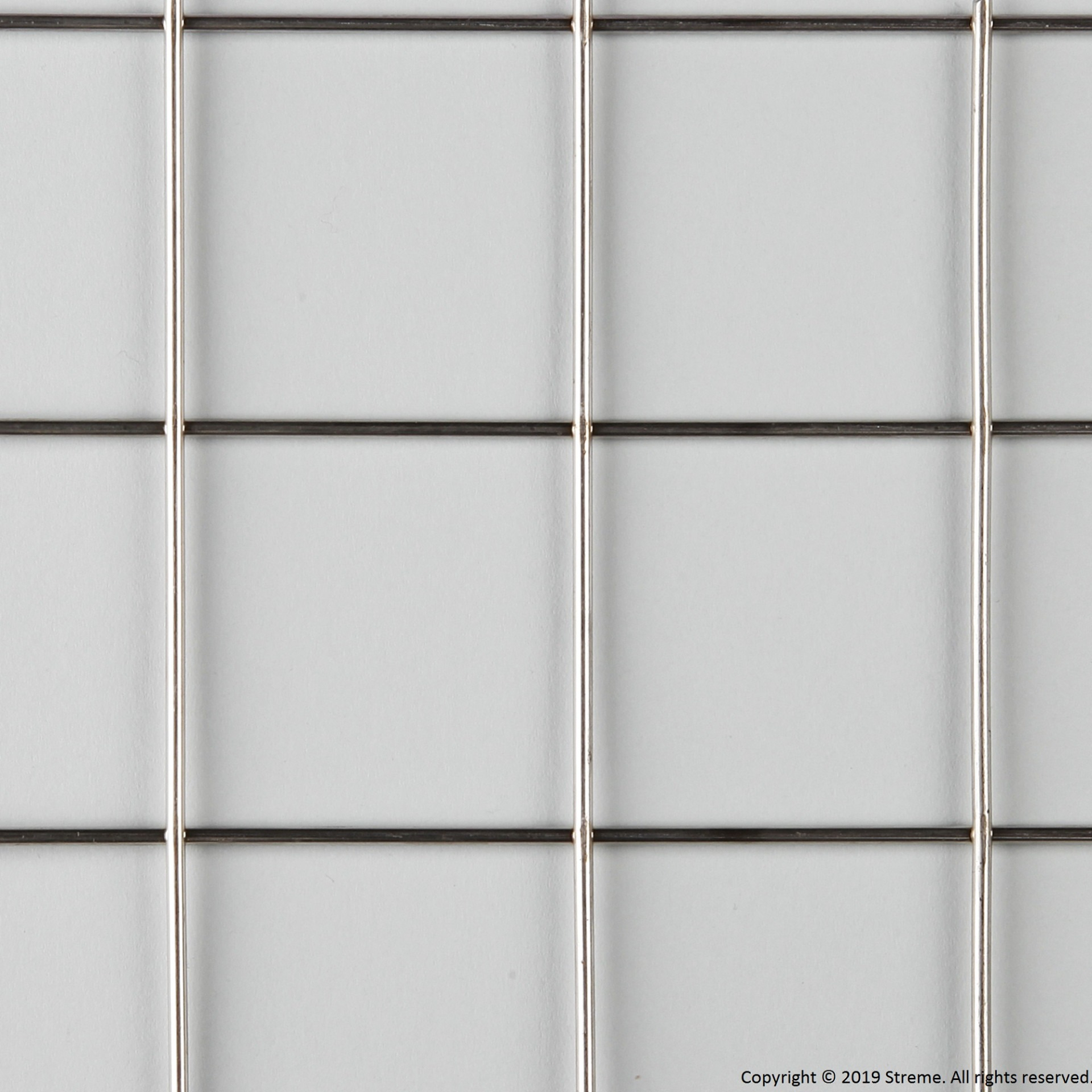

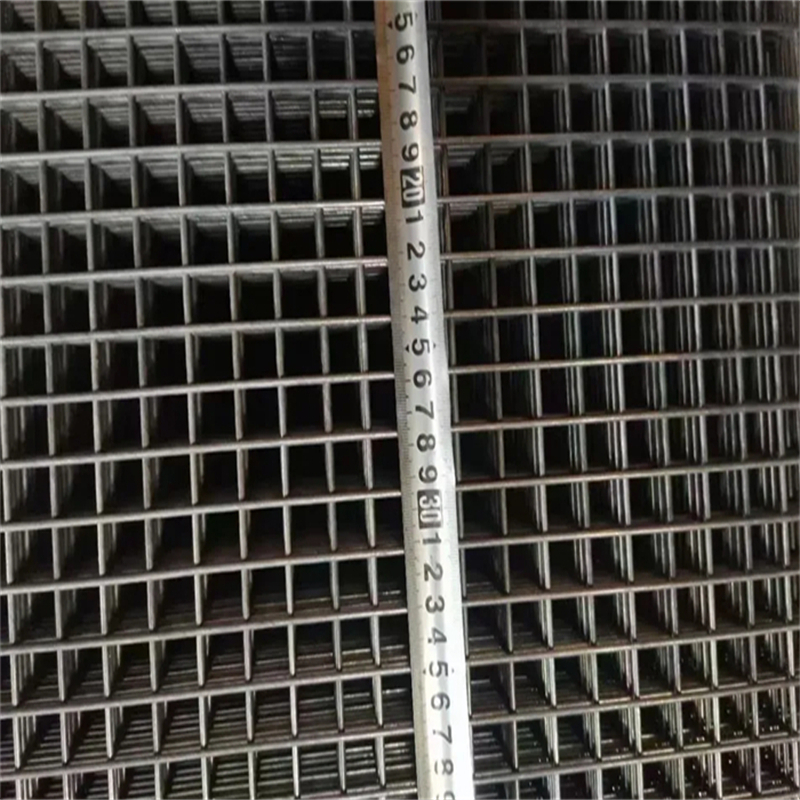

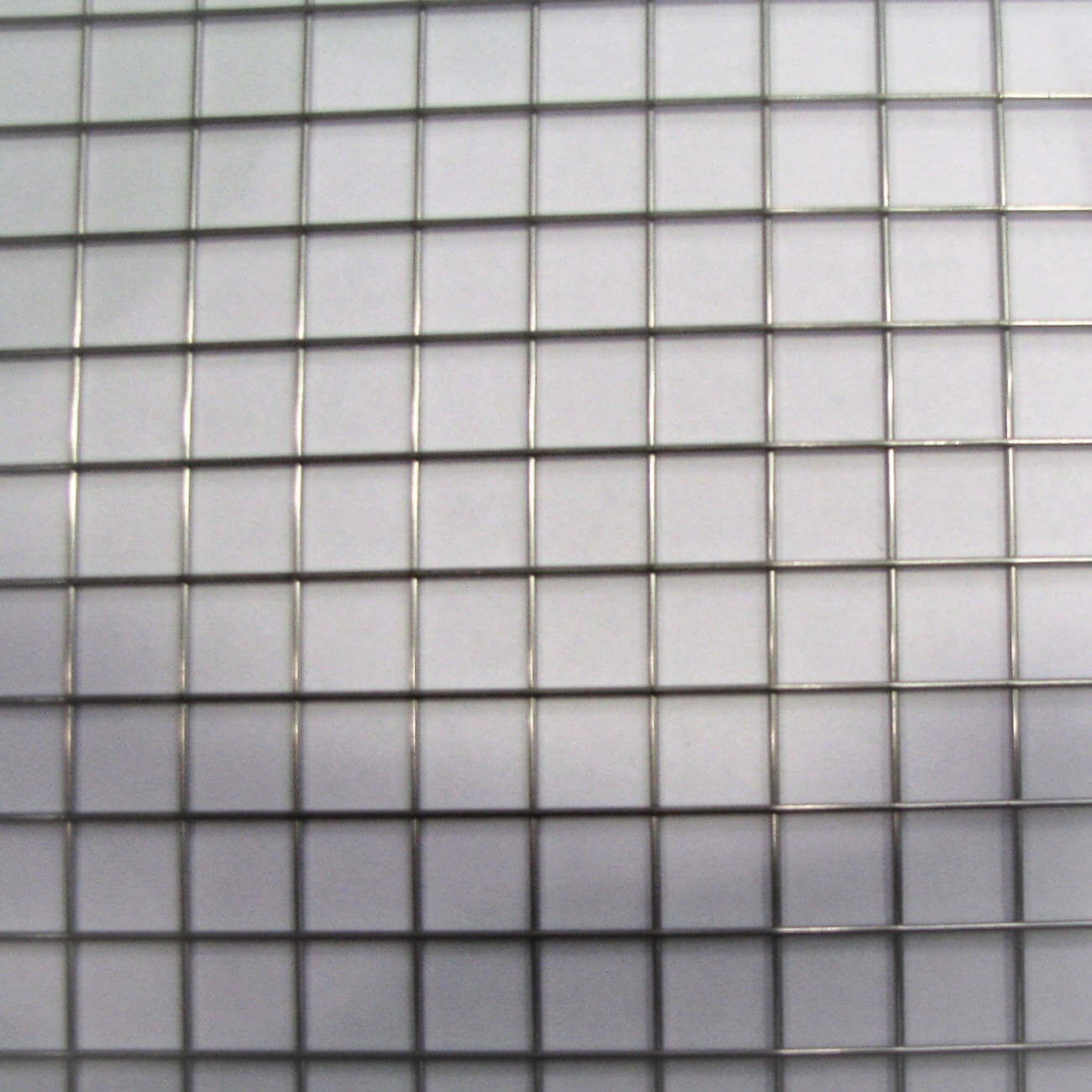

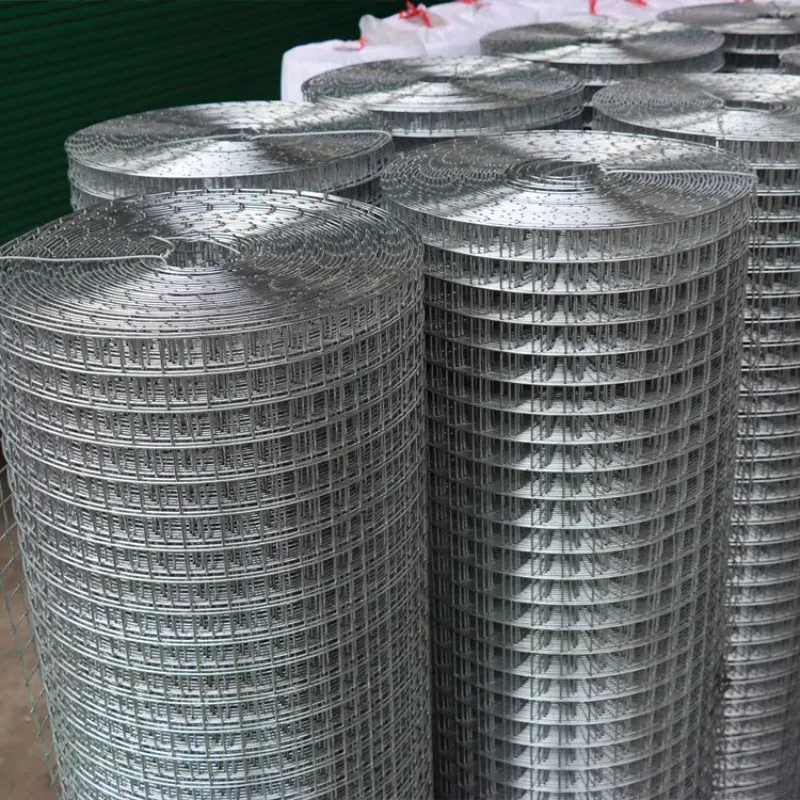

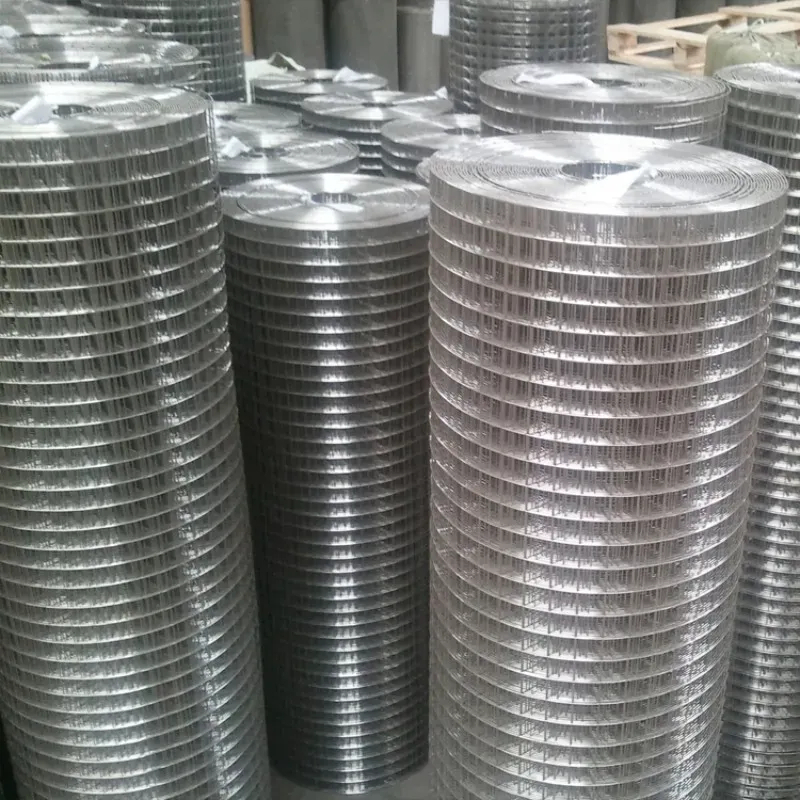

Stainless Steel Welded Wire Mesh Bird Cage Wire
Stainless steel welded wire mesh bird cage wire is a rigid grid made from straight stainless steel wires welded at every crossing. It is ideal for small song birds and finches, breeding cages and racks, and areas where birds climb directly on the mesh and need a firm, stable structure.
Welded bird cage wire in stainless steel offers smooth welded intersections with strong joints, easy cleaning and disinfection, fixed rectangular openings that do not change under load, and simple cutting and framing for custom cage fronts and partitions.
Welded Mesh Specifications for Small Bird Cages
| Wire Rope Diameter (mm) | Mesh Aperture (mm) | Angle (degrees) | Light Transmittance (%) | Material | Nominal Breaking Load (lbs) | Wire Rope Structures |
|---|---|---|---|---|---|---|
| 1.0 | 10 | 90 | 60 | AISI 304 stainless steel | 330 | Welded square |
| 1.0 | 12 | 90 | 63 | AISI 304 stainless steel | 330 | Welded square |
| 1.0 | 12.7 | 90 | 65 | AISI 304 stainless steel | 330 | Welded square |
| 1.0 | 16 | 90 | 68 | AISI 304 stainless steel | 330 | Welded square |
| 1.0 | 19 | 90 | 70 | AISI 304 stainless steel | 330 | Welded square |
| 1.0 | 20 | 90 | 72 | AISI 304 stainless steel | 330 | Welded square |
| 1.0 | 25 | 90 | 74 | AISI 304 stainless steel | 330 | Welded square |
| 1.0 | 25.4 | 90 | 76 | AISI 304 stainless steel | 330 | Welded square |
| 1.0 | 30 | 90 | 78 | AISI 304 stainless steel | 330 | Welded square |
| 1.0 | 31.75 | 90 | 80 | AISI 304 stainless steel | 330 | Welded square |
| 1.0 | 38 | 90 | 81 | AISI 304 stainless steel | 330 | Welded square |
| 1.0 | 40 | 90 | 82 | AISI 304 stainless steel | 330 | Welded square |
| 1.0 | 45 | 90 | 83 | AISI 304 stainless steel | 330 | Welded square |
| 1.0 | 50 | 90 | 84 | AISI 304 stainless steel | 330 | Welded square |
| 1.0 | 50.8 | 90 | 85 | AISI 304 stainless steel | 330 | Welded square |
Secret Detail #5: Using Galvanized Mesh in One Cage and Stainless in Another Can Double Your Workload
Bird keepers who mix galvanized mesh with stainless steel bird cage wire often discover that the galvanized sections need constant repainting and rust removal. The birds usually prefer the clean stainless side and spend less time in rusty corners, so you end up with unstable behavior and extra maintenance, plus a strong visual contrast that looks unprofessional in serious breeding rooms.
Welded Mesh Specifications for Heavy Duty Bird Cages and Aviaries
For stronger structures, quarantine cages and outdoor lines, a heavier welded stainless steel bird cage wire is recommended to carry more load and resist impacts from equipment and maintenance.
| Wire Rope Diameter (mm) | Mesh Aperture (mm) | Angle (degrees) | Light Transmittance (%) | Material | Nominal Breaking Load (lbs) | Wire Rope Structures |
|---|---|---|---|---|---|---|
| 2.0 | 12.7 | 90 | 55 | AISI 316 stainless steel | 900 | Welded rectangle |
| 2.0 | 19 | 90 | 60 | AISI 316 stainless steel | 900 | Welded rectangle |
| 2.0 | 25 | 90 | 64 | AISI 316 stainless steel | 900 | Welded rectangle |
| 2.0 | 25.4 | 90 | 66 | AISI 316 stainless steel | 900 | Welded rectangle |
| 2.0 | 30 | 90 | 68 | AISI 316 stainless steel | 900 | Welded rectangle |
| 2.0 | 38 | 90 | 72 | AISI 316 stainless steel | 900 | Welded rectangle |
| 2.0 | 40 | 90 | 74 | AISI 316 stainless steel | 900 | Welded rectangle |
| 2.0 | 45 | 90 | 76 | AISI 316 stainless steel | 900 | Welded rectangle |
| 2.0 | 50 | 90 | 78 | AISI 316 stainless steel | 900 | Welded rectangle |
| 2.0 | 50.8 | 90 | 79 | AISI 316 stainless steel | 900 | Welded rectangle |
| 2.0 | 60 | 90 | 81 | AISI 316 stainless steel | 900 | Welded rectangle |
| 2.0 | 63.5 | 90 | 82 | AISI 316 stainless steel | 900 | Welded rectangle |
| 2.0 | 75 | 90 | 84 | AISI 316 stainless steel | 900 | Welded rectangle |
| 2.0 | 76.2 | 90 | 85 | AISI 316 stainless steel | 900 | Welded rectangle |
| 2.0 | 100 | 90 | 88 | AISI 316 stainless steel | 900 | Welded rectangle |
Secret Detail #6: Ignoring Wire Diameter Makes Loud and Stressful Cages for Nervous Birds
Thin welded bird cage wire can vibrate like a bell when doors close or when birds jump. This constant noise increases stress levels in sensitive species, reduces breeding success and can make entire rooms uncomfortable to work in. Selecting the correct wire diameter stabilizes the cage, reduces vibration noise and gives the birds a calmer and more secure environment.
How to Choose Between Rope Mesh and Welded Bird Cage Wire
Stainless steel rope mesh bird cage wire is best when you need maximum visibility and impact resistance for active birds in larger flight cages. Stainless steel welded bird cage wire is better for small cage fronts, breeding boxes and racks where exact rectangular openings are important and cage modules must line up in a precise grid.
Secret Detail #7: Mixing Different Apertures in the Same Wall Confuses Birds and Owners
When one side of a cage uses large aperture rope mesh and another side uses fine welded bird cage wire, birds can misjudge distances and impact the mesh at speed. At the same time, owners struggle to estimate real gap sizes and often misjudge which side is safe for juveniles. Keeping aperture size consistent in each wall prevents misjudgment and accidental injuries that appear suddenly after rearranging cages.
Installation and Framing of Bird Cage Wire
Both stainless steel rope mesh and stainless steel welded wire mesh bird cage wire require firm framing. Common options include stainless or powder coated steel angle, tube frames and modular cage fronts. Proper tension, correct fastening hardware and well-designed doors keep the mesh flat, secure and comfortable for birds to climb on.
Secret Detail #8: Weak Frames Turn Perfect Mesh into a Dangerous Deformed Cage
Even the best bird cage wire cannot compensate for a soft or undersized frame. If the frame bends under the load of doors, accessories and cleaning work, mesh panels can warp, leaving sharp edges and enlarged apertures. Birds then find ways to push and chew further, turning a small deformation into a real escape path or injury risk that grows every week.
Cleaning and Maintenance of Stainless Steel Bird Cage Wire
Stainless steel bird cage wire is easy to keep hygienic. Smooth stainless surfaces resist staining and can be cleaned with mild detergents and fresh water. Regular rinsing removes food residue and droppings so that bacteria and mold do not build up on the mesh surface, protecting bird health and extending the life of the entire cage system.
Secret Detail #9: Using the Wrong Cleaning Chemicals Can Quietly Destroy Your Investment
Chloride-rich cleaners, bleach and hard metal tools can scratch and attack stainless steel surfaces. Over time this can create pitting and discoloration on both rope mesh and welded bird cage wire. Silent microscopic damage gradually reduces strength and cleanliness, shortening the service life of the cage and forcing a much earlier full replacement than careful owners expect.
