Flexible stainless steel cable mesh is a high-performance architectural and safety material woven from stainless steel wire ropes. It combines outstanding strength, flexibility, and transparency, making it ideal for zoo enclosures, façades, balustrades cable mesh, safety nets, green walls, and interior design.
As a professional manufacturer of flexible stainless steel cable mesh, we design and produce each panel to match real engineering needs, ensuring reliable safety and a clean, modern aesthetic.
Critical Detail #1: Choosing the Wrong Stainless Steel Grade Destroys Long-Term Reliability
One of the most dangerous early mistakes is selecting the wrong stainless steel grade. Using an inferior grade in coastal or heavily polluted environments silently accelerates corrosion. At first, the flexible stainless steel cable mesh looks perfect, but after several years the wires and fittings can weaken, causing unexpected maintenance, ugly staining, and serious safety risks. Selecting AISI 316 for demanding outdoor conditions is a critical decision that directly controls long-term performance.
Key Advantages and Performance of Flexible Stainless Steel Cable Mesh
Flexible stainless steel cable mesh offers a combination of mechanical strength and visual lightness that traditional rigid meshes cannot match:
- High tensile strength and excellent fatigue resistance
- Flexible geometry that can follow curves, cones, and complex 3D forms
- High light transmittance to keep spaces open and bright
- Corrosion resistance in harsh climates
- Soft, animal-friendly surface without sharp edges
- Lightweight structure with high safety capacity
- Minimal visual obstruction for modern architecture
Costly Mistake #2: Ignoring the Relationship Between Wire Rope Diameter and Real Loads
Some buyers look only at price and choose a wire rope diameter that is too small. On paper, the mesh may seem strong enough, but under real loads—crowd pressure, animal impact, wind or snow—the panel can deform excessively. This deformation reduces the effective barrier height and can damage the supporting structure. Correctly matching wire rope diameter and nominal breaking load to the project’s worst-case loads prevents this costly mistake.
Typical Applications of Flexible Stainless Steel Cable Mesh
Flexible stainless steel cable mesh is widely used in:

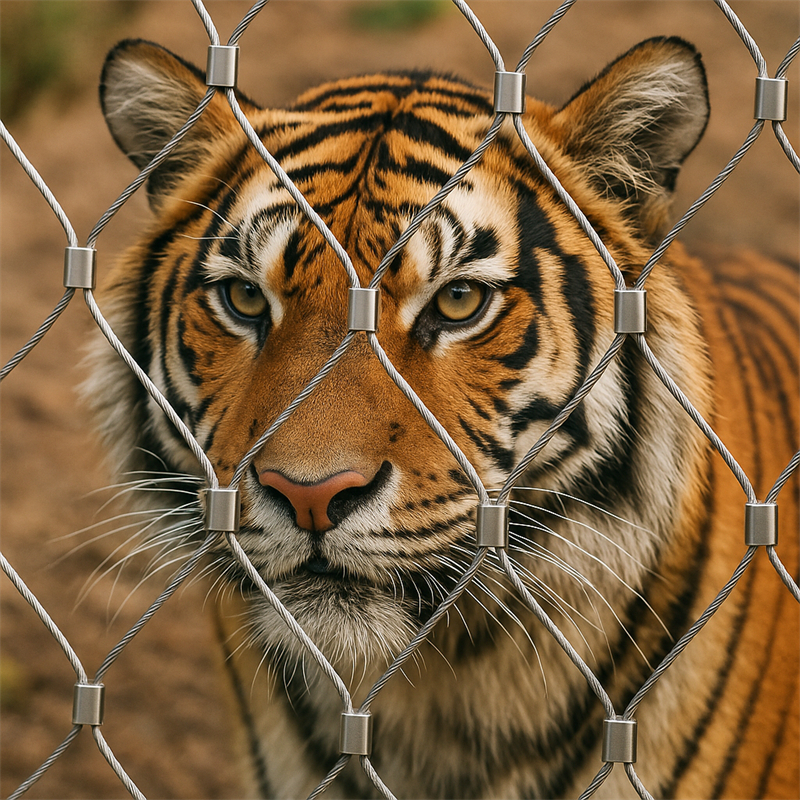

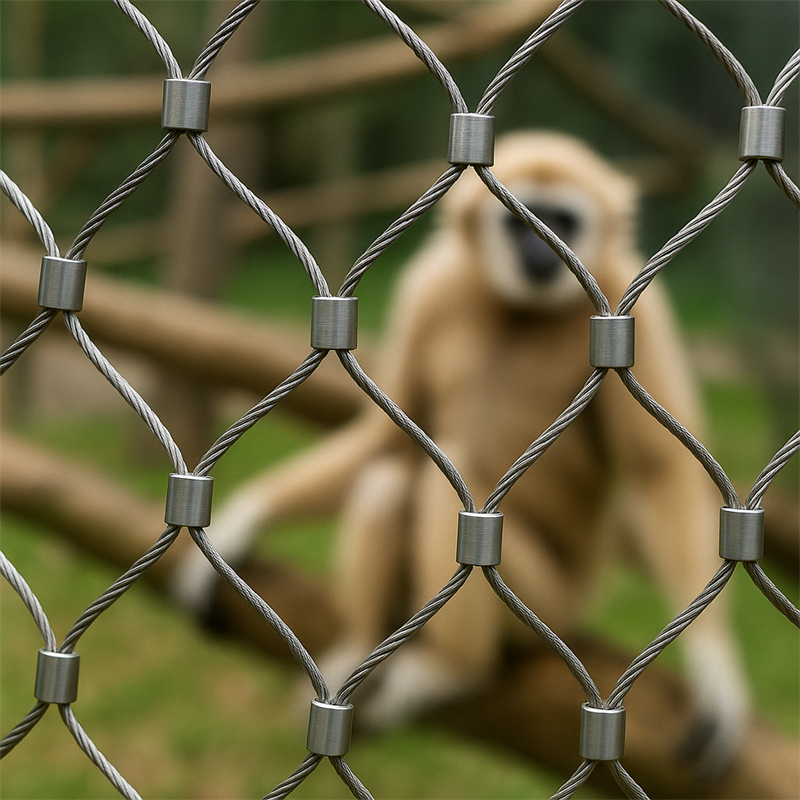

Zoo and aviary enclosures for birds, monkeys, big cats, and other animals
Walk-through aviaries and free-flight bird exhibits
Stadium, bridge, and stair safety nets
Balcony and terrace balustrades

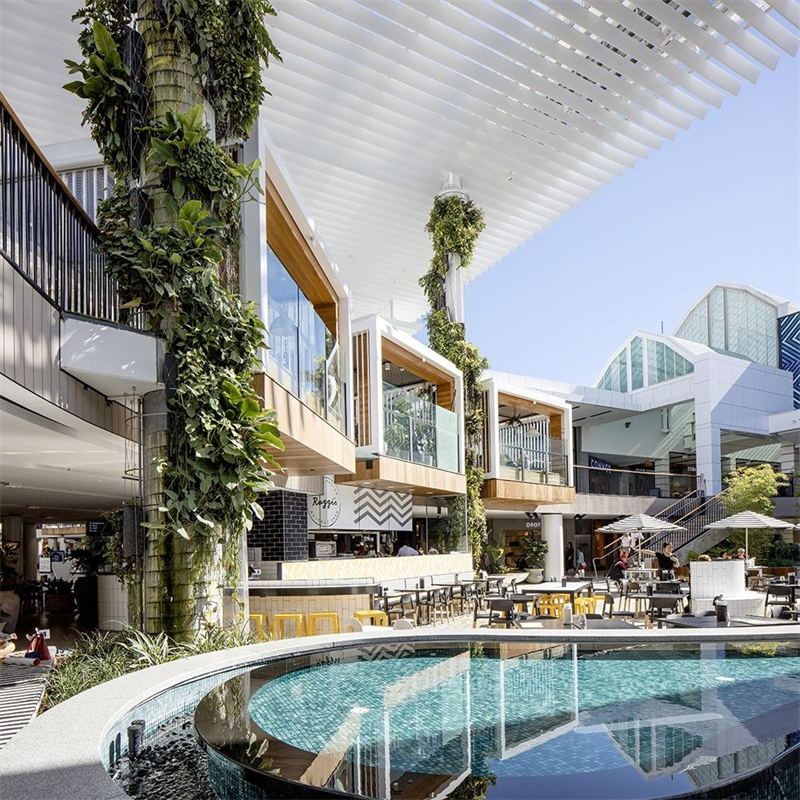

Building façade cladding and stainless steel green walls
Interior railings, partitions, and decorative ceilings
Art installations and feature walls
Each application requires a different combination of mesh aperture, wire rope diameter, and mesh angle to achieve the right balance of safety, transparency, and aesthetics.
Hidden Detail #3: Mesh Aperture Directly Controls Safety, Not Just Appearance
Many people treat mesh aperture as a purely visual choice. This is a hidden but critical detail. For animal enclosures, an aperture that is too large can allow heads, paws, or bodies to pass through, leading to injuries or escapes. For balconies and public areas, building codes define maximum opening sizes to prevent children from slipping through. Selecting the wrong aperture for flexible stainless steel cable mesh is not just a design issue – it can create real safety incidents and legal problems.
Specification Table 1 – Zoo and Animal Enclosures
For zoo cages, aviaries, and animal enclosures, flexible stainless steel cable mesh must provide strong impact resistance while remaining soft and animal-friendly. The following standard specifications are proven in demanding animal projects.
Table 1: Typical Specifications for Zoo and Animal Enclosure Flexible Stainless Steel Cable Mesh
| WIRE ROPE DIAMETER | MESH APERTURE | Angle degrees | Light Transmittance | Material | Nominal Breaking Load (lbs) | WIRE ROPE STRUCTURES |
|---|---|---|---|---|---|---|
| 1.2 mm | 20 × 20 mm | 60 | ≥ 88% | AISI 304 | 480 | 7×7 |
| 1.2 mm | 25 × 25 mm | 60 | ≥ 90% | AISI 304 | 480 | 7×7 |
| 1.5 mm | 25 × 25 mm | 60 | ≥ 87% | AISI 304 | 680 | 7×7 |
| 1.5 mm | 30 × 30 mm | 60 | ≥ 89% | AISI 304 | 680 | 7×7 |
| 1.5 mm | 35 × 35 mm | 60 | ≥ 91% | AISI 304 | 680 | 7×7 |
| 1.6 mm | 30 × 30 mm | 60 | ≥ 88% | AISI 316 | 750 | 7×7 |
| 1.6 mm | 35 × 35 mm | 60 | ≥ 90% | AISI 316 | 750 | 7×7 |
| 1.6 mm | 40 × 40 mm | 60 | ≥ 92% | AISI 316 | 750 | 7×7 |
| 1.8 mm | 40 × 40 mm | 60 | ≥ 90% | AISI 316 | 980 | 7×7 |
| 1.8 mm | 50 × 50 mm | 60 | ≥ 92% | AISI 316 | 980 | 7×7 |
| 2.0 mm | 50 × 50 mm | 60 | ≥ 90% | AISI 316 | 1200 | 7×7 |
| 2.0 mm | 60 × 60 mm | 60 | ≥ 93% | AISI 316 | 1200 | 7×7 |
| 2.4 mm | 60 × 60 mm | 60 | ≥ 90% | AISI 316 | 1620 | 7×19 |
| 2.4 mm | 80 × 80 mm | 60 | ≥ 94% | AISI 316 | 1620 | 7×19 |
| 3.0 mm | 100 × 100 mm | 60 | ≥ 95% | AISI 316 | 2400 | 7×19 |
Serious Mistake #4: Ignoring Animal Species When Selecting Flexible Stainless Steel Cable Mesh
Selecting one “universal” flexible stainless steel cable mesh specification for all animals is a serious mistake. Predators, primates, birds of prey, and small birds all require different apertures and impact capacities. If you oversize the aperture for small birds, they escape; if you undersize for big cats, the mesh becomes unnecessarily heavy and expensive. Matching each specification to the exact species and enclosure geometry is a decisive technical detail.
Specification Table 2 – Façades, Balustrades and Public Areas
For building façades, staircases, and balcony balustrades, flexible stainless steel cable mesh must combine elegant transparency with reliable anti-fall protection. The following specifications are widely used in public and residential buildings.
Table 2: Typical Specifications for Façade and Balustrade Flexible Stainless Steel Cable Mesh
| WIRE ROPE DIAMETER | MESH APERTURE | Angle degrees | Light Transmittance | Material | Nominal Breaking Load (lbs) | WIRE ROPE STRUCTURES |
|---|---|---|---|---|---|---|
| 1.5 mm | 30 × 52 mm | 60 | ≥ 92% | AISI 316 | 680 | 7×7 |
| 1.5 mm | 40 × 69 mm | 60 | ≥ 94% | AISI 316 | 680 | 7×7 |
| 1.5 mm | 50 × 86 mm | 60 | ≥ 95% | AISI 316 | 680 | 7×7 |
| 1.6 mm | 30 × 52 mm | 60 | ≥ 91% | AISI 316 | 750 | 7×7 |
| 1.6 mm | 40 × 69 mm | 60 | ≥ 93% | AISI 316 | 750 | 7×7 |
| 1.6 mm | 50 × 86 mm | 60 | ≥ 94% | AISI 316 | 750 | 7×7 |
| 1.8 mm | 40 × 69 mm | 60 | ≥ 92% | AISI 316 | 980 | 7×7 |
| 1.8 mm | 50 × 86 mm | 60 | ≥ 94% | AISI 316 | 980 | 7×7 |
| 1.8 mm | 60 × 104 mm | 60 | ≥ 95% | AISI 316 | 980 | 7×7 |
| 2.0 mm | 50 × 86 mm | 60 | ≥ 93% | AISI 316 | 1200 | 7×7 |
| 2.0 mm | 60 × 104 mm | 60 | ≥ 94% | AISI 316 | 1200 | 7×7 |
| 2.0 mm | 70 × 121 mm | 60 | ≥ 95% | AISI 316 | 1200 | 7×7 |
| 2.4 mm | 60 × 104 mm | 60 | ≥ 93% | AISI 316 | 1620 | 7×19 |
| 2.4 mm | 80 × 138 mm | 60 | ≥ 95% | AISI 316 | 1620 | 7×19 |
| 3.0 mm | 100 × 173 mm | 60 | ≥ 96% | AISI 316 | 2400 | 7×19 |
Hidden Risk #5: Forgetting National Code Limits on Opening Sizes
In many countries, building codes strictly limit the maximum opening size in balustrades and guardrails to protect children and prevent falls. A visually beautiful flexible stainless steel cable mesh with a too-large aperture will fail inspection, forcing redesign and reinstallation. This hidden legal risk often appears only at the final stage of the project. Selecting a compliant aperture from the beginning avoids project delays and additional cost.
Specification Table 3 – Safety Nets and High-Load Structures
For stadiums, bridges, industrial platforms, and high-level walkways, flexible stainless steel cable mesh must resist high impact and heavy loads. The following specifications deliver robust performance with a lightweight structure.
Table 3: Typical Specifications for High-Load and Safety Net Flexible Stainless Steel Cable Mesh
| WIRE ROPE DIAMETER | MESH APERTURE | Angle degrees | Light Transmittance | Material | Nominal Breaking Load (lbs) | WIRE ROPE STRUCTURES |
|---|---|---|---|---|---|---|
| 2.0 mm | 40 × 40 mm | 60 | ≥ 88% | AISI 316 | 1200 | 7×7 |
| 2.0 mm | 50 × 50 mm | 60 | ≥ 90% | AISI 316 | 1200 | 7×7 |
| 2.4 mm | 50 × 50 mm | 60 | ≥ 88% | AISI 316 | 1620 | 7×19 |
| 2.4 mm | 60 × 60 mm | 60 | ≥ 90% | AISI 316 | 1620 | 7×19 |
| 2.4 mm | 80 × 80 mm | 60 | ≥ 92% | AISI 316 | 1620 | 7×19 |
| 3.0 mm | 60 × 60 mm | 60 | ≥ 88% | AISI 316 | 2400 | 7×19 |
| 3.0 mm | 80 × 80 mm | 60 | ≥ 90% | AISI 316 | 2400 | 7×19 |
| 3.0 mm | 100 × 100 mm | 60 | ≥ 92% | AISI 316 | 2400 | 7×19 |
| 3.2 mm | 80 × 80 mm | 60 | ≥ 89% | AISI 316 | 2700 | 7×19 |
| 3.2 mm | 100 × 100 mm | 60 | ≥ 91% | AISI 316 | 2700 | 7×19 |
| 3.2 mm | 120 × 120 mm | 60 | ≥ 93% | AISI 316 | 2700 | 7×19 |
| 4.0 mm | 100 × 100 mm | 60 | ≥ 90% | AISI 316 | 4200 | 7×19 |
| 4.0 mm | 120 × 120 mm | 60 | ≥ 92% | AISI 316 | 4200 | 7×19 |
| 4.0 mm | 150 × 150 mm | 60 | ≥ 94% | AISI 316 | 4200 | 7×19 |
| 5.0 mm | 150 × 150 mm | 60 | ≥ 93% | AISI 316 | 6500 | 7×19 |
Fatal Error #6: Underestimating Dynamic Impacts on Flexible Stainless Steel Cable Mesh
For high-load projects, it is dangerous to consider only static loads. Dynamic impacts from people, tools, sports equipment, or vehicles create much higher peak forces than simple static weight. If the flexible stainless steel cable mesh is not selected with sufficient breaking load and safety factor, a single extreme event can cause permanent deformation or local failure. Considering dynamic impact from the design stage is essential for safe operation.

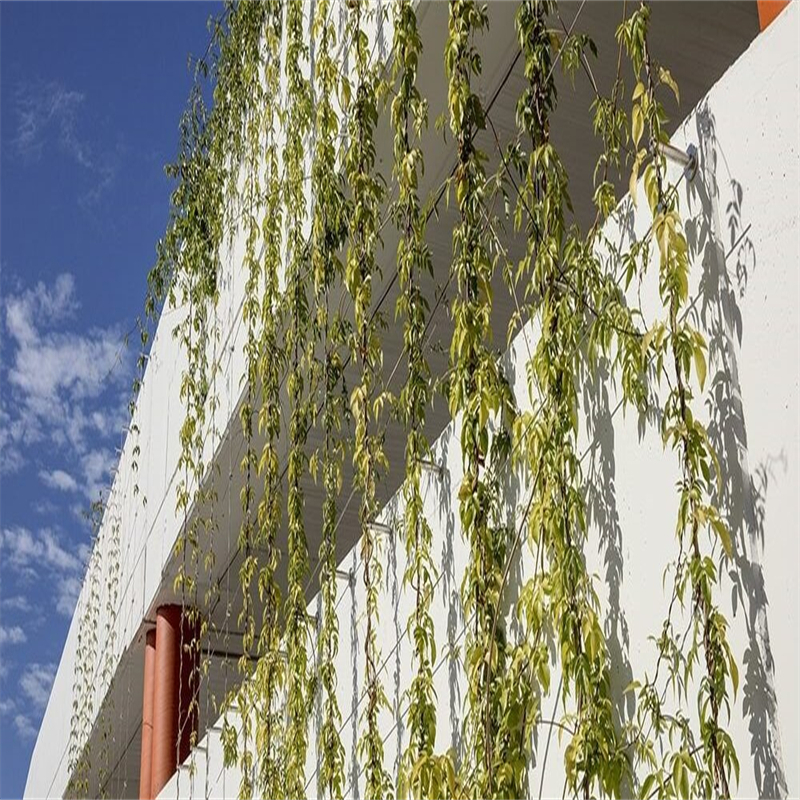

Specification Table 4 – Green Walls and Interior Design
In green walls, interior partitions, and decorative ceilings, flexible stainless steel cable mesh emphasizes lightness and fine visual lines while still providing safe support for plants or people.
Table 4: Typical Specifications for Green Wall and Interior Flexible Stainless Steel Cable Mesh
| WIRE ROPE DIAMETER | MESH APERTURE | Angle degrees | Light Transmittance | Material | Nominal Breaking Load (lbs) | WIRE ROPE STRUCTURES |
|---|---|---|---|---|---|---|
| 1.0 mm | 20 × 35 mm | 60 | ≥ 93% | AISI 304 | 320 | 7×7 |
| 1.0 mm | 30 × 52 mm | 60 | ≥ 95% | AISI 304 | 320 | 7×7 |
| 1.2 mm | 30 × 52 mm | 60 | ≥ 94% | AISI 304 | 480 | 7×7 |
| 1.2 mm | 40 × 69 mm | 60 | ≥ 96% | AISI 304 | 480 | 7×7 |
| 1.2 mm | 50 × 86 mm | 60 | ≥ 97% | AISI 304 | 480 | 7×7 |
| 1.5 mm | 30 × 52 mm | 60 | ≥ 92% | AISI 316 | 680 | 7×7 |
| 1.5 mm | 40 × 69 mm | 60 | ≥ 94% | AISI 316 | 680 | 7×7 |
| 1.5 mm | 50 × 86 mm | 60 | ≥ 95% | AISI 316 | 680 | 7×7 |
| 1.6 mm | 40 × 69 mm | 60 | ≥ 93% | AISI 316 | 750 | 7×7 |
| 1.6 mm | 50 × 86 mm | 60 | ≥ 95% | AISI 316 | 750 | 7×7 |
| 1.8 mm | 50 × 86 mm | 60 | ≥ 94% | AISI 316 | 980 | 7×7 |
| 1.8 mm | 60 × 104 mm | 60 | ≥ 95% | AISI 316 | 980 | 7×7 |
| 2.0 mm | 60 × 104 mm | 60 | ≥ 94% | AISI 316 | 1200 | 7×7 |
| 2.0 mm | 70 × 121 mm | 60 | ≥ 95% | AISI 316 | 1200 | 7×7 |
| 2.0 mm | 80 × 138 mm | 60 | ≥ 96% | AISI 316 | 1200 | 7×7 |

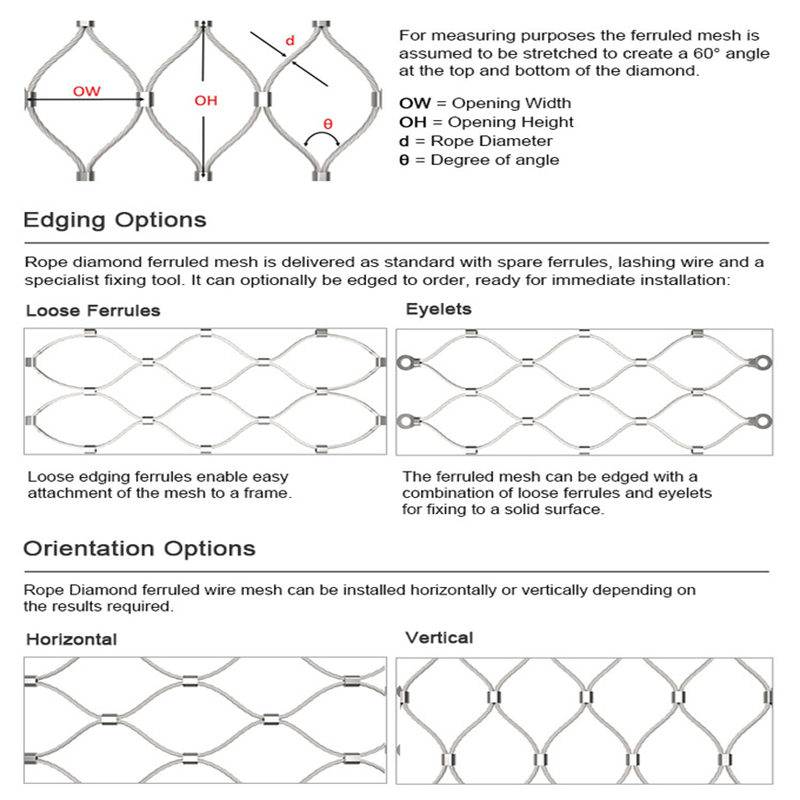

Critical Detail #7: Mesh Orientation Changes Both Aesthetic Rhythm and Deflection
In green walls and interior designs, many people think mesh orientation is only an artistic choice. In fact, the angle of flexible stainless steel cable mesh strongly affects how it deflects under load. Diagonal meshes (around 60°) often provide a softer, more elastic behavior, while more vertical or horizontal arrangements feel stiffer. Choosing the wrong orientation can produce unexpected sagging patterns and break the intended visual rhythm of the wall.
Installation and System Components
A complete flexible stainless steel cable mesh system includes much more than the mesh panel itself:

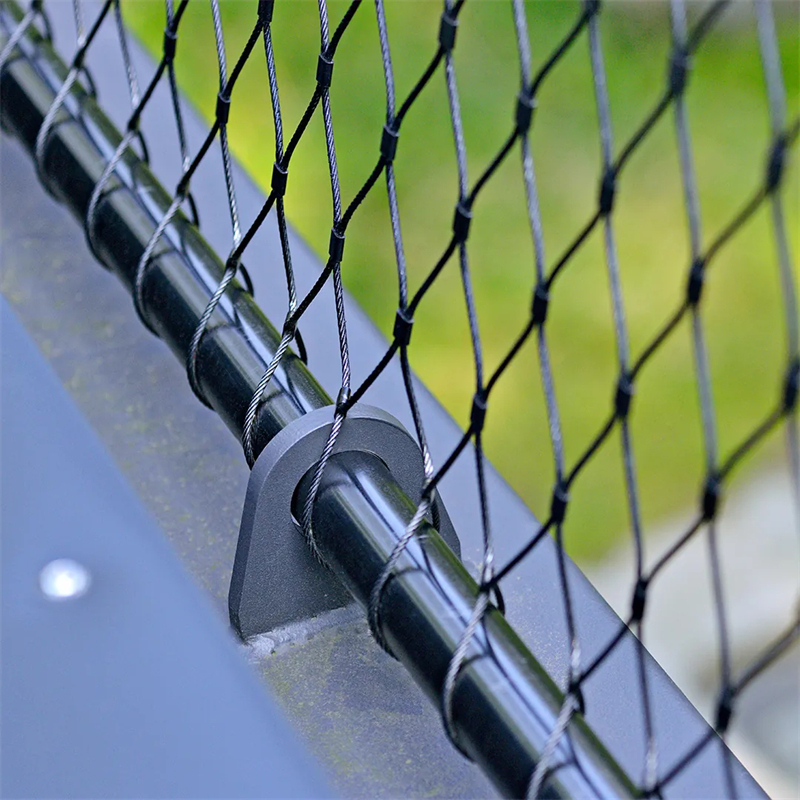

Rigid frames or perimeter cables
Turnbuckles and tensioning devices
Terminal fittings, anchor plates, and mounting hardware
Intermediate support cables or rods where needed
Professional installation procedures and tension control
As a manufacturer, we design each flexible stainless steel cable mesh system as an integrated package so that all components match the required loads and geometry.
Dangerous Mistake #8: Weak Edge and Corner Details Ruin a Strong Mesh
Even if the flexible stainless steel cable mesh in the center area is strong, poorly designed edges and corners can become the weak link. Undersized lugs, clamps, or anchor plates concentrate stress and lead to local deformation or failure. This is a classic hidden mistake: a powerful mesh combined with weak boundary details. Strong, well-dimensioned edges are essential to unlock the full capacity of the material.
Durability, Maintenance and Life-Cycle Value
Flexible stainless steel cable mesh delivers decades of service with minimal maintenance. It does not require repainting, recoating, or frequent replacement. Routine inspection and simple cleaning are usually enough to keep it in excellent condition.
When total life-cycle cost is considered—including initial installation, maintenance, downtime, and replacement—the flexible stainless steel cable mesh solution is frequently the most economical choice, especially in demanding environments.
Critical Detail #9: Focusing Only on Initial Price Creates Long-Term Financial Loss
One final and very common mistake is to compare only initial prices and choose a cheaper but inferior system instead of flexible stainless steel cable mesh. This short-term thinking often leads to repeated repairs, visual degradation, and unplanned replacement. Over the life of a building, these hidden costs can easily exceed the original savings. Understanding the full life-cycle value of high-quality flexible stainless steel cable mesh is a decisive detail that protects both safety and investment.
