Balustrade cable mesh: 7 Proven, Safe Benefits for Railings

Stainless steel Balustrade Cable Mesh is ideal for balustrade infill, namely stainless steel balustrade rope mesh, such as stair railing, balcony railing and passage balustrade. Stainless steel balustrade rope mesh has rhombic openings and a beautiful appearance, and it can combine with other structures perfectly. What’s more, stainless steel balustrade rope mesh is soft but firm, so it can protect people from dropping. Besides, it is very flexible, and its width, length, shape, and opening size can be modified depending on customers’ requirements.

Application Balustrade Cable Mesh Project Case

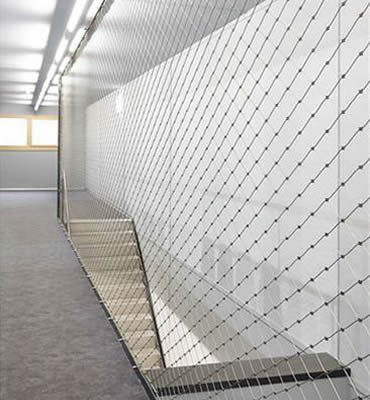

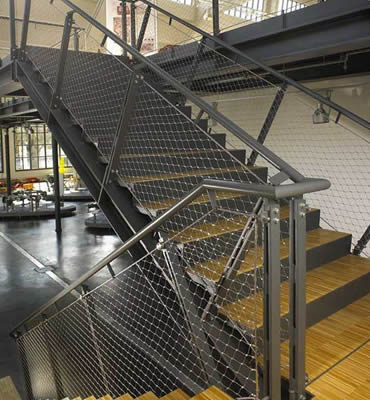

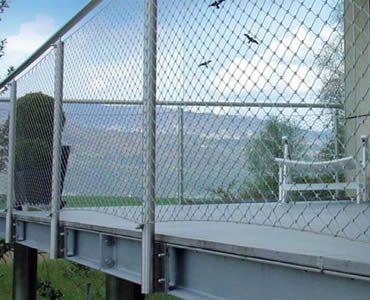

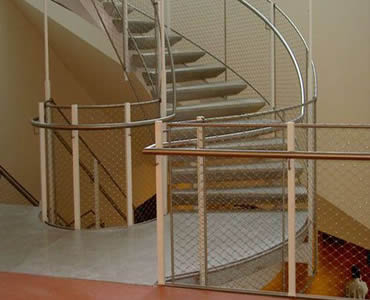

Stainless steel ferrule rope mesh makes the stair beautiful and safe.	Stainless steel ferrule rope mesh is installed as a protective wall with high strength for safety.	Balustrade cable mesh is very flexible and can be produced into irregular shapes to suit the stair.	Balcony cable mesh makes the balcony more beautiful and safer.

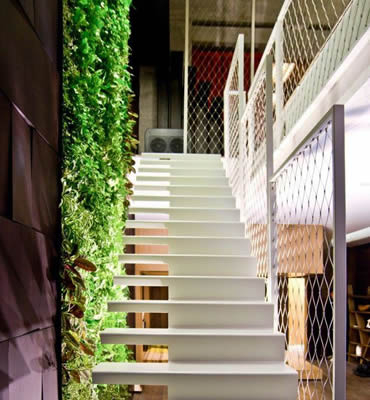

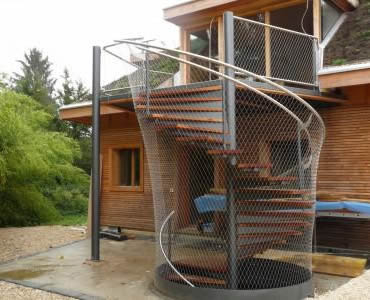

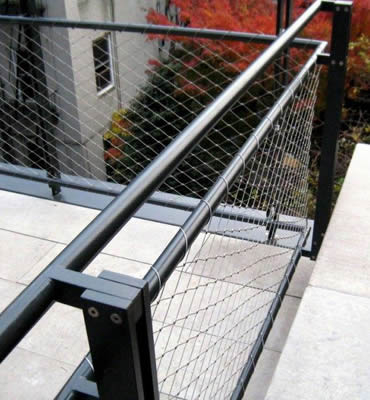

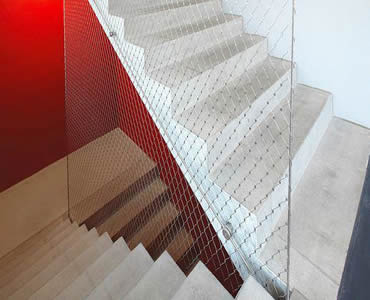

Balcony cable mesh is installed based on the stair, creating a beautiful landscape.	Balustrade cable mesh enhances the stair and red wall aesthetics.	Balcony cable mesh lets people enjoy the roof platform happily and safely.	Rope mesh makes the white stair more attractive and secure.

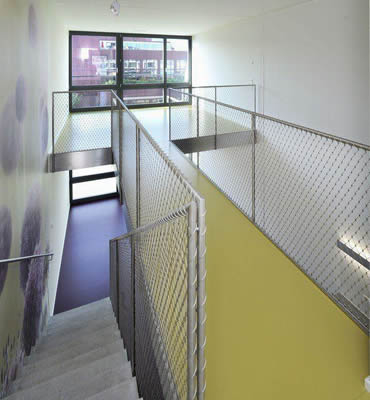

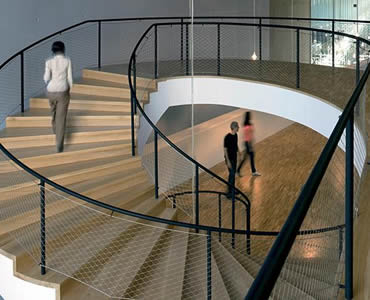

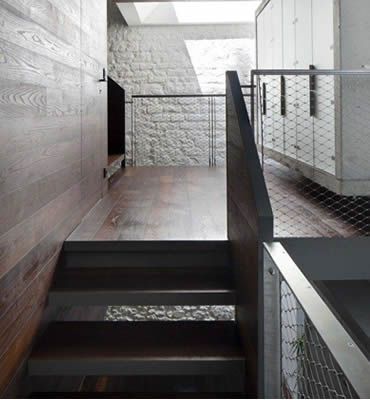

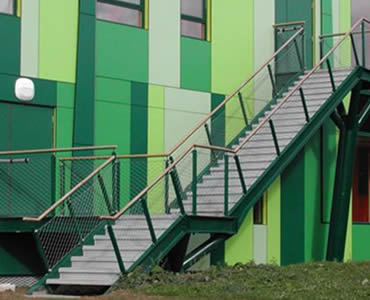

Stainless steel cable mesh makes the circular stair tremendous and safe.	Handrail meshes integrate the outdoor green stairs with the building and yard.	Stainless steel ferrule rope mesh beautifies the yellow passage and makes the concrete stair safer.	Stainless steel ferrule balustrade cable mesh suits wood, concrete, and other structures.

Why choose balustrade cable mesh?

• Transparency & aesthetics: Fine wire and open area preserve sightlines and create a light, contemporary look.
• Strength with flexibility: 7×7 or 7×19 wire rope constructions provide high tensile capacity while conforming to curved or irregular geometries.
• Durability outdoors: 304 is excellent for general use; 316/316L resists salt, chemicals, and de-icing agents in marine/urban environments.
• Safety first: Stable openings, continuous panel integrity, and energy absorption help prevent falls and stop thrown objects.
• Low maintenance: Corrosion-resistant stainless steel needs only periodic rinsing or pH-neutral cleaning.
• Custom fit: Panels are manufactured to size, including rakes for stair runs, radiused corners, and shaped edges.

Common configurations

• Mesh pattern: Diamond (hand-woven or ferrule-pressed) or square.
• Rope diameter: 1.5–3.2 mm typical (choose larger for higher loads or wider spans).
• Aperture (opening): 30–120 mm (smaller apertures for child-safe areas or anti-throw zones).
• Edges: Swaged stainless ferrules, laced/bound edges, or border cables for clean termination.
• Frames & posts: Stainless, galvanized, or powder-coated steel; aluminum for lightweight structures.
• Hardware: Eye bolts, clevises, turnbuckles, carabiners, clamp plates—matching stainless grade.

Specification

• Balustrade Cable Mesh Rope material: high-quality stainless steel 304, 316, 304L perfectly and 316L.
• Rope diameter: 1.5mm to 2.0mm, and other rope diameters are also available.
• Mesh type: stainless steel ferrule rope mesh or knotted rope mesh.

Code note:

Many jurisdictions apply a “sphere test” (e.g., ≤100 mm) and specific balustrade loadings/deflection limits. Always check local building codes and project specifications.Installation essentials

• Survey & layout: Confirm post spacing, top/bottom rails, and stair rise/run.
• Pre-fit panels: Attach the top edge first, then sides and bottom; tension progressively with turnbuckles.
• Keep diamonds uniform: Even tension prevents localized overstress and maintains appearance.
• Edge protection: Use binding rope or cover trims where the public may contact the edge.
• Fasteners: Use stainless of the same grade as the mesh to avoid galvanic corrosion.

Care & maintenance

• Rinse periodically—especially near the sea or where de-icing salts are used.
• Clean with mild pH-neutral detergent; avoid chlorides/bleach.
• Inspect annually for tension, anchor integrity, and accidental damage; re-tension if needed.

Conclusion

Last but not least, stainless steel balustrade rope mesh is resistant to rust despite sunlight and rain for a long time. This is why it has a long service life and is suitable for outdoor stair and bridge railing. Balustrade cable mesh—also called stainless steel rope mesh or wire rope balustrade mesh—is a flexible, high-strength infill used on stairs, balconies, bridges, viewing decks, and atriums. Its diamond (or square) apertures keep people safe without blocking views, airflow, or light. Built from marine-grade stainless steel, it delivers long service life with minimal maintenance.
