Bird Wire Mesh Shocking Secrets: 9 Powerful Hidden Risks

Bird wire mesh is the invisible safety skin of any aviary, bird park, roof or façade that needs to keep birds in or out, and the right bird wire mesh protects birds from injury, stops predators and preserves buildings, crops and equipment from droppings and damage for many years.
Different projects need different types of bird wire mesh, so below we introduce 7 practical types, how they are used and what makes each type useful, together with typical specification ranges that a professional manufacturer can supply directly.

Secret 1: The first decision you make about bird wire mesh quietly locks in your maintenance costs for the next 10–15 years.

If you choose the wrong bird wire mesh at the beginning, you do not just change the look of the project, you increase future labour, repair time and even the risk of bird escape or injury.

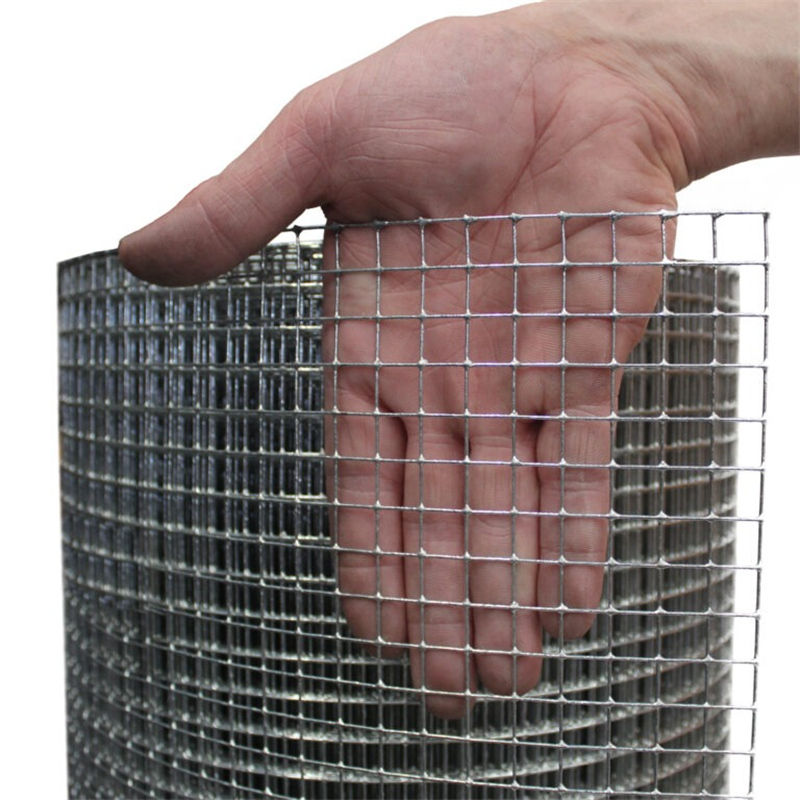

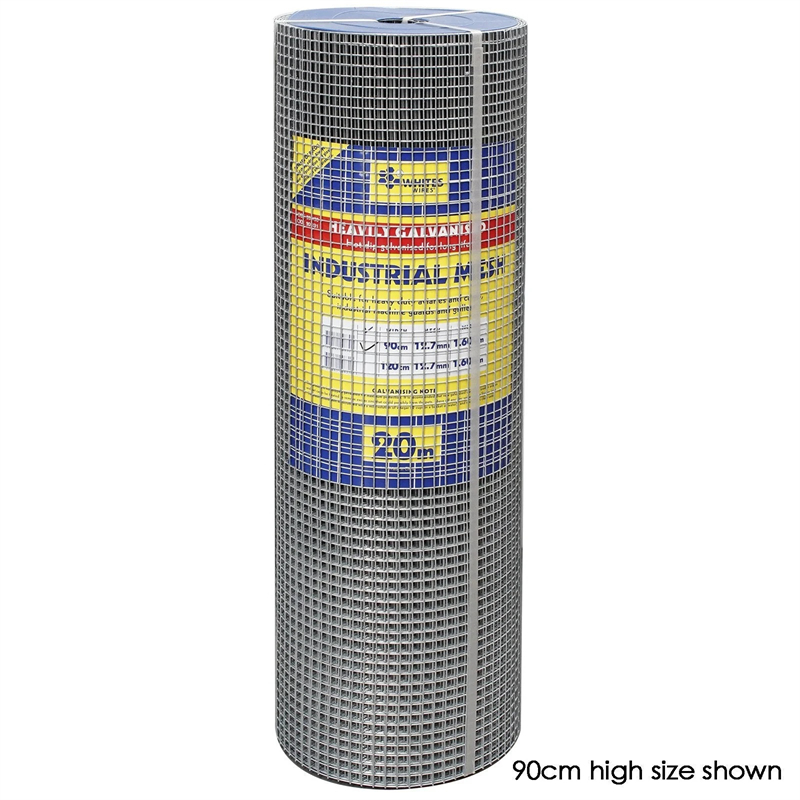

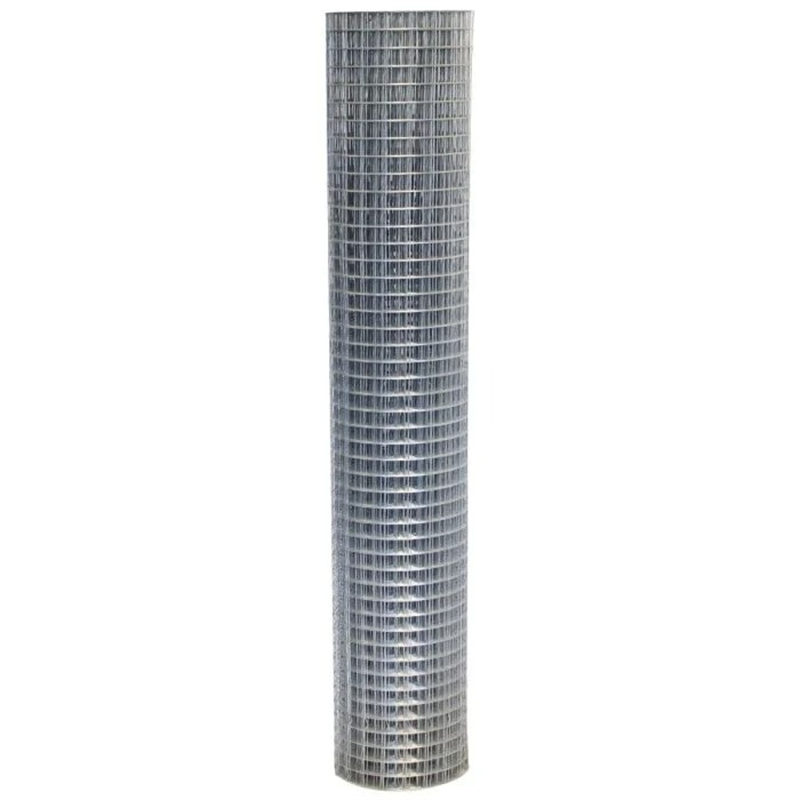

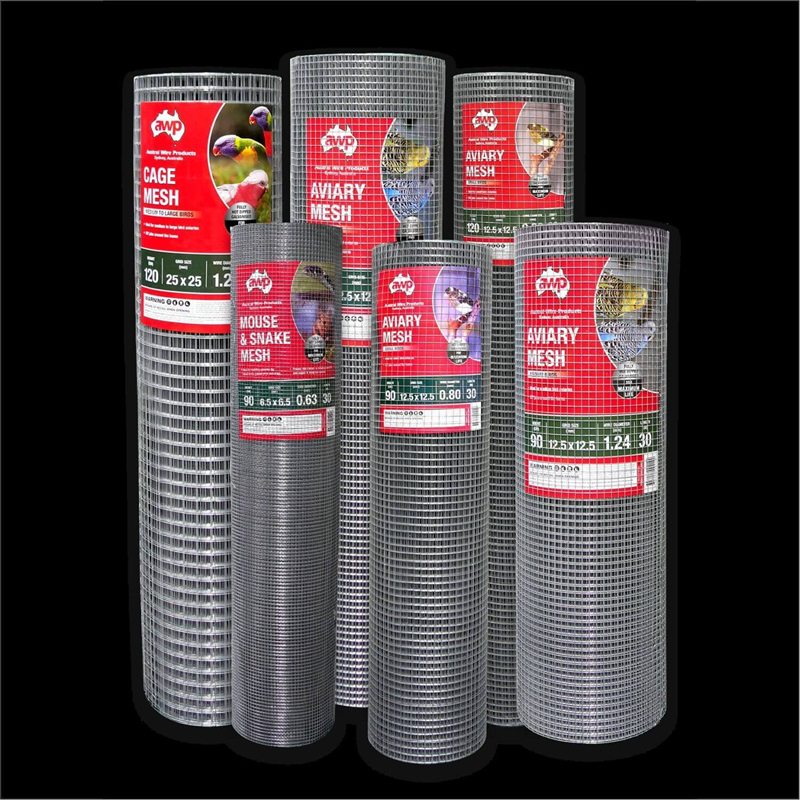

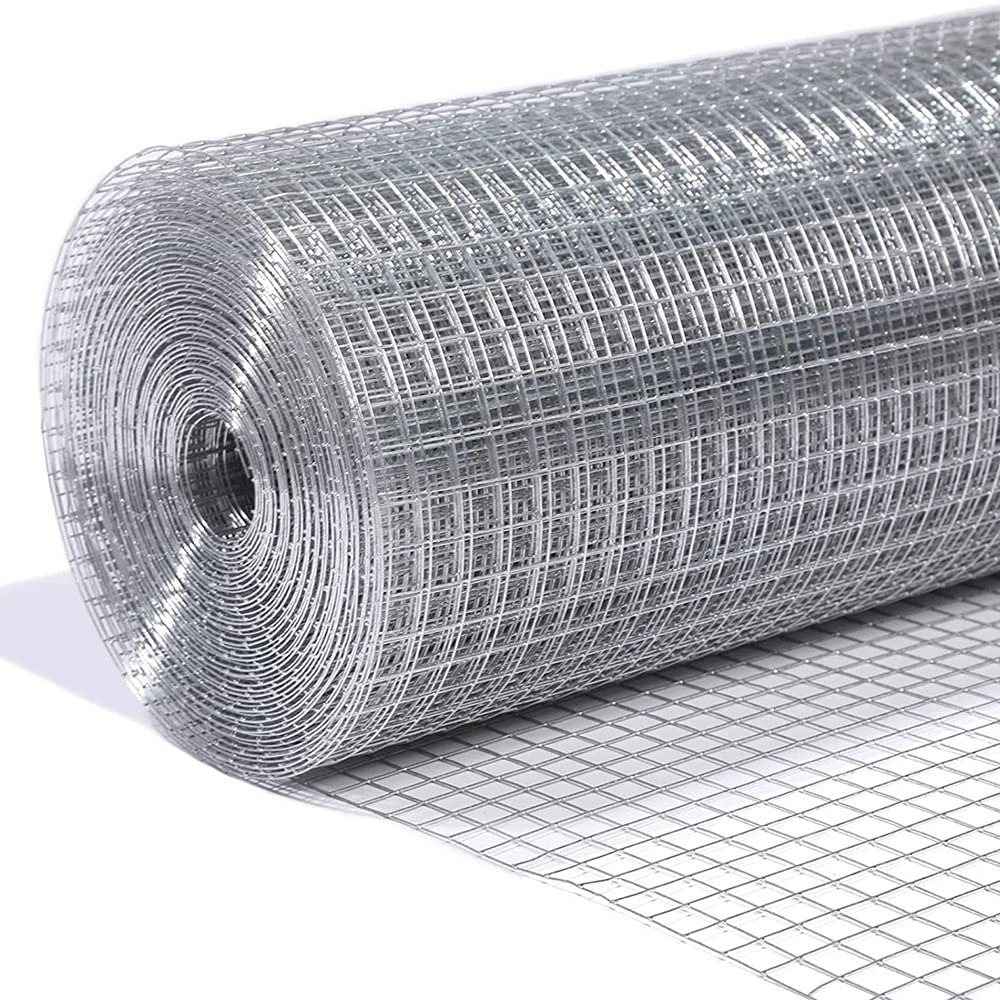

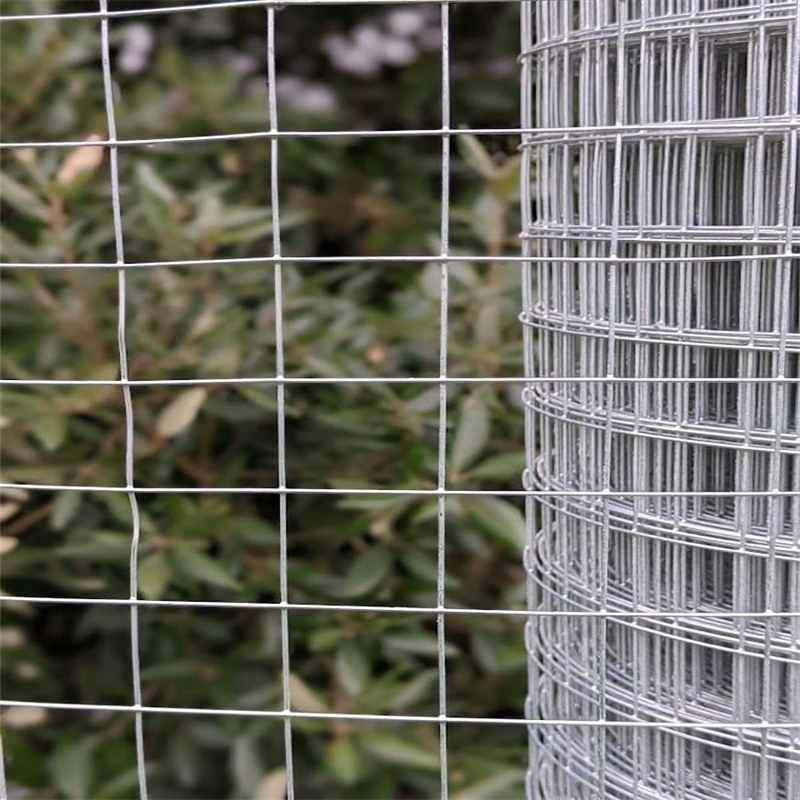

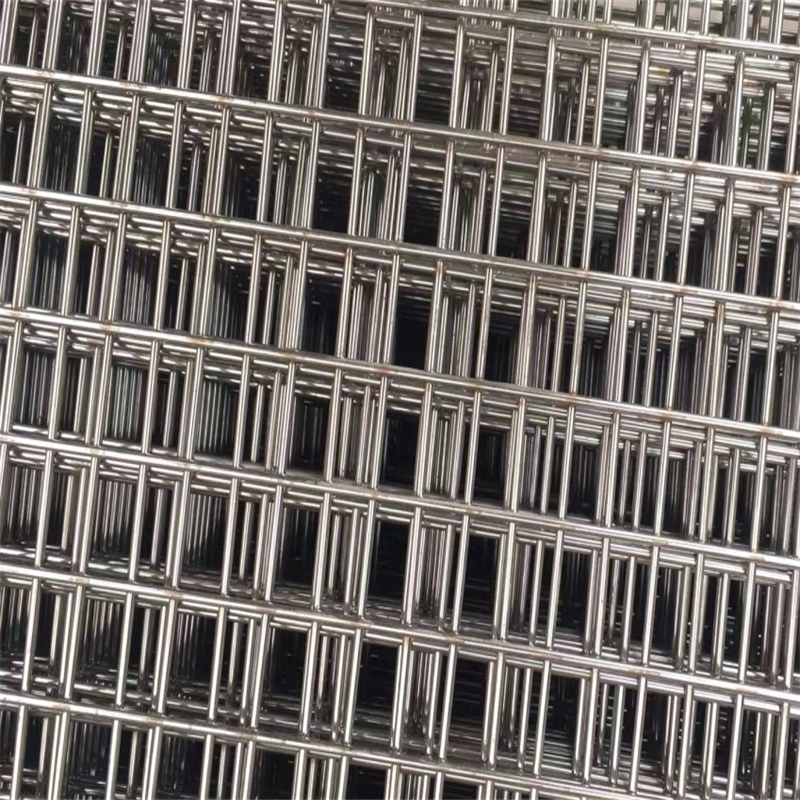

1. Welded Wire Bird Mesh (Aviary Mesh)

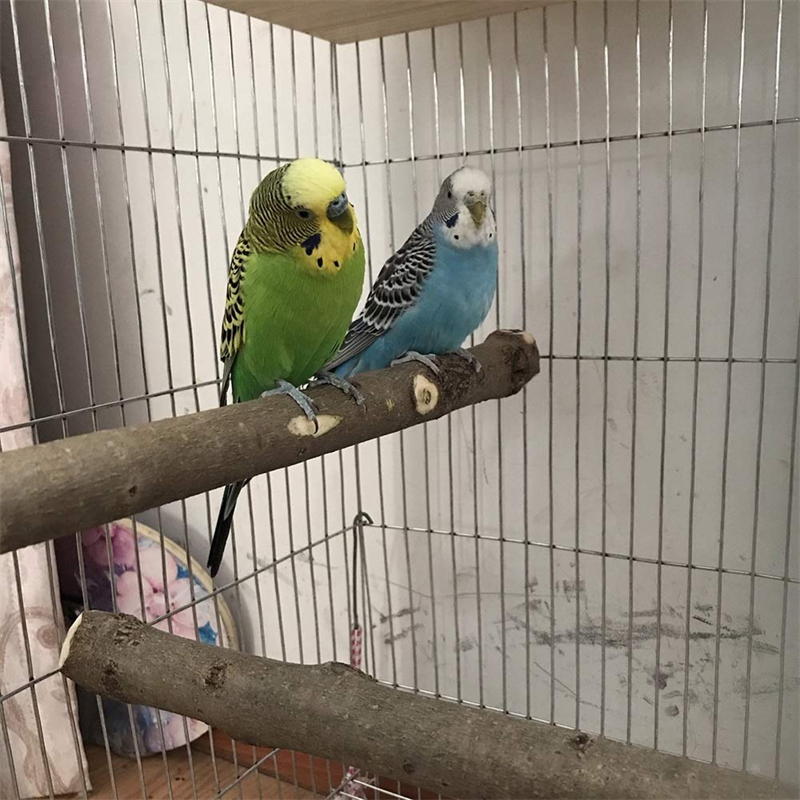

Welded bird wire mesh is the classic choice for aviaries, cages and permanent enclosures, where straight wires run horizontally and vertically and every intersection is welded to create a rigid, stable grid that stands up to daily use.

Where it is used

  • Indoor and outdoor aviaries
  • Bird breeding rooms and pet bird cages
  • Poultry runs and perimeter fences
  • Window, vent and eave protection in buildings

Why people like it

  • Strong, stable structure that does not sag
  • Clean, geometric appearance that looks neat in frames
  • Easy to cut, frame and hinge into doors or panels

Secret 2: If the wire diameter of your welded bird wire mesh is too small, the welds can crack under daily door impacts long before the coating shows any visible damage.

Professional buyers always match the welded bird wire mesh wire diameter to bird size, door movement and visitor contact, because this is the point where cheap mesh starts to fail first.

WIRE ROPE DIAMETER (mm)MESH APERTURE (mm)Angle (degrees)Light Transmittance (%)MaterialNominal Breaking Load (lbs)WIRE ROPE STRUCTURES
1.612.7 × 12.79072Low carbon steel260Single welded wire
2.012.7 × 12.79070Low carbon steel360Single welded wire
1.619 × 199078Low carbon steel260Single welded wire
2.019 × 199076Low carbon steel360Single welded wire
2.025 × 12.59080Low carbon steel360Single welded wire
2.025 × 259082Low carbon steel360Single welded wire
2.525 × 259080Low carbon steel560Single welded wire
3.025 × 259078Stainless steel 304720Single welded wire
2.538 × 389086Low carbon steel560Single welded wire
3.1538 × 389084Low carbon steel820Single welded wire
2.550 × 509088Low carbon steel560Single welded wire
3.1550 × 509086Stainless steel 304820Single welded wire
4.050 × 509084Low carbon steel1220Single welded wire
3.1575 × 509090Low carbon steel820Single welded wire
4.075 × 759092Low carbon steel1220Single welded wire

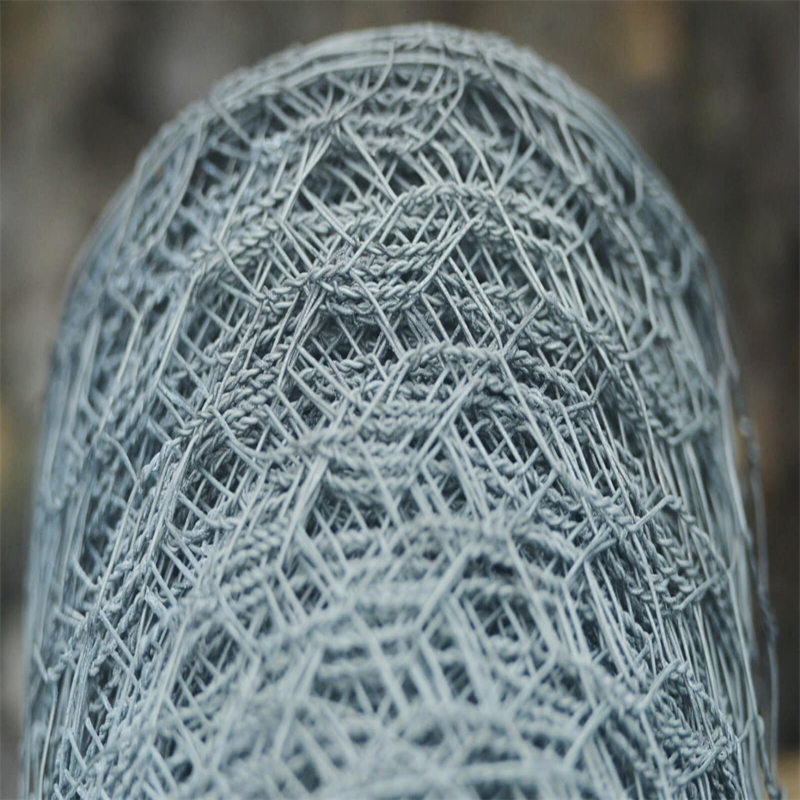

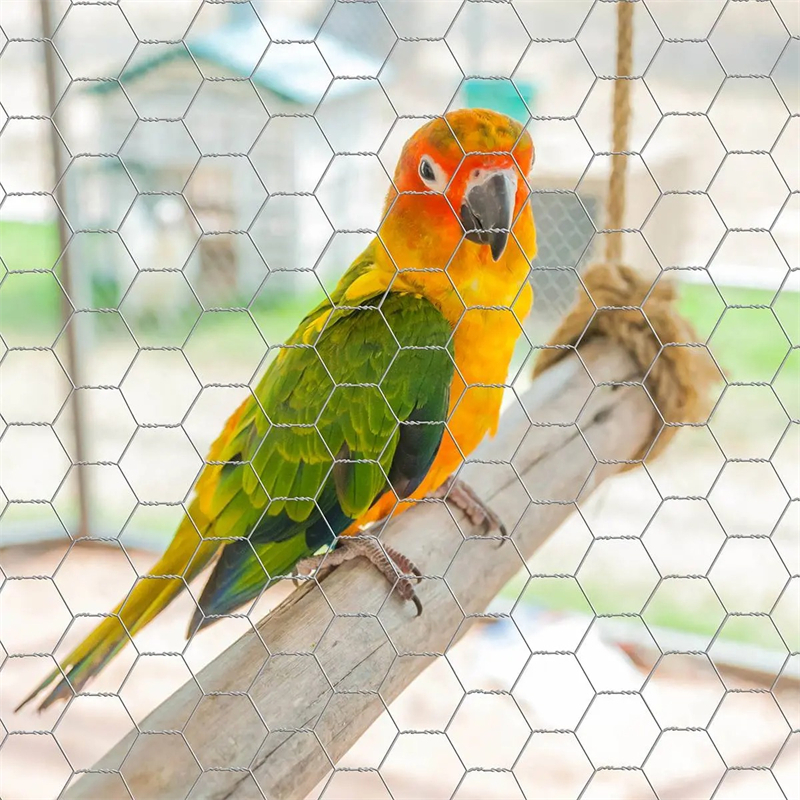

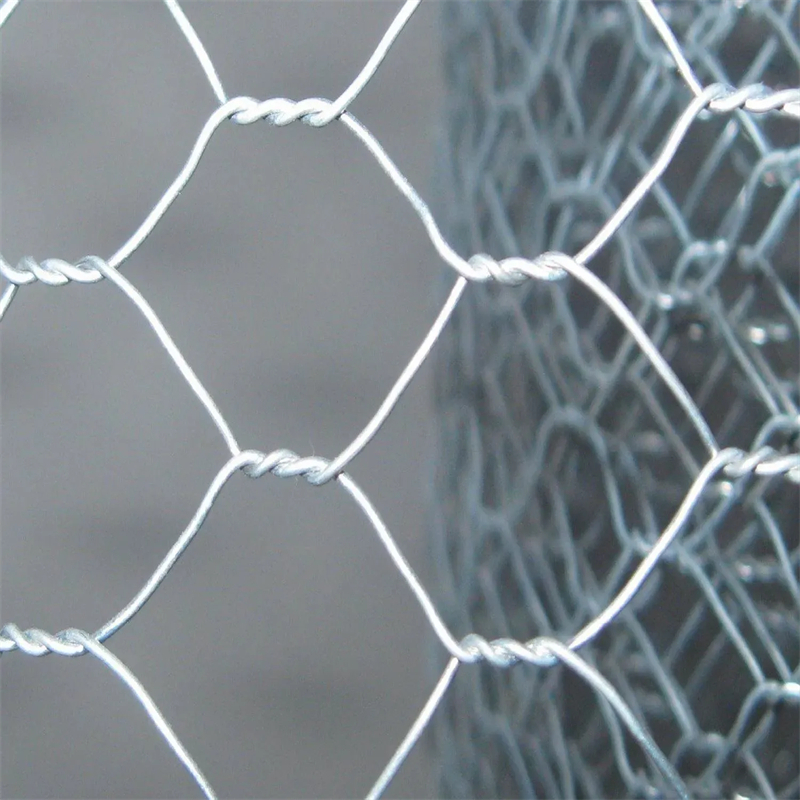

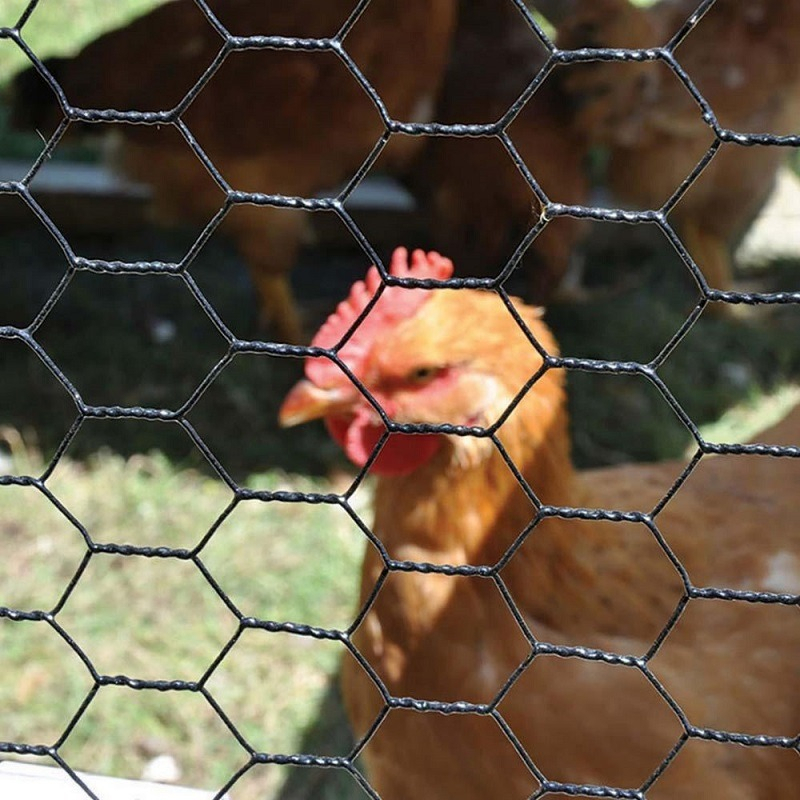

2. Woven / Hexagonal Bird Wire Mesh (Chicken Wire)

Woven or hexagonal bird wire mesh, often called chicken wire, is made by twisting wire into a continuous pattern of hexagons, which gives it a flexible, fabric-like feeling that wraps easily around frames, posts and irregular shapes.

Where it is used

  • Light bird enclosures and temporary runs
  • Garden beds and small fruit trees
  • Low-cost bird protection for rural projects

Why people like it

  • Very flexible and easy to shape around curves
  • Lightweight and simple to roll, cut and tie
  • Economical for very large areas of bird wire mesh

Secret 3: When chicken wire is too thin, foxes, dogs or even strong parrots can bite and tear the bird wire mesh faster than most owners ever expect.

Choosing a stronger structure for woven bird wire mesh at the beginning prevents surprise failures and protects both birds and crops.

WIRE ROPE DIAMETER (mm)MESH APERTURE (mm)Angle (degrees)Light Transmittance (%)MaterialNominal Breaking Load (lbs)WIRE ROPE STRUCTURES
0.6136092Low carbon steel90Twisted hexagonal
0.8136090Low carbon steel140Twisted hexagonal
0.8196093Low carbon steel140Twisted hexagonal
1.0196092Low carbon steel200Twisted hexagonal
0.9196093Low carbon steel160Twisted hexagonal
0.8256094Low carbon steel140Twisted hexagonal
1.0256093Low carbon steel200Twisted hexagonal
0.9256094Low carbon steel160Twisted hexagonal
1.0316095Low carbon steel200Twisted hexagonal
1.2316094Low carbon steel260Twisted hexagonal
1.2406096Low carbon steel260Twisted hexagonal
1.4406095Low carbon steel320Twisted hexagonal
1.6506096Low carbon steel420Twisted hexagonal
2.0506095Low carbon steel720Twisted hexagonal
1.6506096Low carbon steel420Twisted hexagonal

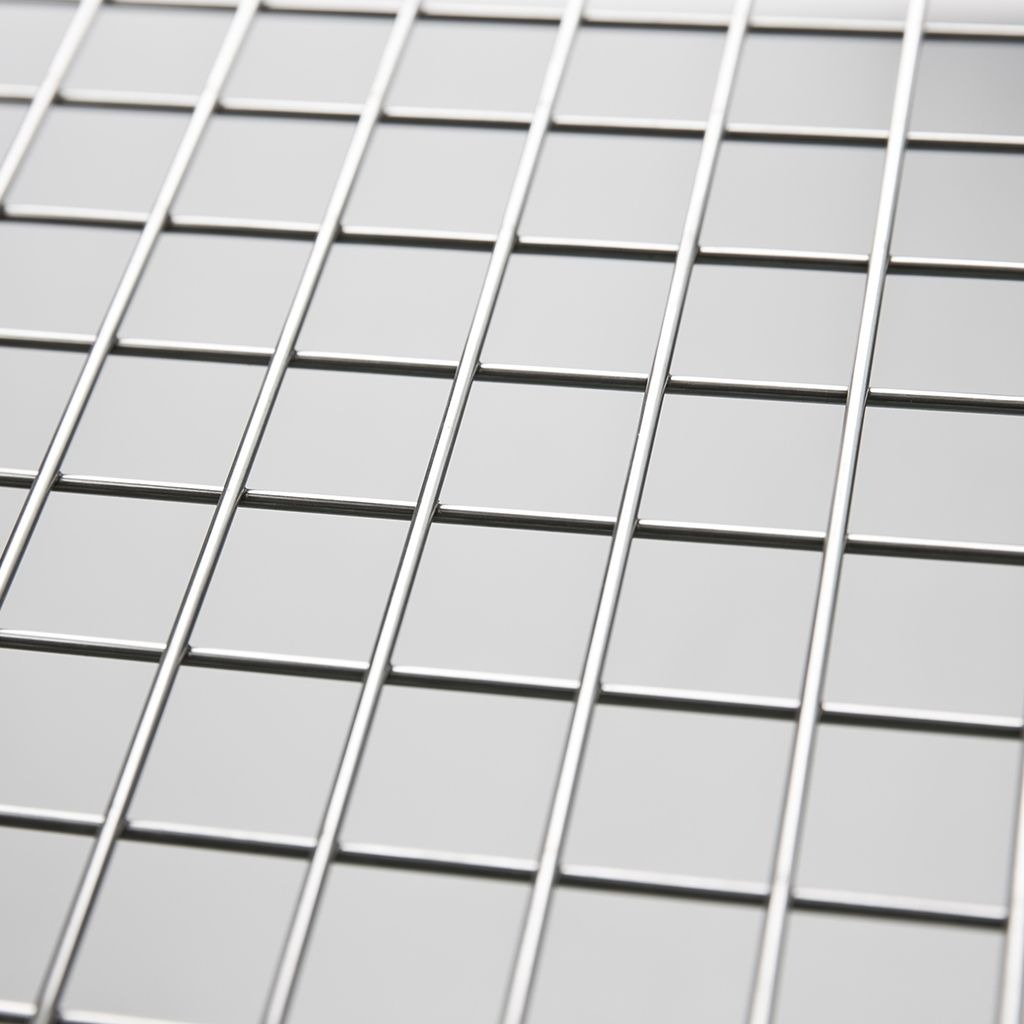

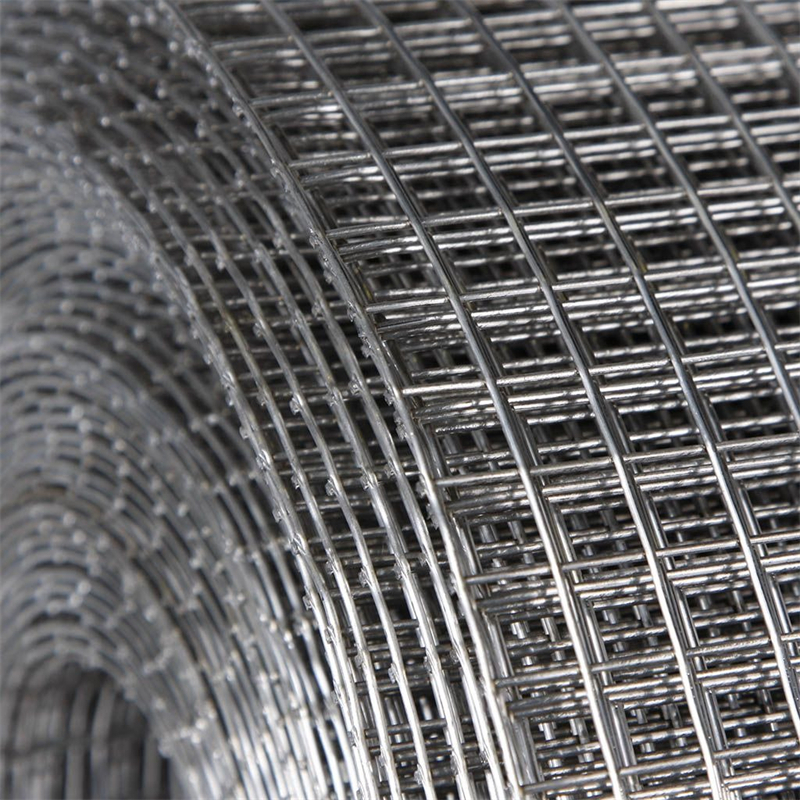

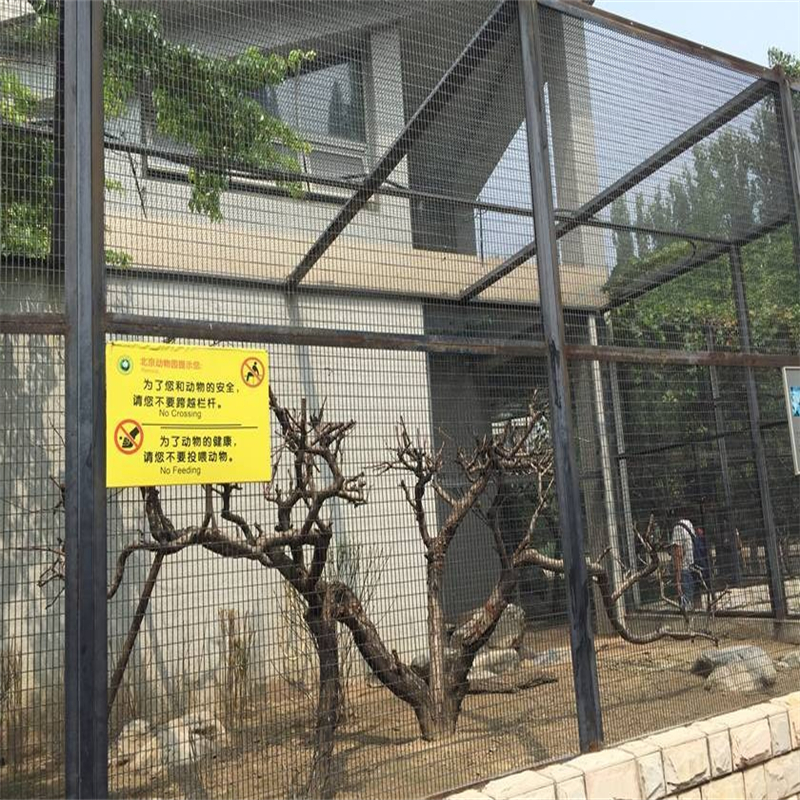

3. Stainless Steel Bird Mesh (Premium / Zoo Grade)

Stainless steel bird welded wire mesh is the premium version of welded or woven bird wire mesh, and although the geometry looks similar, stainless steel welded wire mesh the corrosion resistance, service life and surface finish are on a completely different level.

Where it is used

  • Zoos, bird parks and wildlife centres
  • High-end residential and commercial aviaries
  • Coastal projects and harsh industrial environments
  • Architecturally exposed façades and balconies

Why people like it

  • Exceptional corrosion resistance and long service life
  • Very stable bird wire mesh structure with minimal maintenance
  • Bright metallic finish that aligns with modern design

Secret 4: In coastal projects, upgrading to 316 grade stainless steel bird wire mesh at the start avoids total replacement after only a few salty seasons.

Using the right stainless grade in your bird wire mesh is the difference between a one-time investment and a constant repair cycle.

WIRE ROPE DIAMETER (mm)MESH APERTURE (mm)Angle (degrees)Light Transmittance (%)MaterialNominal Breaking Load (lbs)WIRE ROPE STRUCTURES
1.612.7 × 12.79072Stainless steel 304260Welded square
2.012.7 × 12.79070Stainless steel 316360Welded square
1.619 × 199078Stainless steel 304260Welded square
2.019 × 199076Stainless steel 316360Welded square
1.625 × 259082Stainless steel 304260Welded square
2.025 × 259080Stainless steel 316360Welded square
2.525 × 259078Stainless steel 316560Welded square
2.030 × 309084Stainless steel 304360Woven square
2.530 × 309082Stainless steel 316560Woven square
2.038 × 389086Stainless steel 304360Welded square
3.038 × 389084Stainless steel 316820Welded square
3.050 × 259086Stainless steel 304820Woven rectangle
2.550 × 509088Stainless steel 304560Welded square
3.1550 × 509086Stainless steel 316820Welded square
3.1575 × 509090Stainless steel 316820Woven rectangle

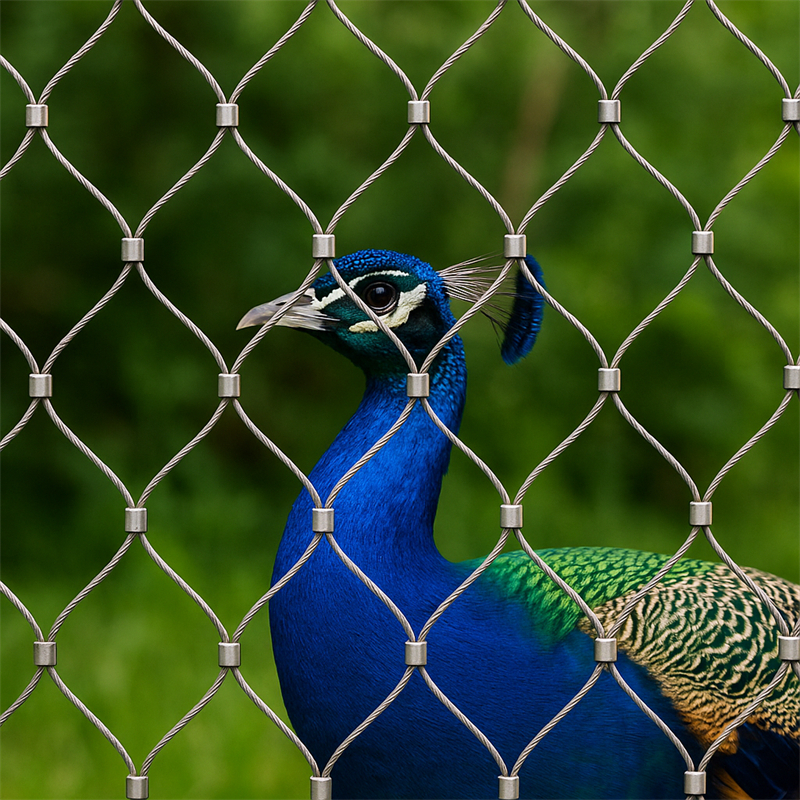

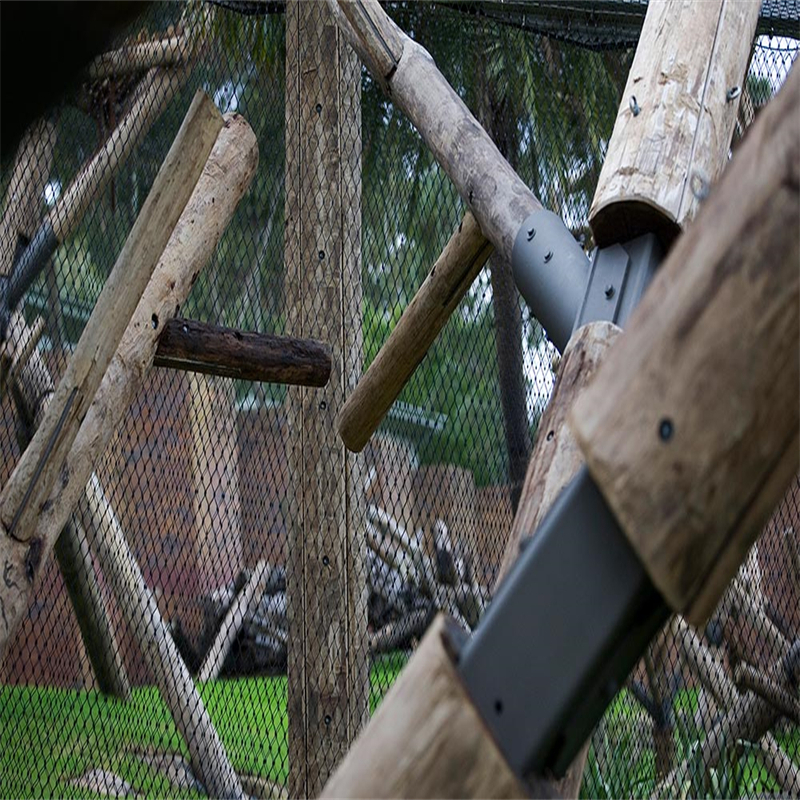

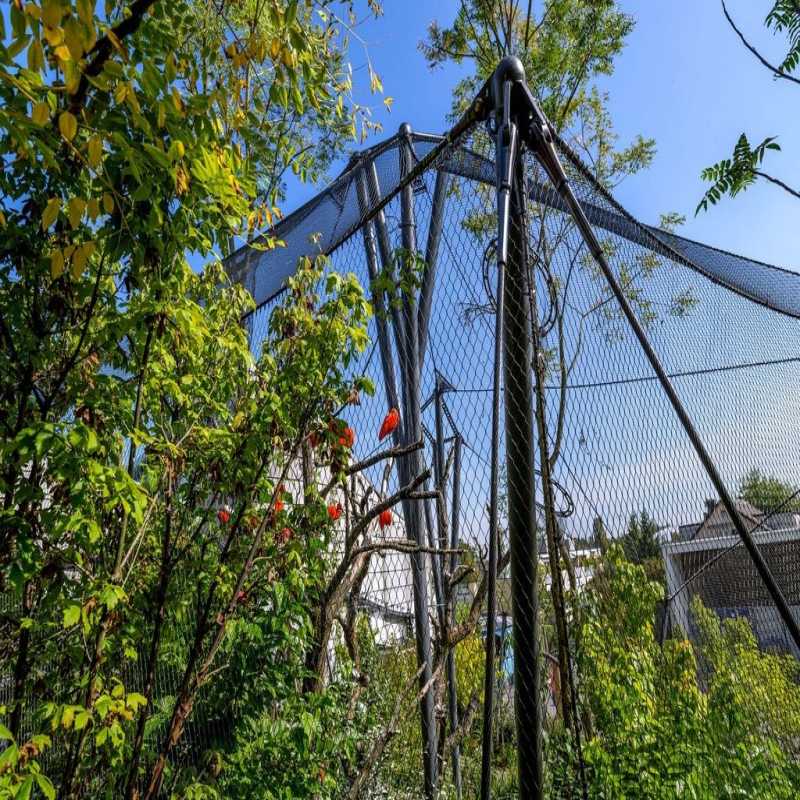

4. Stainless Steel Rope / Cable Bird Wire Mesh

Stainless steel rope or cable bird wire mesh looks like a fine net made from cables rather than a rigid fence, and the interwoven rope structure produces elegant diamond openings that flex and absorb loads while remaining safely enclosed.

Where it is used

  • Large, open aviaries in zoos
  • Walk-through bird tunnels and overhead roofs
  • Architectural safety barriers on bridges and stairs
  • Façades where a nearly invisible bird wire mesh is desired

Why people like it

  • Very high strength with extremely low visual impact
  • Follows curves and organic shapes beautifully
  • Opens up the view for visitors and photographers

Secret 5: The angle and aperture of rope bird wire mesh decide how invisible the enclosure looks in photos and how safe it feels for large birds in flight.

By fine-tuning the rope diameter and mesh aperture, you can balance strength, transparency and cost with precise control.

WIRE ROPE DIAMETER (mm)MESH APERTURE (mm)Angle (degrees)Light Transmittance (%)MaterialNominal Breaking Load (lbs)WIRE ROPE STRUCTURES
1.220 × 356088AISI 3042607×7
1.225 × 446089AISI 3162607×7
1.525 × 446088AISI 3044207×7
1.530 × 526090AISI 3164207×7
1.535 × 616091AISI 3044207×7
1.630 × 526089AISI 3164607×7
1.635 × 616090AISI 3044607×7
1.640 × 696092AISI 3164607×7
2.035 × 616088AISI 3047207×19
2.040 × 696090AISI 3167207×19
2.050 × 876092AISI 3047207×19
2.450 × 876091AISI 31610507×19
2.460 × 1046093AISI 30410507×19
3.060 × 1046092AISI 31616507×19
3.076 × 1316094AISI 31616507×19

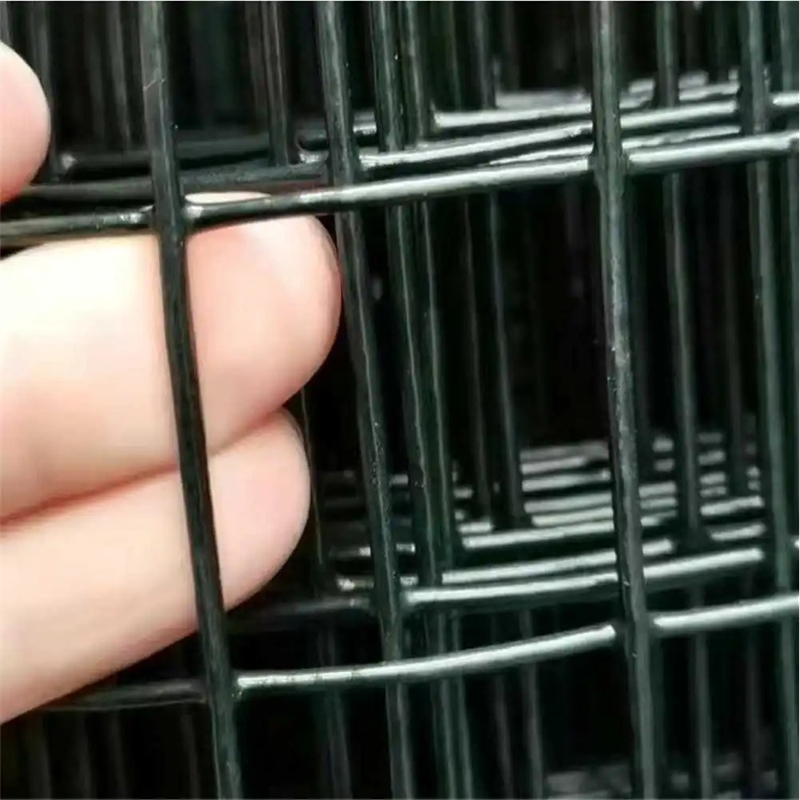

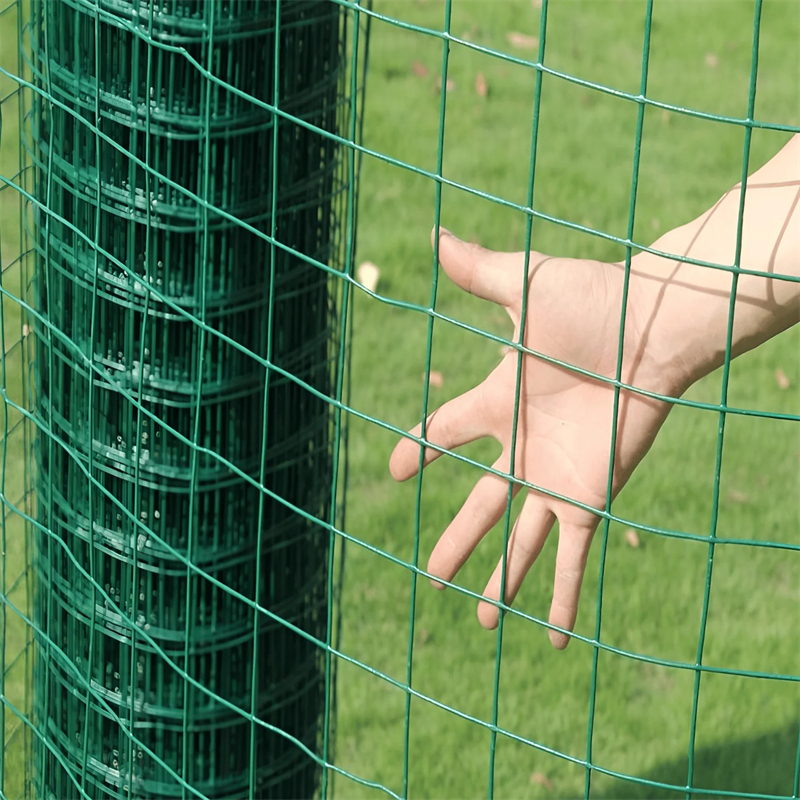

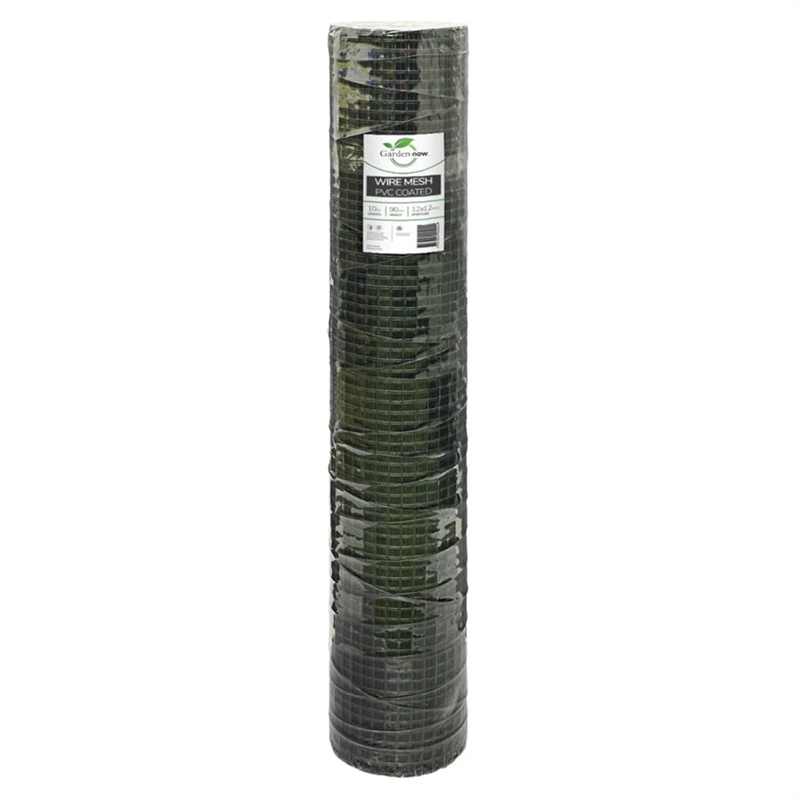

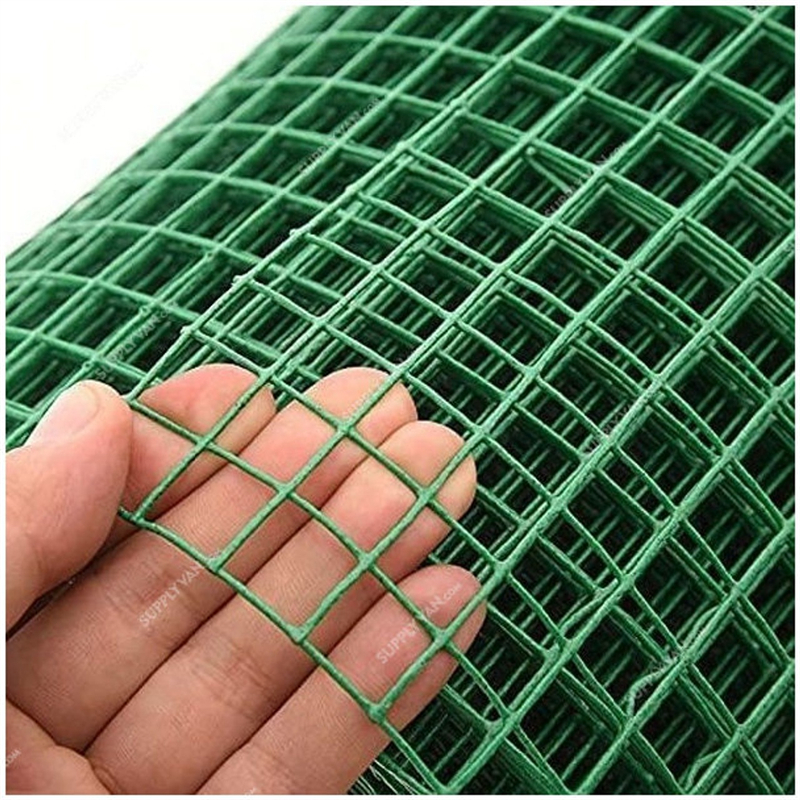

5. Plastic-Coated Bird Wire Mesh (PVC / PE Coated)

Plastic-coated bird wire mesh starts with a metal core and adds a smooth PVC or PE coating around each wire, giving a softer touch, a colour that blends with plants or buildings and an extra barrier against corrosion.

Where it is used

  • Garden and landscape aviaries
  • Residential fences and decorative enclosures
  • School and public areas where people often touch the bird wire mesh

Why people like it

  • Softer to the touch than bare metal wire
  • Coating provides one more level of corrosion protection
  • Colours that visually disappear into greenery or architecture

Secret 6: Dark plastic-coated bird wire mesh hides dust and small scratches, protecting the premium look of your aviary for far longer than bright uncoated metal.

Colour choice in plastic-coated bird wire mesh is not only an aesthetic decision, it also directly affects how clean and new the installation looks after years of outdoor exposure.

WIRE ROPE DIAMETER (mm)MESH APERTURE (mm)Angle (degrees)Light Transmittance (%)MaterialNominal Breaking Load (lbs)WIRE ROPE STRUCTURES
0.912.7 × 12.79070Low carbon steel + PVC160Welded, coated
1.212.7 × 12.79068Low carbon steel + PVC200Welded, coated
0.919 × 199076Low carbon steel + PVC160Welded, coated
1.219 × 199074Low carbon steel + PVC200Welded, coated
1.519 × 199072Low carbon steel + PVC260Welded, coated
1.225 × 259080Low carbon steel + PVC200Welded, coated
1.525 × 259078Low carbon steel + PE260Welded, coated
1.825 × 259076Low carbon steel + PVC360Welded, coated
1.531 × 319084Low carbon steel + PVC260Welded, coated
1.831 × 319082Low carbon steel + PVC360Welded, coated
1.838 × 389086Low carbon steel + PVC360Welded, coated
2.038 × 389084Low carbon steel + PE420Welded, coated
2.050 × 509088Low carbon steel + PVC420Welded, coated
2.550 × 509086Low carbon steel + PVC560Welded, coated
3.050 × 509084Low carbon steel + PVC720Welded, coated

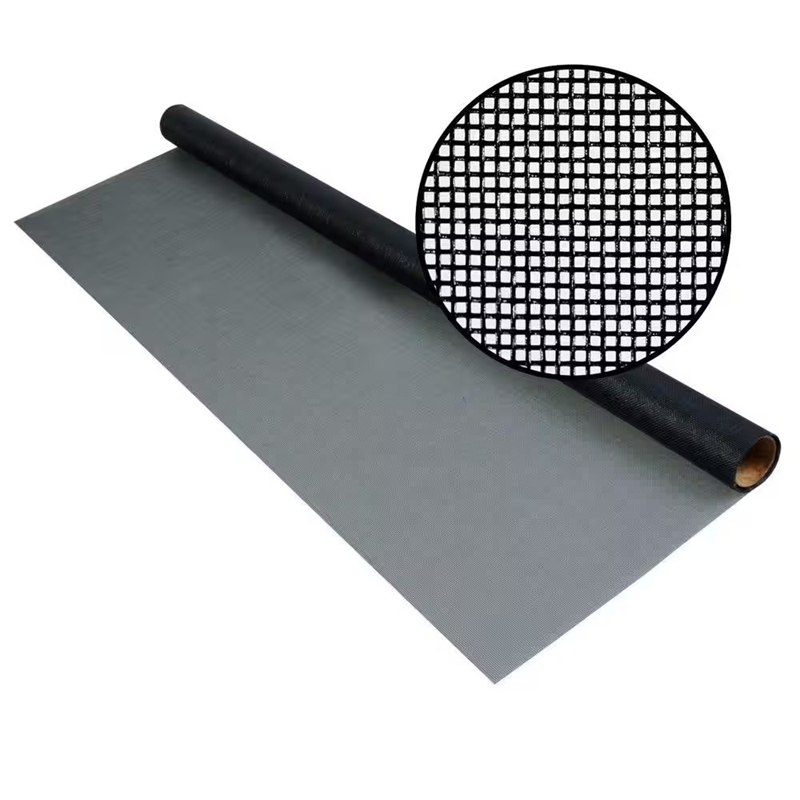

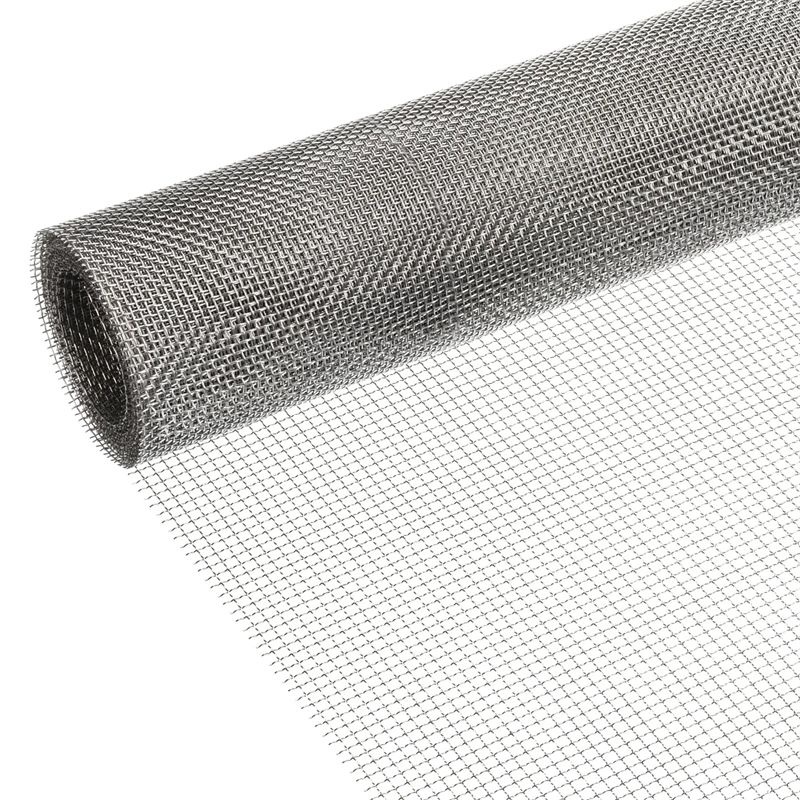

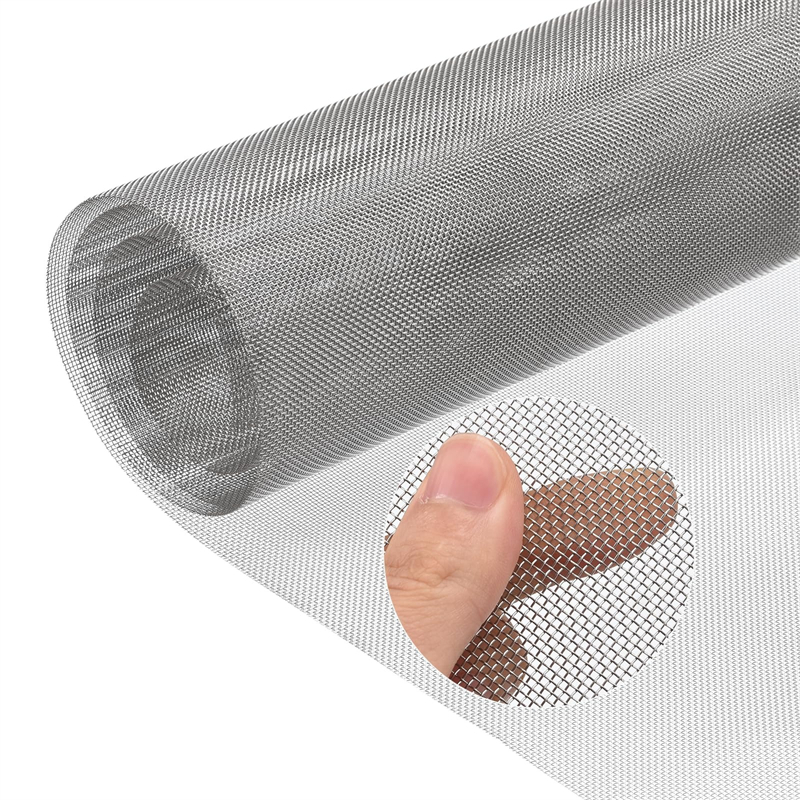

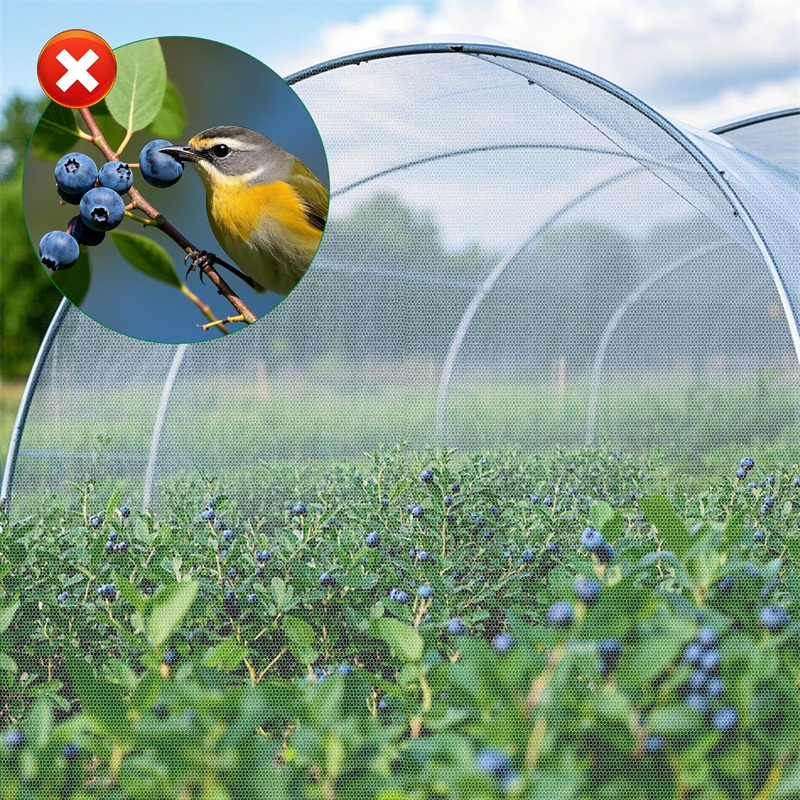

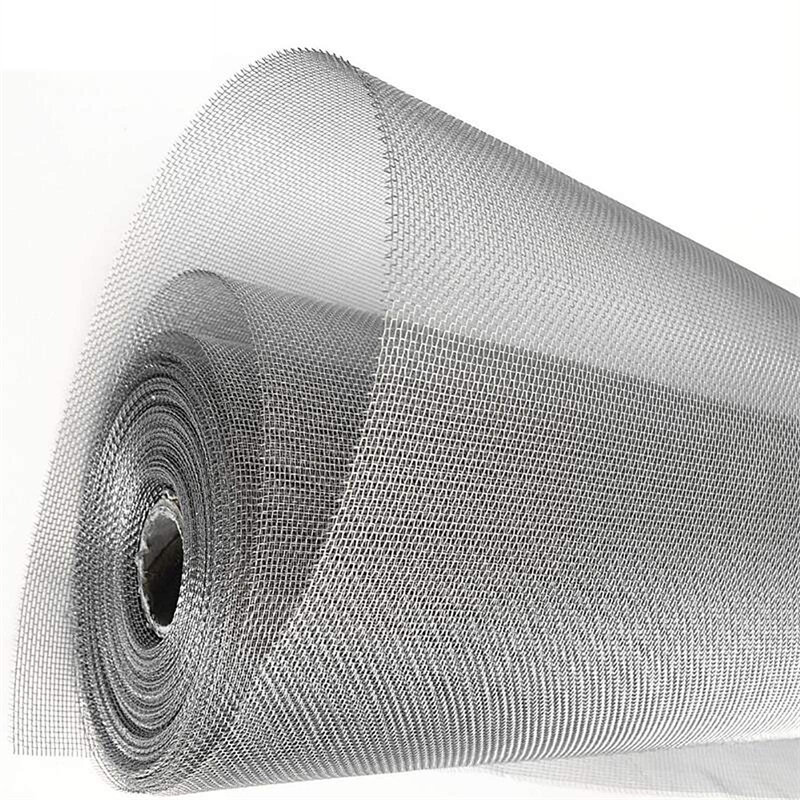

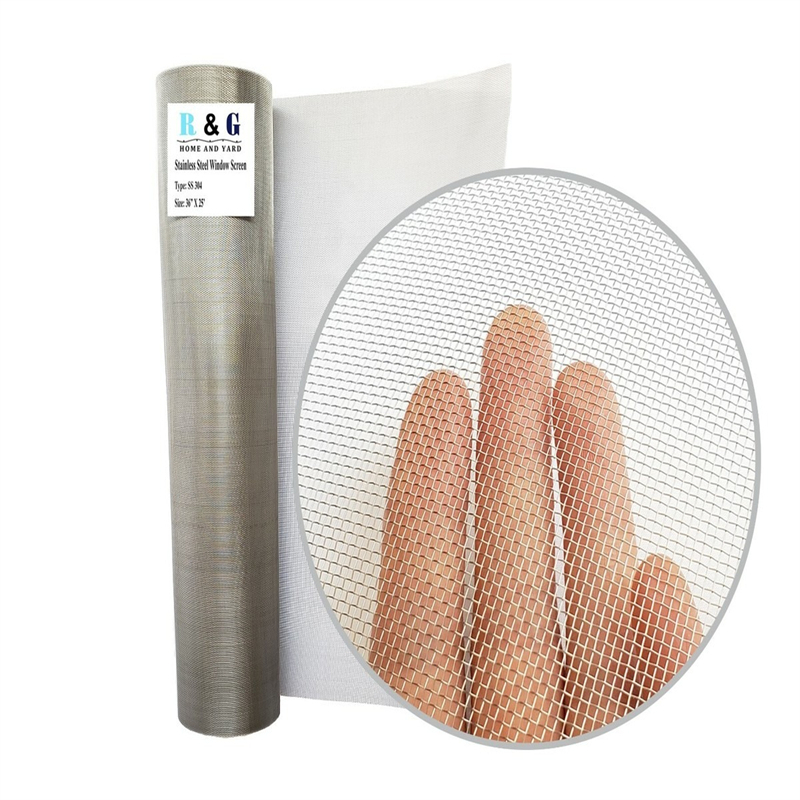

6. Fine Insect & Bird Screen

Fine insect and bird screen looks like tight window netting, but when you choose the correct aperture it becomes an effective bird wire mesh barrier for small birds while still blocking insects and allowing air and light to pass.

Where it is used

  • Vents, louvers and eaves in buildings
  • Greenhouse windows and roof vents
  • Fruit and vegetable protection in gardens
  • Areas where insects and small birds are both a problem

Why people like it

  • Blocks small birds without leaving gaps for insects
  • Lightweight and easy to tension on frames
  • Keeps inside spaces bright and well ventilated
WIRE ROPE DIAMETER (mm)MESH APERTURE (mm)Angle (degrees)Light Transmittance (%)MaterialNominal Breaking Load (lbs)WIRE ROPE STRUCTURES
0.251.529078Fiberglass35Plain weave
0.251.309076Fiberglass35Plain weave
0.251.189075Fiberglass35Plain weave
0.251.009074Fiberglass35Plain weave
0.230.909073Polyester30Plain weave
0.230.909073Polyester30Plain weave
0.200.809072Polyester28Plain weave
0.180.709071Polyester25Plain weave
0.281.309076Aluminum60Plain weave
0.281.189075Aluminum60Plain weave
0.281.009074Aluminum60Plain weave
0.250.909073Stainless steel 30480Plain weave
0.250.909073Stainless steel 30480Plain weave
0.200.709071Stainless steel 31670Plain weave
0.160.509069Stainless steel 31660Plain weave

7. Specialty Anti-Bird Barrier Mesh

Specialty anti-bird barrier systems combine high-tensile grids, cables and tensioned nets to protect buildings and infrastructure from pest birds such as pigeons, starlings and seagulls without harming them.

Where it is used

  • Building ledges, beams and roof structures
  • Under bridges and overpasses
  • Industrial plants and loading docks
  • Stadiums, stations and other large public spaces

Why people like it

  • Discreet appearance when installed at height
  • Designed to stop roosting and nesting completely
  • Can be combined with spikes or electric track in high-pressure zones

Secret 7: Correctly tensioned high-tensile bird wire mesh grids stop nesting on ledges far more reliably than spikes alone, especially on wide shelves and beams.

By closing off the full three-dimensional space with specialty bird wire mesh, you remove the comfortable pockets that pest birds search for every day.

Wire / Cable Diameter (mm)MESH APERTURE (mm)System TypeAngle (degrees)Light Transmittance (%)MaterialNominal Breaking Load (lbs)
2.050 × 50Rigid welded grid9092High-tensile steel, galvanized720
2.550 × 50Rigid welded grid9090High-tensile steel, galvanized1100
3.075 × 75Rigid welded grid9093High-tensile steel, galvanized1650
3.575 × 75Rigid welded grid9092High-tensile steel, galvanized2200
4.0100 × 100Rigid welded grid9094High-tensile steel, galvanized3200
4.0150 × 150Rigid welded grid9096High-tensile steel, galvanized3200
4.5150 × 150Rigid welded grid9095High-tensile steel, galvanized4100
5.0200 × 200Rigid welded grid9097High-tensile steel, galvanized5100
3.075 × 75Tensioned cable net6093AISI 316 cable1650
3.0100 × 100Tensioned cable net6094AISI 316 cable1650
4.0100 × 100Tensioned cable net6093AISI 316 cable3200
4.0150 × 150Tensioned cable net6095AISI 316 cable3200
5.0150 × 150Tensioned cable net6094AISI 316 cable5100
5.0200 × 200Tensioned cable net6096AISI 316 cable5100
6.0200 × 200Tensioned cable net6095AISI 316 cable7300

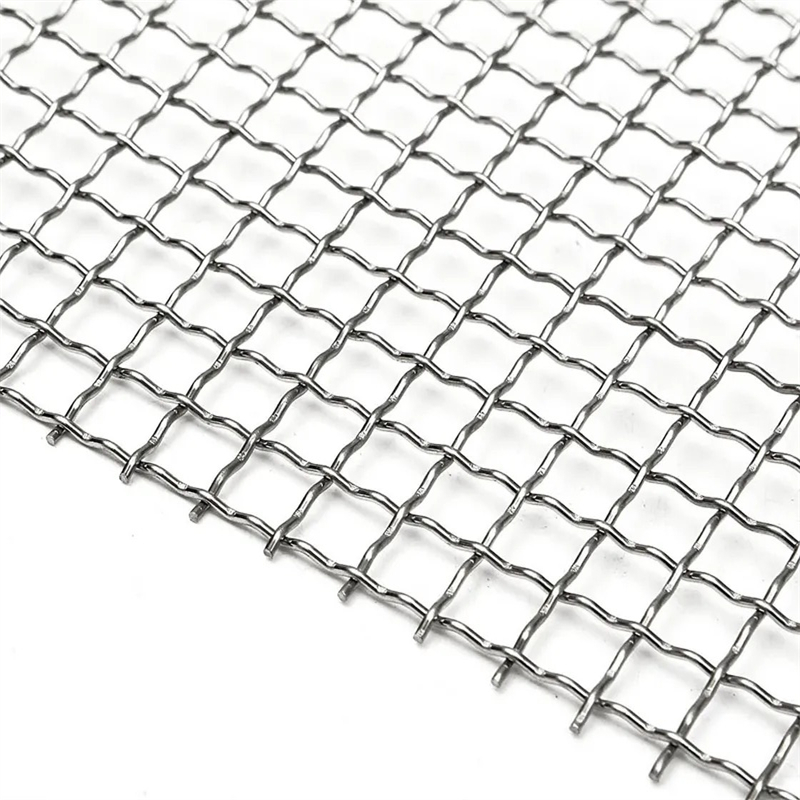

8. Stainless Steel Crimped Wire Mesh

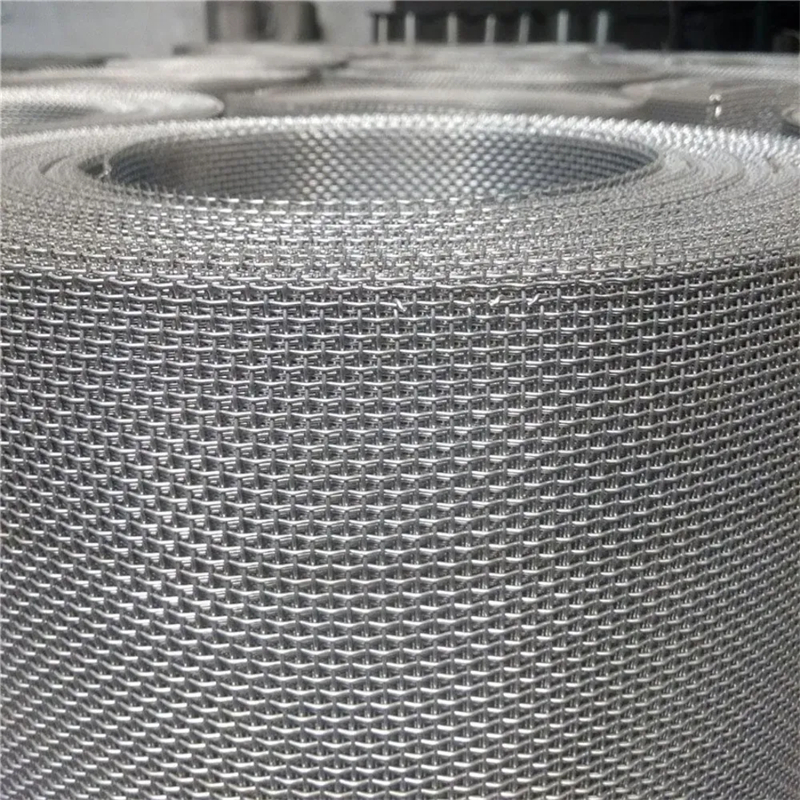

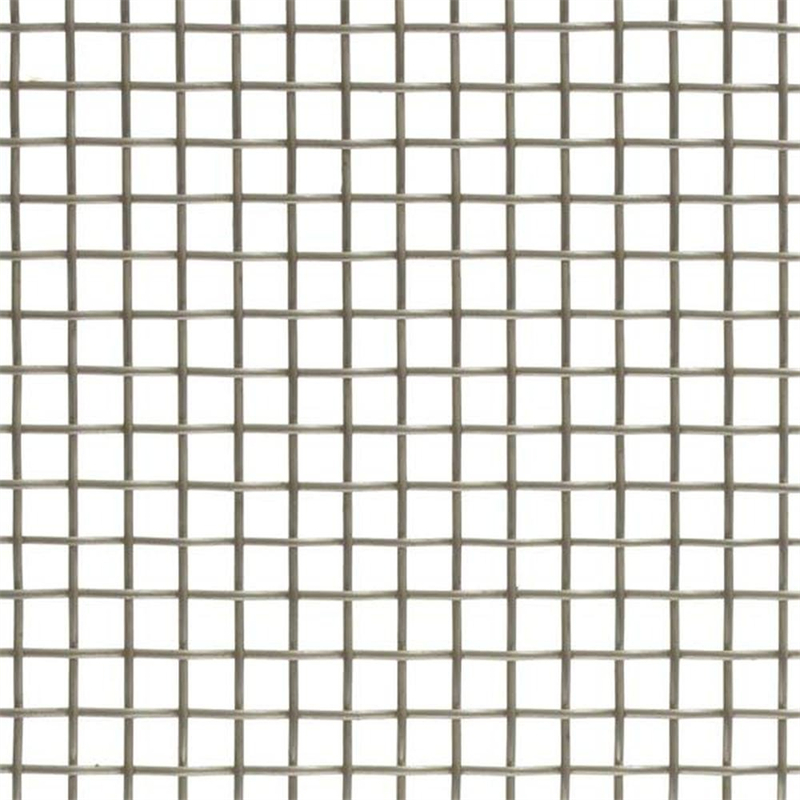

Stainless steel crimped wire mesh uses pre-crimped wires woven into a rigid, accurate grid, giving a bird wire mesh that holds its shape under heavy loads and resists deformation even when larger birds climb or land on it repeatedly.

Where it is used

  • Heavy-duty bird enclosures for strong parrots and raptors
  • Zoo partitions where visitors lean or press against the mesh
  • Floor, façade and screen panels that need extra rigidity
  • Predator-resistant fencing around valuable breeding areas

Why people like it

  • Crimped intersections lock wires in place and prevent slippage
  • Flat-top and lock-crimp patterns create a neat, premium appearance
  • Stainless material guarantees long, low-maintenance service life

Secret 8: When the crimp pattern of stainless bird wire mesh is too light, repeated climbing by large birds can slowly open the grid and create dangerous gaps for heads, wings or legs.

By selecting a heavier crimped specification from the start, you protect both the birds and the reputation of the enclosure because the mesh stays tight and accurate for many years.

WIRE ROPE DIAMETER (mm)MESH APERTURE (mm)Angle (degrees)Light Transmittance (%)MaterialNominal Breaking Load (lbs)WIRE ROPE STRUCTURES
1.010 × 109055Stainless steel 304180Double crimped square
1.210 × 109053Stainless steel 316260Double crimped square
1.212 × 129058Stainless steel 304260Double crimped square
1.512 × 129056Stainless steel 316360Double crimped square
1.515 × 159062Stainless steel 304360Lock crimped square
2.015 × 159060Stainless steel 316560Lock crimped square
2.020 × 209068Stainless steel 304560Double crimped square
2.520 × 209066Stainless steel 316820Flat top crimp
2.525 × 259072Stainless steel 304820Flat top crimp
3.025 × 259070Stainless steel 3161220Lock crimped square
3.030 × 309076Stainless steel 3041220Double crimped square
3.530 × 309074Stainless steel 3161650Lock crimped square
4.040 × 409082Stainless steel 3042000Double crimped square
4.050 × 509086Stainless steel 3162000Lock crimped square
5.050 × 509084Stainless steel 3162600Heavy duty crimped

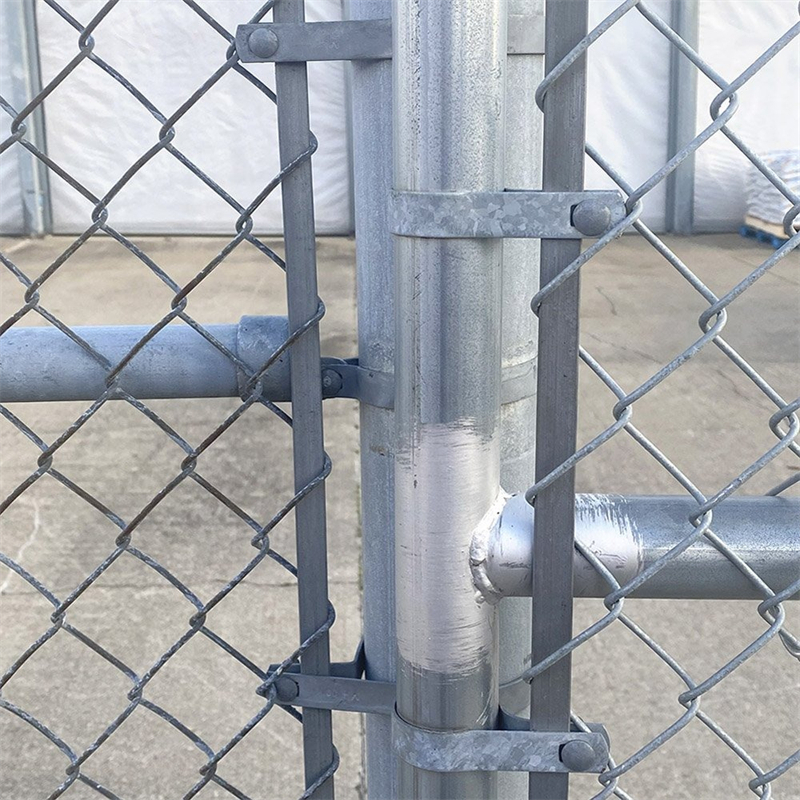

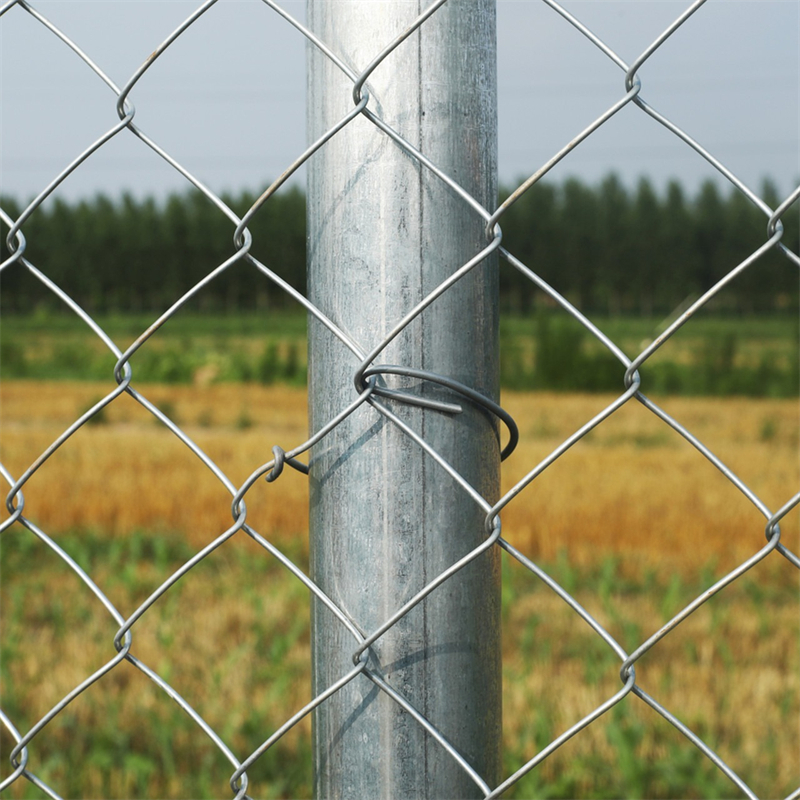

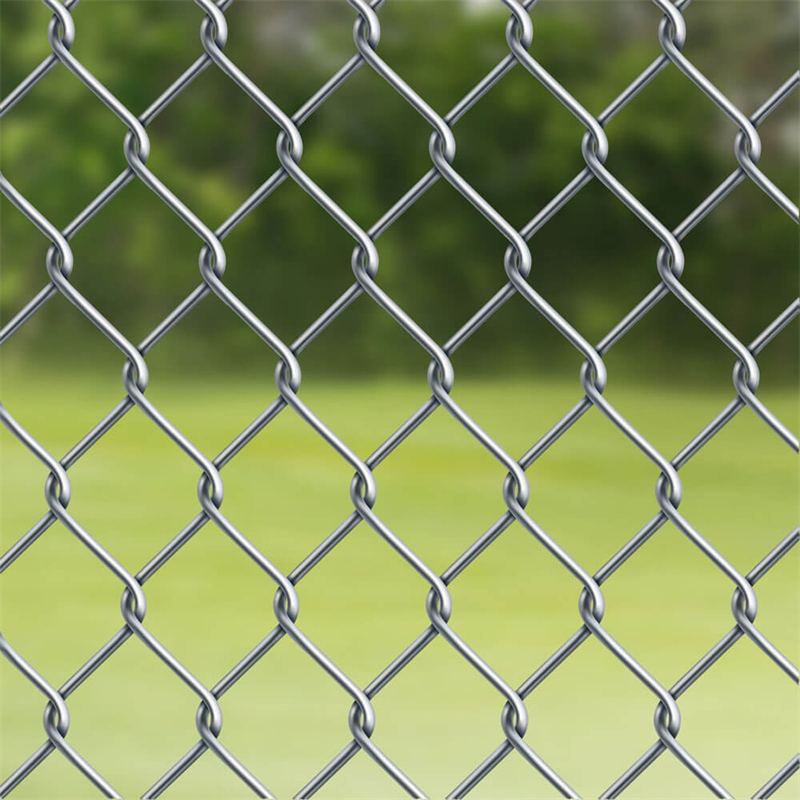

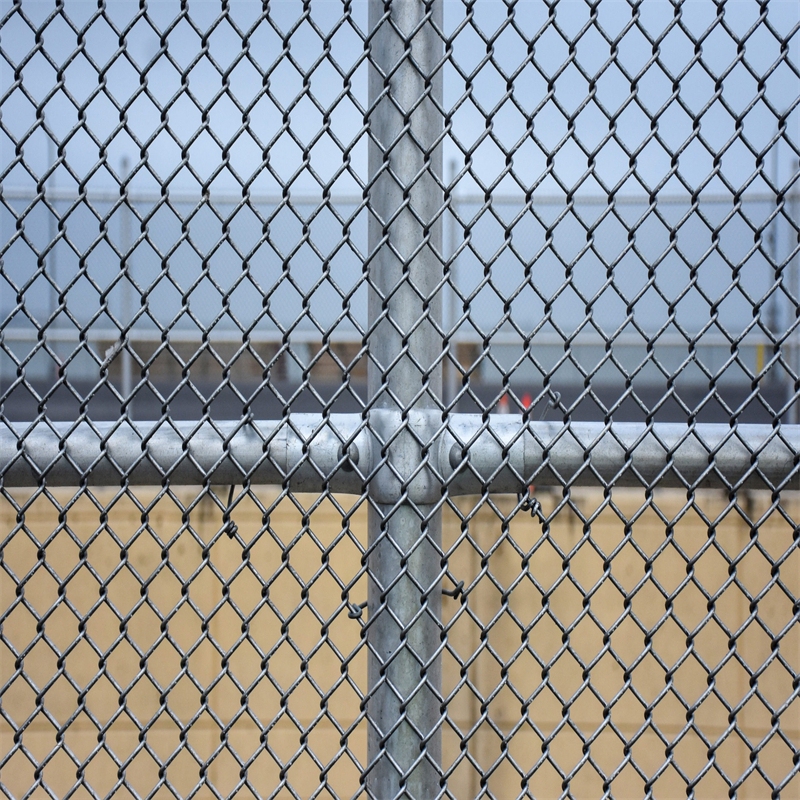

9. Stainless Steel Chain Link Fence Bird Wire Mesh

Stainless steel chain link fence bird wire mesh upgrades the classic diamond chain-link structure with full stainless wires, creating a flexible yet durable barrier that resists cutting, corrosion and long-term sagging in demanding bird control projects.

Where it is used

  • Large perimeter runs for waterfowl, pheasants and game birds
  • Boundary fences around bird parks, zoos and farms
  • High-security bird wire mesh lines near roads, railways or airports
  • Facade and rooftop bird exclusion where wide spans are needed

Why people like it

  • Continuous diamond pattern distributes impact and climbing loads
  • Stainless steel provides outstanding weather and vandal resistance
  • Flexible fence line follows slopes and corners without complex framing

Secret 9: If the edge finishing of stainless chain link bird wire mesh is wrong, sharp twists and loose ends at the top rail can tear wings and injure birds during take-off and landing.

By choosing the correct knuckled or twisted edge style and matching the wire gauge to bird size and height, you guarantee a smooth, safe top line that protects both birds and visitors while still stopping intruders.

WIRE ROPE DIAMETER (mm)MESH APERTURE (mm)Angle (degrees)Light Transmittance (%)MaterialNominal Breaking Load (lbs)WIRE ROPE STRUCTURES
2.025 × 256078Stainless steel 304560Knuckled top, bottom
2.330 × 306080Stainless steel 304720Knuckled top, bottom
2.340 × 406086Stainless steel 304720Knuckled top, twisted bottom
2.540 × 406084Stainless steel 316820Twisted top, bottom
2.550 × 506088Stainless steel 304820Knuckled top, bottom
3.050 × 506086Stainless steel 3161220Twisted top, bottom
3.260 × 606089Stainless steel 3041350Knuckled top, bottom
3.260 × 606089Stainless steel 3161350Twisted top, bottom
3.575 × 756092Stainless steel 3041650Knuckled top, bottom
3.575 × 756092Stainless steel 3161650Twisted top, bottom
4.080 × 806093Stainless steel 3042000Knuckled top, bottom
4.080 × 806093Stainless steel 3162000Twisted top, bottom
4.0100 × 1006095Stainless steel 3042000Knuckled top, bottom
4.5100 × 1006095Stainless steel 3162600Twisted top, bottom
5.0100 × 1006095Stainless steel 3163200Heavy perimeter chain link

How to Choose the Right Type of Bird Wire Mesh

When selecting bird wire mesh, the key questions are simple but powerful and they decide how safe, clean and durable your project will be.

  • What are you protecting? Birds, people, buildings, crops or a combination of all four.
  • Which birds are involved? Tiny finches, parrots, pigeons or large raptors with strong beaks and claws.
  • How visible should the bird wire mesh be? Completely discreet in the background or part of the architectural design.
  • What environment will it face? Indoor, outdoor, coastal, industrial or high-ammonia areas near animals.

Welded and woven bird wire mesh cover the majority of everyday needs, stainless steel bird wire mesh and rope mesh take over when durability, appearance and safety standards are higher, plastic-coated mesh and fine screens refine the areas where people and birds meet and specialty barrier systems protect large structures from long-term nesting and droppings.
With these 7 types of bird wire mesh and the 7 practical secrets spread through this guide, you can confidently match every project to a precise specification, from a small backyard aviary to a full-scale zoo exhibit or an urban façade that must stay clean and bird-free for many years.
