What “Garrison Fencing Bunnings” Usually Means in Real Projects

Garrison fencing is typically a tubular steel picket panel system built from horizontal rails and vertical uprights (pickets), fixed to steel posts using brackets and anti-tamper fixings. Buyers use the term garrison fencing bunnings because they want a familiar format that is easy to order, easy to install, and looks consistent on public sites. In real operations, success is measurable: the fence stays straight, panels stay aligned, posts don’t move, and the finish survives handling without exposing steel at weld zones and cut points. To lock installation fit and tamper resistance, choose the correct hardware here:garrison fencing brackets.

POLYMETAL Product Description

POLYMETAL garrison fencing panels are modular perimeter panels designed to combine architectural appearance with measurable stiffness. Panels are produced using controlled rail frames (40×40mm, 45×45mm, or 50×50mm) with rail thickness options from 1.60mm to 3.00mm to match fence height, exposure, and project risk. Uprights can be specified in 16×16mm, 25×25mm, or 30×30mm profiles with upright thickness options from 0.80mm to 2.00mm, and upright spacing is locked by design to control both security feel and line rigidity.

Post options are selected as a structural system—not a generic add-on—using 60×60mm, 65×65mm, 75×75mm, 80×80mm, or 100×100mm posts with wall thickness choices of 1.6mm, 2.00mm, or 2.50mm. Upright quantity is tied to spacing discipline, commonly 16 pcs (115mm spacing), 17 pcs (108mm spacing), or 18 pcs (100mm spacing). The most important installation lock-in is simple and non-negotiable for straight fences: Fence Post Height = Fence Panel Height + 600mm (minimum).

Top 20 Spec Traps for Garrison Fencing Bunnings Buyers (Especially #12)

Trap #1 — The hidden detail of rail wall thickness in garrison fencing bunnings specs

Two garrison fencing bunnings-style panels can share the same rail frame size (40×40 or 45×45) yet behave very differently if one uses thinner rail wall. Rail thickness drives stiffness, vibration resistance, and whether garrison fencing stays straight after handling.

Trap #2 — The fact that rail thickness must match height in garrison fencing bunnings orders

A 2400mm garrison fencing panel built with light rail thickness can flex and rattle. When ordering garrison fencing bunnings specifications, lock rail thickness (1.60 / 2.0 / 2.5 / 3.0mm) to the height tier so the fence line doesn’t feel “soft.”

Trap #3 — The truth about upright thickness on garrison fencing bunnings panels

Uprights at 0.80mm may suit low-impact boundaries, but public sites often need 1.00–1.20mm or 2.00mm. If you want garrison fencing bunnings purchases that last, upright thickness must resist denting and movement.

Trap #4 — The point that upright spacing is not decoration in garrison fencing bunnings

Upright spacing controls security feel and stiffness in garrison fencing. Wider spacing can look “light” and create visible wave-lines, while tight spacing (100mm) typically reads more secure. For garrison fencing bunnings style buying, spacing must be written, not assumed.

Trap #5 — The note that upright quantity must match spacing in garrison fencing bunnings specs

A garrison fencing panel quoting 18 uprights at 100mm spacing is not the same as a panel that drops to 16 uprights at 115mm spacing. Upright count is steel you can count—so for garrison fencing bunnings, lock the upright number in the PO.

Trap #6 — The tip to treat posts as the foundation system for garrison fencing bunnings installs

Posts are not accessories in garrison fencing. If you upgrade height or wind exposure but keep the post too small, movement and misalignment appear after installation. In garrison fencing bunnings procurement, post option and wall thickness control the whole line.

Trap #7 — The hint that weld discipline matters more than “nice paint” on garrison fencing bunnings

Smooth-looking coating on garrison fencing can hide inconsistent weld penetration or heat distortion. Poor weld control becomes twist, misfit, and alignment drift—exactly the failures garrison fencing bunnings buyers complain about later.

Trap #8 — The idea that “same photo = same fence” is the fastest loss in garrison fencing bunnings

Many garrison fencing bunnings listings look similar, but thickness, spacing discipline, and post selection change performance dramatically. Buy garrison fencing by measurable specification, not by image.

Trap #9 — The angle of corrosion starting at cut points on garrison fencing bunnings panels

Rust on garrison fencing typically begins where steel is exposed—cut edges, weld zones, or coating damage during handling. If coating targets and packing protection are not defined, garrison fencing bunnings purchases can “age fast.”

Trap #10 — The aspect of coating thickness being a spec, not a promise, for garrison fencing bunnings

“Powder coated” alone is not enough for garrison fencing. Define minimum finish expectations so batches do not vary and weld zones don’t become early rust points. This is a must-lock item in garrison fencing bunnings POs.

Trap #11 — The element of wrong bracket / fixing fit creating forced installation in garrison fencing bunnings

If brackets don’t match tube sizes, installers force alignment, damage coating, and create looseness that turns into rattle. For garrison fencing bunnings style systems, hardware must match the rail/upright/post tube system exactly.

Trap #12 — The critical feature: garrison fencing bunnings post height must be panel height + 600mm

This is where garrison fencing bunnings buyers lose the most money. If the post is not at least 600mm taller than the fence panel height, installers compensate with shallow embedment or weak footing. That leads to post movement, leaning lines, rattles, and early complaints. Lock this rule into every purchase order for garrison fencing:
Fence Post Height = Fence Panel Height + 600mm (minimum).

Trap #13 — The trait of wind load being ignored on tall garrison fencing bunnings panels

Height increases leverage on garrison fencing. Taller panels require stronger rail frames and larger posts to prevent sway, vibration, and visible line drift—common failure modes after garrison fencing bunnings purchases.

Trap #14 — The side effect of shipping damage becoming rust on garrison fencing bunnings

Small impacts can crack coating and start corrosion. Packing must prevent rail-to-rail abrasion and edge rubbing that later shows as rust trails. If you want durable garrison fencing bunnings results, packing protection is part of the spec.

Trap #15 — The view that “reasonable price” hides missing steel in garrison fencing bunnings

The most common downgrade in garrison fencing is thinner wall thickness or fewer uprights. Compare like-for-like steel specification, not “looks similar.” This is the pricing trap behind many garrison fencing bunnings complaints.

Trap #16 — The insight that mixed thicknesses create uneven lines in garrison fencing bunnings

If some garrison fencing panels are stiffer than others, the line looks inconsistent. Keep rail, upright, and post thickness consistent per height tier for a uniform run—especially when ordering garrison fencing bunnings quantities.

Trap #17 — The finding that wrong post wall thickness creates “soft” corners in garrison fencing bunnings

Corners and gates amplify movement in garrison fencing. If post wall thickness is too light, corners shift and straight lines become waves over time. In garrison fencing bunnings specs, post wall thickness must match exposure and height.

Trap #18 — The discovery that “DIY easy assembly” still needs locked tolerances for garrison fencing bunnings

Assemble-ready garrison fencing saves labor, but only if hole patterns, bracket positions, and module tolerances are standardized. Without that, installation becomes forced fit and coating damage—exactly what garrison fencing bunnings buyers want to avoid.

Trap #19 — The lesson that ignoring upright count makes garrison fencing bunnings look cheap instantly

Public sites judge garrison fencing by visual density and alignment. Upright count tied to spacing is a quality signal—lock 16 / 17 / 18 uprights per panel as required in garrison fencing bunnings purchase orders.

Trap #20 — The rule: buy the garrison fencing bunnings system, not just the panel

A panel alone does not create performance. Garrison fencing is a system of panel + post + fixings + foundations + finish + packing plan. If one component is weak, the whole perimeter becomes a problem—so garrison fencing bunnings buyers must lock the system, not only the panel.

Specifications

Use the tables below as purchase-order baselines for garrison fencing bunnings-style buying. Every row includes fence height, fence width, rail frame, rail thickness, upright size, upright thickness, upright spacing, upright number, post option, post wall thickness, and the post height rule (panel height + 600mm).

Table 1 — Retail-Ready Baseline (Balanced Cost vs Straight-Line Stiffness)

Table 2 — Security-Forward Build (Tighter Spacing + Stronger System)

Table 3 — Premium Straight-Line Build (Heavier Posts + Higher Abuse Tolerance)

Applications

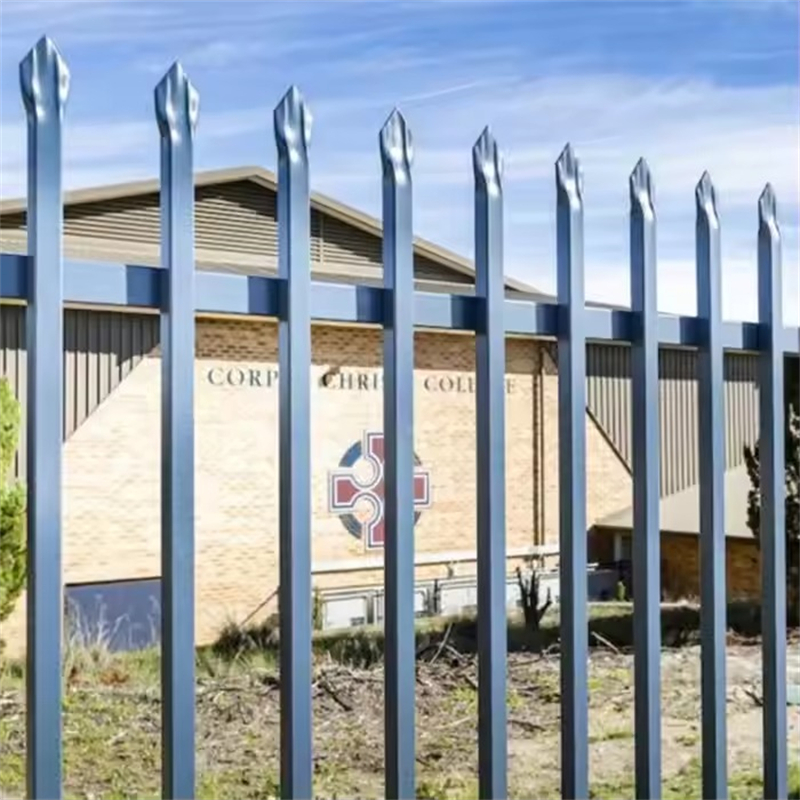

• Schools and childcare boundaries where straight lines and consistent “security feel” matter.
• Warehouses, logistics yards, and industrial sites needing visible control and reduced tampering.
• Rail corridors, substations, utilities, and infrastructure perimeters requiring rigid posts and clean alignment.
• Parks, commercial frontage, and public-facing assets where appearance is judged daily.
• Business sites that want a “premium perimeter” compared with basic mesh solutions.

Benefits

• Architectural look with measurable rigidity when rail, upright, and post specs are locked.
• Repeatable modules for fast installation and consistent bay-to-bay alignment.
• Selectable spacing (115/108/100mm) to control security feel and line stiffness.
• Post options up to 100×100mm for stronger corners and long-run stability.
• Finish protection designed to reduce early corrosion at weld zones and cut points.

Packing

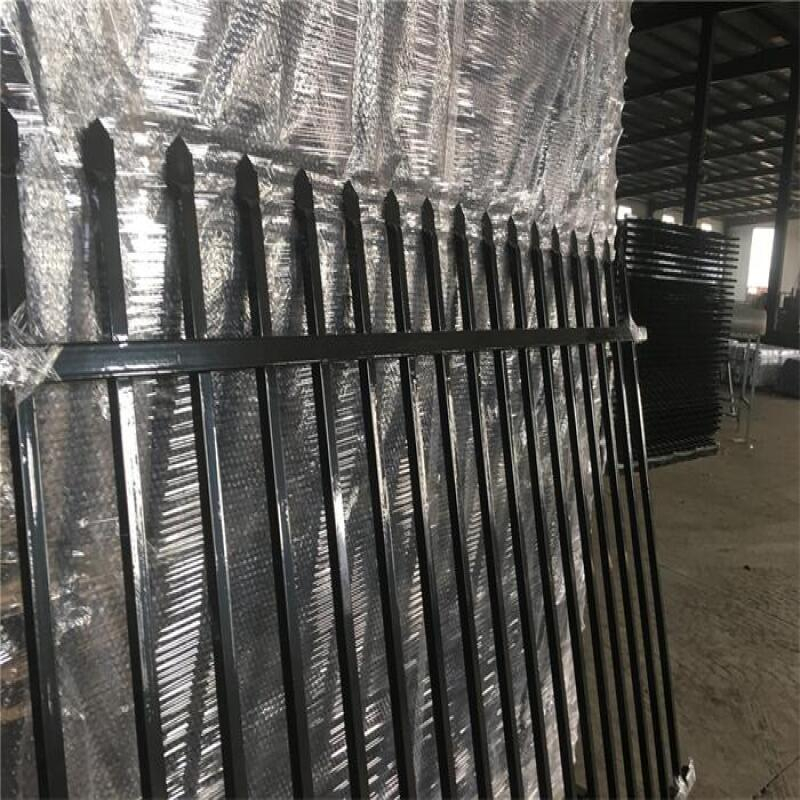

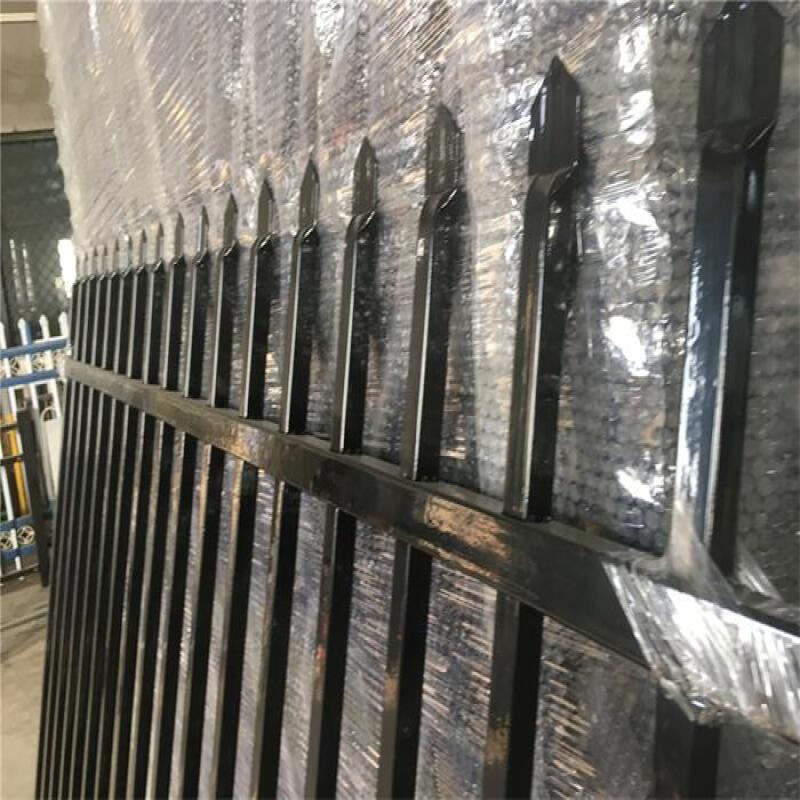

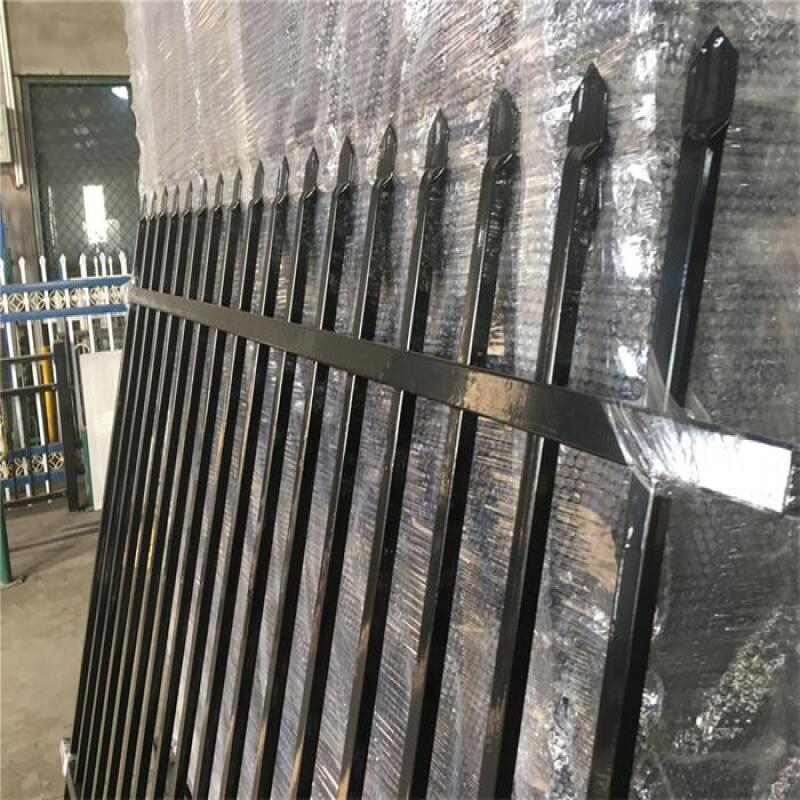

Packing is part of fence performance because coating damage in transit becomes rust later. POLYMETAL typically packs garrison fence panels in protected stillages or steel pallet stacks with separation to reduce rail-to-rail abrasion. Posts are bundled to prevent corner impacts and ovalization. Fixings are boxed and labeled by panel type so installation remains fast and consistent on site. If your project also needs fast-deploy perimeter solutions, you can review related options here:temporary fence panels.

Standard

Garrison fencing can be produced to project specifications and inspection requirements. The safest procurement method is to write measurable requirements directly into the purchase order: rail frame and thickness, upright size and thickness, spacing and upright count, post size and wall thickness, finish system expectations, and the post height rule (+600mm). For a reference point on common system configurations, you can also review garrison fencing.

FAQs

What is the most important rule to prevent leaning and rattles?

Lock this into the purchase order: Fence Post Height = Fence Panel Height + 600mm (minimum).

Which upright spacing should I choose for garrison fencing bunnings-style buying?

115mm (often 16 uprights) is a common baseline. 108mm (often 17 uprights) increases stiffness and looks more premium. 100mm (often 18 uprights) is the tightest, strongest-looking option.

Which rail frame is safer for tall panels?

50×50 rails are commonly selected for taller panels and harsher exposure to reduce flex and keep straight lines on long runs.

How do I stop “cheap look” after installation?

Lock upright count, rail thickness, and post selection. Most “cheap look” comes from missing steel (thin walls, fewer uprights) and under-sized posts.

What post sizes should I consider?

Use 60×60 and 65×65 for lower heights and controlled exposure, 75×75 and 80×80 for medium to tall panels, and 100×100 where maximum rigidity is required—then match wall thickness (1.6 / 2.0 / 2.5mm) to site abuse and exposure.

Buyer Checklist (Purchase-Order Lock-In)

• Confirm fence height (1200/1500/1800/2100/2400mm) and width (2400/2450mm).
• Specify rail frame (40×40 / 45×45 / 50×50) and rail thickness (1.60–3.00mm).
• Specify upright size (16×16 / 25×25 / 30×30) and upright thickness (0.80–2.00mm).
• Lock upright spacing and upright count: 16 pcs (115mm) / 17 pcs (108mm) / 18 pcs (100mm).
• Specify post option (60×60 to 100×100) and post wall thickness (1.6 / 2.00 / 2.50mm).
• Write the rule: Fence Post Height = Fence Panel Height + 600mm.
