Hercules Fencing Panels are heavy-duty galvanized steel fence panels designed to give you the classic elegance of wrought iron with the strength and corrosion resistance of modern tubular steel. Instead of fragile light railings, Hercules-style systems use square steel uprights passing through horizontal rails and fixing to solid posts, with flat-top or spear-top options and decorative series such as the ROME FENCE, LYON FENCE and NICE FENCE. When the specification is correct, Hercules Fencing Panels stop intruders, control access, frame your property and add long-term value. When height, tube size, wall thickness, rail section, upright spacing or post strength are cut just to save a few dollars, the same fence turns into a cosmetic picture frame that looks strong while quietly exposing you to security loss, corrosion problems, complaints and expensive rework.

Brand, material and coating profile of Hercules Fencing Panels

All Hercules Fencing Panels described here are manufactured by POLYMETAL using galvanized steel tube and a multi-layer architectural coating system. The material is hot-dip galvanized steel with carefully controlled wall thickness; the surface is finished with AkzoNobel polyester powder coating for long-lasting colour and UV resistance. Thickness options include 0.8 mm, 1.2 mm, 1.5 mm and 2.0 mm. Standard panel heights run from 900–3000 mm, with popular lengths of 1200 mm, 1500 mm, 1800 mm, 2100 mm and 2400 mm. Typical pickets are 16×16 mm, 19×19 mm or 25×25 mm square tube; rails are 32×32 mm, 35×35 mm or 40×40 mm; posts are 50×50 mm, 60×60 mm, 65×65 mm, 2″×2″ or 2½”×2½” tubes chosen to match load level and height.

Risk insight #1: Style-only decisions create a dangerous performance gap

Two Hercules Fencing Panels can look almost identical in a brochure but behave completely differently on site. If you only compare colour and top style and never check tube sizes, wall thickness and post sections, you create a dangerous risk insight between appearance and performance. Wind, crowds, children climbing and small vehicle bumps exploit that gap, and the fence that looked “ultra strong” on paper begins to bend, rattle and rust much earlier than you expect.

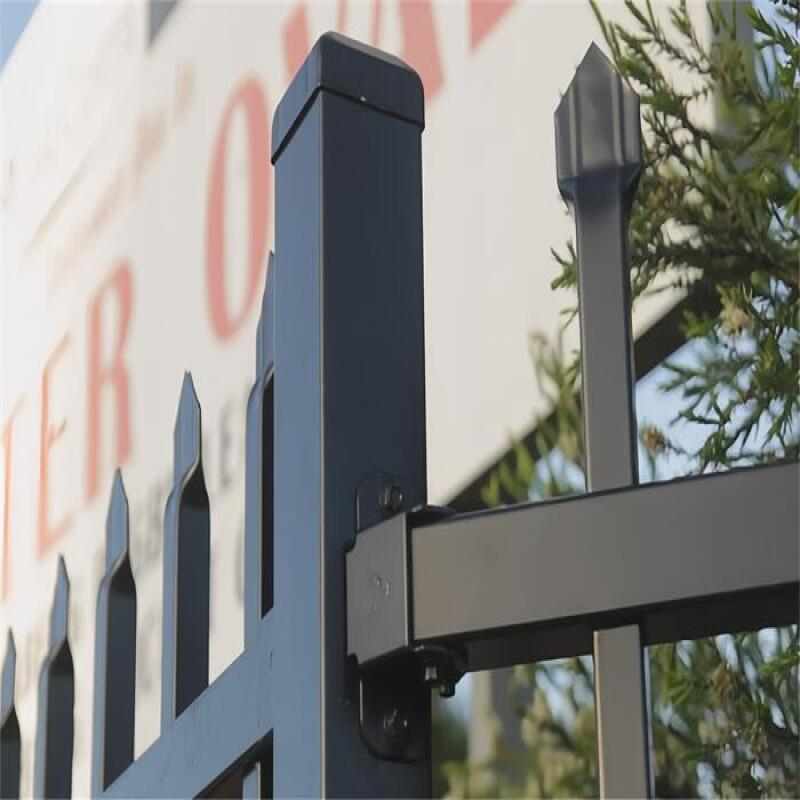

Core structure and materials of Hercules Fencing Panels

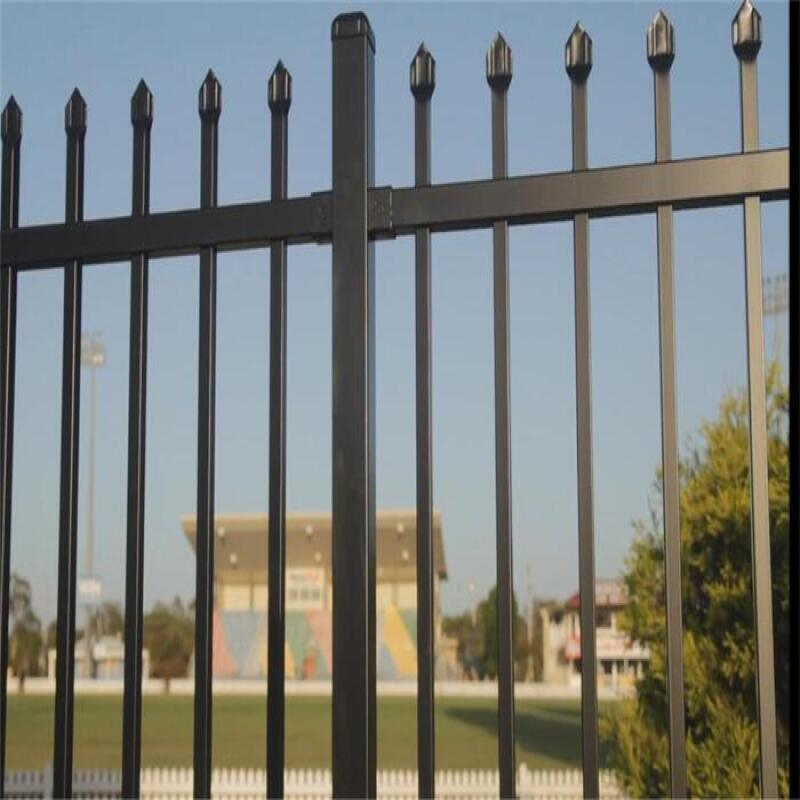

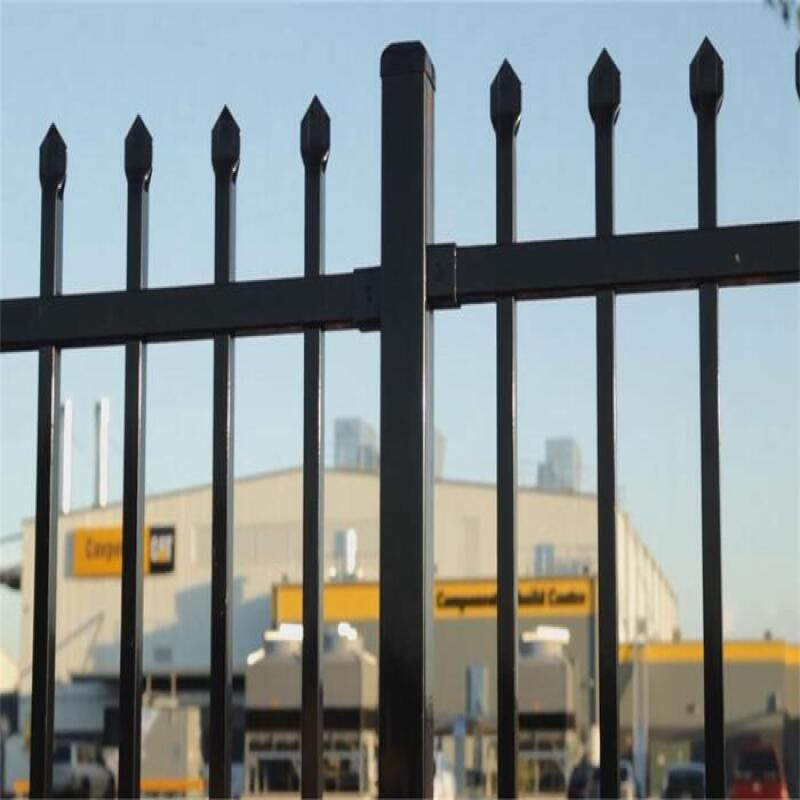

Behind every Hercules Fencing Panel is a simple but powerful structure. Uprights (pickets) are square steel tubes such as 16×16 mm, 19×19 mm or 25×25 mm. Rails are 32×32, 35×35 or 40×40 mm tube, welded or mechanically fixed to the pickets. Posts are 50×50, 60×60, 65×65, 75×75 or 80×80 mm depending on panel height and loading. Wall thickness ranges from 1.0–2.5 mm across the system, and upright spacing is usually held between 110–130 mm to balance visibility and anti-climb performance. The entire framework is galvanized, zinc-phosphate treated and powder coated so the ROME, LYON and NICE FENCE designs keep their elegance for many years.

Residential Hercules Fencing Panels – sizes and specifications

For homes, villas and townhouses, Hercules Fencing Panels protect children and pets while adding a strong architectural line to the façade. Front boundaries often use 900–1500 mm high panels for an open look, while side and rear boundaries move to 1800 mm for privacy and real security. Unassembled supply makes transport simple and allows fast DIY or professional installation without welding.

Cost trap detail #2: Thin tubes quietly multiply bending and repainting work

Thin uprights (for example 16×16×0.8 mm) and light rails may make a Hercules Fencing Panels quotation look cheap, but they create a cost trap detail in daily use. Around driveways, paths, schools and play areas, trolleys, balls and people leaning on panels quickly bend light tubes. Once a few bays twist, you face repeat repairs and repainting. Upgrading key runs to 19×19 or 25×25 pickets and 35×35 or 40×40 rails adds a small material cost and saves a large maintenance bill.

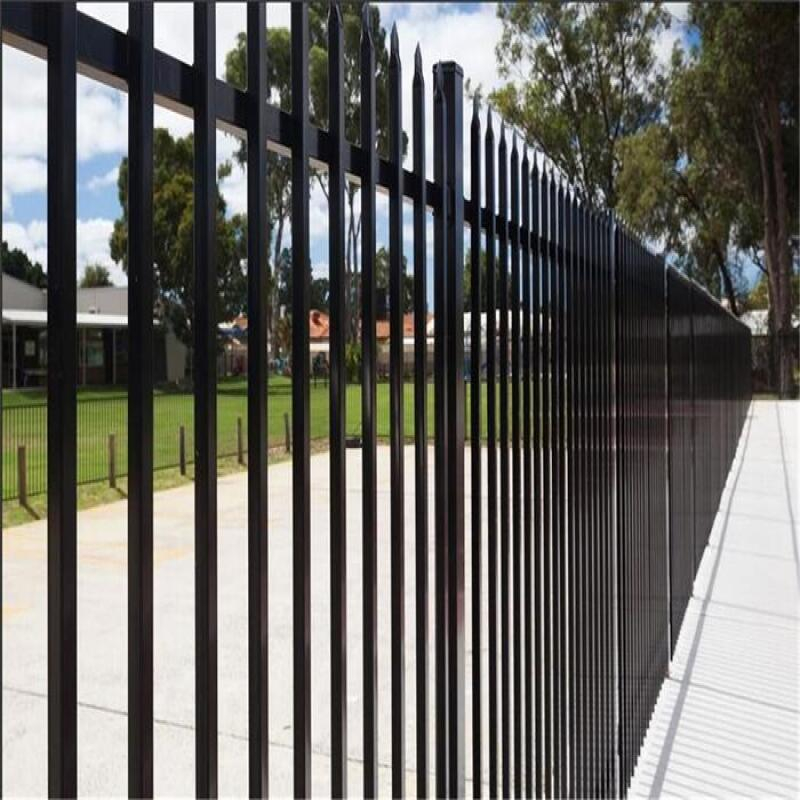

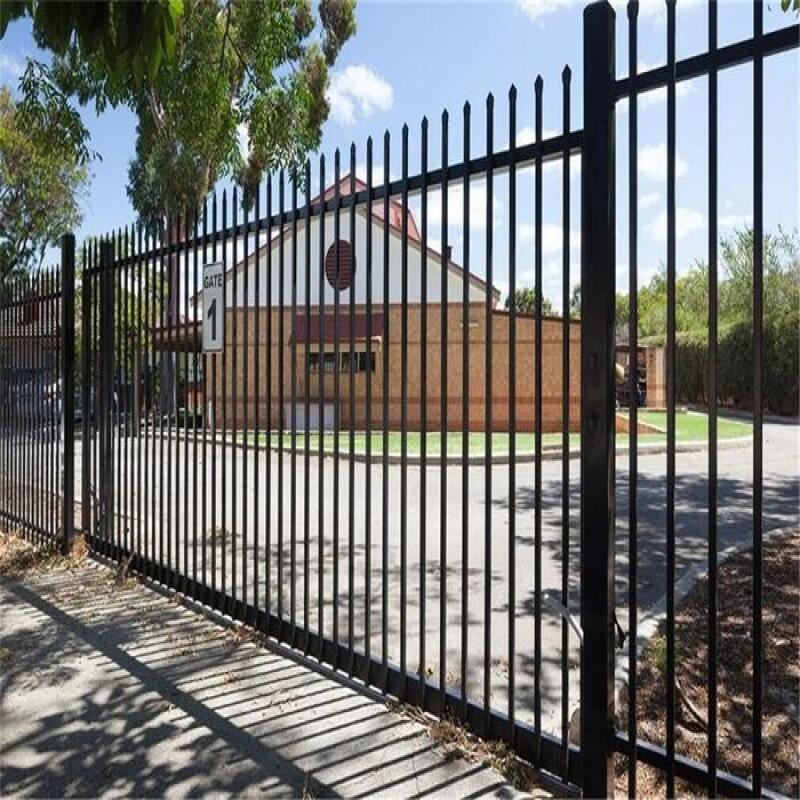

Standard and commercial Hercules Fencing Panels

For factories, warehouses, schools, car parks and public buildings, Hercules Fencing Panels must act as real barriers. Heights move to 1800–2400 mm, rails increase to 40×40 mm and posts step up to 60×60, 65×65 or 75×75 mm with deeper concrete footings. The panels are supplied unassembled: you receive rails, pickets and brackets as a kit, which bolts together with no on-site welding, making transport light weight and installation fast.

Spacing warning point #3: Over-wide gaps create a climbable weakness

Decorative flat-top and spear-top Hercules Fencing Panels tempt some buyers to open the spacing so the pattern looks lighter. This spacing warning is ruthless: once gaps between pickets creep beyond about 130–140 mm, feet and hands find easy purchase and children try to squeeze through. Keeping upright spacing in the 110–130 mm zone keeps the profile elegant while stopping your decorative system turning into a steel ladder.

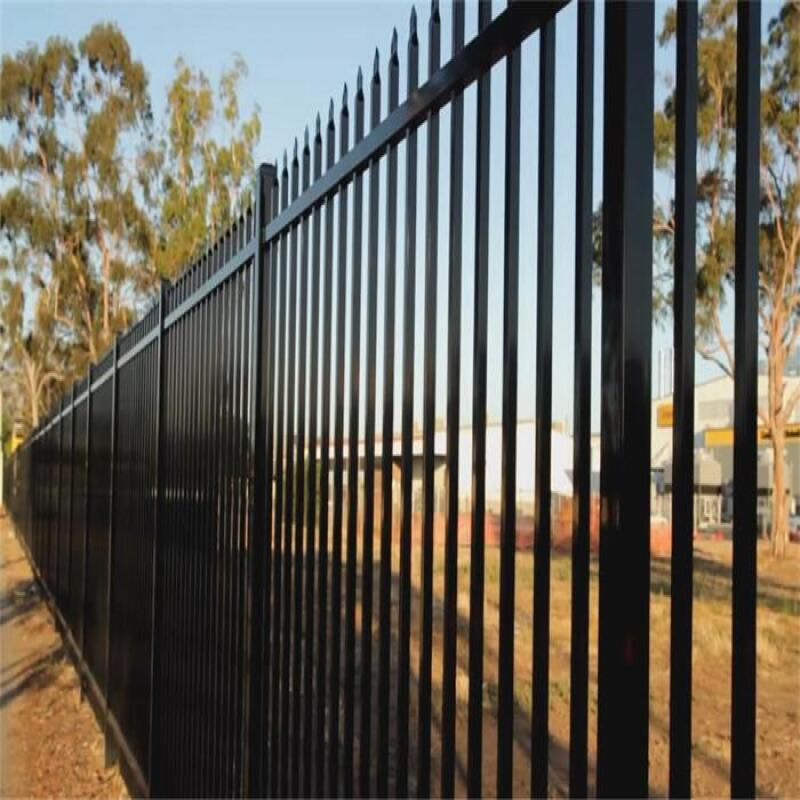

Heavy-duty and security Hercules Fencing Panels

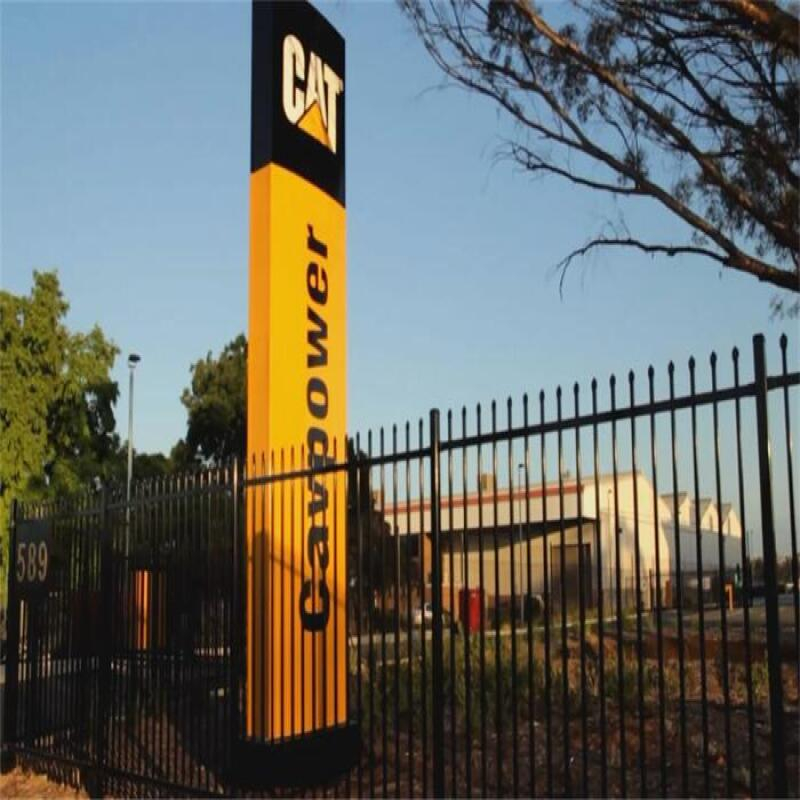

Industrial plants, logistics yards, substations, airports and stadiums need more than standard commercial fencing. Heavy-duty Hercules Fencing Panels use thicker uprights, stronger rails and larger posts to resist crowds, vehicle contact and high winds, while still presenting a clean architectural appearance. Heights move to 2100–3000 mm, rails step up to 45×45 or 50×50 mm, and posts increase to 80×80, 90×90 or 100×100 mm.

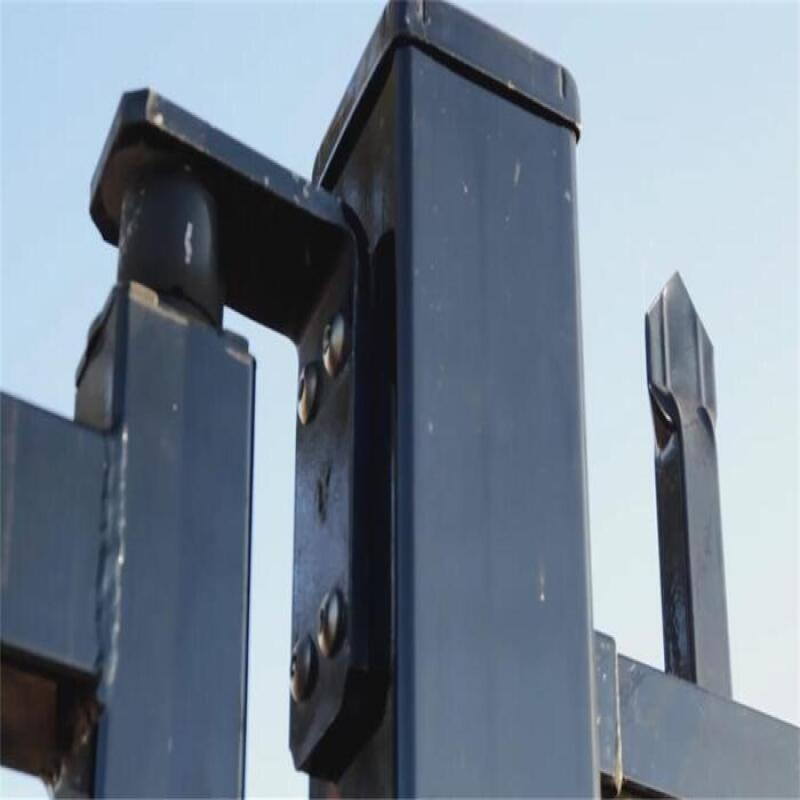

Post weakness pattern #4: Light posts create a visible bending trend

Even with strong rails and uprights, under-sized posts introduce a weakness pattern that slowly ruins the whole fence line. Wind loads, people leaning, gates slamming and small vehicle bumps all work at ground level, where thin posts begin to deform. Over time, Hercules Fencing Panels develop a wave, gates drag and latches misalign. Stepping up to 75×75 or 80×80 posts on long or high runs prevents this pattern and protects both security and appearance.

Coating system and corrosion protection for Hercules Fencing Panels

The coating structure of Hercules Fencing Panels is a key advantage. The process follows four defined layers: galvanizing, zinc phosphate, zinc-rich epoxy and polyester colour coat. Galvanizing gives extra protection against rust and corrosion, zinc phosphate promotes adhesion between steel and coating film, zinc-rich epoxy powder provides long-lasting impact and corrosion resistance, and the polyester colour coat adds anti-UV performance, colour stability and self-cleaning behaviour. This complete coating system is why Hercules Fencing Panels deliver years of trouble-free good looks and security.

Coating flaw aspect #5: Skipping pretreatment turns every weld into a failure point

Treating zinc phosphate or zinc-rich epoxy as optional extras is a coating flaw aspect that shows up as early failure. Without these layers, powder adhesion is weaker, micro-blisters form at sharp spear tips and corners, and rust streaks appear long before the steel is worn out. Hercules Fencing Panels with the full four-layer coating rule keep their finish intact and protect your reputation on every project.

Applications and typical layouts of Hercules Fencing Panels

Hercules Fencing Panels work in a wide range of environments: residential streets and estates, schools and colleges, industrial parks, logistics yards, sports grounds, public buildings and infrastructure sites. Panel modules are designed to be effortless to install anywhere, for both residential and commercial projects. The system is supplied as a DIY disassembled steel yard fence in popular sizes such as 6 ft × 6 ft black panels supplied as lots of 4, and as metric modules up to 2400 mm long and 2400–3000 mm high. Multi-purpose use means you can combine flat-top, spear-top and privacy infill options within one project while keeping a consistent Hercules framework.

Impact hazard view #6: Underestimating traffic loads turns the fence into a threat line

On busy industrial and commercial sites, forklifts, utes and trucks work close to the fence every day. If Hercules Fencing Panels there are built only to light residential strength, a single impact can fold a bay or post and open a gap. This impact hazard view shows why heavy-duty models with thicker uprights, rails and posts are essential along loading docks, parking lanes and public access points.

Hercules Fencing Panels standards – structural and coating rules

To support consistent performance, Hercules Fencing Panels are designed in line with major international standards for ornamental steel fences, steel hollow sections, galvanizing and powder coating.

Packing risk note #7: Ignoring packaging data causes hidden damage and loss

Packing risk note #7 is the point many buyers overlook, and skipping it can cause real loss in damage and claims. If pallets are too light or strapping is loose, Hercules Fencing Panels rub against each other during transport, spear tips chip through the powder coat and rails mark each other. This hidden damage only appears when the container is opened on site, forcing patch-spraying or replacement. When you respect packing risk note #7 and follow the packing data below, you protect your fence, your schedule and your profit.

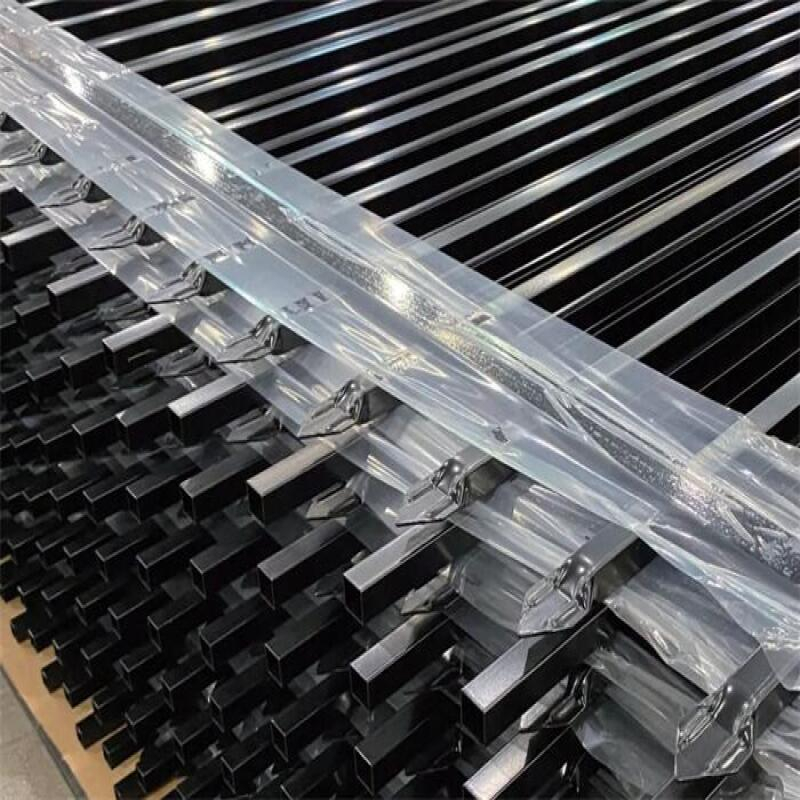

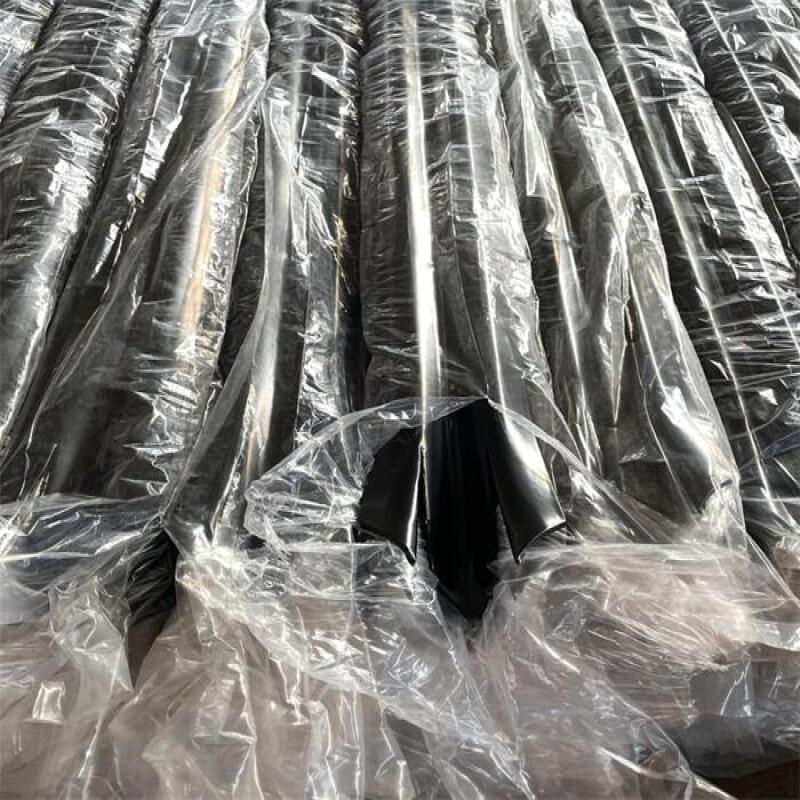

Packing and loading patterns for Hercules Fencing Panels

Hercules Fencing Panels are designed for safe, efficient packing and shipping. Unassembled supply reduces volume and weight, allowing more panels per pallet and more sets per container while protecting the coating.

Life-cycle cost pattern #8: Chasing the lowest first price locks you into a waste trend

Life-cycle cost pattern #8 is simple: a very low first price almost always means thinner tube, lighter posts and a weaker coating system. The saving is visible on the quote; the extra cleaning, repainting, repair visits and early replacement are hidden until later. If you ignore this pattern and buy only by price, you lock your project into a built-in waste trend that eats profits every year.

Why Hercules Fencing Panels are a strategic advantage

A professional Hercules Fencing Panels package includes panels, posts, caps, brackets, gates and hardware, all designed as one system. Tube sizes, spacing, coatings and tolerances match, so installation is fast, cutting and on-site welding are reduced, and the finished line looks clean and consistent from end to end. The same framework can be used for flat-top, spear-top, security and privacy infill sections without changing posts or basic geometry, giving you a flexible but unified fence across the site.

Profit payoff benefit #9: Using full Hercules data now prevents loss and boosts reputation

Profit payoff benefit #9 is the most powerful point in this whole Hercules Fencing Panels guide. When you use real data on heights, tube sizes, wall thickness, rail dimensions, upright spacing, post strength, galvanizing, phosphate treatment, powder coating and packing, you turn every Hercules installation into a predictable long-term asset. If you skip payoff #9 and order anonymous panels with unknown sections and coatings, you quietly accept bending lines, flaking paint, hidden transport damage and complaints that destroy profit and reputation.

Conclusion: controlling every critical aspect of Hercules Fencing Panels

Hercules Fencing Panels are not just another black fence in a catalogue. They are a complete structural system that depends on tube geometry, coating layers such as hot-dip galvanizing, black oxide conversion and polyester powder, anti-climb spacing, post design, recognised standards and disciplined packing. By controlling each risk insight, cost trap detail, spacing warning, post weakness pattern, coating flaw aspect, impact hazard view, packing risk note, life-cycle cost pattern and profit payoff benefit described above, you turn Hercules Fencing Panels into a reliable, long-term security and design solution that protects your property, your customers and your profit on every project.
