Black oxide (also called blackening or bluing) is a chemical conversion coating used on metals such as carbon steel, stainless steel, copper and brass.

  • It does not sit on the surface like paint.
  • Instead, the very thin outer layer of metal is chemically converted into a black oxide layer, usually based on magnetite (Fe₃O₄).
  • The coating is extremely thin (typically only a few microns), so dimensions and mesh openings hardly change.

Black oxide is usually produced in a hot alkaline salt bath. After treatment, parts are rinsed and often sealed with oil or wax to improve corrosion resistance.

Black oxide is mainly used to:

  • Improve corrosion resistance (especially when oiled)
  • Reduce light reflection (matte, low-glare surface)
  • Give parts a uniform black decorative finish
  • Add a little wear resistance and lubricity

2. Black Oxide on Stainless Steel

Stainless steel already has a natural chromium oxide film that gives it corrosion resistance. Black oxide adds a controlled black oxide layer on top of that.

For stainless steel (304, 316, 316L etc.):

  1. The parts are cleaned and degreased.
  2. They are immersed in a hot caustic bath with oxidizing salts at roughly 130–150 °C.
  3. The outer surface of the stainless steel is converted into a dense, black oxide layer.
  4. The parts are rinsed and typically sealed with oil or a dewatering fluid.

The result:

  • Slightly better rust resistance than bare stainless steel, especially when sealed
  • A non-reflective black color
  • A surface that can hold a thin film of oil and has mild lubrication, which can reduce friction and galling

Remember: black oxide is a thin, moderate-protection finish. It is not as heavy or as corrosion-proof as thick paints, plastic coatings, galvanizing or plating.

3. What Is Stainless Steel Cable Mesh?

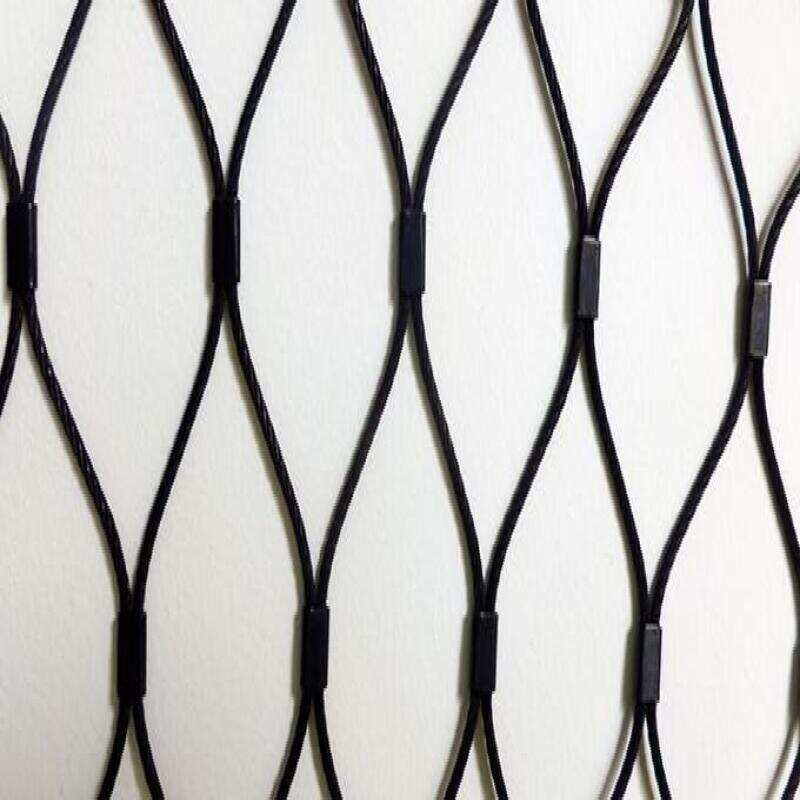

Stainless steel cable mesh (also called wire rope mesh) is a flexible net made from twisted stainless steel wire ropes, most commonly in 7×7 or 7×19 construction. The cables are arranged in a diamond pattern and connected at intersections by:

  • Ferrules (pressed metal sleeves) – ferrule type mesh
  • Or knots – knotted type mesh

Typical features:

  • Very high tensile strength
  • Flexibility – can form flat panels, cylinders, curved surfaces
  • High transparency and light transmission

Main applications:

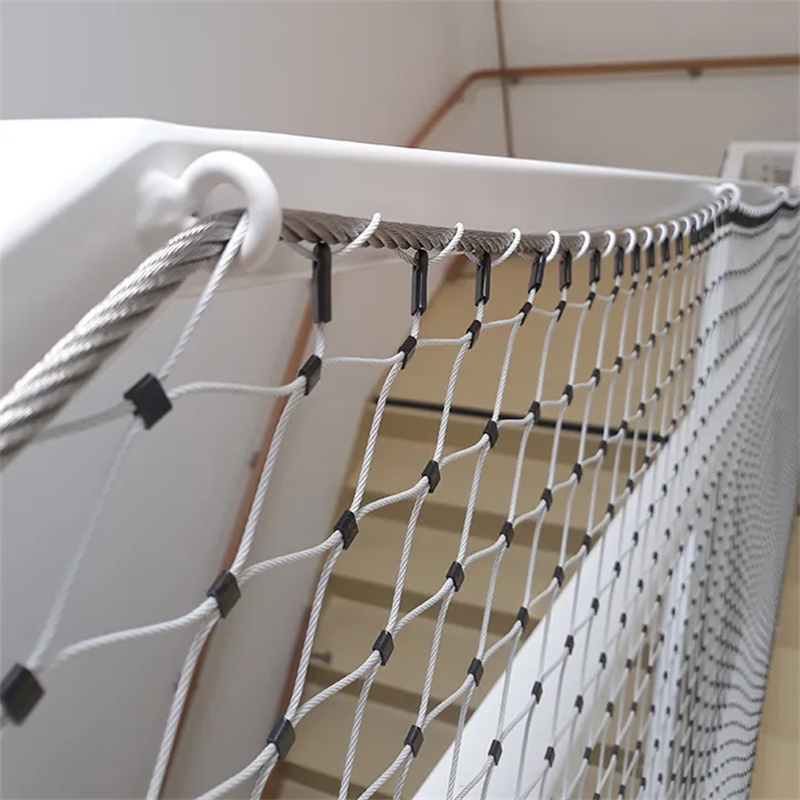

  • Balustrade infill and fall-protection
  • Zoo enclosures, aviaries, animal containment
  • Bridge and stadium safety nets
  • Architectural façades and rope mesh for green walls

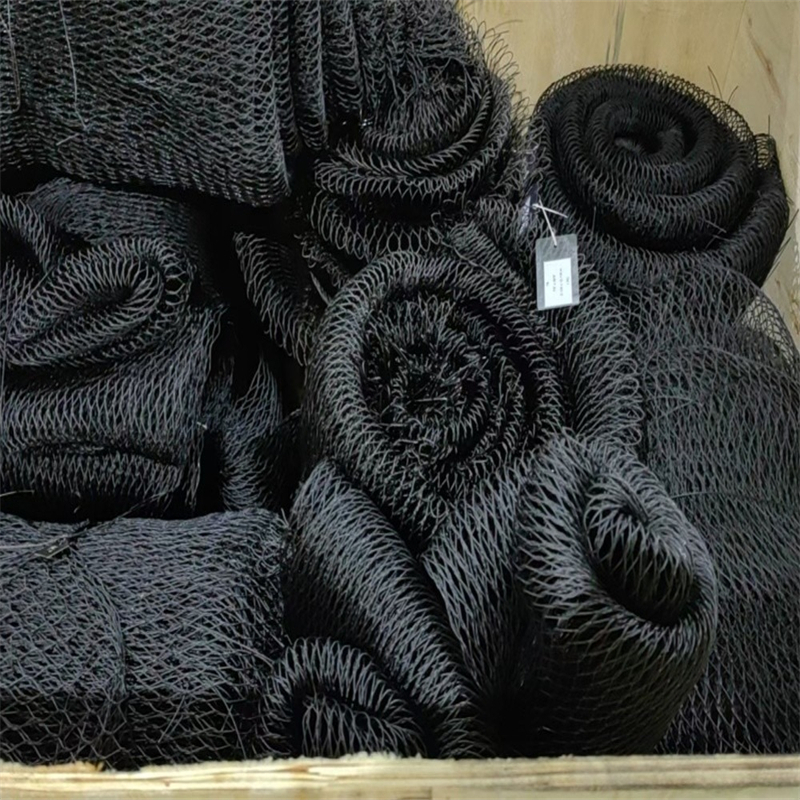

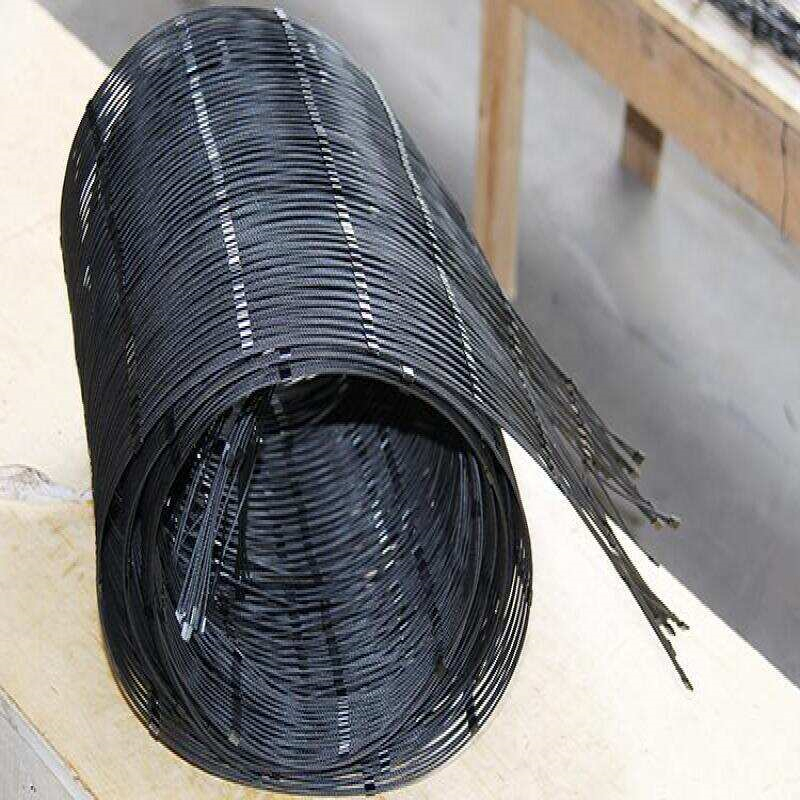

black oxide zoo mesh packing in roll

4. How Black Oxide Changes Stainless Steel Cable Mesh

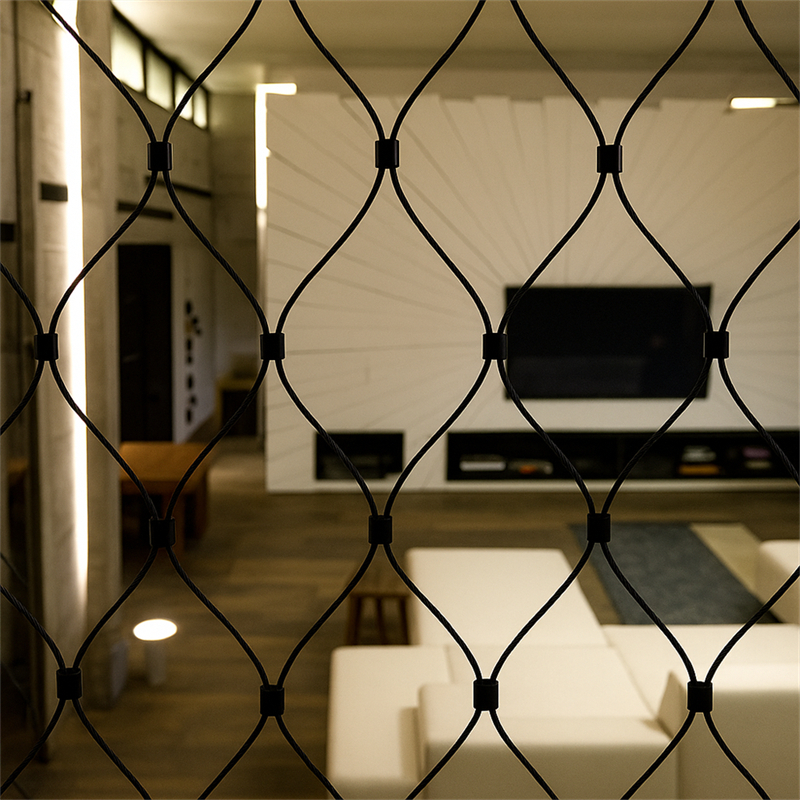

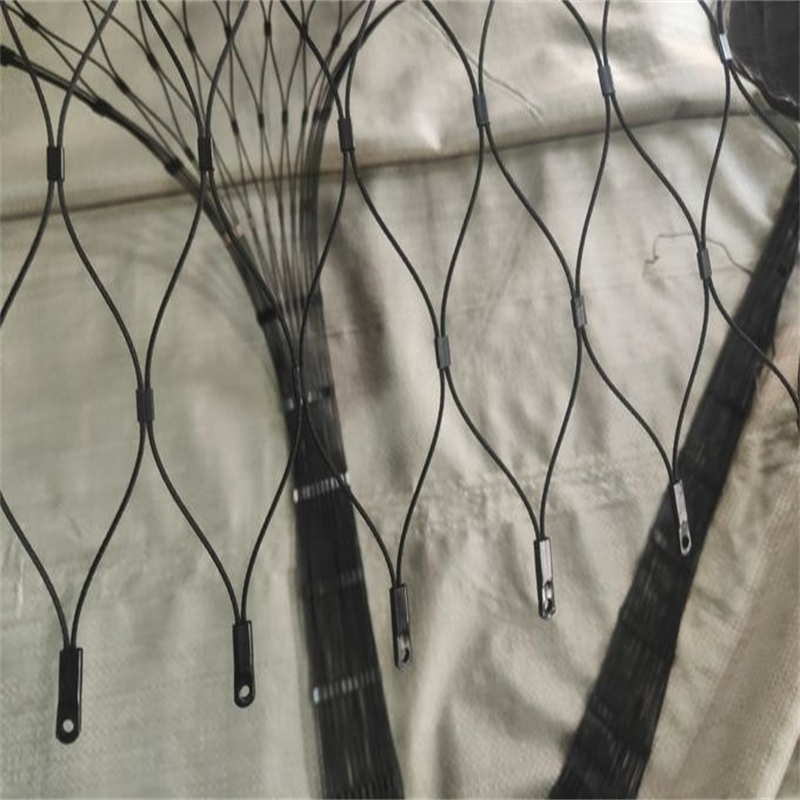

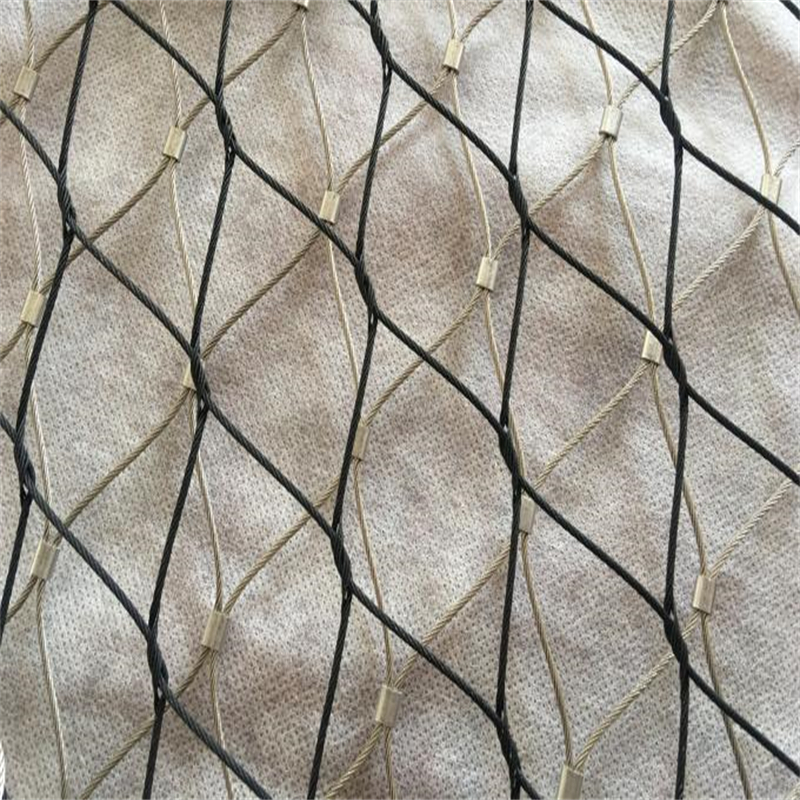

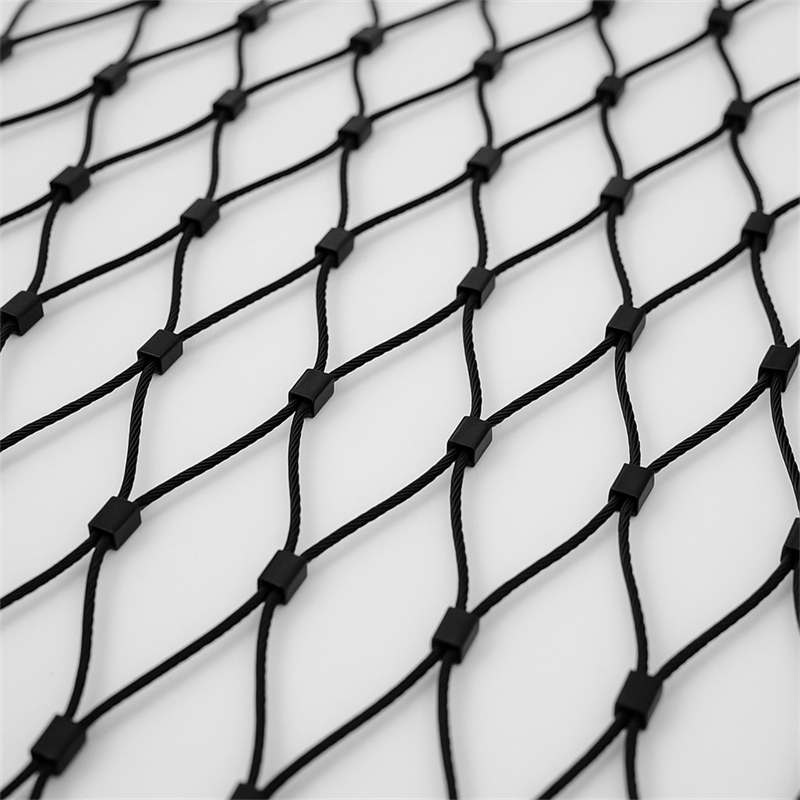

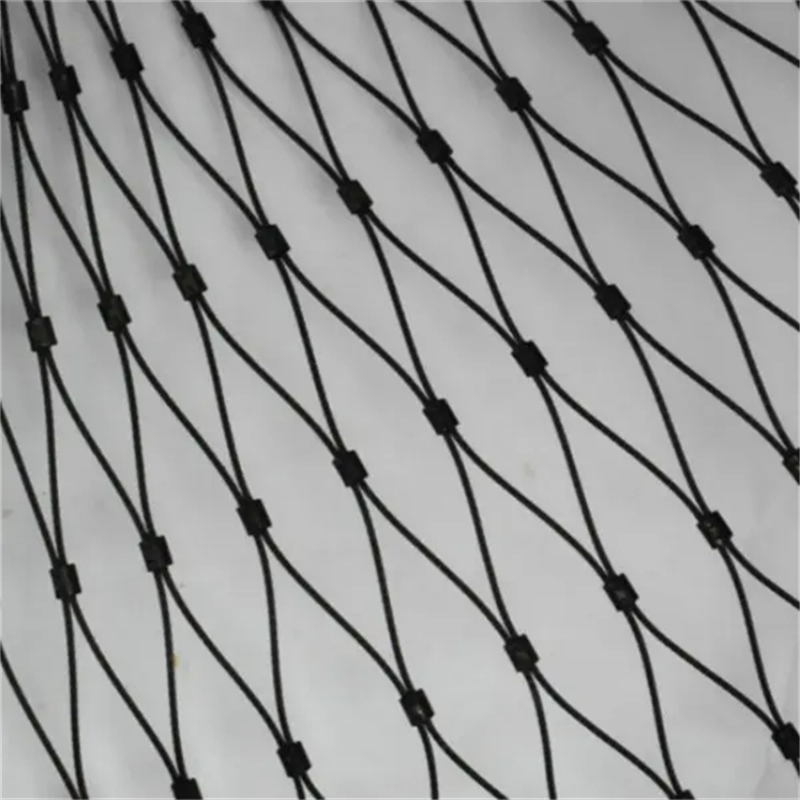

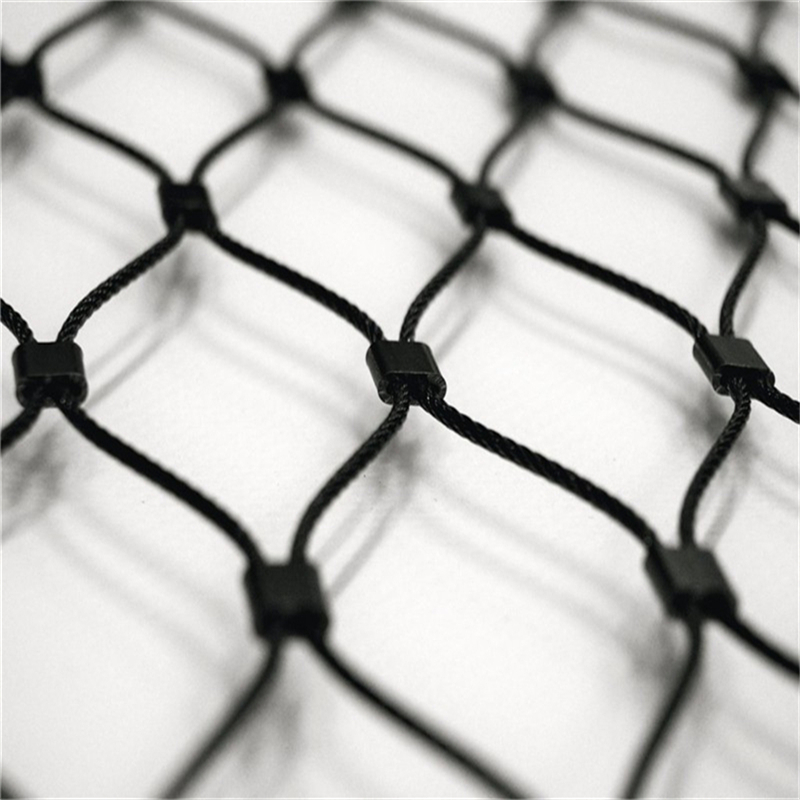

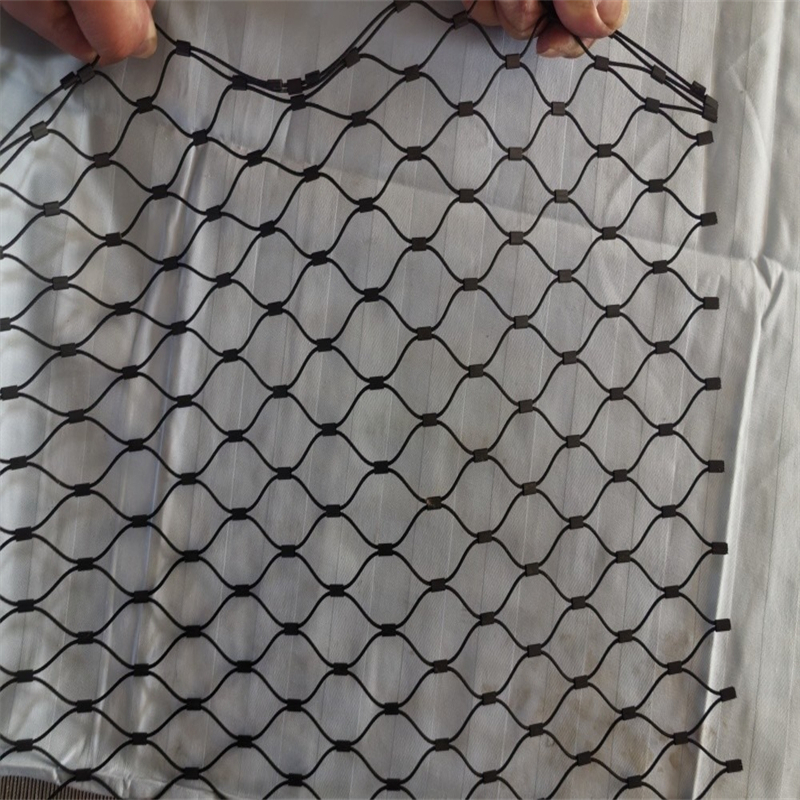

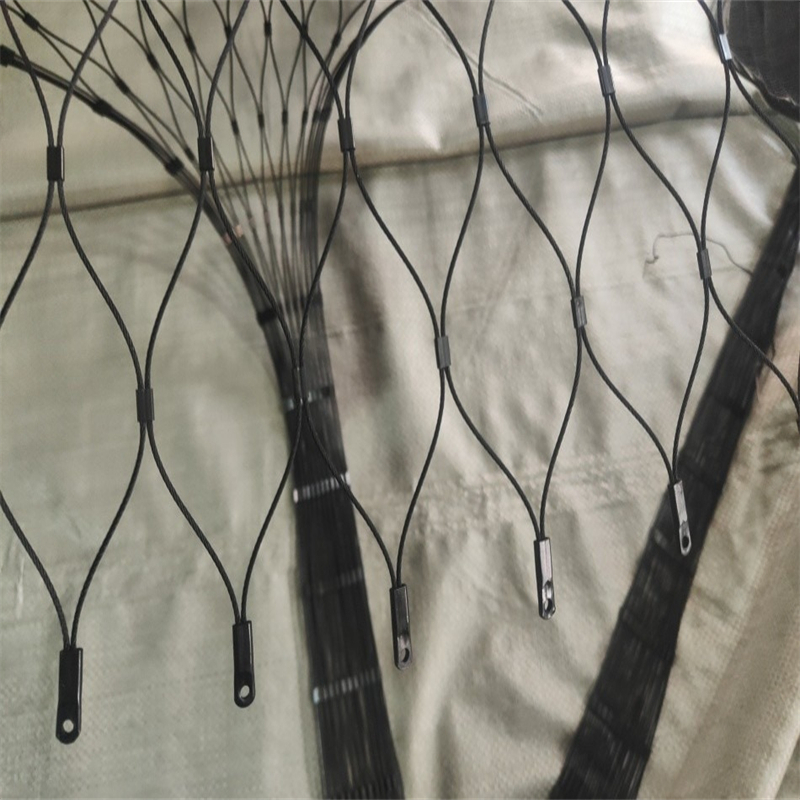

When stainless steel cable mesh is treated with black oxide, you get black oxide stainless steel cable mesh. This changes the product in several ways.

4.1 Appearance and Light Reflection

The most visible change is the color and gloss:

  • The shiny silver of raw stainless becomes a deep, uniform black.
  • The surface becomes matte or low-gloss, greatly reducing reflections.

For applications like:

  • Zoos and aviaries
  • Façade meshes in strong sunlight
  • Balcony and bridge railings on high-end buildings

this has two big benefits:

  • Low-glare surface – no harsh reflections, more comfortable for visitors and better for photos.
  • More “invisible” mesh – black mesh tends to visually disappear, so people see animals, scenery or architecture, not the net.

That’s why black oxide mesh is very popular as non-reflective animal enclosure mesh and dark architectural safety nets.

4.2 Corrosion and Wear Resistance

Black oxide forms a tight oxide film on the wire rope surface. This:

  • Provides an additional barrier against moisture and contaminants
  • Offers extra corrosion resistance on top of the stainless base
  • Improves wear resistance where cables rub slightly at ferrules or supports

When followed by oil or wax sealing and combined with proper grade selection (such as 316 or 316L for coastal areas), black oxide can noticeably extend the life of the mesh.

However:

  • It is still a thin coating.
  • In very aggressive marine or chemical environments, you should treat it as an enhancement, not a complete replacement for good design and maintenance.

4.3 Flexibility and Mechanical Properties

Because the black oxide layer is extremely thin:

  • Cable diameter and mesh opening size are basically unchanged.
  • The mesh remains just as flexible as before.
  • Tensile strength and load-bearing capacity are essentially unaffected.

This is a major advantage over thicker coatings (PVC, PE, heavy paint), which can stiffen the mesh, crack when bent, or change how ferrules grip the cables.

4.4 Friction and Handling

The black oxide surface is slightly different in feel:

  • It can hold a light oil film, giving mild lubricity.
  • It is not as slippery and mirror-smooth as bright polished stainless, but also not sticky like soft plastic.

In practice this can:

  • Reduce the risk of galling at contacts between cables and metal fittings
  • Provide comfortable handling during installation and tensioning

5. Advantages of Black Oxide Stainless Steel Cable Mesh

Summarizing the benefits:

  1. Elegant deep black color

    • Modern, high-end look for architecture, bridges, interior design and zoos.

  2. Non-reflective, low-glare surface

    • Great for strong sunlight, public spaces and photography.

  3. Improved corrosion and wear resistance

    • Extra protection over bare stainless, especially when sealed with oil or wax.

  4. No meaningful dimensional change

    • Mesh openings, cable diameter and ferrule fit stay the same.

  5. Maintained flexibility and strength

    • The mesh still behaves like pure stainless steel cable mesh in bending and tension.

  6. Cost-effective upgrade

    • Often less expensive than thick paint systems or high-end polymer coatings, while still providing both protection and color.

6. Limitations to Consider

Black oxide is not a “magic shield”. Here are some points to keep in mind:

  • Moderate protection only

    • It greatly improves appearance and adds some corrosion resistance, but extreme marine or chemical environments may still require very careful design, 316/316L grades, and regular maintenance.

  • Surface damage matters

    • Deep scratches can cut through the oxide layer and expose bare metal. Damaged areas may need cleaning and re-treatment.

  • Process quality is key

    • Poor surface preparation or incorrect bath control can lead to uneven color, patchy finish or reduced corrosion performance. Use experienced finishers.

  • Oil-sealed surfaces may attract some dust

    • After blackening, parts are often oiled. This improves corrosion resistance but can slightly increase dust pickup until the surface stabilizes.

7. Black Oxide vs Other Finishes on Cable Mesh

Bare Stainless Steel

  • Pros: natural silver color, good corrosion resistance, no coating to damage

  • Cons: reflective, more visually prominent, may tea-stain in coastal environments

PVC / Vinyl Coated Mesh

  • Pros: thick, soft, bright colors, good impact protection

  • Cons: can fade, harden, crack or peel under long-term UV; changes diameter and flexibility; looks more “plastic”

PVDF Coated Mesh

  • Pros: very high UV and weather resistance, long-life decorative color, excellent for harsh outdoor conditions

  • Cons: thicker coating, more like a paint; usually higher cost; may slightly change flexibility and dimensions

Black Oxide Stainless Mesh

  • Pros: thin conversion layer, keeps metal look and feel, deep matte black, maintains flexibility and dimensions, moderate corrosion and wear resistance

  • Cons: not as protective as thick polymer or paint systems in the most extreme environments

8. Conclusion

Black oxide is a chemical conversion coating that turns the outer surface of stainless steel into a thin, stable black oxide layer. It delivers:

  • A deep, non-reflective black appearance

  • Extra corrosion and wear resistance

  • Minimal change to size, flexibility and strength

When applied to stainless steel cable mesh, black oxide transforms standard silver mesh into a sleek, dark, low-glare solution that blends into the background, enhances viewing experience, and extends service life.

For projects that want high-end aesthetics, better visibility, and reliable performance—such as zoo enclosures, façades, balconies, bridges and stadiums—black oxide stainless steel cable mesh is a very attractive and practical option.
