The POLYMETAL modular stainless steel railing mesh system is a modern balustrade and fall-protection solution built around stainless steel wire rope mesh. By combining prefabricated mesh frames, engineered posts and smart accessories, it delivers a clean, contemporary look with high transparency, long-term durability and reliable safety performance for both indoor and outdoor projects.
From residential balconies and staircases to commercial viewing platforms and public walkways, the modular stainless steel railing mesh system provides designers and contractors with a fast, flexible and visually light way to secure edges without blocking views.
Product Overview & Quick Specifications
| Model | Frame Size (W × H, mm) | Mesh Aperture | Wire Rope Ø (mm) | Rope Structure | Mesh Style | Material | Typical Application |
|---|---|---|---|---|---|---|---|
| MR-101 | 900 × 748 | 40 × 40 mm (≈1.5″) | 1.5 | 7×7 | Ferruled | SS316 | Indoor stair railing infill |
| MR-102 | 900 × 973 | 50 × 50 mm (≈2″) | 1.5 | 7×7 | Ferruled | SS316 | Residential balcony balustrade |
| MR-103 | 900 × 1128 | 60 × 60 mm (≈2.4″) | 2.0 | 7×19 | Ferruled | SS316L | Outdoor terrace / deck railing |
| MR-104 | 900 × 973 | 30 × 30 mm (≈1.2″) | 1.5 | 7×7 | Inter-woven | SS304 | Child-safe gallery & corridor infill |
| MR-105 | 900 × 748 | 80 × 80 mm (≈3″) | 2.0 | 7×19 | Ferruled | SS316 | Public viewing platform balustrade |
| MR-106 | 900 × 419 × 419 (L-type) | 40 × 40 mm (≈1.5″) | 1.5 | 7×7 | Ferruled | SS316 | Corner unit for stair landings |
| MR-107 | 1200 × 1000 | 50 × 50 mm (≈2″) | 2.4 | 7×19 | Inter-woven | SS316L | High-load commercial railing mesh |
| MR-108 | 1500 × 1100 | 60 × 60 mm (≈2.4″) | 3.0 | 7×19 | Ferruled | SS316L | Exposed coastal balcony / facade edge |
Modular Stainless Steel Railing Mesh System Description
Our innovative Modular Railing system has been developed to make designing and installing a balustrade fast and efficient. Combining elegant aesthetics with uncomplicated functionality, the system provides a modern solution for a range of applications.
The system delivers the perfect blend of aesthetic appeal, durability, and versatility. Manufactured from high performance marine grade stainless steel, the system includes a choice of four Webnet Frame modules and two post options (either round or square).
Designed for ease of assembly and providing a flexible and safe option for both indoor and outdoor applications, the robust Modular Railing system not only looks good, but also requires minimal maintenance, with a finish and performance that will stand the test of time.
With fast turnaround times, using Webnet Frames you can install a high quality stainless steel railing solution in a matter of weeks, at an affordable price. If required, we will even design the layout for you, advising on the most appropriate combination of panels to meet your design requirements.
 |  |  |
Key Features of POLYMETAL Modular Stainless Steel Railing Mesh
- Durability: manufactured from stainless steel, the system is not only strong but also resistant to environmental factors in both residential and commercial applications, ensuring it remains virtually maintenance-free for the lifetime of the product.
- Flexibility: with an inherently flexible design, the Modular Railing system can accommodate a wide range of architectural styles and project requirements. Its modularity means it can be customized to fit specific needs, whether adjusting lengths or incorporating custom posts, offering a versatile solution that adapts to any setting.
- Ease of Installation: the system’s design makes installation fast and straightforward – the perfect solution for professionals looking for an efficient and durable railing system.
- Safety: fully compliant with international safety standards, such as SIA 261 and EN 1990, our Modular Railing system provides a secure, reliable environment for users.
 |  |
Applications

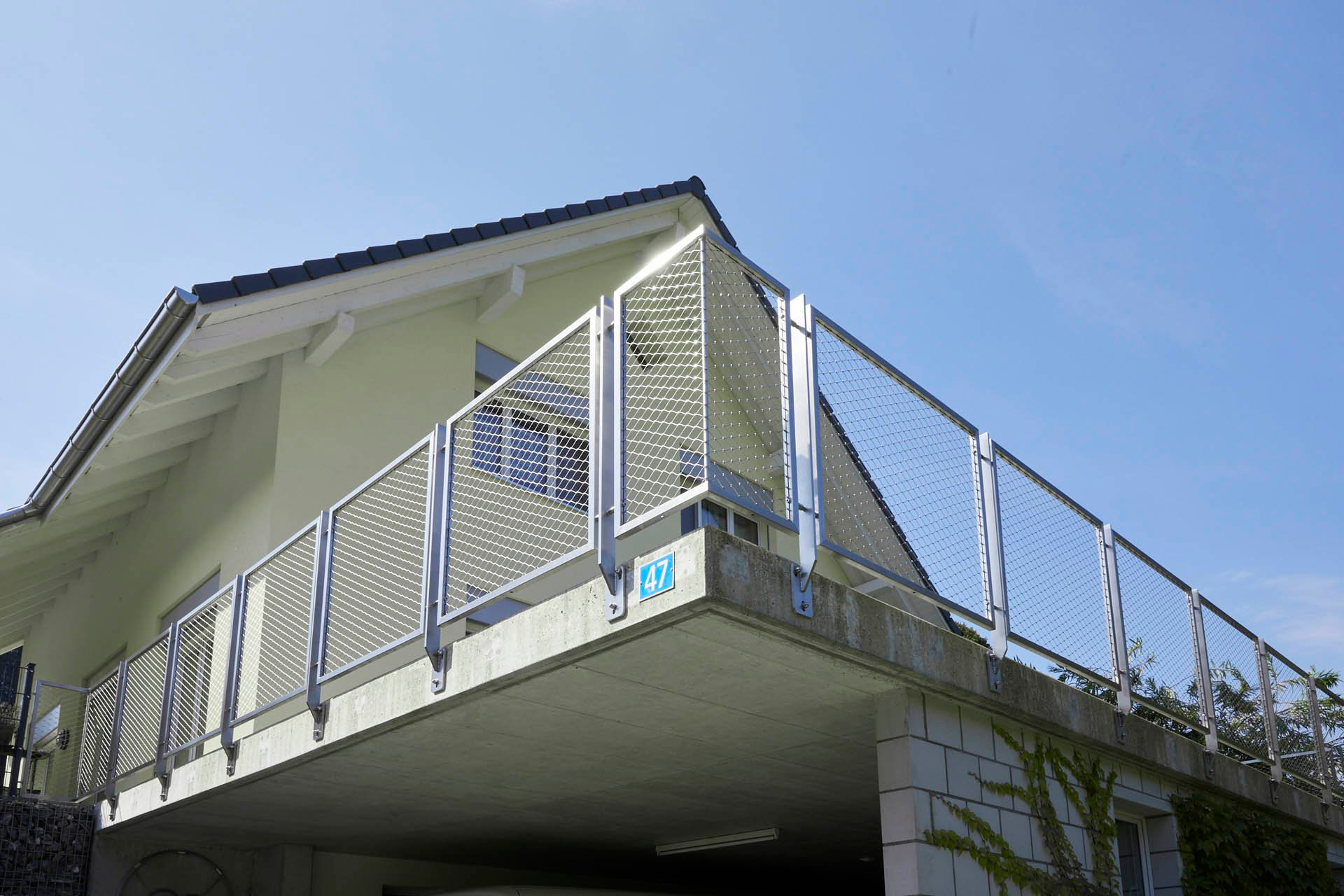

Our Modular Railing system is designed for both new build and refurbishment projects in commercial and residential projects, indoor and out. In residential applications, it is used to enhance and protect balconies, staircases, and decks, providing safety without compromising on design. Similarly, in commercial projects, Modular Railing is ideal for office buildings, public spaces, and viewing platforms, with its elegant design providing style, safety and durability.
Typical Application Types
- Felexible mesh for stairs rail
- Felexible mesh fall protection
- Flexible mesh netting balustrade
 |  |  |
Planning, Design, Supply & Installation
- All components are manufactured from 316 stainless steel
- Free full technical advice is available from our friendly, experienced support team
- Fast turnaround of quotations
- The exceptional quality you expect from POLYMETAL
- Full installation service is available from our experienced team
 |  |  |
System Components – Parts Include

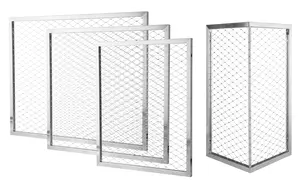

Webnet INVISS-C Frames
Four different Webnet Frames are available from stock:

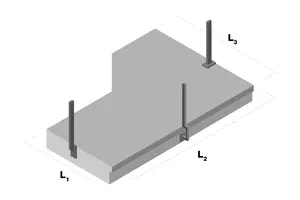

All the frames feature Webnet type H24, with a Ø 1.5 mm rope and a mesh aperture of 40 mm | Webnet Frames allow any railing length from 2800mm. | Posts

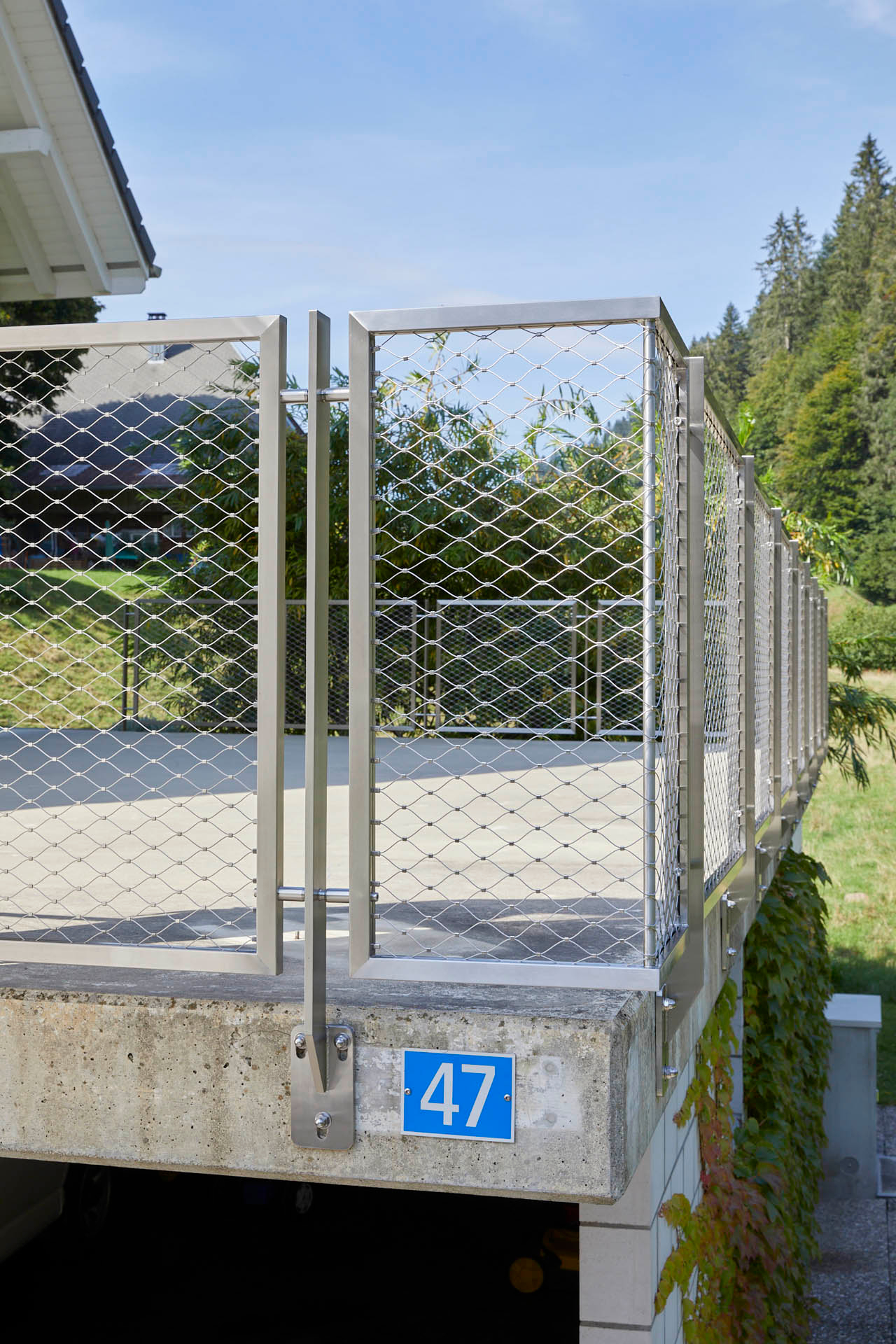

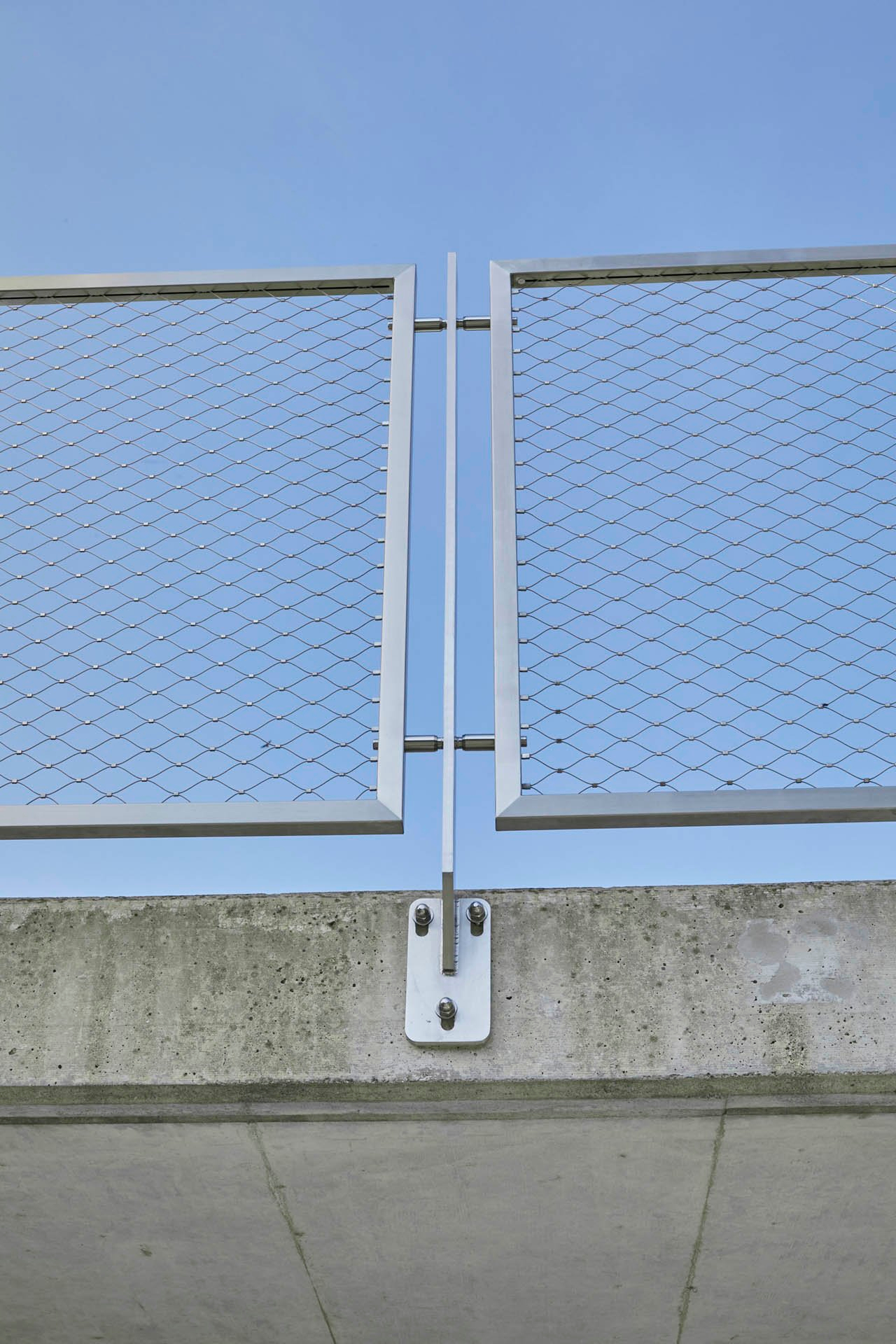

We offer two types of posts: one for surface mounted installation and one for front-side installation. Modular Railing can also be installed on custom posts.
(Custom posts are also available – contact us for more info) |

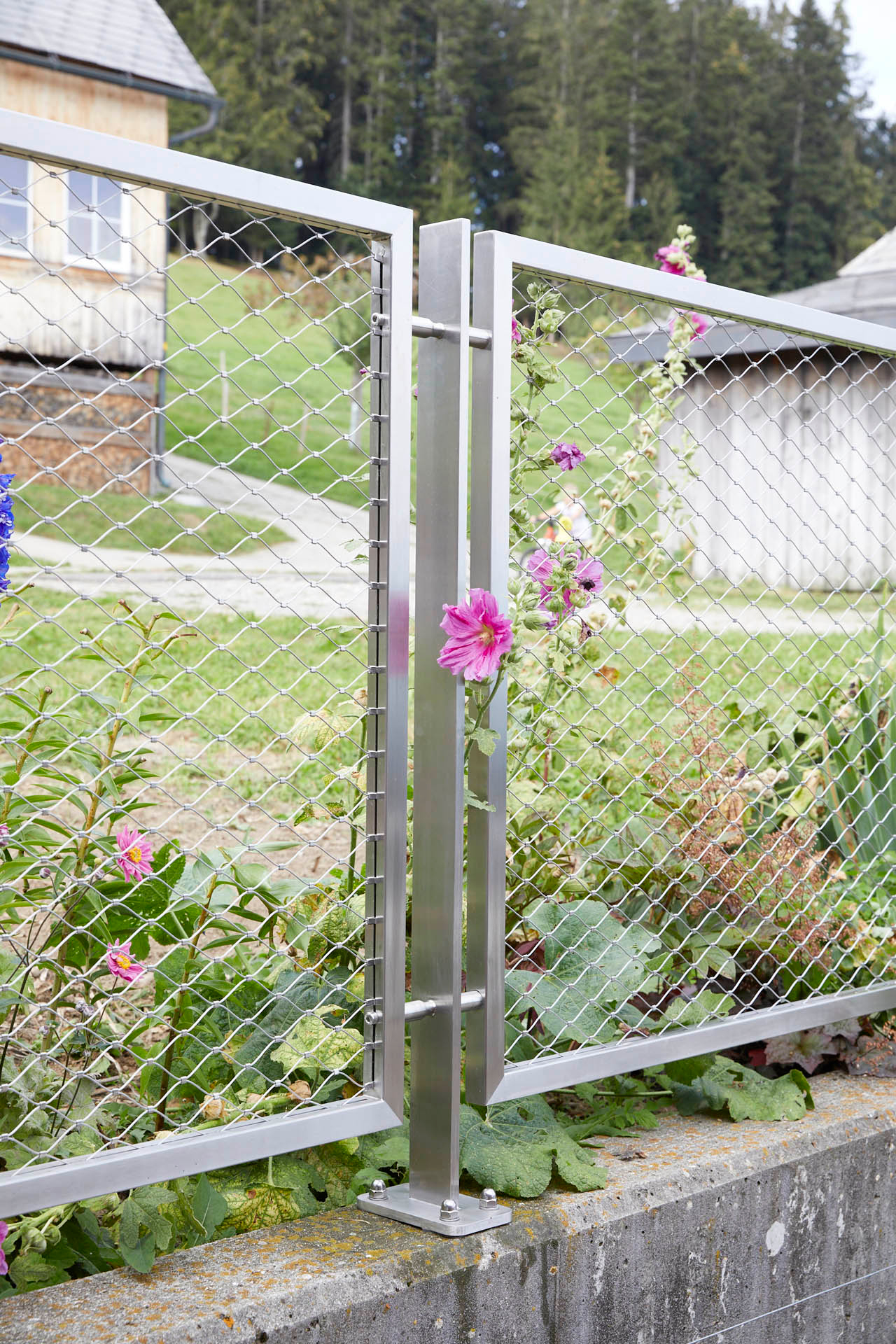

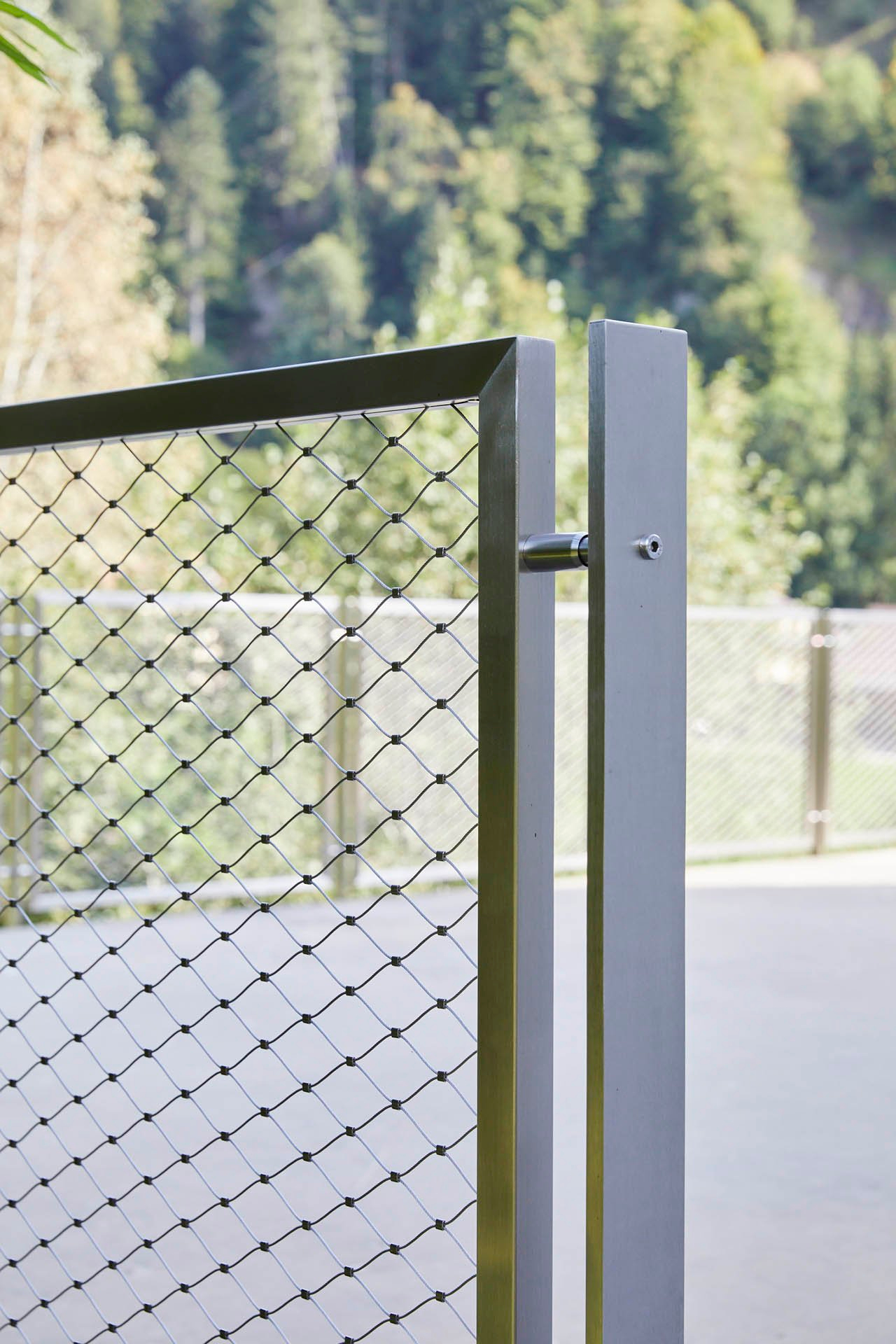

Spacers
The spacers between post and frame allow you to adjust the railing length, provide positioning assistance and absorb construction tolerances. | Planning, design, supply & installation
|
Material Characteristics

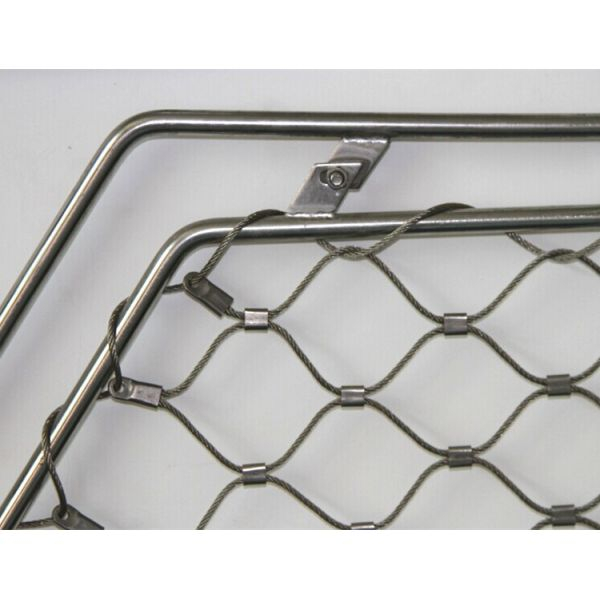

Balustrade fencing/stainless steel wire rope mesh feature:
- Transparent and flexible
- Lightweight and stable
- High-grade stainless steel
- Also available in colour
- Suitable for indoor or outdoor use
- Recyclable
About POLYMETAL

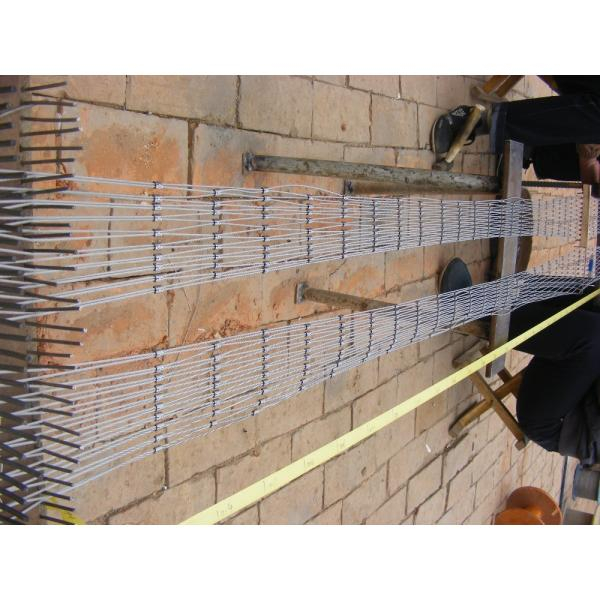

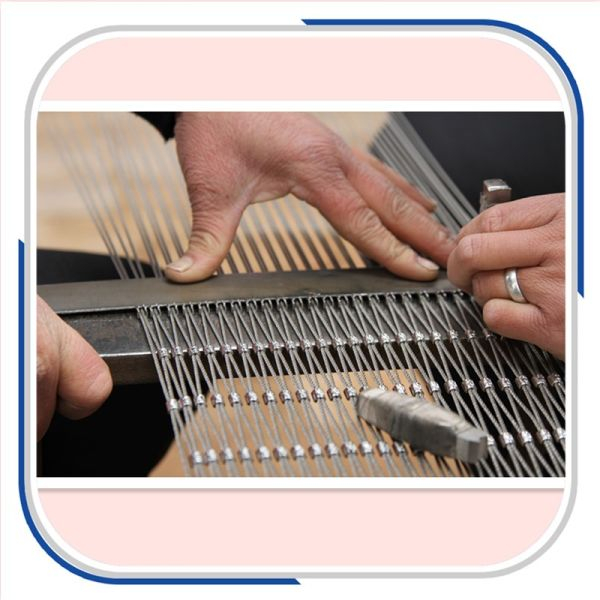

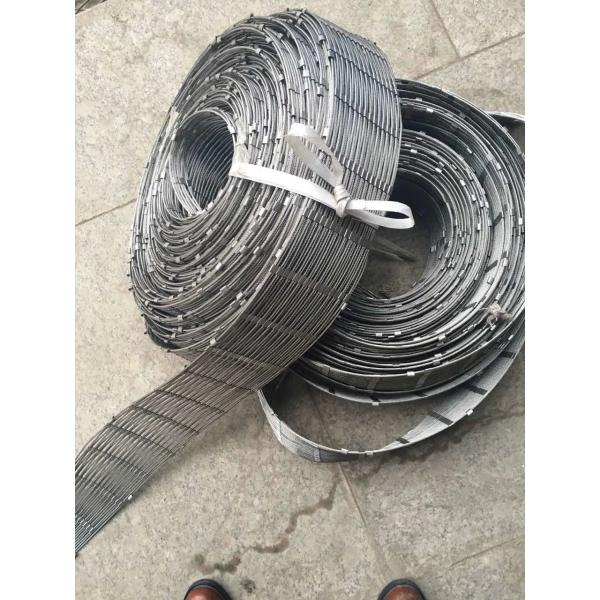

POLYMETAL is experienced in manufacturing high quality flexible mesh netting, providing different wire rope diameter, mesh width process, the nets shapes can be finished at square panel, rhombus panel, triangular panel. Customized nets height and length. Supplied more than 30 types border design plans to meet different installation required.
 |  |  |
Conclusion – Why Choose POLYMETAL Modular Stainless Steel Railing Mesh
The POLYMETAL modular stainless steel railing mesh system brings together high-grade stainless steel wire rope mesh, smart modular frames and engineered posts to create a railing solution that is safe, elegant and long lasting. It balances transparency and security, works for both new build and refurbishment, and can be customized to suit almost any architectural style.
Whether you are designing stair rails, balcony balustrades, fall protection for elevated walkways or public viewing platforms, POLYMETAL modular stainless steel railing mesh gives you a reliable, low-maintenance and visually light system that will perform for many years with minimal upkeep.
