Security spear top steel fence: 10 shocking danger facts

Security spear top steel fence is designed to stop intruders, control access and project a strong, professional boundary. But the wrong design, material or specification can turn your fence into a cosmetic line that looks secure while silently exposing you to theft, accidents, complaints and expensive rework. Small changes in tube size, wall thickness, rail section and post strength decide whether your fence is a real barrier or just decoration. Fact #9 below is the one many people never read, and that is exactly why they end up paying for early replacement and emergency repairs.

What a security spear top steel fence actually is

A security spear top steel fence is a welded steel system made of vertical uprights with pressed or welded spear heads, passing through horizontal rails and fixed to steel posts. The spears create an aggressive, anti-climb profile that clearly signals “no entry” to intruders. Typical uprights use square steel tube such as 16x16mm, 19x19mm, 25x25mm or 30x30mm, with wall thickness from 1.0mm to 2.5mm. Rails are often 40x40mm or 45x45mm, and posts range from 50x50mm for light sites up to 90x90mm for high-risk sites.

Hidden gap fact #1: Under-sized fence height makes intrusion easy

If the fence is too low, a determined intruder can still jump or pull themselves over the spear tops. For residential front boundaries, 1200–1500mm is usually the minimum; for commercial yards and industrial or utility sites, 1800–2400mm or higher is standard. Choosing height only by price creates a dangerous gap in your protection, especially around corners, gates and sloping ground where effective height may drop without you noticing.

Key design aspects that control real security

A serious security spear top steel fence is more than a row of sharp points. The combination of spear shape, height, upright spacing, rail layout and panel width controls how fast an intruder can attack and how long the fence can resist that attack.

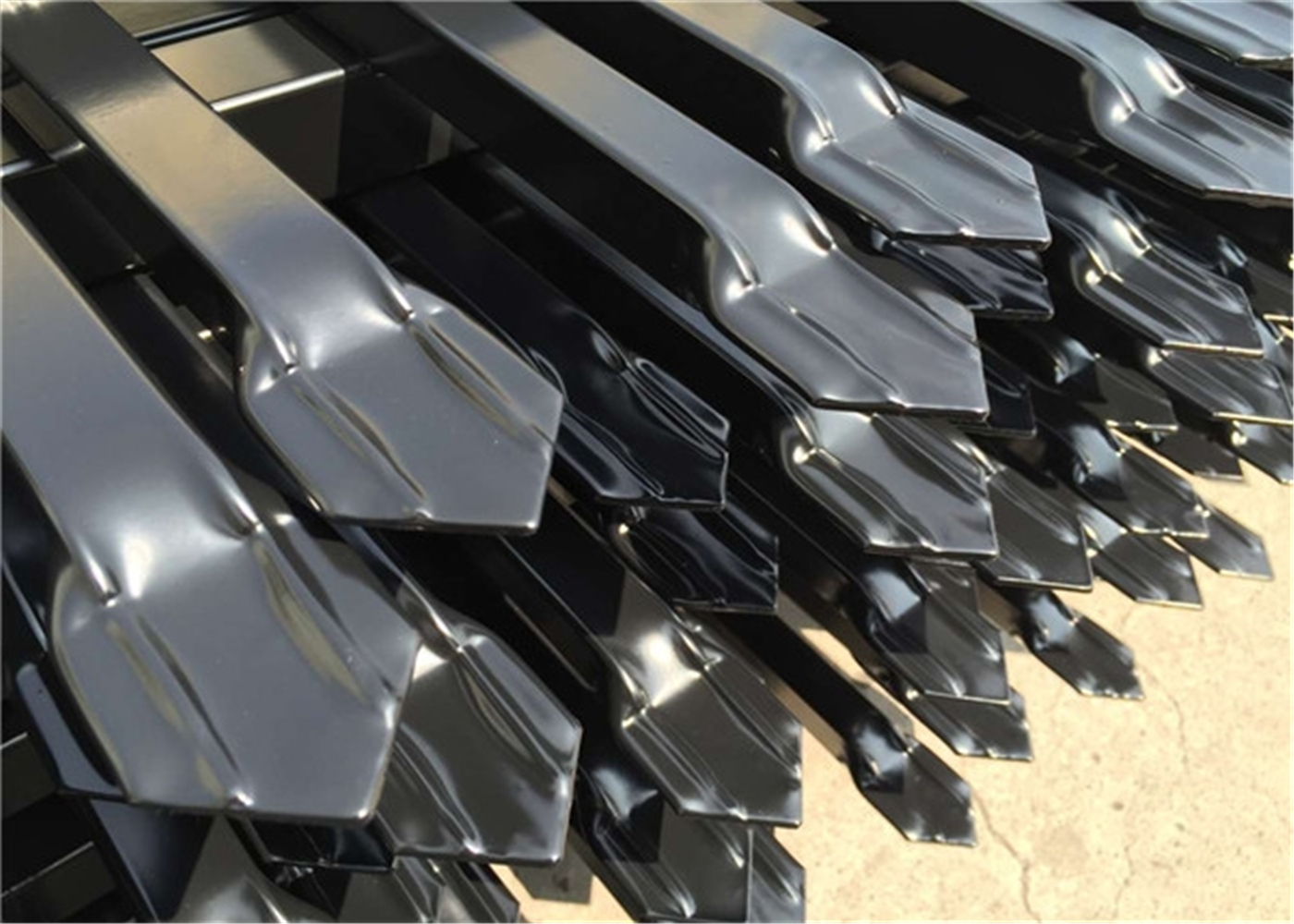

Critical flaw truth #2: Weak spear tips bend instead of deterring

Thin, poorly formed spear tops can fold over when someone tries to climb or when they are hit by tools or heavy objects. Once they bend, they create a convenient step and show intruders that the fence is weak. Strong pressed spear heads formed from proper wall thickness tube spread loads into the upright so the tip stays sharp and upright for years, keeping the psychological and physical barrier intact.

Serious hazard warning #3: Thin wall tubes collapse under impact

Using ultra-thin wall tubes may reduce weight and cost, but it introduces a serious hazard: panels that crush under a single heavy kick or hit from a trolley, pallet or vehicle. Wall thickness below around 1.0mm can deform quickly at midspan. For real security, typical ranges are 1.2–1.6mm wall for residential and 1.6–2.5mm for high-risk commercial and industrial projects. Missing this warning can turn a “secure” fence into an easy emergency exit for thieves.

Residential configuration overview before you choose

For houses, villas and small commercial frontages, owners usually want a balance between security, visibility and style. Panels are often 900–1800mm high with lighter upright tubes and posts, but still need enough strength to resist children climbing, pets pushing and casual impact from bins or small vehicles. The models below show practical residential patterns that you can apply directly to your own production and project offers.

Table 1 – Standard residential security spear top steel fence panels

Uprights, spacing and anti-climb performance

Uprights are the visible “teeth” of the security spear top steel fence. Their dimensions and spacing decide whether hands and feet can find safe positions to climb.

Dangerous downside point #4: Incorrect upright spacing creates a ladder

If you space uprights too widely, shoes and hands fit comfortably between them and the fence becomes a steel ladder. If you pack them too tight, you waste steel and may trap debris. A practical range is usually 100–130mm clear spacing for high-security areas and 110–140mm for standard commercial sites. This point is essential: correct spacing blocks climbing, keeps the view open and avoids complaints from inspectors about safety and aesthetics.

Structural warning aspect #5: Light posts can buckle in wind and crowds

Even with strong panels, undersized posts create a serious structural risk. Wind loads, crowds leaning and vehicle touches all transfer into the posts and footings. If the posts are too small or too thin, they twist or crack at ground level. A robust design uses posts from 50x50x1.6mm for light residential up to 75x75x3.0mm or 90x90x3.0mm for heavy commercial and industrial sites, with post centres matched exactly to panel width. Ignoring this aspect leads to leaning lines and emergency stabilisation work.

Commercial configuration outline for busy sites

Commercial yards, warehouses, schools and transport hubs demand stronger configurations. Panel heights are often 1800–3000mm, rails are heavier, and posts must resist forklifts, trolleys and frequent impact. The outline below gives you proven patterns that you can use directly for tenders and production planning.

Table 2 – Heavy duty commercial security spear top steel fence panels

With these commercial patterns, you can confidently specify panels for logistics yards, factories and schools where heavy traffic and crowds push against the line every day.

Welding quality, rails and long-term cost

Welds connect every upright to every rail. If they fail, your fence fails. Rails then distribute loads to the posts and footings.

Profit-killing waste insight #6: Poor welding creates endless repair work

Fast, careless welding leaves pores, undercuts and weak joints that crack under vibration and impact. Water then enters the joint, spreads rust and loosens uprights. This insight is crucial for lifetime cost: if you ignore welding quality, you don’t just replace one panel; you start a cycle of grinding, re-welding and repainting that eats your profit and reputation. Controlled MIG welding with proper jigs and parameters gives you consistent joints that hold their shape through galvanizing and coating.

Rails must also be sized correctly. Longer spans, higher panels and heavy environments need rails of 40x40mm, 45x45mm or even 50x50mm with thickness from 1.5–3.0mm. Heavy rails keep lines straight, resist bending and prevent the “wavy” effect that buyers hate to see after the first storm.

Steel grade, galvanizing and coating

The base steel and protective layers determine how long your security spear top steel fence will stay strong and attractive outdoors.

Essential insight rule #7: Certified steel grade protects long-term security

Using reliable structural-grade tube with documented properties is a rule that smart buyers never break. Proper steel allows the fence to flex under wind and impact instead of snapping or tearing at the welds. This rule becomes even more important near coasts, industrial zones and transport corridors where dynamic loads and corrosion risk are higher.

Costly myth trap #8: “Mild climates don’t need galvanizing”

One common myth is that in “mild” climates you can skip galvanizing and rely only on paint or powder. That myth is a trap: condensation, sprinklers, industrial fallout and road salts still attack unprotected steel. Without zinc protection, rust appears first around welds, cut edges and post bases, forcing early repainting or panel replacement. Choosing hot-dip galvanizing after fabrication then powder coating, or a high-level pre-galvanized tube plus quality powder system, saves you from this trap and locks in long-term performance.

Expensive loss pattern #9: Ignoring coating warranty terms drains your budget

The ninth pattern is the one many people never read – and that is exactly why they suffer loss. When you do not specify a clear coating system and warranty, you silently accept all the risk of early fading, chalking and rust. If the powder or paint is not matched to zinc thickness and environment category, your fence can look old and patchy while it should still be in its prime. By insisting on a defined coating pattern with documented performance and warranty, you prevent this loss and protect both your investment and your brand image.

High-security configuration checklist for critical sites

High-security jobs such as substations, correctional centres, defence sites and data facilities require tighter spacing, stronger tubes, heavier rails and bigger posts. The checklist below shows typical high-security configurations you can use as a base for your own engineered designs.

Table 3 – High-security and custom security spear top steel fence panels

This high-security checklist gives you the edge when you design fences for critical infrastructure, where failure is simply not acceptable.

Gates, hardware and access control

Gates are the moving part of the perimeter and often the first target for attack. Matching spear top swing or sliding gates, heavy hinges, adjustable latches and secure lock cases must all be engineered to the same standard as the panels.

Strategic benefit advantage #10: Partnering with a specialist boosts your payoff

Working directly with a specialist security spear top steel fence manufacturer gives you a powerful advantage. You get complete systems – panels, posts, caps, brackets, gates and hardware – designed as one package. Dimensions match, coatings match and accessories fit first time. This advantage reduces installation time, avoids misfit on site and cuts callbacks, so every project delivers a better payoff in reputation and profit.

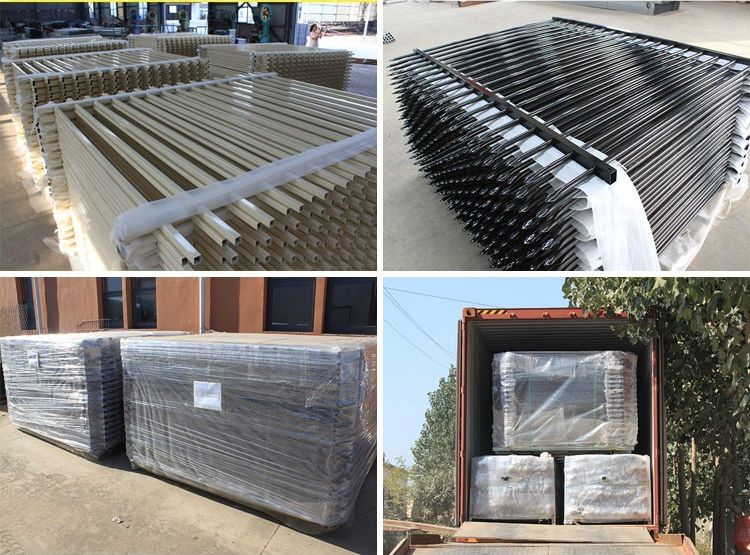

Packing pictures

1> Fence panel: Air bubble film + metal pallet
Panels are fully wrapped with thick air bubble film (extra on spear tops and corners), stacked with spacers, then fixed by straps and stretch film on strong metal pallets for safe forklift and container loading.

2> Fence post: plastic film bag (cap welded) + pallet
Each post is welded with a top cap, then individually covered with a plastic film bag to protect the coating, stacked neatly by size on pallets, and secured with straps and stretch film to avoid movement and damage during transport.

3> Fence accessories: Carton
All brackets, clamps, bolts, nuts, hinges, latches and caps are sorted by type, packed in inner poly bags, then placed into strong, clearly labeled export cartons; cartons are palletized, strapped and film-wrapped so every project receives a complete, tidy hardware kit ready for fast installation.

Final overview for security spear top steel fence buyers and installers

Choosing a security spear top steel fence is not just about copying a photo from a catalogue. It is about controlling each danger fact, flaw, hazard, myth, loss and benefit that affects real-world security and long-term cost. By following the height, tube size, wall thickness, rail dimensions, spacing, post size, welding quality, steel grade and coating patterns explained above – and by pairing them where needed with clean, modern balustrade cable mesh on balconies, decks and internal barriers – you create a continuous safety system from the boundary to the building. When you pay special attention to danger fact #9, you protect your property, your customers and your own profit on every project that uses security spear top steel fence and balustrade cable mesh together.
