spear top steel picket fence -9 Shocking Risk Insights

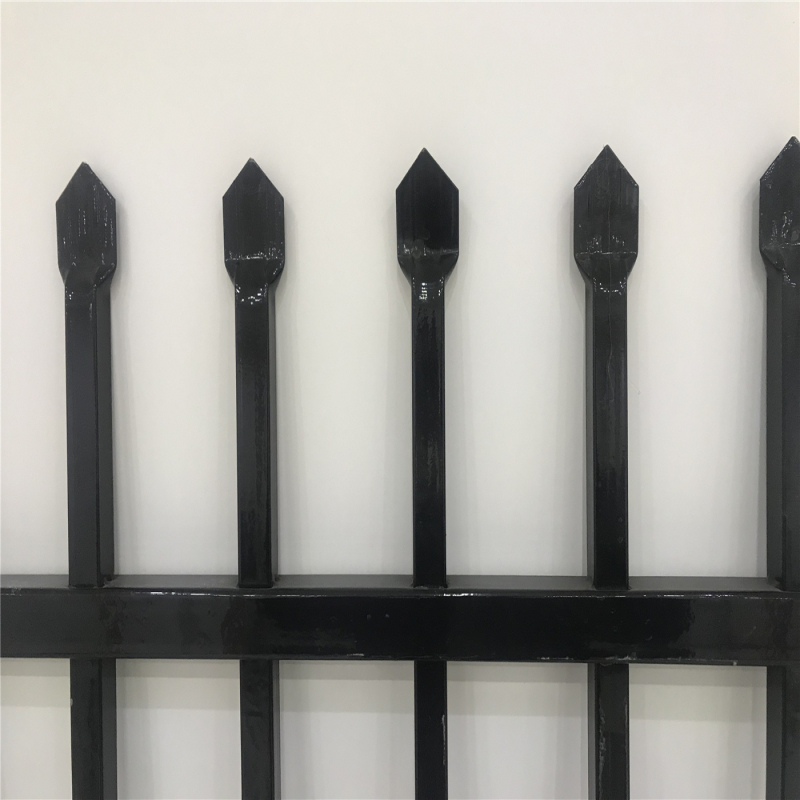

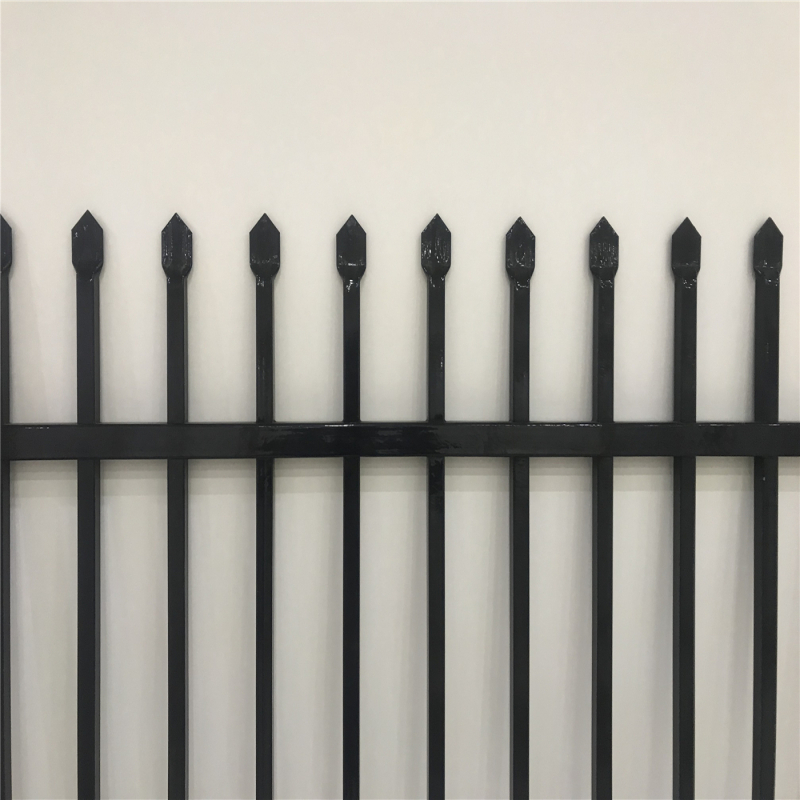

A spear top steel picket fence (also called stain black press point steel spear fence) is a welded tubular system made from hot dipped galvanized square tube with pressed spear tops. The fence is constructed of steel for maximum longevity and strength, crafted to look like a traditional wrought iron fence but with modern welding and coating technology. With a chemically bonded black powder coated finish and zinc phosphate undercoat, a spear top steel picket fence panel easily outlasts an Aluminium 6063 T6  fence panels even in harsh coastal, industrial or high-UV environments. Steel construction also allows for longer panels without sag under weight or stress, which means fewer post holes, less labour and a straighter, more professional fence line.

Risk warning #1: Under-sized height turns your spear top steel picket fence into a climbing aid

If you choose only by appearance and drop from 1800–2100 mm down to 1200–1500 mm just to save money, you open a serious risk. Rails and spear tops become convenient footholds for adults and teenagers, especially near retaining walls, steps or planter boxes. A spear top steel picket fence that looks “strong” in a catalogue becomes a comfortable climbing frame on site, and that mistake shows up as trespass, complaints and avoidable loss.

Standard

Core structure and materials of spear top steel picket fence

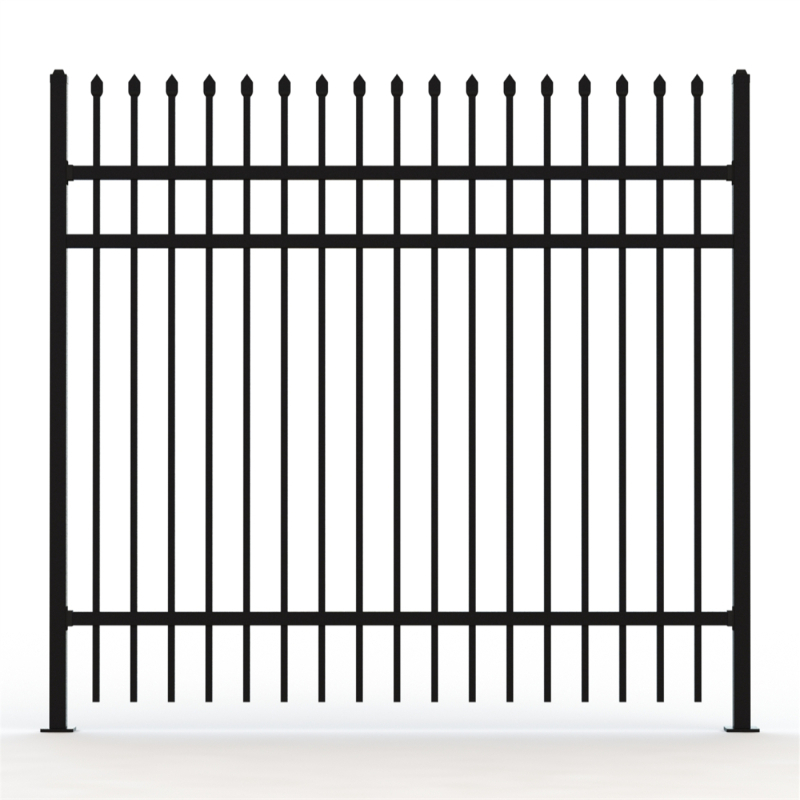

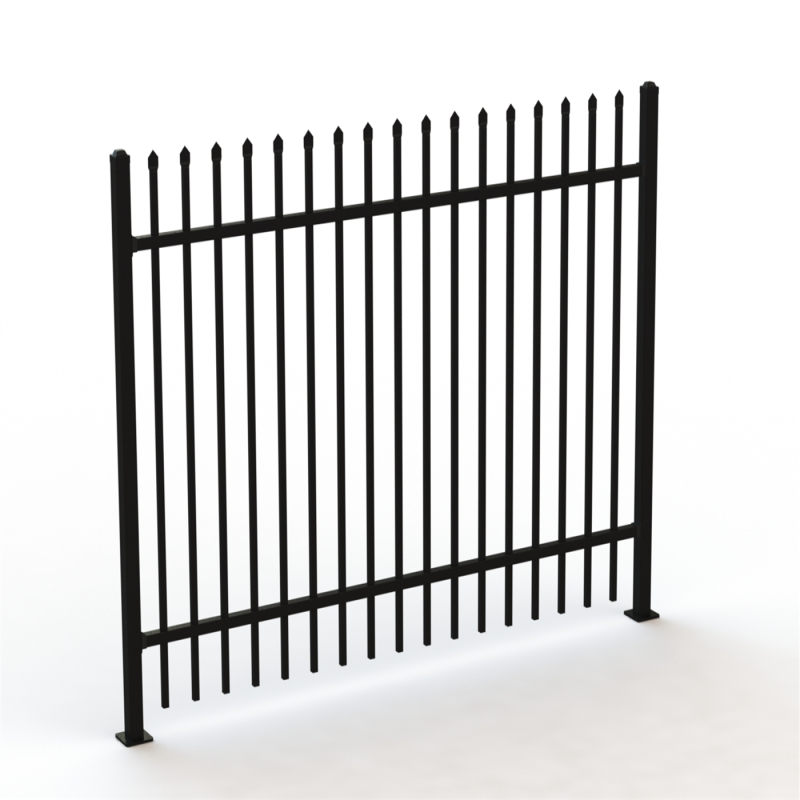

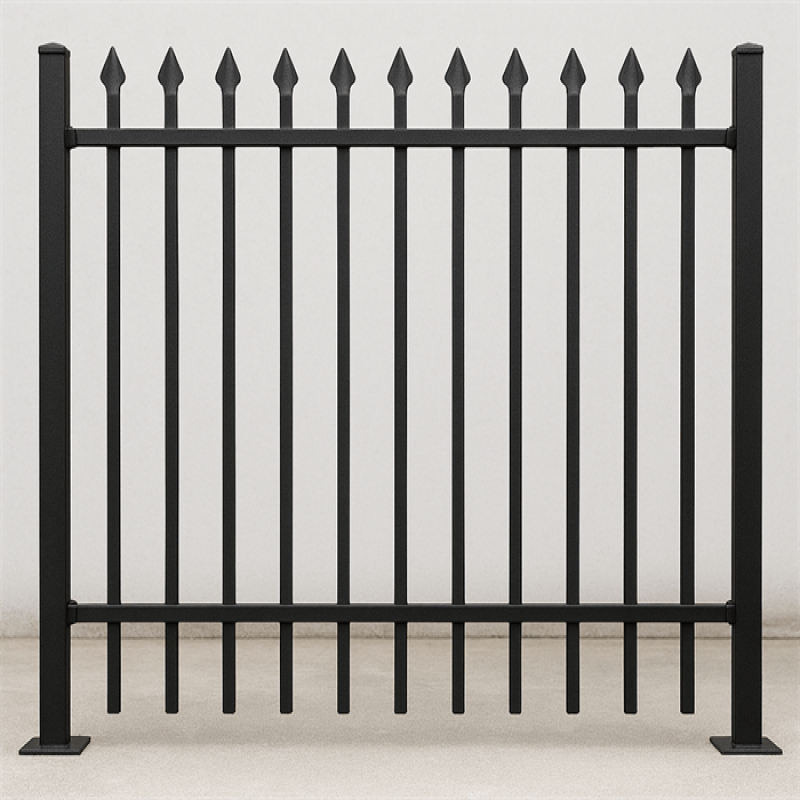

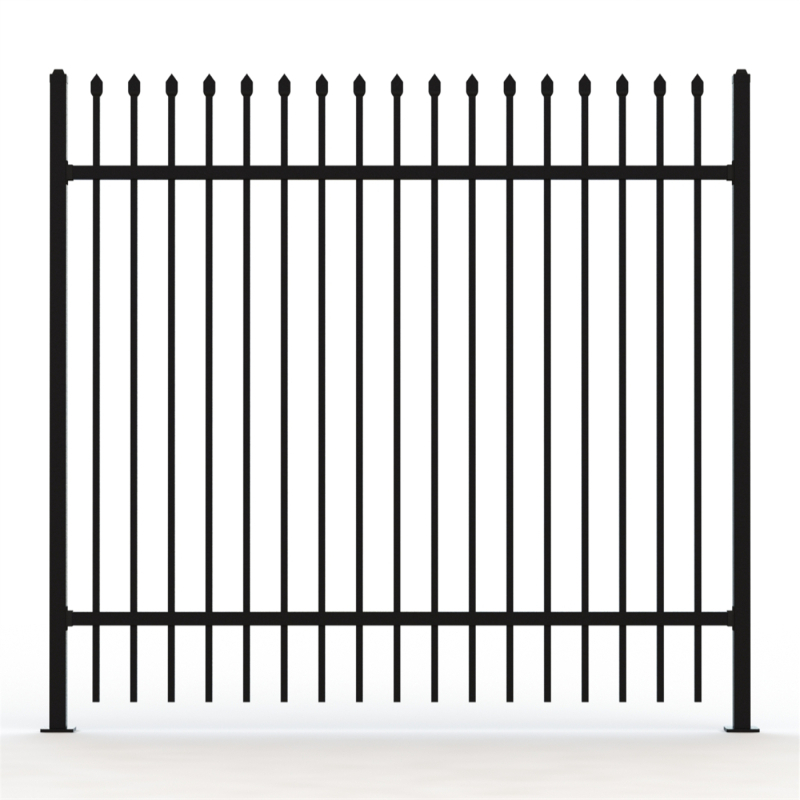

Behind every stain black press point steel spear fence is a simple but critical structure. Typical panels are 2400–3000 mm wide and 1200–2400 mm high. Uprights (pickets) are square tubes such as 16×16 mm, 19×19 mm, 25×25 mm or 30×30 mm. Rails are usually 25×25, 30×30, 40×40 or 45×45 mm. Wall thickness ranges from 1.0–2.5 mm depending on duty level, and posts step from 50x50x1.5 mm for light residential up to 100x100x4.0 mm for high security and gate posts. The spear top pickets steel fence uses hot dipped galvanized tube with a zinc phosphate undercoat and black powder coat, giving both structural strength and a deep, uniform stain black colour.

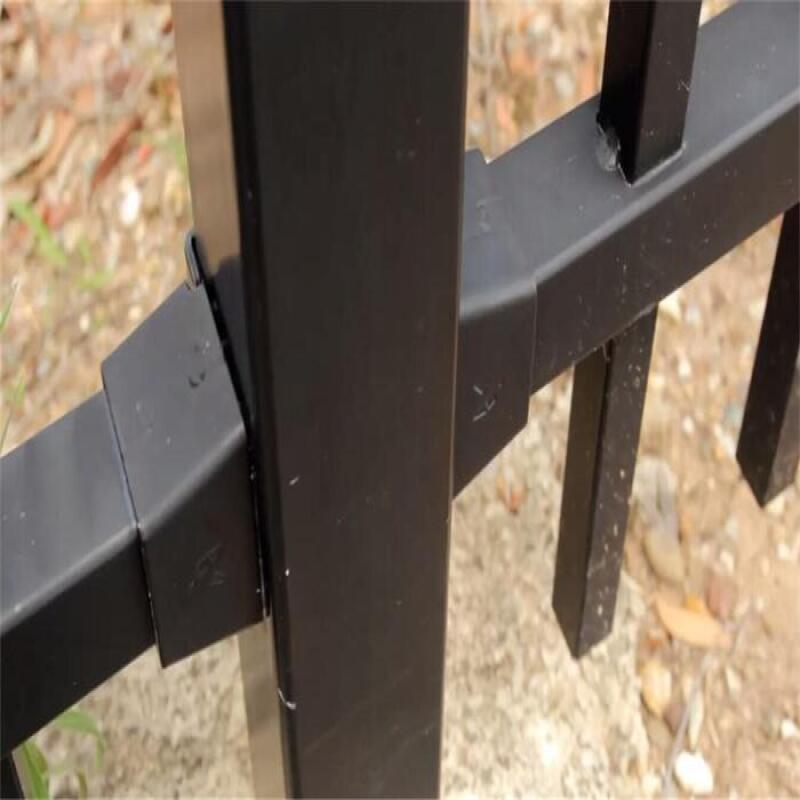

Connections between rails, pickets and posts are fully welded or crimped and mechanically fixed, creating a rigid frame that resists twisting, pushing and everyday impact. The system’s characteristic features include solid strength, durable secure connections, structural integrity and a natural, simple beauty that suits both modern and classic architecture.

Cost trap #2: Thin tubes hide a dangerous weakness in everyday use

Using 16x16x1.0 mm uprights and 25x25x1.0 mm rails everywhere may make your quotation look attractive, but it is a hidden cost trap. Around driveways, paths, schools and play areas, balls, trolleys and bicycles quickly bend light pickets, and the spear top steel picket fence starts to twist and rattle. Upgrading key lines to 19×19 or 25×25 uprights and 30×30 or 40×40 rails adds a small material cost but protects you from expensive panel replacement.

Residential spear top steel picket fence panels

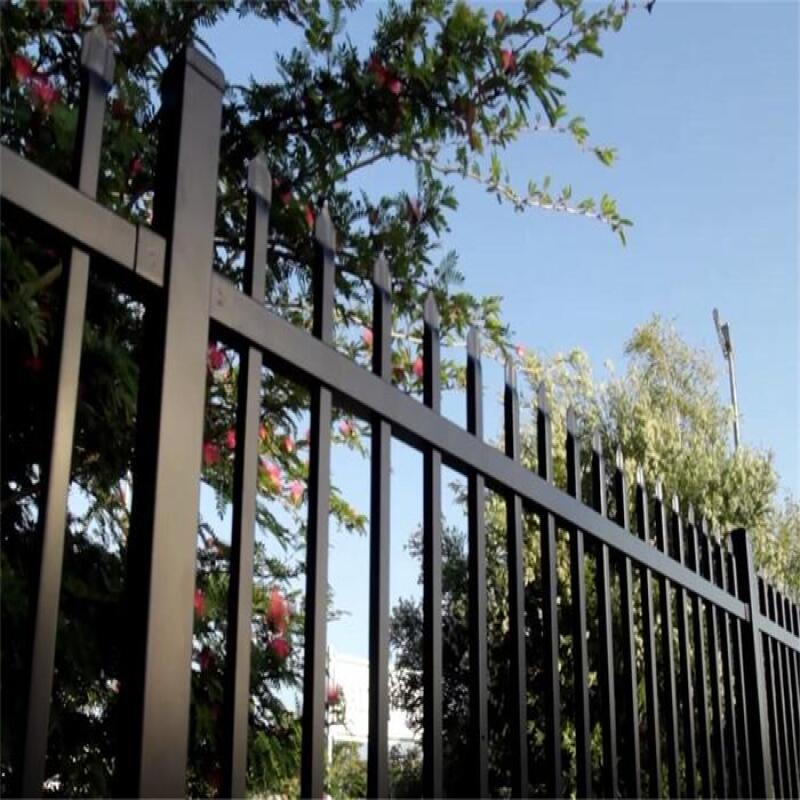

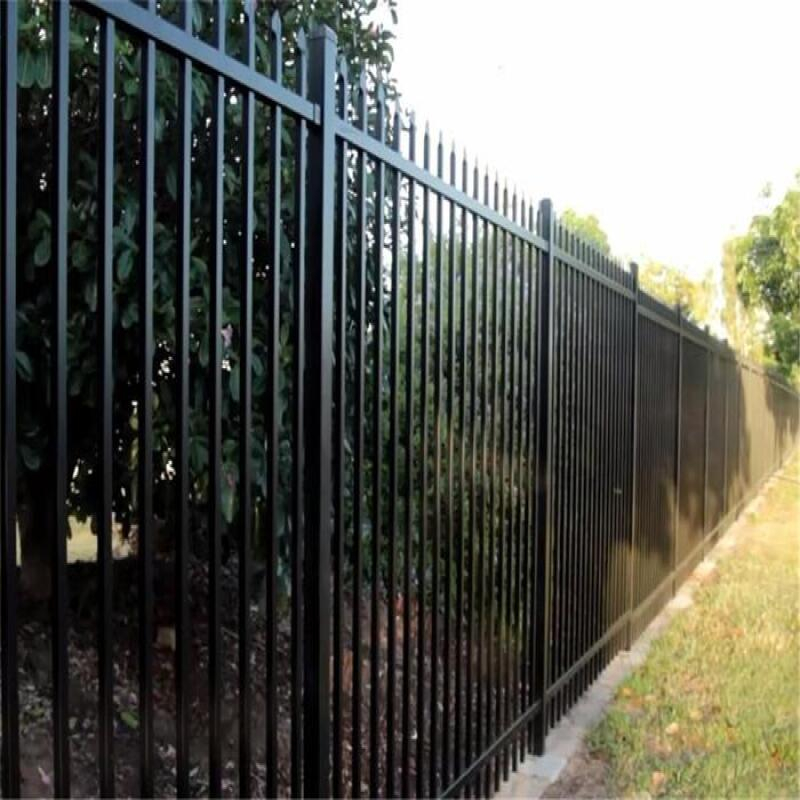

For homes, villas and communities, spear top steel picket fence panels define property lines, protect children and pets and create a strong design feature. Front boundaries often use 1200–1500 mm high panels with decorative spear tops to keep an open, welcoming view, while side and rear fences move up to 1800 mm for privacy and security. The black press point spears align cleanly across each bay, giving a classic wrought iron look with modern low maintenance.

Specification Table #1 – Residential spear top steel picket fence panels

Spacing detail #3: Over-wide gaps create a climbable weakness

This spacing detail is critical: once gaps between spear pickets creep beyond about 130–140 mm, feet and hands find easy purchase and children attempt to squeeze through. A balanced spear top steel picket fence holds spacing in the 110–130 mm range, which keeps the profile light but stops your decorative pattern turning into a ladder.

Standard security spear top steel picket fence panels

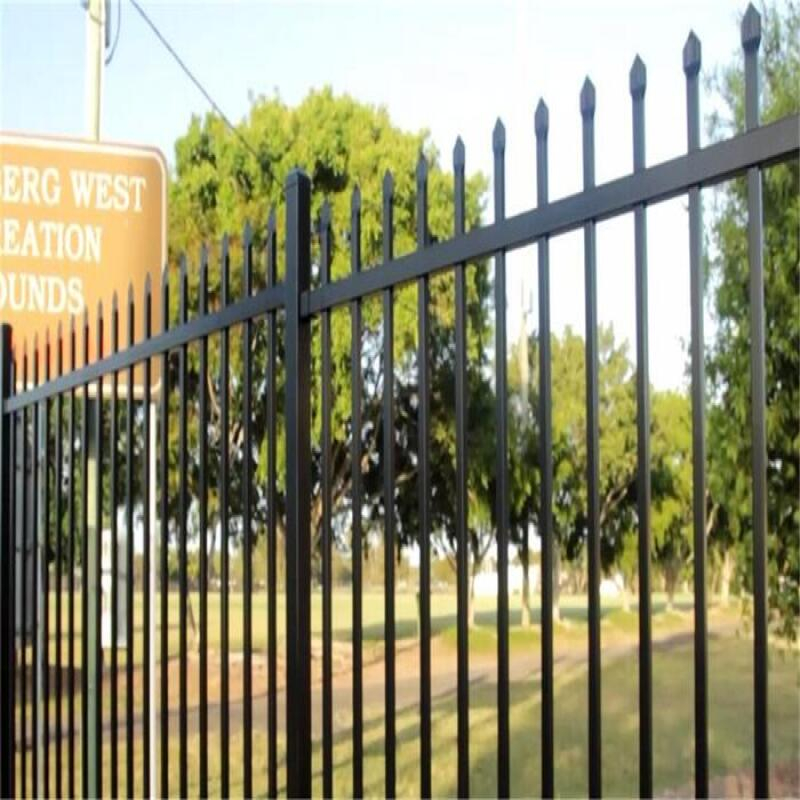

For factories, warehouses, schools, car parks, public buildings and infrastructure, spear top steel picket fence lines must perform as real security barriers. Heights move to 1800–2100 mm, rails step up to 40×40 mm, and posts upgrade to 60×60 or 75×75 mm with deeper concrete footings. The pressed point spears send a clear “no entry” message while the square tube frame resists pushing, leaning and everyday abuse.

Specification Table #2 – Commercial spear top steel picket fence panels

<

Weakness insight #4: Ignoring galvanizing and phosphate creates a hidden defect

If your spear top steel picket fence uses plain black tube with only a decorative powder coat, you are building in a structural weakness. Moisture creeps into welds, spear tips and cut ends, rust swells under the film, and bubbles appear exactly where people see them first. A genuine stain black press point steel spear fence always uses hot dipped galvanized tube plus zinc phosphate undercoat and chemically bonded powder coating so every edge is protected.

Heavy-duty spear top steel picket fence for high-risk sites

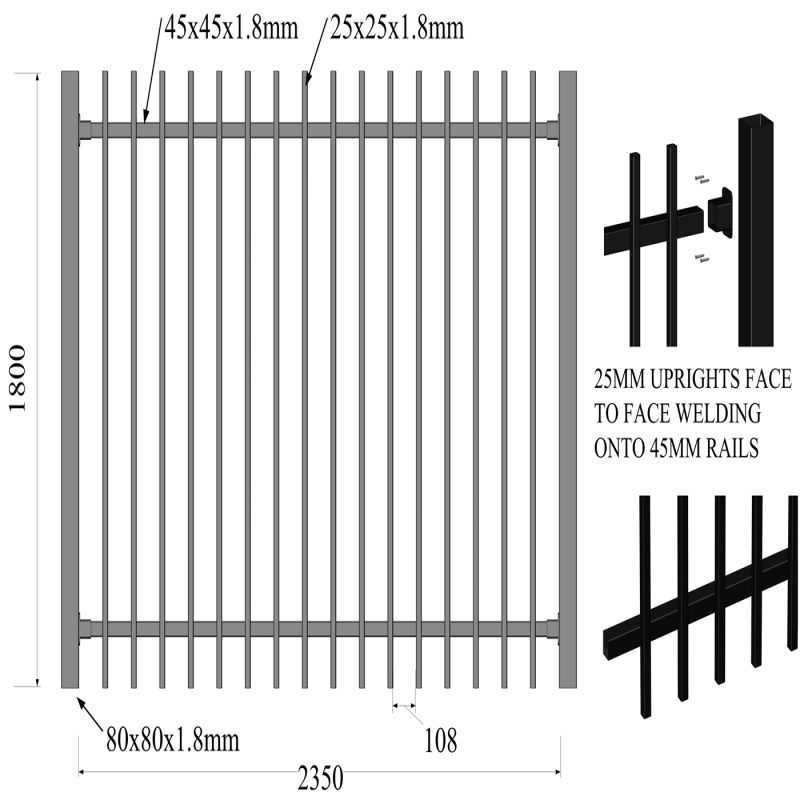

Industrial plants, logistics yards, substations, airports and high-security facilities need more than standard commercial fencing. Heavy-duty spear top steel picket fence panels use thicker uprights, stronger rails and larger posts to resist crowds, vehicle contact and high winds. Heights move to 2100–2400 mm, uprights step up to 25×25 or 30×30 with thicker walls, rails go to 45×45 or 50×50 mm, and posts increase to 80×80, 90×90 or 100×100 mm with deeper foundations.

Specification Table #3 – Heavy-duty spear top steel picket fence panels

Damage pattern #5: Light posts create a bending trend along the whole fence

Under-sized posts introduce a damage pattern that slowly ruins your installation. Wind loads, people leaning and small vehicle bumps all act at ground level, where thin posts begin to deform. Over time the spear top steel picket fence develops a wave, gates drag and latches misalign. Stepping up to 75×75 or 80×80 posts on long or high runs prevents this pattern and protects both security and appearance.

Coating system and corrosion protection

The stain black press point steel spear fence uses a sophisticated coating pattern: hot dipped galvanized tube, chemical cleaning, zinc phosphate pretreatment and high-build polyester powder coating. The chemically bonded powder finish locks onto the phosphate layer, giving excellent adhesion, impact resistance and UV stability. This is why a steel spear fence can outlast aluminium in harsh environments; the full coating system protects every weld, spear tip and cut edge.

Oversight flaw #6: Skipping phosphate pretreatment breaks the coating rule

Treating phosphating as an optional extra is a dangerous oversight. Without it, powder adhesion is weaker, micro-blisters form, and rust appears early at spear tips and corners. The coating flaw then forces you into repainting or replacing panels years earlier than planned. A spear top steel picket fence with zinc phosphate undercoat follows the correct rule and gives you a long, predictable coating life.

Applications of spear top steel picket fence

Because of its strength and appearance, a spear top steel picket fence is widely used as:

• Railway fencing and transport corridor fencing
• Highway fencing and bridge approaches
• Site fencing around factories, warehouses and depots
• School and campus boundaries
• Public infrastructure, utilities and government sites
• High-end residential and estate perimeters

The small spear spacing and vertical tube layout make climbing difficult. When combined with tight mesh infill where needed, the fence works as a true anti-climb barrier:

1. Prevents climbing: small openings give no toe or finger hold, and tools or weapons cannot be passed easily through protected zones.
2. Prevents cutting: strong wires and welded joints in the optional mesh infill make cutting very difficult; small mesh size prohibits large cutting tools.
3. Prevents destruction: limited leverage points mean brute force attacks are ineffective and the spear frame stays intact.

Threat angle #7: Ignoring anti-climb details turns security into a visual myth

If you rely only on the look of spear tops and ignore mesh opening size, spacing and height, you create a threat angle in your perimeter. The fence looks strong but behaves like decoration, and the security promise becomes a myth. Getting these details right ensures your spear top steel picket fence is a real barrier, not just a visual statement.

Packaging, shipping and installation advantages

Spear top steel picket fence components are designed for fast, clean installation. The system suits flat sites, slopes and uneven ground because panels can follow contours without complicated fabrication. Another advantage is straightforward packaging and logistics:

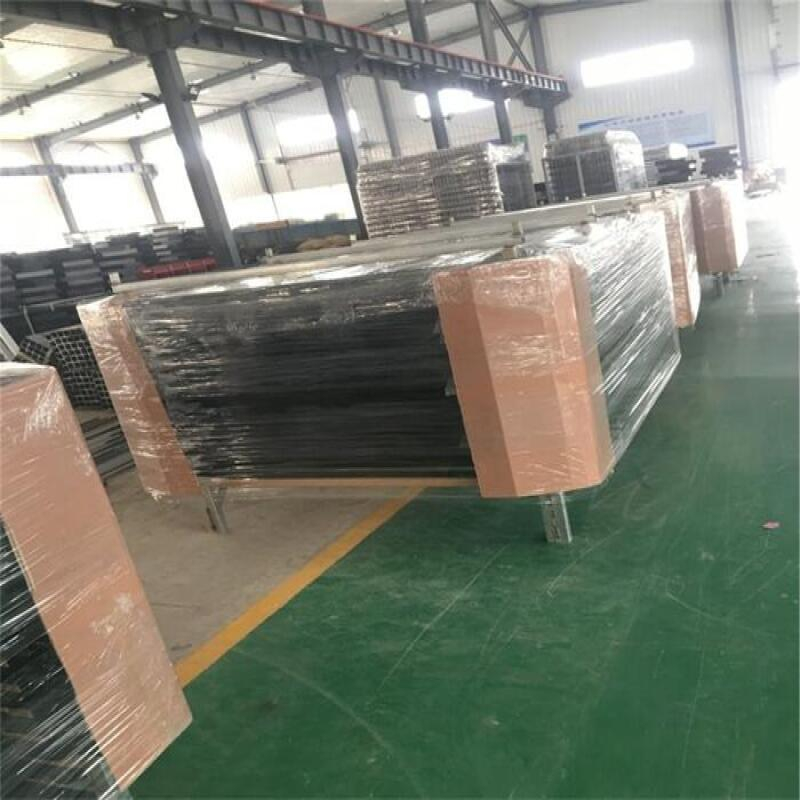

• Balusters and complete panels stacked on pallets or in strong cartons
• Individual components wrapped in pearl cotton or bubble bag to protect the powder coat

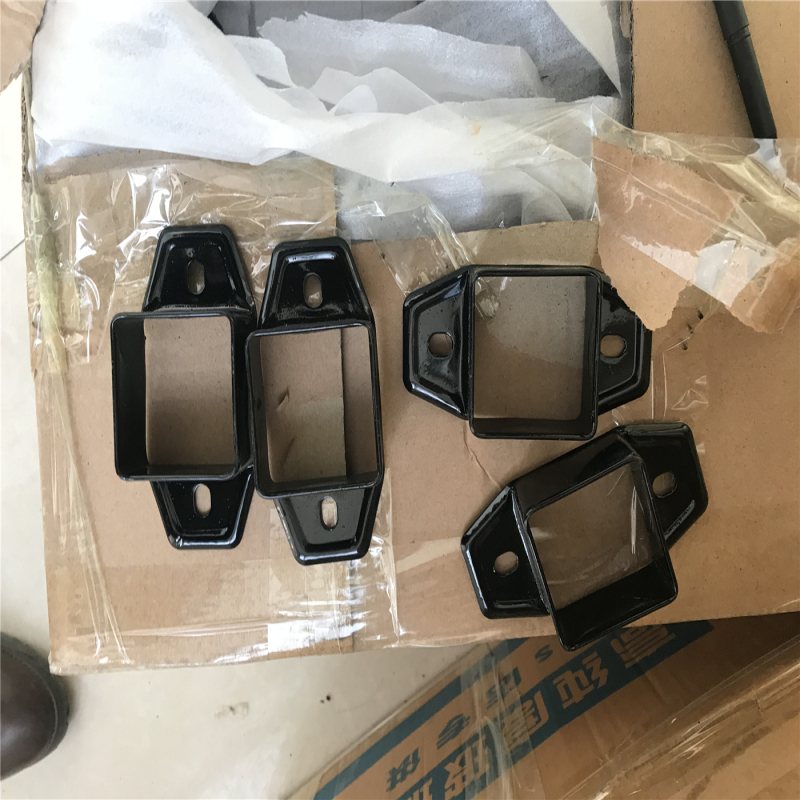

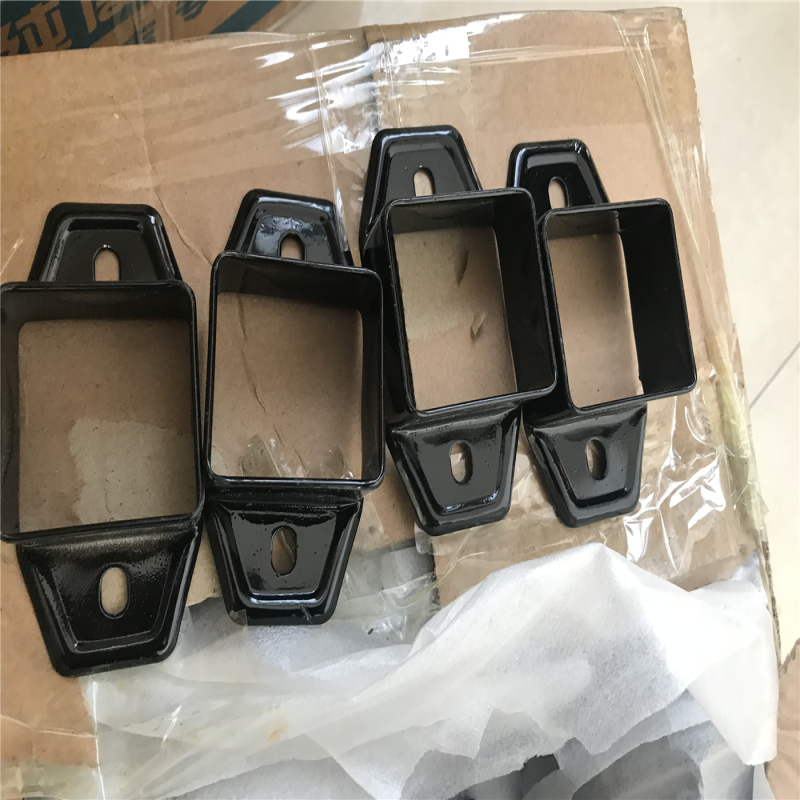

• Accessories such as caps, brackets, bolts and nuts packed in labelled cartons
• Standard delivery time 7–15 days from order, depending on quantity and specification

Loss snapshot #8: Weak pallets and loose strapping create hidden damage

If pallets are too light or strapping is loose, panels rub together during transport, spear tips chip through the coating and rails mark each other. This snapshot of hidden loss only appears when the container is opened on site, forcing re-coating or replacement. Strong pallets, tight strapping and inner protection eliminate this packaging danger and keep your spear top steel picket fence looking perfect on arrival.

Why choose spear top steel picket fence over aluminium or simple railings

Compared with aluminium panels and fragile light railings, a spear top steel picket fence offers clear benefits:

• Steel allows longer panels without sag, so you need fewer posts and less labour.
• Hot dipped galvanizing plus zinc phosphate and powder coating give superior corrosion resistance.
• Pressed spear tops and square tubes deliver both a strong security message and classic wrought iron style.
• Strong plasticity in design means you can build various specifications and models according to customer requirements.
• Installation is simple and not limited by topography, making it suitable for widespread use on slopes, banks and uneven ground.
• The price is more affordable than fully solid wrought iron while delivering equivalent security.

Profit payoff #9: Reading this payoff view now protects you from crisis and waste

This ninth payoff view is the one many buyers skip, and that is exactly where they suffer damage, waste and loss. When you specify a real spear top steel picket fence – correct height, real tube sizes, appropriate wall thickness, strong rails, safe spacing, upgraded posts, hot dipped galvanized steel, zinc phosphate undercoat and quality powder coating – you lock in a powerful advantage: genuine security, long life, low maintenance and a fence line that keeps working for your reputation and profit. If you ignore payoff #9 and buy only by picture or first price, you invite rust, bending, complaints and costly rework on every project.

Conclusion: controlling every critical aspect of spear top steel picket fence

A spear top steel picket fence is not just another black panel in a catalogue – it is a complete security structure that depends on the right height, tube size, wall thickness, rail dimensions, upright spacing, post strength, galvanizing, phosphate treatment, powder coating and even the way it is packed. In areas where you also need to block birds, rubbish or small animals, the same frame can be cleanly combined with bird wire mesh, so the fence keeps its sharp spear-top look while the mesh quietly closes the gaps behind it. By controlling every risk, cost fact, spacing detail, post weakness, coating danger, impact aspect, packaging warning, life-cycle pattern and profit boost described above, you turn stain black press point steel spear fence panels into a dependable long-term asset instead of a risky decoration – protecting your property, your customers and your profit on every spear top steel picket fence project.
