Stainless Steel Filter discs

Stainless Steel Filter discs are compact but powerful filtration elements designed for demanding industrial processes. Made from high-quality metal wire mesh in single or multi-layer constructions, they deliver accurate particle control, excellent mechanical strength and long service life in harsh operating conditions.Our Stainless Steel Filter discs can be produced as single-layer screens for coarse protection or
double-layer and three-layer structures for finer filtration and higher strength. According to the outside design, they can be manufactured in a wide range of shapes including round, square, kidney shape,oval and other special geometries to match your existing housings or special equipment.

Main Features of Stainless Steel Filter Discs

High strength and rigidity: Multi-layer spot-welded or sintered structures resist deformation under pressure and flow shock.
Accurate filtration: A broad choice of mesh counts and wire diameters gives precise control of opening size and filtration rating.
Excellent corrosion resistance: Stainless steel grades such as AISI 304 and 316 offer reliable performance in water, oil, gas, chemicals and high-humidity environments.
Reusable and easy to clean: Discs can be back-flushed, ultrasonically cleaned or chemically washed to restore flow and extend service life.
Flexible shapes and sizes: From miniature 5 mm discs to large 600 mm elements, with custom shapes available on request.

Materials

The filter media and support layers of our Stainless Steel Filter discs are available in several metallic
materials to suit different corrosive or mechanical conditions:

Stainless steel woven wire mesh & wire cloth – the most common choice, combining corrosion resistance with strength and stability.
Brass wire cloth – good for non-sparking environments and certain non-corrosive liquids or gases.
Phosphor bronze wire cloth – excellent fatigue resistance and good electrical conductivity, ideal for some specialised filtration or screening duties.
Mild steel wire mesh – cost-effective option for non-corrosive, low-risk applications.

For most demanding industrial applications, grades AISI 304 and AISI 316 stainless steel are recommended
thanks to their superior resistance to rust, acids and chlorides.

Shapes, Layers and Disc Diameter

To match different filter housings and installation conditions, Stainless Steel Filter discs are available in:

Shapes: round, square, rectangular, kidney shape, oval and many other custom designs.
Layer structures: single layer, double layers or three layers. Multi-layer designs can combine
a fine filtration mesh with one or two coarse support meshes, giving both high capture efficiency and
strength.
Disc Diameter Range: from 5 mm up to 600 mm, with special sizes produced according to customer drawings or samples.

Typical Applications

Thanks to their robust metallic construction and flexible design, Stainless Steel Filter discs are widely used
in the following processes:

Petroleum & petrochemical: protection of pumps, valves and meters; removal of solid particles and liquid droplets from fuels and process streams.
Chemical industry: absorption, evaporation and filtration stages where the discs remove catalyst fines, solid impurities and liquid foam.
Pharmaceutical & medicine: gas and liquid filtration in reactors, dryers and process pipelines, where clean and stable filtration is critical.
Metallurgy & machinery: hydraulic oil filtration, cooling water filtration and protection of precision components.
Shipbuilding & marine: fuel oil, lubricating oil and cooling water filters in ship engines and auxiliary systems.
Automobiles, trucks & heavy vehicles: used as air filters, oil strainers and fuel filters to remove dust, mist droplets and liquid foam.

In these applications, Stainless Steel Filter discs help delete mist drops, separate liquid foam, protect
downstream equipment and improve final product quality.

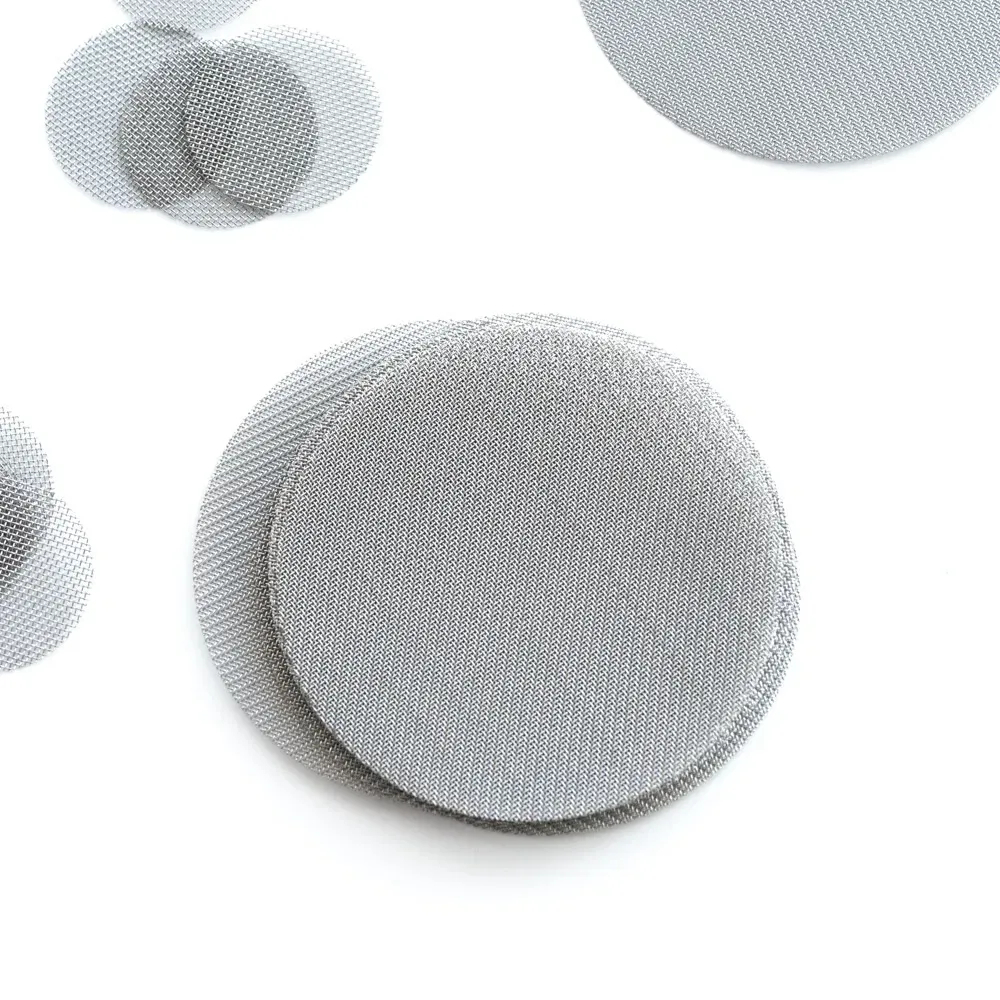

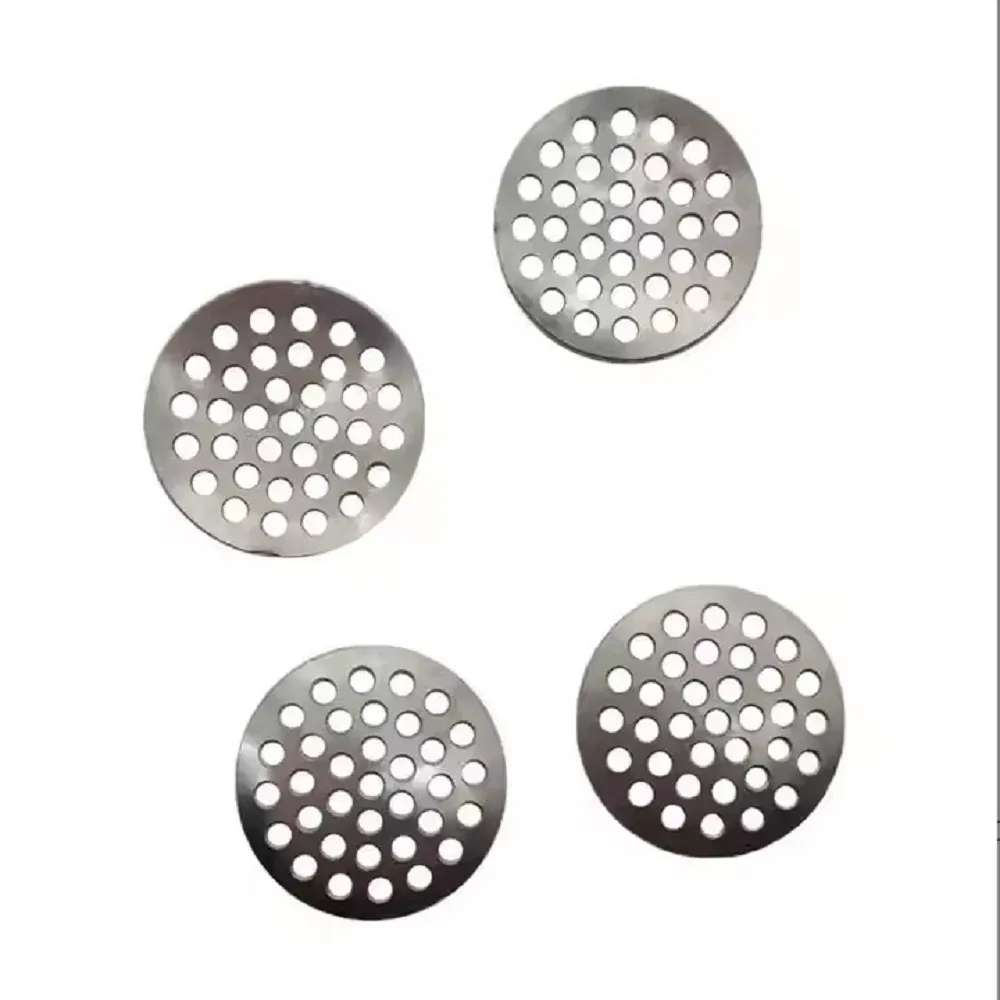

Product Display – Stainless Steel Filter Discs

Below are some common designs of our Stainless Steel Filter discs. All photos and code are preserved so you can directly embed them into your product page:

Technical Specification – Stainless Steel Wire Mesh Plain Weave

The following table lists typical specifications for the plain-weave stainless steel wire mesh used to produce
our Stainless Steel Filter discs. Different mesh counts and wire diameters allow you to select the right
opening size for your filtration accuracy:

Specification of Stainless Steel Wire Mesh Plain Weave
Mesh	Wire Dia.(MM)	Opening(MM)	Material(AISI)
7	1.00	2.63	304 or 316
10	0.60	1.94	304 or 316
12	0.50	1.62	304 or 316
16	0.40	1.19	304 or 316
16	0.35	1.24	304 or 316
18	0.35	1.06	304 or 316
20	0.40	0.87	304 or 316
24	0.26	0.80	304 or 316
30	0.30	0.55	304 or 316
35	0.17	0.56	304 or 316
40	0.23	0.40	304 or 316
50	0.20	0.31	304 or 316
60	0.15	0.27	304 or 316
70	0.12	0.24	304 or 316
80	0.12	0.19	304 or 316
90	0.12	0.16	304 or 316
100	0.10	0.15	304 or 316
120	0.09	0.12	304 or 316
150	0.06	0.11	304 or 316
180	0.05	0.091	304 or 316
200	0.05	0.077	304 or 316
220	0.05	0.065	304 or 316
250	0.04	0.062	304 or 316
270	0.035	0.059	304 or 316

Customization & Ordering Information

To select the most suitable Stainless Steel Filter discs for your project, please provide:

Medium to be filtered (liquid or gas) and its working temperature & pressure.
Required filtration rating or target particle size.
Preferred material (AISI 304, 316 or other alloys; brass, phosphor bronze or mild steel if needed).
Disc diameter, thickness, shape and whether single, double or three layers are required.
Quantity and any special edge, rim or gasket requirements.

With this information, we can recommend the most economical and efficient Stainless Steel Filter discs and provide drawings or samples for your confirmation before mass production.
