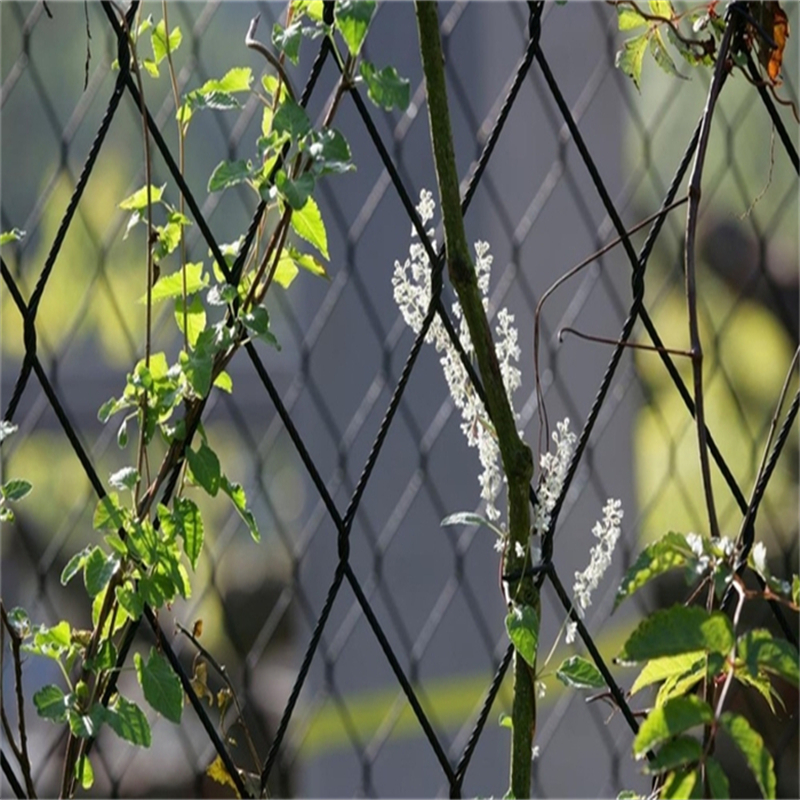

Stainless Steel Green Facades: 5 Powerful Advantages Read

Stainless steel green facades are the signature product of our factory and are designed as long-life vertical greening systems for modern architecture. Using high quality stainless steel wire rope mesh as a plant-supporting layer, these facades form a lightweight second skin in front of the building that improves appearance, thermal comfort and environmental performance.

Our stainless steel rope mesh, also called stainless steel cable mesh, is woven from high-grade AISI 304 L, 316 or 316L wire rope. The material is extremely anti-corrosive, resistant to UV rays and pollution and maintains high strength even in harsh coastal or urban environments, giving stainless steel green facades a service life far beyond ordinary trellis products.

1. What Is a Stainless Steel Green Facade?

A stainless steel green facade is a building surface where plants climb on stainless steel parts such as cables, rods, or mesh.

The steel gives:

Strong support for plants
Long life and high corrosion resistance
A clean, modern look that matches greenery

Green facades help to reduce heat, improve air quality, and make cities more pleasant.

2. Main Types of Stainless Steel Green Facades

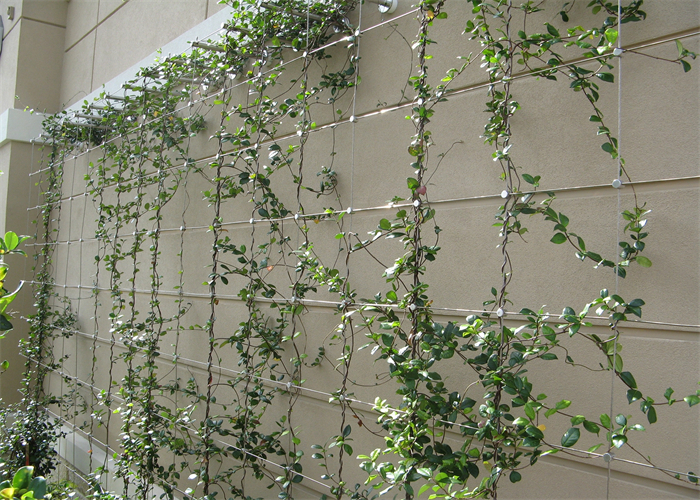

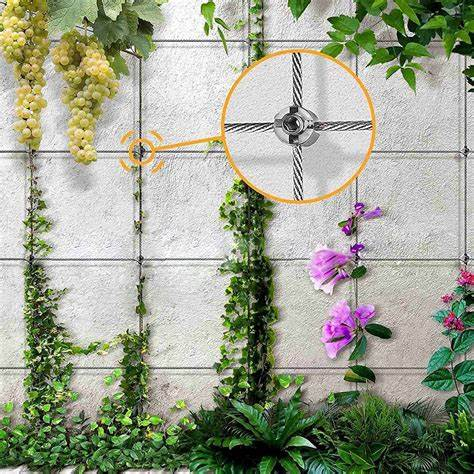

2.1 Cable (Wire Rope) Systems

In cable systems, thin stainless steel cables run vertically, horizontally, or in a grid. Plants such as ivy or climbing jasmine grow along these cables.

Features:

Very light and simple
Looks transparent from a distance
Good for tall, narrow facades

OIP.KGuRHgBG6Y5NbWBgoM9lFAHaHa

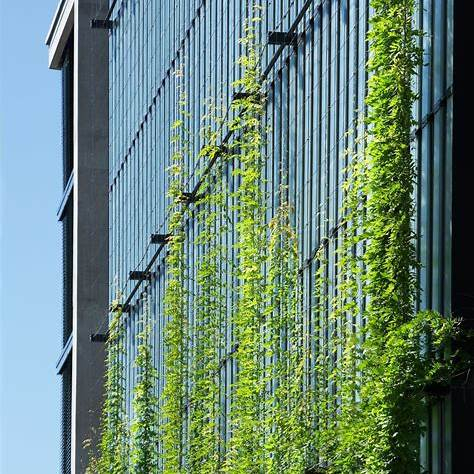

2.2 Rod and Bar Systems

Rod systems use solid stainless steel rods or bars instead of flexible cables.
They are often arranged in straight lines or simple patterns.

Features:

Stiffer than cables
Clean geometric appearance
Good when you want a more “architectural” pattern behind the plants

OIP.tVAqhX-ABMR3G3EW8jaJ4gHaLH

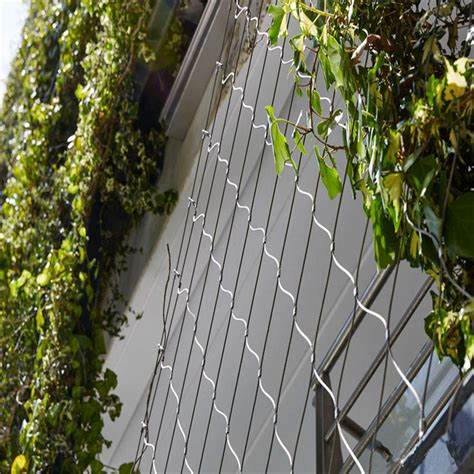

2.3 Mesh and Net Systems

Here, the support is a large stainless steel mesh or net.
The openings in the mesh give many points for plants to grab and climb.

Features:

Can cover large areas and multiple storeys
Wraps easily around curved or irregular facades
Gives a “green curtain” effect when fully grown

OIP.UFGlsJXTxs6wd022WSLSdAHaHa

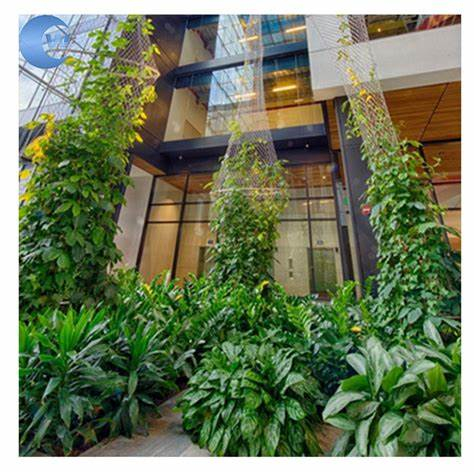

2.4 Framed Trellis Panels

Framed systems use stainless steel frames (usually rectangular) with rods, cables, or mesh inside.
These panels are made in the factory and then fixed to the building.

Features:

Modular: easy to install and replace individual panels
Good for regular grids on facades
Works well for renovations and retrofits

OIP.5_holwPjKBQZ44kF6FB6DwHaHa

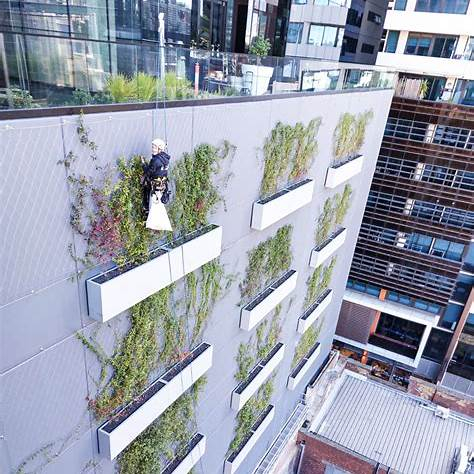

2.5 Planter-Integrated Systems

In these systems, stainless steel planters, brackets, and supports are designed together.
Planters at the base or at each floor supply soil and water, while cables or mesh guide the plants upward.

Features:

Structure + soil + irrigation are one system
Good control of plant health and growth
Suitable for dense greenery or living-wall-like effects

OIP.9h4-PZmh7HxBFaz78mlO7AHaJ4

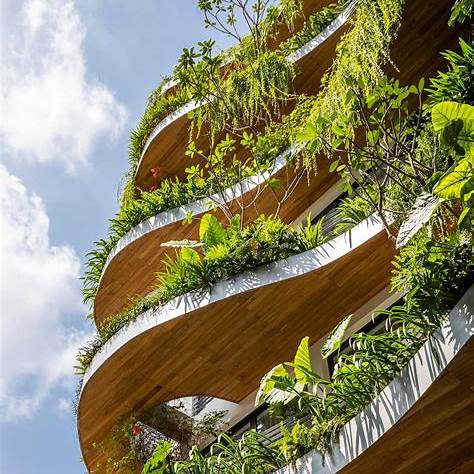

2.6 Balcony and Railing Green Facades

Balcony railings made from stainless steel can be extended with cables, rods, or mesh.
Plants grow from pots on the balcony, forming a vertical green screen.

Features:

Ideal for residential buildings
Provides shade and privacy
Can be added to existing balconies with limited impact on the main facade

OIP.Q2pKaiTYqkbK-tUpzfuXGwHaLH

3. How to Choose a Type

When selecting a stainless steel green facade type, designers usually consider:

Climate and sun: Hot, sunny facades may need denser greenery (mesh or framed panels).
Building height: Tall facades often use cable or mesh systems because they are light.
Plant species: Heavy, woody climbers may need rods or strong mesh; light climbers work with cables.
Desired appearance:
- Minimal, transparent look → cables or rods
- Full green wall → mesh, framed panels, or planter-integrated systems
Maintenance: Modular framed or planter-integrated systems can be easier to maintain and replace.

Advantages of Stainless Steel Green Facades

Our stainless steel green facade cable mesh systems provide the following advantages for architects, contractors and building owners.

Quality material – Made of high quality 316 stainless steel, our range of stainless steel green facades is robust, elegant and lightweight. The system is 100% recyclable, extremely resistant to corrosion and requires little or no maintenance while offering a much longer lifespan than most conventional trellis or wire systems on the market.
Durable structure – The rigid frame and pre-tensioned cable mesh deliver high load capacity and excellent resistance to heavy wind and snow. The mesh can be tensioned in flat or 3-D shapes to follow complex facades, and the stainless steel cables do not absorb radiant heat, so performance remains stable even in hot climates.
Environmental benefits of greening – Stainless steel green facades are engineered to support vigorous climbing plants and vines. The plants produce oxygen, absorb carbon dioxide and dust particles and help mitigate the urban heat island effect, creating a healthier micro-climate around the building.
Thermal control and acoustic insulation – By shading wall surfaces and creating a ventilated air layer between the greenery and the building envelope, stainless steel green facades help regulate indoor temperature, reduce cooling energy consumption and improve acoustic comfort by diffusing and absorbing external noise.

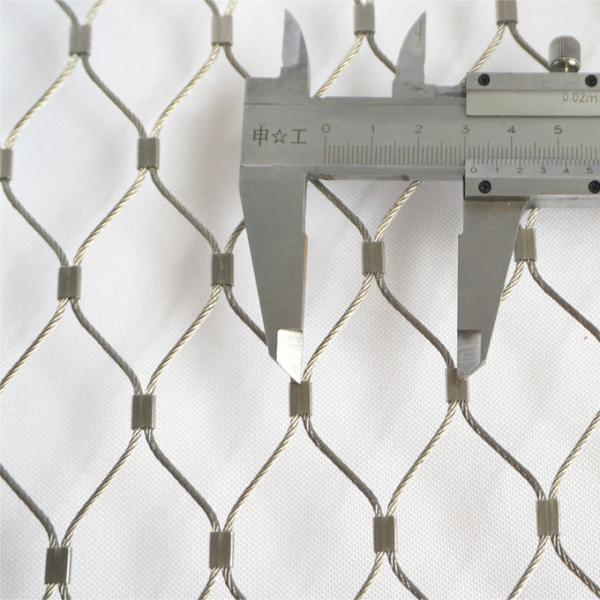

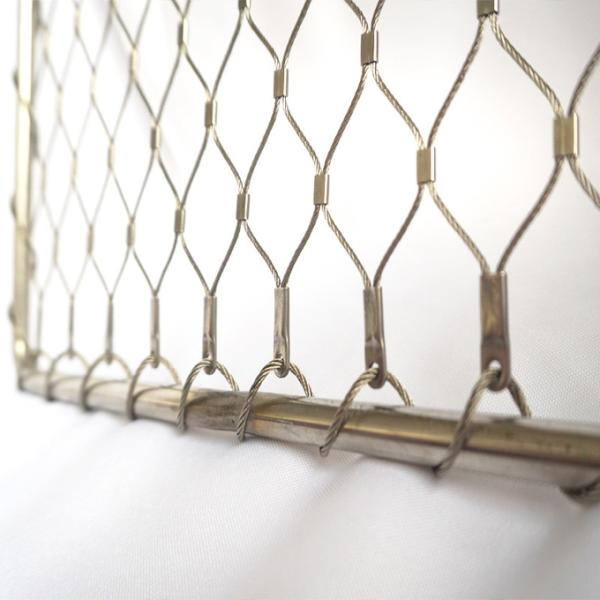

Details of Stainless Steel Green Facade Rope Mesh

The stainless steel rope mesh for green facades is supplied as prefabricated panels or custom-made pieces according to project drawings. The flexible diamond mesh deforms slightly under plant weight but remains stable and safe, making it suitable for both small garden walls and multi-storey building elevations.

Product Name	Stainless steel wire rope mesh 100 × 100 mm cable mesh green plant climbing trellis wall mesh for garden and facade
Material	High grade AISI 304, AISI 316, 316L stainless steel
Wire Rope Thickness	1.5 mm, 1.6 mm, 2.0 mm, 2.4 mm, 3.0 mm
Mesh Aperture	Side length from 25 mm to 200 mm or customized larger apertures
Type	Plant-climbing wire rope mesh in ferruled type as standard (knotted type on request)
Stainless steel green facade mesh shape	Rhombus (diamond) mesh with a typical mesh angle of 60°

Parameters

Specification of stainless steel green facades
Code	X (mesh width)	Y (mesh height)	S (stand-off)	Suitable plant types	Border style
1	100 mm	173 mm	80 mm	Slow-growing vines and tendril climbers	Cable border or tubular frame
2	160 mm	208 mm	80 mm	Slow-growing vines and tendril climbers	Cable border or tubular frame
3 – stainless steel green facade	240 mm	415 mm	120 mm	Slow-growing vines and tendril climbers	Cable border or tubular frame
4	300 mm	519 mm	160 mm	Slow-growing vines and tendril climbers	Cable border or tubular frame

Application of Stainless Steel Green Facades

Stainless steel green facades can be used on new buildings or retrofits and are suitable for residential, commercial and public projects. They provide a living, protective and decorative layer that improves the building performance and the surrounding environment.

The metal mesh plant-climbing net is corrosion-resistant, non-rusting, high in tensile strength and resistant to wind, frost, rain and snow, so it does not require frequent maintenance even on high facades.
The wire rope plant-climbing net has excellent flexibility, clear visibility through the mesh, good flame resistance and tear resistance and offers a long service life.
The stainless steel wire mesh is visually attractive and high-end, enhancing the overall quality and image of plazas, office buildings, shopping malls, parking structures and transport hubs.
Stainless steel green facades are environmentally friendly, contain no harmful chemical coatings and can be reused or recycled at the end of the project life.
Complete specifications and fully customized sizes are available to match different facade heights, widths, plant species and architectural concepts.

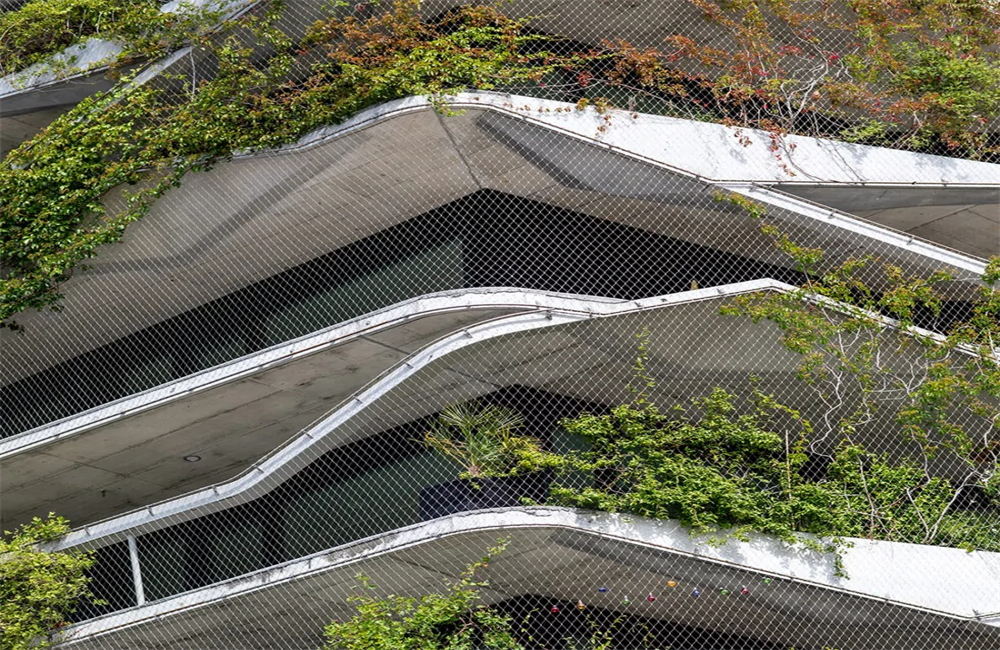

Detailed Images of Stainless Steel Green Facade

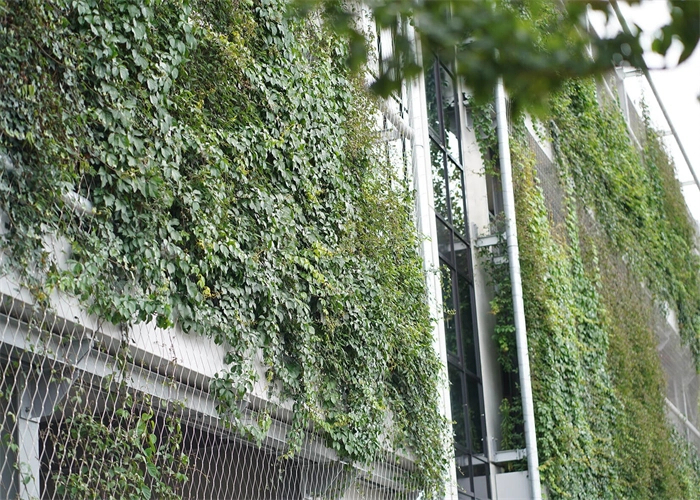

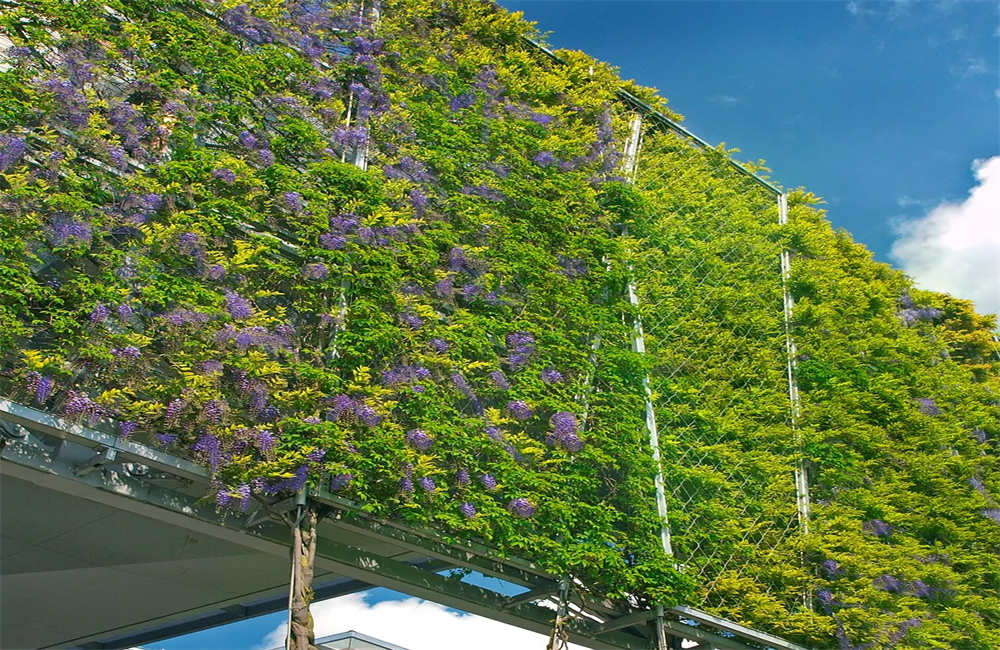

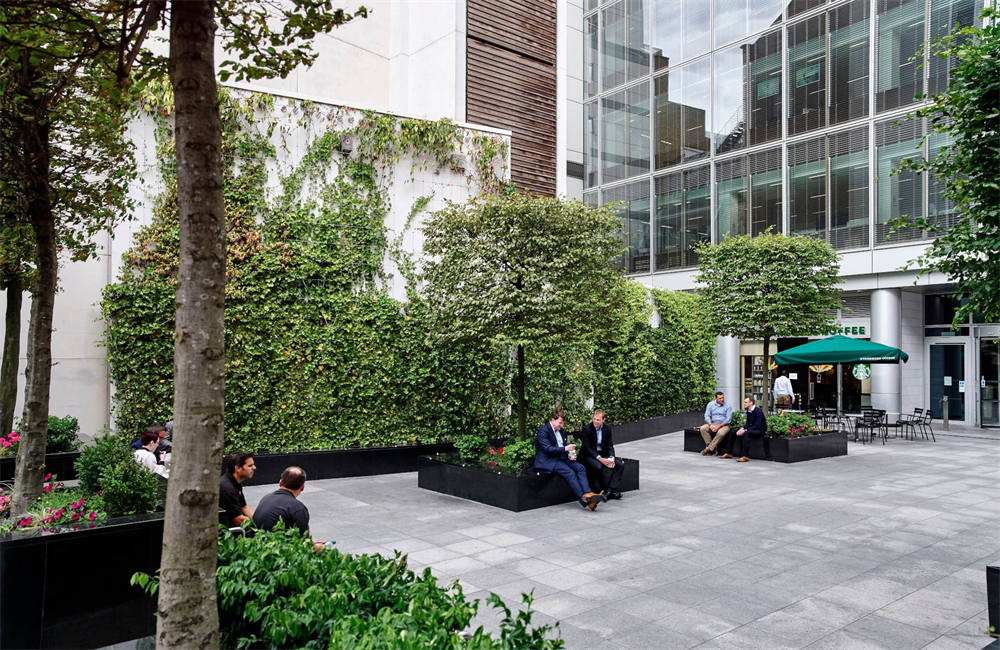

The following images show typical installations of stainless steel green facades, including cable borders, tubular frames and full-height planting systems used on courtyards, atriums and exterior walls.
