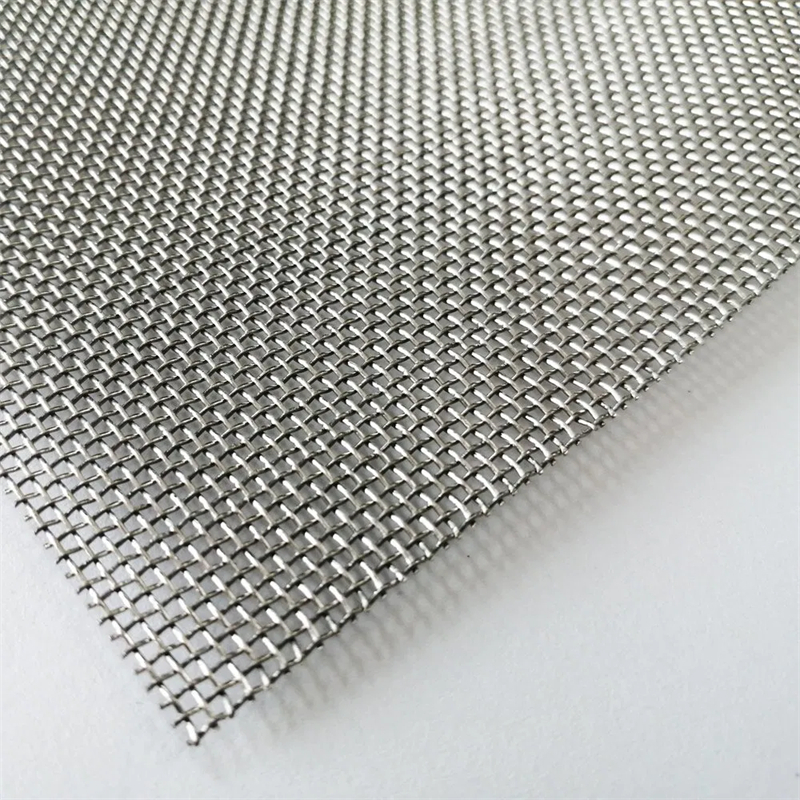

What Is Stainless Steel Mesh?
Stainless steel mesh (also called stainless steel wire mesh or stainless steel cloth) is an ideal filter medium when precise retention, excellent corrosion resistance, and long service life are required. It offers problem-free screening, is easily cleanable, and maintains dimensional stability under heat and load.
- Filtration grade: from 3 μm up to 10 mm (micron-level to coarse screening).
- Fineness: space wire weaves can be produced down to about 5 μm aperture.
- Weave options: plain weave, twill weave, Dutch weaves (plain/twill/reverse), and five-heddle.
- Cleanability: products can be supplied ultrasonically cleaned on request.
Product Description
Materials: stainless steel (201, 202, 304, 304L, 316, 316L, 321, 430), plain steel, brass, copper.
Filtration grade range: 3 μm – 10 mm. Ultrasonic cleaning available for all products upon request.
Weave styles: plain (standard), twill (on request), single-strand and multi-strand options.
Structures: single-layer mesh, multi-layer laminate, combined filter packs, and mesh with rims/frames.
Rims/Frames: stainless steel or aluminium.
Applications: plastics and rubber extrusion, chemical fiber filtration, hot-melt adhesive, chemical processing, mining, pulp & paper, and general screening.
Product Display
Weave Choices & Performance
Choosing the right weave is central to how a stainless steel mesh performs—its flow rate, dirt-holding capacity, surface finish, and mechanical strength—while complementary finishes like powder coating on surrounding frames or guards can reduce glare, provide color coding, and protect carbon-steel supports.
1) Square/Rectangular Mesh (Plain or Twill)
- Range: 1–635 mesh/inch (square openings common for screening and general filtration).
- Wire diameter: approx. 0.0008″–0.08″ (0.02–2.03 mm).
- Open area: approx. 25%–84.6% across the series.
- Weight: approx. 2.53–41.1 lb per 100 sq ft, depending on mesh and diameter.
2) Dutch Weaves (Fine Filtration)
For micron-level retention with high mechanical integrity, select Dutch weaves:
| Weave Type | Typical Mesh (warp × weft) | Wire Diameter (warp × weft) | Absolute Filtration (μm) | Nominal Filtration (μm) |
|---|---|---|---|---|
| Plain Dutch Weave | 8 × 85 — 80 × 400 | 0.014″ × 0.0126″ — 0.0049″ × 0.0028″ | ~318–340 → ~43–48 | ~250–255 → ~35–40 |
| Twill Dutch Weave | 20 × 250 — 500 × 3200 | 0.0098″ × 0.0079″ — 0.0015″ × 0.0010″ | ~110–120 → ~8–9 | ~98–105 → ~2–3 |
Note: Ranges above represent typical capability envelopes across the family; specific items are defined by a single mesh count, wire size, and verified retention value.
Standard Sizes & Tolerances
| Material Options | Stainless steel 201/202/304/304L/316/316L/321/430; plain steel; brass; copper |
|---|---|
| Standard Roll Width | 1 m — 48″ |
| Standard Roll Length | 30 m (100′) |
| Fine Mesh (hole size) | 0.5 mm down to 0.025 mm |
| Coarse Mesh (hole size) | 2 mm down to 0.5 mm |
| Heavy Duty (hole size) | 10 mm down to 2 mm |
Custom widths, cut panels, discs, multilayer laminates, and rimmed filters are available. Tight tolerances can be specified for aperture, thickness, and flatness to suit demanding processes.
Details table Stainless steel wire mesh cloth
| MaterialSS wire | SS wire 201, 304, 304L, 316, 316L, 431, 321 347 etc. |
| Weave style | plain woven wire mesh |
| Application | screen filters woven wire mesh |
| Mesh Count | 1×1-635x635mesh/inch, Plain weave wire mesh can be woven up to 500 mesh. Twill weave wire mesh can be woven from 30 to 635 mesh. |
| Thread Diameter | 0.008-0.08inch (0.0203-2.03mm) |
| Mesh Opening | 0.0008-0.92inch(0.0203-23.37mm) |
| Hole style | square |

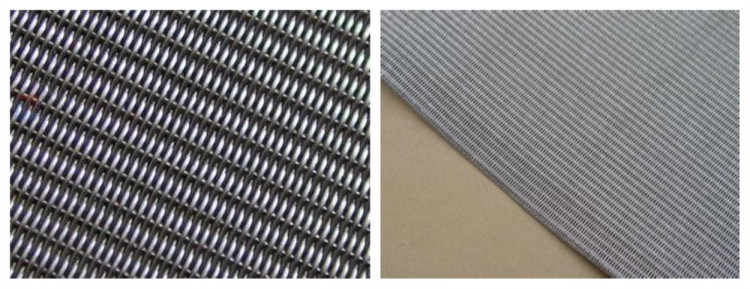

Plain weave Stainless steel wire mesh cloth
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight | ||
|---|---|---|---|---|---|---|
| Mesh Acount | Inch | mm | inch | mm | % | LB/100SQfoot |
| 10X10 | 0.02 | 0.51 | 0.08 | 2.03 | 64 | 26.1 |
| 20X20 | 0.02 | 0.508 | 0.03 | 0.76 | 36 | 55.2 |
| 30X30 | 0.013 | 0.33 | 0.0203 | 0.52 | 37.1 | 34.8 |
| 50X50 | 0.009 | 0.229 | 0.011 | 0.28 | 30.3 | 28.4 |
| 60X60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 | 23.7 |
| 70X70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 | 20.8 |
| 80X80 | 0.0065 | 0.165 | 0.006 | 0.15 | 23 | 23.2 |
| 100X100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 | 8.3 |
| 200X200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 | 6.2 |
| 300X300 | 0.0051 | 0.0381 | 0.0018 | 0.0457 | 29.7 | 3.04 |
| 400X400 | 0.001 | 0.0254 | 0.0015 | 0.37 | 36 | 3.3 |
| 500X500 | 0.001 | 0.0254 | 0.001 | 0.0254 | 25 | 3.8 |
| Other size customized | ||||||

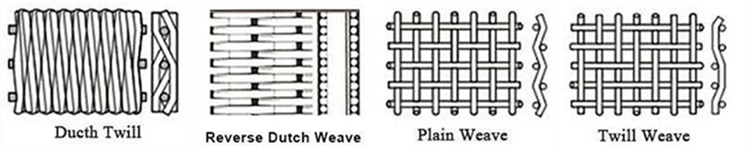

Detais Woven Wire Mesh stainless steel
| Type | Mesh/Inch | Wire diameter (inch) | Absolute Filtration Finess μm | Nominal Filtration Finess μm |
| Plain Dutch Weave Wire Mesh | 8 × 85 – 80 × 400 | 0.014” × 0.0126” – 0.0049” × 0.0028” | 318-340 to 43-48 | 250-255 to 35-40 |
| Twill Duntch Weave Wire Mesh | 20 × 250 – 500 × 3200 | 0.0098” × 0.0079” – 0.0015” × 0.0010” | 110-120 to 8-9 | 98-105 to 2-3 |
| Packaging Details | inner kraft, outside plastic cloth, put into wooden pallet or case |
| Application | Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets. |

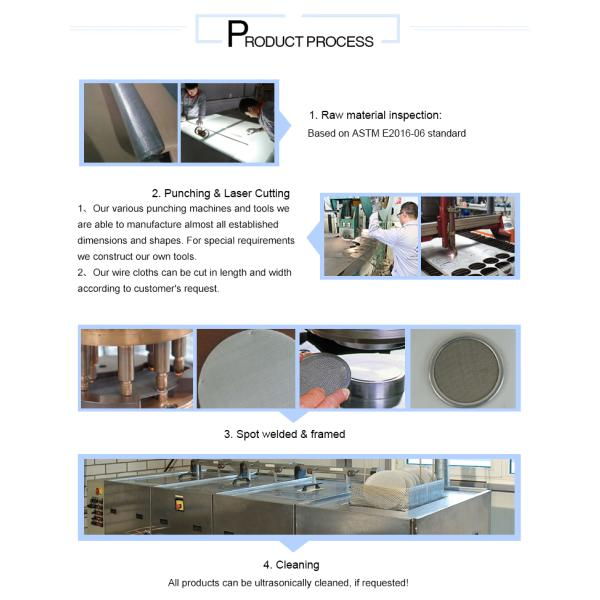

Manufacturing Process
- Wire preparation: drawing, annealing, and cleaning for consistent diameter.
- Weaving: automatic looms for plain/twill; specialized looms for Dutch and five-heddle structures.
- Post-treatment: heat setting, calendaring, ultrasonic cleaning.
- QA: mesh count, aperture, thickness, flatness, and retention testing.
Packaging & Shipping
- Packaging details: inner kraft + outer plastic cloth; packed on wooden pallet or case.
- Delivery time: typically ~5 days for stock materials.
- Export markets: USA, EU, Japan, and others.
Applications of Stainless Steel Mesh
- Filters & sieves: from micron-retention Dutch weaves to coarse safety screens.
- Chemical fiber & polymer melt filtration: multilayer packs with stainless rims.
- Mining & aggregate: wear-resistant screens and protective guards.
- Paper & pulp: dewatering, process screening, and contaminant removal.
- General industry: ventilation guards, EMI/RFI shielding (with copper/brass options), lab sieving.
Technical Data (Quick Reference)
| Usage | Material | Woven Style | Mesh Count | Wire Diameter |
|---|---|---|---|---|
| Filters, sieves, chemical industry, mining, paper-making, etc. | SS 201/202/304/304L/316/316L/321/430; brass; copper; plain steel | Plain, Twill, Dutch Twill, Reverse Dutch, Five-Heddle | 1–635 mesh/inch | 0.0008″–0.08″ (≈0.02–2.03 mm) |
Note: For exact item selection, specify mesh/inch, wire diameter, material grade, width/length, and required retention (absolute/nominal).
Why Choose Stainless Steel Mesh?
- Corrosion resistance: 304/304L for general service; 316/316L for chloride or marine environments.
- Thermal stability: maintains aperture and strength at elevated temperatures.
- Cleanability: withstands solvents, steam, back-flushing, and ultrasonic cleaning.
- Durability: long life and consistent performance reduce downtime and replacement cost.
- Sustainability: recyclable materials and long service intervals.
How to Order
- Define material grade (304/304L/316/316L/…)
- Choose weave (plain, twill, Dutch, reverse Dutch, five-heddle)
- Specify mesh count & wire diameter (or target retention/opening)
- Provide dimensions (roll width × length or cut sizes/discs)
- Select structure (single layer, multilayer laminate) and rim/frame (stainless/aluminium) if needed
- Request cleaning (e.g., ultrasonic) and documentation (material certificates) as required
- Confirm packaging (kraft + plastic cloth; pallet or case) and shipping terms
