stainless steel rope mesh for window 10 Critical Insights

stainless steel rope mesh for window is a flexible, high-performance stainless steel cable net system designed to protect openings without blocking light or views. Using marine-grade stainless steel wire rope and precision ferrules, stainless steel rope mesh for window combines low weight, very high strength and excellent transparency. It is widely used on high-rise windows, balcony windows, staircase windows, school and hospital openings, pet-safe windows and anti-fall zones where glass alone is not enough. Typical finished Balustrade cable mesh sizes for stainless steel rope mesh for window range from 600 × 800 mm and 900 × 1200 mm up to 1200 × 1500 mm and 1500 × 1800 mm, and can be joined to cover full curtain-wall bays. When you specify it correctly, it quietly protects children, pets and property day after day; when you ignore a few critical warnings, stainless steel rope mesh for window becomes the hidden weak point that turns a small mistake into a serious loss.

What Is stainless steel rope mesh for window?

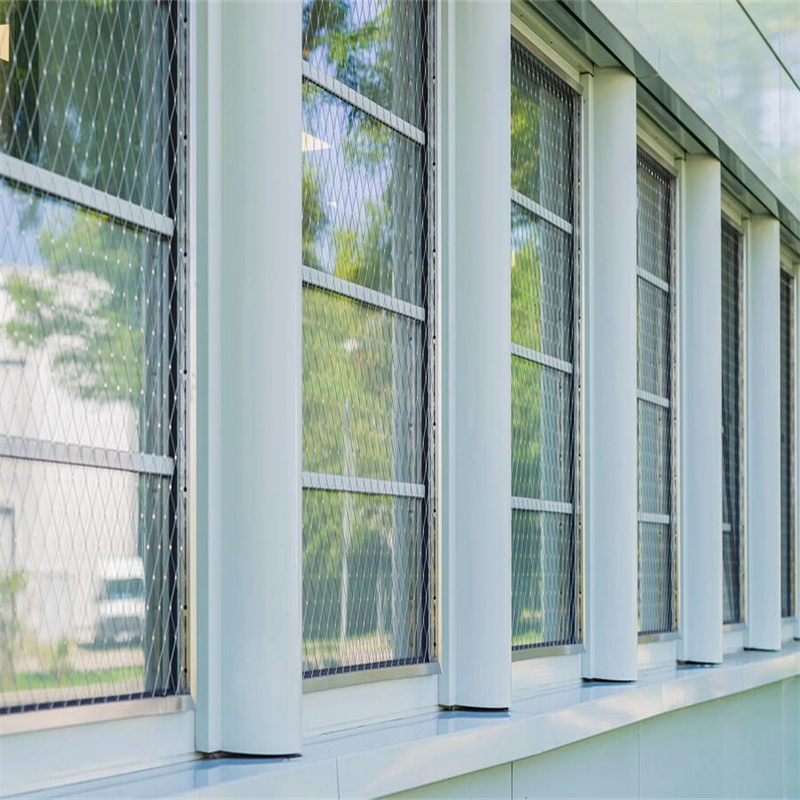

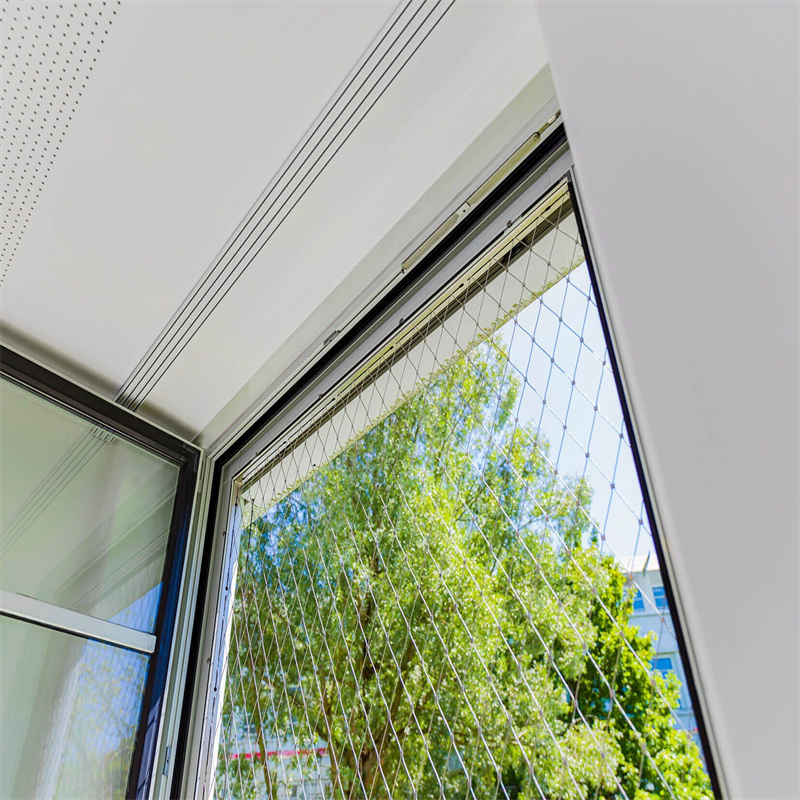

stainless steel rope mesh for window is made from high-tensile stainless steel wire rope woven or ferrule-pressed into a flexible mesh, then tensioned inside or outside the window frame. The diamond or square apertures deform elastically under load, distributing forces through the cable network and back into the side frames and anchors. This allows the window opening to remain bright and open while creating an invisible safety shield. Common module sizes include 600 × 800 mm, 800 × 1000 mm, 900 × 1200 mm, 1000 × 1400 mm, 1200 × 1500 mm and 1500 × 1800 mm, with custom panels made to fit full-height glazing. Typical design parameters include stainless steel wire rope diameters from 1.2–3.0 mm, mesh apertures from 20 × 20 mm up to 150 × 150 mm, rope structures of 7 × 7 and 7 × 19, and material grades AISI 304 / 304L for standard buildings or AISI 316 / 316L for coastal and highly corrosive environments.

Insight #1 – Load path insight that controls real window safety

The first crucial insight is that mesh aperture, wire diameter, mesh angle, window span and anchor spacing together define the real load path of stainless steel rope mesh for window. If the aperture is too large for the chosen wire, or if the mesh is fixed only at the corners, it can deflect excessively under impact, creating a dangerous gap just when you need protection most. Correctly pairing mesh aperture, wire rope diameter and frame spacing gives controlled deflection, high energy absorption and reliable containment of children, pets and debris around every window opening.

Materials, Rope Structures and Corrosion Resistance

stainless steel rope mesh for window is produced from cold-drawn stainless steel wire that is stranded into cables before weaving or ferrule pressing. Two main rope structures are used:
* 7 × 7 – compact and relatively stiff, ideal for small apertures and tight framing around residential windows
* 7 × 19 – highly flexible, ideal for larger window bays, curved façades and curtain-wall applications

For interior and mild exterior climates, AISI 304 / 304L stainless steel provides reliable durability. For coastal façades, seaside apartments and industrial atmospheres, AISI 316 / 316L with molybdenum is preferred to resist pitting and crevice corrosion around window sills, drainage zones and shading devices.

Detail #2 – Material selection detail that blocks hidden window-frame corrosion

A critical detail is matching stainless steel grade to the real environment of the window. Using AISI 304 mesh on a sea-facing façade or above chlorinated pools allows corrosion to start inside ferrules and at low-drain corners where water collects. This hidden attack slowly weakens the wire and can stain stone or aluminium sills. Upgrading to AISI 316 / 316L for exposed stainless steel rope mesh for window closes this corrosion route and preserves both load capacity and clean appearance for decades.

Specification Table 1 – Residential Child-Safe stainless steel rope mesh for window

These specifications are commonly used for apartments, schools and houses where fall protection and child safety are the primary design angle while keeping views open.

WIRE ROPE DIAMETER	MESH APERTURE	Angle degrees:	Light Transmittance (%)	Material	Nominal Breaking Load (lbs)	WIRE ROPE STRUCTURES
1.2 mm	20 × 20 mm	60°	70%	AISI 304	800	7 × 7
1.2 mm	25 × 25 mm	60°	72%	AISI 304	800	7 × 7
1.5 mm	25 × 30 mm	60°	74%	AISI 304	1,150	7 × 7
1.5 mm	30 × 30 mm	60°	76%	AISI 304	1,150	7 × 7
1.5 mm	30 × 40 mm	60°	78%	AISI 304	1,150	7 × 7
1.6 mm	35 × 40 mm	70°	80%	AISI 304	1,250	7 × 7
1.6 mm	35 × 45 mm	70°	81%	AISI 304	1,250	7 × 7
1.6 mm	40 × 50 mm	70°	82%	AISI 316	1,250	7 × 7
2.0 mm	40 × 60 mm	70°	84%	AISI 316	2,000	7 × 7
2.0 mm	45 × 65 mm	70°	85%	AISI 316	2,000	7 × 7
2.0 mm	50 × 70 mm	70°	86%	AISI 316	2,000	7 × 7
2.0 mm	50 × 80 mm	75°	87%	AISI 316	2,000	7 × 7
2.4 mm	60 × 80 mm	75°	88%	AISI 316	3,100	7 × 7
2.4 mm	60 × 90 mm	75°	89%	AISI 316	3,100	7 × 7
2.4 mm	70 × 100 mm	75°	90%	AISI 316	3,100	7 × 7

Risk #3 – Window-edge risk that exposes children and pets to falls

One serious risk is leaving gaps between stainless steel rope mesh for window and the frame, sill or jamb. Small openings at the bottom or sides can become escape routes for children’s feet, cat paws or dropped objects. Treating the mesh as simple decoration instead of part of the safety system creates this risk. Correctly detailing edge cables and fixing points so the mesh closes tight to every side of the frame removes this risk and keeps the safety envelope continuous.

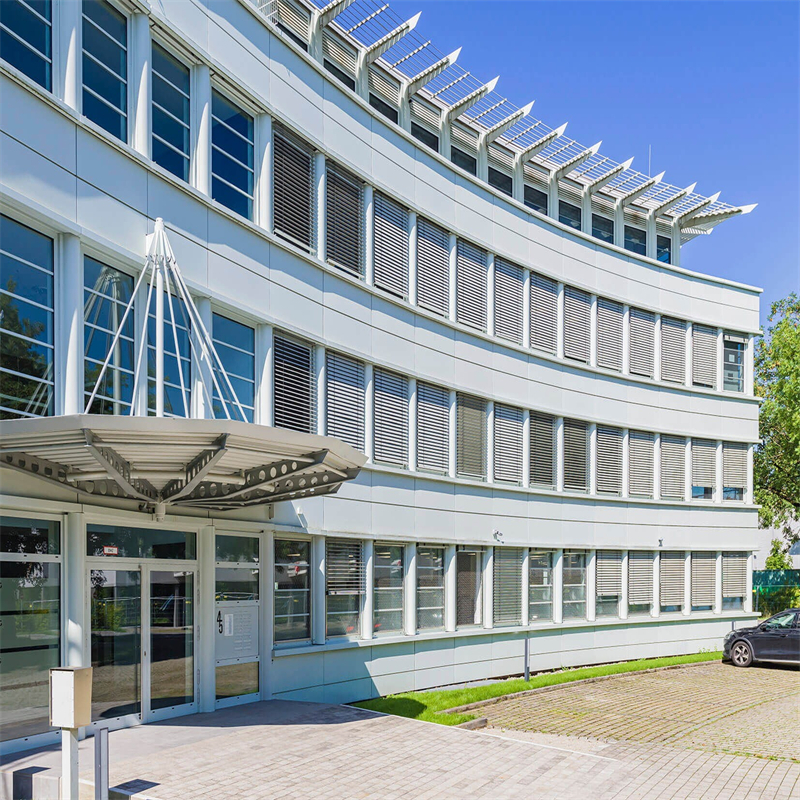

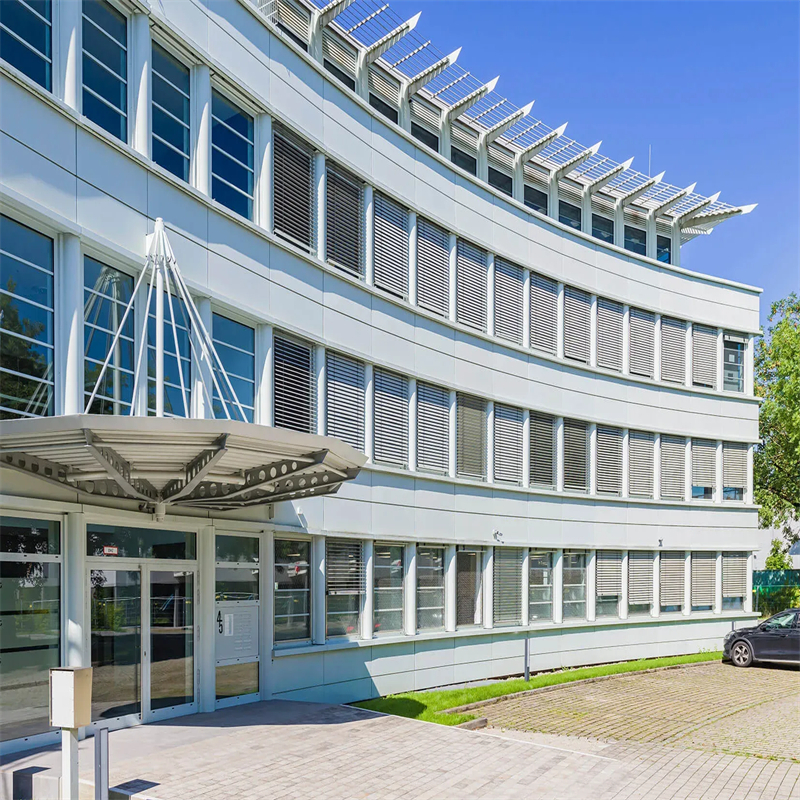

stainless steel rope mesh for window on Balconies and High-Rise Façades

On high-rise apartments, hotels and offices, stainless steel rope mesh for window is often extended across balcony openings and full-height glazing. Here the mesh must resist wind pressure, impact from people leaning or pushing, and occasional maintenance loads. Larger panel sizes such as 900 × 1200 mm, 1000 × 1400 mm, 1200 × 1500 mm and 1500 × 1800 mm are routinely used, with intermediate supports to control deflection.

Specification Table 2 – High-Rise and Balcony stainless steel rope mesh for window

The following combinations are suited to tall buildings and balcony window zones where higher loads are expected.

WIRE ROPE DIAMETER	MESH APERTURE	Angle degrees:	Light Transmittance (%)	Material	Nominal Breaking Load (lbs)	WIRE ROPE STRUCTURES
1.6 mm	40 × 60 mm	70°	82%	AISI 316	1,250	7 × 7
1.6 mm	50 × 70 mm	70°	84%	AISI 316	1,250	7 × 7
2.0 mm	50 × 80 mm	70°	86%	AISI 316	2,000	7 × 7
2.0 mm	60 × 90 mm	75°	87%	AISI 316	2,000	7 × 7
2.0 mm	70 × 100 mm	75°	88%	AISI 316	2,000	7 × 7
2.4 mm	70 × 110 mm	75°	89%	AISI 316	3,100	7 × 7
2.4 mm	80 × 120 mm	80°	90%	AISI 316	3,100	7 × 7
2.4 mm	90 × 130 mm	80°	91%	AISI 316	3,100	7 × 7
3.0 mm	80 × 140 mm	80°	92%	AISI 316	4,600	7 × 19
3.0 mm	90 × 150 mm	80°	93%	AISI 316	4,600	7 × 19
3.0 mm	100 × 160 mm	80°	94%	AISI 316	4,600	7 × 19
3.0 mm	100 × 180 mm	85°	94%	AISI 316	4,600	7 × 19
3.2 mm	110 × 180 mm	85°	95%	AISI 316	5,100	7 × 19
3.2 mm	120 × 200 mm	85°	95%	AISI 316	5,100	7 × 19
3.2 mm	150 × 230 mm	85°	96%	AISI 316	5,100	7 × 19

Warning #4 – Fixing warning around slabs and mullions

For balcony and façade windows, the real danger is not usually the mesh but the way it is fixed. If anchors are undersized, placed too close to slab edges, or mixed with mild-steel brackets without isolation, the system can loosen or crack concrete under repeated loads. This fixing warning is especially serious on high-rise façades. Choosing fully rated stainless steel anchors, verifying edge distances and isolating dissimilar metals keeps stainless steel rope mesh for window firmly connected to the structure.

stainless steel rope mesh for window as Anti-Theft and Pet-Safe Guard

stainless steel rope mesh for window also delivers strong anti-theft and pet-safe performance for ground-floor shops, villas and stair windows. Apertures can be tightened to prevent hand access while still allowing natural ventilation and clear sightlines. For cat-safe and dog-safe windows, medium apertures stop animals from squeezing through or pushing screens out while letting them enjoy the view.

Trap #5 – Aperture trap that lets hands, heads or paws through

A common trap is treating the mesh aperture as a purely visual choice. If stainless steel rope mesh for window is specified with apertures large enough for a child’s head, a cat’s body or a thief’s hand, the system fails its core purpose. Checking local code requirements, the smallest body dimensions in your household and the reach of a human arm before choosing the mesh aperture removes this trap and keeps people, pets and valuables inside and safe.

Specification Table 3 – Security and Pet-Safe stainless steel rope mesh for window

These combinations are often chosen for anti-theft openings, stair windows and pet-protection around sliding or casement windows.

WIRE ROPE DIAMETER	MESH APERTURE	Angle degrees:	Light Transmittance (%)	Material	Nominal Breaking Load (lbs)	WIRE ROPE STRUCTURES
1.5 mm	25 × 25 mm	60°	72%	AISI 316	1,150	7 × 7
1.5 mm	25 × 30 mm	60°	74%	AISI 316	1,150	7 × 7
1.6 mm	30 × 30 mm	60°	76%	AISI 316	1,250	7 × 7
1.6 mm	30 × 40 mm	60°	78%	AISI 316	1,250	7 × 7
1.6 mm	35 × 45 mm	70°	80%	AISI 316	1,250	7 × 7
2.0 mm	35 × 50 mm	70°	82%	AISI 316	2,000	7 × 7
2.0 mm	40 × 50 mm	70°	83%	AISI 316	2,000	7 × 7
2.0 mm	40 × 60 mm	70°	84%	AISI 316	2,000	7 × 7
2.0 mm	45 × 65 mm	75°	85%	AISI 316	2,000	7 × 7
2.4 mm	45 × 70 mm	75°	86%	AISI 316	3,100	7 × 7
2.4 mm	50 × 70 mm	75°	87%	AISI 316	3,100	7 × 7
2.4 mm	50 × 80 mm	75°	88%	AISI 316	3,100	7 × 7
3.0 mm	50 × 90 mm	80°	89%	AISI 316	4,600	7 × 19
3.0 mm	60 × 90 mm	80°	90%	AISI 316	4,600	7 × 19
3.0 mm	60 × 100 mm	80°	91%	AISI 316	4,600	7 × 19

Lesson #6 – Cleaning lesson that keeps light and views clear

Another overlooked lesson is cleaning. If stainless steel rope mesh for window is positioned too close to glazing with no access plan, dust and pollution will accumulate, slowly reducing transparency and creating a neglected look. Designing in simple access from inside or outside, and planning periodic rinse-downs, keeps both the mesh and glass clear so safety never clashes with aesthetics.

Pattern #7 – Impact pattern that reveals weak window designs

Real incidents follow a pattern: a person stumbles, a child leans or a heavy object hits near the centre of a window bay. If stainless steel rope mesh for window is under-tensioned or supported only at wide intervals, the centre will bulge deeply and may even touch or crack the glass. Tensioning the mesh correctly and limiting unsupported spans breaks this failure pattern and turns a potential crisis into a harmless rebound.

Benefit #8 – Visibility benefit that upgrades architecture and safety

One of the strongest benefits of stainless steel rope mesh for window is that it protects without turning your building into a cage. Slender cables and open apertures make the mesh almost invisible at a distance, allowing architects to keep clean lines and generous daylight. At the same time, parents, facility managers and safety officers gain peace of mind knowing there is a robust, tested barrier in front of every risky opening.

Threat #9 – Installation threat you cannot afford to ignore

The most serious threat for stainless steel rope mesh for window systems is poor installation. Under-tensioned panels, incorrectly crimped ferrules, misaligned frames, mixed metals without isolation or cheap anchors introduce hidden defects that only appear during an impact or storm. Especially Threat #9 is the one you cannot afford to ignore: if you skip proper frame design, tension control and hardware selection, you invite sudden loosening, tearing and real loss in the form of injuries, broken glass and costly façade repairs long after the installer has left the site.

Payoff #10 – Long-term payoff and safety reward of stainless steel rope mesh for window

When you specify stainless steel rope mesh for window correctly – matching wire diameter, mesh aperture, window size, material grade, rope structure, anchor layout and installation method to your real building conditions – the payoff is powerful and long-lasting. You gain bright, open windows that are truly safe, protect children, pets and property every day, cut maintenance down to simple cleaning and visual checks, and seamlessly coordinate with stainless steel green facades that use the same cable-mesh technology for climbing plants and shading. Together they give your project a strong safety and image boost while protecting you from the heavy losses caused by overlooked design, detailing and installation mistakes.
