stainless steel rope mesh netting, also called zoo mesh, and stainless steel knitted mesh is made from high tensile stainless steel 304, 316, 304L and 316L. The stainless steel rope construction is 7 × 7 or 7 × 19, and 1 × 7 and 1 × 19 are also available. According to the combination method, stainless steel rope mesh can be divided into stainless steel knotted rope mesh and stainless steel ferrule rope mesh. The former is combined by the ropes winded together. And the latter is combined with the ferrules, which are made up of the same grade of stainless steel.
 |  |  |
Applications Stainless Steel Rope Mesh Netting
Stainless Steel Rope Mesh Netting is commonly used as balustrade and railing infill for balconies, stairs, terraces and atriums. The mesh creates a secure fall-protection barrier while keeping the view open and the structure light and modern.

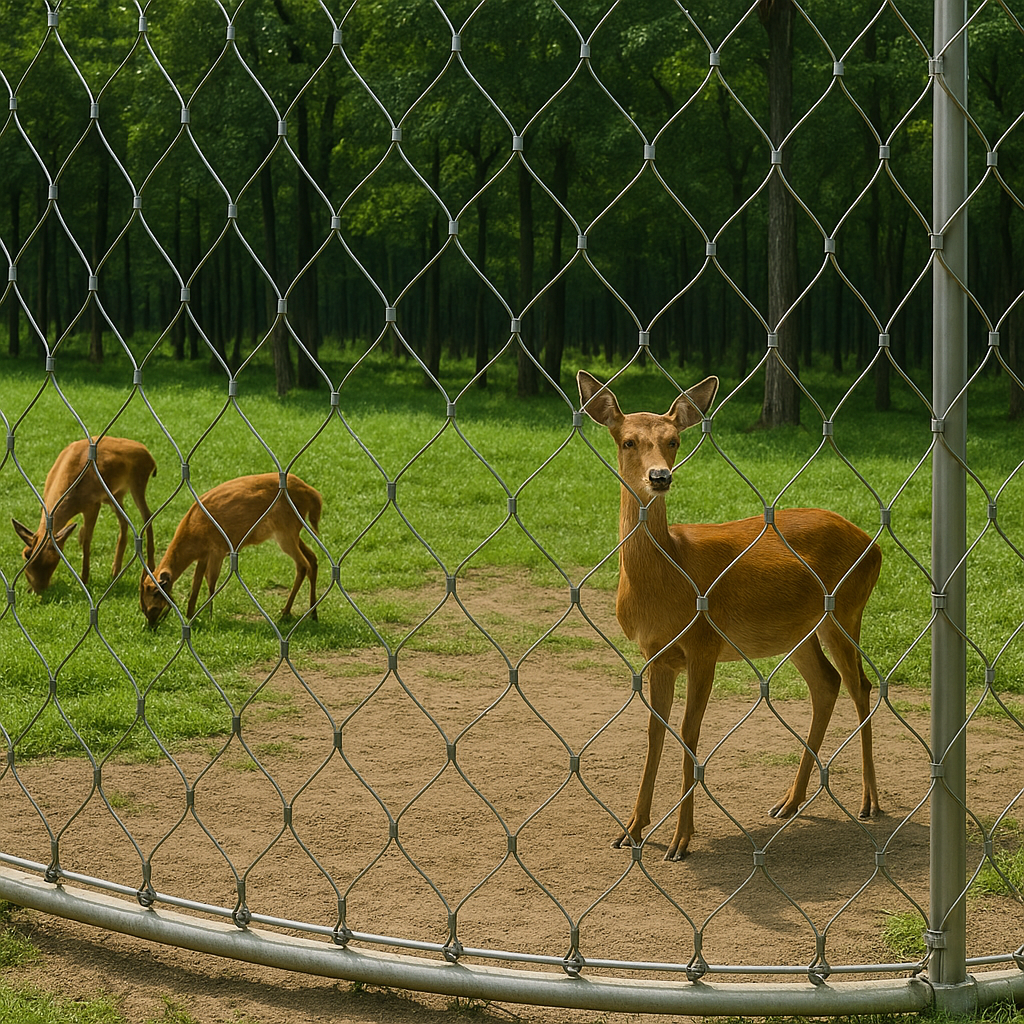

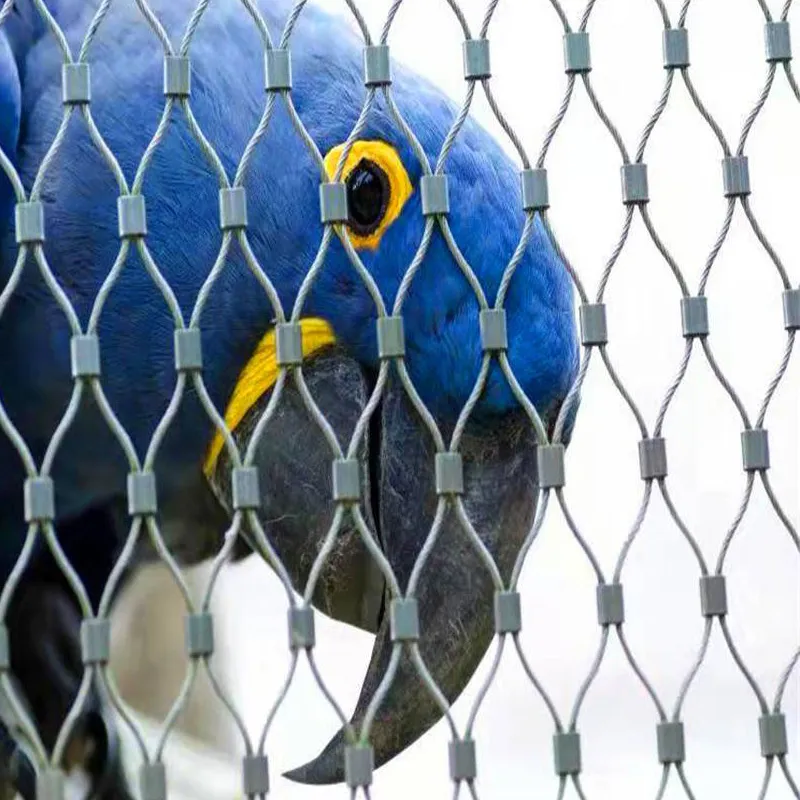

In zoos and animal parks, it is used for aviaries, big cat enclosures, primate enclosures and animal tunnels. The soft, flexible mesh helps protect animals and visitors at the same time. There are no sharp edges, and the elastic structure reduces the risk of injury if animals jump on or hit the mesh.
The product is also applied as safety and fall protection on bridges, platforms, walkways and high-rise buildings. It works as an almost transparent safety net that still allows air and light to pass through.
For green facades and vertical gardens, stainless steel rope mesh acts as a strong climbing support for plants. Installed on building facades or in garden structures, it helps plants grow upward and creates a natural green wall without blocking light or ventilation.
In stadiums and sports areas, rope mesh is used for spectator barriers, stair and corridor railings and perimeter fencing. Its impact resistance and durability make it suitable for public spaces with heavy use.
 |  |  |
Benefits
The main advantage of Stainless Steel Rope Mesh Netting is its high strength and safety. The mesh is made from high-tensile stainless steel wire ropes that can absorb impact and provide reliable fall protection for people and animals.
Because it is produced from stainless steel grades such as AISI 304 / 304L / 316 / 316L, the mesh has excellent corrosion resistance. It performs well in outdoor, humid and even coastal environments and offers a long service life with very little maintenance.
The mesh is flexible and visually light. It can be tensioned over flat, curved or irregular structures, following the shape of the architecture. When installed, it looks almost transparent, so it does not obstruct views or daylight and gives a clean, modern appearance.
Stainless steel rope mesh is also lightweight and easy to install. Compared with solid bars or welded panels, it is easier to transport, cut and fix on site. It can be connected to frames, steel posts or tension ropes using clamps and hardware.
Finally, it is environmentally friendly. Stainless steel is fully recyclable and requires no toxic coatings or painting. This makes the product suitable for projects that focus on sustainability and low maintenance.

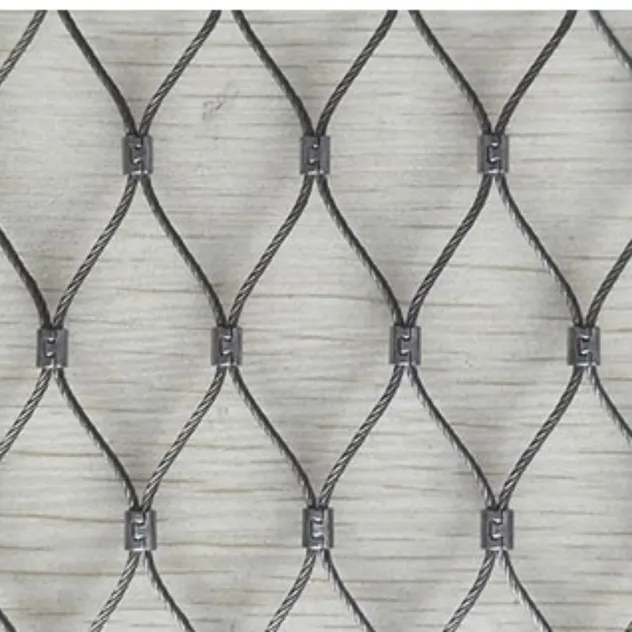

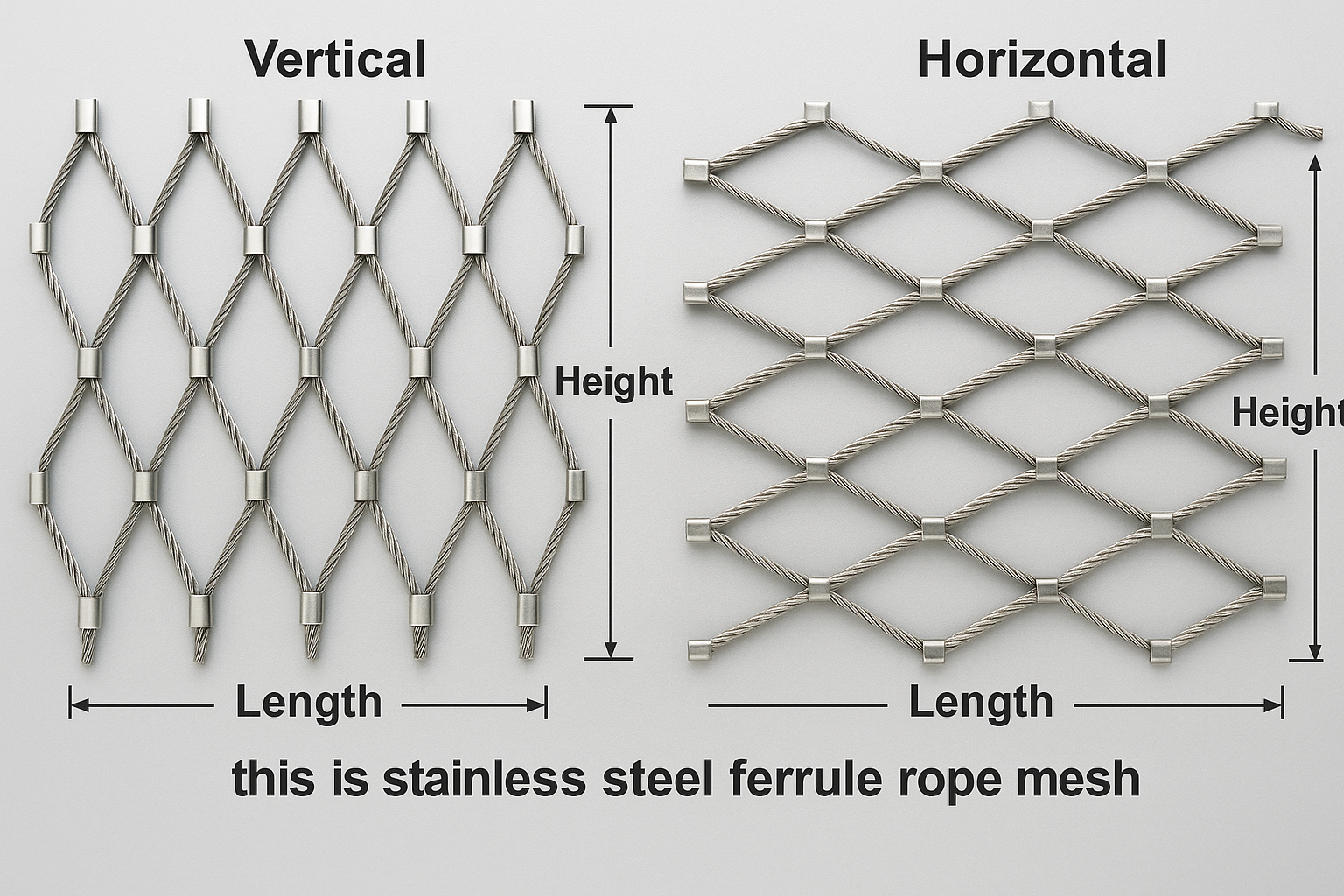

 this is stainless steel ferrule rope mesh |  this is stainless steel ferrule rope mesh |

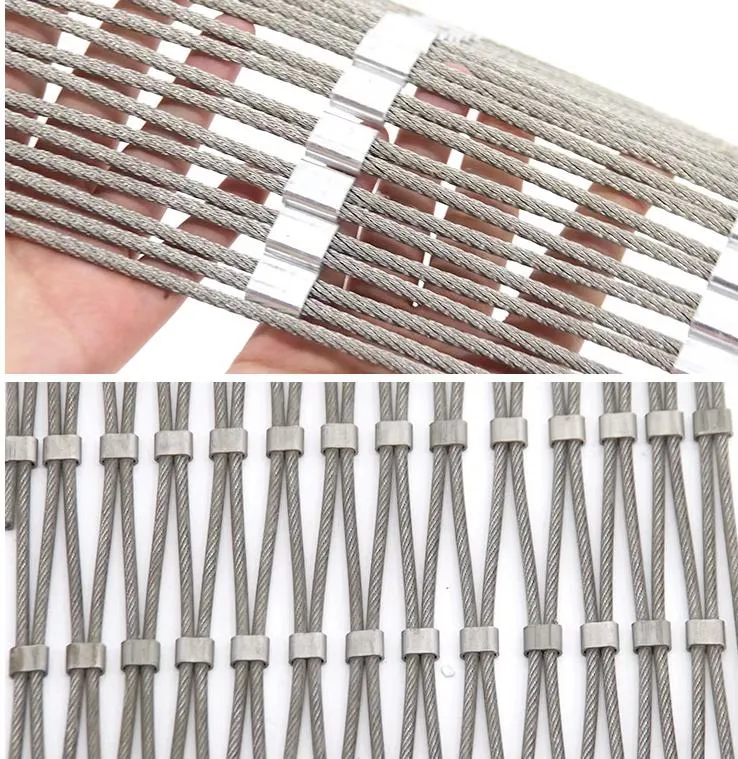

Mesh Orientation stainless steel rope mesh netting
Details show

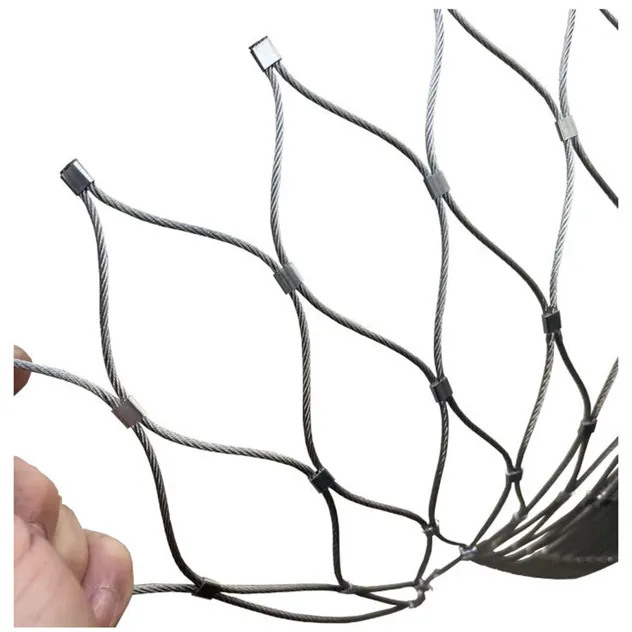

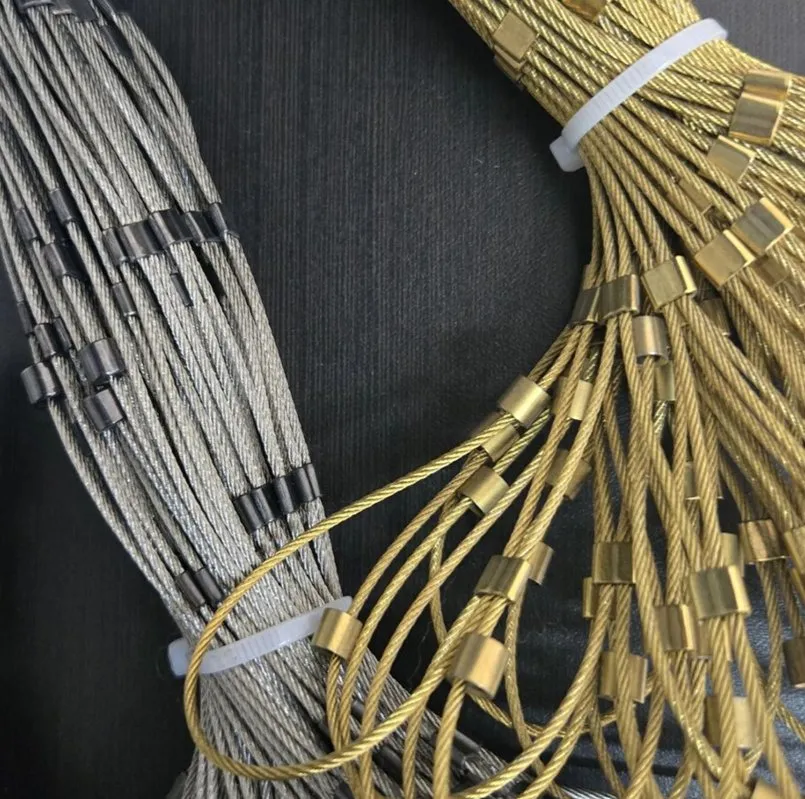

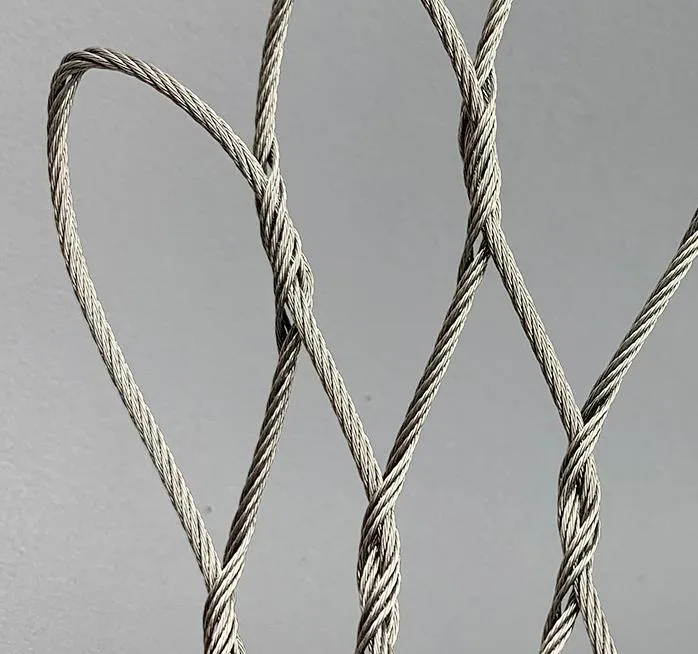

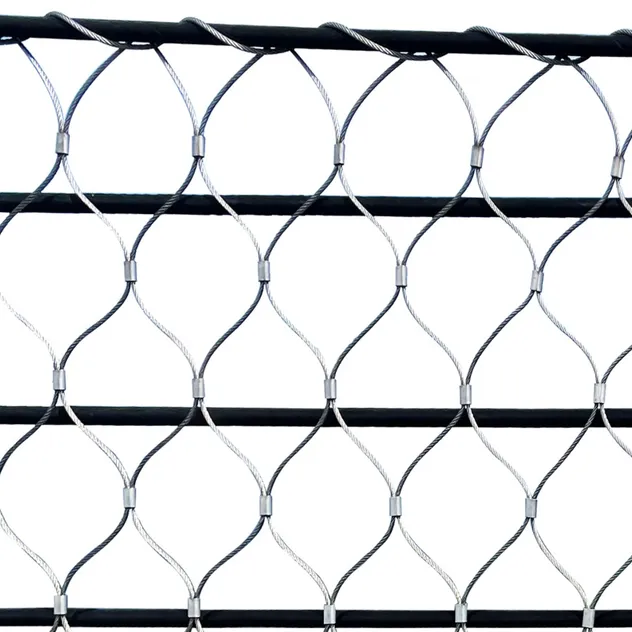

 Ferrule Rope Mesh |  Knotted Rope Mesh |

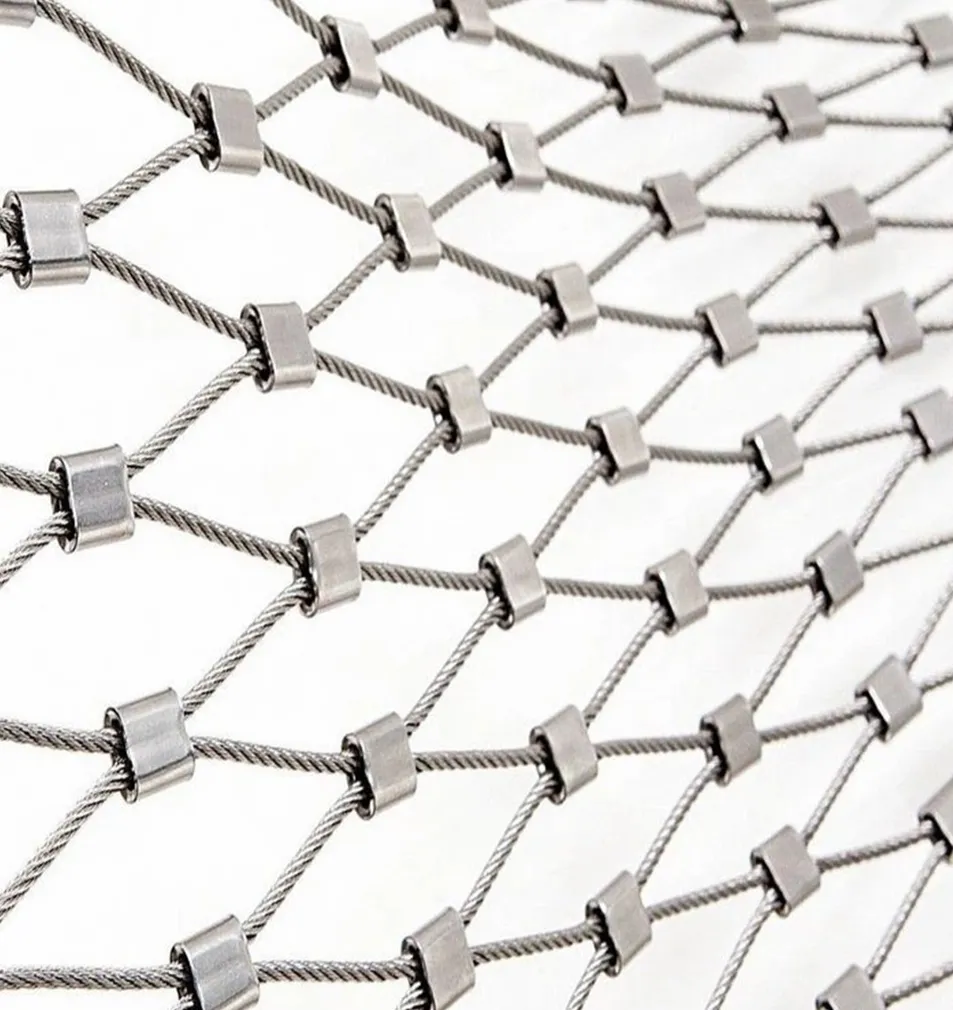

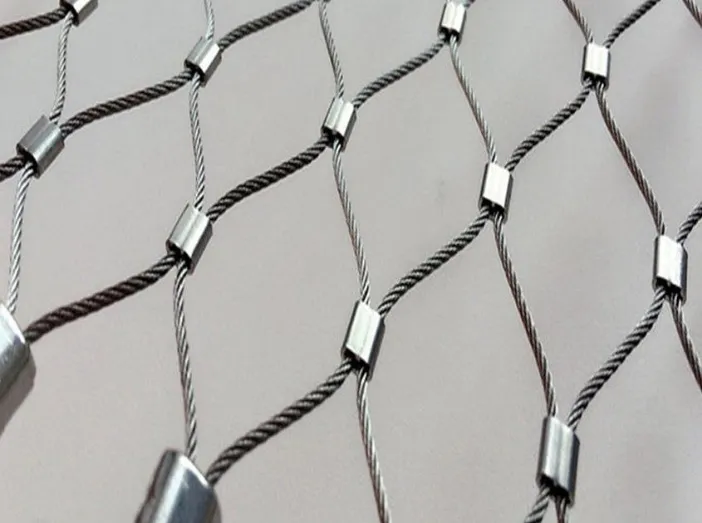

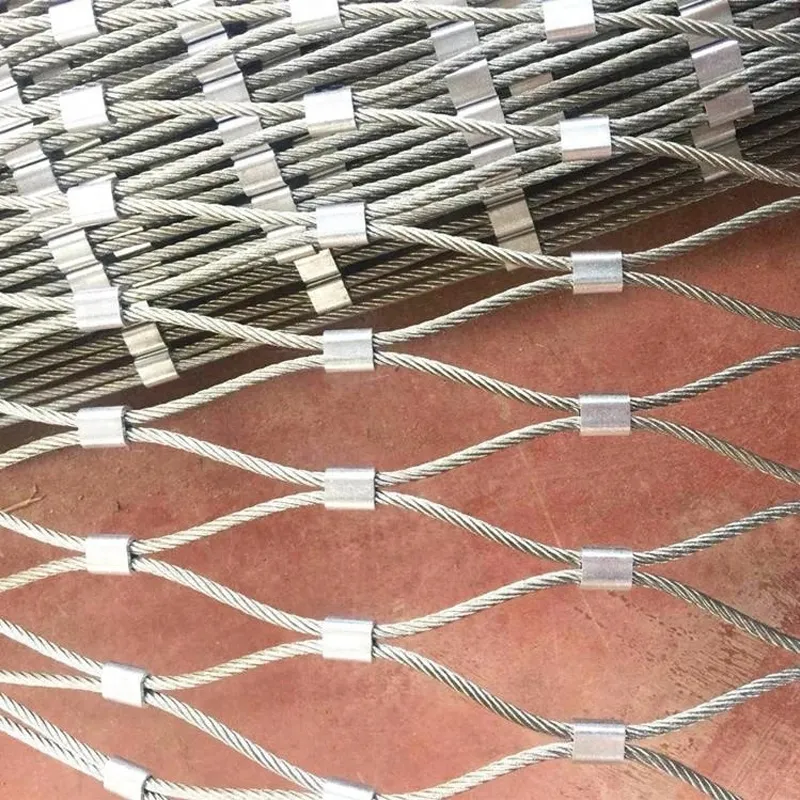

 Ferrule Rope Mesh | Ferrule Rope Mesh |
Specifications Stainless Steel Rope Mesh Netting
1/8″ (3.18 mm) Cable
| Product ID | Wire cable diameter Inch | Wire cable diameter mm | Mesh hole size Inch | Mesh hole size mm | Weight (kg/m2) |
| BM32120 | 1/8″ | 3.18 | 120mm x 120mm | 120mm x 120mm | 0.85 |
| BM32102 | 1/8″ | 3.18 | 4″ x 4″ | 102mm x 102mm | 0.96 |
| BM3290 | 1/8″ | 3.18 | 90mm x 90mm | 90mm x 90mm | 1.10 |
| BM3280 | 1/8″ | 3.18 | 80mm x 80mm | 80mm x 80mm | 1.30 |
| BM3276 | 1/8″ | 3.18 | 3″ x 3″ | 76mm x 76mm | 1.40 |
| BM3260 | 1/8″ | 3.18 | 60mm x 60mm | 60mm x 60mm | 1.65 |
| BM3250 | 1/8″ | 3.18 | 2″ x 2″ | 51mm x 51mm | 2.10 |
3.0 mm Cable
| Product ID | Wire cable diameter Inch | Wire cable diameter mm | Mesh hole size Inch | Mesh hole size mm | Weight (kg/m2) |
| BM30120 | 3.0mm | 3.0 | 120mm x 120mm | 120mm x 120mm | 0.75 |
| BM30102 | 3.0mm | 3.0 | 4″ x 4″ | 102mm x 102mm | 0.84 |
| BM3090 | 3.0mm | 3.0 | 90mm x 90mm | 90mm x 90mm | 0.97 |
| BM3080 | 3.0mm | 3.0 | 80mm x 80mm | 80mm x 80mm | 1.14 |
| BM3076 | 3.0mm | 3.0 | 3″ x 3″ | 76mm x 76mm | 1.23 |
| BM3060 | 3.0mm | 3.0 | 60mm x 60mm | 60mm x 60mm | 1.45 |
| BM3050 | 3.0mm | 3.0 | 2″ x 2″ | 51mm x 51mm | 1.85 |
3/32″ (2.38 mm) Cable
| Product ID | Wire cable diameter Inch | Wire cable diameter mm | Mesh hole size Inch | Mesh hole size mm | Weight (kg/m2) |
| BM24120 | 3/32″ | 2.38 | 120mm x 120mm | 120mm x 120mm | 0.45 |
| BM24102 | 3/32″ | 2.38 | 4″ x 4″ | 102mm x 102mm | 0.54 |
| BM2490 | 3/32″ | 2.38 | 90mm x 90mm | 90mm x 90mm | 0.60 |
| BM2480 | 3/32″ | 2.38 | 80mm x 80mm | 80mm x 80mm | 0.68 |
| BM2476 | 3/32″ | 2.38 | 3″ x 3″ | 76mm x 76mm | 0.72 |
| BM2460 | 3/32″ | 2.38 | 60mm x 60mm | 60mm x 60mm | 0.87 |
| BM2450 | 3/32″ | 2.38 | 2″ x 2″ | 51mm x 51mm | 1.07 |
5/64″ (2.00 mm) Cable Stainless Steel Rope Mesh Netting
| Product ID | Wire cable diameter Inch | Wire cable diameter mm | Mesh hole size Inch | Mesh hole size mm | Weight (kg/m2) |
| BM20120 | 5/64″ | 2.00 | 120mm x 120mm | 120mm x 120mm | 0.30 |
| BM20102 | 5/64″ | 2.00 | 4″ x 4″ | 102mm x 102mm | 0.40 |
| BM2090 | 5/64″ | 2.00 | 90mm x 90mm | 90mm x 90mm | 0.44 |
| BM2080 | 5/64″ | 2.00 | 80mm x 80mm | 80mm x 80mm | 0.48 |
| BM2076 | 5/64″ | 2.00 | 3″ x 3″ | 76mm x 76mm | 0.50 |
| BM2060 | 5/64″ | 2.00 | 60mm x 60mm | 60mm x 60mm | 0.76 |
| BM2050 | 5/64″ | 2.00 | 2″ x 2″ | 51mm x 51mm | 0.80 |
| BM2040 | 5/64″ | 2.00 | 40mm x 40mm | 40mm x 40mm | 1.02 |
| BM2038 | 5/64″ | 2.00 | 1.5″ x 1.5″ | 38mm x 38mm | 1.10 |
1/16″ (1.60 mm) Cable
| Product ID | Wire cable diameter Inch | Wire cable diameter mm | Mesh hole size Inch | Mesh hole size mm | Weight (kg/m2) |
| BM16120 | 1/16″ | 1.60 | 120mm x 120mm | 120mm x 120mm | 0.20 |
| BM16102 | 1/16″ | 1.60 | 4″ x 4″ | 102mm x 102mm | 0.26 |
| BM1690 | 1/16″ | 1.60 | 90mm x 90mm | 90mm x 90mm | 0.30 |
| BM1680 | 1/16″ | 1.60 | 80mm x 80mm | 80mm x 80mm | 0.35 |
| BM1676 | 1/16″ | 1.60 | 3″ x 3″ | 76mm x 76mm | 0.37 |
| BM1660 | 1/16″ | 1.60 | 60mm x 60mm | 60mm x 60mm | 0.45 |
| BM1650 | 1/16″ | 1.60 | 2″ x 2″ | 51mm x 51mm | 0.50 |
| BM1640 | 1/16″ | 1.60 | 40mm x 40mm | 40mm x 40mm | 0.62 |
| BM1638 | 1/16″ | 1.60 | 1.5″ x 1.5″ | 38mm x 38mm | 0.65 |
| BM1630 | 1/16″ | 1.60 | 30mm x 30mm | 30mm x 30mm | 0.90 |
| BM1625 | 1/16″ | 1.60 | 1″ x 1″ | 25.4mm x 25.4mm | 1.10 |
3/64″ (1.20 mm) Cable Stainless Steel Rope Mesh Netting
| Product ID | Wire cable diameter Inch | Wire cable diameter mm | Mesh hole size Inch | Mesh hole size mm | Weight (kg/m2) |
| BM12120 | 3/64″ | 1.20 | 120mm x 120mm | 120mm x 120mm | 0.12 |
| BM12102 | 3/64″ | 1.20 | 4″ x 4″ | 102mm x 102mm | 0.15 |
| BM1290 | 3/64″ | 1.20 | 90mm x 90mm | 90mm x 90mm | 0.17 |
| BM1280 | 3/64″ | 1.20 | 80mm x 80mm | 80mm x 80mm | 0.18 |
| BM1276 | 3/64″ | 1.20 | 3″ x 3″ | 76mm x 76mm | 0.19 |
| BM1260 | 3/64″ | 1.20 | 60mm x 60mm | 60mm x 60mm | 0.22 |
| BM1250 | 3/64″ | 1.20 | 2″ x 2″ | 51mm x 51mm | 0.25 |
| BM1240 | 3/64″ | 1.20 | 40mm x 40mm | 40mm x 40mm | 0.38 |
| BM1238 | 3/64″ | 1.20 | 1.5″ x 1.5″ | 38mm x 38mm | 0.40 |
| BM1230 | 3/64″ | 1.20 | 30mm x 30mm | 30mm x 30mm | 0.45 |
| BM1225 | 3/64″ | 1.20 | 1″ x 1″ | 25.4mm x 25.4mm | 0.55 |
| BM1220 | 3/64″ | 1.20 | 4/5″ x 4/5″ | 20mm x 20mm | 0.73 |
1.00 mm Cable
| Product ID | Wire cable diameter Inch | Wire cable diameter mm | Mesh hole size Inch | Mesh hole size mm | Weight (kg/m2) |
| BM10012 | 1.00 | 1.00 | 12.7mm x 12.7mm | 12.7mm x 12.7mm | 0.80 |
Technical informations
| Packing & Delivery | Wire Structures |
|---|---|

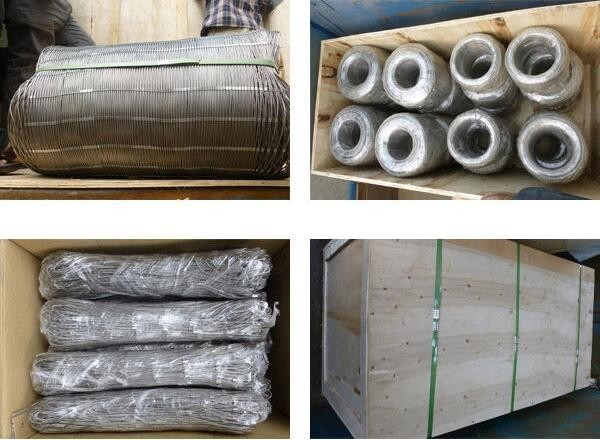

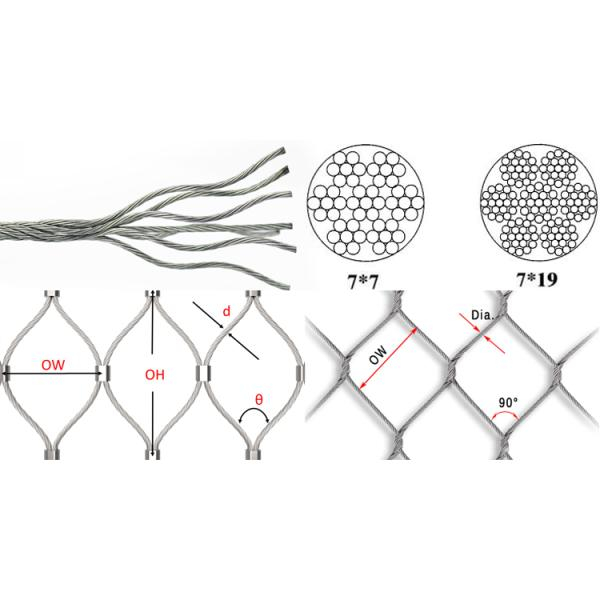

 Stainless steel rope mesh netting packing: |  Typical stainless steel wire rope structures such as 7×7 and 7×19 |
